GATE AE 2022: Aerospace Engineering
Text of page 1
GATE 2022 Aerospace Engineering (AE)

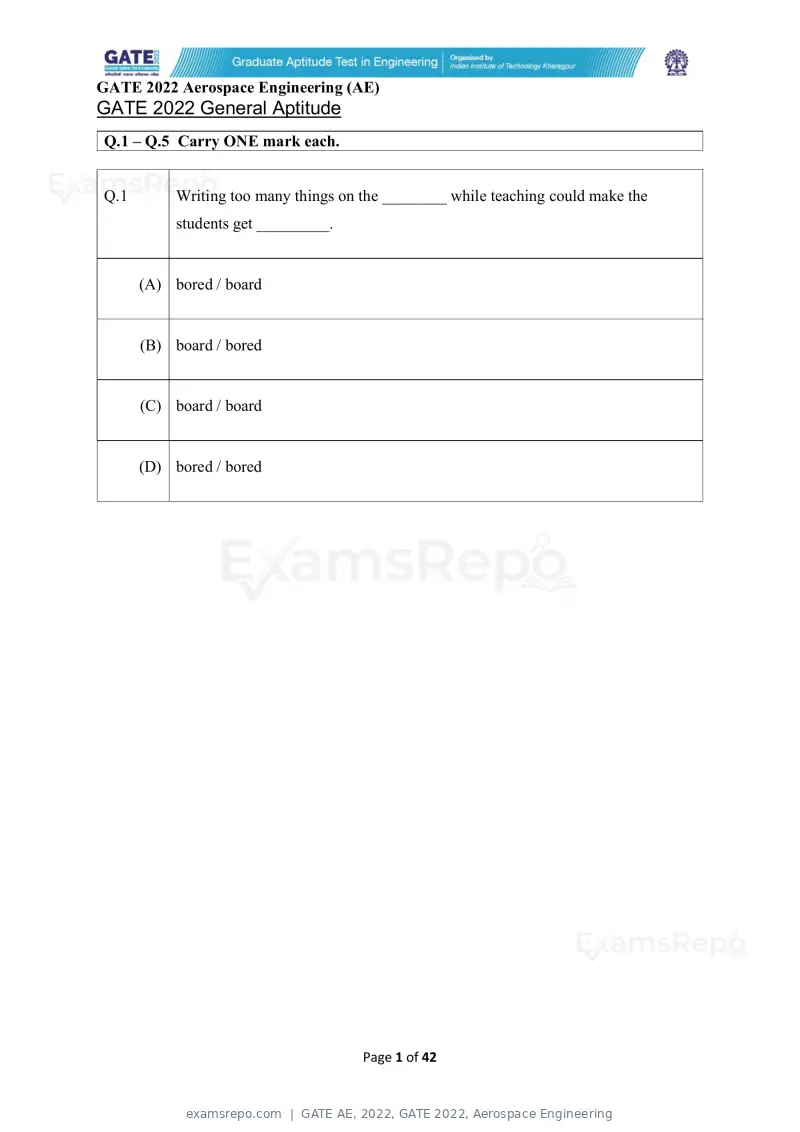

GATE 2022 General Aptitude
Q.1 – Q.5 Carry ONE mark each.
Q.1 Writing too many things on the ________ while teaching could make the
students get _________.
(A) bored / board
(B) board / bored
(C) board / board
(D) bored / bored
Page 1 of 42
Text of page 2
GATE 2022 Aerospace Engineering (AE)

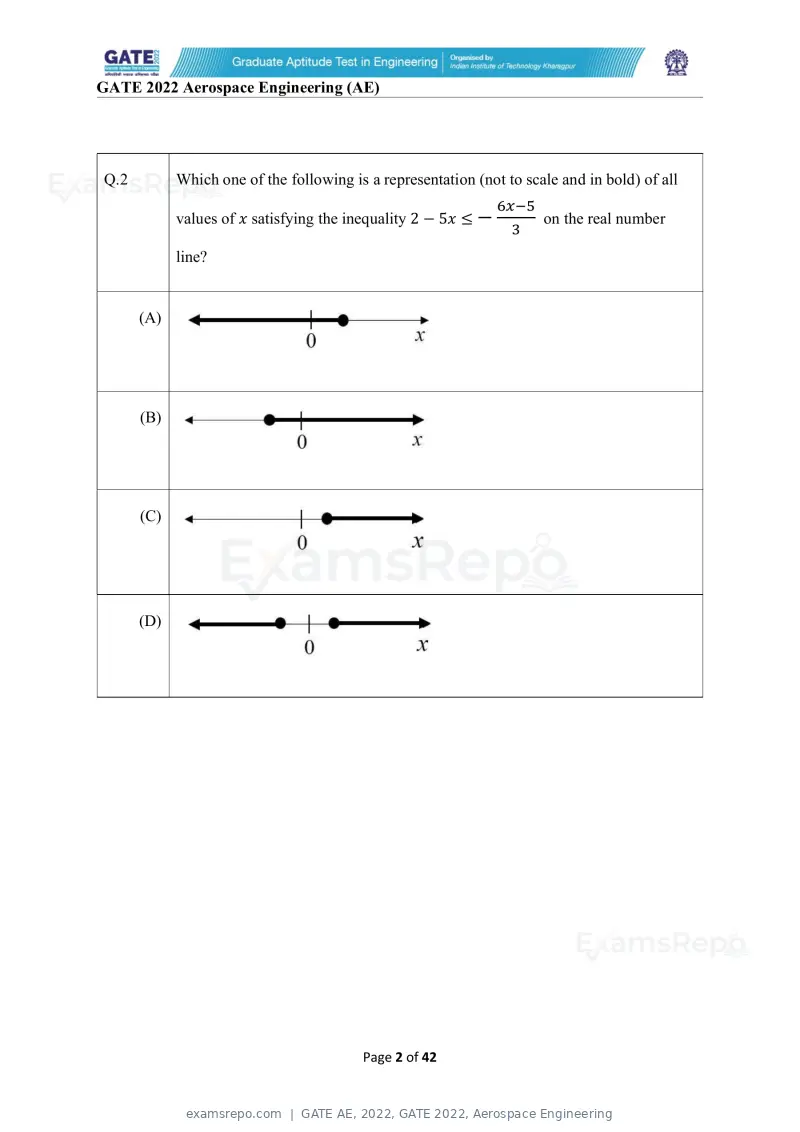

Q.2 Which one of the following is a representation (not to scale and in bold) of all
values of x satisfying the inequality 2 − 5x ≤ − on the real number
line?
(A)
(B)
(C)
(D)
Page 2 of 42
Text of page 3
GATE 2022 Aerospace Engineering (AE)

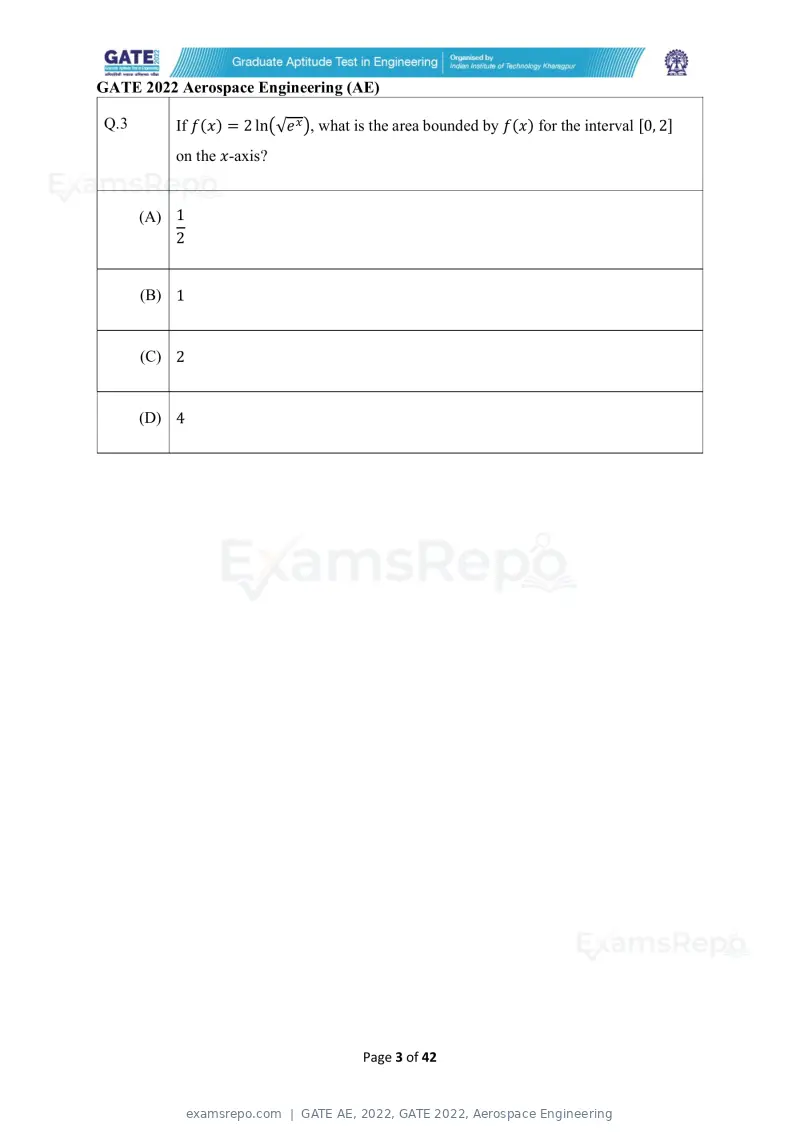

Q.3 If f(x) = 2 ln √e , what is the area bounded by f(x) for the interval [0, 2]
on the x-axis?
(A) 1
2
(B) 1
(C) 2
(D) 4
Page 3 of 42
Text of page 4
GATE 2022 Aerospace Engineering (AE)

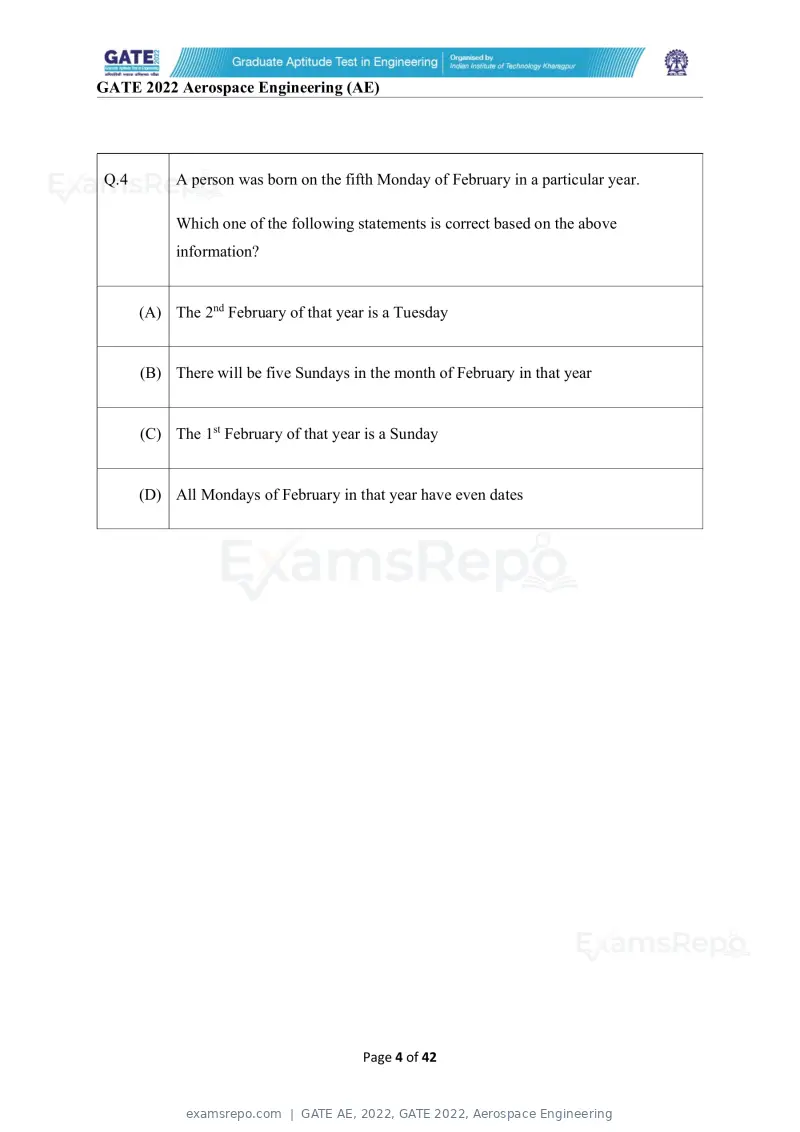

Q.4 A person was born on the fifth Monday of February in a particular year.
Which one of the following statements is correct based on the above
information?
(A) The 2nd February of that year is a Tuesday
(B) There will be five Sundays in the month of February in that year
(C) The 1st February of that year is a Sunday
(D) All Mondays of February in that year have even dates
Page 4 of 42
Text of page 5
GATE 2022 Aerospace Engineering (AE)

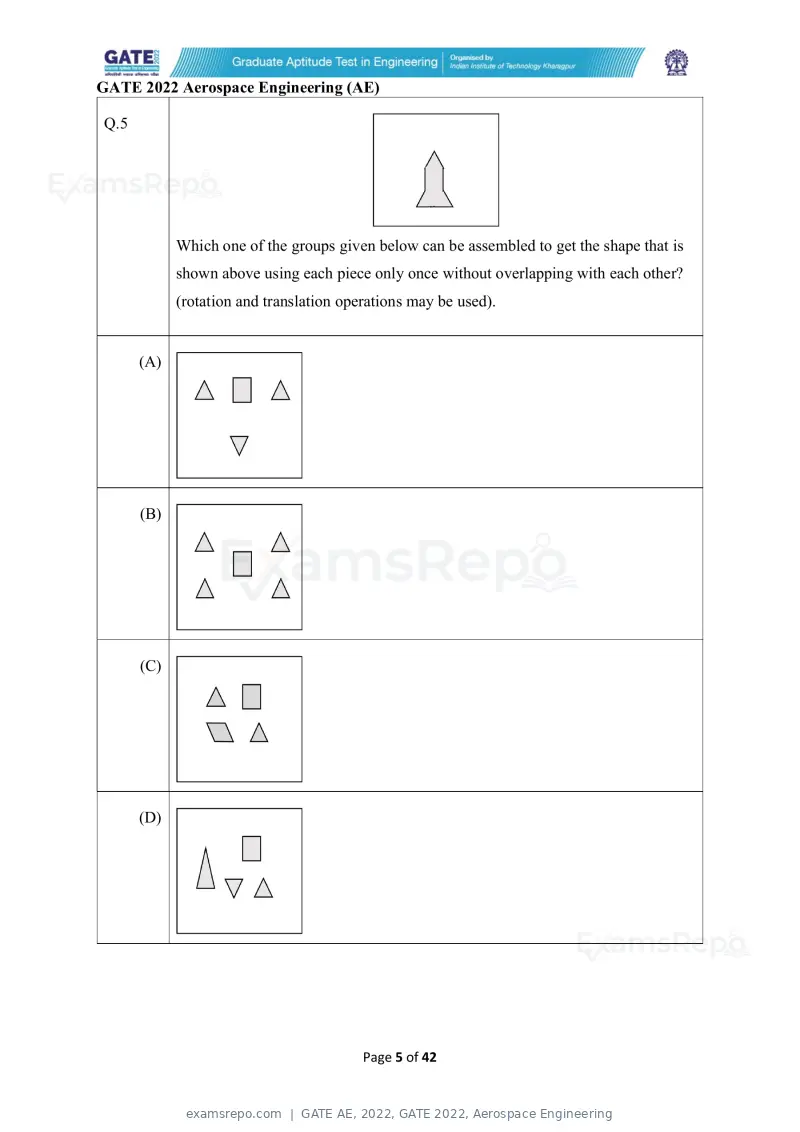

Q.5
Which one of the groups given below can be assembled to get the shape that is
shown above using each piece only once without overlapping with each other?
(rotation and translation operations may be used).
(A)
(B)
(C)
(D)
Page 5 of 42
Text of page 6
GATE 2022 Aerospace Engineering (AE)

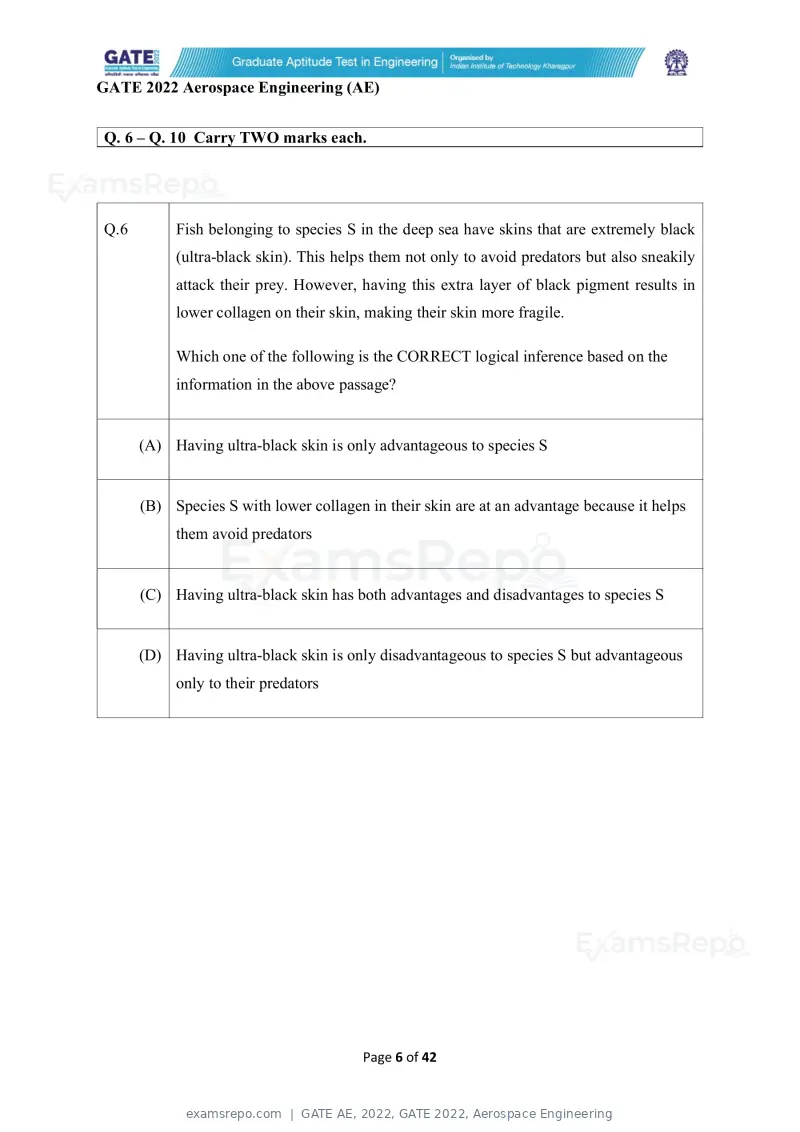

Q. 6 – Q. 10 Carry TWO marks each.
Q.6 Fish belonging to species S in the deep sea have skins that are extremely black
(ultra-black skin). This helps them not only to avoid predators but also sneakily
attack their prey. However, having this extra layer of black pigment results in
lower collagen on their skin, making their skin more fragile.
Which one of the following is the CORRECT logical inference based on the
information in the above passage?
(A) Having ultra-black skin is only advantageous to species S
(B) Species S with lower collagen in their skin are at an advantage because it helps
them avoid predators
(C) Having ultra-black skin has both advantages and disadvantages to species S
(D) Having ultra-black skin is only disadvantageous to species S but advantageous
only to their predators
Page 6 of 42
Text of page 7
GATE 2022 Aerospace Engineering (AE)

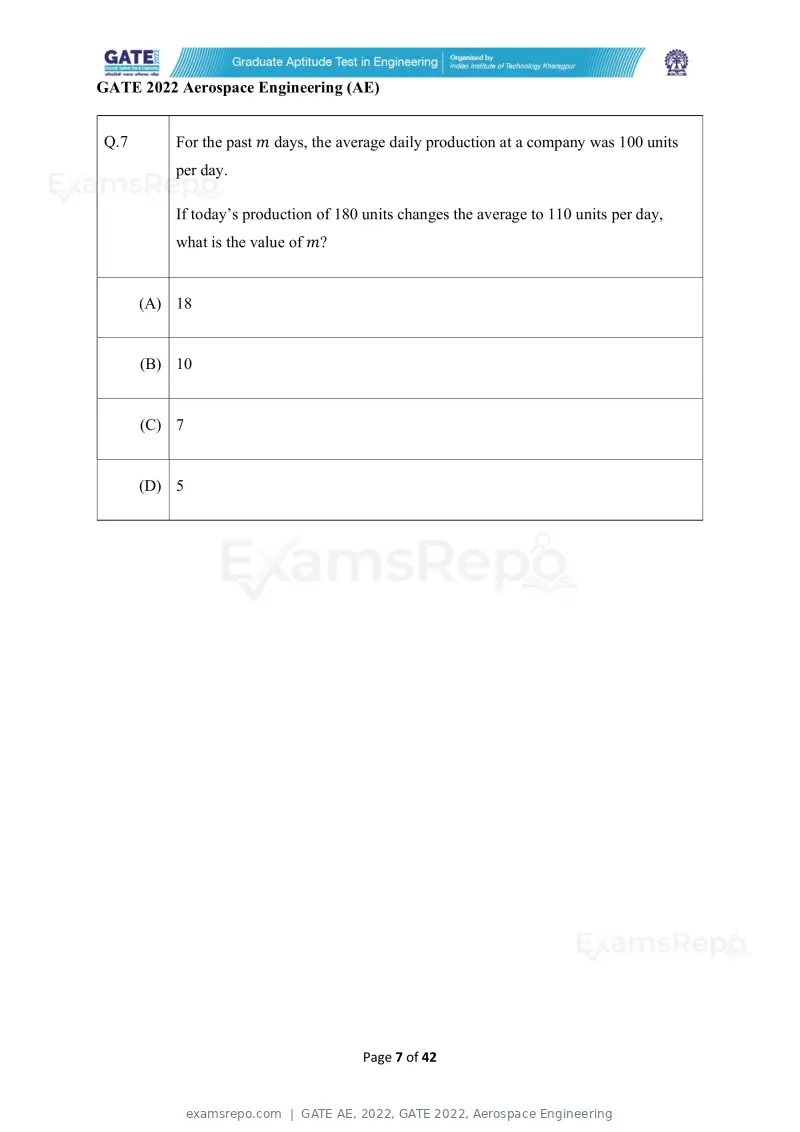

Q.7 For the past m days, the average daily production at a company was 100 units
per day.
If today’s production of 180 units changes the average to 110 units per day,
what is the value of m?
(A) 18
(B) 10
(C) 7
(D) 5
Page 7 of 42
Text of page 8
GATE 2022 Aerospace Engineering (AE)

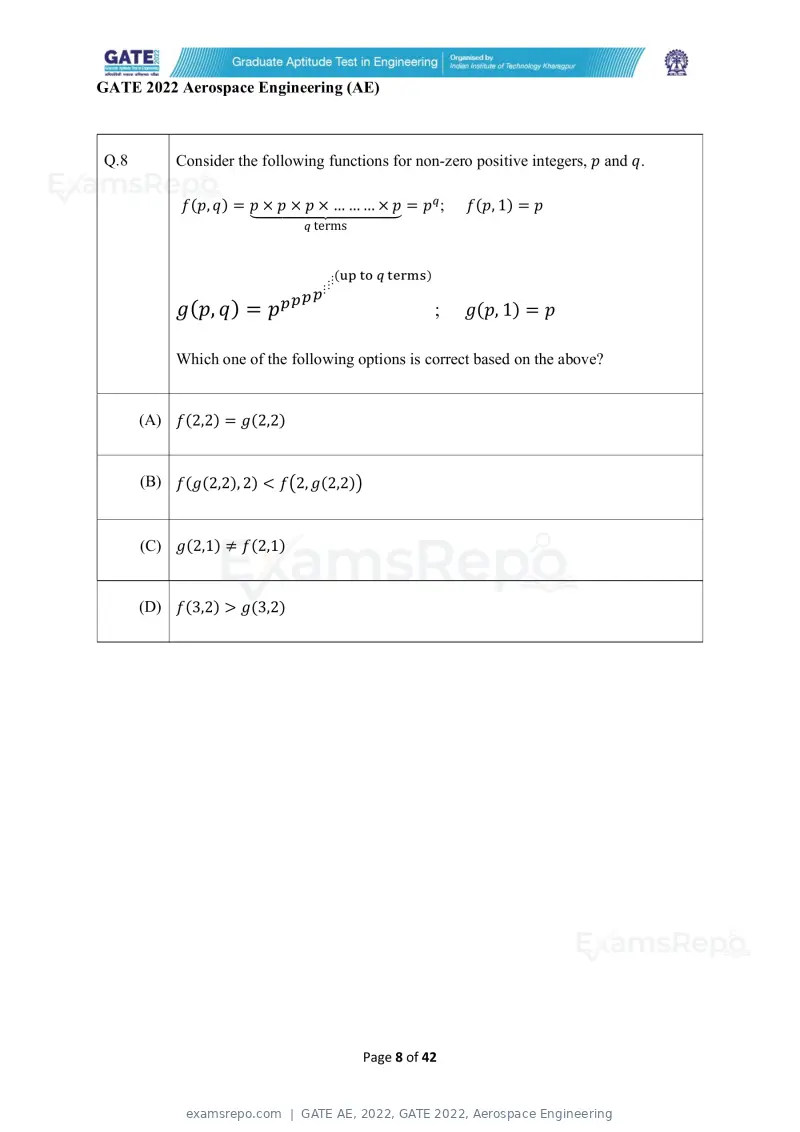

Q.8 Consider the following functions for non-zero positive integers, p and q.
f(p, q) = p × p × p × … … … × p = p ; f(p, 1) = p
terms
⫶( )
⫶⫶
g(p, q ) = p ; g(p, 1) = p
Which one of the following options is correct based on the above?
(A) f(2,2) = g(2,2)
(B) f(g(2,2), 2) < f 2, g(2,2)
(C) g(2,1) ≠ f(2,1)
(D) f(3,2) > g(3,2)
Page 8 of 42
Text of page 9
GATE 2022 Aerospace Engineering (AE)

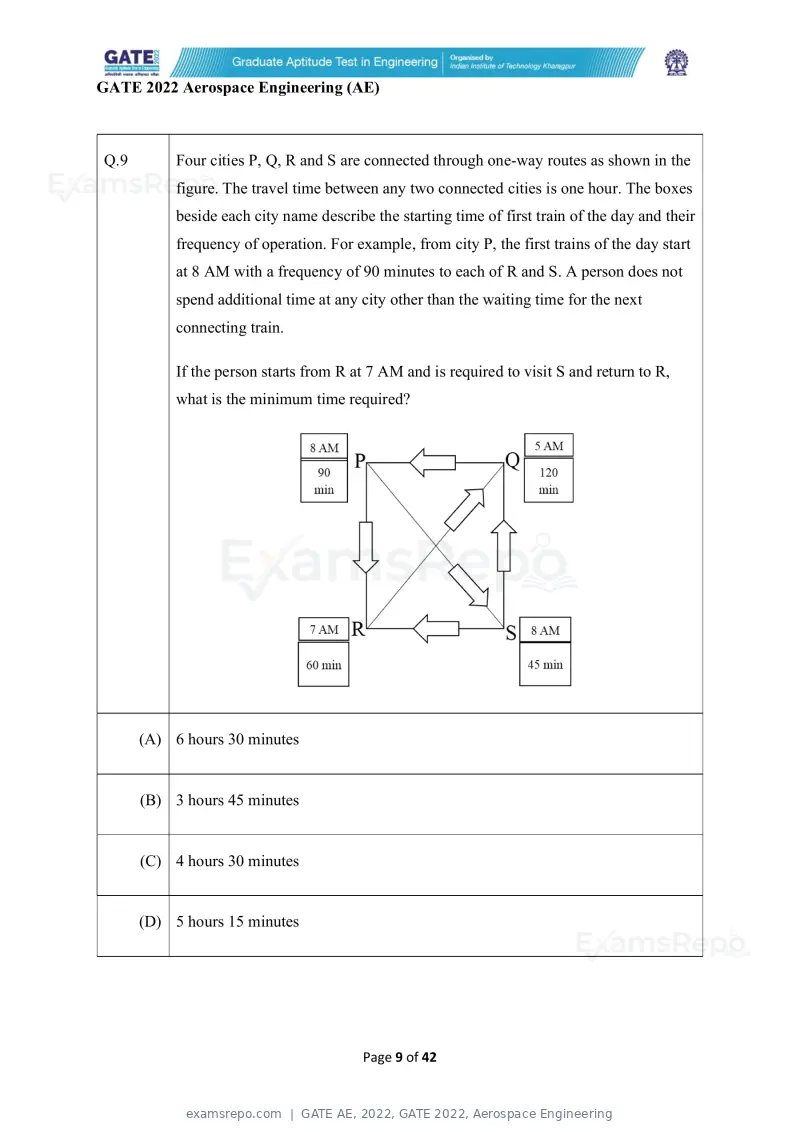

Q.9 Four cities P, Q, R and S are connected through one-way routes as shown in the
figure. The travel time between any two connected cities is one hour. The boxes
beside each city name describe the starting time of first train of the day and their
frequency of operation. For example, from city P, the first trains of the day start
at 8 AM with a frequency of 90 minutes to each of R and S. A person does not
spend additional time at any city other than the waiting time for the next
connecting train.
If the person starts from R at 7 AM and is required to visit S and return to R,
what is the minimum time required?
(A) 6 hours 30 minutes
(B) 3 hours 45 minutes
(C) 4 hours 30 minutes
(D) 5 hours 15 minutes
Page 9 of 42
Text of page 10
GATE 2022 Aerospace Engineering (AE)

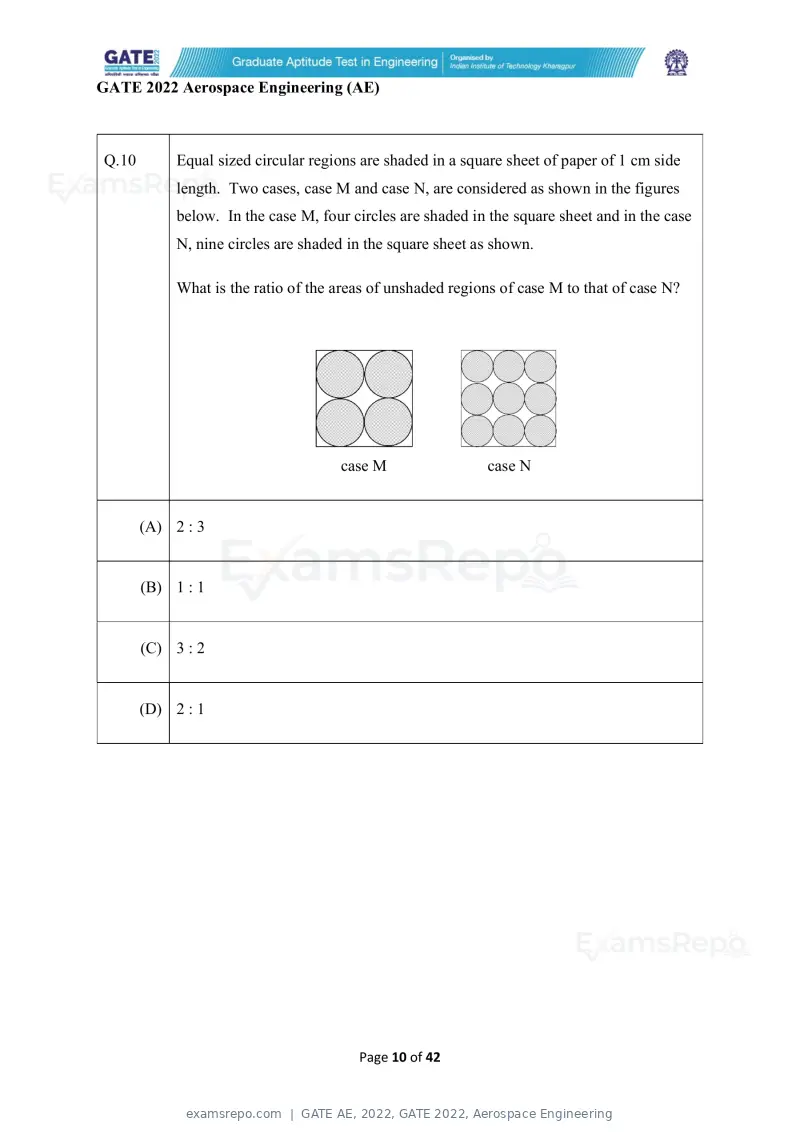

Q.10 Equal sized circular regions are shaded in a square sheet of paper of 1 cm side
length. Two cases, case M and case N, are considered as shown in the figures
below. In the case M, four circles are shaded in the square sheet and in the case
N, nine circles are shaded in the square sheet as shown.
What is the ratio of the areas of unshaded regions of case M to that of case N?
case M case N
(A) 2 : 3
(B) 1 : 1
(C) 3 : 2
(D) 2 : 1
Page 10 of 42
Text of page 11
GATE 2022 Aerospace Engineering (AE)
Q.11 – Q.35 Carry ONE mark Each

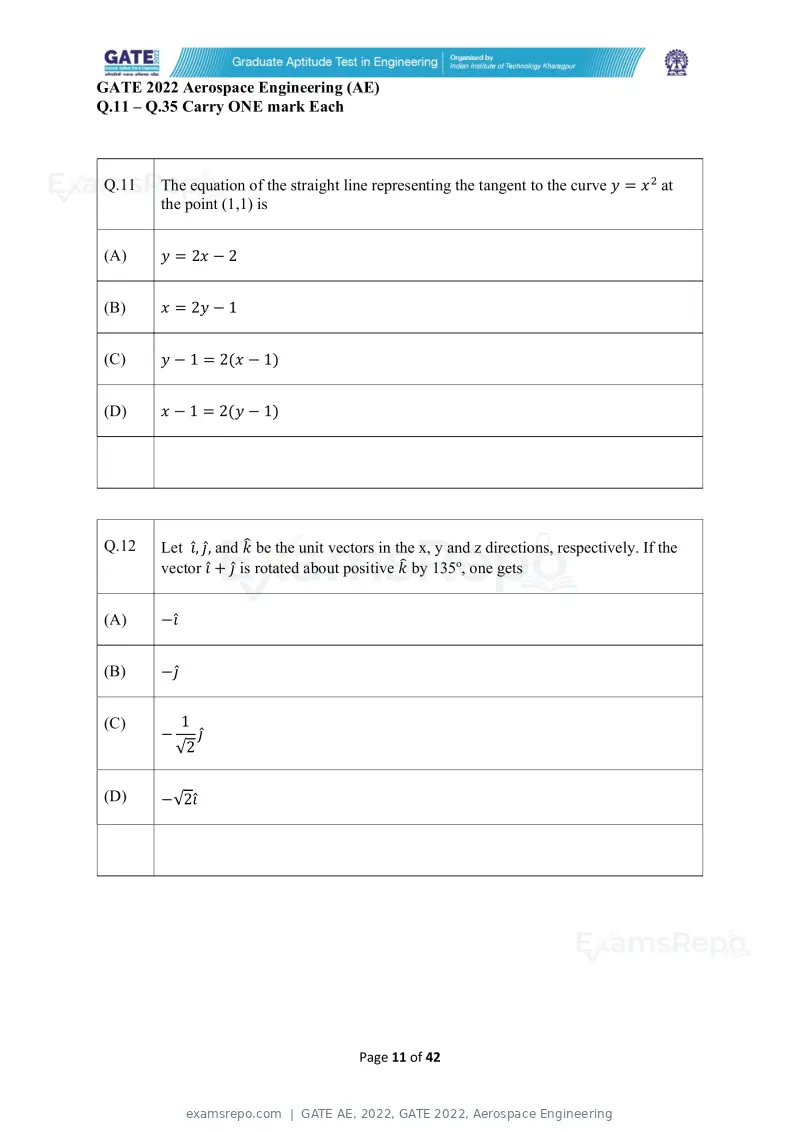

Q.11 The equation of the straight line representing the tangent to the curve y = x at
the point (1,1) is
(A) y = 2x − 2
(B) x = 2y − 1
(C) y − 1 = 2(x − 1)
(D) x − 1 = 2(y − 1)
Q.12 Let ı̂, ȷ̂, and k be the unit vectors in the x, y and z directions, respectively. If the
vector ı̂ + ȷ̂ is rotated about positive k by 135o, one gets
(A) −ı̂
(B) −ȷ̂
(C) 1
− ȷ̂
√2
(D) −√2ı̂
Page 11 of 42
Text of page 12
GATE 2022 Aerospace Engineering (AE)

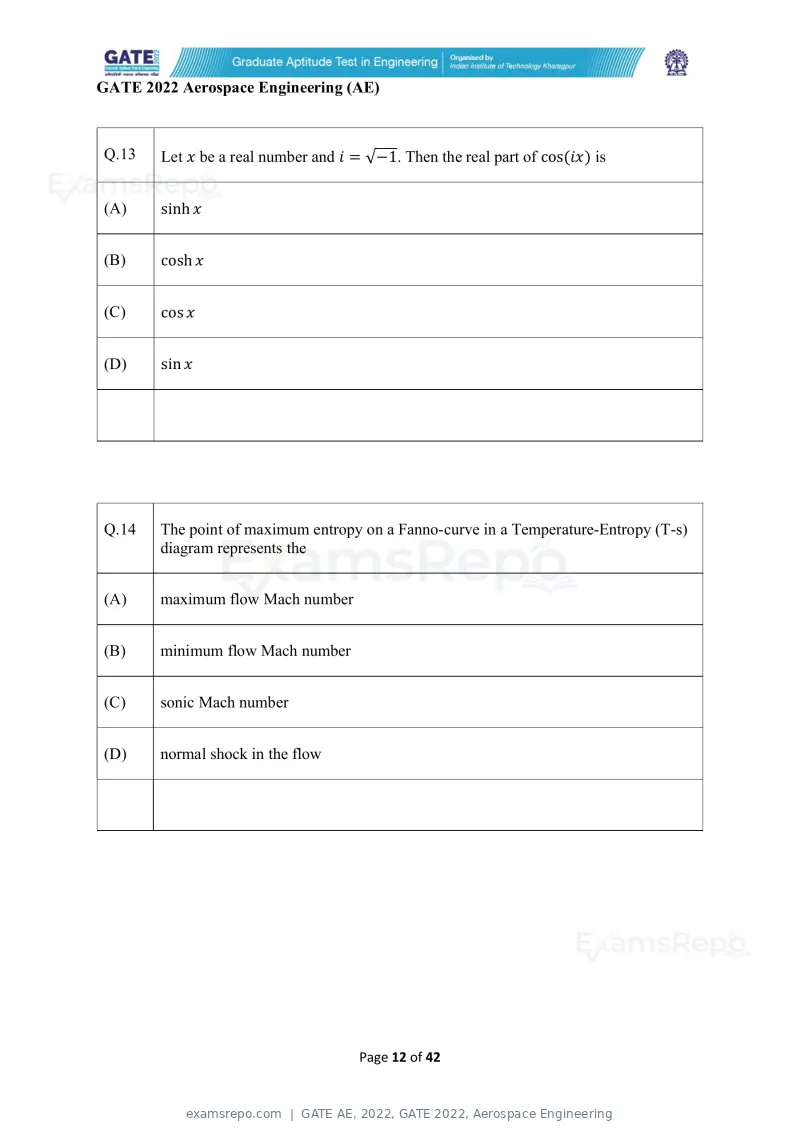

Q.13 Let x be a real number and i = √−1. Then the real part of cos(ix) is
(A) sinh x
(B) cosh x
(C) cos x
(D) sin x
Q.14 The point of maximum entropy on a Fanno-curve in a Temperature-Entropy (T-s)
diagram represents the
(A) maximum flow Mach number
(B) minimum flow Mach number
(C) sonic Mach number
(D) normal shock in the flow
Page 12 of 42
Text of page 13
GATE 2022 Aerospace Engineering (AE)

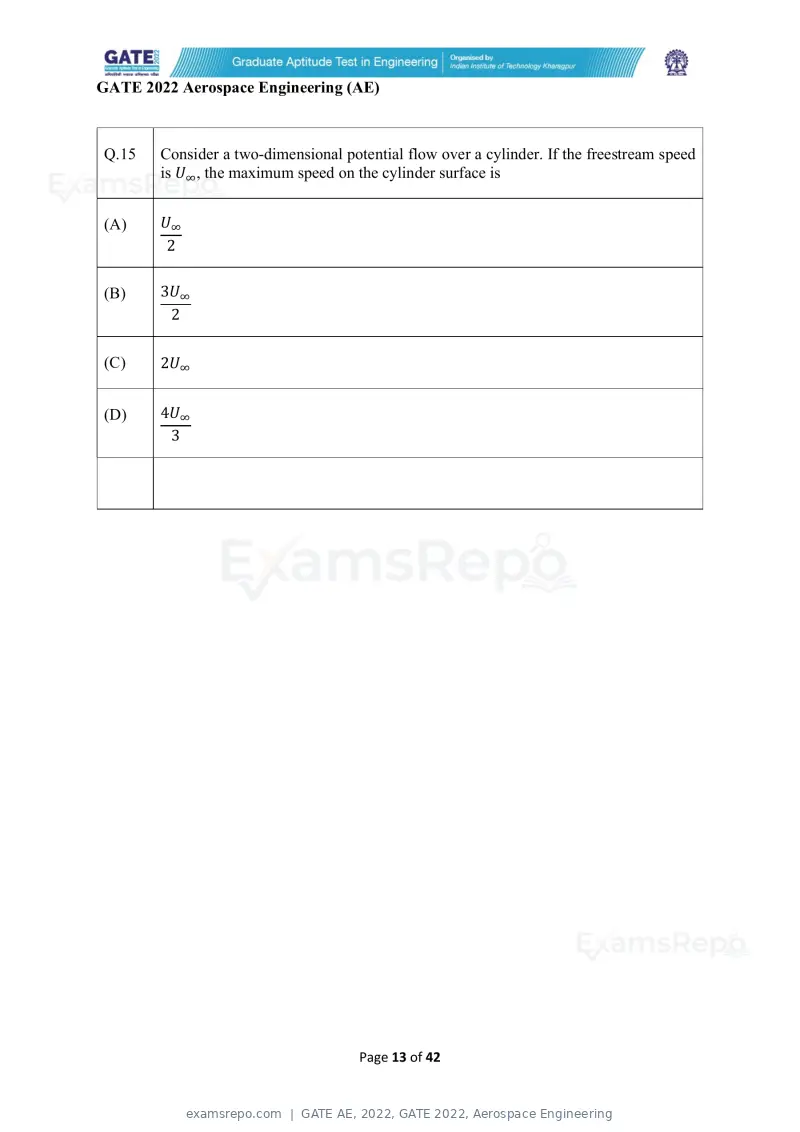

Q.15 Consider a two-dimensional potential flow over a cylinder. If the freestream speed
is U , the maximum speed on the cylinder surface is
(A) U
2
(B) 3U
2
(C) 2U
(D) 4U
3
Page 13 of 42
Text of page 14
GATE 2022 Aerospace Engineering (AE)

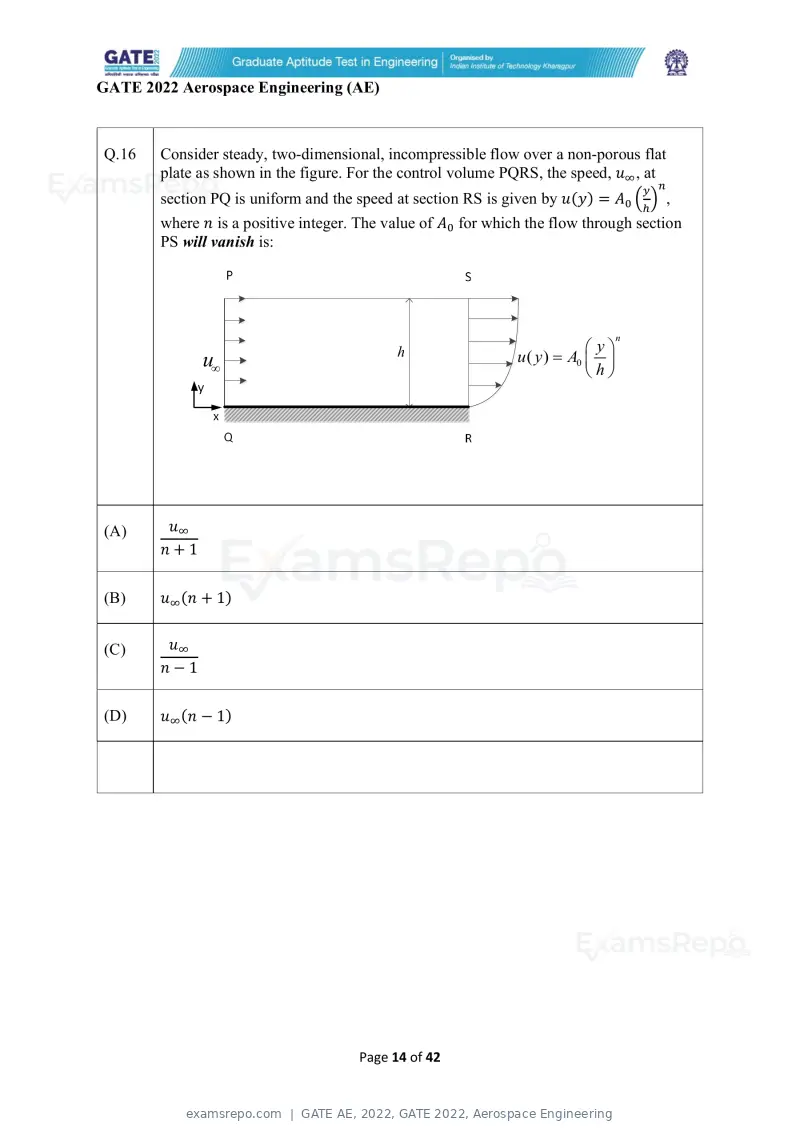

Q.16 Consider steady, two-dimensional, incompressible flow over a non-porous flat
plate as shown in the figure. For the control volume PQRS, the speed, u , at
section PQ is uniform and the speed at section RS is given by u(y) = A ,
where n is a positive integer. The value of A for which the flow through section
PS will vanish is:
n
h y
u u ( y ) A0
h
(A) u
n+1
(B) u (n + 1)
(C) u
n−1
(D) u (n − 1)
Page 14 of 42
Text of page 15
GATE 2022 Aerospace Engineering (AE)

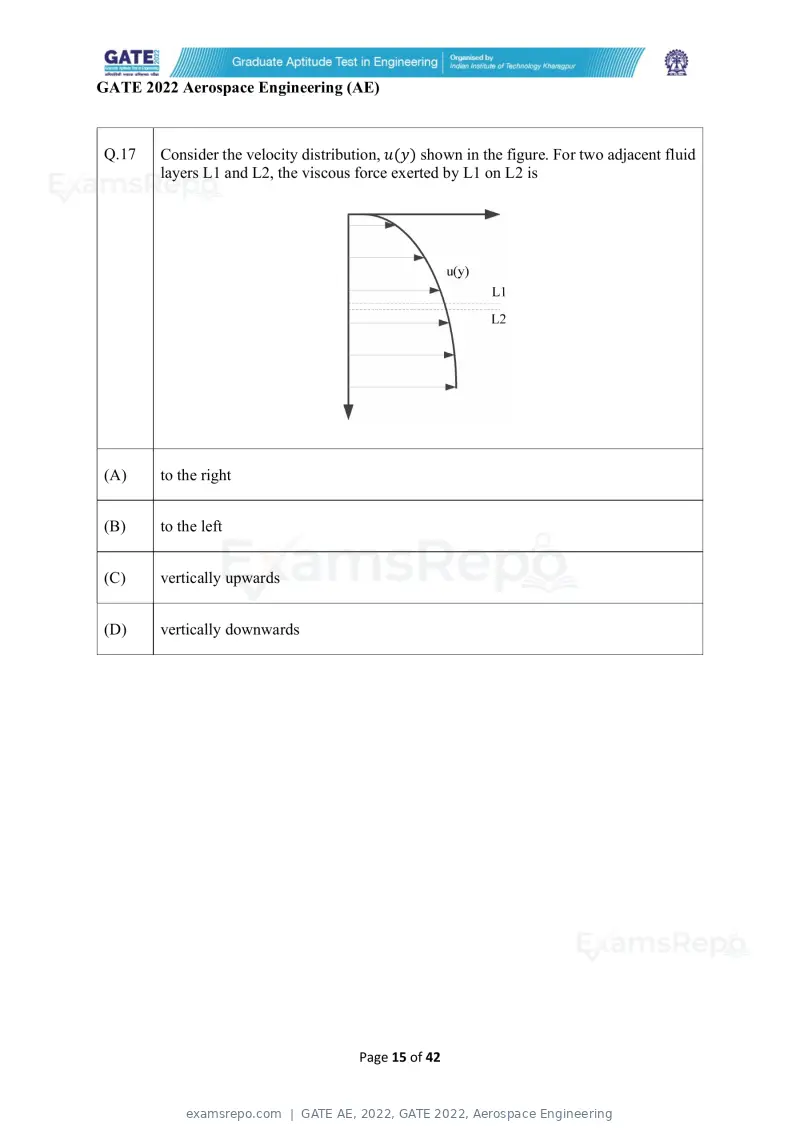

Q.17 Consider the velocity distribution, u(y) shown in the figure. For two adjacent fluid
layers L1 and L2, the viscous force exerted by L1 on L2 is
(A) to the right
(B) to the left
(C) vertically upwards
(D) vertically downwards
Page 15 of 42
Text of page 16
GATE 2022 Aerospace Engineering (AE)

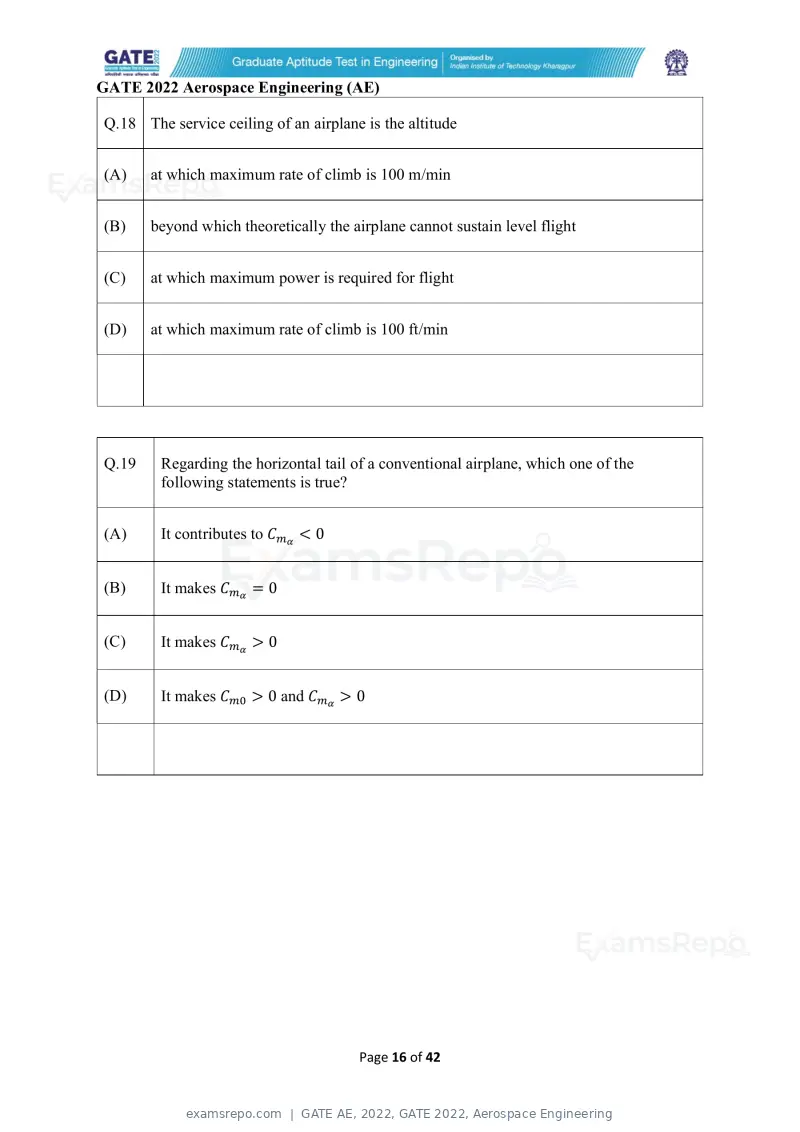

Q.18 The service ceiling of an airplane is the altitude
(A) at which maximum rate of climb is 100 m/min
(B) beyond which theoretically the airplane cannot sustain level flight
(C) at which maximum power is required for flight
(D) at which maximum rate of climb is 100 ft/min
Q.19 Regarding the horizontal tail of a conventional airplane, which one of the
following statements is true?
(A) It contributes to C <0
(B) It makes C =0
(C) It makes C >0
(D) It makes C > 0 and C >0
Page 16 of 42
Text of page 17
GATE 2022 Aerospace Engineering (AE)

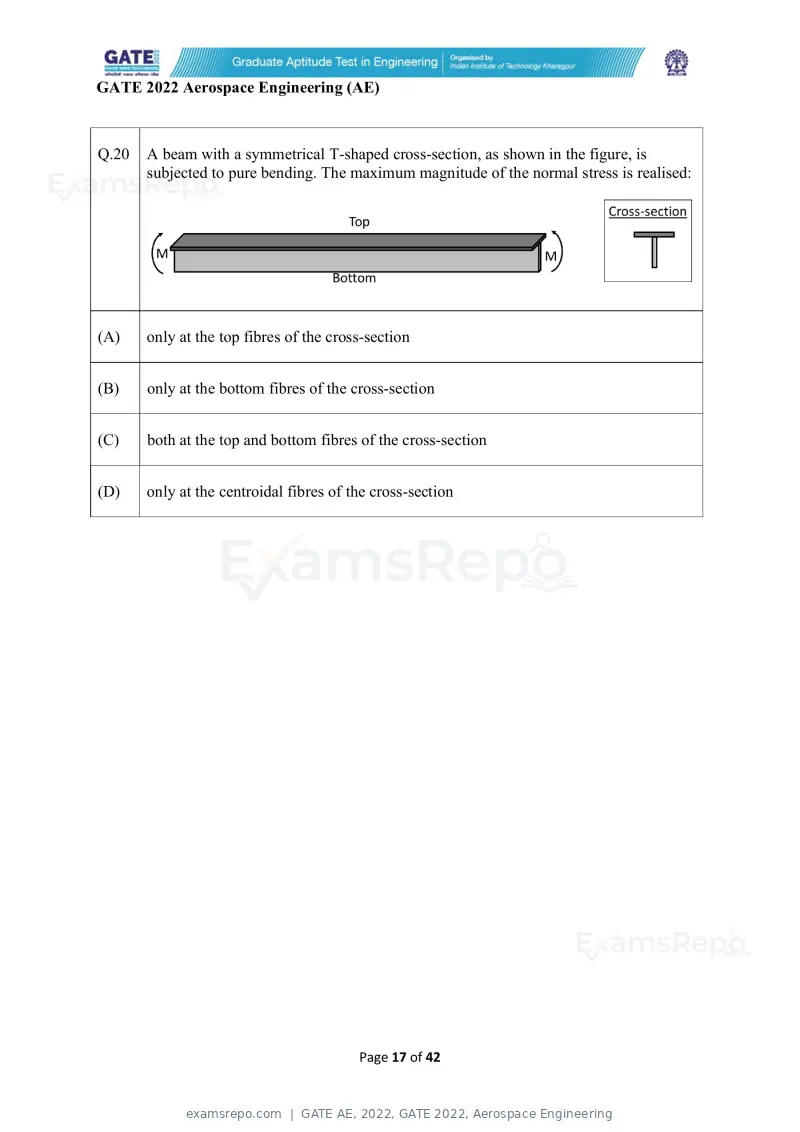

Q.20 A beam with a symmetrical T-shaped cross-section, as shown in the figure, is
subjected to pure bending. The maximum magnitude of the normal stress is realised:
(A) only at the top fibres of the cross-section
(B) only at the bottom fibres of the cross-section
(C) both at the top and bottom fibres of the cross-section
(D) only at the centroidal fibres of the cross-section
Page 17 of 42
Text of page 18
GATE 2022 Aerospace Engineering (AE)

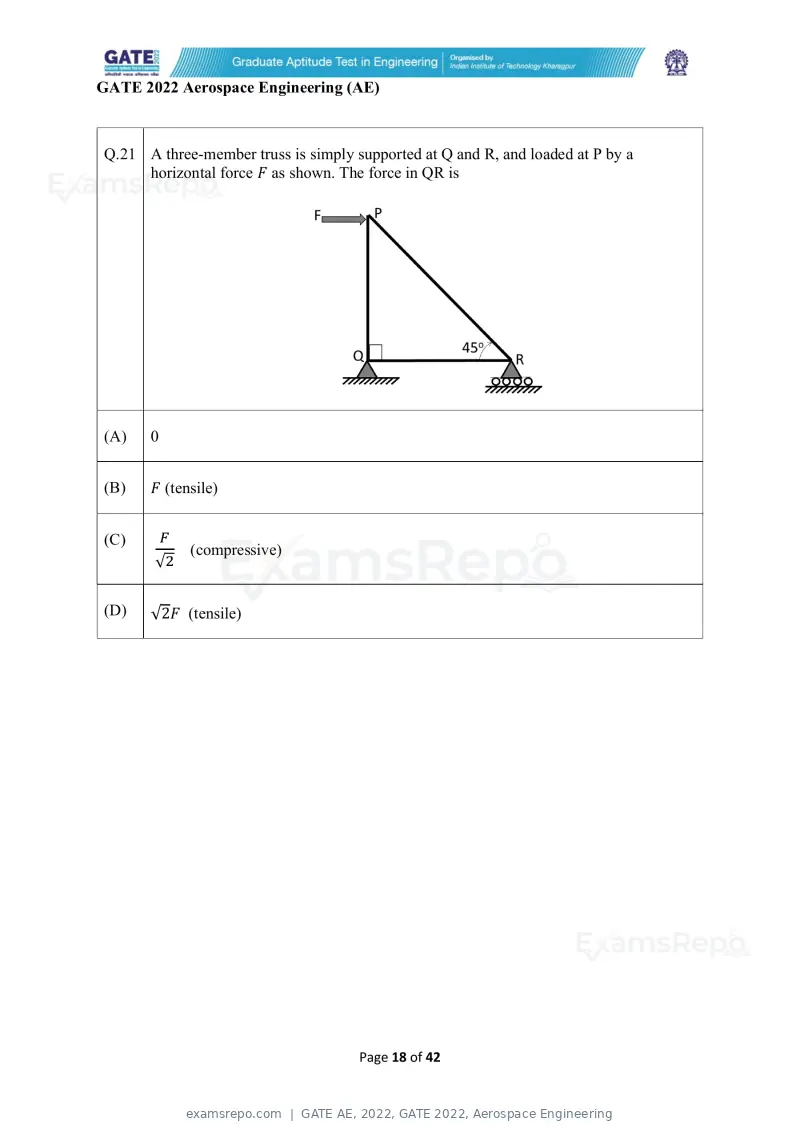

Q.21 A three-member truss is simply supported at Q and R, and loaded at P by a
horizontal force F as shown. The force in QR is
(A) 0
(B) F (tensile)
(C)
(compressive)
√
(D) √2F (tensile)
Page 18 of 42
Text of page 19
GATE 2022 Aerospace Engineering (AE)

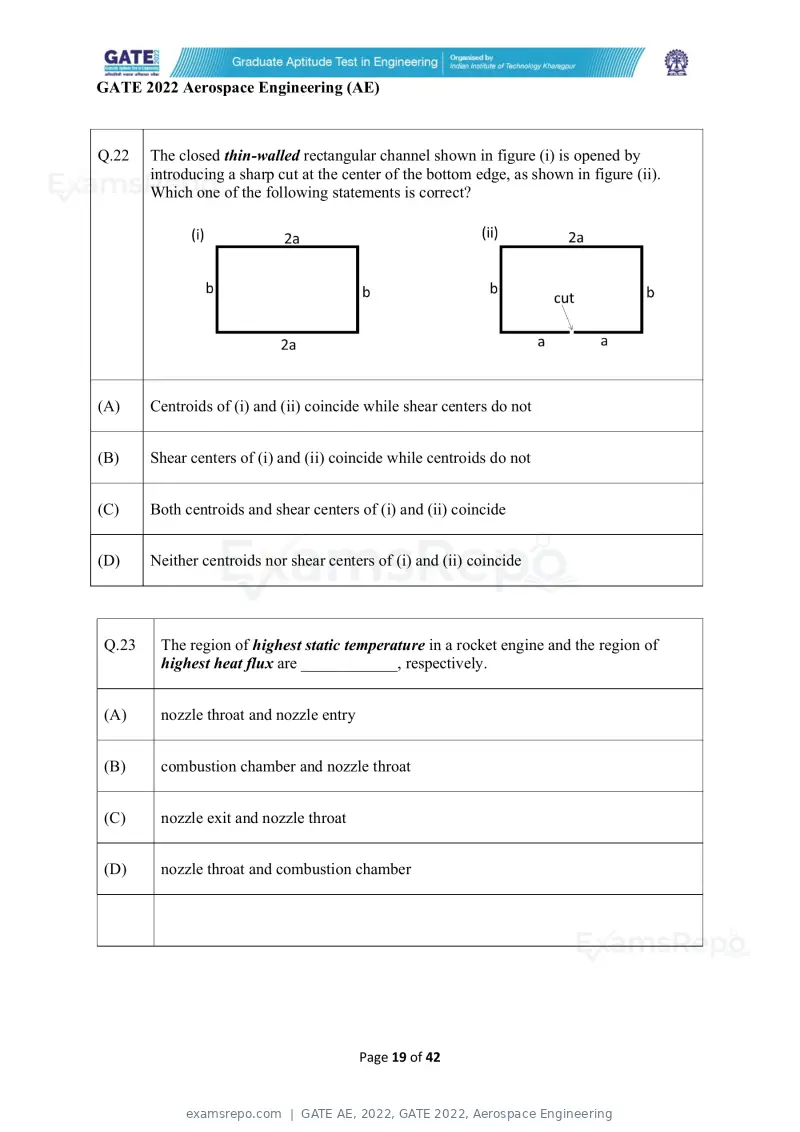

Q.22 The closed thin-walled rectangular channel shown in figure (i) is opened by
introducing a sharp cut at the center of the bottom edge, as shown in figure (ii).
Which one of the following statements is correct?
(A) Centroids of (i) and (ii) coincide while shear centers do not
(B) Shear centers of (i) and (ii) coincide while centroids do not
(C) Both centroids and shear centers of (i) and (ii) coincide
(D) Neither centroids nor shear centers of (i) and (ii) coincide
Q.23 The region of highest static temperature in a rocket engine and the region of
highest heat flux are ____________, respectively.
(A) nozzle throat and nozzle entry
(B) combustion chamber and nozzle throat
(C) nozzle exit and nozzle throat
(D) nozzle throat and combustion chamber
Page 19 of 42
Text of page 20
GATE 2022 Aerospace Engineering (AE)

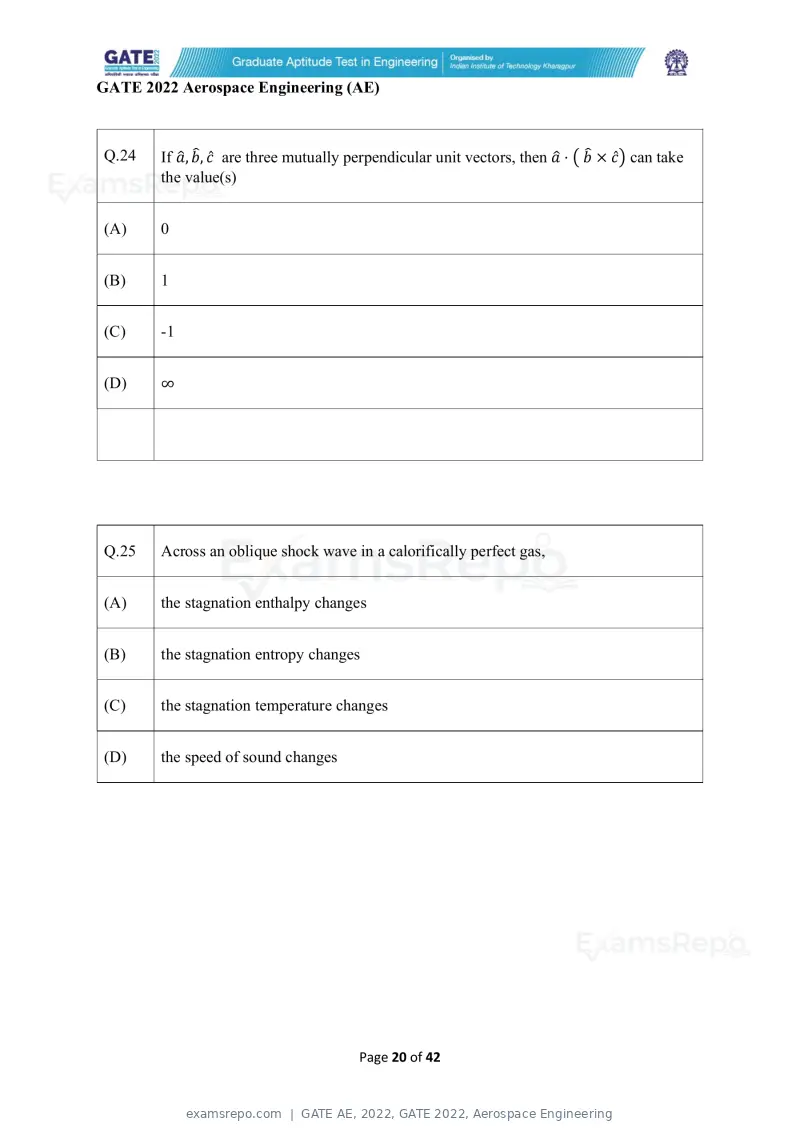

Q.24 If a, b, ĉ are three mutually perpendicular unit vectors, then a ⋅ b × ĉ can take
the value(s)
(A) 0
(B) 1
(C) -1
(D) ∞
Q.25 Across an oblique shock wave in a calorifically perfect gas,
(A) the stagnation enthalpy changes
(B) the stagnation entropy changes
(C) the stagnation temperature changes
(D) the speed of sound changes
Page 20 of 42
Text of page 21
GATE 2022 Aerospace Engineering (AE)

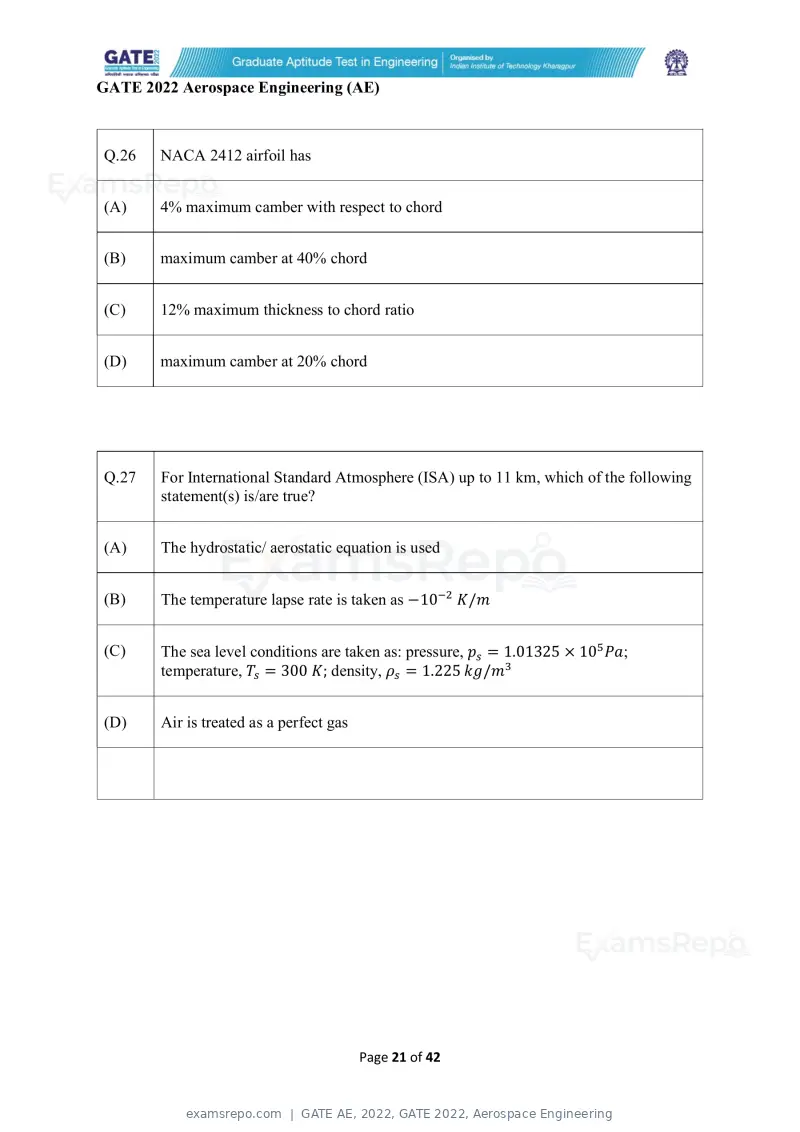

Q.26 NACA 2412 airfoil has
(A) 4% maximum camber with respect to chord
(B) maximum camber at 40% chord
(C) 12% maximum thickness to chord ratio
(D) maximum camber at 20% chord
Q.27 For International Standard Atmosphere (ISA) up to 11 km, which of the following
statement(s) is/are true?
(A) The hydrostatic/ aerostatic equation is used
(B) The temperature lapse rate is taken as −10 K/m
(C) The sea level conditions are taken as: pressure, p = 1.01325 × 10 Pa;
temperature, T = 300 K; density, ρ = 1.225 kg/m
(D) Air is treated as a perfect gas
Page 21 of 42
Text of page 22
GATE 2022 Aerospace Engineering (AE)

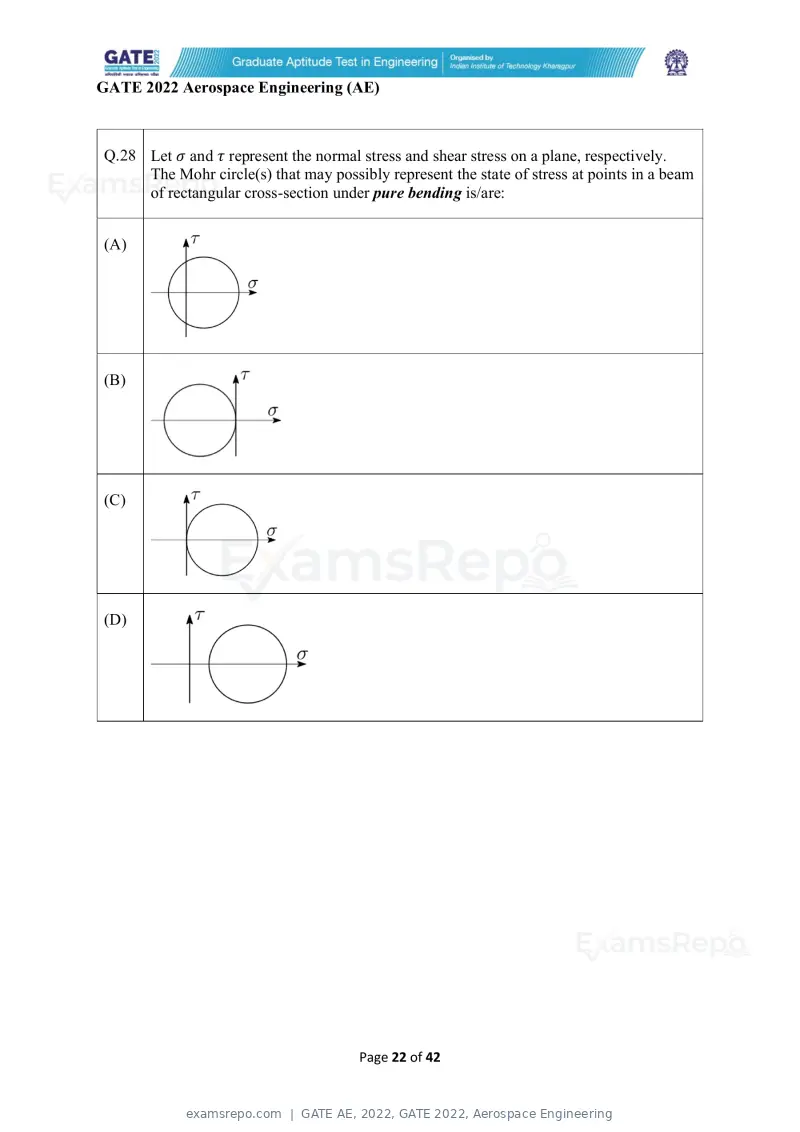

Q.28 Let σ and τ represent the normal stress and shear stress on a plane, respectively.
The Mohr circle(s) that may possibly represent the state of stress at points in a beam
of rectangular cross-section under pure bending is/are:
(A)
(B)
(C)
(D)
Page 22 of 42
Text of page 23
GATE 2022 Aerospace Engineering (AE)

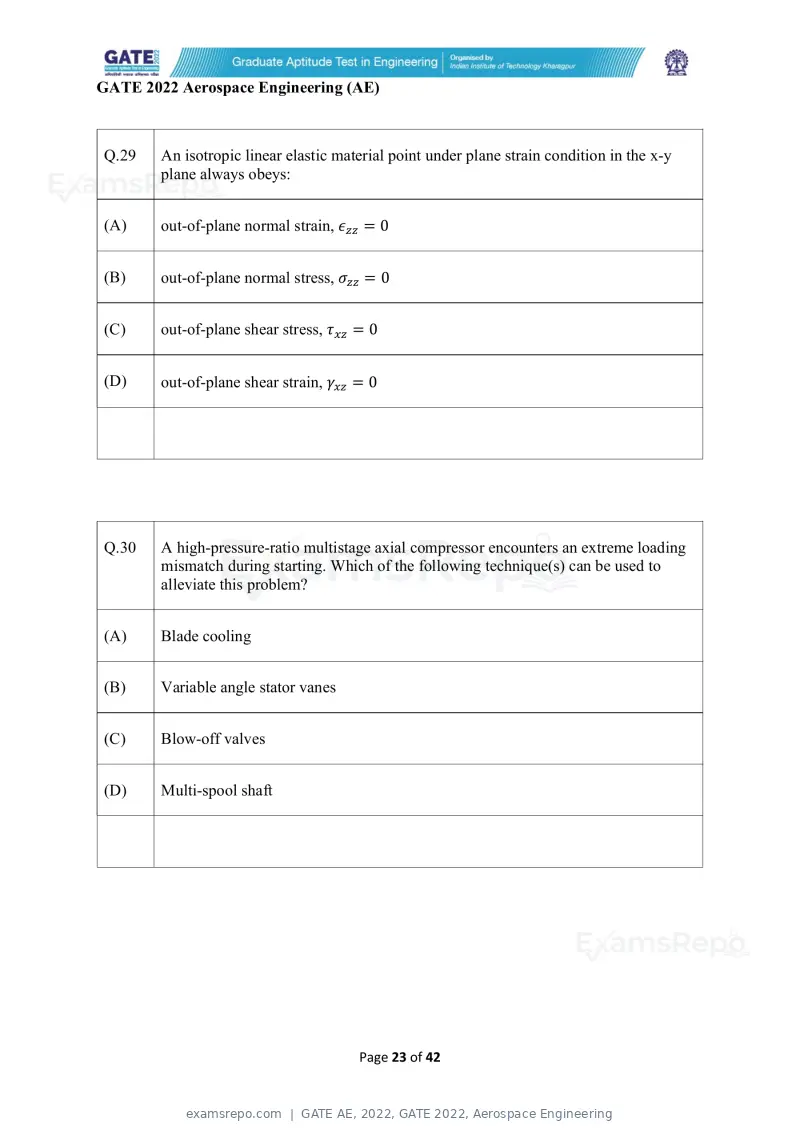

Q.29 An isotropic linear elastic material point under plane strain condition in the x-y
plane always obeys:
(A) out-of-plane normal strain, ε =0
(B) out-of-plane normal stress, σ =0
(C) out-of-plane shear stress, τ =0
(D) out-of-plane shear strain,γ =0
Q.30 A high-pressure-ratio multistage axial compressor encounters an extreme loading
mismatch during starting. Which of the following technique(s) can be used to
alleviate this problem?
(A) Blade cooling
(B) Variable angle stator vanes
(C) Blow-off valves
(D) Multi-spool shaft
Page 23 of 42
Text of page 24
GATE 2022 Aerospace Engineering (AE)

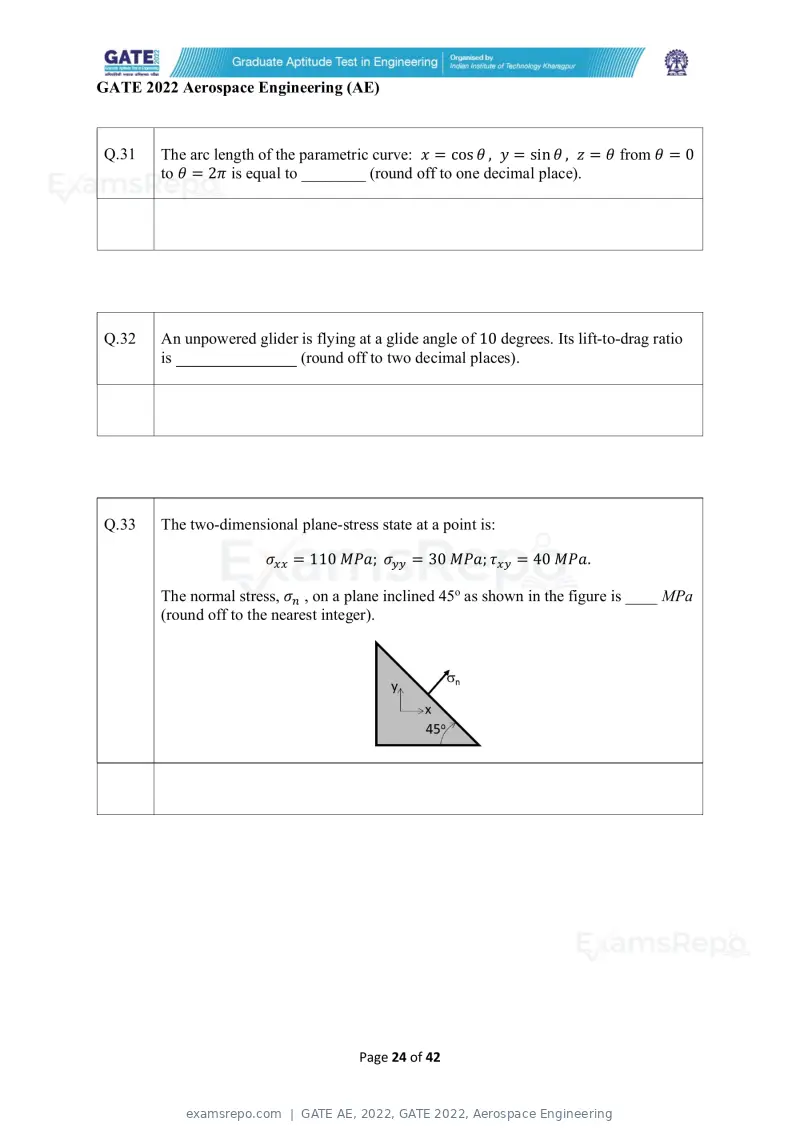

Q.31 The arc length of the parametric curve: x = cos θ , y = sin θ , z = θ from θ = 0
to θ = 2π is equal to ________ (round off to one decimal place).
Q.32 An unpowered glider is flying at a glide angle of 10 degrees. Its lift-to-drag ratio
is (round off to two decimal places).
Q.33 The two-dimensional plane-stress state at a point is:
σ = 110 MPa; σ = 30 MPa; τ = 40 MPa.
The normal stress, σ , on a plane inclined 45o as shown in the figure is ____ MPa
(round off to the nearest integer).
Page 24 of 42
Text of page 25
GATE 2022 Aerospace Engineering (AE)

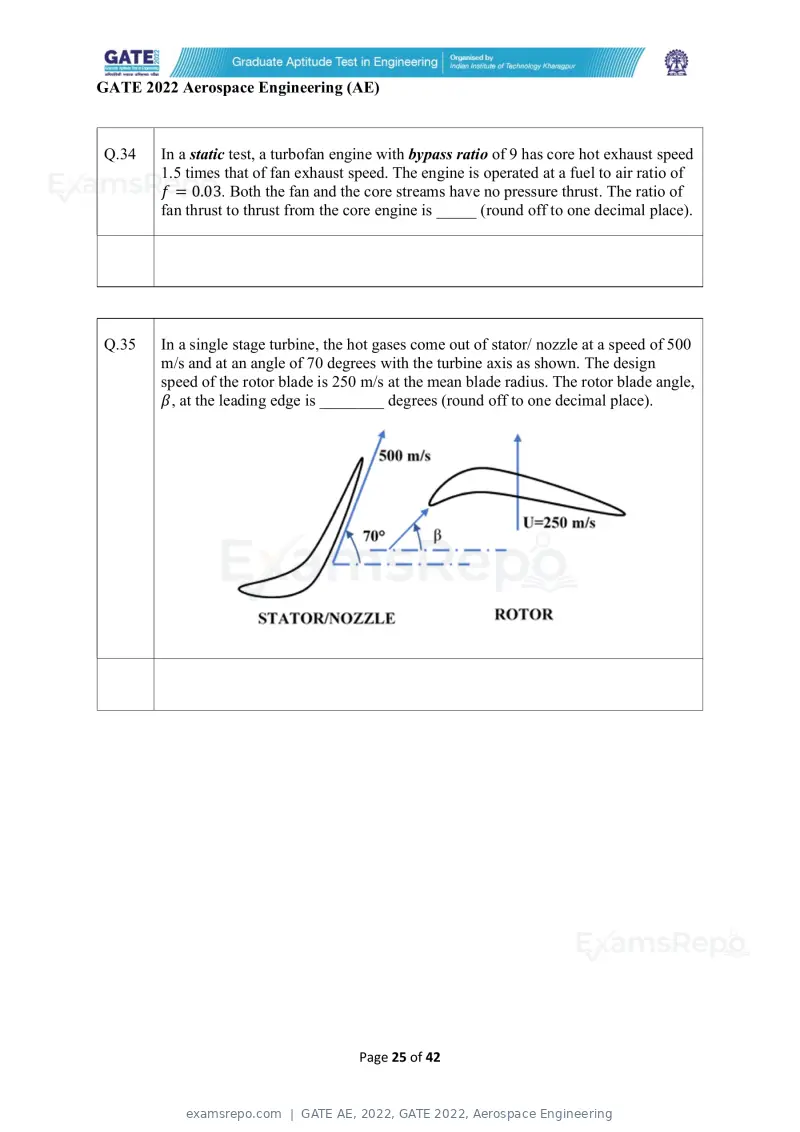

Q.34 In a static test, a turbofan engine with bypass ratio of 9 has core hot exhaust speed
1.5 times that of fan exhaust speed. The engine is operated at a fuel to air ratio of
f = 0.03. Both the fan and the core streams have no pressure thrust. The ratio of
fan thrust to thrust from the core engine is _____ (round off to one decimal place).
Q.35 In a single stage turbine, the hot gases come out of stator/ nozzle at a speed of 500
m/s and at an angle of 70 degrees with the turbine axis as shown. The design
speed of the rotor blade is 250 m/s at the mean blade radius. The rotor blade angle,
β, at the leading edge is ________ degrees (round off to one decimal place).
Page 25 of 42
Text of page 26
GATE 2022 Aerospace Engineering (AE)

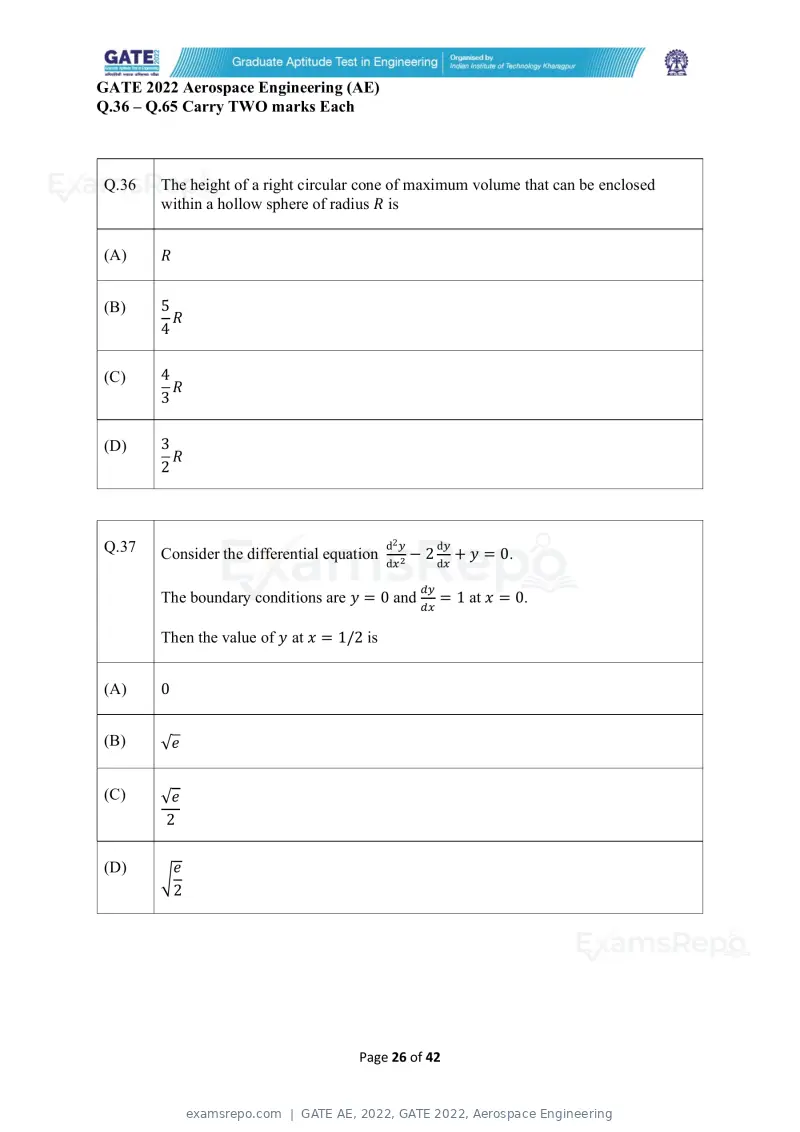

Q.36 – Q.65 Carry TWO marks Each
Q.36 The height of a right circular cone of maximum volume that can be enclosed
within a hollow sphere of radius R is
(A) R
(B) 5
R
4
(C) 4
R
3
(D) 3
R
2
Q.37 Consider the differential equation d
d2 d
− 2 d + y = 0.
The boundary conditions are y = 0 and = 1 at x = 0.
Then the value of y at x = 1/2 is
(A) 0
(B) √e
(C) √e
2
(D) e
2
Page 26 of 42
Text of page 27
GATE 2022 Aerospace Engineering (AE)

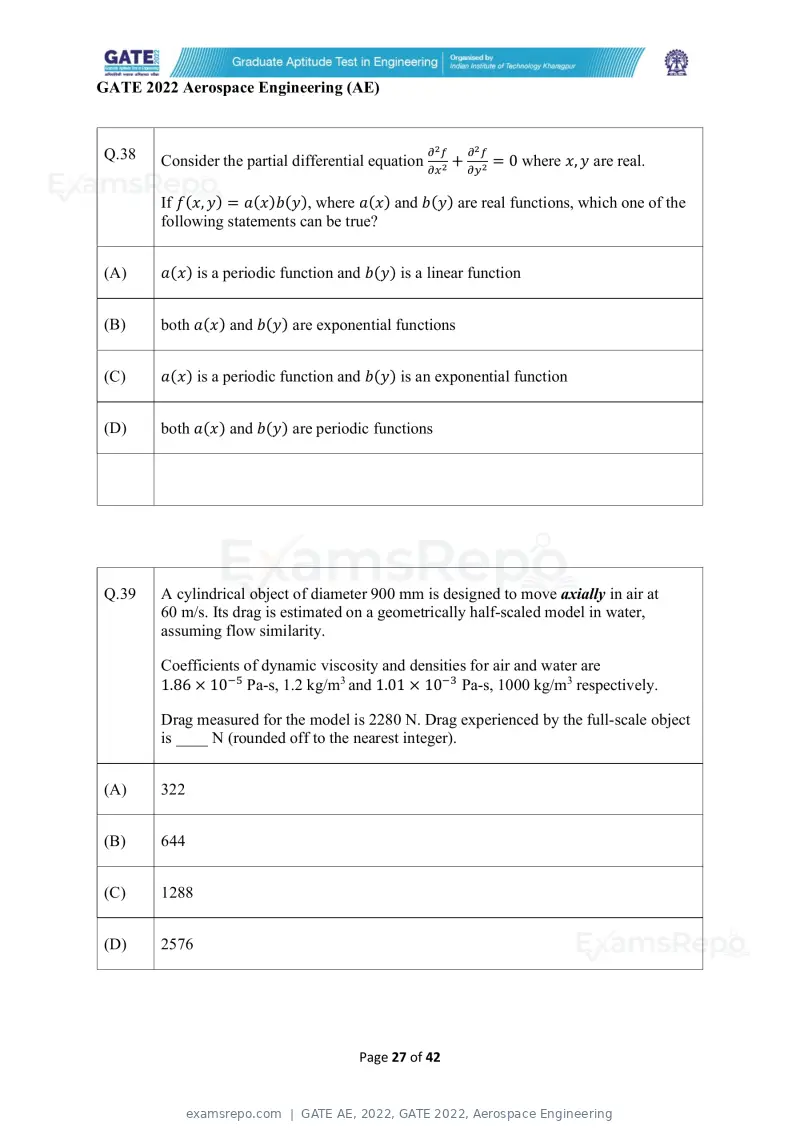

Q.38 Consider the partial differential equation + = 0 where x, y are real.
If f(x, y) = a(x)b(y), where a(x) and b(y) are real functions, which one of the
following statements can be true?
(A) a(x) is a periodic function and b(y) is a linear function
(B) both a(x) and b(y) are exponential functions
(C) a(x) is a periodic function and b(y) is an exponential function
(D) both a(x) and b(y) are periodic functions
Q.39 A cylindrical object of diameter 900 mm is designed to move axially in air at
60 m/s. Its drag is estimated on a geometrically half-scaled model in water,
assuming flow similarity.
Coefficients of dynamic viscosity and densities for air and water are
1.86 × 10 Pa-s, 1.2 kg/m3 and 1.01 × 10 Pa-s, 1000 kg/m3 respectively.
Drag measured for the model is 2280 N. Drag experienced by the full-scale object
is ____ N (rounded off to the nearest integer).
(A) 322
(B) 644
(C) 1288
(D) 2576
Page 27 of 42
Text of page 28
GATE 2022 Aerospace Engineering (AE)

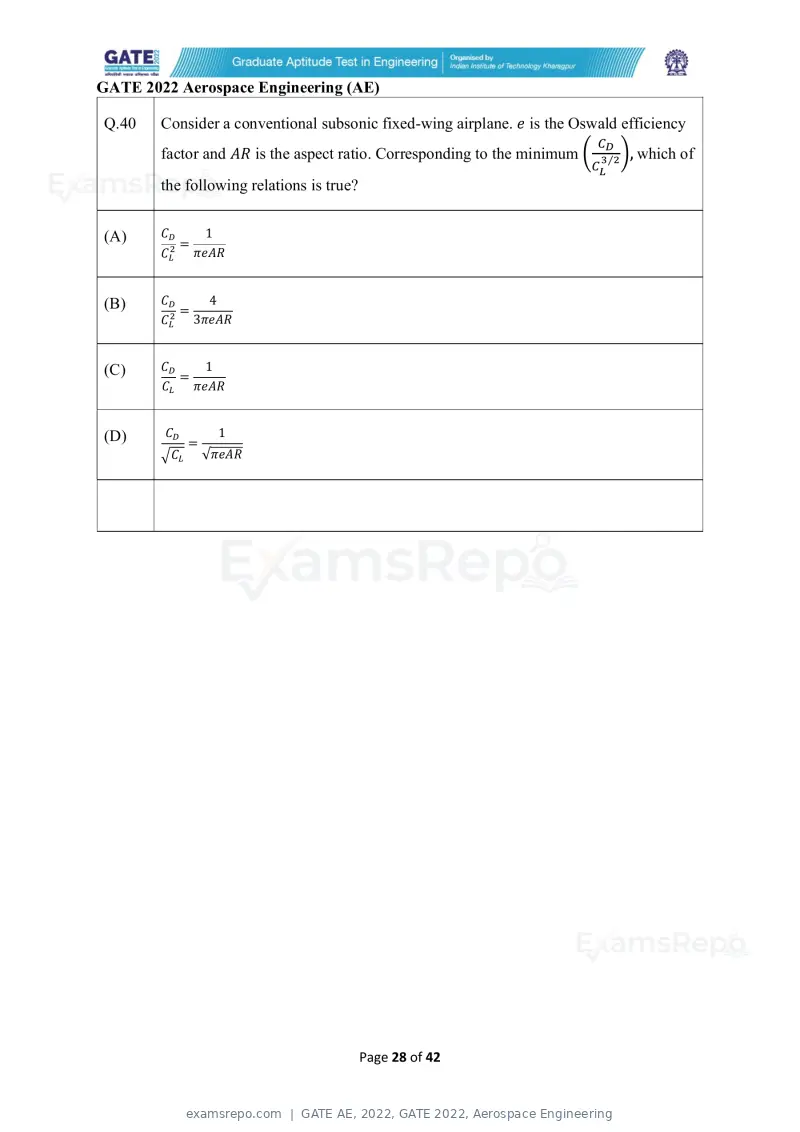

Q.40 Consider a conventional subsonic fixed-wing airplane. e is the Oswald efficiency
factor and AR is the aspect ratio. Corresponding to the minimum ⁄ , which of
the following relations is true?
(A) C 1
=
C πeAR
(B) C 4
=
C 3πeAR
(C) C 1
=
C πeAR
(D) C 1
=
C √πeAR
Page 28 of 42
Text of page 29
GATE 2022 Aerospace Engineering (AE)

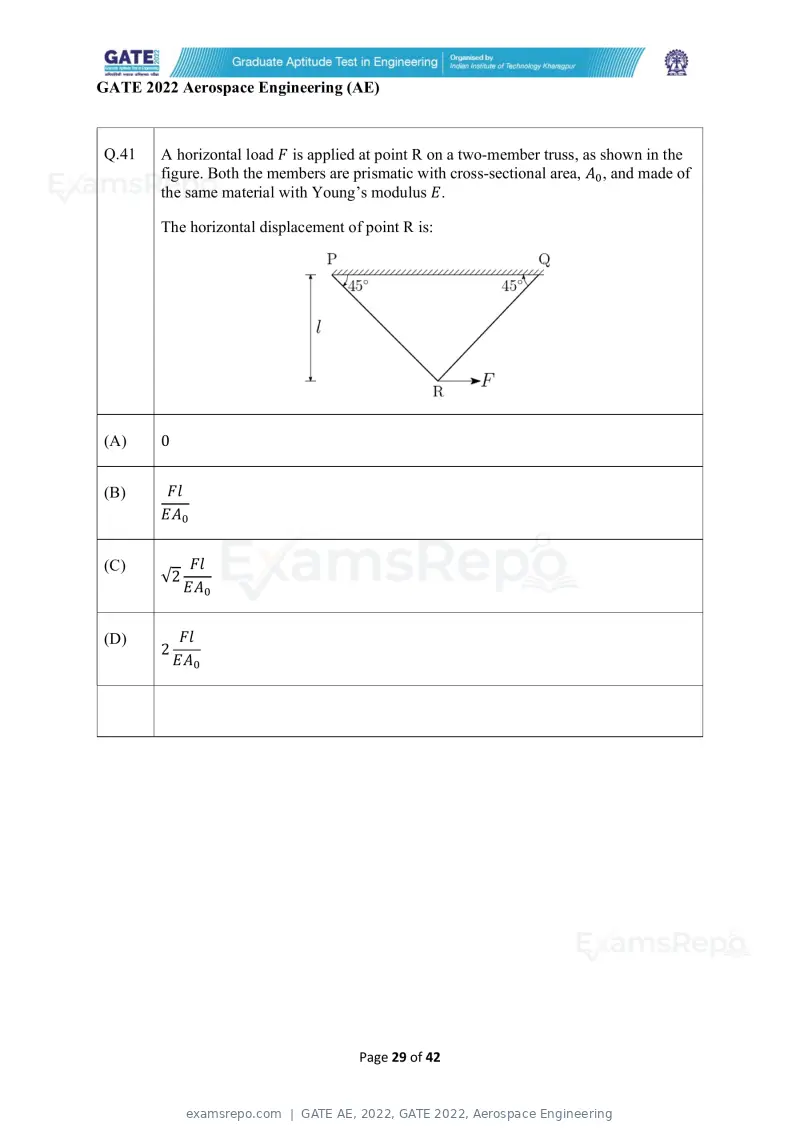

Q.41 A horizontal load F is applied at point R on a two-member truss, as shown in the
figure. Both the members are prismatic with cross-sectional area, A , and made of
the same material with Young’s modulus E.
The horizontal displacement of point R is:
(A) 0
(B) Fl
EA
(C) Fl
√2
EA
(D) Fl
2
EA
Page 29 of 42
Text of page 30
GATE 2022 Aerospace Engineering (AE)

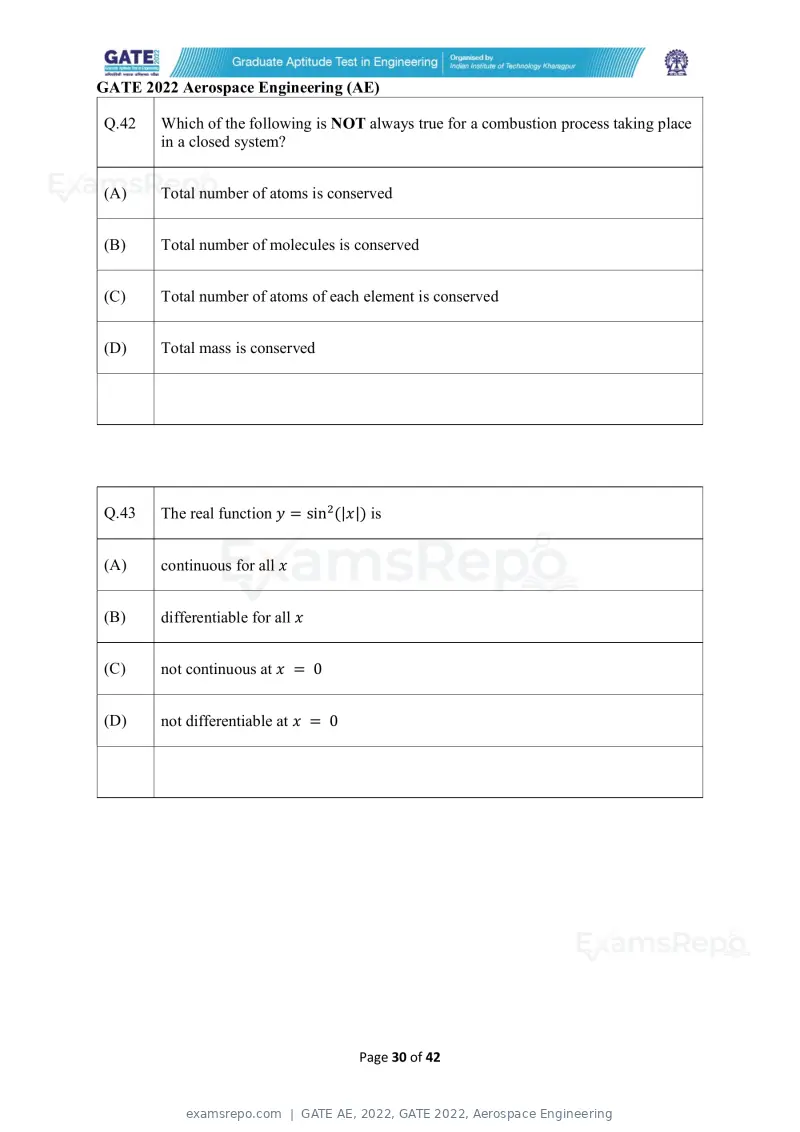

Q.42 Which of the following is NOT always true for a combustion process taking place
in a closed system?
(A) Total number of atoms is conserved
(B) Total number of molecules is conserved
(C) Total number of atoms of each element is conserved
(D) Total mass is conserved
Q.43 The real function y = sin (|x|) is
(A) continuous for all x
(B) differentiable for all x
(C) not continuous at x = 0
(D) not differentiable at x = 0
Page 30 of 42
Text of page 31
GATE 2022 Aerospace Engineering (AE)

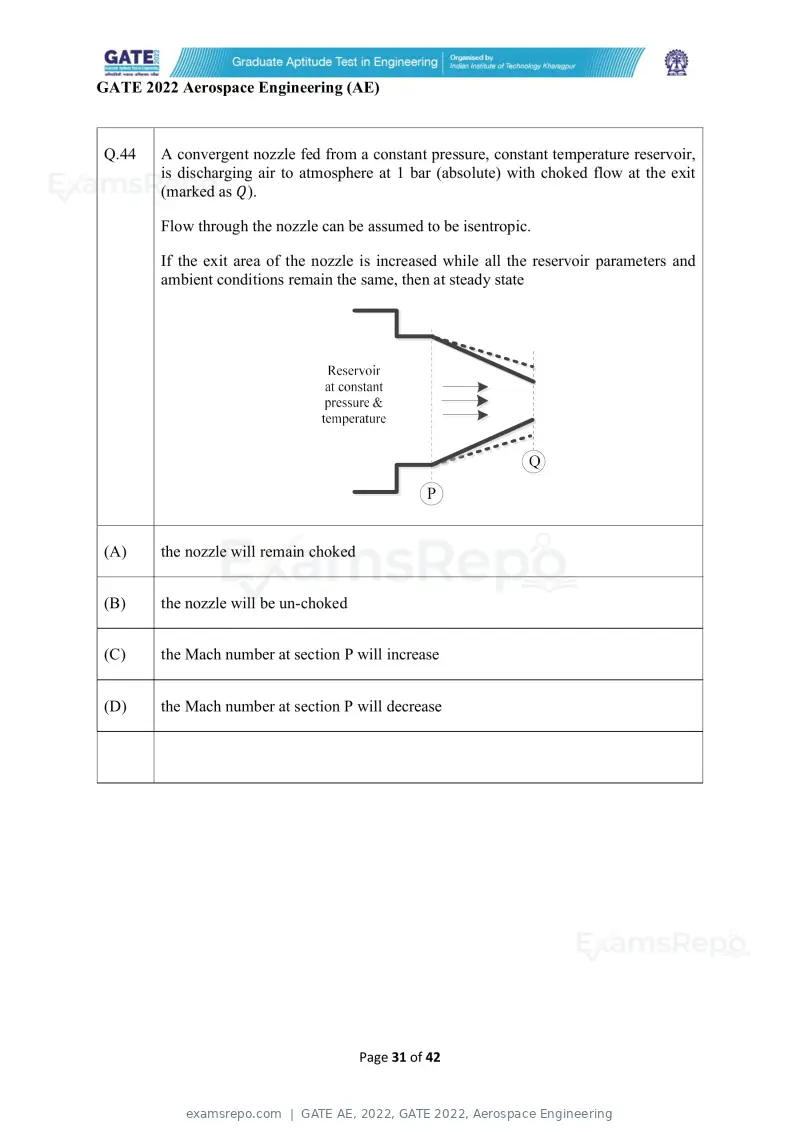

Q.44 A convergent nozzle fed from a constant pressure, constant temperature reservoir,
is discharging air to atmosphere at 1 bar (absolute) with choked flow at the exit
(marked as Q).
Flow through the nozzle can be assumed to be isentropic.
If the exit area of the nozzle is increased while all the reservoir parameters and
ambient conditions remain the same, then at steady state
(A) the nozzle will remain choked
(B) the nozzle will be un-choked
(C) the Mach number at section P will increase
(D) the Mach number at section P will decrease
Page 31 of 42
Text of page 32
GATE 2022 Aerospace Engineering (AE)

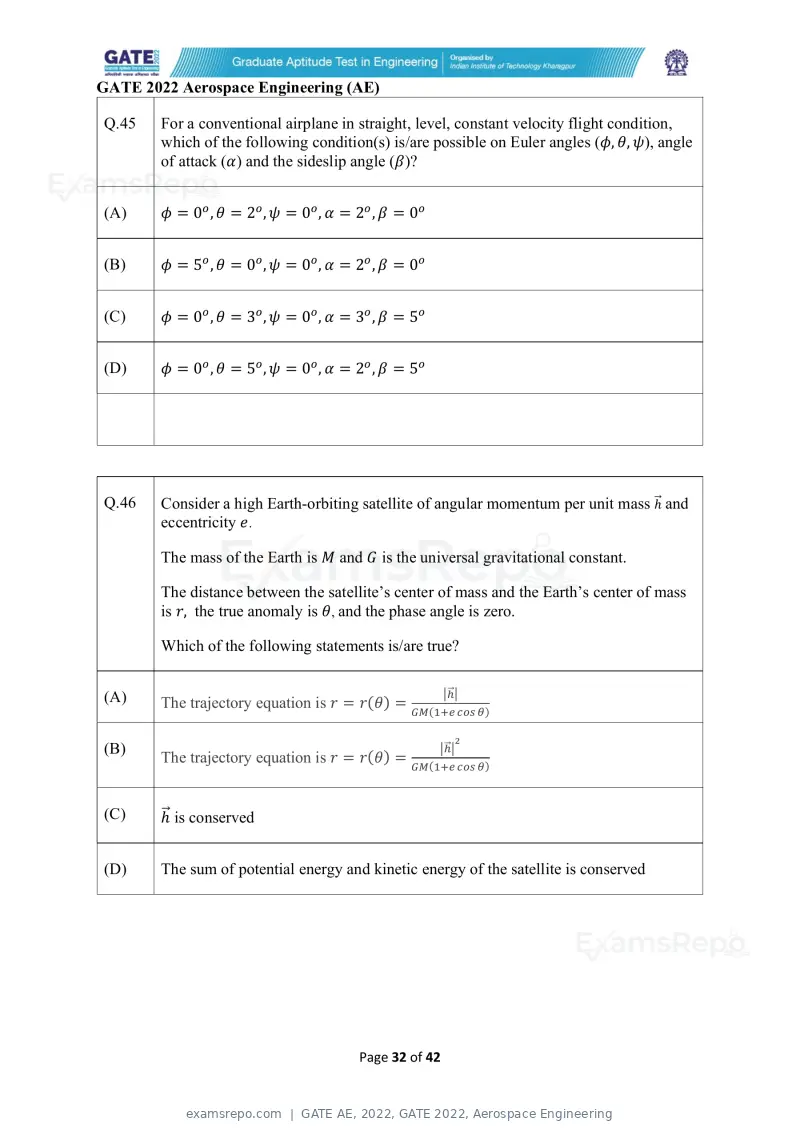

Q.45 For a conventional airplane in straight, level, constant velocity flight condition,
which of the following condition(s) is/are possible on Euler angles (φ, θ, ψ), angle
of attack (α) and the sideslip angle (β)?
(A) φ = 0 ,θ = 2 ,ψ = 0 ,α = 2 ,β = 0
(B) φ = 5 ,θ = 0 ,ψ = 0 ,α = 2 ,β = 0
(C) φ = 0 ,θ = 3 ,ψ = 0 ,α = 3 ,β = 5
(D) φ = 0 ,θ = 5 ,ψ = 0 ,α = 2 ,β = 5
Q.46 Consider a high Earth-orbiting satellite of angular momentum per unit mass ℎ⃗ and
eccentricity e.
The mass of the Earth is M and G is the universal gravitational constant.
The distance between the satellite’s center of mass and the Earth’s center of mass
is r, the true anomaly is θ, and the phase angle is zero.
Which of the following statements is/are true?
⃗
(A) The trajectory equation is r = r(θ) = ( )
(B) ⃗
The trajectory equation is r = r(θ) = ( )
(C) ℎ⃗ is conserved
(D) The sum of potential energy and kinetic energy of the satellite is conserved
Page 32 of 42
Text of page 33
GATE 2022 Aerospace Engineering (AE)

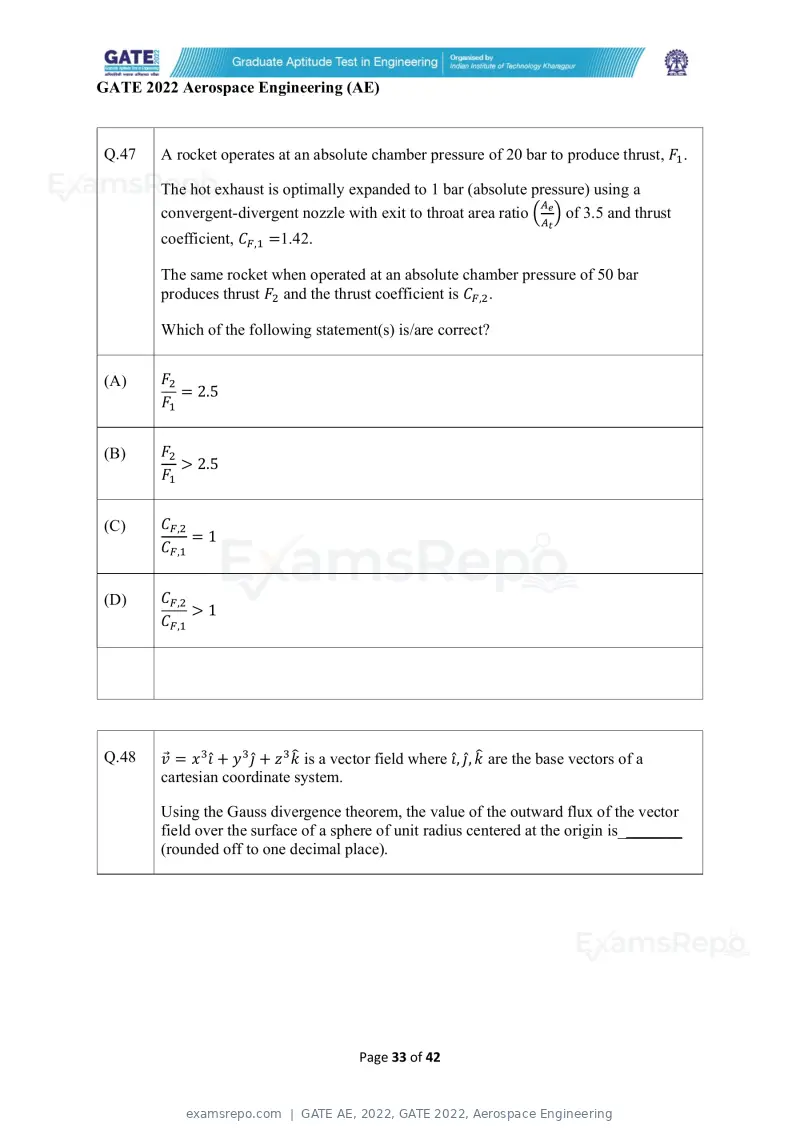

Q.47 A rocket operates at an absolute chamber pressure of 20 bar to produce thrust, F .
The hot exhaust is optimally expanded to 1 bar (absolute pressure) using a
convergent-divergent nozzle with exit to throat area ratio of 3.5 and thrust
coefficient, C , =1.42.
The same rocket when operated at an absolute chamber pressure of 50 bar
produces thrust F and the thrust coefficient is C , .
Which of the following statement(s) is/are correct?
(A) F
= 2.5
F
(B) F
> 2.5
F
(C) C ,
=1
C ,
(D) C ,
>1
C ,
Q.48 v⃗ = x ı̂ + y ȷ̂ + z k is a vector field where ı̂, ȷ̂, k are the base vectors of a
cartesian coordinate system.
Using the Gauss divergence theorem, the value of the outward flux of the vector
field over the surface of a sphere of unit radius centered at the origin is________
(rounded off to one decimal place).
Page 33 of 42
Text of page 34
GATE 2022 Aerospace Engineering (AE)

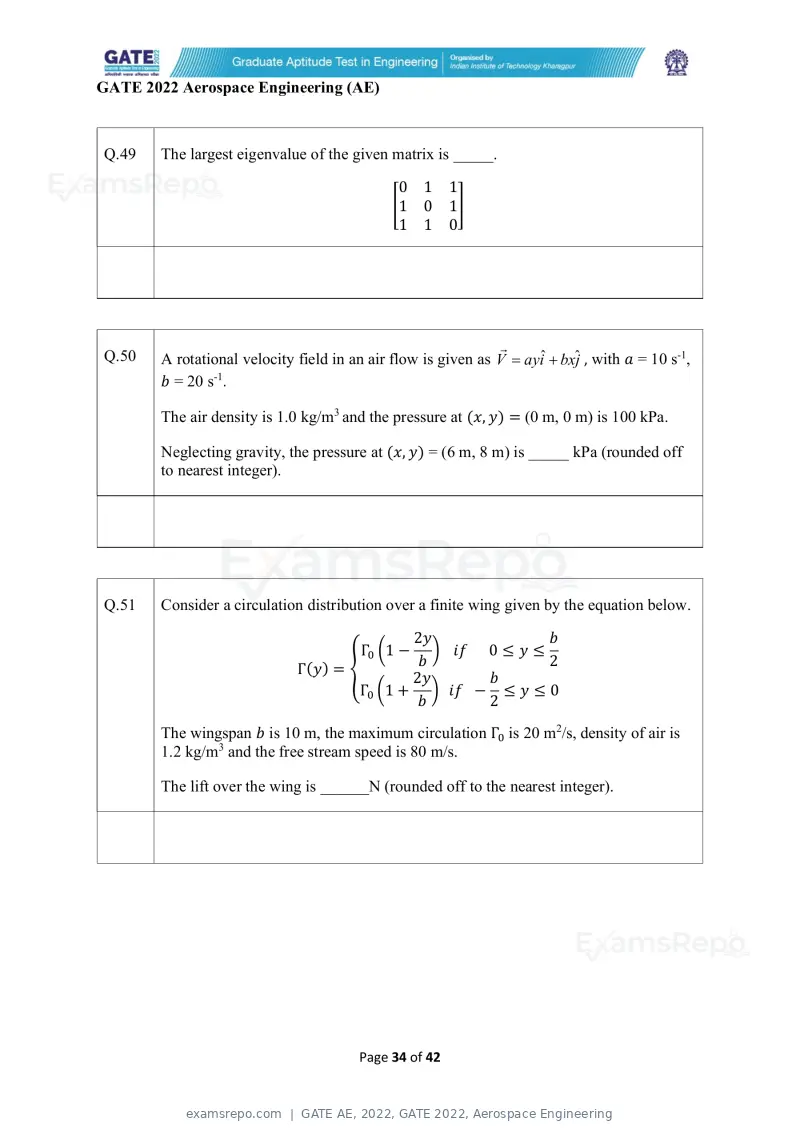

Q.49 The largest eigenvalue of the given matrix is _____.
0 1 1
1 0 1
1 1 0
Q.50 A rotational velocity field in an air flow is given as V ayiˆ bxjˆ , with a = 10 s-1,
b = 20 s-1.
The air density is 1.0 kg/m3 and the pressure at (x, y) = (0 m, 0 m) is 100 kPa.
Neglecting gravity, the pressure at (x, y) = (6 m, 8 m) is _____ kPa (rounded off
to nearest integer).
Q.51 Consider a circulation distribution over a finite wing given by the equation below.
2y b
Γ 1− if 0≤y≤
Γ(y) = b 2
2y b
Γ 1+ if − ≤y≤0
b 2
The wingspan b is 10 m, the maximum circulation Γ is 20 m2/s, density of air is
1.2 kg/m3 and the free stream speed is 80 m/s.
The lift over the wing is ______N (rounded off to the nearest integer).
Page 34 of 42
Text of page 35
GATE 2022 Aerospace Engineering (AE)

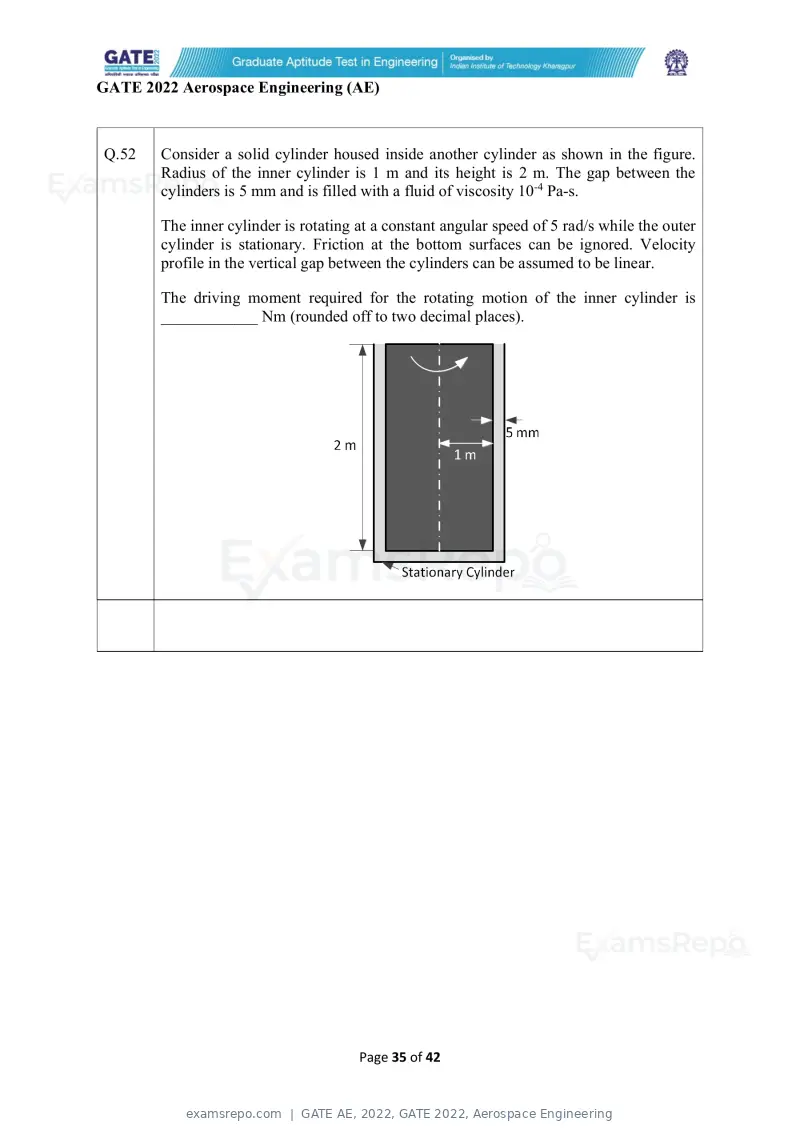

Q.52 Consider a solid cylinder housed inside another cylinder as shown in the figure.
Radius of the inner cylinder is 1 m and its height is 2 m. The gap between the
cylinders is 5 mm and is filled with a fluid of viscosity 10-4 Pa-s.
The inner cylinder is rotating at a constant angular speed of 5 rad/s while the outer
cylinder is stationary. Friction at the bottom surfaces can be ignored. Velocity
profile in the vertical gap between the cylinders can be assumed to be linear.
The driving moment required for the rotating motion of the inner cylinder is
____________ Nm (rounded off to two decimal places).
Page 35 of 42
Text of page 36
GATE 2022 Aerospace Engineering (AE)

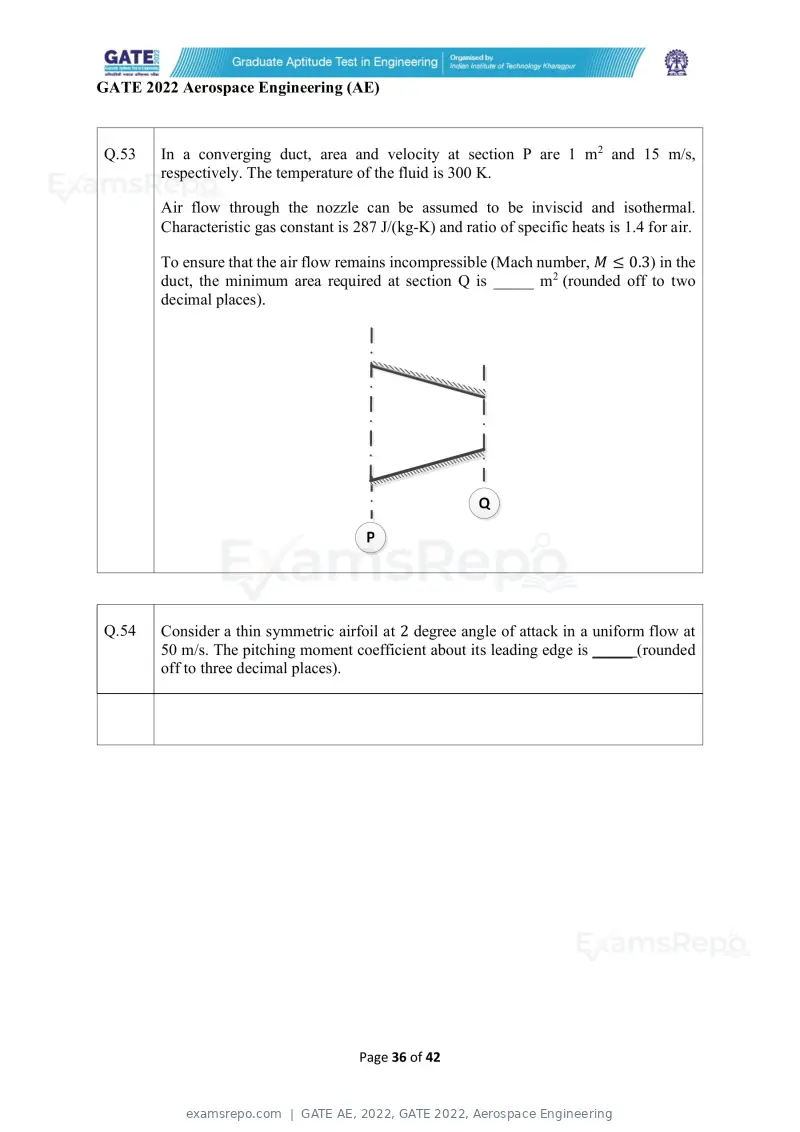

Q.53 In a converging duct, area and velocity at section P are 1 m2 and 15 m/s,
respectively. The temperature of the fluid is 300 K.
Air flow through the nozzle can be assumed to be inviscid and isothermal.
Characteristic gas constant is 287 J/(kg-K) and ratio of specific heats is for air.
To ensure that the air flow remains incompressible (Mach number, M ≤ 0.3) in the
duct, the minimum area required at section Q is _____ m2 (rounded off to two
decimal places).
Q.54 Consider a thin symmetric airfoil at 2 degree angle of attack in a uniform flow at
50 m/s. The pitching moment coefficient about its leading edge is _____ (rounded
off to three decimal places).
Page 36 of 42
Text of page 37
GATE 2022 Aerospace Engineering (AE)

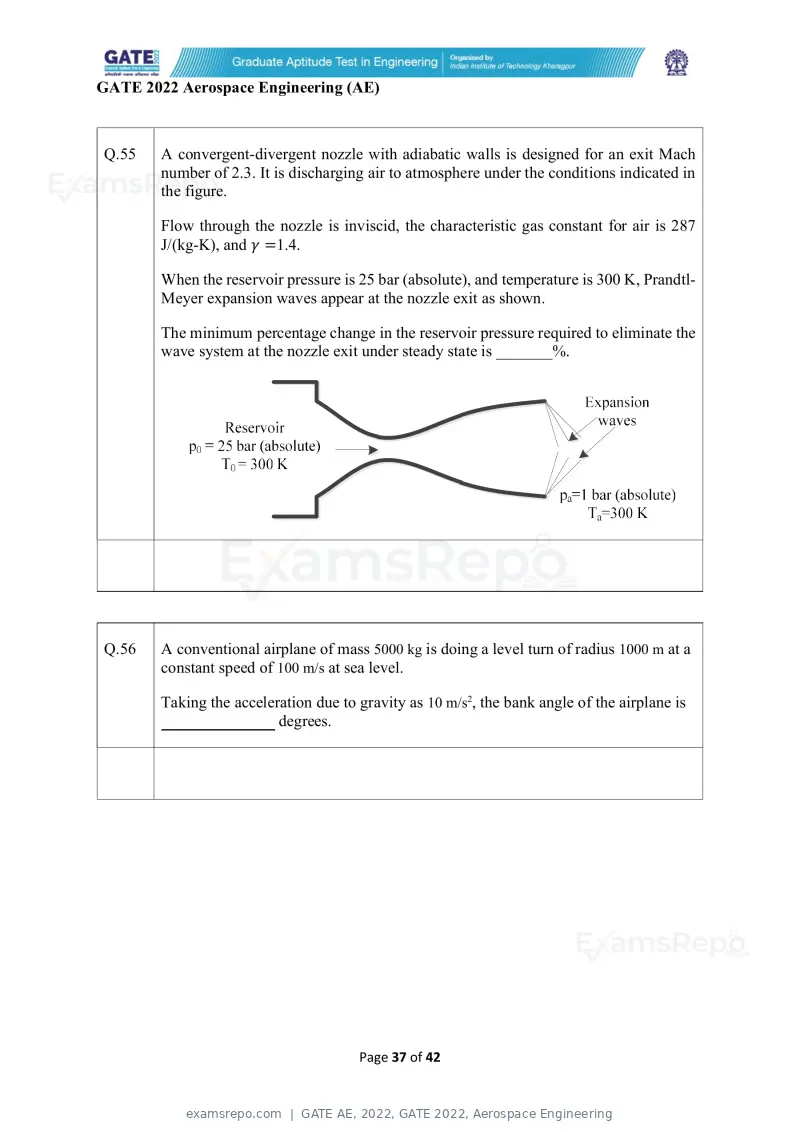

Q.55 A convergent-divergent nozzle with adiabatic walls is designed for an exit Mach
number of 2.3. It is discharging air to atmosphere under the conditions indicated in
the figure.
Flow through the nozzle is inviscid, the characteristic gas constant for air is 287
J/(kg-K), and γ =1.4.
When the reservoir pressure is 25 bar (absolute), and temperature is 300 K, Prandtl-
Meyer expansion waves appear at the nozzle exit as shown.
The minimum percentage change in the reservoir pressure required to eliminate the
wave system at the nozzle exit under steady state is _______%.
Q.56 A conventional airplane of mass 5000 kg is doing a level turn of radius 1000 m at a
constant speed of 100 m/s at sea level.
Taking the acceleration due to gravity as 10 m/s2, the bank angle of the airplane is
degrees.
Page 37 of 42
Text of page 38
GATE 2022 Aerospace Engineering (AE)

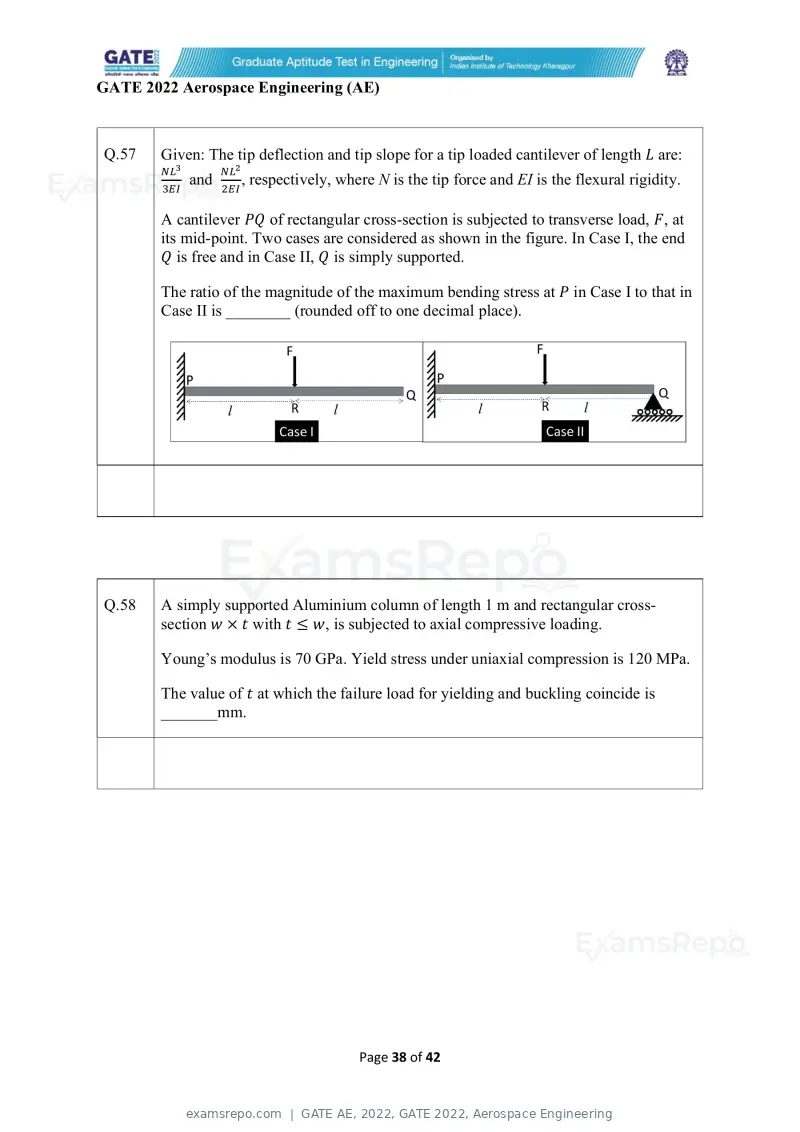

Q.57 Given: The tip deflection and tip slope for a tip loaded cantilever of length L are:
and , respectively, where N is the tip force and EI is the flexural rigidity.
A cantilever PQ of rectangular cross-section is subjected to transverse load, F, at
its mid-point. Two cases are considered as shown in the figure. In Case I, the end
Q is free and in Case II, Q is simply supported.
The ratio of the magnitude of the maximum bending stress at P in Case I to that in
Case II is ________ (rounded off to one decimal place).
Q.58 A simply supported Aluminium column of length 1 m and rectangular cross-
section w × t with t ≤ w, is subjected to axial compressive loading.
Young’s modulus is 70 GPa. Yield stress under uniaxial compression is 120 MPa.
The value of t at which the failure load for yielding and buckling coincide is
_______mm.
Page 38 of 42
Text of page 39
GATE 2022 Aerospace Engineering (AE)

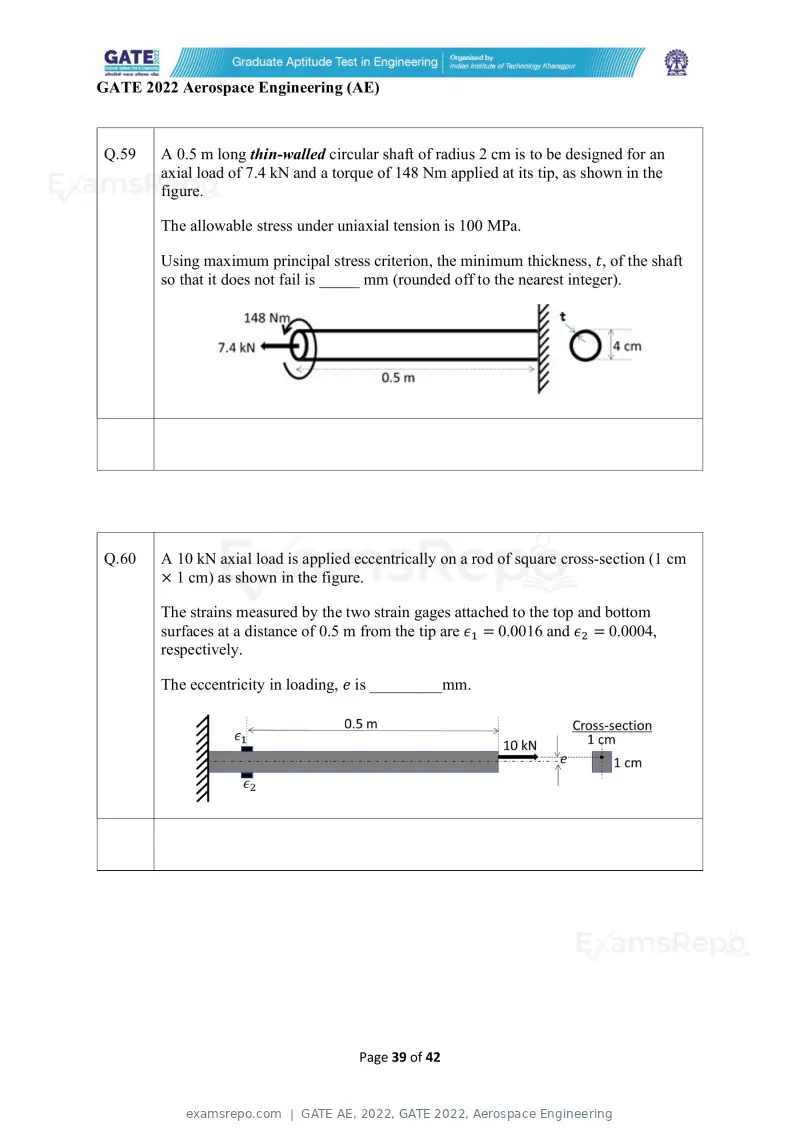

Q.59 A 0.5 m long thin-walled circular shaft of radius 2 cm is to be designed for an
axial load of 7.4 kN and a torque of 148 Nm applied at its tip, as shown in the
figure.
The allowable stress under uniaxial tension is 100 MPa.
Using maximum principal stress criterion, the minimum thickness, t, of the shaft
so that it does not fail is _____ mm (rounded off to the nearest integer).
Q.60 A 10 kN axial load is applied eccentrically on a rod of square cross-section (1 cm
× 1 cm) as shown in the figure.
The strains measured by the two strain gages attached to the top and bottom
surfaces at a distance of 0.5 m from the tip are ε = 0.0016 and ε = 0.0004,
respectively.
The eccentricity in loading, e is _________mm.
Page 39 of 42
Text of page 40
GATE 2022 Aerospace Engineering (AE)

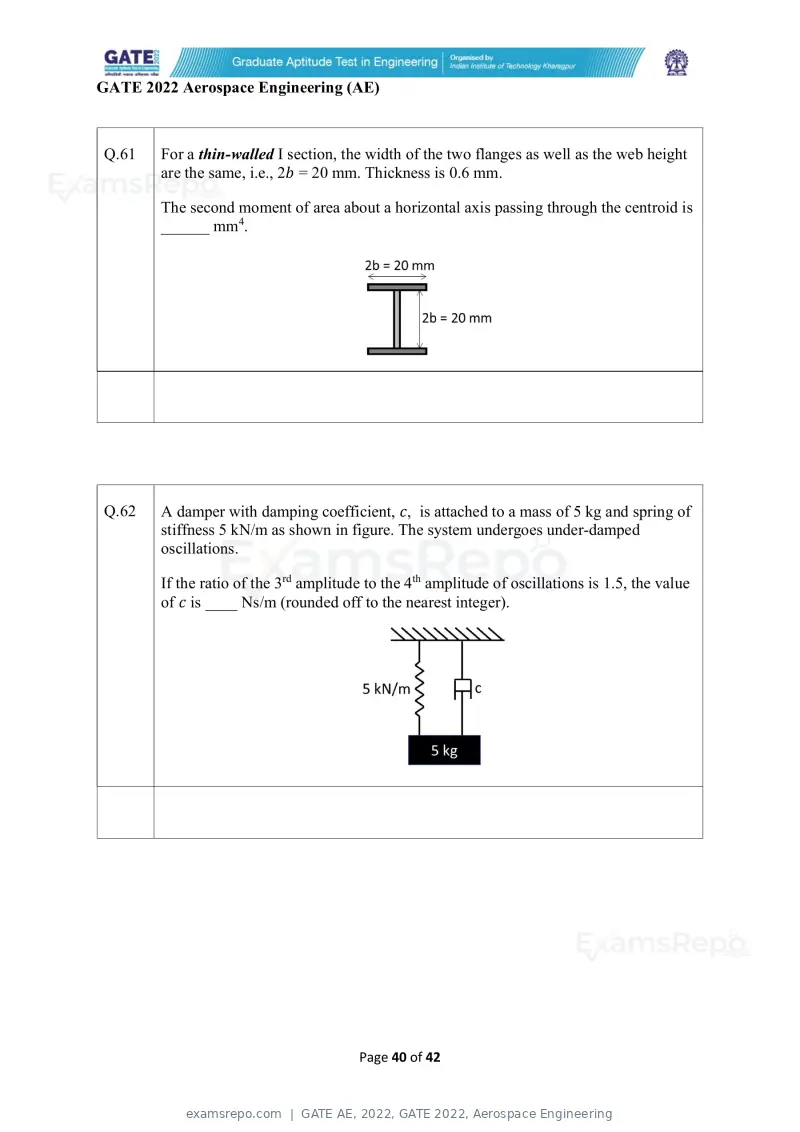

Q.61 For a thin-walled I section, the width of the two flanges as well as the web height
are the same, i.e., 2b = 20 mm. Thickness is 0.6 mm.
The second moment of area about a horizontal axis passing through the centroid is
______ mm4.
Q.62 A damper with damping coefficient, c, is attached to a mass of 5 kg and spring of
stiffness 5 kN/m as shown in figure. The system undergoes under-damped
oscillations.
If the ratio of the 3rd amplitude to the 4th amplitude of oscillations is 1.5, the value
of c is ____ Ns/m (rounded off to the nearest integer).
Page 40 of 42
Text of page 41
GATE 2022 Aerospace Engineering (AE)

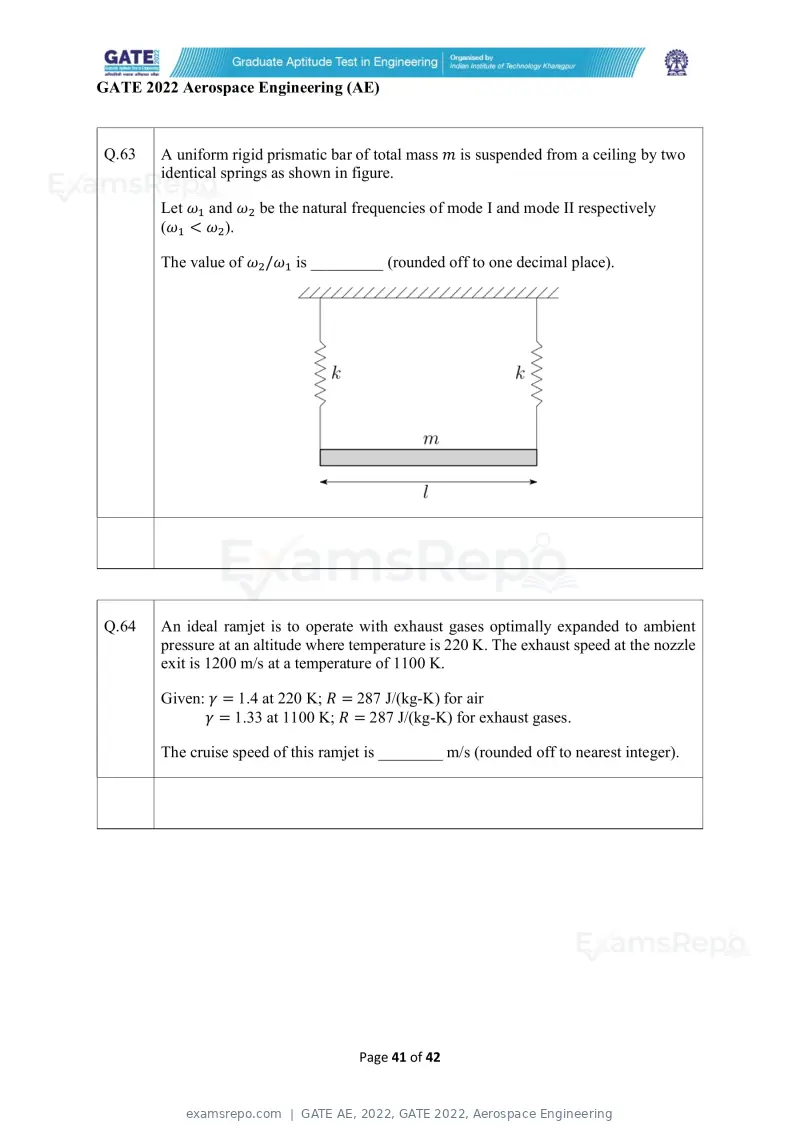

Q.63 A uniform rigid prismatic bar of total mass m is suspended from a ceiling by two
identical springs as shown in figure.
Let ω and ω be the natural frequencies of mode I and mode II respectively
(ω < ω ).
The value of ω /ω is _________ (rounded off to one decimal place).
Q.64 An ideal ramjet is to operate with exhaust gases optimally expanded to ambient
pressure at an altitude where temperature is 220 K. The exhaust speed at the nozzle
exit is 1200 m/s at a temperature of 1100 K.
Given: γ = 1.4 at 220 K; R = 287 J/(kg-K) for air
γ = 1.33 at 1100 K; R = 287 J/(kg-K) for exhaust gases.
The cruise speed of this ramjet is ________ m/s (rounded off to nearest integer).
Page 41 of 42
Text of page 42
GATE 2022 Aerospace Engineering (AE)

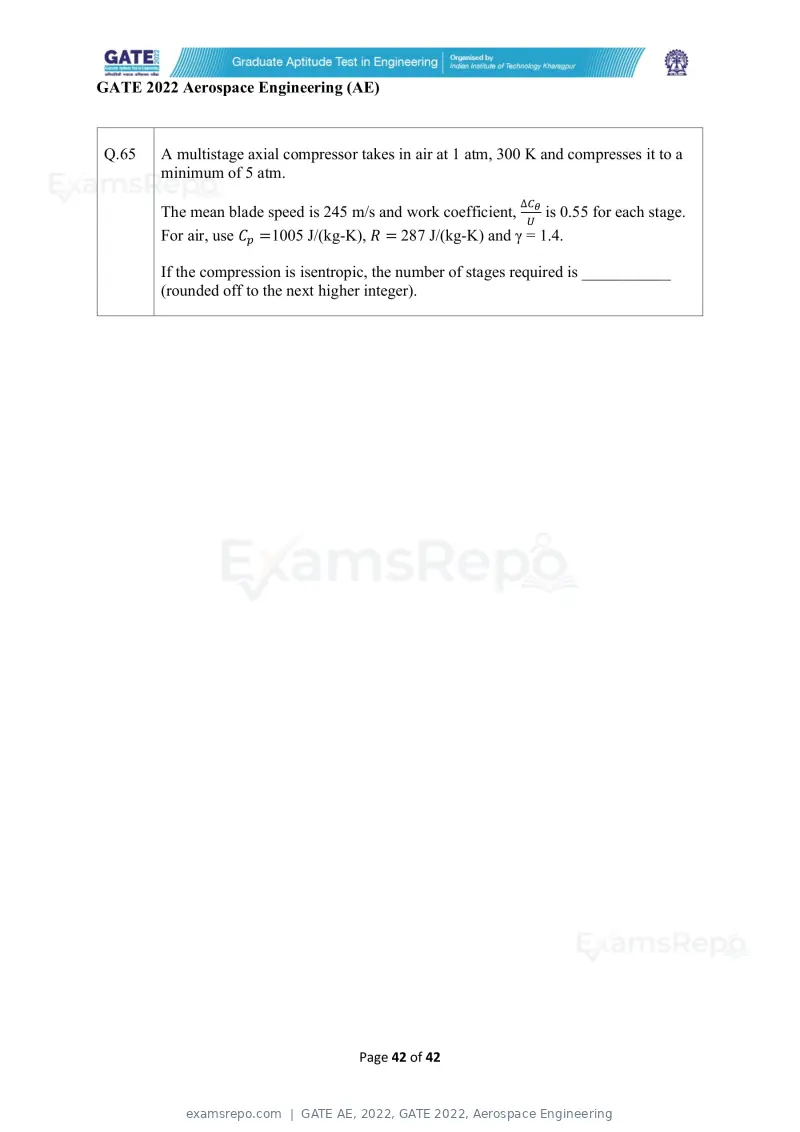

Q.65 A multistage axial compressor takes in air at 1 atm, 300 K and compresses it to a
minimum of 5 atm.
∆
The mean blade speed is 245 m/s and work coefficient, is 0.55 for each stage.
For air, use C =1005 J/(kg-K), R = 287 J/(kg-K) and γ = 1.4.
If the compression is isentropic, the number of stages required is ___________
(rounded off to the next higher integer).
Page 42 of 42
Text of page 43

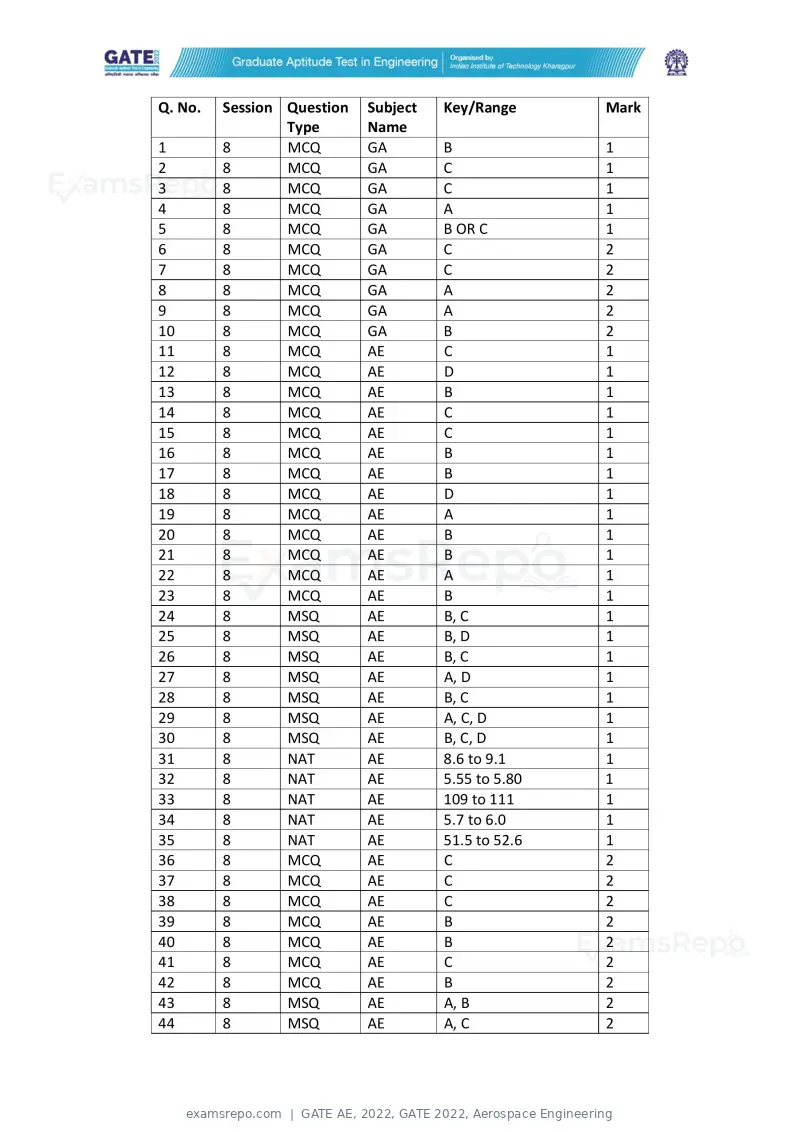

Q. No. Session Question Subject Key/Range Mark
Type Name
1 8 MCQ GA B 1
2 8 MCQ GA C 1
3 8 MCQ GA C 1
4 8 MCQ GA A 1
5 8 MCQ GA B OR C 1
6 8 MCQ GA C 2
7 8 MCQ GA C 2
8 8 MCQ GA A 2
9 8 MCQ GA A 2
10 8 MCQ GA B 2
11 8 MCQ AE C 1
12 8 MCQ AE D 1
13 8 MCQ AE B 1
14 8 MCQ AE C 1
15 8 MCQ AE C 1
16 8 MCQ AE B 1
17 8 MCQ AE B 1
18 8 MCQ AE D 1
19 8 MCQ AE A 1
20 8 MCQ AE B 1
21 8 MCQ AE B 1
22 8 MCQ AE A 1
23 8 MCQ AE B 1
24 8 MSQ AE B, C 1
25 8 MSQ AE B, D 1
26 8 MSQ AE B, C 1
27 8 MSQ AE A, D 1
28 8 MSQ AE B, C 1
29 8 MSQ AE A, C, D 1
30 8 MSQ AE B, C, D 1
31 8 NAT AE 8.6 to 9.1 1
32 8 NAT AE 5.55 to 5.80 1
33 8 NAT AE 109 to 111 1
34 8 NAT AE 5.7 to 6.0 1
35 8 NAT AE 51.5 to 52.6 1
36 8 MCQ AE C 2
37 8 MCQ AE C 2
38 8 MCQ AE C 2
39 8 MCQ AE B 2
40 8 MCQ AE B 2
41 8 MCQ AE C 2
42 8 MCQ AE B 2
43 8 MSQ AE A, B 2
44 8 MSQ AE A, C 2
Text of page 44
45 8 MSQ AE A 2 46 8 MSQ AE B, C, D 2 47 8 MSQ AE B, D 2 48 8 NAT AE 7.4 to 7.7 2 49 8 NAT AE 2 to 2 2 50 8 NAT AE 88 to 91 2 51 8 NAT AE 9500 to 9800 2 52 8 NAT AE 1.24 to 1.28 2 53 8 NAT AE 0.14 to 0.15 2 54 8 NAT AE -0.057 to -0.053 2 55 8 NAT AE 49 to 51 OR -51 to -49 2 56 8 NAT AE 44 to 46 2 57 8 NAT AE 2.6 to 2.7 2 58 8 NAT AE 43 to 48 2 59 8 NAT AE 1 to 1 2 60 8 NAT AE 0.95 to 1.05 2 61 8 NAT AE 2700 to 2960 2 62 8 NAT AE 19 to 21 2 63 8 NAT AE 1.7 to 1.8 2 64 8 NAT AE 545 to 555 2 65 8 NAT AE 6 or greater than 6 2
Text of page 1
Q. No. Session Question Subject Key/Range Mark
Type Name
1 8 MCQ GA B 1
2 8 MCQ GA C 1
3 8 MCQ GA C 1
4 8 MCQ GA A 1
5 8 MCQ GA B OR C 1
6 8 MCQ GA C 2
7 8 MCQ GA C 2
8 8 MCQ GA A 2
9 8 MCQ GA A 2
10 8 MCQ GA B 2
11 8 MCQ AE C 1
12 8 MCQ AE D 1
13 8 MCQ AE B 1
14 8 MCQ AE C 1
15 8 MCQ AE C 1
16 8 MCQ AE B 1
17 8 MCQ AE B 1
18 8 MCQ AE D 1
19 8 MCQ AE A 1
20 8 MCQ AE B 1
21 8 MCQ AE B 1
22 8 MCQ AE A 1
23 8 MCQ AE B 1
24 8 MSQ AE B, C 1
25 8 MSQ AE B, D 1
26 8 MSQ AE B, C 1
27 8 MSQ AE A, D 1
28 8 MSQ AE B, C 1
29 8 MSQ AE A, C, D 1
30 8 MSQ AE B, C, D 1
31 8 NAT AE 8.6 to 9.1 1
32 8 NAT AE 5.55 to 5.80 1
33 8 NAT AE 109 to 111 1
34 8 NAT AE 5.7 to 6.0 1
35 8 NAT AE 51.5 to 52.6 1
36 8 MCQ AE C 2
37 8 MCQ AE C 2
38 8 MCQ AE C 2
39 8 MCQ AE B 2
40 8 MCQ AE B 2
41 8 MCQ AE C 2
42 8 MCQ AE B 2
43 8 MSQ AE A, B 2
44 8 MSQ AE A, C 2
Text of page 2
45 8 MSQ AE A 2 46 8 MSQ AE B, C, D 2 47 8 MSQ AE B, D 2 48 8 NAT AE 7.4 to 7.7 2 49 8 NAT AE 2 to 2 2 50 8 NAT AE 88 to 91 2 51 8 NAT AE 9500 to 9800 2 52 8 NAT AE 1.24 to 1.28 2 53 8 NAT AE 0.14 to 0.15 2 54 8 NAT AE -0.057 to -0.053 2 55 8 NAT AE 49 to 51 OR -51 to -49 2 56 8 NAT AE 44 to 46 2 57 8 NAT AE 2.6 to 2.7 2 58 8 NAT AE 43 to 48 2 59 8 NAT AE 1 to 1 2 60 8 NAT AE 0.95 to 1.05 2 61 8 NAT AE 2700 to 2960 2 62 8 NAT AE 19 to 21 2 63 8 NAT AE 1.7 to 1.8 2 64 8 NAT AE 545 to 555 2 65 8 NAT AE 6 or greater than 6 2
Page 1 of 44
Source: GATE. Question paper published by GATE.
