GATE CS 2013: Computer Science and Information Technology
Text of page 1
SESSION - 1
Text of page 2

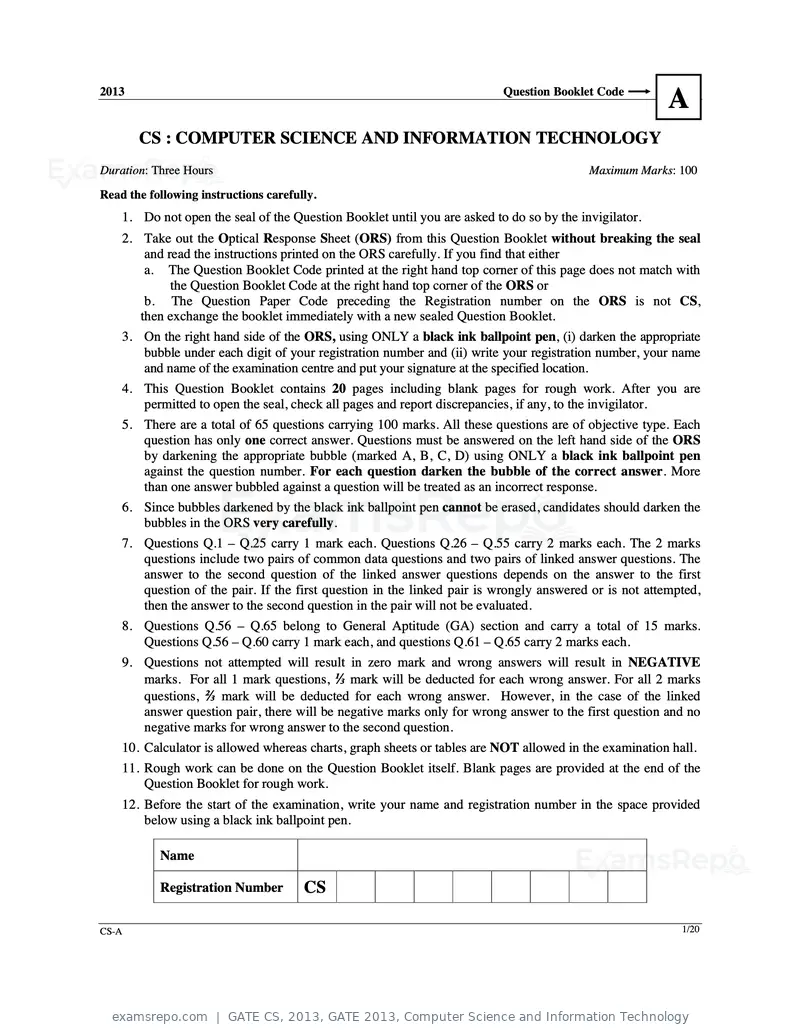

2013 Question Booklet Code
A
CS : COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Duration: Three Hours Maximum Marks: 100
Read the following instructions carefully.
1. Do not open the seal of the Question Booklet until you are asked to do so by the invigilator.
2. Take out the Optical Response Sheet (ORS) from this Question Booklet without breaking the seal
and read the instructions printed on the ORS carefully. If you find that either
a. The Question Booklet Code printed at the right hand top corner of this page does not match with
the Question Booklet Code at the right hand top corner of the ORS or
b. The Question Paper Code preceding the Registration number on the ORS is not CS,
then exchange the booklet immediately with a new sealed Question Booklet.
3. On the right hand side of the ORS, using ONLY a black ink ballpoint pen, (i) darken the appropriate
bubble under each digit of your registration number and (ii) write your registration number, your name
and name of the examination centre and put your signature at the specified location.
4. This Question Booklet contains 20 pages including blank pages for rough work. After you are
permitted to open the seal, check all pages and report discrepancies, if any, to the invigilator.
5. There are a total of 65 questions carrying 100 marks. All these questions are of objective type. Each
question has only one correct answer. Questions must be answered on the left hand side of the ORS
by darkening the appropriate bubble (marked A, B, C, D) using ONLY a black ink ballpoint pen
against the question number. For each question darken the bubble of the correct answer. More
than one answer bubbled against a question will be treated as an incorrect response.
6. Since bubbles darkened by the black ink ballpoint pen cannot be erased, candidates should darken the
bubbles in the ORS very carefully.
7. Questions Q.1 – Q.25 carry 1 mark each. Questions Q.26 – Q.55 carry 2 marks each. The 2 marks
questions include two pairs of common data questions and two pairs of linked answer questions. The
answer to the second question of the linked answer questions depends on the answer to the first
question of the pair. If the first question in the linked pair is wrongly answered or is not attempted,
then the answer to the second question in the pair will not be evaluated.
8. Questions Q.56 – Q.65 belong to General Aptitude (GA) section and carry a total of 15 marks.
Questions Q.56 – Q.60 carry 1 mark each, and questions Q.61 – Q.65 carry 2 marks each.
9. Questions not attempted will result in zero mark and wrong answers will result in NEGATIVE
marks. For all 1 mark questions, ⅓ mark will be deducted for each wrong answer. For all 2 marks
questions, ⅔ mark will be deducted for each wrong answer. However, in the case of the linked
answer question pair, there will be negative marks only for wrong answer to the first question and no
negative marks for wrong answer to the second question.
10. Calculator is allowed whereas charts, graph sheets or tables are NOT allowed in the examination hall.
11. Rough work can be done on the Question Booklet itself. Blank pages are provided at the end of the
Question Booklet for rough work.
12. Before the start of the examination, write your name and registration number in the space provided
below using a black ink ballpoint pen.
Name
Registration Number CS
CS-A 1/20
Text of page 3

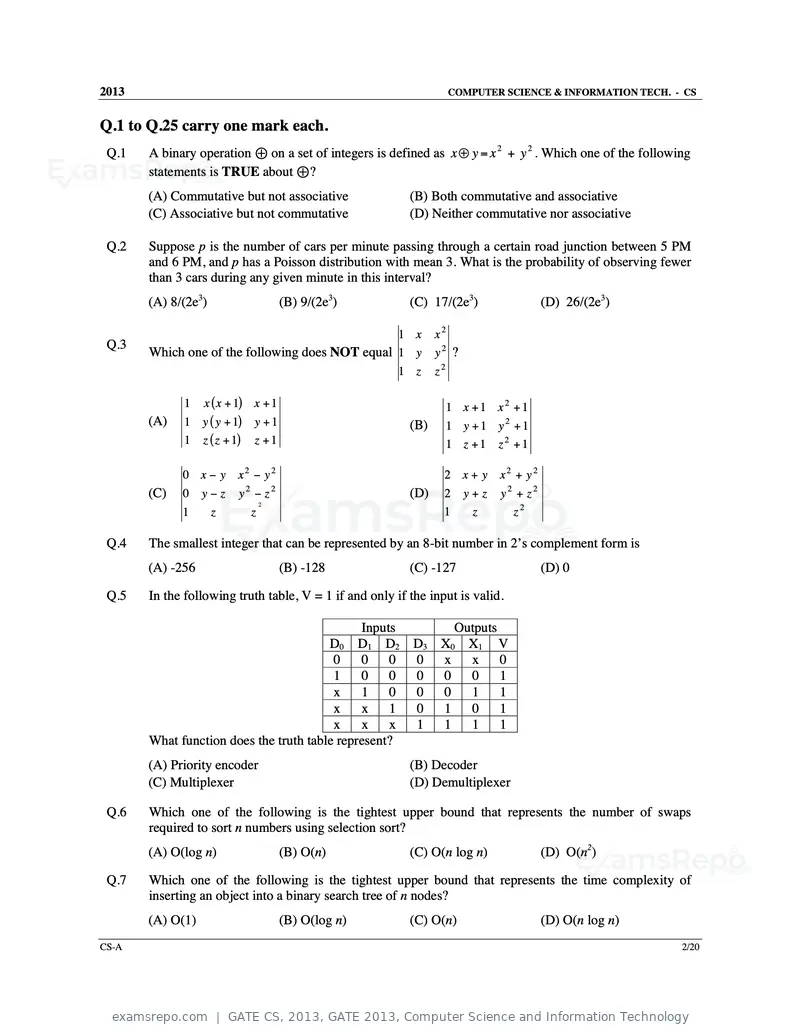

2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.1 to Q.25 carry one mark each.
Q.1 A binary operation ⊕ on a set of integers is defined as x ⊕ y = x 2 + y 2 . Which one of the following
statements is TRUE about ⊕?
(A) Commutative but not associative (B) Both commutative and associative
(C) Associative but not commutative (D) Neither commutative nor associative
Q.2 Suppose p is the number of cars per minute passing through a certain road junction between 5 PM
and 6 PM, and p has a Poisson distribution with mean 3. What is the probability of observing fewer
than 3 cars during any given minute in this interval?
(A) 8/(2e3) (B) 9/(2e3) (C) 17/(2e3) (D) 26/(2e3)
1 x x2
Q.3
Which one of the following does NOT equal 1 y y 2 ?
1 z z2
1 x ( x + 1) x + 1 1 x +1 x2 + 1
(A) 1 y ( y + 1) y +1 (B) 1 y +1 y2 +1
1 z ( z + 1) z +1 1 z +1 z2 +1
0 x− y x2 − y2 2 x+ y x2 + y2
(C) 0 y−z y2 − z2 (D) 2 y+z y2 + z2
2
1 z z 1 z z2
Q.4 The smallest integer that can be represented by an 8-bit number in 2’s complement form is
(A) -256 (B) -128 (C) -127 (D) 0
Q.5 In the following truth table, V = 1 if and only if the input is valid.
Inputs Outputs
D0 D1 D2 D3 X0 X1 V
0 0 0 0 x x 0
1 0 0 0 0 0 1
x 1 0 0 0 1 1
x x 1 0 1 0 1
x x x 1 1 1 1
What function does the truth table represent?
(A) Priority encoder (B) Decoder
(C) Multiplexer (D) Demultiplexer
Q.6 Which one of the following is the tightest upper bound that represents the number of swaps
required to sort n numbers using selection sort?
(A) O(log n) (B) O(n) (C) O(n log n) (D) O(n2)
Q.7 Which one of the following is the tightest upper bound that represents the time complexity of
inserting an object into a binary search tree of n nodes?
(A) O(1) (B) O(log n) (C) O(n) (D) O(n log n)
CS-A 2/20
Text of page 4
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

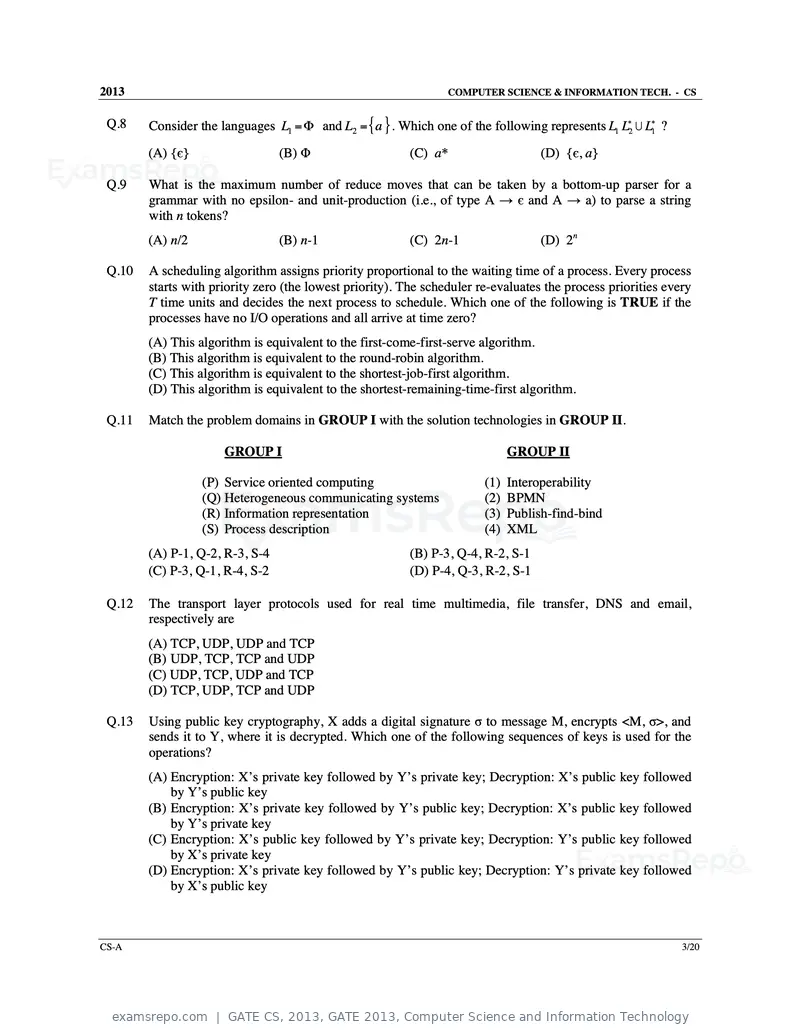

Q.8 Consider the languages L1 = Φ and L2 = { a } . Which one of the following represents L1 L∗2 U L1∗ ?
(A) {є} (B) Φ (C) a* (D) {є, a}
Q.9 What is the maximum number of reduce moves that can be taken by a bottom-up parser for a
grammar with no epsilon- and unit-production (i.e., of type A → є and A → a) to parse a string
with n tokens?
(A) n/2 (B) n-1 (C) 2n-1 (D) 2n
Q.10 A scheduling algorithm assigns priority proportional to the waiting time of a process. Every process
starts with priority zero (the lowest priority). The scheduler re-evaluates the process priorities every
T time units and decides the next process to schedule. Which one of the following is TRUE if the
processes have no I/O operations and all arrive at time zero?
(A) This algorithm is equivalent to the first-come-first-serve algorithm.
(B) This algorithm is equivalent to the round-robin algorithm.
(C) This algorithm is equivalent to the shortest-job-first algorithm.
(D) This algorithm is equivalent to the shortest-remaining-time-first algorithm.
Q.11 Match the problem domains in GROUP I with the solution technologies in GROUP II.
GROUP I GROUP II
(P) Service oriented computing (1) Interoperability
(Q) Heterogeneous communicating systems (2) BPMN
(R) Information representation (3) Publish-find-bind
(S) Process description (4) XML
(A) P-1, Q-2, R-3, S-4 (B) P-3, Q-4, R-2, S-1
(C) P-3, Q-1, R-4, S-2 (D) P-4, Q-3, R-2, S-1

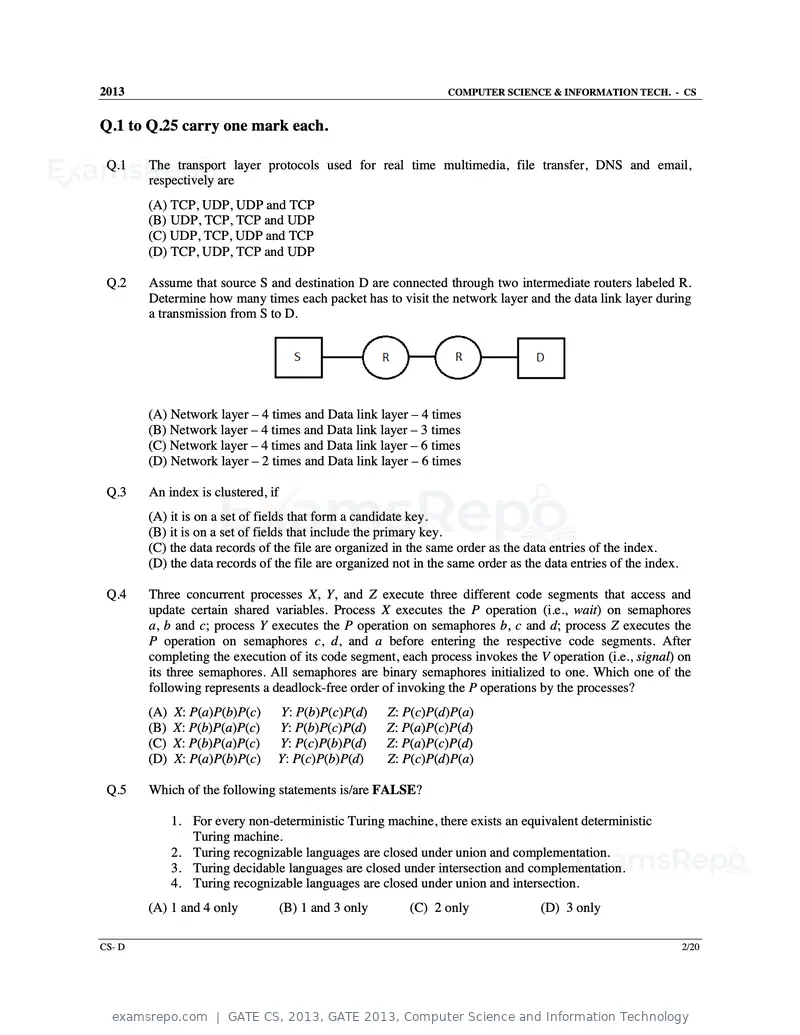

Q.12 The transport layer protocols used for real time multimedia, file transfer, DNS and email,
respectively are
(A) TCP, UDP, UDP and TCP
(B) UDP, TCP, TCP and UDP
(C) UDP, TCP, UDP and TCP
(D) TCP, UDP, TCP and UDP

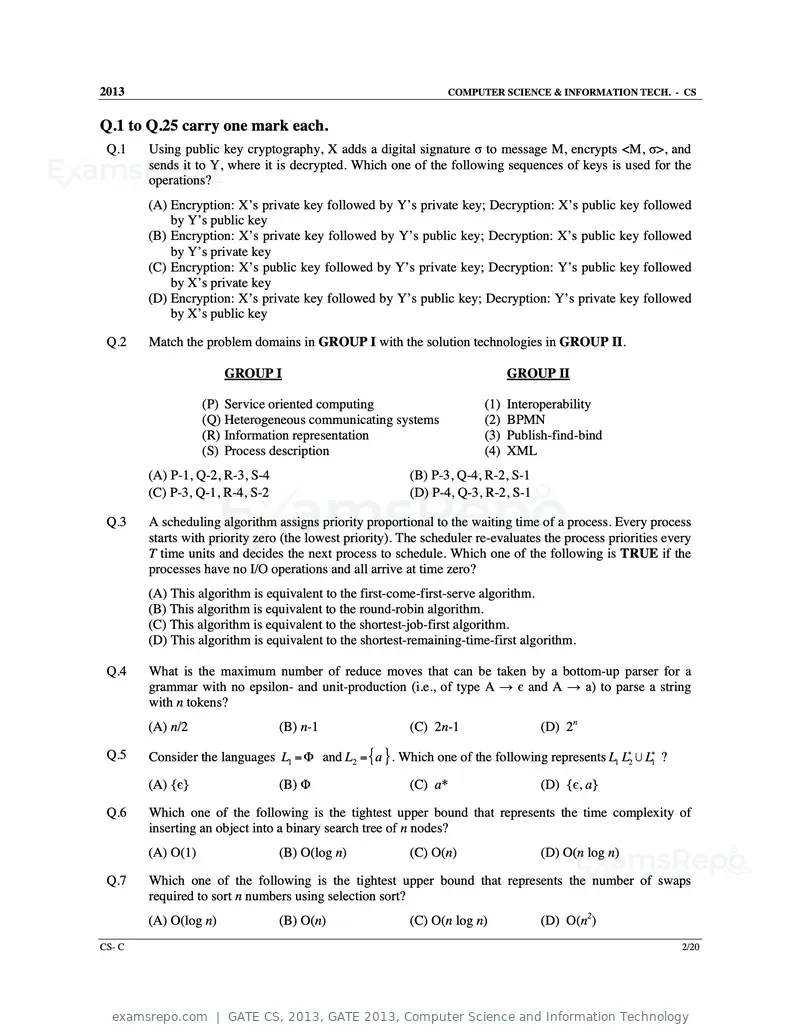

Q.13 Using public key cryptography, X adds a digital signature σ to message M, encrypts <M, σ>, and
sends it to Y, where it is decrypted. Which one of the following sequences of keys is used for the
operations?
(A) Encryption: X’s private key followed by Y’s private key; Decryption: X’s public key followed
by Y’s public key
(B) Encryption: X’s private key followed by Y’s public key; Decryption: X’s public key followed
by Y’s private key
(C) Encryption: X’s public key followed by Y’s private key; Decryption: Y’s public key followed
by X’s private key
(D) Encryption: X’s private key followed by Y’s public key; Decryption: Y’s private key followed
by X’s public key
CS-A 3/20
Text of page 5
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

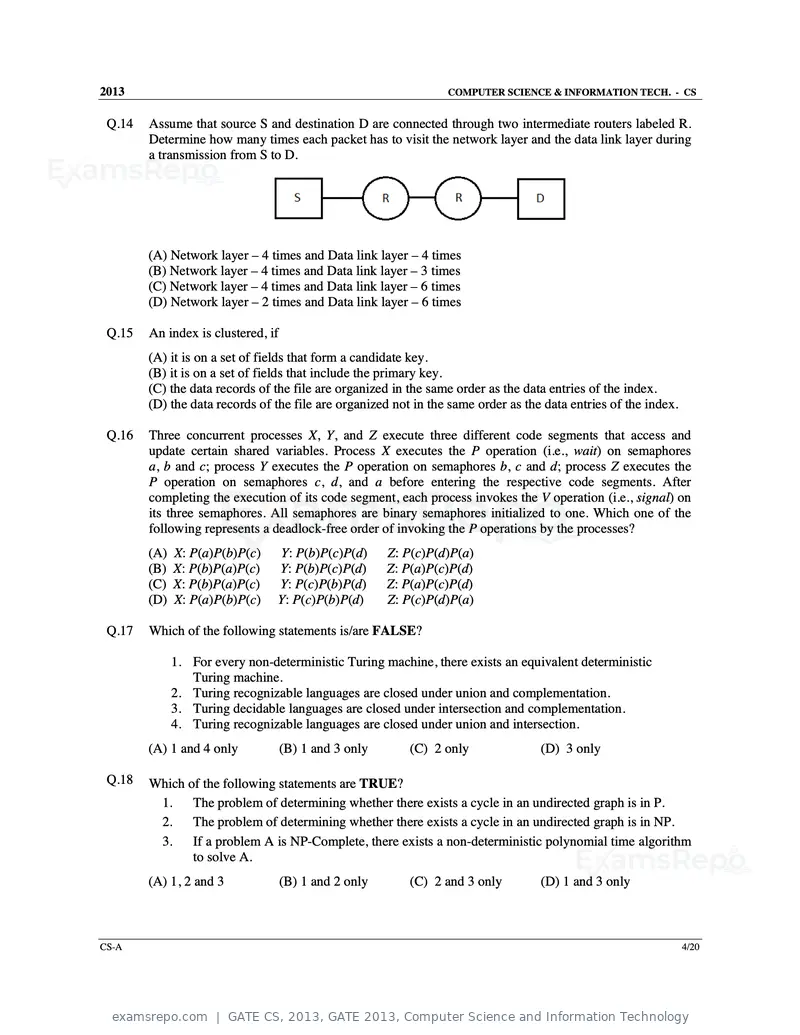

Q.14 Assume that source S and destination D are connected through two intermediate routers labeled R.
Determine how many times each packet has to visit the network layer and the data link layer during
a transmission from S to D.
(A) Network layer – 4 times and Data link layer – 4 times
(B) Network layer – 4 times and Data link layer – 3 times
(C) Network layer – 4 times and Data link layer – 6 times
(D) Network layer – 2 times and Data link layer – 6 times
Q.15 An index is clustered, if
(A) it is on a set of fields that form a candidate key.
(B) it is on a set of fields that include the primary key.
(C) the data records of the file are organized in the same order as the data entries of the index.
(D) the data records of the file are organized not in the same order as the data entries of the index.

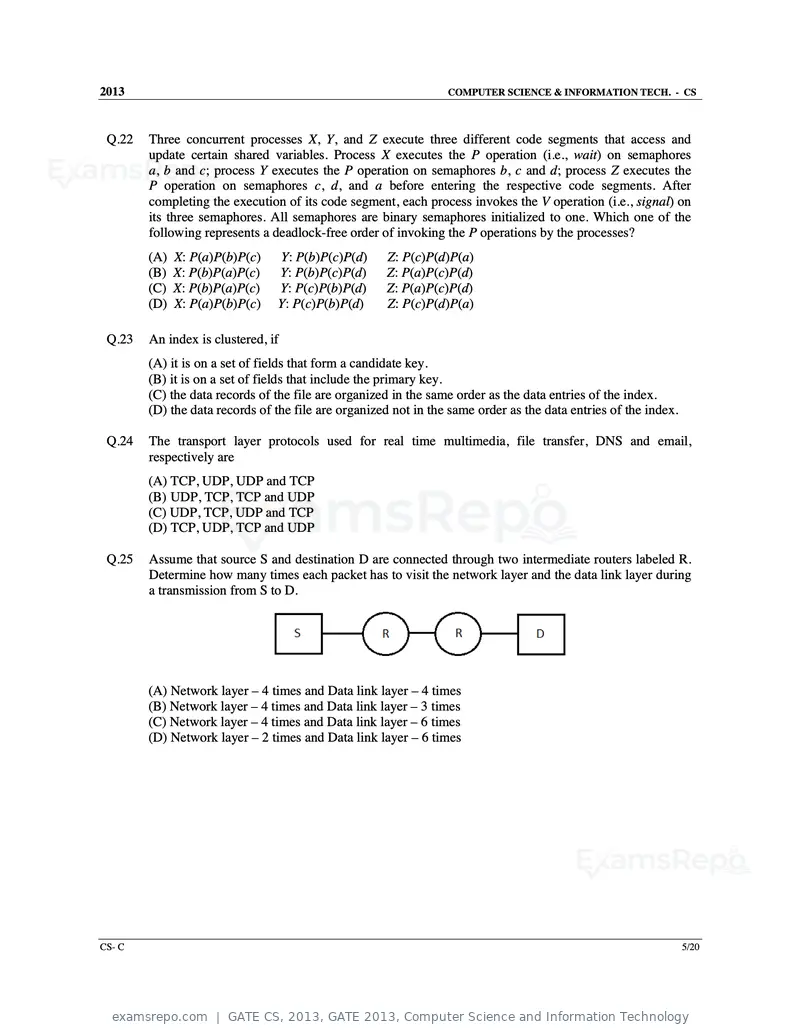

Q.16 Three concurrent processes X, Y, and Z execute three different code segments that access and
update certain shared variables. Process X executes the P operation (i.e., wait) on semaphores
a, b and c; process Y executes the P operation on semaphores b, c and d; process Z executes the
P operation on semaphores c, d, and a before entering the respective code segments. After
completing the execution of its code segment, each process invokes the V operation (i.e., signal) on
its three semaphores. All semaphores are binary semaphores initialized to one. Which one of the
following represents a deadlock-free order of invoking the P operations by the processes?
(A) X: P(a)P(b)P(c) Y: P(b)P(c)P(d) Z: P(c)P(d)P(a)
(B) X: P(b)P(a)P(c) Y: P(b)P(c)P(d) Z: P(a)P(c)P(d)
(C) X: P(b)P(a)P(c) Y: P(c)P(b)P(d) Z: P(a)P(c)P(d)
(D) X: P(a)P(b)P(c) Y: P(c)P(b)P(d) Z: P(c)P(d)P(a)

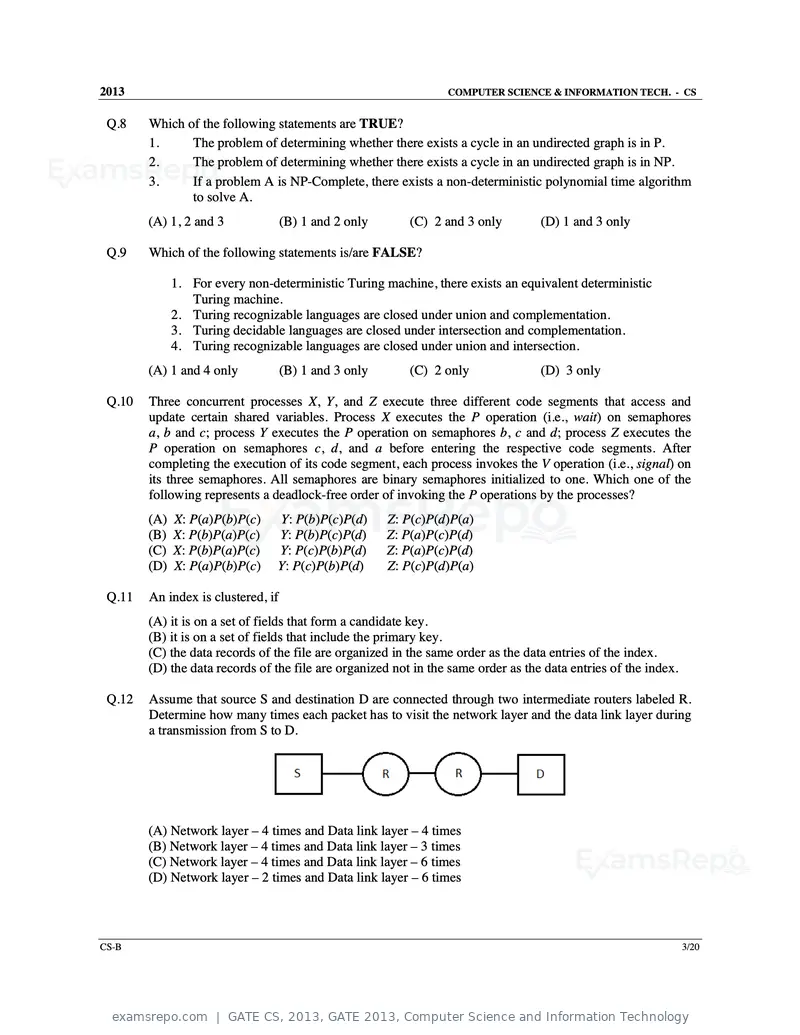

Q.17 Which of the following statements is/are FALSE?
1. For every non-deterministic Turing machine, there exists an equivalent deterministic
Turing machine.
2. Turing recognizable languages are closed under union and complementation.
3. Turing decidable languages are closed under intersection and complementation.
4. Turing recognizable languages are closed under union and intersection.
(A) 1 and 4 only (B) 1 and 3 only (C) 2 only (D) 3 only
Q.18 Which of the following statements are TRUE?
1. The problem of determining whether there exists a cycle in an undirected graph is in P.
2. The problem of determining whether there exists a cycle in an undirected graph is in NP.
3. If a problem A is NP-Complete, there exists a non-deterministic polynomial time algorithm
to solve A.
(A) 1, 2 and 3 (B) 1 and 2 only (C) 2 and 3 only (D) 1 and 3 only
CS-A 4/20
Text of page 6
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

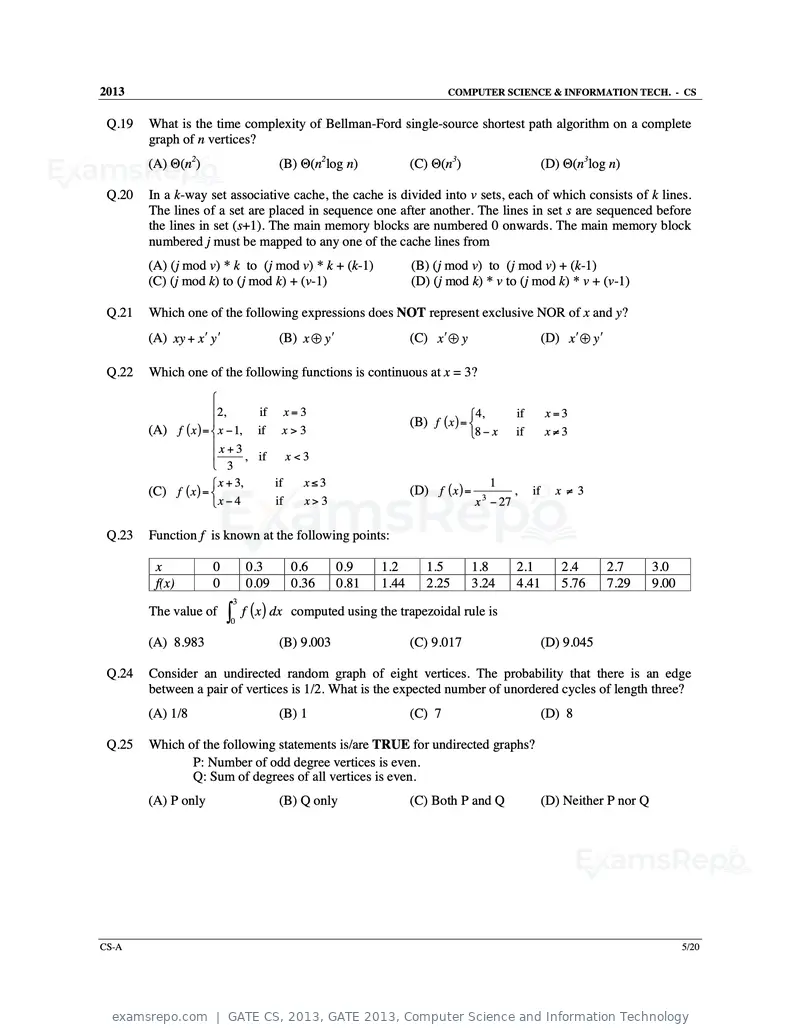

Q.19 What is the time complexity of Bellman-Ford single-source shortest path algorithm on a complete
graph of n vertices?
(A) Θ(n2) (B) Θ(n2log n) (C) Θ(n3) (D) Θ(n3log n)
Q.20 In a k-way set associative cache, the cache is divided into v sets, each of which consists of k lines.
The lines of a set are placed in sequence one after another. The lines in set s are sequenced before
the lines in set (s+1). The main memory blocks are numbered 0 onwards. The main memory block
numbered j must be mapped to any one of the cache lines from
(A) (j mod v) * k to (j mod v) * k + (k-1) (B) (j mod v) to (j mod v) + (k-1)
(C) (j mod k) to (j mod k) + (v-1) (D) (j mod k) * v to (j mod k) * v + (v-1)
Q.21 Which one of the following expressions does NOT represent exclusive NOR of x and y?
(A) xy + x ′ y ′ (B) x ⊕ y ′ (C) x ′ ⊕ y (D) x ′ ⊕ y ′
Q.22 Which one of the following functions is continuous at x = 3?
2, if x = 3 4, if x =3
(B) f ( x ) =
(A) f ( x ) = x − 1, if x > 3 8 − x if x≠3
x +3
, if x<3
3
x + 3, if x≤3 1
(C) f ( x ) = (D) f ( x ) = , if x ≠3
x − 4 if x>3 x 3 − 27

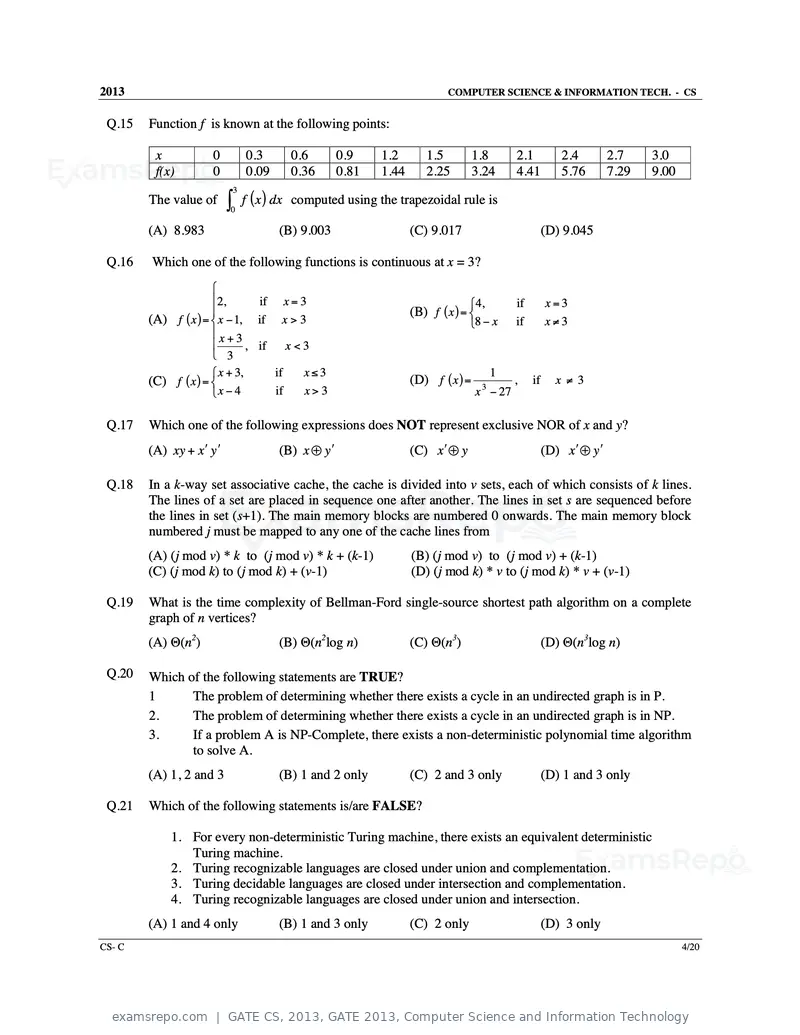

Q.23 Function f is known at the following points:
x 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
f(x) 0 0.09 0.36 0.81 1.44 2.25 3.24 4.41 5.76 7.29 9.00
∫ f (x ) dx computed using the trapezoidal rule is
3
The value of
0
(A) 8.983 (B) 9.003 (C) 9.017 (D) 9.045

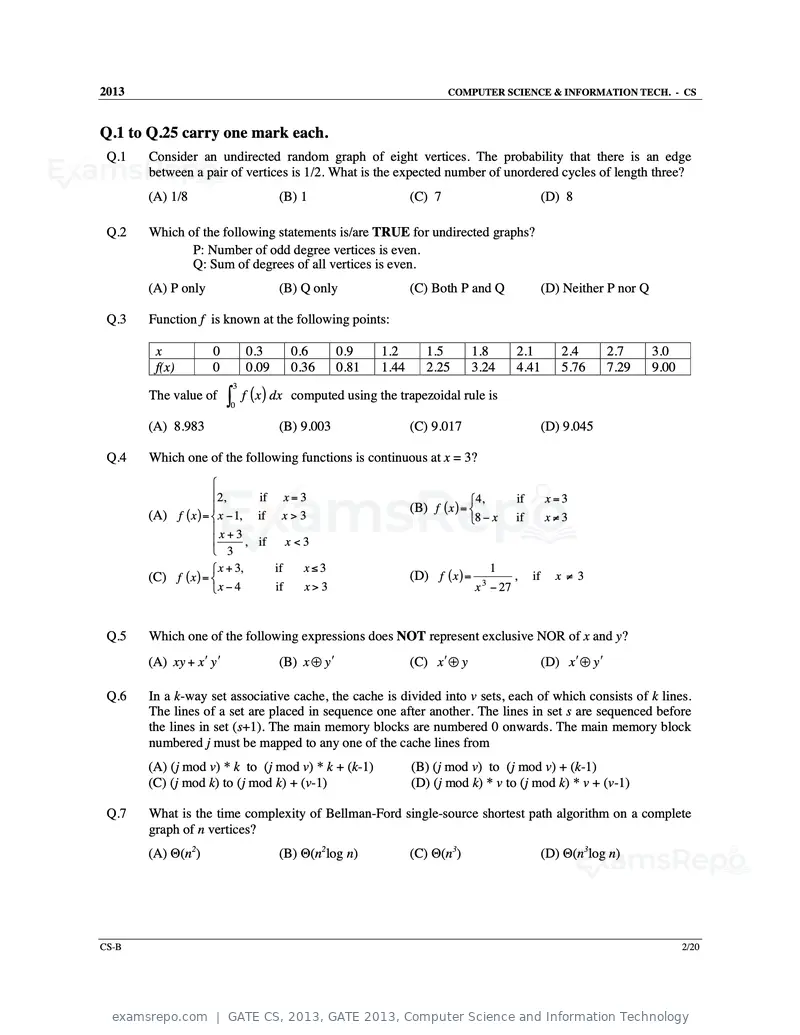

Q.24 Consider an undirected random graph of eight vertices. The probability that there is an edge
between a pair of vertices is 1/2. What is the expected number of unordered cycles of length three?
(A) 1/8 (B) 1 (C) 7 (D) 8
Q.25 Which of the following statements is/are TRUE for undirected graphs?
P: Number of odd degree vertices is even.
Q: Sum of degrees of all vertices is even.
(A) P only (B) Q only (C) Both P and Q (D) Neither P nor Q
CS-A 5/20
Text of page 7

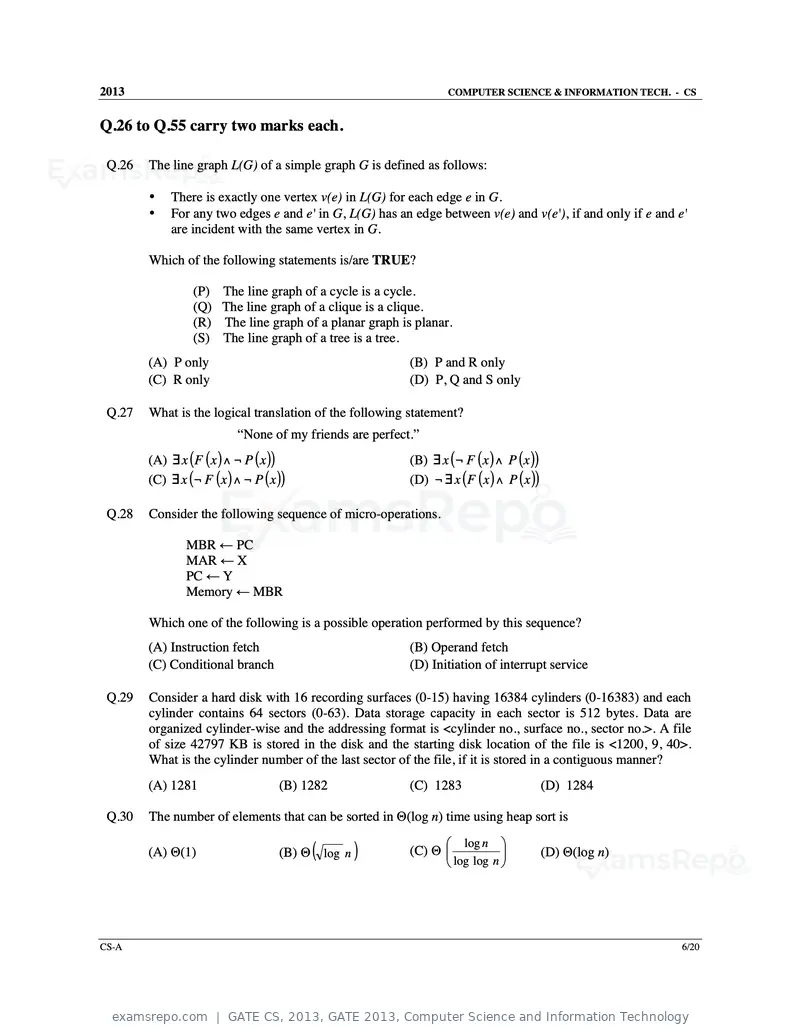

2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.26 to Q.55 carry two marks each.

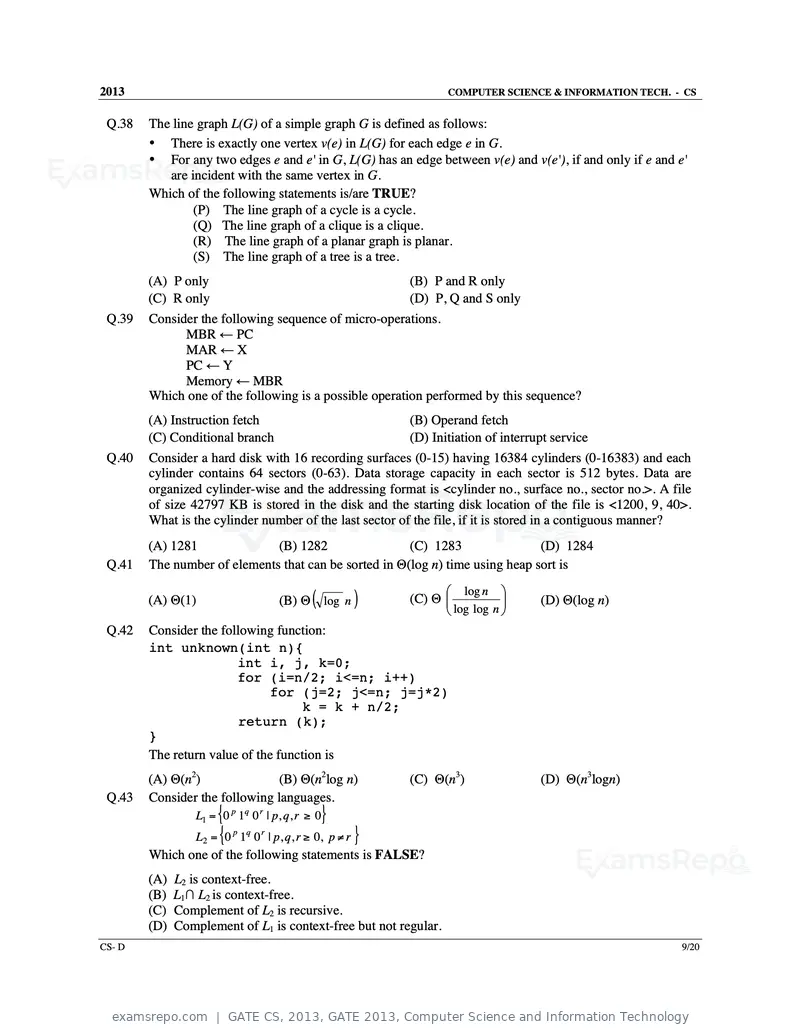

Q.26 The line graph L(G) of a simple graph G is defined as follows:
• There is exactly one vertex v(e) in L(G) for each edge e in G.
• For any two edges e and e' in G, L(G) has an edge between v(e) and v(e'), if and only if e and e'
are incident with the same vertex in G.
Which of the following statements is/are TRUE?
(P) The line graph of a cycle is a cycle.
(Q) The line graph of a clique is a clique.
(R) The line graph of a planar graph is planar.
(S) The line graph of a tree is a tree.
(A) P only (B) P and R only
(C) R only (D) P, Q and S only

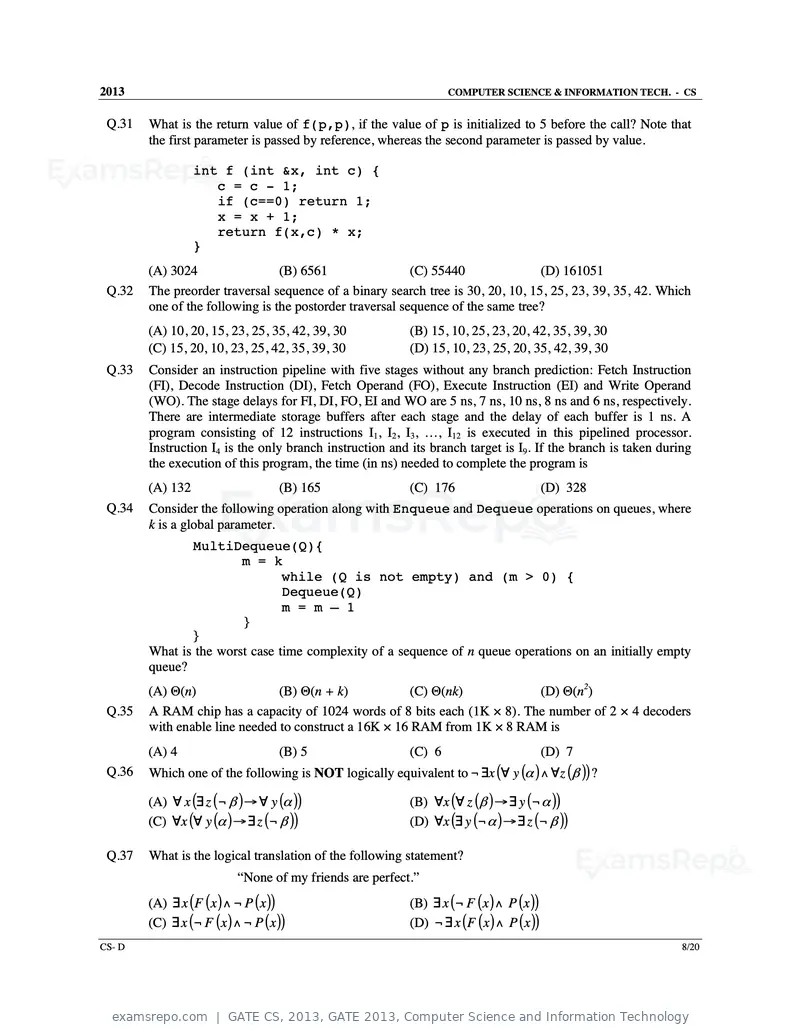

Q.27 What is the logical translation of the following statement?
“None of my friends are perfect.”
(A) ∃ x (F ( x ) ∧ ¬ P ( x )) (B) ∃ x (¬ F (x ) ∧ P (x ))
(C) ∃ x (¬ F (x ) ∧ ¬ P ( x )) (D) ¬ ∃ x (F ( x ) ∧ P ( x ))

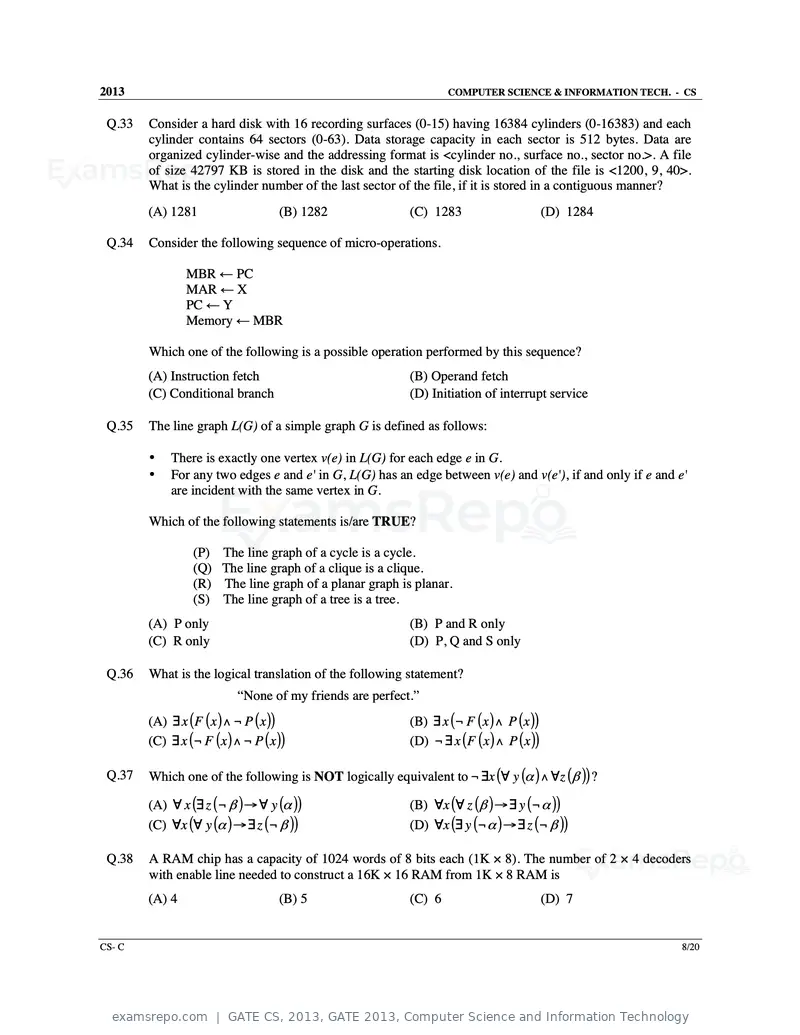

Q.28 Consider the following sequence of micro-operations.
MBR ← PC
MAR ← X
PC ← Y
Memory ← MBR
Which one of the following is a possible operation performed by this sequence?
(A) Instruction fetch (B) Operand fetch
(C) Conditional branch (D) Initiation of interrupt service

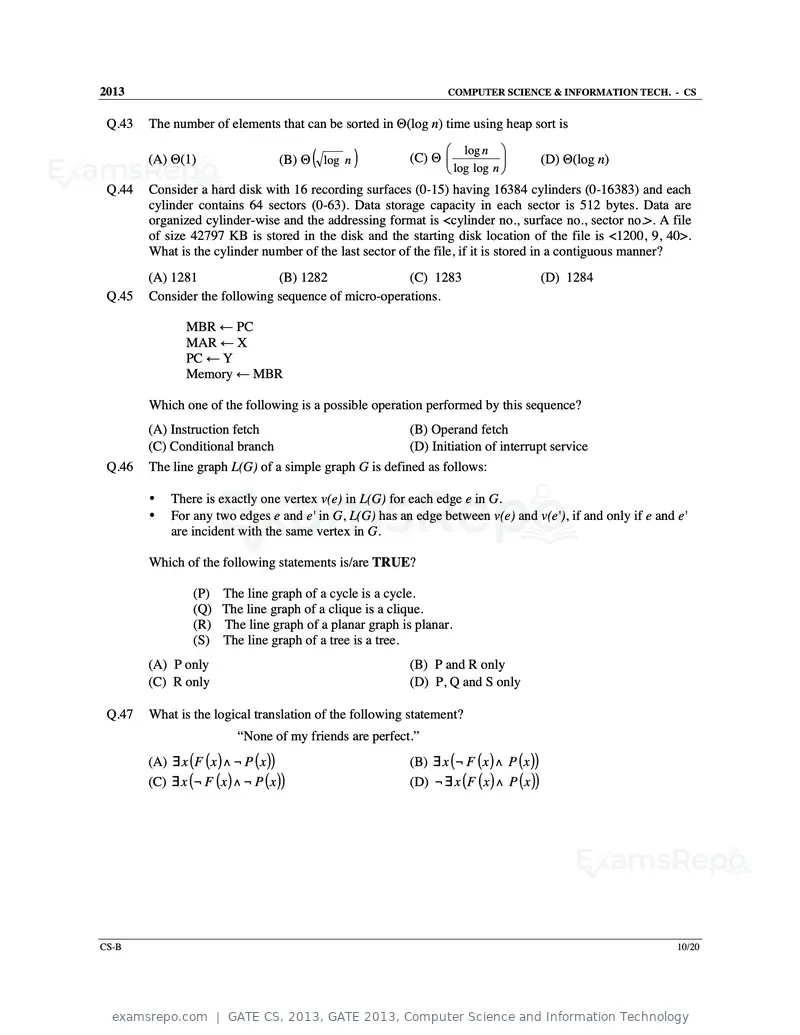

Q.29 Consider a hard disk with 16 recording surfaces (0-15) having 16384 cylinders (0-16383) and each
cylinder contains 64 sectors (0-63). Data storage capacity in each sector is 512 bytes. Data are
organized cylinder-wise and the addressing format is <cylinder no., surface no., sector no.>. A file
of size 42797 KB is stored in the disk and the starting disk location of the file is <1200, 9, 40>.
What is the cylinder number of the last sector of the file, if it is stored in a contiguous manner?
(A) 1281 (B) 1282 (C) 1283 (D) 1284
Q.30 The number of elements that can be sorted in Θ(log n) time using heap sort is
(B) Θ ( log n )
log n
(A) Θ(1) (C) Θ (D) Θ(log n)
log log n
CS-A 6/20
Text of page 8

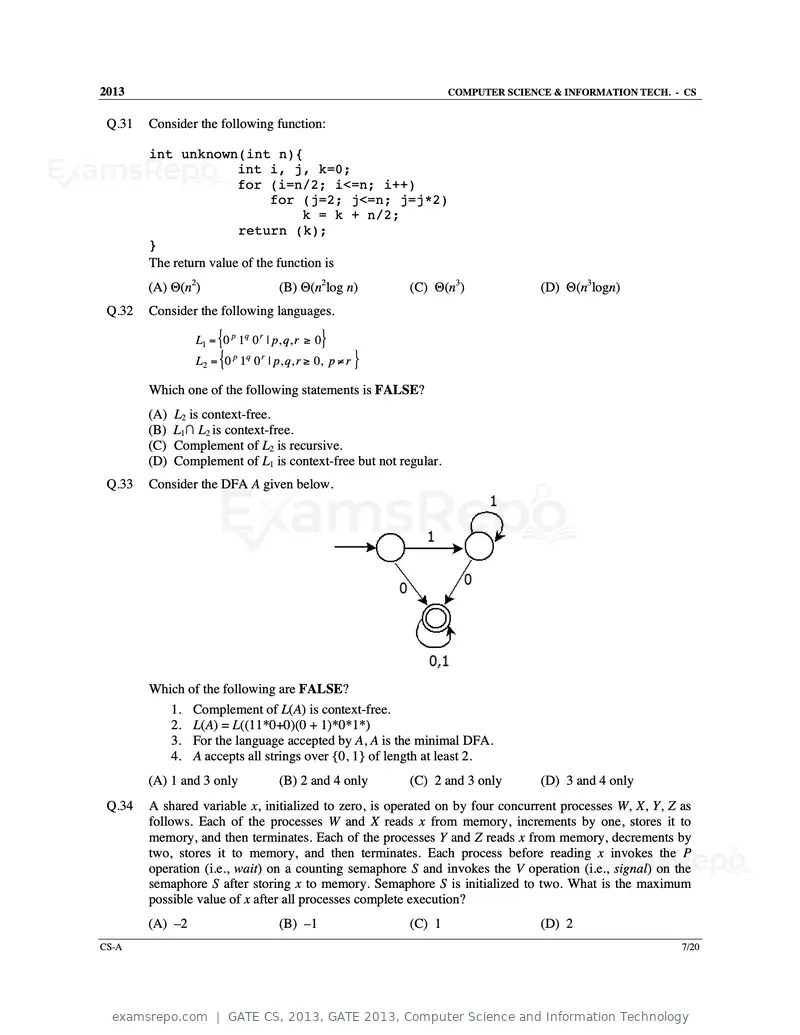

2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.31 Consider the following function:
int unknown(int n){
int i, j, k=0;
for (i=n/2; i<=n; i++)
for (j=2; j<=n; j=j*2)
k = k + n/2;
return (k);
}
The return value of the function is
(A) Θ(n2) (B) Θ(n2log n) (C) Θ(n3) (D) Θ(n3logn)
Q.32 Consider the following languages.
{ }
L1 = 0 p 1q 0 r | p, q, r ≥ 0
L2 = {0 1 0 | p, q, r ≥ 0, p ≠ r }
p q r
Which one of the following statements is FALSE?
(A) L2 is context-free.
(B) L1∩ L2 is context-free.
(C) Complement of L2 is recursive.
(D) Complement of L1 is context-free but not regular.
Q.33 Consider the DFA A given below.
Which of the following are FALSE?
1. Complement of L(A) is context-free.
2. L(A) = L((11*0+0)(0 + 1)*0*1*)
3. For the language accepted by A, A is the minimal DFA.
4. A accepts all strings over {0, 1} of length at least 2.
(A) 1 and 3 only (B) 2 and 4 only (C) 2 and 3 only (D) 3 and 4 only
Q.34 A shared variable x, initialized to zero, is operated on by four concurrent processes W, X, Y, Z as
follows. Each of the processes W and X reads x from memory, increments by one, stores it to
memory, and then terminates. Each of the processes Y and Z reads x from memory, decrements by
two, stores it to memory, and then terminates. Each process before reading x invokes the P
operation (i.e., wait) on a counting semaphore S and invokes the V operation (i.e., signal) on the
semaphore S after storing x to memory. Semaphore S is initialized to two. What is the maximum
possible value of x after all processes complete execution?
(A) –2 (B) –1 (C) 1 (D) 2
CS-A 7/20

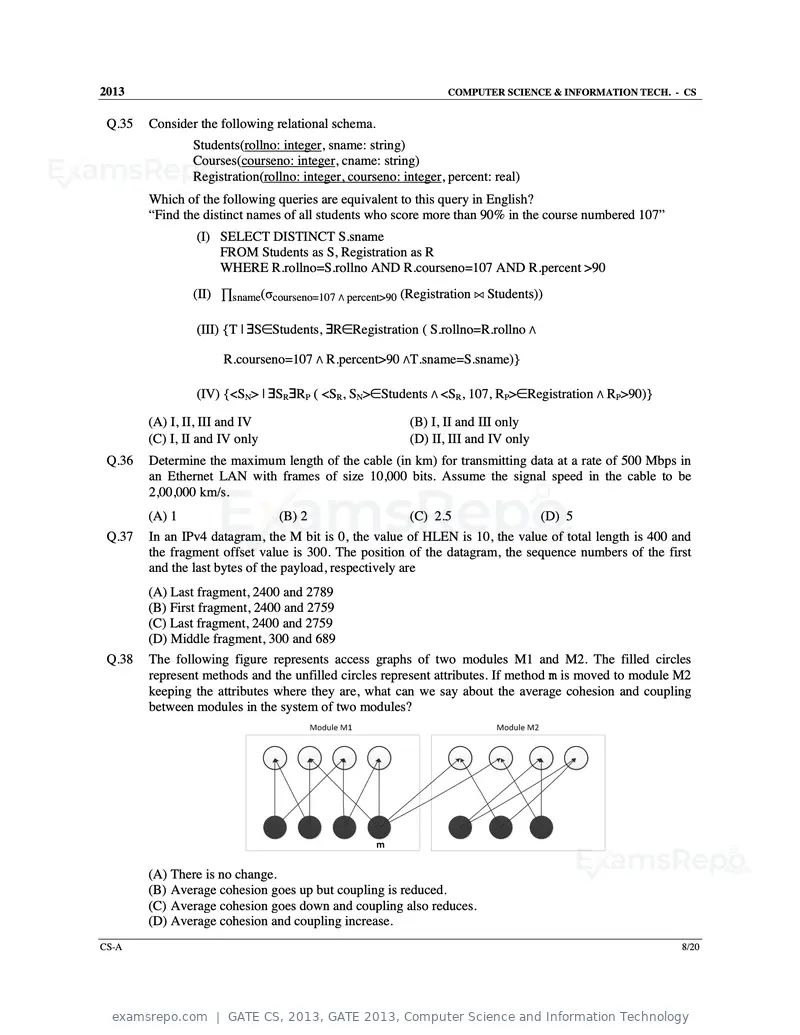

Text of page 9
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.35 Consider the following relational schema.
Students(rollno: integer, sname: string)
Courses(courseno: integer, cname: string)
Registration(rollno: integer, courseno: integer, percent: real)
Which of the following queries are equivalent to this query in English?
“Find the distinct names of all students who score more than 90% in the course numbered 107”
(I) SELECT DISTINCT S.sname
FROM Students as S, Registration as R
WHERE R.rollno=S.rollno AND R.courseno=107 AND R.percent >90
(II) ∏sname(σcourseno=107 ∧ percent>90 (Registration ⋈ Students))
(III) {T | ∃S∈Students, ∃R∈Registration ( S.rollno=R.rollno ∧
R.courseno=107 ∧ R.percent>90 ∧T.sname=S.sname)}
(IV) {<SN> | ∃SR∃RP ( <SR, SN>∈Students ∧ <SR, 107, RP>∈Registration ∧ RP>90)}
(A) I, II, III and IV (B) I, II and III only
(C) I, II and IV only (D) II, III and IV only
Q.36 Determine the maximum length of the cable (in km) for transmitting data at a rate of 500 Mbps in
an Ethernet LAN with frames of size 10,000 bits. Assume the signal speed in the cable to be
2,00,000 km/s.
(A) 1 (B) 2 (C) 2.5 (D) 5
Q.37 In an IPv4 datagram, the M bit is 0, the value of HLEN is 10, the value of total length is 400 and
the fragment offset value is 300. The position of the datagram, the sequence numbers of the first
and the last bytes of the payload, respectively are
(A) Last fragment, 2400 and 2789
(B) First fragment, 2400 and 2759
(C) Last fragment, 2400 and 2759
(D) Middle fragment, 300 and 689
Q.38 The following figure represents access graphs of two modules M1 and M2. The filled circles
represent methods and the unfilled circles represent attributes. If method m is moved to module M2
keeping the attributes where they are, what can we say about the average cohesion and coupling
between modules in the system of two modules?
(A) There is no change.
(B) Average cohesion goes up but coupling is reduced.
(C) Average cohesion goes down and coupling also reduces.
(D) Average cohesion and coupling increase.
CS-A 8/20
Text of page 10
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

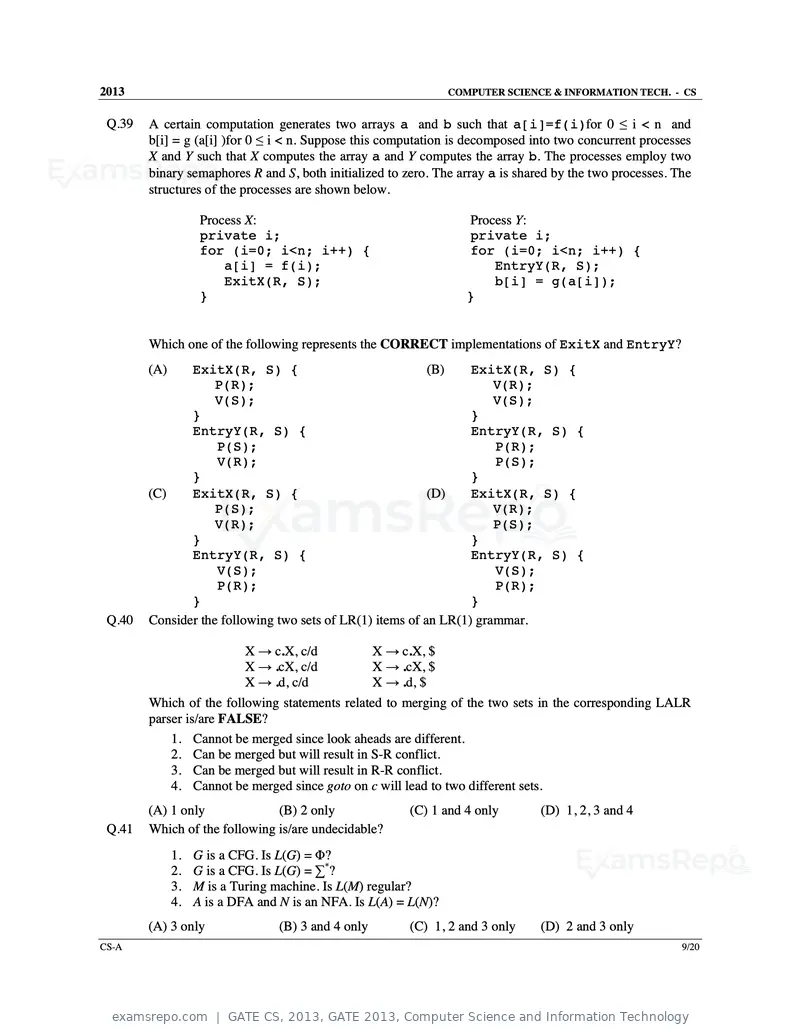

Q.39 A certain computation generates two arrays a and b such that a[i]=f(i)for 0 ≤ i < n and
b[i] = g (a[i] )for 0 ≤ i < n. Suppose this computation is decomposed into two concurrent processes
X and Y such that X computes the array a and Y computes the array b. The processes employ two
binary semaphores R and S, both initialized to zero. The array a is shared by the two processes. The
structures of the processes are shown below.
Process X: Process Y:
private i; private i;
for (i=0; i<n; i++) { for (i=0; i<n; i++) {
a[i] = f(i); EntryY(R, S);
ExitX(R, S); b[i] = g(a[i]);
} }
Which one of the following represents the CORRECT implementations of ExitX and EntryY?
(A) ExitX(R, S) { (B) ExitX(R, S) {
P(R); V(R);
V(S); V(S);
} }
EntryY(R, S) { EntryY(R, S) {
P(S); P(R);
V(R); P(S);
} }
(C) ExitX(R, S) { (D) ExitX(R, S) {
P(S); V(R);
V(R); P(S);
} }
EntryY(R, S) { EntryY(R, S) {
V(S); V(S);
P(R); P(R);
} }
Q.40 Consider the following two sets of LR(1) items of an LR(1) grammar.
X → c.X, c/d X → c.X, $
X → .cX, c/d X → .cX, $
X → .d, c/d X → .d, $
Which of the following statements related to merging of the two sets in the corresponding LALR
parser is/are FALSE?
1. Cannot be merged since look aheads are different.
2. Can be merged but will result in S-R conflict.
3. Can be merged but will result in R-R conflict.
4. Cannot be merged since goto on c will lead to two different sets.
(A) 1 only (B) 2 only (C) 1 and 4 only (D) 1, 2, 3 and 4
Q.41 Which of the following is/are undecidable?
1. G is a CFG. Is L(G) = Φ?
2. G is a CFG. Is L(G) = ∑*?
3. M is a Turing machine. Is L(M) regular?
4. A is a DFA and N is an NFA. Is L(A) = L(N)?
(A) 3 only (B) 3 and 4 only (C) 1, 2 and 3 only (D) 2 and 3 only
CS-A 9/20
Text of page 11
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

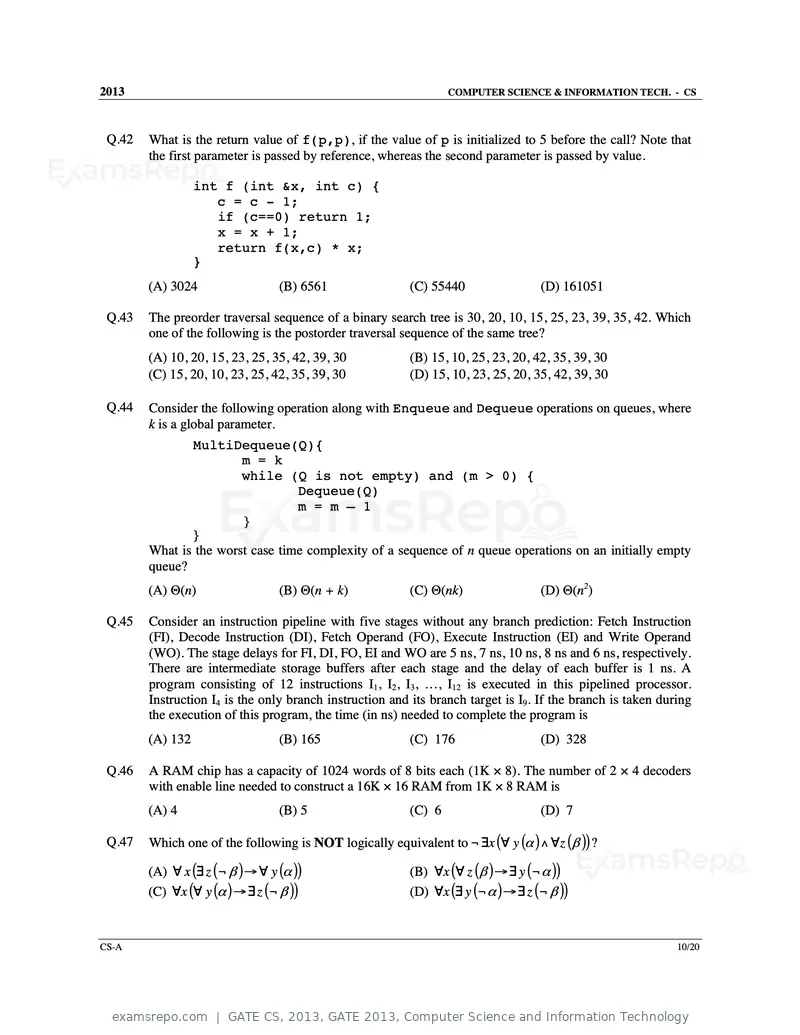

Q.42 What is the return value of f(p,p), if the value of p is initialized to 5 before the call? Note that
the first parameter is passed by reference, whereas the second parameter is passed by value.
int f (int &x, int c) {
c = c - 1;
if (c==0) return 1;
x = x + 1;
return f(x,c) * x;
}
(A) 3024 (B) 6561 (C) 55440 (D) 161051
Q.43 The preorder traversal sequence of a binary search tree is 30, 20, 10, 15, 25, 23, 39, 35, 42. Which
one of the following is the postorder traversal sequence of the same tree?
(A) 10, 20, 15, 23, 25, 35, 42, 39, 30 (B) 15, 10, 25, 23, 20, 42, 35, 39, 30
(C) 15, 20, 10, 23, 25, 42, 35, 39, 30 (D) 15, 10, 23, 25, 20, 35, 42, 39, 30
Q.44 Consider the following operation along with Enqueue and Dequeue operations on queues, where
k is a global parameter.
MultiDequeue(Q){
m = k
while (Q is not empty) and (m > 0) {
Dequeue(Q)
m = m – 1
}
}
What is the worst case time complexity of a sequence of n queue operations on an initially empty
queue?
(A) Θ(n) (B) Θ(n + k) (C) Θ(nk) (D) Θ(n2)
Q.45 Consider an instruction pipeline with five stages without any branch prediction: Fetch Instruction
(FI), Decode Instruction (DI), Fetch Operand (FO), Execute Instruction (EI) and Write Operand
(WO). The stage delays for FI, DI, FO, EI and WO are 5 ns, 7 ns, 10 ns, 8 ns and 6 ns, respectively.
There are intermediate storage buffers after each stage and the delay of each buffer is 1 ns. A
program consisting of 12 instructions I1, I2, I3, …, I12 is executed in this pipelined processor.
Instruction I4 is the only branch instruction and its branch target is I9. If the branch is taken during
the execution of this program, the time (in ns) needed to complete the program is
(A) 132 (B) 165 (C) 176 (D) 328
Q.46 A RAM chip has a capacity of 1024 words of 8 bits each (1K × 8). The number of 2 × 4 decoders
with enable line needed to construct a 16K × 16 RAM from 1K × 8 RAM is
(A) 4 (B) 5 (C) 6 (D) 7
Q.47 Which one of the following is NOT logically equivalent to ¬ ∃x (∀ y (α ) ∧ ∀z (β )) ?
(A) ∀ x (∃ z (¬ β ) → ∀ y (α )) (B) ∀x (∀ z (β ) → ∃ y (¬α ))
(C) ∀x (∀ y (α ) → ∃ z (¬ β )) (D) ∀x (∃ y (¬α ) → ∃ z (¬ β ))
CS-A 10/20
Text of page 12
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

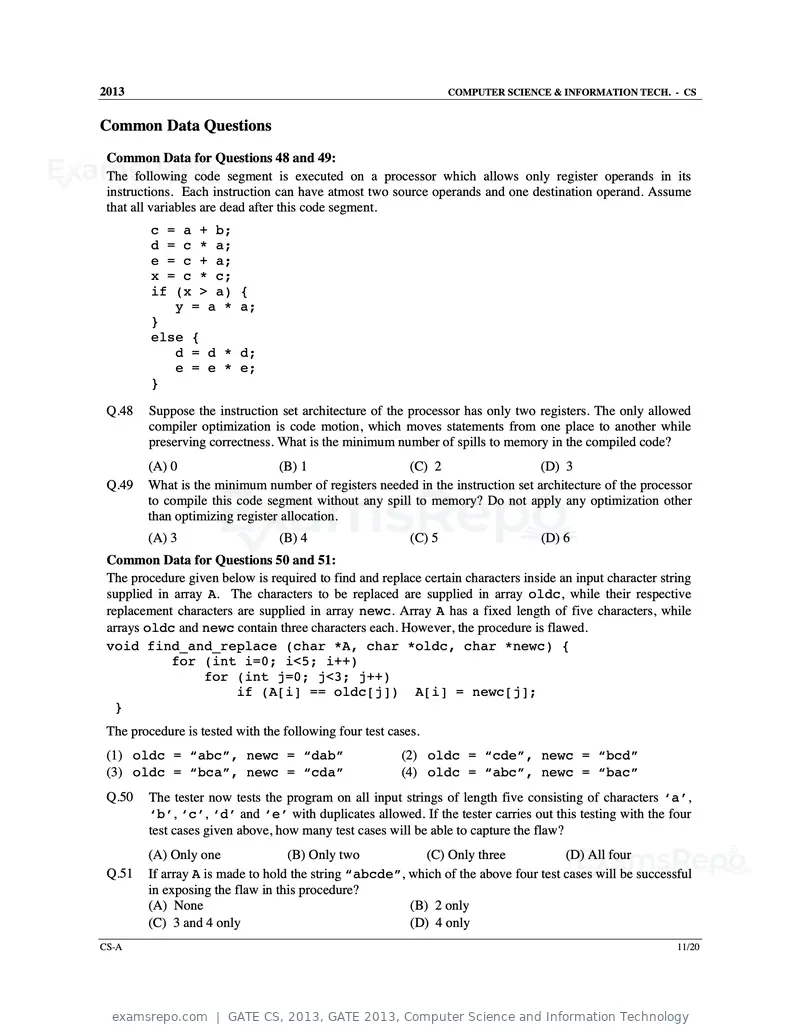

Common Data Questions
Common Data for Questions 48 and 49:
The following code segment is executed on a processor which allows only register operands in its
instructions. Each instruction can have atmost two source operands and one destination operand. Assume
that all variables are dead after this code segment.
c = a + b;
d = c * a;
e = c + a;
x = c * c;
if (x > a) {
y = a * a;
}
else {
d = d * d;
e = e * e;
}
Q.48 Suppose the instruction set architecture of the processor has only two registers. The only allowed
compiler optimization is code motion, which moves statements from one place to another while
preserving correctness. What is the minimum number of spills to memory in the compiled code?
(A) 0 (B) 1 (C) 2 (D) 3
Q.49 What is the minimum number of registers needed in the instruction set architecture of the processor
to compile this code segment without any spill to memory? Do not apply any optimization other
than optimizing register allocation.
(A) 3 (B) 4 (C) 5 (D) 6

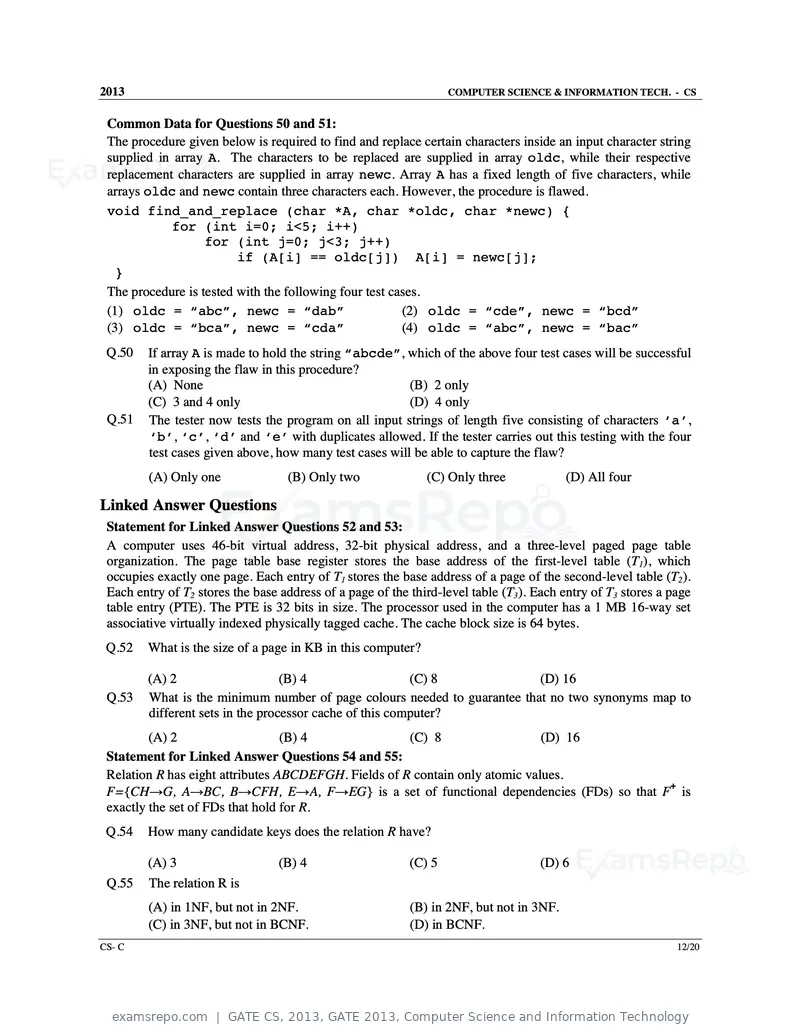

Common Data for Questions 50 and 51:
The procedure given below is required to find and replace certain characters inside an input character string
supplied in array A. The characters to be replaced are supplied in array oldc, while their respective
replacement characters are supplied in array newc. Array A has a fixed length of five characters, while
arrays oldc and newc contain three characters each. However, the procedure is flawed.
void find_and_replace (char *A, char *oldc, char *newc) {
for (int i=0; i<5; i++)
for (int j=0; j<3; j++)
if (A[i] == oldc[j]) A[i] = newc[j];
}
The procedure is tested with the following four test cases.
(1) oldc = “abc”, newc = “dab” (2) oldc = “cde”, newc = “bcd”
(3) oldc = “bca”, newc = “cda” (4) oldc = “abc”, newc = “bac”
Q.50 The tester now tests the program on all input strings of length five consisting of characters ‘a’,
‘b’, ‘c’, ‘d’ and ‘e’ with duplicates allowed. If the tester carries out this testing with the four
test cases given above, how many test cases will be able to capture the flaw?
(A) Only one (B) Only two (C) Only three (D) All four
Q.51 If array A is made to hold the string “abcde”, which of the above four test cases will be successful
in exposing the flaw in this procedure?
(A) None (B) 2 only
(C) 3 and 4 only (D) 4 only
CS-A 11/20
Text of page 13
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

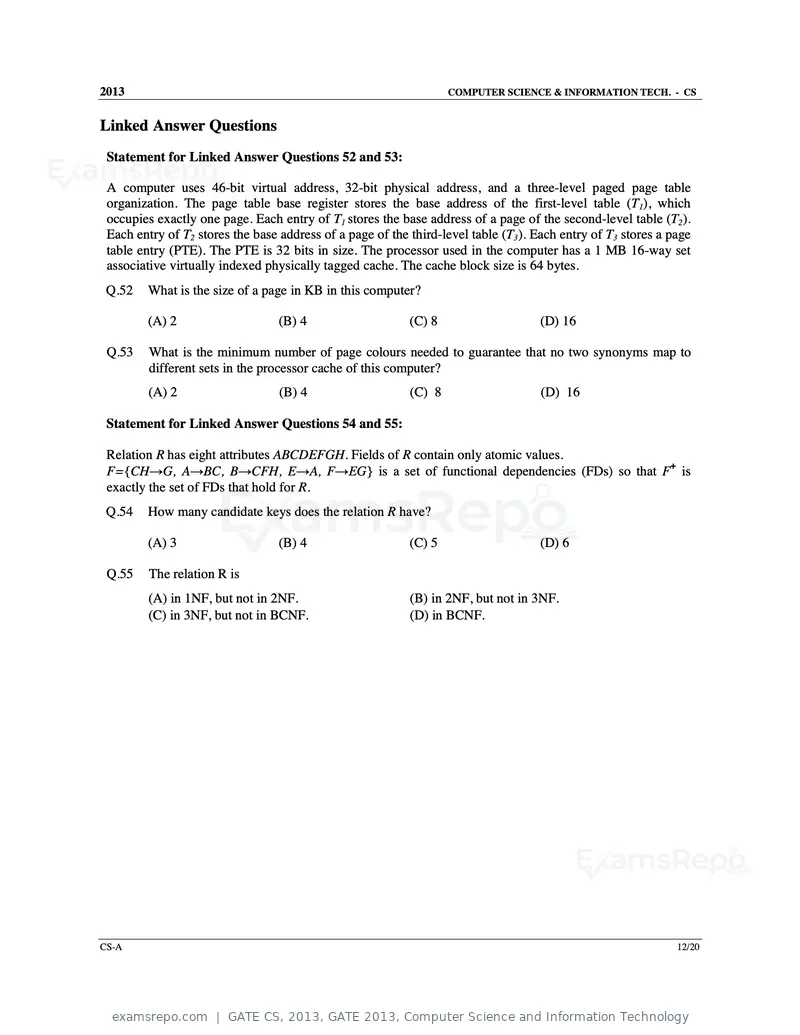

Linked Answer Questions
Statement for Linked Answer Questions 52 and 53:
A computer uses 46-bit virtual address, 32-bit physical address, and a three-level paged page table
organization. The page table base register stores the base address of the first-level table (T1), which
occupies exactly one page. Each entry of T1 stores the base address of a page of the second-level table (T2).
Each entry of T2 stores the base address of a page of the third-level table (T3). Each entry of T3 stores a page
table entry (PTE). The PTE is 32 bits in size. The processor used in the computer has a 1 MB 16-way set
associative virtually indexed physically tagged cache. The cache block size is 64 bytes.
Q.52 What is the size of a page in KB in this computer?
(A) 2 (B) 4 (C) 8 (D) 16
Q.53 What is the minimum number of page colours needed to guarantee that no two synonyms map to
different sets in the processor cache of this computer?
(A) 2 (B) 4 (C) 8 (D) 16
Statement for Linked Answer Questions 54 and 55:
Relation R has eight attributes ABCDEFGH. Fields of R contain only atomic values.
F={CH→G, A→BC, B→CFH, E→A, F→EG} is a set of functional dependencies (FDs) so that F+ is
exactly the set of FDs that hold for R.
Q.54 How many candidate keys does the relation R have?
(A) 3 (B) 4 (C) 5 (D) 6
Q.55 The relation R is
(A) in 1NF, but not in 2NF. (B) in 2NF, but not in 3NF.
(C) in 3NF, but not in BCNF. (D) in BCNF.
CS-A 12/20
Text of page 14
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

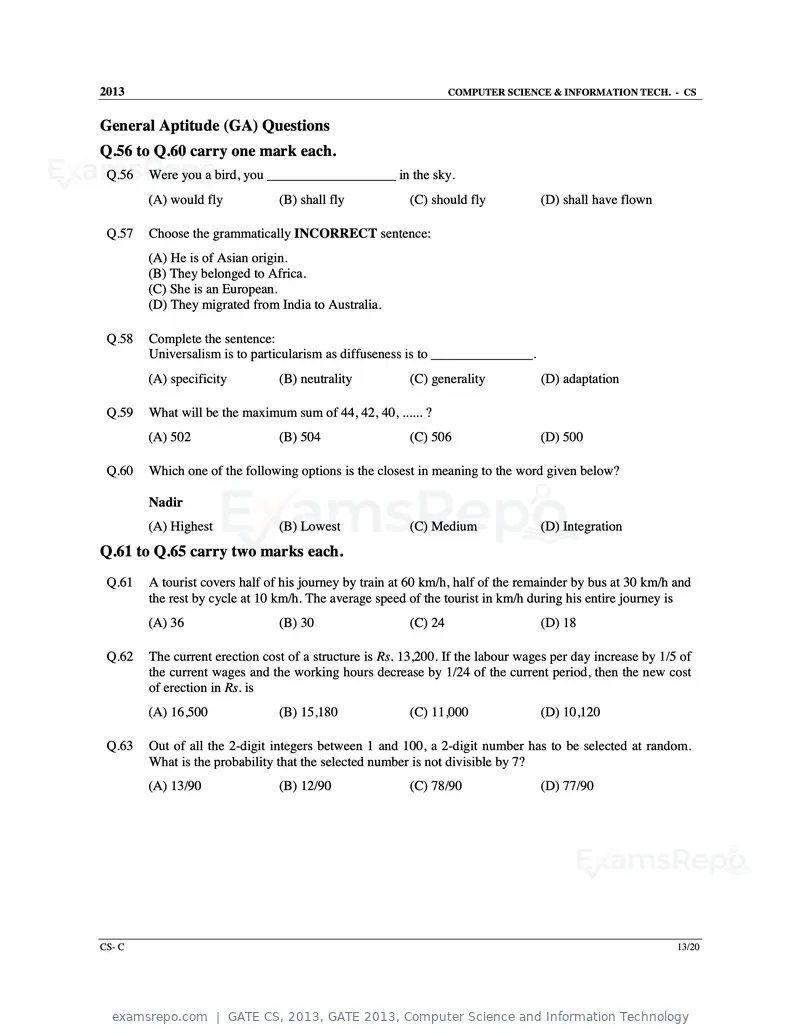

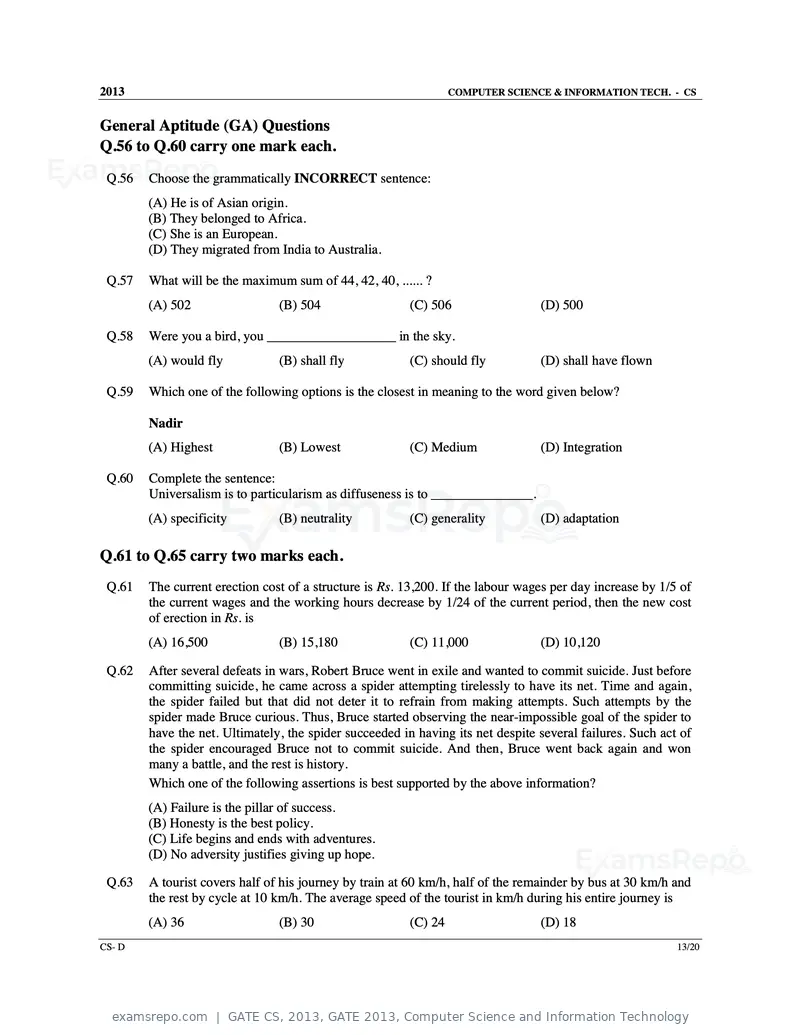

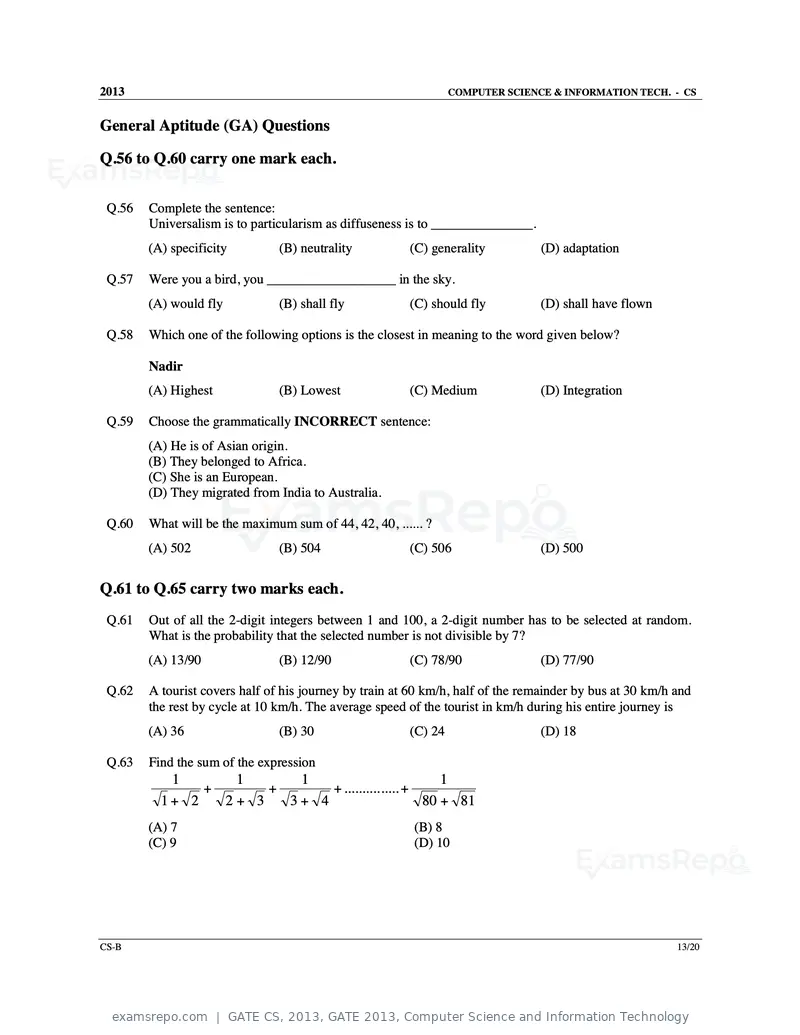

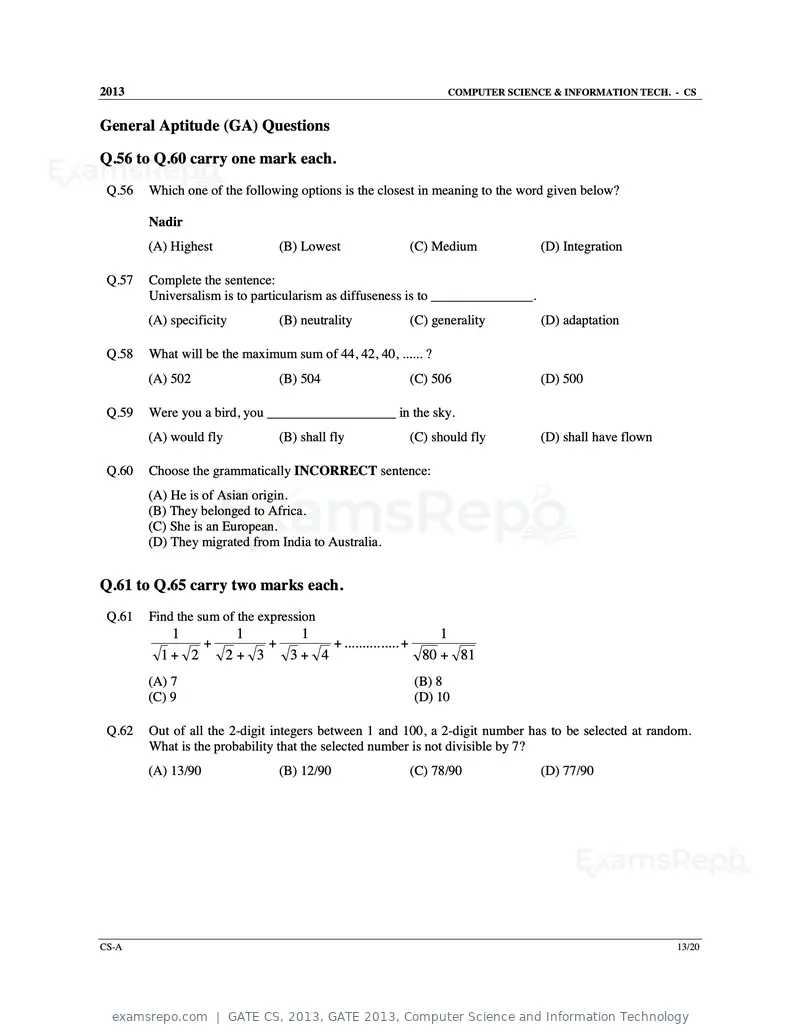

General Aptitude (GA) Questions
Q.56 to Q.60 carry one mark each.
Q.56 Which one of the following options is the closest in meaning to the word given below?
Nadir
(A) Highest (B) Lowest (C) Medium (D) Integration
Q.57 Complete the sentence:
Universalism is to particularism as diffuseness is to _______________.
(A) specificity (B) neutrality (C) generality (D) adaptation
Q.58 What will be the maximum sum of 44, 42, 40, ...... ?
(A) 502 (B) 504 (C) 506 (D) 500
Q.59 Were you a bird, you ___________________ in the sky.
(A) would fly (B) shall fly (C) should fly (D) shall have flown
Q.60 Choose the grammatically INCORRECT sentence:
(A) He is of Asian origin.
(B) They belonged to Africa.
(C) She is an European.
(D) They migrated from India to Australia.
Q.61 to Q.65 carry two marks each.
Q.61 Find the sum of the expression
1 1 1 1
+ + + .......... ..... +
1+ 2 2+ 3 3+ 4 80 + 81
(A) 7 (B) 8
(C) 9 (D) 10
Q.62 Out of all the 2-digit integers between 1 and 100, a 2-digit number has to be selected at random.
What is the probability that the selected number is not divisible by 7?
(A) 13/90 (B) 12/90 (C) 78/90 (D) 77/90
CS-A 13/20
Text of page 15
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

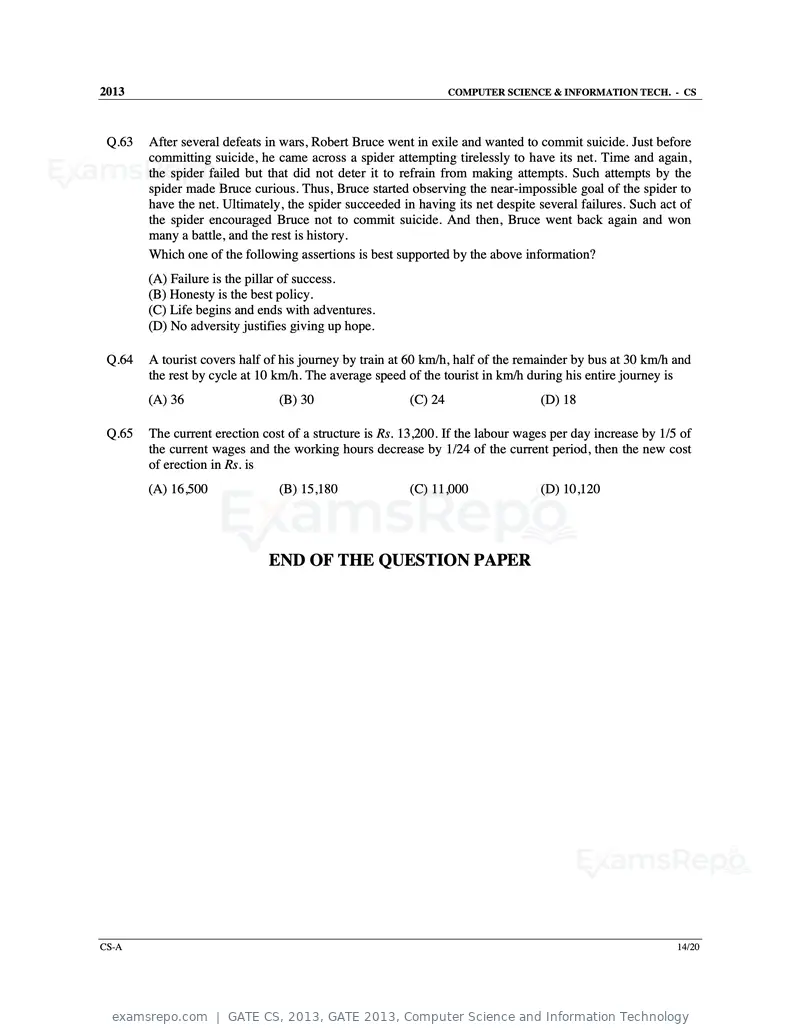

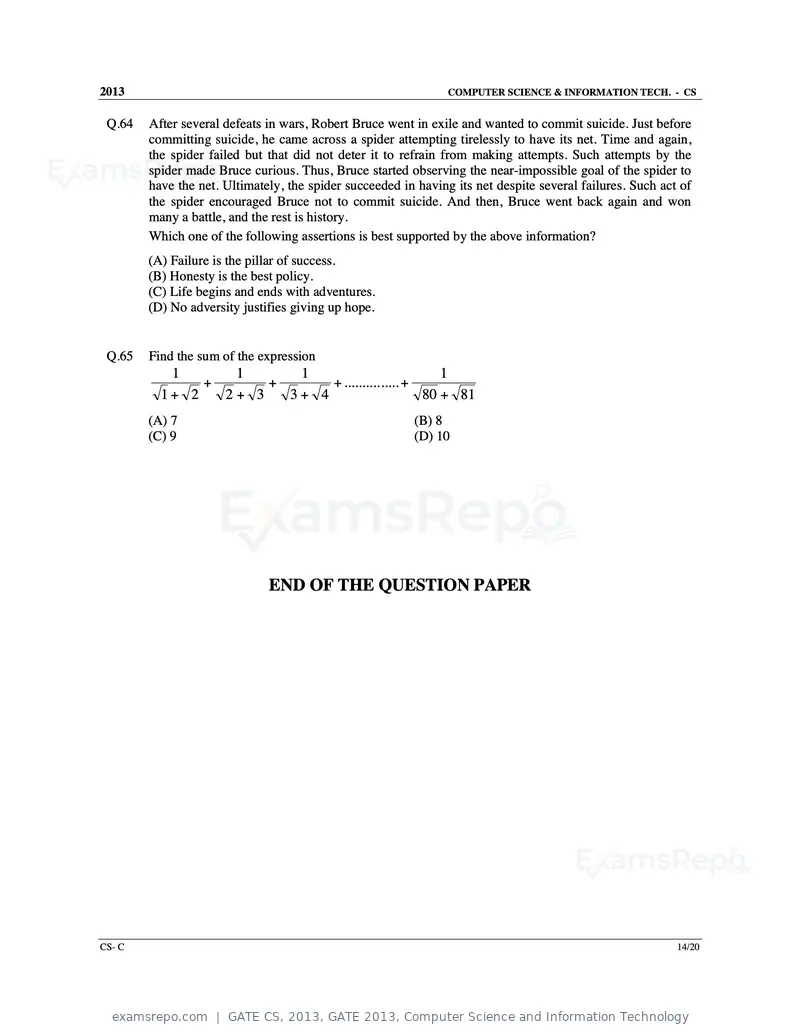

Q.63 After several defeats in wars, Robert Bruce went in exile and wanted to commit suicide. Just before
committing suicide, he came across a spider attempting tirelessly to have its net. Time and again,
the spider failed but that did not deter it to refrain from making attempts. Such attempts by the
spider made Bruce curious. Thus, Bruce started observing the near-impossible goal of the spider to
have the net. Ultimately, the spider succeeded in having its net despite several failures. Such act of
the spider encouraged Bruce not to commit suicide. And then, Bruce went back again and won
many a battle, and the rest is history.
Which one of the following assertions is best supported by the above information?
(A) Failure is the pillar of success.
(B) Honesty is the best policy.
(C) Life begins and ends with adventures.
(D) No adversity justifies giving up hope.
Q.64 A tourist covers half of his journey by train at 60 km/h, half of the remainder by bus at 30 km/h and
the rest by cycle at 10 km/h. The average speed of the tourist in km/h during his entire journey is
(A) 36 (B) 30 (C) 24 (D) 18
Q.65 The current erection cost of a structure is Rs. 13,200. If the labour wages per day increase by 1/5 of
the current wages and the working hours decrease by 1/24 of the current period, then the new cost
of erection in Rs. is
(A) 16,500 (B) 15,180 (C) 11,000 (D) 10,120
END OF THE QUESTION PAPER
CS-A 14/20
Text of page 16

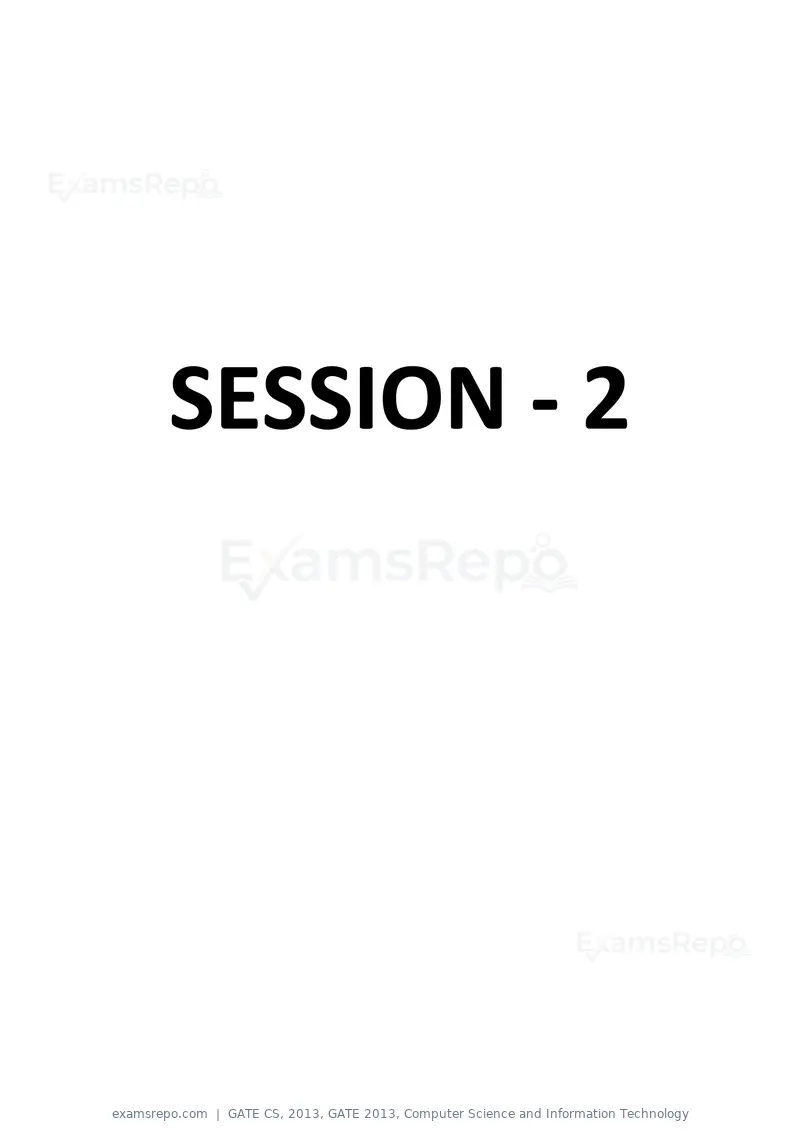

SESSION - 2
Text of page 17
2013 Question Booklet Code
B
CS : COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Duration: Three Hours Maximum Marks: 100
Read the following instructions carefully.
1. Do not open the seal of the Question Booklet until you are asked to do so by the invigilator.
2. Take out the Optical Response Sheet (ORS) from this Question Booklet without breaking the seal
and read the instructions printed on the ORS carefully. If you find that either
a. The Question Booklet Code printed at the right hand top corner of this page does not match with
the Question Booklet Code at the right hand top corner of the ORS or
b. The Question Paper Code preceding the Registration number on the ORS is not CS,
then exchange the booklet immediately with a new sealed Question Booklet.
3. On the right hand side of the ORS, using ONLY a black ink ballpoint pen, (i) darken the appropriate
bubble under each digit of your registration number and (ii) write your registration number, your name
and name of the examination centre and put your signature at the specified location.
4. This Question Booklet contains 20 pages including blank pages for rough work. After you are
permitted to open the seal, check all pages and report discrepancies, if any, to the invigilator.
5. There are a total of 65 questions carrying 100 marks. All these questions are of objective type. Each
question has only one correct answer. Questions must be answered on the left hand side of the ORS
by darkening the appropriate bubble (marked A, B, C, D) using ONLY a black ink ballpoint pen
against the question number. For each question darken the bubble of the correct answer. More
than one answer bubbled against a question will be treated as an incorrect response.
6. Since bubbles darkened by the black ink ballpoint pen cannot be erased, candidates should darken the
bubbles in the ORS very carefully.
7. Questions Q.1 – Q.25 carry 1 mark each. Questions Q.26 – Q.55 carry 2 marks each. The 2 marks
questions include two pairs of common data questions and two pairs of linked answer questions. The
answer to the second question of the linked answer questions depends on the answer to the first
question of the pair. If the first question in the linked pair is wrongly answered or is not attempted,
then the answer to the second question in the pair will not be evaluated.
8. Questions Q.56 – Q.65 belong to General Aptitude (GA) section and carry a total of 15 marks.
Questions Q.56 – Q.60 carry 1 mark each, and questions Q.61 – Q.65 carry 2 marks each.
9. Questions not attempted will result in zero mark and wrong answers will result in NEGATIVE
marks. For all 1 mark questions, ⅓ mark will be deducted for each wrong answer. For all 2 marks
questions, ⅔ mark will be deducted for each wrong answer. However, in the case of the linked
answer question pair, there will be negative marks only for wrong answer to the first question and no
negative marks for wrong answer to the second question.
10. Calculator is allowed whereas charts, graph sheets or tables are NOT allowed in the examination hall.
11. Rough work can be done on the Question Booklet itself. Blank pages are provided at the end of the
Question Booklet for rough work.
12. Before the start of the examination, write your name and registration number in the space provided
below using a black ink ballpoint pen.
Name
Registration Number CS
CS-B 1/20
Text of page 18
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.1 to Q.25 carry one mark each.
Q.1 Consider an undirected random graph of eight vertices. The probability that there is an edge
between a pair of vertices is 1/2. What is the expected number of unordered cycles of length three?
(A) 1/8 (B) 1 (C) 7 (D) 8
Q.2 Which of the following statements is/are TRUE for undirected graphs?
P: Number of odd degree vertices is even.
Q: Sum of degrees of all vertices is even.
(A) P only (B) Q only (C) Both P and Q (D) Neither P nor Q
Q.3 Function f is known at the following points:
x 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
f(x) 0 0.09 0.36 0.81 1.44 2.25 3.24 4.41 5.76 7.29 9.00
∫ f (x ) dx computed using the trapezoidal rule is
3
The value of
0
(A) 8.983 (B) 9.003 (C) 9.017 (D) 9.045
Q.4 Which one of the following functions is continuous at x = 3?
2, if x = 3 4, if x =3
(B) f ( x ) =
(A) f ( x ) = x − 1, if x > 3 8 − x if x≠3
x +3
, if x<3
3
x + 3, if x≤3
(D) f ( x ) =
1
(C) f ( x ) = , if x ≠3
x − 4 if x>3 x − 27
3
Q.5 Which one of the following expressions does NOT represent exclusive NOR of x and y?
(A) xy + x ′ y ′ (B) x ⊕ y ′ (C) x ′ ⊕ y (D) x ′ ⊕ y ′
Q.6 In a k-way set associative cache, the cache is divided into v sets, each of which consists of k lines.
The lines of a set are placed in sequence one after another. The lines in set s are sequenced before
the lines in set (s+1). The main memory blocks are numbered 0 onwards. The main memory block
numbered j must be mapped to any one of the cache lines from
(A) (j mod v) * k to (j mod v) * k + (k-1) (B) (j mod v) to (j mod v) + (k-1)
(C) (j mod k) to (j mod k) + (v-1) (D) (j mod k) * v to (j mod k) * v + (v-1)
Q.7 What is the time complexity of Bellman-Ford single-source shortest path algorithm on a complete
graph of n vertices?
(A) Θ(n2) (B) Θ(n2log n) (C) Θ(n3) (D) Θ(n3log n)
CS-B 2/20
Text of page 19
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

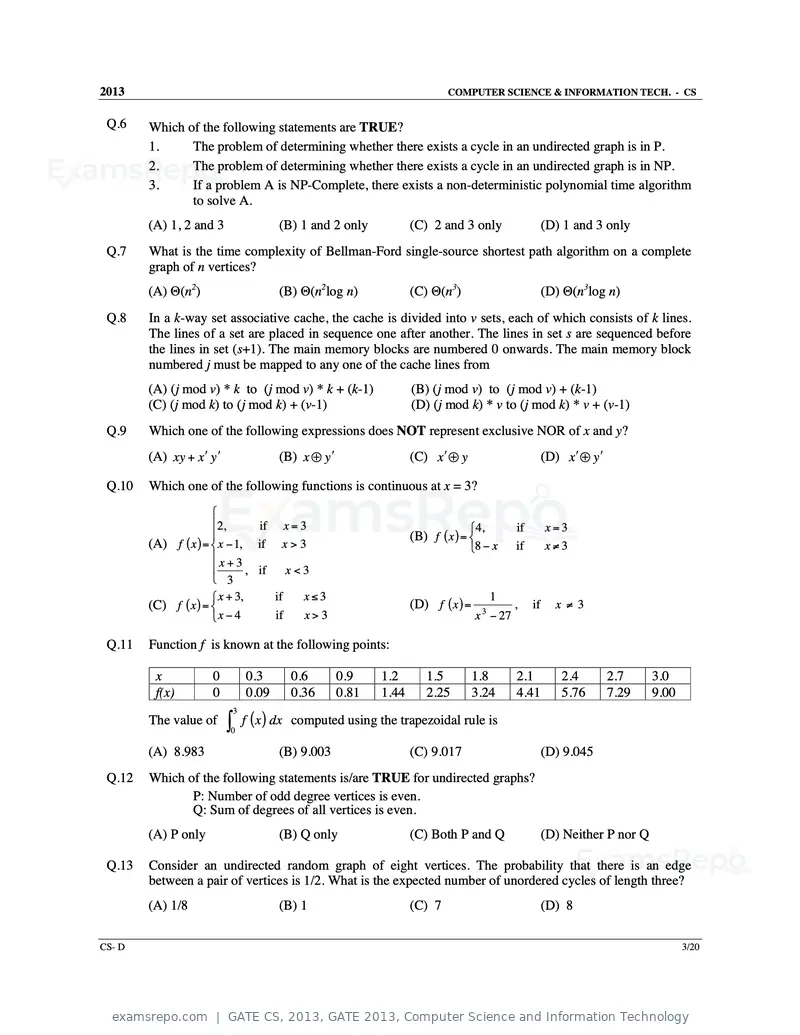

Q.8 Which of the following statements are TRUE?
1. The problem of determining whether there exists a cycle in an undirected graph is in P.
2. The problem of determining whether there exists a cycle in an undirected graph is in NP.
3. If a problem A is NP-Complete, there exists a non-deterministic polynomial time algorithm
to solve A.
(A) 1, 2 and 3 (B) 1 and 2 only (C) 2 and 3 only (D) 1 and 3 only
Q.9 Which of the following statements is/are FALSE?
1. For every non-deterministic Turing machine, there exists an equivalent deterministic
Turing machine.
2. Turing recognizable languages are closed under union and complementation.
3. Turing decidable languages are closed under intersection and complementation.
4. Turing recognizable languages are closed under union and intersection.
(A) 1 and 4 only (B) 1 and 3 only (C) 2 only (D) 3 only
Q.10 Three concurrent processes X, Y, and Z execute three different code segments that access and
update certain shared variables. Process X executes the P operation (i.e., wait) on semaphores
a, b and c; process Y executes the P operation on semaphores b, c and d; process Z executes the
P operation on semaphores c, d, and a before entering the respective code segments. After
completing the execution of its code segment, each process invokes the V operation (i.e., signal) on
its three semaphores. All semaphores are binary semaphores initialized to one. Which one of the
following represents a deadlock-free order of invoking the P operations by the processes?
(A) X: P(a)P(b)P(c) Y: P(b)P(c)P(d) Z: P(c)P(d)P(a)
(B) X: P(b)P(a)P(c) Y: P(b)P(c)P(d) Z: P(a)P(c)P(d)
(C) X: P(b)P(a)P(c) Y: P(c)P(b)P(d) Z: P(a)P(c)P(d)
(D) X: P(a)P(b)P(c) Y: P(c)P(b)P(d) Z: P(c)P(d)P(a)
Q.11 An index is clustered, if
(A) it is on a set of fields that form a candidate key.
(B) it is on a set of fields that include the primary key.
(C) the data records of the file are organized in the same order as the data entries of the index.
(D) the data records of the file are organized not in the same order as the data entries of the index.
Q.12 Assume that source S and destination D are connected through two intermediate routers labeled R.
Determine how many times each packet has to visit the network layer and the data link layer during
a transmission from S to D.
(A) Network layer – 4 times and Data link layer – 4 times
(B) Network layer – 4 times and Data link layer – 3 times
(C) Network layer – 4 times and Data link layer – 6 times
(D) Network layer – 2 times and Data link layer – 6 times
CS-B 3/20
Text of page 20
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS

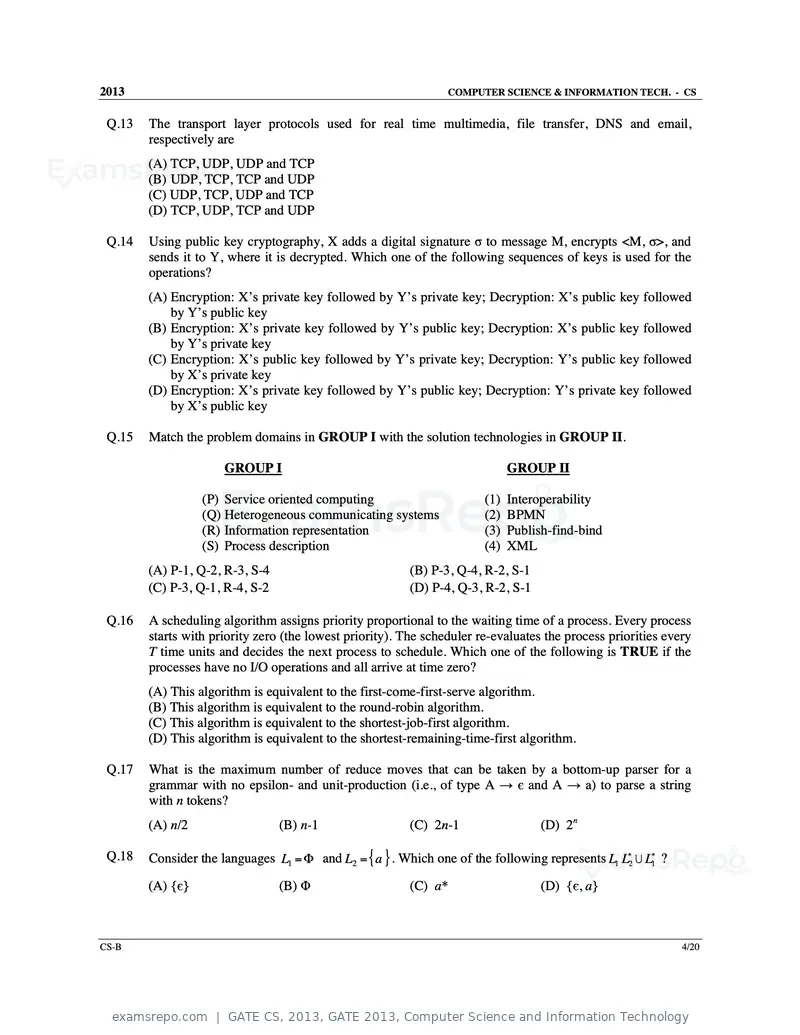

Q.13 The transport layer protocols used for real time multimedia, file transfer, DNS and email,
respectively are
(A) TCP, UDP, UDP and TCP
(B) UDP, TCP, TCP and UDP
(C) UDP, TCP, UDP and TCP
(D) TCP, UDP, TCP and UDP
Q.14 Using public key cryptography, X adds a digital signature σ to message M, encrypts <M, σ>, and
sends it to Y, where it is decrypted. Which one of the following sequences of keys is used for the
operations?
(A) Encryption: X’s private key followed by Y’s private key; Decryption: X’s public key followed
by Y’s public key
(B) Encryption: X’s private key followed by Y’s public key; Decryption: X’s public key followed
by Y’s private key
(C) Encryption: X’s public key followed by Y’s private key; Decryption: Y’s public key followed
by X’s private key
(D) Encryption: X’s private key followed by Y’s public key; Decryption: Y’s private key followed
by X’s public key
Q.15 Match the problem domains in GROUP I with the solution technologies in GROUP II.
GROUP I GROUP II
(P) Service oriented computing (1) Interoperability
(Q) Heterogeneous communicating systems (2) BPMN
(R) Information representation (3) Publish-find-bind
(S) Process description (4) XML
(A) P-1, Q-2, R-3, S-4 (B) P-3, Q-4, R-2, S-1
(C) P-3, Q-1, R-4, S-2 (D) P-4, Q-3, R-2, S-1
Q.16 A scheduling algorithm assigns priority proportional to the waiting time of a process. Every process
starts with priority zero (the lowest priority). The scheduler re-evaluates the process priorities every
T time units and decides the next process to schedule. Which one of the following is TRUE if the
processes have no I/O operations and all arrive at time zero?
(A) This algorithm is equivalent to the first-come-first-serve algorithm.
(B) This algorithm is equivalent to the round-robin algorithm.
(C) This algorithm is equivalent to the shortest-job-first algorithm.
(D) This algorithm is equivalent to the shortest-remaining-time-first algorithm.
Q.17 What is the maximum number of reduce moves that can be taken by a bottom-up parser for a
grammar with no epsilon- and unit-production (i.e., of type A → є and A → a) to parse a string
with n tokens?
(A) n/2 (B) n-1 (C) 2n-1 (D) 2n
Q.18 Consider the languages L1 = Φ and L2 = { a } . Which one of the following represents L1 L∗2 U L1∗ ?
(A) {є} (B) Φ (C) a* (D) {є, a}
CS-B 4/20
Text of page 21
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.19 Which one of the following is the tightest upper bound that represents the time complexity of
inserting an object into a binary search tree of n nodes?
(A) O(1) (B) O(log n) (C) O(n) (D) O(n log n)
Q.20 Which one of the following is the tightest upper bound that represents the number of swaps
required to sort n numbers using selection sort?
(A) O(log n) (B) O(n) (C) O(n log n) (D) O(n2)
Q.21 In the following truth table, V = 1 if and only if the input is valid.
Inputs Outputs
D0 D1 D2 D3 X0 X1 V
0 0 0 0 x x 0
1 0 0 0 0 0 1
x 1 0 0 0 1 1
x x 1 0 1 0 1
x x x 1 1 1 1
What function does the truth table represent?
(A) Priority encoder (B) Decoder
(C) Multiplexer (D) Demultiplexer
Q.22 The smallest integer that can be represented by an 8-bit number in 2’s complement form is
(A) -256 (B) -128 (C) -127 (D) 0
1 x x2
Q.23
Which one of the following does NOT equal 1 y y 2 ?
1 z z2
1 x ( x + 1) x + 1 1 x +1 x2 + 1
(A) 1 y ( y + 1) y +1 (B) 1 y +1 y2 +1
1 z ( z + 1) z +1 1 z +1 z2 +1
0 x− y x2 − y2 2 x+ y x2 + y2
(C) 0 y−z y2 − z2 (D) 2 y+z y2 + z2
2
1 z z 1 z z2
Q.24 Suppose p is the number of cars per minute passing through a certain road junction between 5 PM
and 6 PM, and p has a Poisson distribution with mean 3. What is the probability of observing fewer
than 3 cars during any given minute in this interval?
(A) 8/(2e3) (B) 9/(2e3) (C) 17/(2e3) (D) 26/(2e3)
Q.25 A binary operation ⊕ on a set of integers is defined as x ⊕ y = x 2 + y 2 . Which one of the following
statements is TRUE about ⊕?
(A) Commutative but not associative (B) Both commutative and associative
(C) Associative but not commutative (D) Neither commutative nor associative
CS-B 5/20
Text of page 22
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.26 to Q.55 carry two marks each.
Q.26 Which one of the following is NOT logically equivalent to ¬ ∃x (∀ y (α ) ∧ ∀z (β )) ?
(A) ∀ x (∃ z (¬ β ) → ∀ y (α )) (B) ∀x (∀ z (β ) → ∃ y (¬α ))
(C) ∀x (∀ y (α ) → ∃ z (¬ β )) (D) ∀x (∃ y (¬α ) → ∃ z (¬ β ))
Q.27 A RAM chip has a capacity of 1024 words of 8 bits each (1K × 8). The number of 2 × 4 decoders
with enable line needed to construct a 16K × 16 RAM from 1K × 8 RAM is
(A) 4 (B) 5 (C) 6 (D) 7
Q.28 Consider an instruction pipeline with five stages without any branch prediction: Fetch Instruction
(FI), Decode Instruction (DI), Fetch Operand (FO), Execute Instruction (EI) and Write Operand
(WO). The stage delays for FI, DI, FO, EI and WO are 5 ns, 7 ns, 10 ns, 8 ns and 6 ns, respectively.
There are intermediate storage buffers after each stage and the delay of each buffer is 1 ns. A
program consisting of 12 instructions I1, I2, I3, …, I12 is executed in this pipelined processor.
Instruction I4 is the only branch instruction and its branch target is I9. If the branch is taken during
the execution of this program, the time (in ns) needed to complete the program is
(A) 132 (B) 165 (C) 176 (D) 328
Q.29 Consider the following operation along with Enqueue and Dequeue operations on queues, where
k is a global parameter.
MultiDequeue(Q){
m = k
while (Q is not empty) and (m > 0) {
Dequeue(Q)
m = m – 1
}
}
What is the worst case time complexity of a sequence of n queue operations on an initially empty
queue?
(A) Θ(n) (B) Θ(n + k) (C) Θ(nk) (D) Θ(n2)
Q.30 The preorder traversal sequence of a binary search tree is 30, 20, 10, 15, 25, 23, 39, 35, 42. Which
one of the following is the postorder traversal sequence of the same tree?
(A) 10, 20, 15, 23, 25, 35, 42, 39, 30 (B) 15, 10, 25, 23, 20, 42, 35, 39, 30
(C) 15, 20, 10, 23, 25, 42, 35, 39, 30 (D) 15, 10, 23, 25, 20, 35, 42, 39, 30
Q.31 What is the return value of f(p,p), if the value of p is initialized to 5 before the call? Note that
the first parameter is passed by reference, whereas the second parameter is passed by value.
int f (int &x, int c) {
c = c - 1;
if (c==0) return 1;
x = x + 1;
return f(x,c) * x;
}
(A) 3024 (B) 6561 (C) 55440 (D) 161051
CS-B 6/20
Text of page 23
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.32 Which of the following is/are undecidable?
1. G is a CFG. Is L(G) = Φ?
2. G is a CFG. Is L(G) = ∑*?
3. M is a Turing machine. Is L(M) regular?
4. A is a DFA and N is an NFA. Is L(A) = L(N)?
(A) 3 only (B) 3 and 4 only (C) 1, 2 and 3 only (D) 2 and 3 only
Q.33 Consider the following two sets of LR(1) items of an LR(1) grammar.
X → c.X, c/d X → c.X, $
X → .cX, c/d X → .cX, $
X → .d, c/d X → .d, $
Which of the following statements related to merging of the two sets in the corresponding LALR
parser is/are FALSE?
1. Cannot be merged since look aheads are different.
2. Can be merged but will result in S-R conflict.
3. Can be merged but will result in R-R conflict.
4. Cannot be merged since goto on c will lead to two different sets.
(A) 1 only (B) 2 only (C) 1 and 4 only (D) 1, 2, 3 and 4
Q.34 A certain computation generates two arrays a and b such that a[i]=f(i)for 0 ≤ i < n and
b[i] = g (a[i] )for 0 ≤ i < n. Suppose this computation is decomposed into two concurrent processes
X and Y such that X computes the array a and Y computes the array b. The processes employ two
binary semaphores R and S, both initialized to zero. The array a is shared by the two processes. The
structures of the processes are shown below.
Process X: Process Y:
private i; private i;
for (i=0; i<n; i++) { for (i=0; i<n; i++) {
a[i] = f(i); EntryY(R, S);
ExitX(R, S); b[i] = g(a[i]);
} }
Which one of the following represents the CORRECT implementations of ExitX and EntryY?
(A) ExitX(R, S) { (B) ExitX(R, S) {
P(R); V(R);
V(S); V(S);
} }
EntryY(R, S) { EntryY(R, S) {
P(S); P(R);
V(R); P(S);
} }
(C) ExitX(R, S) { (D) ExitX(R, S) {
P(S); V(R);
V(R); P(S);
} }
EntryY(R, S) { EntryY(R, S) {
V(S); V(S);
P(R); P(R);
} }
CS-B 7/20
Text of page 24
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.35 The following figure represents access graphs of two modules M1 and M2. The filled circles
represent methods and the unfilled circles represent attributes. If method m is moved to module M2
keeping the attributes where they are, what can we say about the average cohesion and coupling
between modules in the system of two modules?
(A) There is no change.
(B) Average cohesion goes up but coupling is reduced.
(C) Average cohesion goes down and coupling also reduces.
(D) Average cohesion and coupling increase.
Q.36 In an IPv4 datagram, the M bit is 0, the value of HLEN is 10, the value of total length is 400 and
the fragment offset value is 300. The position of the datagram, the sequence numbers of the first
and the last bytes of the payload, respectively are
(A) Last fragment, 2400 and 2789
(B) First fragment, 2400 and 2759
(C) Last fragment, 2400 and 2759
(D) Middle fragment, 300 and 689
Q.37 Determine the maximum length of the cable (in km) for transmitting data at a rate of 500 Mbps in
an Ethernet LAN with frames of size 10,000 bits. Assume the signal speed in the cable to be
2,00,000 km/s.
(A) 1 (B) 2 (C) 2.5 (D) 5
Q.38 Consider the following relational schema.
Students(rollno: integer, sname: string)
Courses(courseno: integer, cname: string)
Registration(rollno: integer, courseno: integer, percent: real)
Which of the following queries are equivalent to this query in English?
“Find the distinct names of all students who score more than 90% in the course numbered 107”
(I) SELECT DISTINCT S.sname
FROM Students as S, Registration as R
WHERE R.rollno=S.rollno AND R.courseno=107 AND R.percent >90
(II) ∏sname(σcourseno=107 ∧ percent>90 (Registration ⋈ Students))
(III) {T | ∃S∈Students, ∃R∈Registration ( S.rollno=R.rollno ∧
R.courseno=107 ∧ R.percent>90 ∧T.sname=S.sname)}
(IV) {<SN> | ∃SR∃RP ( <SR, SN>∈Students ∧ <SR, 107, RP>∈Registration ∧ RP>90)}
(A) I, II, III and IV (B) I, II and III only
(C) I, II and IV only (D) II, III and IV only
CS-B 8/20
Text of page 25
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.39 A shared variable x, initialized to zero, is operated on by four concurrent processes W, X, Y, Z as
follows. Each of the processes W and X reads x from memory, increments by one, stores it to
memory, and then terminates. Each of the processes Y and Z reads x from memory, decrements by
two, stores it to memory, and then terminates. Each process before reading x invokes the P
operation (i.e., wait) on a counting semaphore S and invokes the V operation (i.e., signal) on the
semaphore S after storing x to memory. Semaphore S is initialized to two. What is the maximum
possible value of x after all processes complete execution?
(A) –2 (B) –1 (C) 1 (D) 2

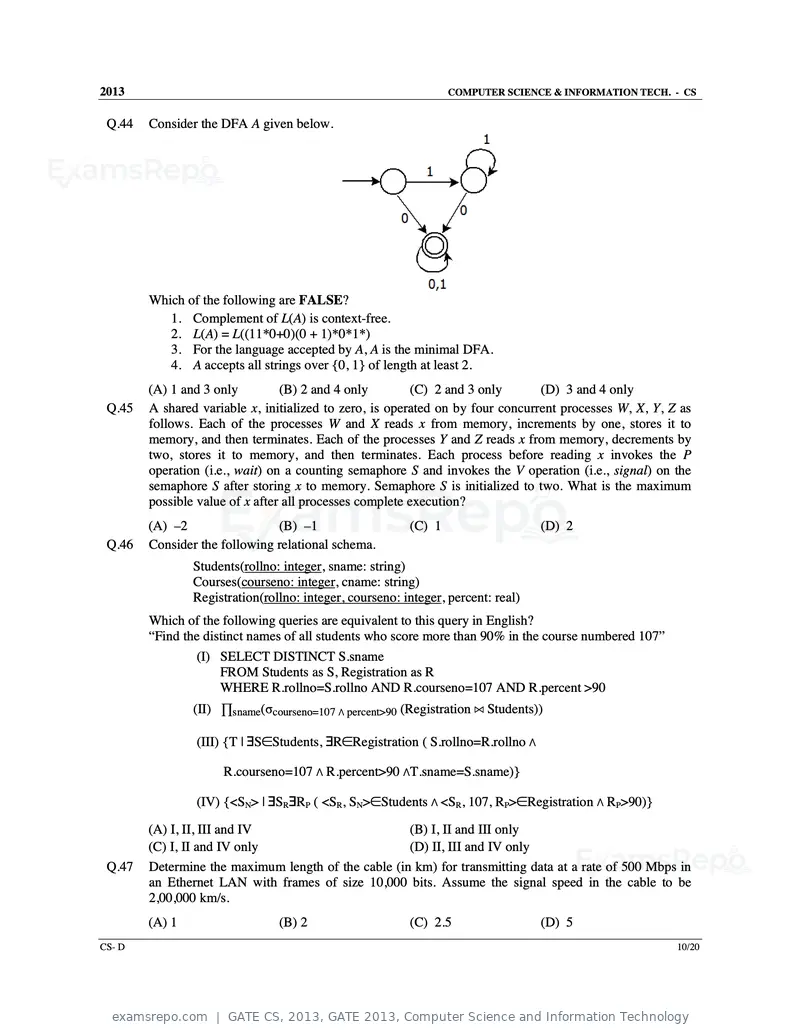

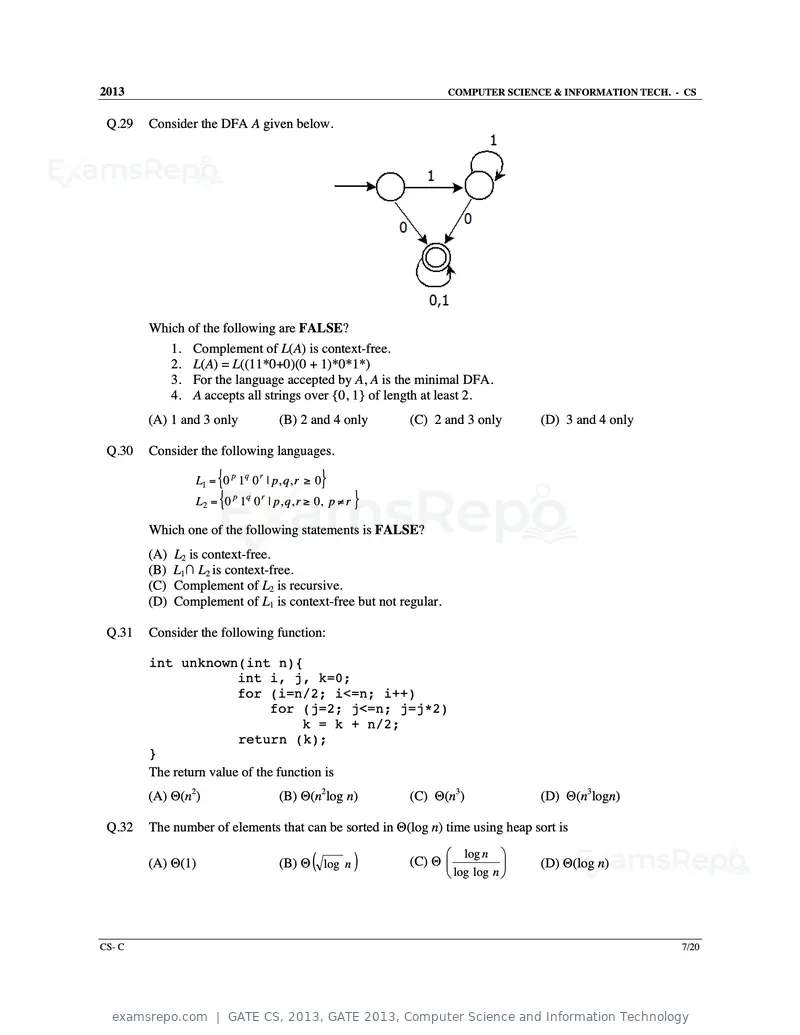

Q.40 Consider the DFA A given below.
Which of the following are FALSE?
1. Complement of L(A) is context-free.
2. L(A) = L((11*0+0)(0 + 1)*0*1*)
3. For the language accepted by A, A is the minimal DFA.
4. A accepts all strings over {0, 1} of length at least 2.
(A) 1 and 3 only (B) 2 and 4 only (C) 2 and 3 only (D) 3 and 4 only
Q.41 Consider the following languages.
{ }
L1 = 0 p 1q 0 r | p, q, r ≥ 0
L2 = {0 1 0 | p, q, r ≥ 0, p ≠ r }
p q r
Which one of the following statements is FALSE?
(A) L2 is context-free.
(B) L1∩ L2 is context-free.
(C) Complement of L2 is recursive.
(D) Complement of L1 is context-free but not regular.
Q.42 Consider the following function:
int unknown(int n){
int i, j, k=0;
for (i=n/2; i<=n; i++)
for (j=2; j<=n; j=j*2)
k = k + n/2;
return (k);
}
The return value of the function is
(A) Θ(n2) (B) Θ(n2log n) (C) Θ(n3) (D) Θ(n3logn)
CS-B 9/20
Text of page 26
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.43 The number of elements that can be sorted in Θ(log n) time using heap sort is
(B) Θ ( log n )
log n
(A) Θ(1) (C) Θ (D) Θ(log n)
log log n
Q.44 Consider a hard disk with 16 recording surfaces (0-15) having 16384 cylinders (0-16383) and each
cylinder contains 64 sectors (0-63). Data storage capacity in each sector is 512 bytes. Data are
organized cylinder-wise and the addressing format is <cylinder no., surface no., sector no.>. A file
of size 42797 KB is stored in the disk and the starting disk location of the file is <1200, 9, 40>.
What is the cylinder number of the last sector of the file, if it is stored in a contiguous manner?
(A) 1281 (B) 1282 (C) 1283 (D) 1284
Q.45 Consider the following sequence of micro-operations.
MBR ← PC
MAR ← X
PC ← Y
Memory ← MBR
Which one of the following is a possible operation performed by this sequence?
(A) Instruction fetch (B) Operand fetch
(C) Conditional branch (D) Initiation of interrupt service
Q.46 The line graph L(G) of a simple graph G is defined as follows:
• There is exactly one vertex v(e) in L(G) for each edge e in G.
• For any two edges e and e' in G, L(G) has an edge between v(e) and v(e'), if and only if e and e'
are incident with the same vertex in G.
Which of the following statements is/are TRUE?
(P) The line graph of a cycle is a cycle.
(Q) The line graph of a clique is a clique.
(R) The line graph of a planar graph is planar.
(S) The line graph of a tree is a tree.
(A) P only (B) P and R only
(C) R only (D) P, Q and S only
Q.47 What is the logical translation of the following statement?
“None of my friends are perfect.”
(A) ∃ x (F ( x ) ∧ ¬ P ( x )) (B) ∃ x (¬ F (x ) ∧ P (x ))
(C) ∃ x (¬ F (x ) ∧ ¬ P ( x )) (D) ¬ ∃ x (F ( x ) ∧ P ( x ))
CS-B 10/20
Text of page 27
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Common Data Questions
Common Data for Questions 48 and 49:
The procedure given below is required to find and replace certain characters inside an input character string
supplied in array A. The characters to be replaced are supplied in array oldc, while their respective
replacement characters are supplied in array newc. Array A has a fixed length of five characters, while
arrays oldc and newc contain three characters each. However, the procedure is flawed.
void find_and_replace (char *A, char *oldc, char *newc) {
for (int i=0; i<5; i++)
for (int j=0; j<3; j++)
if (A[i] == oldc[j]) A[i] = newc[j];
}
The procedure is tested with the following four test cases.
(1) oldc = “abc”, newc = “dab” (2) oldc = “cde”, newc = “bcd”
(3) oldc = “bca”, newc = “cda” (4) oldc = “abc”, newc = “bac”
Q.48 The tester now tests the program on all input strings of length five consisting of characters ‘a’,
‘b’, ‘c’, ‘d’ and ‘e’ with duplicates allowed. If the tester carries out this testing with the four
test cases given above, how many test cases will be able to capture the flaw?
(A) Only one (B) Only two (C) Only three (D) All four
Q.49 If array A is made to hold the string “abcde”, which of the above four test cases will be successful
in exposing the flaw in this procedure?
(A) None (B) 2 only
(C) 3 and 4 only (D) 4 only
Common Data for Questions 50 and 51:
The following code segment is executed on a processor which allows only register operands in its
instructions. Each instruction can have atmost two source operands and one destination operand. Assume
that all variables are dead after this code segment.
c = a + b;
d = c * a;
e = c + a;
x = c * c;
if (x > a) {
y = a * a;
}
else {
d = d * d;
e = e * e;
}
Q.50 Suppose the instruction set architecture of the processor has only two registers. The only allowed
compiler optimization is code motion, which moves statements from one place to another while
preserving correctness. What is the minimum number of spills to memory in the compiled code?
(A) 0 (B) 1 (C) 2 (D) 3
Q.51 What is the minimum number of registers needed in the instruction set architecture of the processor
to compile this code segment without any spill to memory? Do not apply any optimization other
than optimizing register allocation.
(A) 3 (B) 4 (C) 5 (D) 6
CS-B 11/20
Text of page 28
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Linked Answer Questions
Statement for Linked Answer Questions 52 and 53:
Relation R has eight attributes ABCDEFGH. Fields of R contain only atomic values.
+
F={CH→G, A→BC, B→CFH, E→A, F→EG} is a set of functional dependencies (FDs) so that F is
exactly the set of FDs that hold for R.
Q.52 How many candidate keys does the relation R have?
(A) 3 (B) 4 (C) 5 (D) 6
Q.53 The relation R is
(A) in 1NF, but not in 2NF. (B) in 2NF, but not in 3NF.
(C) in 3NF, but not in BCNF. (D) in BCNF.
Statement for Linked Answer Questions 54 and 55:
A computer uses 46-bit virtual address, 32-bit physical address, and a three-level paged page table
organization. The page table base register stores the base address of the first-level table (T1), which
occupies exactly one page. Each entry of T1 stores the base address of a page of the second-level table (T2).
Each entry of T2 stores the base address of a page of the third-level table (T3). Each entry of T3 stores a page
table entry (PTE). The PTE is 32 bits in size. The processor used in the computer has a 1 MB 16-way set
associative virtually indexed physically tagged cache. The cache block size is 64 bytes.
Q.54 What is the size of a page in KB in this computer?
(A) 2 (B) 4 (C) 8 (D) 16
Q.55 What is the minimum number of page colours needed to guarantee that no two synonyms map to
different sets in the processor cache of this computer?
(A) 2 (B) 4 (C) 8 (D) 16
CS-B 12/20
Text of page 29
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
General Aptitude (GA) Questions
Q.56 to Q.60 carry one mark each.
Q.56 Complete the sentence:
Universalism is to particularism as diffuseness is to _______________.
(A) specificity (B) neutrality (C) generality (D) adaptation
Q.57 Were you a bird, you ___________________ in the sky.
(A) would fly (B) shall fly (C) should fly (D) shall have flown
Q.58 Which one of the following options is the closest in meaning to the word given below?
Nadir
(A) Highest (B) Lowest (C) Medium (D) Integration
Q.59 Choose the grammatically INCORRECT sentence:
(A) He is of Asian origin.
(B) They belonged to Africa.
(C) She is an European.
(D) They migrated from India to Australia.
Q.60 What will be the maximum sum of 44, 42, 40, ...... ?
(A) 502 (B) 504 (C) 506 (D) 500
Q.61 to Q.65 carry two marks each.
Q.61 Out of all the 2-digit integers between 1 and 100, a 2-digit number has to be selected at random.
What is the probability that the selected number is not divisible by 7?
(A) 13/90 (B) 12/90 (C) 78/90 (D) 77/90
Q.62 A tourist covers half of his journey by train at 60 km/h, half of the remainder by bus at 30 km/h and
the rest by cycle at 10 km/h. The average speed of the tourist in km/h during his entire journey is
(A) 36 (B) 30 (C) 24 (D) 18
Q.63 Find the sum of the expression
1 1 1 1
+ + + .......... ..... +
1+ 2 2+ 3 3+ 4 80 + 81
(A) 7 (B) 8
(C) 9 (D) 10
CS-B 13/20
Text of page 30
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.64 The current erection cost of a structure is Rs. 13,200. If the labour wages per day increase by 1/5 of
the current wages and the working hours decrease by 1/24 of the current period, then the new cost
of erection in Rs. is
(A) 16,500 (B) 15,180 (C) 11,000 (D) 10,120
Q.65 After several defeats in wars, Robert Bruce went in exile and wanted to commit suicide. Just before
committing suicide, he came across a spider attempting tirelessly to have its net. Time and again,
the spider failed but that did not deter it to refrain from making attempts. Such attempts by the
spider made Bruce curious. Thus, Bruce started observing the near-impossible goal of the spider to
have the net. Ultimately, the spider succeeded in having its net despite several failures. Such act of
the spider encouraged Bruce not to commit suicide. And then, Bruce went back again and won
many a battle, and the rest is history.
Which one of the following assertions is best supported by the above information?
(A) Failure is the pillar of success.
(B) Honesty is the best policy.
(C) Life begins and ends with adventures.
(D) No adversity justifies giving up hope.
END OF THE QUESTION PAPER
CS-B 14/20
Text of page 31
SESSION - 3
Text of page 32
2013 Question Booklet Code
C
CS : COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Duration: Three Hours Maximum Marks: 100
Read the following instructions carefully.
1. Do not open the seal of the Question Booklet until you are asked to do so by the invigilator.
2. Take out the Optical Response Sheet (ORS) from this Question Booklet without breaking the seal
and read the instructions printed on the ORS carefully. If you find that either
a. The Question Booklet Code printed at the right hand top corner of this page does not match with
the Question Booklet Code at the right hand top corner of the ORS or
b. The Question Paper Code preceding the Registration number on the ORS is not CS,
then exchange the booklet immediately with a new sealed Question Booklet.
3. On the right hand side of the ORS, using ONLY a black ink ballpoint pen, (i) darken the appropriate
bubble under each digit of your registration number and (ii) write your registration number, your name
and name of the examination centre and put your signature at the specified location.
4. This Question Booklet contains 20 pages including blank pages for rough work. After you are
permitted to open the seal, check all pages and report discrepancies, if any, to the invigilator.
5. There are a total of 65 questions carrying 100 marks. All these questions are of objective type. Each
question has only one correct answer. Questions must be answered on the left hand side of the ORS
by darkening the appropriate bubble (marked A, B, C, D) using ONLY a black ink ballpoint pen
against the question number. For each question darken the bubble of the correct answer. More
than one answer bubbled against a question will be treated as an incorrect response.
6. Since bubbles darkened by the black ink ballpoint pen cannot be erased, candidates should darken the
bubbles in the ORS very carefully.
7. Questions Q.1 – Q.25 carry 1 mark each. Questions Q.26 – Q.55 carry 2 marks each. The 2 marks
questions include two pairs of common data questions and two pairs of linked answer questions. The
answer to the second question of the linked answer questions depends on the answer to the first
question of the pair. If the first question in the linked pair is wrongly answered or is not attempted,
then the answer to the second question in the pair will not be evaluated.
8. Questions Q.56 – Q.65 belong to General Aptitude (GA) section and carry a total of 15 marks.
Questions Q.56 – Q.60 carry 1 mark each, and questions Q.61 – Q.65 carry 2 marks each.
9. Questions not attempted will result in zero mark and wrong answers will result in NEGATIVE
marks. For all 1 mark questions, ⅓ mark will be deducted for each wrong answer. For all 2 marks
questions, ⅔ mark will be deducted for each wrong answer. However, in the case of the linked
answer question pair, there will be negative marks only for wrong answer to the first question and no
negative marks for wrong answer to the second question.
10. Calculator is allowed whereas charts, graph sheets or tables are NOT allowed in the examination hall.
11. Rough work can be done on the Question Booklet itself. Blank pages are provided at the end of the
Question Booklet for rough work.
12. Before the start of the examination, write your name and registration number in the space provided
below using a black ink ballpoint pen.
Name
Registration Number CS
CS-C 1/20
Text of page 33
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.1 to Q.25 carry one mark each.
Q.1 Using public key cryptography, X adds a digital signature σ to message M, encrypts <M, σ>, and
sends it to Y, where it is decrypted. Which one of the following sequences of keys is used for the
operations?
(A) Encryption: X’s private key followed by Y’s private key; Decryption: X’s public key followed
by Y’s public key
(B) Encryption: X’s private key followed by Y’s public key; Decryption: X’s public key followed
by Y’s private key
(C) Encryption: X’s public key followed by Y’s private key; Decryption: Y’s public key followed
by X’s private key
(D) Encryption: X’s private key followed by Y’s public key; Decryption: Y’s private key followed
by X’s public key
Q.2 Match the problem domains in GROUP I with the solution technologies in GROUP II.
GROUP I GROUP II
(P) Service oriented computing (1) Interoperability
(Q) Heterogeneous communicating systems (2) BPMN
(R) Information representation (3) Publish-find-bind
(S) Process description (4) XML
(A) P-1, Q-2, R-3, S-4 (B) P-3, Q-4, R-2, S-1
(C) P-3, Q-1, R-4, S-2 (D) P-4, Q-3, R-2, S-1
Q.3 A scheduling algorithm assigns priority proportional to the waiting time of a process. Every process
starts with priority zero (the lowest priority). The scheduler re-evaluates the process priorities every
T time units and decides the next process to schedule. Which one of the following is TRUE if the
processes have no I/O operations and all arrive at time zero?
(A) This algorithm is equivalent to the first-come-first-serve algorithm.
(B) This algorithm is equivalent to the round-robin algorithm.
(C) This algorithm is equivalent to the shortest-job-first algorithm.
(D) This algorithm is equivalent to the shortest-remaining-time-first algorithm.
Q.4 What is the maximum number of reduce moves that can be taken by a bottom-up parser for a
grammar with no epsilon- and unit-production (i.e., of type A → є and A → a) to parse a string
with n tokens?
(A) n/2 (B) n-1 (C) 2n-1 (D) 2n
Q.5 Consider the languages L1 = Φ and L2 = { a } . Which one of the following represents L1 L∗2 U L1∗ ?
(A) {є} (B) Φ (C) a* (D) {є, a}
Q.6 Which one of the following is the tightest upper bound that represents the time complexity of
inserting an object into a binary search tree of n nodes?
(A) O(1) (B) O(log n) (C) O(n) (D) O(n log n)
Q.7 Which one of the following is the tightest upper bound that represents the number of swaps
required to sort n numbers using selection sort?
(A) O(log n) (B) O(n) (C) O(n log n) (D) O(n2)
CS- C 2/20
Text of page 34
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.8 In the following truth table, V = 1 if and only if the input is valid.
Inputs Outputs
D0 D1 D2 D3 X0 X1 V
0 0 0 0 x x 0
1 0 0 0 0 0 1
x 1 0 0 0 1 1
x x 1 0 1 0 1
x x x 1 1 1 1
What function does the truth table represent?
(A) Priority encoder (B) Decoder
(C) Multiplexer (D) Demultiplexer
Q.9 The smallest integer that can be represented by an 8-bit number in 2’s complement form is
(A) -256 (B) -128 (C) -127 (D) 0
1 x x2
Q.10 Which one of the following does NOT equal 1 y y 2 ?
1 z z2
1 x ( x + 1) x + 1 1 x +1 x2 + 1
(A) 1 y ( y + 1) y +1 (B) 1 y +1 y2 +1
1 z ( z + 1) z +1 1 z +1 z2 +1
0 x− y x2 − y2 2 x+ y x2 + y2
(C) 0 y−z y2 − z2 (D) 2 y+z y2 + z2
2
1 z z 1 z z2
Q.11 Suppose p is the number of cars per minute passing through a certain road junction between 5 PM
and 6 PM, and p has a Poisson distribution with mean 3. What is the probability of observing fewer
than 3 cars during any given minute in this interval?
(A) 8/(2e3) (B) 9/(2e3) (C) 17/(2e3) (D) 26/(2e3)
Q.12 A binary operation ⊕ on a set of integers is defined as x ⊕ y = x 2 + y 2 . Which one of the following
statements is TRUE about ⊕?
(A) Commutative but not associative (B) Both commutative and associative
(C) Associative but not commutative (D) Neither commutative nor associative
Q.13 Which of the following statements is/are TRUE for undirected graphs?
P: Number of odd degree vertices is even.
Q: Sum of degrees of all vertices is even.
(A) P only (B) Q only (C) Both P and Q (D) Neither P nor Q
Q.14 Consider an undirected random graph of eight vertices. The probability that there is an edge
between a pair of vertices is 1/2. What is the expected number of unordered cycles of length three?
(A) 1/8 (B) 1 (C) 7 (D) 8
CS- C 3/20
Text of page 35
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.15 Function f is known at the following points:
x 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
f(x) 0 0.09 0.36 0.81 1.44 2.25 3.24 4.41 5.76 7.29 9.00
∫ f (x ) dx computed using the trapezoidal rule is
3
The value of
0
(A) 8.983 (B) 9.003 (C) 9.017 (D) 9.045
Q.16 Which one of the following functions is continuous at x = 3?
2, if x = 3 4, if x =3
(B) f ( x ) =
(A) f ( x ) = x − 1, if x > 3 8 − x if x≠3
x +3
, if x<3
3
x + 3, if x≤3
(D) f ( x ) =
1
(C) f ( x ) = , if x ≠3
x − 4 x>3 x − 27
3
if
Q.17 Which one of the following expressions does NOT represent exclusive NOR of x and y?
(A) xy + x ′ y ′ (B) x ⊕ y ′ (C) x ′ ⊕ y (D) x ′ ⊕ y ′
Q.18 In a k-way set associative cache, the cache is divided into v sets, each of which consists of k lines.
The lines of a set are placed in sequence one after another. The lines in set s are sequenced before
the lines in set (s+1). The main memory blocks are numbered 0 onwards. The main memory block
numbered j must be mapped to any one of the cache lines from
(A) (j mod v) * k to (j mod v) * k + (k-1) (B) (j mod v) to (j mod v) + (k-1)
(C) (j mod k) to (j mod k) + (v-1) (D) (j mod k) * v to (j mod k) * v + (v-1)
Q.19 What is the time complexity of Bellman-Ford single-source shortest path algorithm on a complete
graph of n vertices?
(A) Θ(n2) (B) Θ(n2log n) (C) Θ(n3) (D) Θ(n3log n)
Q.20 Which of the following statements are TRUE?
1 The problem of determining whether there exists a cycle in an undirected graph is in P.
2. The problem of determining whether there exists a cycle in an undirected graph is in NP.
3. If a problem A is NP-Complete, there exists a non-deterministic polynomial time algorithm
to solve A.
(A) 1, 2 and 3 (B) 1 and 2 only (C) 2 and 3 only (D) 1 and 3 only
Q.21 Which of the following statements is/are FALSE?
1. For every non-deterministic Turing machine, there exists an equivalent deterministic
Turing machine.
2. Turing recognizable languages are closed under union and complementation.
3. Turing decidable languages are closed under intersection and complementation.
4. Turing recognizable languages are closed under union and intersection.
(A) 1 and 4 only (B) 1 and 3 only (C) 2 only (D) 3 only
CS- C 4/20
Text of page 36
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.22 Three concurrent processes X, Y, and Z execute three different code segments that access and
update certain shared variables. Process X executes the P operation (i.e., wait) on semaphores
a, b and c; process Y executes the P operation on semaphores b, c and d; process Z executes the
P operation on semaphores c, d, and a before entering the respective code segments. After
completing the execution of its code segment, each process invokes the V operation (i.e., signal) on
its three semaphores. All semaphores are binary semaphores initialized to one. Which one of the
following represents a deadlock-free order of invoking the P operations by the processes?
(A) X: P(a)P(b)P(c) Y: P(b)P(c)P(d) Z: P(c)P(d)P(a)
(B) X: P(b)P(a)P(c) Y: P(b)P(c)P(d) Z: P(a)P(c)P(d)
(C) X: P(b)P(a)P(c) Y: P(c)P(b)P(d) Z: P(a)P(c)P(d)
(D) X: P(a)P(b)P(c) Y: P(c)P(b)P(d) Z: P(c)P(d)P(a)
Q.23 An index is clustered, if
(A) it is on a set of fields that form a candidate key.
(B) it is on a set of fields that include the primary key.
(C) the data records of the file are organized in the same order as the data entries of the index.
(D) the data records of the file are organized not in the same order as the data entries of the index.
Q.24 The transport layer protocols used for real time multimedia, file transfer, DNS and email,
respectively are
(A) TCP, UDP, UDP and TCP
(B) UDP, TCP, TCP and UDP
(C) UDP, TCP, UDP and TCP
(D) TCP, UDP, TCP and UDP
Q.25 Assume that source S and destination D are connected through two intermediate routers labeled R.
Determine how many times each packet has to visit the network layer and the data link layer during
a transmission from S to D.
(A) Network layer – 4 times and Data link layer – 4 times
(B) Network layer – 4 times and Data link layer – 3 times
(C) Network layer – 4 times and Data link layer – 6 times
(D) Network layer – 2 times and Data link layer – 6 times
CS- C 5/20
Text of page 37
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.26 to Q.55 carry two marks each.
Q.26 Determine the maximum length of the cable (in km) for transmitting data at a rate of 500 Mbps in
an Ethernet LAN with frames of size 10,000 bits. Assume the signal speed in the cable to be
2,00,000 km/s.
(A) 1 (B) 2 (C) 2.5 (D) 5
Q.27 Consider the following relational schema.
Students(rollno: integer, sname: string)
Courses(courseno: integer, cname: string)
Registration(rollno: integer, courseno: integer, percent: real)
Which of the following queries are equivalent to this query in English?
“Find the distinct names of all students who score more than 90% in the course numbered 107”
(I) SELECT DISTINCT S.sname
FROM Students as S, Registration as R
WHERE R.rollno=S.rollno AND R.courseno=107 AND R.percent >90
(II) ∏sname(σcourseno=107 ∧ percent>90 (Registration ⋈ Students))
(III) {T | ∃S∈Students, ∃R∈Registration ( S.rollno=R.rollno ∧
R.courseno=107 ∧ R.percent>90 ∧T.sname=S.sname)}
(IV) {<SN> | ∃SR∃RP ( <SR, SN>∈Students ∧ <SR, 107, RP>∈Registration ∧ RP>90)}
(A) I, II, III and IV (B) I, II and III only
(C) I, II and IV only (D) II, III and IV only
Q.28 A shared variable x, initialized to zero, is operated on by four concurrent processes W, X, Y, Z as
follows. Each of the processes W and X reads x from memory, increments by one, stores it to
memory, and then terminates. Each of the processes Y and Z reads x from memory, decrements by
two, stores it to memory, and then terminates. Each process before reading x invokes the P
operation (i.e., wait) on a counting semaphore S and invokes the V operation (i.e., signal) on the
semaphore S after storing x to memory. Semaphore S is initialized to two. What is the maximum
possible value of x after all processes complete execution?
(A) –2 (B) –1 (C) 1 (D) 2
CS- C 6/20
Text of page 38
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.29 Consider the DFA A given below.
Which of the following are FALSE?
1. Complement of L(A) is context-free.
2. L(A) = L((11*0+0)(0 + 1)*0*1*)
3. For the language accepted by A, A is the minimal DFA.
4. A accepts all strings over {0, 1} of length at least 2.
(A) 1 and 3 only (B) 2 and 4 only (C) 2 and 3 only (D) 3 and 4 only
Q.30 Consider the following languages.
{ }
L1 = 0 p 1q 0 r | p, q, r ≥ 0
L2 = {0 1 0 | p, q, r ≥ 0, p ≠ r }
p q r
Which one of the following statements is FALSE?
(A) L2 is context-free.
(B) L1∩ L2 is context-free.
(C) Complement of L2 is recursive.
(D) Complement of L1 is context-free but not regular.
Q.31 Consider the following function:
int unknown(int n){
int i, j, k=0;
for (i=n/2; i<=n; i++)
for (j=2; j<=n; j=j*2)
k = k + n/2;
return (k);
}
The return value of the function is
(A) Θ(n2) (B) Θ(n2log n) (C) Θ(n3) (D) Θ(n3logn)
Q.32 The number of elements that can be sorted in Θ(log n) time using heap sort is
(B) Θ ( log n )
log n
(A) Θ(1) (C) Θ (D) Θ(log n)
log log n
CS- C 7/20
Text of page 39
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.33 Consider a hard disk with 16 recording surfaces (0-15) having 16384 cylinders (0-16383) and each
cylinder contains 64 sectors (0-63). Data storage capacity in each sector is 512 bytes. Data are
organized cylinder-wise and the addressing format is <cylinder no., surface no., sector no.>. A file
of size 42797 KB is stored in the disk and the starting disk location of the file is <1200, 9, 40>.
What is the cylinder number of the last sector of the file, if it is stored in a contiguous manner?
(A) 1281 (B) 1282 (C) 1283 (D) 1284
Q.34 Consider the following sequence of micro-operations.
MBR ← PC
MAR ← X
PC ← Y
Memory ← MBR
Which one of the following is a possible operation performed by this sequence?
(A) Instruction fetch (B) Operand fetch
(C) Conditional branch (D) Initiation of interrupt service
Q.35 The line graph L(G) of a simple graph G is defined as follows:
• There is exactly one vertex v(e) in L(G) for each edge e in G.
• For any two edges e and e' in G, L(G) has an edge between v(e) and v(e'), if and only if e and e'
are incident with the same vertex in G.
Which of the following statements is/are TRUE?
(P) The line graph of a cycle is a cycle.
(Q) The line graph of a clique is a clique.
(R) The line graph of a planar graph is planar.
(S) The line graph of a tree is a tree.
(A) P only (B) P and R only
(C) R only (D) P, Q and S only
Q.36 What is the logical translation of the following statement?
“None of my friends are perfect.”
(A) ∃ x (F ( x ) ∧ ¬ P ( x )) (B) ∃ x (¬ F (x ) ∧ P (x ))
(C) ∃ x (¬ F (x ) ∧ ¬ P ( x )) (D) ¬ ∃ x (F ( x ) ∧ P ( x ))
Q.37 Which one of the following is NOT logically equivalent to ¬ ∃x (∀ y (α ) ∧ ∀z (β )) ?
(A) ∀ x (∃ z (¬ β ) → ∀ y (α )) (B) ∀x (∀ z (β ) → ∃ y (¬α ))
(C) ∀x (∀ y (α ) → ∃ z (¬ β )) (D) ∀x (∃ y (¬α ) → ∃ z (¬ β ))
Q.38 A RAM chip has a capacity of 1024 words of 8 bits each (1K × 8). The number of 2 × 4 decoders
with enable line needed to construct a 16K × 16 RAM from 1K × 8 RAM is
(A) 4 (B) 5 (C) 6 (D) 7
CS- C 8/20
Text of page 40
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.39 Consider an instruction pipeline with five stages without any branch prediction: Fetch Instruction
(FI), Decode Instruction (DI), Fetch Operand (FO), Execute Instruction (EI) and Write Operand
(WO). The stage delays for FI, DI, FO, EI and WO are 5 ns, 7 ns, 10 ns, 8 ns and 6 ns, respectively.
There are intermediate storage buffers after each stage and the delay of each buffer is 1 ns. A
program consisting of 12 instructions I1, I2, I3, …, I12 is executed in this pipelined processor.
Instruction I4 is the only branch instruction and its branch target is I9. If the branch is taken during
the execution of this program, the time (in ns) needed to complete the program is
(A) 132 (B) 165 (C) 176 (D) 328
Q.40 Consider the following operation along with Enqueue and Dequeue operations on queues, where
k is a global parameter.
MultiDequeue(Q){
m = k
while (Q is not empty) and (m > 0) {
Dequeue(Q)
m = m – 1
}
}
What is the worst case time complexity of a sequence of n queue operations on an initially empty
queue?
(A) Θ(n) (B) Θ(n + k) (C) Θ(nk) (D) Θ(n2)
Q.41 The preorder traversal sequence of a binary search tree is 30, 20, 10, 15, 25, 23, 39, 35, 42. Which
one of the following is the postorder traversal sequence of the same tree?
(A) 10, 20, 15, 23, 25, 35, 42, 39, 30 (B) 15, 10, 25, 23, 20, 42, 35, 39, 30
(C) 15, 20, 10, 23, 25, 42, 35, 39, 30 (D) 15, 10, 23, 25, 20, 35, 42, 39, 30
Q.42 What is the return value of f(p,p), if the value of p is initialized to 5 before the call? Note that
the first parameter is passed by reference, whereas the second parameter is passed by value.
int f (int &x, int c) {
c = c - 1;
if (c==0) return 1;
x = x + 1;
return f(x,c) * x;
}
(A) 3024 (B) 6561 (C) 55440 (D) 161051
Q.43 Which of the following is/are undecidable?
1. G is a CFG. Is L(G) = Φ?
2. G is a CFG. Is L(G) = ∑*?
3. M is a Turing machine. Is L(M) regular?
4. A is a DFA and N is an NFA. Is L(A) = L(N)?
(A) 3 only (B) 3 and 4 only (C) 1, 2 and 3 only (D) 2 and 3 only
CS- C 9/20
Text of page 41
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.44 Consider the following two sets of LR(1) items of an LR(1) grammar.
X → c.X, c/d X → c.X, $
X → .cX, c/d X → .cX, $
X → .d, c/d X → .d, $
Which of the following statements related to merging of the two sets in the corresponding LALR
parser is/are FALSE?
1. Cannot be merged since look aheads are different.
2. Can be merged but will result in S-R conflict.
3. Can be merged but will result in R-R conflict.
4. Cannot be merged since goto on c will lead to two different sets.
(A) 1 only (B) 2 only (C) 1 and 4 only (D) 1, 2, 3 and 4
Q.45 A certain computation generates two arrays a and b such that a[i]=f(i)for 0 ≤ i < n and
b[i] = g (a[i] )for 0 ≤ i < n. Suppose this computation is decomposed into two concurrent processes
X and Y such that X computes the array a and Y computes the array b. The processes employ two
binary semaphores R and S, both initialized to zero. The array a is shared by the two processes. The
structures of the processes are shown below.
Process X: Process Y:
private i; private i;
for (i=0; i<n; i++) { for (i=0; i<n; i++) {
a[i] = f(i); EntryY(R, S);
ExitX(R, S); b[i] = g(a[i]);
} }
Which one of the following represents the CORRECT implementations of ExitX and EntryY?
(A) ExitX(R, S) { (B) ExitX(R, S) {
P(R); V(R);
V(S); V(S);
} }
EntryY(R, S) { EntryY(R, S) {
P(S); P(R);
V(R); P(S);
} }
(C) ExitX(R, S) { (D) ExitX(R, S) {
P(S); V(R);
V(R); P(S);
} }
EntryY(R, S) { EntryY(R, S) {
V(S); V(S);
P(R); P(R);
} }
CS- C 10/20
Text of page 42
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.46 In an IPv4 datagram, the M bit is 0, the value of HLEN is 10, the value of total length is 400 and
the fragment offset value is 300. The position of the datagram, the sequence numbers of the first
and the last bytes of the payload, respectively are
(A) Last fragment, 2400 and 2789
(B) First fragment, 2400 and 2759
(C) Last fragment, 2400 and 2759
(D) Middle fragment, 300 and 689
Q.47 The following figure represents access graphs of two modules M1 and M2. The filled circles
represent methods and the unfilled circles represent attributes. If method m is moved to module M2
keeping the attributes where they are, what can we say about the average cohesion and coupling
between modules in the system of two modules?
(A) There is no change.
(B) Average cohesion goes up but coupling is reduced.
(C) Average cohesion goes down and coupling also reduces.
(D) Average cohesion and coupling increase.
Common Data Questions
Common Data for Questions 48 and 49:
The following code segment is executed on a processor which allows only register operands in its
instructions. Each instruction can have atmost two source operands and one destination operand. Assume
that all variables are dead after this code segment.
c = a + b;
d = c * a;
e = c + a;
x = c * c;
if (x > a) {
y = a * a;
}
else {
d = d * d;
e = e * e;
}
Q.48 What is the minimum number of registers needed in the instruction set architecture of the processor
to compile this code segment without any spill to memory? Do not apply any optimization other
than optimizing register allocation.
(A) 3 (B) 4 (C) 5 (D) 6
Q.49 Suppose the instruction set architecture of the processor has only two registers. The only allowed
compiler optimization is code motion, which moves statements from one place to another while
preserving correctness. What is the minimum number of spills to memory in the compiled code?
(A) 0 (B) 1 (C) 2 (D) 3
CS- C 11/20
Text of page 43
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Common Data for Questions 50 and 51:
The procedure given below is required to find and replace certain characters inside an input character string
supplied in array A. The characters to be replaced are supplied in array oldc, while their respective
replacement characters are supplied in array newc. Array A has a fixed length of five characters, while
arrays oldc and newc contain three characters each. However, the procedure is flawed.
void find_and_replace (char *A, char *oldc, char *newc) {
for (int i=0; i<5; i++)
for (int j=0; j<3; j++)
if (A[i] == oldc[j]) A[i] = newc[j];
}
The procedure is tested with the following four test cases.
(1) oldc = “abc”, newc = “dab” (2) oldc = “cde”, newc = “bcd”
(3) oldc = “bca”, newc = “cda” (4) oldc = “abc”, newc = “bac”
Q.50 If array A is made to hold the string “abcde”, which of the above four test cases will be successful
in exposing the flaw in this procedure?
(A) None (B) 2 only
(C) 3 and 4 only (D) 4 only
Q.51 The tester now tests the program on all input strings of length five consisting of characters ‘a’,
‘b’, ‘c’, ‘d’ and ‘e’ with duplicates allowed. If the tester carries out this testing with the four
test cases given above, how many test cases will be able to capture the flaw?
(A) Only one (B) Only two (C) Only three (D) All four
Linked Answer Questions
Statement for Linked Answer Questions 52 and 53:
A computer uses 46-bit virtual address, 32-bit physical address, and a three-level paged page table
organization. The page table base register stores the base address of the first-level table (T1), which
occupies exactly one page. Each entry of T1 stores the base address of a page of the second-level table (T2).
Each entry of T2 stores the base address of a page of the third-level table (T3). Each entry of T3 stores a page
table entry (PTE). The PTE is 32 bits in size. The processor used in the computer has a 1 MB 16-way set
associative virtually indexed physically tagged cache. The cache block size is 64 bytes.
Q.52 What is the size of a page in KB in this computer?
(A) 2 (B) 4 (C) 8 (D) 16
Q.53 What is the minimum number of page colours needed to guarantee that no two synonyms map to
different sets in the processor cache of this computer?
(A) 2 (B) 4 (C) 8 (D) 16
Statement for Linked Answer Questions 54 and 55:
Relation R has eight attributes ABCDEFGH. Fields of R contain only atomic values.
+
F={CH→G, A→BC, B→CFH, E→A, F→EG} is a set of functional dependencies (FDs) so that F is
exactly the set of FDs that hold for R.
Q.54 How many candidate keys does the relation R have?
(A) 3 (B) 4 (C) 5 (D) 6
Q.55 The relation R is
(A) in 1NF, but not in 2NF. (B) in 2NF, but not in 3NF.
(C) in 3NF, but not in BCNF. (D) in BCNF.
CS- C 12/20
Text of page 44
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
General Aptitude (GA) Questions
Q.56 to Q.60 carry one mark each.
Q.56 Were you a bird, you ___________________ in the sky.
(A) would fly (B) shall fly (C) should fly (D) shall have flown
Q.57 Choose the grammatically INCORRECT sentence:
(A) He is of Asian origin.
(B) They belonged to Africa.
(C) She is an European.
(D) They migrated from India to Australia.
Q.58 Complete the sentence:
Universalism is to particularism as diffuseness is to _______________.
(A) specificity (B) neutrality (C) generality (D) adaptation
Q.59 What will be the maximum sum of 44, 42, 40, ...... ?
(A) 502 (B) 504 (C) 506 (D) 500
Q.60 Which one of the following options is the closest in meaning to the word given below?
Nadir
(A) Highest (B) Lowest (C) Medium (D) Integration
Q.61 to Q.65 carry two marks each.
Q.61 A tourist covers half of his journey by train at 60 km/h, half of the remainder by bus at 30 km/h and
the rest by cycle at 10 km/h. The average speed of the tourist in km/h during his entire journey is
(A) 36 (B) 30 (C) 24 (D) 18
Q.62 The current erection cost of a structure is Rs. 13,200. If the labour wages per day increase by 1/5 of
the current wages and the working hours decrease by 1/24 of the current period, then the new cost
of erection in Rs. is
(A) 16,500 (B) 15,180 (C) 11,000 (D) 10,120
Q.63 Out of all the 2-digit integers between 1 and 100, a 2-digit number has to be selected at random.
What is the probability that the selected number is not divisible by 7?
(A) 13/90 (B) 12/90 (C) 78/90 (D) 77/90
CS- C 13/20
Text of page 45
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.64 After several defeats in wars, Robert Bruce went in exile and wanted to commit suicide. Just before
committing suicide, he came across a spider attempting tirelessly to have its net. Time and again,
the spider failed but that did not deter it to refrain from making attempts. Such attempts by the
spider made Bruce curious. Thus, Bruce started observing the near-impossible goal of the spider to
have the net. Ultimately, the spider succeeded in having its net despite several failures. Such act of
the spider encouraged Bruce not to commit suicide. And then, Bruce went back again and won
many a battle, and the rest is history.
Which one of the following assertions is best supported by the above information?
(A) Failure is the pillar of success.
(B) Honesty is the best policy.
(C) Life begins and ends with adventures.
(D) No adversity justifies giving up hope.
Q.65 Find the sum of the expression
1 1 1 1
+ + + .......... ..... +
1+ 2 2+ 3 3+ 4 80 + 81
(A) 7 (B) 8
(C) 9 (D) 10
END OF THE QUESTION PAPER
CS- C 14/20
Text of page 46
SESSION - 4
Text of page 47
2013 Question Booklet Code
D
CS : COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Duration: Three Hours Maximum Marks: 100
Read the following instructions carefully.
1. Do not open the seal of the Question Booklet until you are asked to do so by the invigilator.
2. Take out the Optical Response Sheet (ORS) from this Question Booklet without breaking the seal
and read the instructions printed on the ORS carefully. If you find that either
a. The Question Booklet Code printed at the right hand top corner of this page does not match with
the Question Booklet Code at the right hand top corner of the ORS or
b. The Question Paper Code preceding the Registration number on the ORS is not CS,
then exchange the booklet immediately with a new sealed Question Booklet.
3. On the right hand side of the ORS, using ONLY a black ink ballpoint pen, (i) darken the appropriate
bubble under each digit of your registration number and (ii) write your registration number, your name
and name of the examination centre and put your signature at the specified location.
4. This Question Booklet contains 20 pages including blank pages for rough work. After you are
permitted to open the seal, check all pages and report discrepancies, if any, to the invigilator.
5. There are a total of 65 questions carrying 100 marks. All these questions are of objective type. Each
question has only one correct answer. Questions must be answered on the left hand side of the ORS
by darkening the appropriate bubble (marked A, B, C, D) using ONLY a black ink ballpoint pen
against the question number. For each question darken the bubble of the correct answer. More
than one answer bubbled against a question will be treated as an incorrect response.
6. Since bubbles darkened by the black ink ballpoint pen cannot be erased, candidates should darken the
bubbles in the ORS very carefully.
7. Questions Q.1 – Q.25 carry 1 mark each. Questions Q.26 – Q.55 carry 2 marks each. The 2 marks
questions include two pairs of common data questions and two pairs of linked answer questions. The
answer to the second question of the linked answer questions depends on the answer to the first
question of the pair. If the first question in the linked pair is wrongly answered or is not attempted,
then the answer to the second question in the pair will not be evaluated.
8. Questions Q.56 – Q.65 belong to General Aptitude (GA) section and carry a total of 15 marks.
Questions Q.56 – Q.60 carry 1 mark each, and questions Q.61 – Q.65 carry 2 marks each.
9. Questions not attempted will result in zero mark and wrong answers will result in NEGATIVE
marks. For all 1 mark questions, ⅓ mark will be deducted for each wrong answer. For all 2 marks
questions, ⅔ mark will be deducted for each wrong answer. However, in the case of the linked
answer question pair, there will be negative marks only for wrong answer to the first question and no
negative marks for wrong answer to the second question.
10. Calculator is allowed whereas charts, graph sheets or tables are NOT allowed in the examination hall.
11. Rough work can be done on the Question Booklet itself. Blank pages are provided at the end of the
Question Booklet for rough work.
12. Before the start of the examination, write your name and registration number in the space provided
below using a black ink ballpoint pen.
Name
Registration Number CS
CS-D 1/20
Text of page 48
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.1 to Q.25 carry one mark each.
Q.1 The transport layer protocols used for real time multimedia, file transfer, DNS and email,
respectively are
(A) TCP, UDP, UDP and TCP
(B) UDP, TCP, TCP and UDP
(C) UDP, TCP, UDP and TCP
(D) TCP, UDP, TCP and UDP
Q.2 Assume that source S and destination D are connected through two intermediate routers labeled R.
Determine how many times each packet has to visit the network layer and the data link layer during
a transmission from S to D.
(A) Network layer – 4 times and Data link layer – 4 times
(B) Network layer – 4 times and Data link layer – 3 times
(C) Network layer – 4 times and Data link layer – 6 times
(D) Network layer – 2 times and Data link layer – 6 times
Q.3 An index is clustered, if
(A) it is on a set of fields that form a candidate key.
(B) it is on a set of fields that include the primary key.
(C) the data records of the file are organized in the same order as the data entries of the index.
(D) the data records of the file are organized not in the same order as the data entries of the index.
Q.4 Three concurrent processes X, Y, and Z execute three different code segments that access and
update certain shared variables. Process X executes the P operation (i.e., wait) on semaphores
a, b and c; process Y executes the P operation on semaphores b, c and d; process Z executes the
P operation on semaphores c, d, and a before entering the respective code segments. After
completing the execution of its code segment, each process invokes the V operation (i.e., signal) on
its three semaphores. All semaphores are binary semaphores initialized to one. Which one of the
following represents a deadlock-free order of invoking the P operations by the processes?
(A) X: P(a)P(b)P(c) Y: P(b)P(c)P(d) Z: P(c)P(d)P(a)
(B) X: P(b)P(a)P(c) Y: P(b)P(c)P(d) Z: P(a)P(c)P(d)
(C) X: P(b)P(a)P(c) Y: P(c)P(b)P(d) Z: P(a)P(c)P(d)
(D) X: P(a)P(b)P(c) Y: P(c)P(b)P(d) Z: P(c)P(d)P(a)
Q.5 Which of the following statements is/are FALSE?
1. For every non-deterministic Turing machine, there exists an equivalent deterministic
Turing machine.
2. Turing recognizable languages are closed under union and complementation.
3. Turing decidable languages are closed under intersection and complementation.
4. Turing recognizable languages are closed under union and intersection.
(A) 1 and 4 only (B) 1 and 3 only (C) 2 only (D) 3 only
CS- D 2/20
Text of page 49
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.6 Which of the following statements are TRUE?
1. The problem of determining whether there exists a cycle in an undirected graph is in P.
2. The problem of determining whether there exists a cycle in an undirected graph is in NP.
3. If a problem A is NP-Complete, there exists a non-deterministic polynomial time algorithm
to solve A.
(A) 1, 2 and 3 (B) 1 and 2 only (C) 2 and 3 only (D) 1 and 3 only
Q.7 What is the time complexity of Bellman-Ford single-source shortest path algorithm on a complete
graph of n vertices?
(A) Θ(n2) (B) Θ(n2log n) (C) Θ(n3) (D) Θ(n3log n)
Q.8 In a k-way set associative cache, the cache is divided into v sets, each of which consists of k lines.
The lines of a set are placed in sequence one after another. The lines in set s are sequenced before
the lines in set (s+1). The main memory blocks are numbered 0 onwards. The main memory block
numbered j must be mapped to any one of the cache lines from
(A) (j mod v) * k to (j mod v) * k + (k-1) (B) (j mod v) to (j mod v) + (k-1)
(C) (j mod k) to (j mod k) + (v-1) (D) (j mod k) * v to (j mod k) * v + (v-1)
Q.9 Which one of the following expressions does NOT represent exclusive NOR of x and y?
(A) xy + x ′ y ′ (B) x ⊕ y ′ (C) x ′ ⊕ y (D) x ′ ⊕ y ′
Q.10 Which one of the following functions is continuous at x = 3?
2, if x = 3 4, if x =3
(B) f ( x ) =
(A) f ( x ) = x − 1, if x > 3 8 − x if x≠3
x +3
, if x<3
3
x + 3, if x≤3 1
(C) f ( x ) = (D) f ( x ) = , if x ≠3
x − 4 x>3 x − 27
3
if
Q.11 Function f is known at the following points:
x 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
f(x) 0 0.09 0.36 0.81 1.44 2.25 3.24 4.41 5.76 7.29 9.00
∫ f (x ) dx computed using the trapezoidal rule is
3
The value of
0
(A) 8.983 (B) 9.003 (C) 9.017 (D) 9.045
Q.12 Which of the following statements is/are TRUE for undirected graphs?
P: Number of odd degree vertices is even.
Q: Sum of degrees of all vertices is even.
(A) P only (B) Q only (C) Both P and Q (D) Neither P nor Q
Q.13 Consider an undirected random graph of eight vertices. The probability that there is an edge
between a pair of vertices is 1/2. What is the expected number of unordered cycles of length three?
(A) 1/8 (B) 1 (C) 7 (D) 8
CS- D 3/20
Text of page 50
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.14 A binary operation ⊕ on a set of integers is defined as x ⊕ y = x 2 + y 2 . Which one of the following
statements is TRUE about ⊕?
(A) Commutative but not associative (B) Both commutative and associative
(C) Associative but not commutative (D) Neither commutative nor associative
Q.15 Suppose p is the number of cars per minute passing through a certain road junction between 5 PM
and 6 PM, and p has a Poisson distribution with mean 3. What is the probability of observing fewer
than 3 cars during any given minute in this interval?
(A) 8/(2e3) (B) 9/(2e3) (C) 17/(2e3) (D) 26/(2e3)
1 x x2
Q.16 Which one of the following does NOT equal 1 y y 2 ?
1 z z2
1 x ( x + 1) x + 1 1 x +1 x2 + 1
(A) 1 y ( y + 1) y +1 (B) 1 y +1 y2 +1
1 z ( z + 1) z +1 1 z +1 z2 +1
0 x− y x2 − y2 2 x+ y x2 + y2
(C) 0 y−z y −z2 2
(D) 2 y+z y2 + z2
2
1 z z 1 z z2
Q.17 The smallest integer that can be represented by an 8-bit number in 2’s complement form is
(A) -256 (B) -128 (C) -127 (D) 0
Q.18 In the following truth table, V = 1 if and only if the input is valid.
Inputs Outputs
D0 D1 D2 D3 X0 X1 V
0 0 0 0 x x 0
1 0 0 0 0 0 1
x 1 0 0 0 1 1
x x 1 0 1 0 1
x x x 1 1 1 1
What function does the truth table represent?
(A) Priority encoder (B) Decoder
(C) Multiplexer (D) Demultiplexer
Q.19 Which one of the following is the tightest upper bound that represents the number of swaps
required to sort n numbers using selection sort?
(A) O(log n) (B) O(n) (C) O(n log n) (D) O(n2)
Q.20 Which one of the following is the tightest upper bound that represents the time complexity of
inserting an object into a binary search tree of n nodes?
(A) O(1) (B) O(log n) (C) O(n) (D) O(n log n)
CS- D 4/20
Text of page 51
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.21 Consider the languages L1 = Φ and L2 = { a } . Which one of the following represents L1 L∗2 U L1∗ ?
(A) {є} (B) Φ (C) a* (D) {є, a}
Q.22 What is the maximum number of reduce moves that can be taken by a bottom-up parser for a
grammar with no epsilon- and unit-production (i.e., of type A → є and A → a) to parse a string
with n tokens?
(A) n/2 (B) n-1 (C) 2n-1 (D) 2n
Q.23 A scheduling algorithm assigns priority proportional to the waiting time of a process. Every process
starts with priority zero (the lowest priority). The scheduler re-evaluates the process priorities every
T time units and decides the next process to schedule. Which one of the following is TRUE if the
processes have no I/O operations and all arrive at time zero?
(A) This algorithm is equivalent to the first-come-first-serve algorithm.
(B) This algorithm is equivalent to the round-robin algorithm.
(C) This algorithm is equivalent to the shortest-job-first algorithm.
(D) This algorithm is equivalent to the shortest-remaining-time-first algorithm.
Q.24 Match the problem domains in GROUP I with the solution technologies in GROUP II.
GROUP I GROUP II
(P) Service oriented computing (1) Interoperability
(Q) Heterogeneous communicating systems (2) BPMN
(R) Information representation (3) Publish-find-bind
(S) Process description (4) XML
(A) P-1, Q-2, R-3, S-4 (B) P-3, Q-4, R-2, S-1
(C) P-3, Q-1, R-4, S-2 (D) P-4, Q-3, R-2, S-1
Q.25 Using public key cryptography, X adds a digital signature σ to message M, encrypts <M, σ>, and
sends it to Y, where it is decrypted. Which one of the following sequences of keys is used for the
operations?
(A) Encryption: X’s private key followed by Y’s private key; Decryption: X’s public key followed
by Y’s public key
(B) Encryption: X’s private key followed by Y’s public key; Decryption: X’s public key followed
by Y’s private key
(C) Encryption: X’s public key followed by Y’s private key; Decryption: Y’s public key followed
by X’s private key
(D) Encryption: X’s private key followed by Y’s public key; Decryption: Y’s private key followed
by X’s public key
CS- D 5/20
Text of page 52
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.26 to Q.55 carry two marks each.
Q.26 In an IPv4 datagram, the M bit is 0, the value of HLEN is 10, the value of total length is 400 and
the fragment offset value is 300. The position of the datagram, the sequence numbers of the first
and the last bytes of the payload, respectively are
(A) Last fragment, 2400 and 2789
(B) First fragment, 2400 and 2759
(C) Last fragment, 2400 and 2759
(D) Middle fragment, 300 and 689
Q.27 The following figure represents access graphs of two modules M1 and M2. The filled circles
represent methods and the unfilled circles represent attributes. If method m is moved to module M2
keeping the attributes where they are, what can we say about the average cohesion and coupling
between modules in the system of two modules?
(A) There is no change.
(B) Average cohesion goes up but coupling is reduced.
(C) Average cohesion goes down and coupling also reduces.
(D) Average cohesion and coupling increase.
CS- D 6/20
Text of page 53
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.28 A certain computation generates two arrays a and b such that a[i]=f(i)for 0 ≤ i < n and
b[i] = g (a[i] )for 0 ≤ i < n. Suppose this computation is decomposed into two concurrent processes
X and Y such that X computes the array a and Y computes the array b. The processes employ two
binary semaphores R and S, both initialized to zero. The array a is shared by the two processes. The
structures of the processes are shown below.
Process X: Process Y:
private i; private i;
for (i=0; i<n; i++) { for (i=0; i<n; i++) {
a[i] = f(i); EntryY(R, S);
ExitX(R, S); b[i] = g(a[i]);
} }
Which one of the following represents the CORRECT implementations of ExitX and EntryY?
(A) ExitX(R, S) { (B) ExitX(R, S) {
P(R); V(R);
V(S); V(S);
} }
EntryY(R, S) { EntryY(R, S) {
P(S); P(R);
V(R); P(S);
} }
(C) ExitX(R, S) { (D) ExitX(R, S) {
P(S); V(R);
V(R); P(S);
} }
EntryY(R, S) { EntryY(R, S) {
V(S); V(S);
P(R); P(R);
} }
Q.29 Consider the following two sets of LR(1) items of an LR(1) grammar.
X → c.X, c/d X → c.X, $
X → .cX, c/d X → .cX, $
X → .d, c/d X → .d, $
Which of the following statements related to merging of the two sets in the corresponding LALR
parser is/are FALSE?
1. Cannot be merged since look aheads are different.
2. Can be merged but will result in S-R conflict.
3. Can be merged but will result in R-R conflict.
4. Cannot be merged since goto on c will lead to two different sets.
(A) 1 only (B) 2 only (C) 1 and 4 only (D) 1, 2, 3 and 4
Q.30 Which of the following is/are undecidable?
1. G is a CFG. Is L(G) = Φ?
2. G is a CFG. Is L(G) = ∑*?
3. M is a Turing machine. Is L(M) regular?
4. A is a DFA and N is an NFA. Is L(A) = L(N)?
(A) 3 only (B) 3 and 4 only (C) 1, 2 and 3 only (D) 2 and 3 only
CS- D 7/20
Text of page 54
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.31 What is the return value of f(p,p), if the value of p is initialized to 5 before the call? Note that
the first parameter is passed by reference, whereas the second parameter is passed by value.
int f (int &x, int c) {
c = c - 1;
if (c==0) return 1;
x = x + 1;
return f(x,c) * x;
}
(A) 3024 (B) 6561 (C) 55440 (D) 161051
Q.32 The preorder traversal sequence of a binary search tree is 30, 20, 10, 15, 25, 23, 39, 35, 42. Which
one of the following is the postorder traversal sequence of the same tree?
(A) 10, 20, 15, 23, 25, 35, 42, 39, 30 (B) 15, 10, 25, 23, 20, 42, 35, 39, 30
(C) 15, 20, 10, 23, 25, 42, 35, 39, 30 (D) 15, 10, 23, 25, 20, 35, 42, 39, 30
Q.33 Consider an instruction pipeline with five stages without any branch prediction: Fetch Instruction
(FI), Decode Instruction (DI), Fetch Operand (FO), Execute Instruction (EI) and Write Operand
(WO). The stage delays for FI, DI, FO, EI and WO are 5 ns, 7 ns, 10 ns, 8 ns and 6 ns, respectively.
There are intermediate storage buffers after each stage and the delay of each buffer is 1 ns. A
program consisting of 12 instructions I1, I2, I3, …, I12 is executed in this pipelined processor.
Instruction I4 is the only branch instruction and its branch target is I9. If the branch is taken during
the execution of this program, the time (in ns) needed to complete the program is
(A) 132 (B) 165 (C) 176 (D) 328
Q.34 Consider the following operation along with Enqueue and Dequeue operations on queues, where
k is a global parameter.
MultiDequeue(Q){
m = k
while (Q is not empty) and (m > 0) {
Dequeue(Q)
m = m – 1
}
}
What is the worst case time complexity of a sequence of n queue operations on an initially empty
queue?
(A) Θ(n) (B) Θ(n + k) (C) Θ(nk) (D) Θ(n2)
Q.35 A RAM chip has a capacity of 1024 words of 8 bits each (1K × 8). The number of 2 × 4 decoders
with enable line needed to construct a 16K × 16 RAM from 1K × 8 RAM is
(A) 4 (B) 5 (C) 6 (D) 7
Q.36 Which one of the following is NOT logically equivalent to ¬ ∃x (∀ y (α ) ∧ ∀z (β )) ?
(A) ∀ x (∃ z (¬ β ) → ∀ y (α )) (B) ∀x (∀ z (β ) → ∃ y (¬α ))
(C) ∀x (∀ y (α ) → ∃ z (¬ β )) (D) ∀x (∃ y (¬α ) → ∃ z (¬ β ))
Q.37 What is the logical translation of the following statement?
“None of my friends are perfect.”
(A) ∃ x (F ( x ) ∧ ¬ P ( x )) (B) ∃ x (¬ F (x ) ∧ P (x ))
(C) ∃ x (¬ F (x ) ∧ ¬ P ( x )) (D) ¬ ∃ x (F ( x ) ∧ P ( x ))
CS- D 8/20
Text of page 55
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.38 The line graph L(G) of a simple graph G is defined as follows:
• There is exactly one vertex v(e) in L(G) for each edge e in G.
• For any two edges e and e' in G, L(G) has an edge between v(e) and v(e'), if and only if e and e'
are incident with the same vertex in G.
Which of the following statements is/are TRUE?
(P) The line graph of a cycle is a cycle.
(Q) The line graph of a clique is a clique.
(R) The line graph of a planar graph is planar.
(S) The line graph of a tree is a tree.
(A) P only (B) P and R only
(C) R only (D) P, Q and S only
Q.39 Consider the following sequence of micro-operations.
MBR ← PC
MAR ← X
PC ← Y
Memory ← MBR
Which one of the following is a possible operation performed by this sequence?
(A) Instruction fetch (B) Operand fetch
(C) Conditional branch (D) Initiation of interrupt service
Q.40 Consider a hard disk with 16 recording surfaces (0-15) having 16384 cylinders (0-16383) and each
cylinder contains 64 sectors (0-63). Data storage capacity in each sector is 512 bytes. Data are
organized cylinder-wise and the addressing format is <cylinder no., surface no., sector no.>. A file
of size 42797 KB is stored in the disk and the starting disk location of the file is <1200, 9, 40>.
What is the cylinder number of the last sector of the file, if it is stored in a contiguous manner?
(A) 1281 (B) 1282 (C) 1283 (D) 1284
Q.41 The number of elements that can be sorted in Θ(log n) time using heap sort is
(B) Θ ( log n )
log n
(A) Θ(1) (C) Θ (D) Θ(log n)
log log n
Q.42 Consider the following function:
int unknown(int n){
int i, j, k=0;
for (i=n/2; i<=n; i++)
for (j=2; j<=n; j=j*2)
k = k + n/2;
return (k);
}
The return value of the function is
(A) Θ(n2) (B) Θ(n2log n) (C) Θ(n3) (D) Θ(n3logn)
Q.43 Consider the following languages.
{ }
L1 = 0 p 1q 0 r | p, q, r ≥ 0
L2 = {0 1 0 | p, q, r ≥ 0, p ≠ r }
p q r
Which one of the following statements is FALSE?
(A) L2 is context-free.
(B) L1∩ L2 is context-free.
(C) Complement of L2 is recursive.
(D) Complement of L1 is context-free but not regular.
CS- D 9/20
Text of page 56
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.44 Consider the DFA A given below.
Which of the following are FALSE?
1. Complement of L(A) is context-free.
2. L(A) = L((11*0+0)(0 + 1)*0*1*)
3. For the language accepted by A, A is the minimal DFA.
4. A accepts all strings over {0, 1} of length at least 2.
(A) 1 and 3 only (B) 2 and 4 only (C) 2 and 3 only (D) 3 and 4 only
Q.45 A shared variable x, initialized to zero, is operated on by four concurrent processes W, X, Y, Z as
follows. Each of the processes W and X reads x from memory, increments by one, stores it to
memory, and then terminates. Each of the processes Y and Z reads x from memory, decrements by
two, stores it to memory, and then terminates. Each process before reading x invokes the P
operation (i.e., wait) on a counting semaphore S and invokes the V operation (i.e., signal) on the
semaphore S after storing x to memory. Semaphore S is initialized to two. What is the maximum
possible value of x after all processes complete execution?
(A) –2 (B) –1 (C) 1 (D) 2
Q.46 Consider the following relational schema.
Students(rollno: integer, sname: string)
Courses(courseno: integer, cname: string)
Registration(rollno: integer, courseno: integer, percent: real)
Which of the following queries are equivalent to this query in English?
“Find the distinct names of all students who score more than 90% in the course numbered 107”
(I) SELECT DISTINCT S.sname
FROM Students as S, Registration as R
WHERE R.rollno=S.rollno AND R.courseno=107 AND R.percent >90
(II) ∏sname(σcourseno=107 ∧ percent>90 (Registration ⋈ Students))
(III) {T | ∃S∈Students, ∃R∈Registration ( S.rollno=R.rollno ∧
R.courseno=107 ∧ R.percent>90 ∧T.sname=S.sname)}
(IV) {<SN> | ∃SR∃RP ( <SR, SN>∈Students ∧ <SR, 107, RP>∈Registration ∧ RP>90)}
(A) I, II, III and IV (B) I, II and III only
(C) I, II and IV only (D) II, III and IV only
Q.47 Determine the maximum length of the cable (in km) for transmitting data at a rate of 500 Mbps in
an Ethernet LAN with frames of size 10,000 bits. Assume the signal speed in the cable to be
2,00,000 km/s.
(A) 1 (B) 2 (C) 2.5 (D) 5
CS- D 10/20
Text of page 57
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Common Data Questions
Common Data for Questions 48 and 49:
The procedure given below is required to find and replace certain characters inside an input character string
supplied in array A. The characters to be replaced are supplied in array oldc, while their respective
replacement characters are supplied in array newc. Array A has a fixed length of five characters, while
arrays oldc and newc contain three characters each. However, the procedure is flawed.
void find_and_replace (char *A, char *oldc, char *newc) {
for (int i=0; i<5; i++)
for (int j=0; j<3; j++)
if (A[i] == oldc[j]) A[i] = newc[j];
}
The procedure is tested with the following four test cases.
(1) oldc = “abc”, newc = “dab” (2) oldc = “cde”, newc = “bcd”
(3) oldc = “bca”, newc = “cda” (4) oldc = “abc”, newc = “bac”
Q.48 If array A is made to hold the string “abcde”, which of the above four test cases will be successful
in exposing the flaw in this procedure?
(A) None (B) 2 only
(C) 3 and 4 only (D) 4 only
Q.49 The tester now tests the program on all input strings of length five consisting of characters ‘a’,
‘b’, ‘c’, ‘d’ and ‘e’ with duplicates allowed. If the tester carries out this testing with the four
test cases given above, how many test cases will be able to capture the flaw?
(A) Only one (B) Only two (C) Only three (D) All four
Common Data for Questions 50 and 51:
The following code segment is executed on a processor which allows only register operands in its
instructions. Each instruction can have atmost two source operands and one destination operand. Assume
that all variables are dead after this code segment.
c = a + b;
d = c * a;
e = c + a;
x = c * c;
if (x > a) {
y = a * a;
}
else {
d = d * d;
e = e * e;
}
Q.50 What is the minimum number of registers needed in the instruction set architecture of the processor
to compile this code segment without any spill to memory? Do not apply any optimization other
than optimizing register allocation.
(A) 3 (B) 4 (C) 5 (D) 6
Q.51 Suppose the instruction set architecture of the processor has only two registers. The only allowed
compiler optimization is code motion, which moves statements from one place to another while
preserving correctness. What is the minimum number of spills to memory in the compiled code?
(A) 0 (B) 1 (C) 2 (D) 3
CS- D 11/20
Text of page 58
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Linked Answer Questions
Statement for Linked Answer Questions 52 and 53:
Relation R has eight attributes ABCDEFGH. Fields of R contain only atomic values.
F={CH→G, A→BC, B→CFH, E→A, F→EG} is a set of functional dependencies (FDs) so that F+ is
exactly the set of FDs that hold for R.
Q.52 How many candidate keys does the relation R have?
(A) 3 (B) 4 (C) 5 (D) 6
Q.53 The relation R is
(A) in 1NF, but not in 2NF. (B) in 2NF, but not in 3NF.
(C) in 3NF, but not in BCNF. (D) in BCNF.
Statement for Linked Answer Questions 54 and 55:
A computer uses 46-bit virtual address, 32-bit physical address, and a three-level paged page table
organization. The page table base register stores the base address of the first-level table (T1), which
occupies exactly one page. Each entry of T1 stores the base address of a page of the second-level table (T2).
Each entry of T2 stores the base address of a page of the third-level table (T3). Each entry of T3 stores a page
table entry (PTE). The PTE is 32 bits in size. The processor used in the computer has a 1 MB 16-way set
associative virtually indexed physically tagged cache. The cache block size is 64 bytes.
Q.54 What is the size of a page in KB in this computer?
(A) 2 (B) 4 (C) 8 (D) 16
Q.55 What is the minimum number of page colours needed to guarantee that no two synonyms map to
different sets in the processor cache of this computer?
(A) 2 (B) 4 (C) 8 (D) 16
CS- D 12/20
Text of page 59
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
General Aptitude (GA) Questions
Q.56 to Q.60 carry one mark each.
Q.56 Choose the grammatically INCORRECT sentence:
(A) He is of Asian origin.
(B) They belonged to Africa.
(C) She is an European.
(D) They migrated from India to Australia.
Q.57 What will be the maximum sum of 44, 42, 40, ...... ?
(A) 502 (B) 504 (C) 506 (D) 500
Q.58 Were you a bird, you ___________________ in the sky.
(A) would fly (B) shall fly (C) should fly (D) shall have flown
Q.59 Which one of the following options is the closest in meaning to the word given below?
Nadir
(A) Highest (B) Lowest (C) Medium (D) Integration
Q.60 Complete the sentence:
Universalism is to particularism as diffuseness is to _______________.
(A) specificity (B) neutrality (C) generality (D) adaptation
Q.61 to Q.65 carry two marks each.
Q.61 The current erection cost of a structure is Rs. 13,200. If the labour wages per day increase by 1/5 of
the current wages and the working hours decrease by 1/24 of the current period, then the new cost
of erection in Rs. is
(A) 16,500 (B) 15,180 (C) 11,000 (D) 10,120
Q.62 After several defeats in wars, Robert Bruce went in exile and wanted to commit suicide. Just before
committing suicide, he came across a spider attempting tirelessly to have its net. Time and again,
the spider failed but that did not deter it to refrain from making attempts. Such attempts by the
spider made Bruce curious. Thus, Bruce started observing the near-impossible goal of the spider to
have the net. Ultimately, the spider succeeded in having its net despite several failures. Such act of
the spider encouraged Bruce not to commit suicide. And then, Bruce went back again and won
many a battle, and the rest is history.
Which one of the following assertions is best supported by the above information?
(A) Failure is the pillar of success.
(B) Honesty is the best policy.
(C) Life begins and ends with adventures.
(D) No adversity justifies giving up hope.
Q.63 A tourist covers half of his journey by train at 60 km/h, half of the remainder by bus at 30 km/h and
the rest by cycle at 10 km/h. The average speed of the tourist in km/h during his entire journey is
(A) 36 (B) 30 (C) 24 (D) 18
CS- D 13/20
Text of page 60
2013 COMPUTER SCIENCE & INFORMATION TECH. - CS
Q.64 Find the sum of the expression
1 1 1 1
+ + + .......... ..... +
1+ 2 2+ 3 3+ 4 80 + 81
(A) 7 (B) 8
(C) 9 (D) 10
Q.65 Out of all the 2-digit integers between 1 and 100, a 2-digit number has to be selected at random.
What is the probability that the selected number is not divisible by 7?
(A) 13/90 (B) 12/90 (C) 78/90 (D) 77/90
END OF THE QUESTION PAPER
CS- D 14/20Official key not published for this paper.
Page 1 of 60
Source: GATE. Question paper published by GATE.
