GATE CS 2016: Computer Science and Information Technology Session 1
Text of page 1

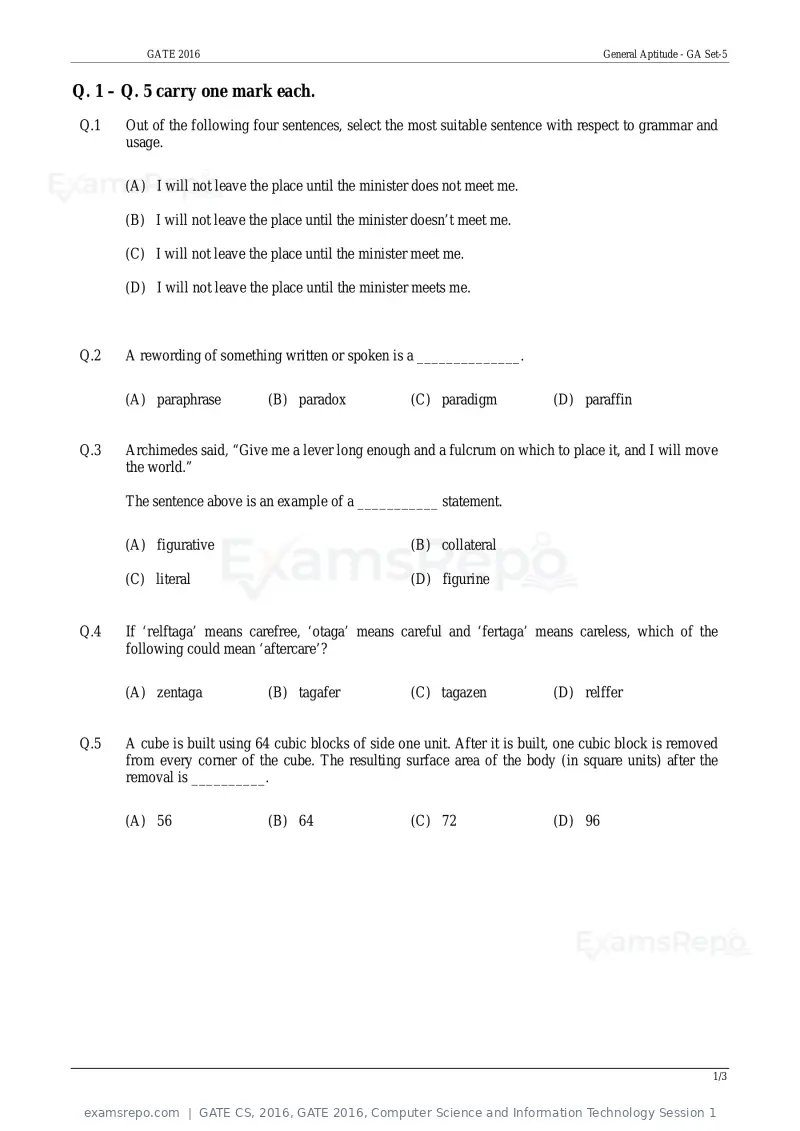

GATE 2016 General Aptitude - GA Set-5
Q. 1 – Q. 5 carry one mark each.
Q.1 Out of the following four sentences, select the most suitable sentence with respect to grammar and
usage.
(A) I will not leave the place until the minister does not meet me.
(B) I will not leave the place until the minister doesn’t meet me.
(C) I will not leave the place until the minister meet me.
(D) I will not leave the place until the minister meets me.
Q.2 A rewording of something written or spoken is a ______________.
(A) paraphrase (B) paradox (C) paradigm (D) paraffin
Q.3 Archimedes said, “Give me a lever long enough and a fulcrum on which to place it, and I will move
the world.”
The sentence above is an example of a ___________ statement.
(A) figurative (B) collateral
(C) literal (D) figurine
Q.4 If ‘relftaga’ means carefree, ‘otaga’ means careful and ‘fertaga’ means careless, which of the
following could mean ‘aftercare’?
(A) zentaga (B) tagafer (C) tagazen (D) relffer
Q.5 A cube is built using 64 cubic blocks of side one unit. After it is built, one cubic block is removed
from every corner of the cube. The resulting surface area of the body (in square units) after the
removal is __________.
(A) 56 (B) 64 (C) 72 (D) 96
1/3
Text of page 2
GATE 2016 General Aptitude - GA Set-5

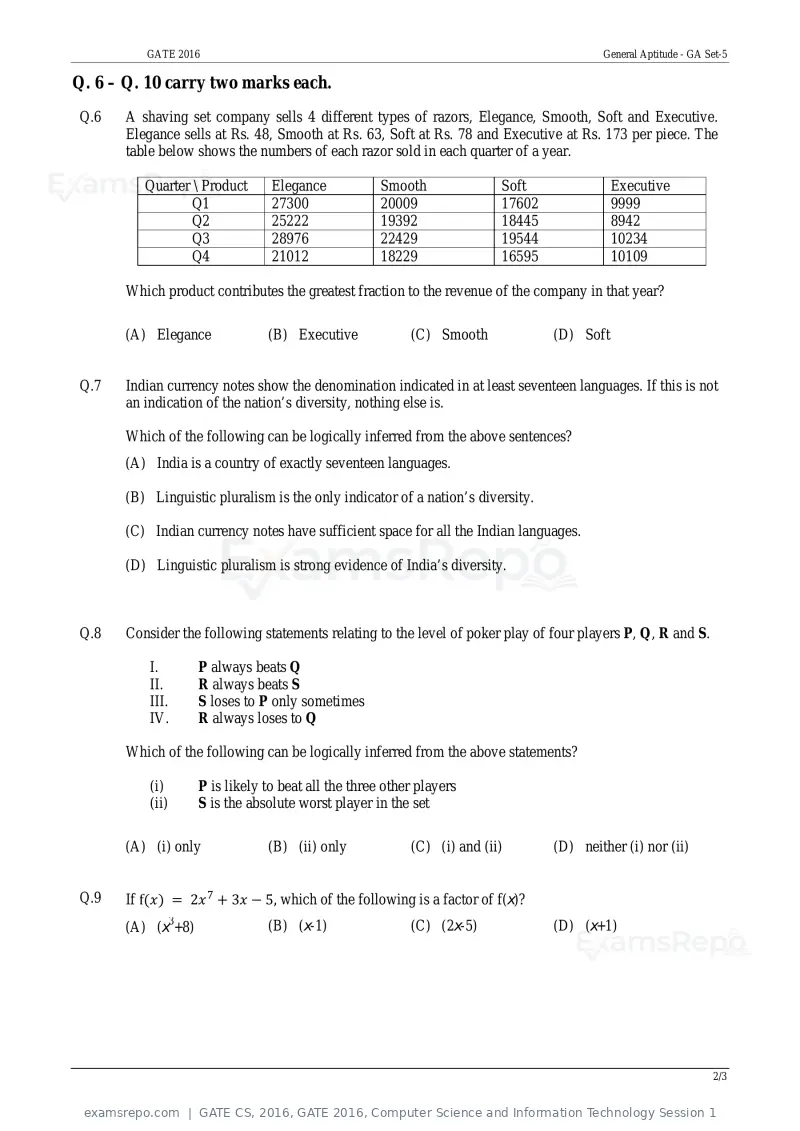

Q. 6 – Q. 10 carry two marks each.
Q.6 A shaving set company sells 4 different types of razors, Elegance, Smooth, Soft and Executive.
Elegance sells at Rs. 48, Smooth at Rs. 63, Soft at Rs. 78 and Executive at Rs. 173 per piece. The
table below shows the numbers of each razor sold in each quarter of a year.
Quarter \ Product Elegance Smooth Soft Executive
Q1 27300 20009 17602 9999
Q2 25222 19392 18445 8942
Q3 28976 22429 19544 10234
Q4 21012 18229 16595 10109
Which product contributes the greatest fraction to the revenue of the company in that year?
(A) Elegance (B) Executive (C) Smooth (D) Soft
Q.7 Indian currency notes show the denomination indicated in at least seventeen languages. If this is not
an indication of the nation’s diversity, nothing else is.
Which of the following can be logically inferred from the above sentences?
(A) India is a country of exactly seventeen languages.
(B) Linguistic pluralism is the only indicator of a nation’s diversity.
(C) Indian currency notes have sufficient space for all the Indian languages.
(D) Linguistic pluralism is strong evidence of India’s diversity.
Q.8 Consider the following statements relating to the level of poker play of four players P, Q, R and S.
I. P always beats Q
II. R always beats S
III. S loses to P only sometimes
IV. R always loses to Q
Which of the following can be logically inferred from the above statements?
(i) P is likely to beat all the three other players
(ii) S is the absolute worst player in the set
(A) (i) only (B) (ii) only (C) (i) and (ii) (D) neither (i) nor (ii)
Q.9 If f(xx) = 2xx 7 + 3xx − 5, which of the following is a factor of f(x)?
(A) (x3+8) (B) (x-1) (C) (2x-5) (D) (x+1)
2/3

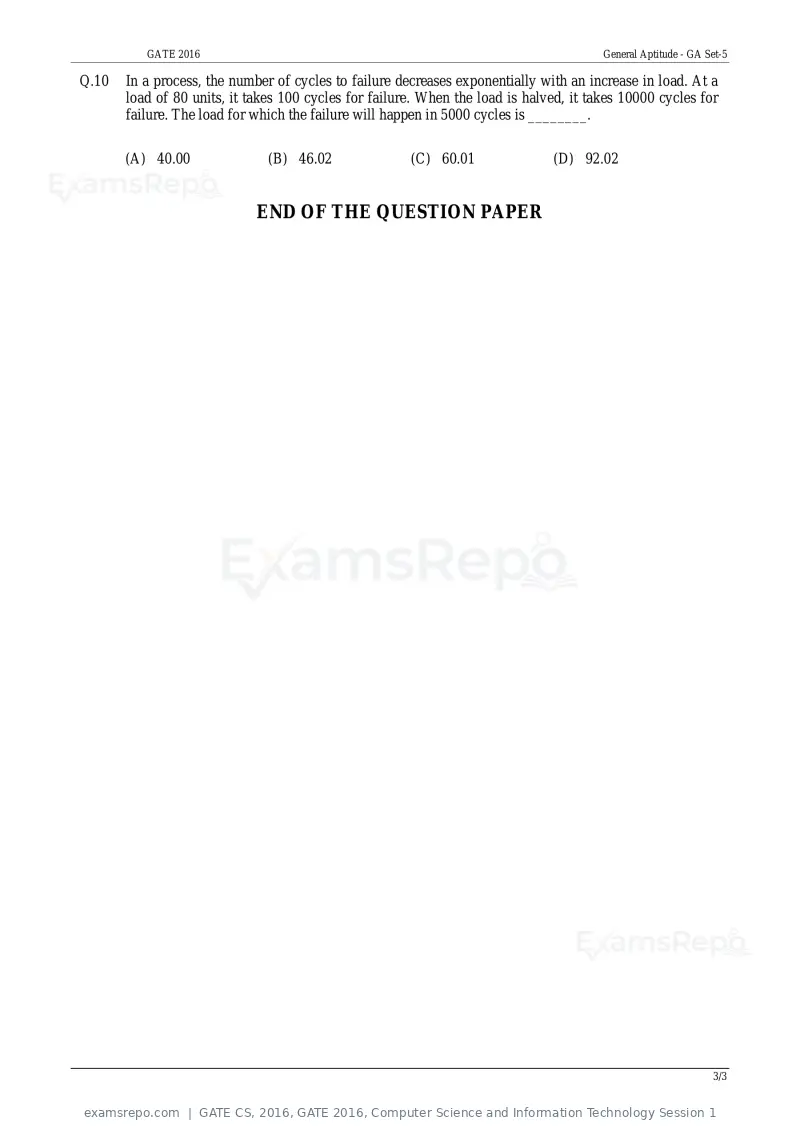

Text of page 3
GATE 2016 General Aptitude - GA Set-5
Q.10 In a process, the number of cycles to failure decreases exponentially with an increase in load. At a
load of 80 units, it takes 100 cycles for failure. When the load is halved, it takes 10000 cycles for
failure. The load for which the failure will happen in 5000 cycles is ________.
(A) 40.00 (B) 46.02 (C) 60.01 (D) 92.02
END OF THE QUESTION PAPER
3/3
Text of page 4

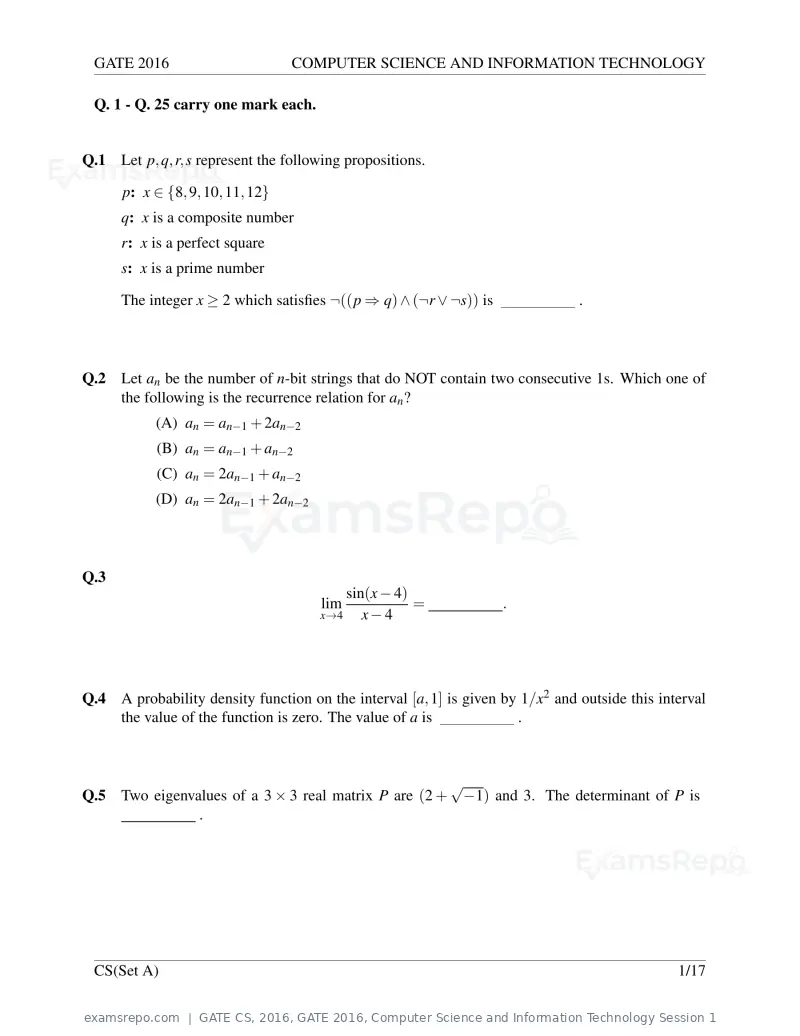

GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q. 1 - Q. 25 carry one mark each.
Q.1 Let p, q, r, s represent the following propositions.
p: x ∈ {8, 9, 10, 11, 12}
q: x is a composite number
r: x is a perfect square
s: x is a prime number
The integer x ≥ 2 which satisfies ¬((p ⇒ q) ∧ (¬r ∨ ¬s)) is .
Q.2 Let an be the number of n-bit strings that do NOT contain two consecutive 1s. Which one of
the following is the recurrence relation for an ?
(A) an = an−1 + 2an−2
(B) an = an−1 + an−2
(C) an = 2an−1 + an−2
(D) an = 2an−1 + 2an−2
Q.3
sin(x − 4)
lim = .
x→4 x−4
Q.4 A probability density function on the interval [a, 1] is given by 1/x2 and outside this interval
the value of the function is zero. The value of a is .
√
Q.5 Two eigenvalues of a 3 × 3 real matrix P are (2 + −1) and 3. The determinant of P is
.
CS(Set A) 1/17

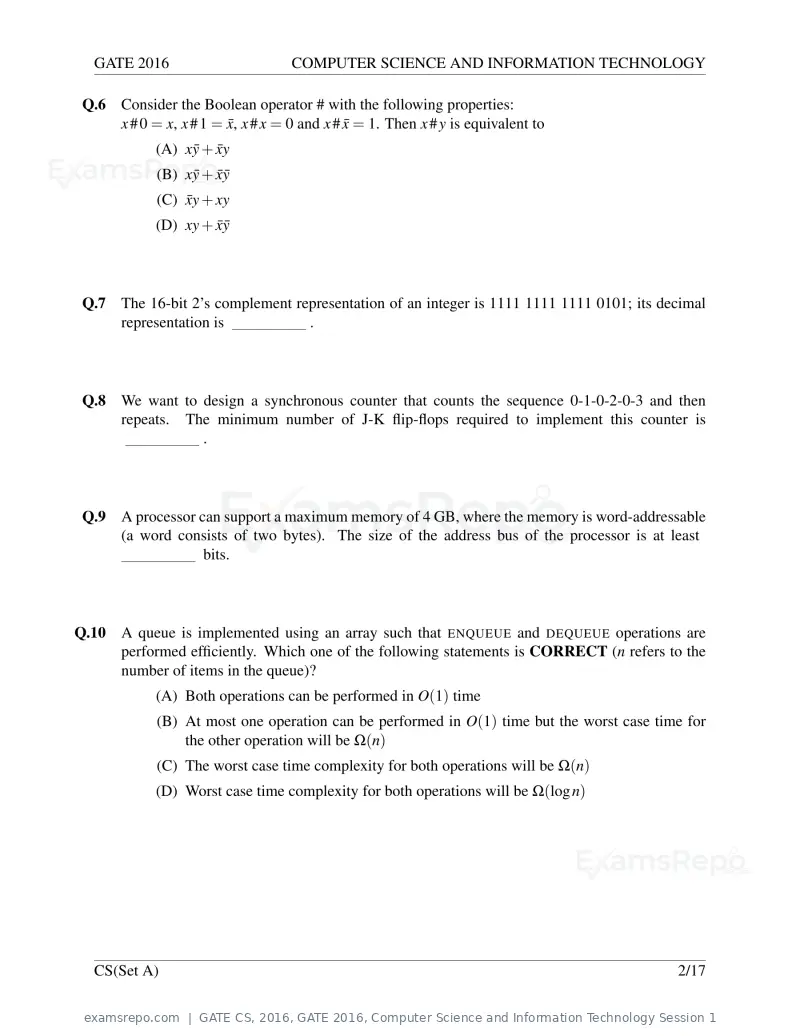

Text of page 5
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q.6 Consider the Boolean operator # with the following properties:
x # 0 = x, x # 1 = x̄, x # x = 0 and x # x̄ = 1. Then x # y is equivalent to
(A) xȳ + x̄y
(B) xȳ + x̄ȳ
(C) x̄y + xy
(D) xy + x̄ȳ
Q.7 The 16-bit 2’s complement representation of an integer is 1111 1111 1111 0101; its decimal
representation is .
Q.8 We want to design a synchronous counter that counts the sequence 0-1-0-2-0-3 and then
repeats. The minimum number of J-K flip-flops required to implement this counter is
.
Q.9 A processor can support a maximum memory of 4 GB, where the memory is word-addressable
(a word consists of two bytes). The size of the address bus of the processor is at least
bits.
Q.10 A queue is implemented using an array such that ENQUEUE and DEQUEUE operations are
performed efficiently. Which one of the following statements is CORRECT (n refers to the
number of items in the queue)?
(A) Both operations can be performed in O(1) time
(B) At most one operation can be performed in O(1) time but the worst case time for
the other operation will be Ω(n)
(C) The worst case time complexity for both operations will be Ω(n)
(D) Worst case time complexity for both operations will be Ω(log n)
CS(Set A) 2/17
Text of page 6
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

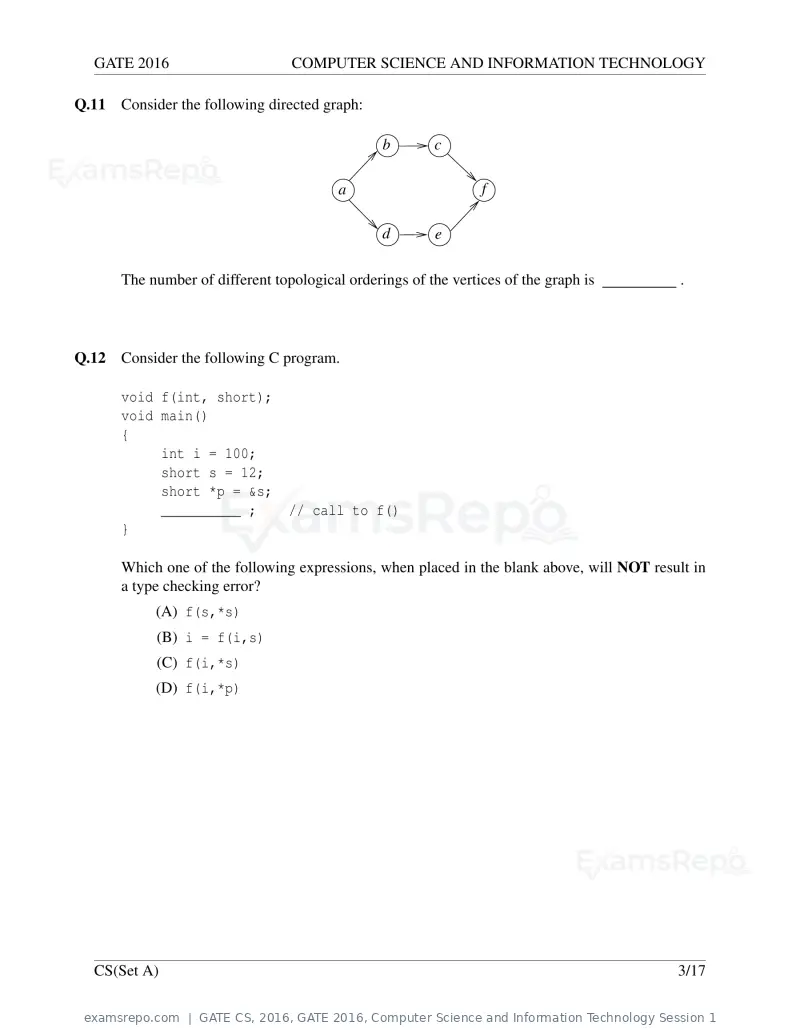

Q.11 Consider the following directed graph:
b c
a f
d e
The number of different topological orderings of the vertices of the graph is .
Q.12 Consider the following C program.
void f(int, short);
void main()
{
int i = 100;
short s = 12;
short *p = &s;
__________ ; // call to f()
}
Which one of the following expressions, when placed in the blank above, will NOT result in
a type checking error?
(A) f(s,*s)
(B) i = f(i,s)
(C) f(i,*s)
(D) f(i,*p)
CS(Set A) 3/17
Text of page 7
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

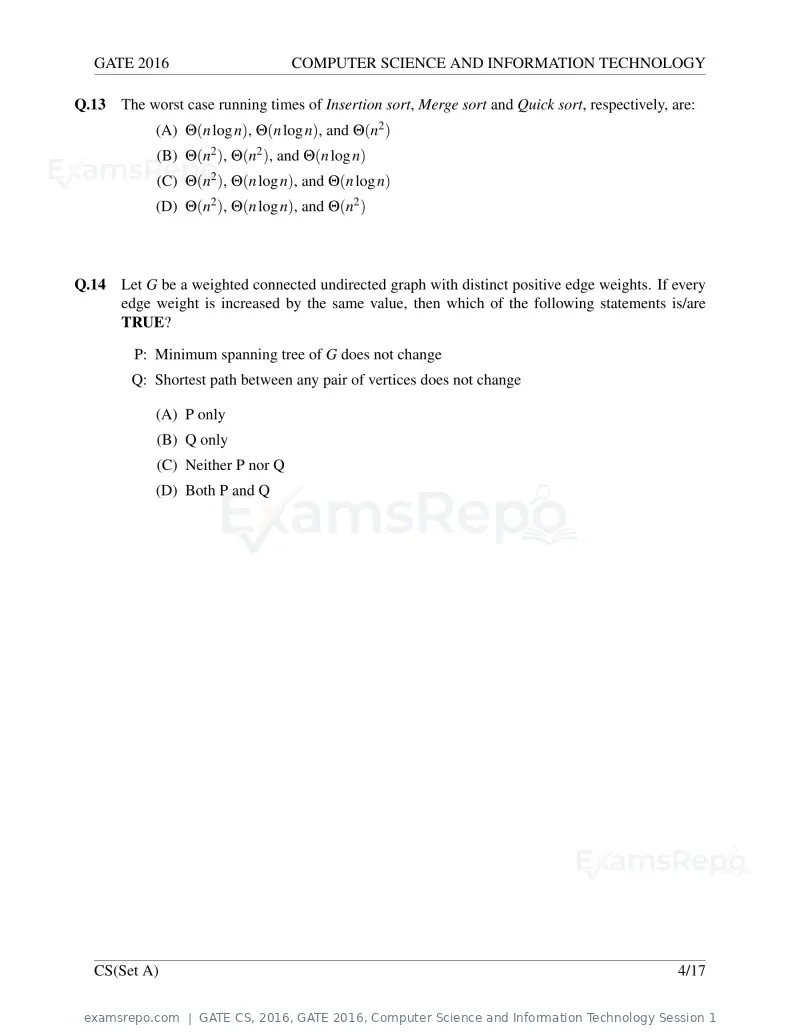

Q.13 The worst case running times of Insertion sort, Merge sort and Quick sort, respectively, are:
(A) Θ(n log n), Θ(n log n), and Θ(n2 )
(B) Θ(n2 ), Θ(n2 ), and Θ(n log n)
(C) Θ(n2 ), Θ(n log n), and Θ(n log n)
(D) Θ(n2 ), Θ(n log n), and Θ(n2 )
Q.14 Let G be a weighted connected undirected graph with distinct positive edge weights. If every
edge weight is increased by the same value, then which of the following statements is/are
TRUE?
P: Minimum spanning tree of G does not change
Q: Shortest path between any pair of vertices does not change
(A) P only
(B) Q only
(C) Neither P nor Q
(D) Both P and Q
CS(Set A) 4/17

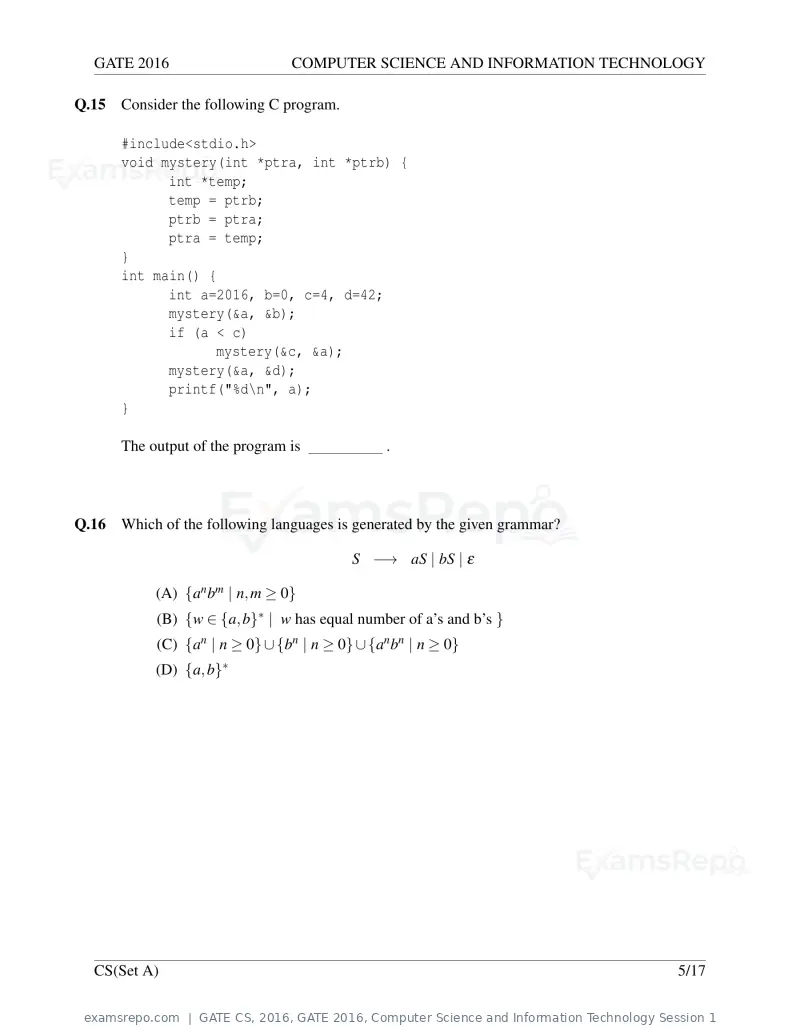

Text of page 8
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q.15 Consider the following C program.
#include<stdio.h>
void mystery(int *ptra, int *ptrb) {
int *temp;
temp = ptrb;
ptrb = ptra;
ptra = temp;
}
int main() {
int a=2016, b=0, c=4, d=42;
mystery(&a, &b);
if (a < c)
mystery(&c, &a);
mystery(&a, &d);
printf("%d\n", a);
}
The output of the program is .
Q.16 Which of the following languages is generated by the given grammar?
S −→ aS | bS | ε
(A) {an bm | n, m ≥ 0}
(B) {w ∈ {a, b}∗ | w has equal number of a’s and b’s }
(C) {an | n ≥ 0} ∪ {bn | n ≥ 0} ∪ {an bn | n ≥ 0}
(D) {a, b}∗
CS(Set A) 5/17
Text of page 9
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

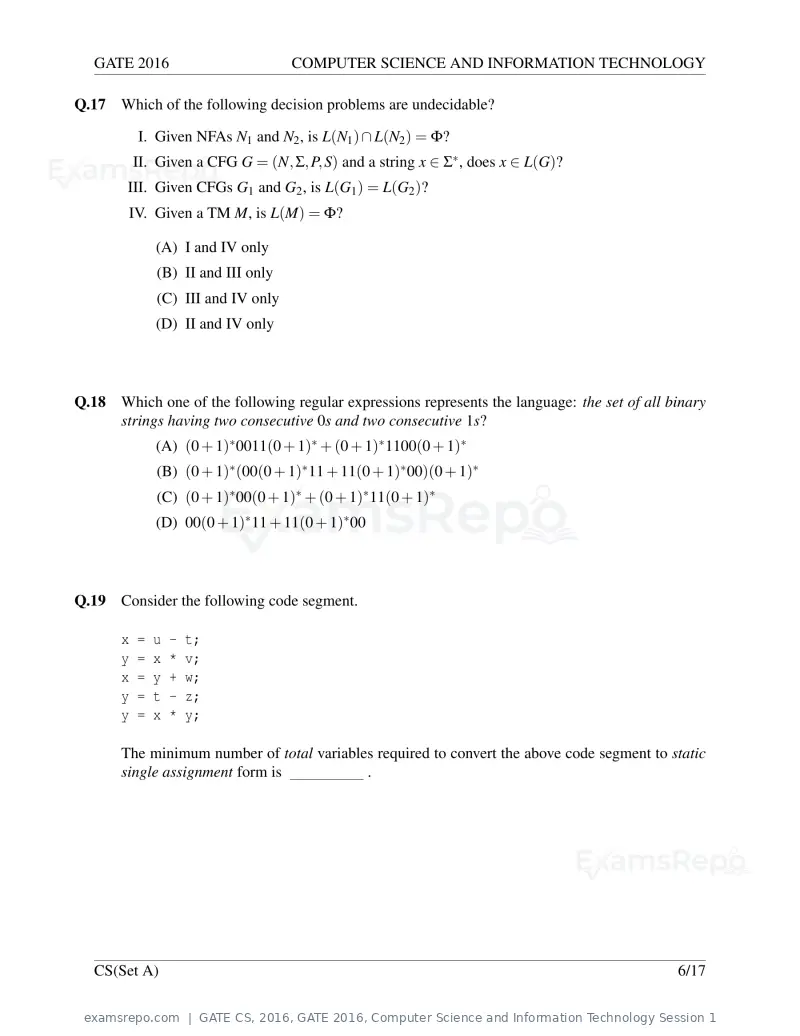

Q.17 Which of the following decision problems are undecidable?
I. Given NFAs N1 and N2 , is L(N1 ) ∩ L(N2 ) = Φ?
II. Given a CFG G = (N, Σ, P, S) and a string x ∈ Σ∗ , does x ∈ L(G)?
III. Given CFGs G1 and G2 , is L(G1 ) = L(G2 )?
IV. Given a TM M, is L(M) = Φ?
(A) I and IV only
(B) II and III only
(C) III and IV only
(D) II and IV only
Q.18 Which one of the following regular expressions represents the language: the set of all binary
strings having two consecutive 0s and two consecutive 1s?
(A) (0 + 1)∗ 0011(0 + 1)∗ + (0 + 1)∗ 1100(0 + 1)∗
(B) (0 + 1)∗ (00(0 + 1)∗ 11 + 11(0 + 1)∗ 00)(0 + 1)∗
(C) (0 + 1)∗ 00(0 + 1)∗ + (0 + 1)∗ 11(0 + 1)∗
(D) 00(0 + 1)∗ 11 + 11(0 + 1)∗ 00
Q.19 Consider the following code segment.
x = u - t;
y = x * v;
x = y + w;
y = t - z;
y = x * y;
The minimum number of total variables required to convert the above code segment to static
single assignment form is .
CS(Set A) 6/17
Text of page 10

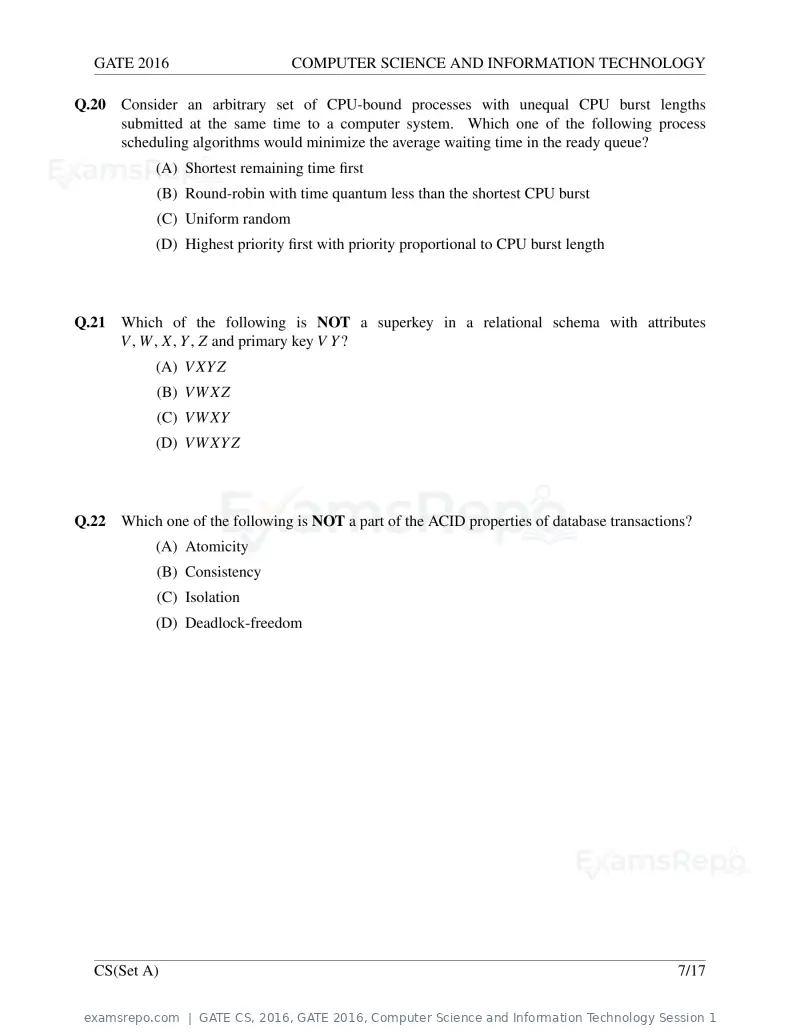

GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q.20 Consider an arbitrary set of CPU-bound processes with unequal CPU burst lengths
submitted at the same time to a computer system. Which one of the following process
scheduling algorithms would minimize the average waiting time in the ready queue?
(A) Shortest remaining time first
(B) Round-robin with time quantum less than the shortest CPU burst
(C) Uniform random
(D) Highest priority first with priority proportional to CPU burst length
Q.21 Which of the following is NOT a superkey in a relational schema with attributes
V , W , X, Y , Z and primary key V Y ?
(A) V XY Z
(B) VW XZ
(C) VW XY
(D) VW XY Z
Q.22 Which one of the following is NOT a part of the ACID properties of database transactions?
(A) Atomicity
(B) Consistency
(C) Isolation
(D) Deadlock-freedom
CS(Set A) 7/17

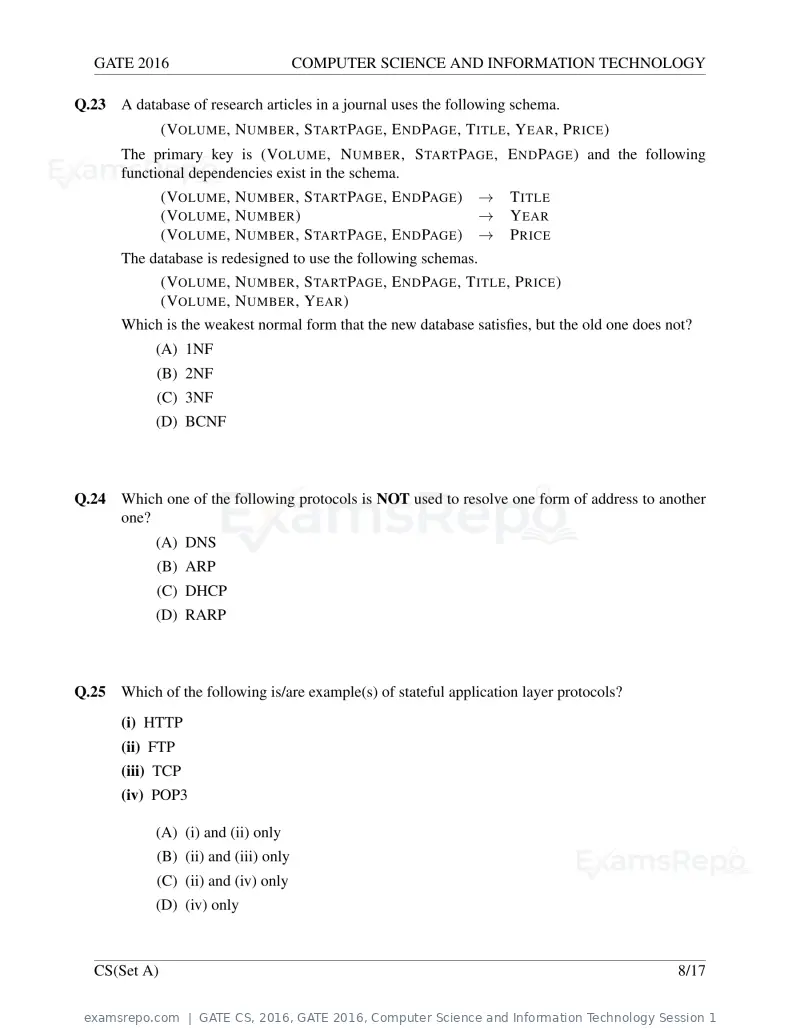

Text of page 11
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q.23 A database of research articles in a journal uses the following schema.
(VOLUME , N UMBER , S TART PAGE , E ND PAGE , T ITLE , Y EAR , P RICE )
The primary key is (VOLUME , N UMBER , S TART PAGE , E ND PAGE ) and the following
functional dependencies exist in the schema.
(VOLUME , N UMBER , S TART PAGE , E ND PAGE ) → T ITLE
(VOLUME , N UMBER ) → Y EAR
(VOLUME , N UMBER , S TART PAGE , E ND PAGE ) → P RICE
The database is redesigned to use the following schemas.
(VOLUME , N UMBER , S TART PAGE , E ND PAGE , T ITLE , P RICE )
(VOLUME , N UMBER , Y EAR )
Which is the weakest normal form that the new database satisfies, but the old one does not?
(A) 1NF
(B) 2NF
(C) 3NF
(D) BCNF
Q.24 Which one of the following protocols is NOT used to resolve one form of address to another
one?
(A) DNS
(B) ARP
(C) DHCP
(D) RARP
Q.25 Which of the following is/are example(s) of stateful application layer protocols?
(i) HTTP
(ii) FTP
(iii) TCP
(iv) POP3
(A) (i) and (ii) only
(B) (ii) and (iii) only
(C) (ii) and (iv) only
(D) (iv) only
CS(Set A) 8/17

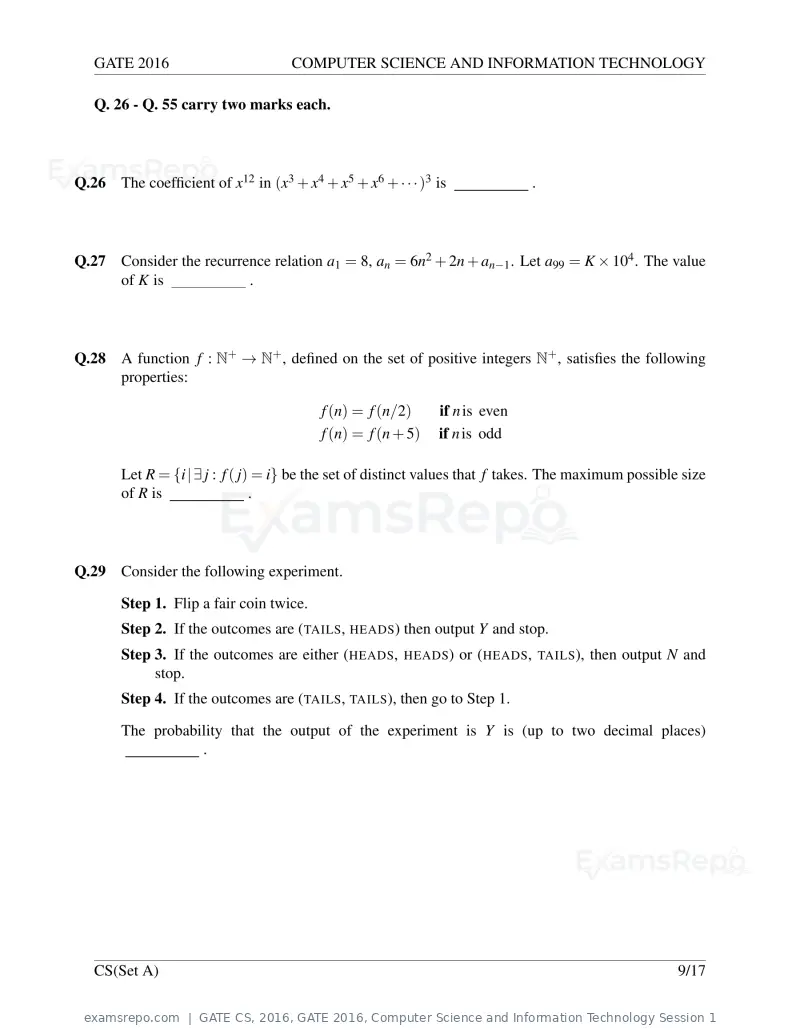

Text of page 12
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q. 26 - Q. 55 carry two marks each.
Q.26 The coefficient of x12 in (x3 + x4 + x5 + x6 + · · · )3 is .
Q.27 Consider the recurrence relation a1 = 8, an = 6n2 + 2n + an−1 . Let a99 = K × 104 . The value
of K is .
Q.28 A function f : N+ → N+ , defined on the set of positive integers N+ , satisfies the following
properties:
f (n) = f (n/2) if n is even
f (n) = f (n + 5) if n is odd
Let R = {i | ∃ j : f ( j) = i} be the set of distinct values that f takes. The maximum possible size
of R is .
Q.29 Consider the following experiment.
Step 1. Flip a fair coin twice.
Step 2. If the outcomes are (TAILS, HEADS) then output Y and stop.
Step 3. If the outcomes are either (HEADS, HEADS) or (HEADS, TAILS), then output N and
stop.
Step 4. If the outcomes are (TAILS, TAILS), then go to Step 1.
The probability that the output of the experiment is Y is (up to two decimal places)
.
CS(Set A) 9/17

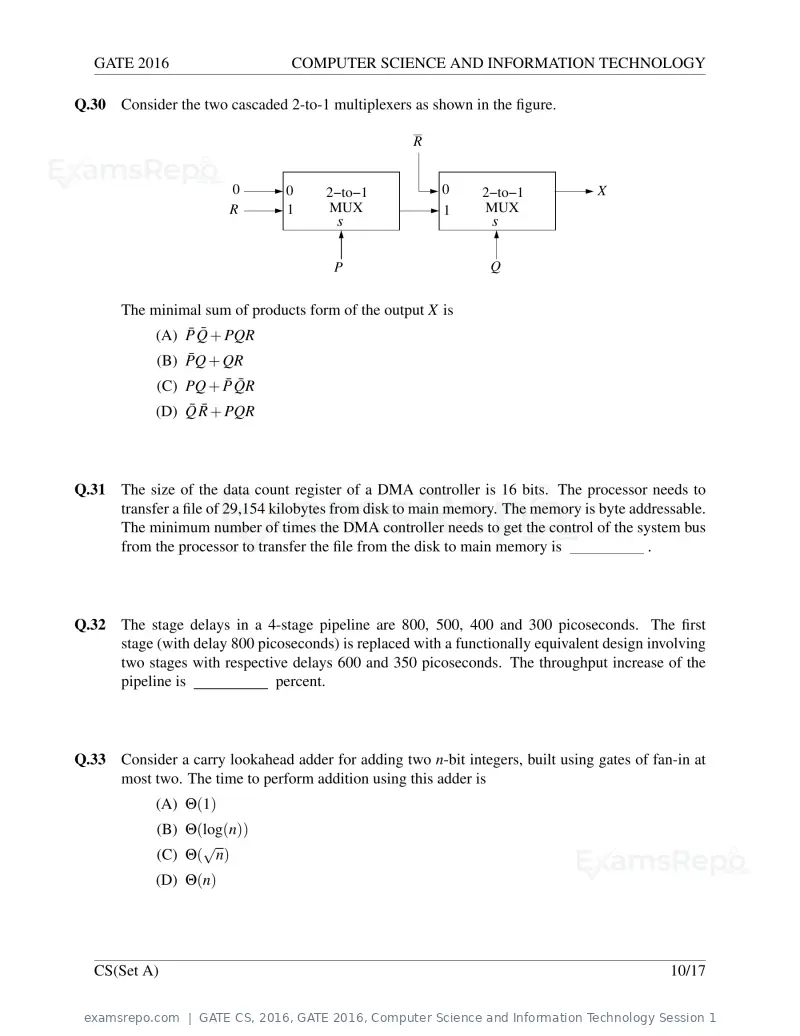

Text of page 13
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q.30 Consider the two cascaded 2-to-1 multiplexers as shown in the figure.
R
0 0 2−to−1 0 2−to−1 X
R 1 MUX 1 MUX
s s
P Q
The minimal sum of products form of the output X is
(A) P̄ Q̄ + PQR
(B) P̄Q + QR
(C) PQ + P̄ Q̄R
(D) Q̄ R̄ + PQR
Q.31 The size of the data count register of a DMA controller is 16 bits. The processor needs to
transfer a file of 29,154 kilobytes from disk to main memory. The memory is byte addressable.
The minimum number of times the DMA controller needs to get the control of the system bus
from the processor to transfer the file from the disk to main memory is .
Q.32 The stage delays in a 4-stage pipeline are 800, 500, 400 and 300 picoseconds. The first
stage (with delay 800 picoseconds) is replaced with a functionally equivalent design involving
two stages with respective delays 600 and 350 picoseconds. The throughput increase of the
pipeline is percent.
Q.33 Consider a carry lookahead adder for adding two n-bit integers, built using gates of fan-in at
most two. The time to perform addition using this adder is
(A) Θ(1)
(B) Θ(log(n))
√
(C) Θ( n)
(D) Θ(n)
CS(Set A) 10/17
Text of page 14
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

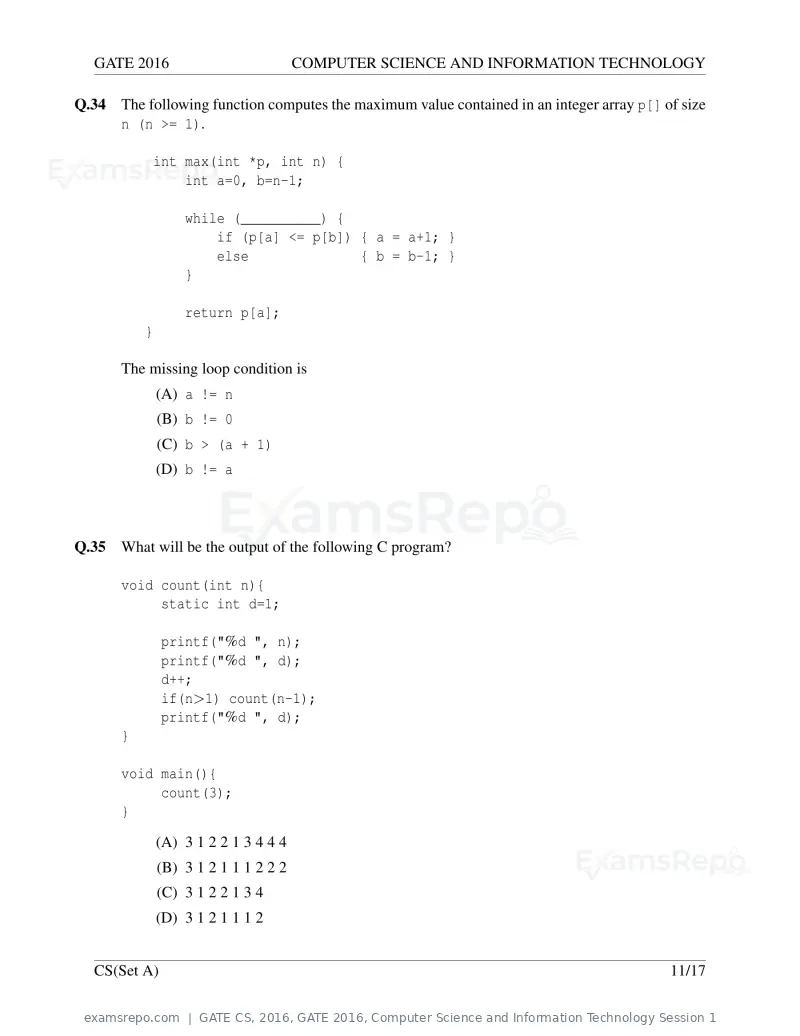

Q.34 The following function computes the maximum value contained in an integer array p[] of size
n (n >= 1).
int max(int *p, int n) {
int a=0, b=n-1;
while (__________) {
if (p[a] <= p[b]) { a = a+1; }
else { b = b-1; }
}
return p[a];
}
The missing loop condition is
(A) a != n
(B) b != 0
(C) b > (a + 1)
(D) b != a
Q.35 What will be the output of the following C program?
void count(int n){
static int d=1;
printf("%d ", n);
printf("%d ", d);
d++;
if(n>1) count(n-1);
printf("%d ", d);
}
void main(){
count(3);
}
(A) 3 1 2 2 1 3 4 4 4
(B) 3 1 2 1 1 1 2 2 2
(C) 3 1 2 2 1 3 4
(D) 3 1 2 1 1 1 2
CS(Set A) 11/17
Text of page 15
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

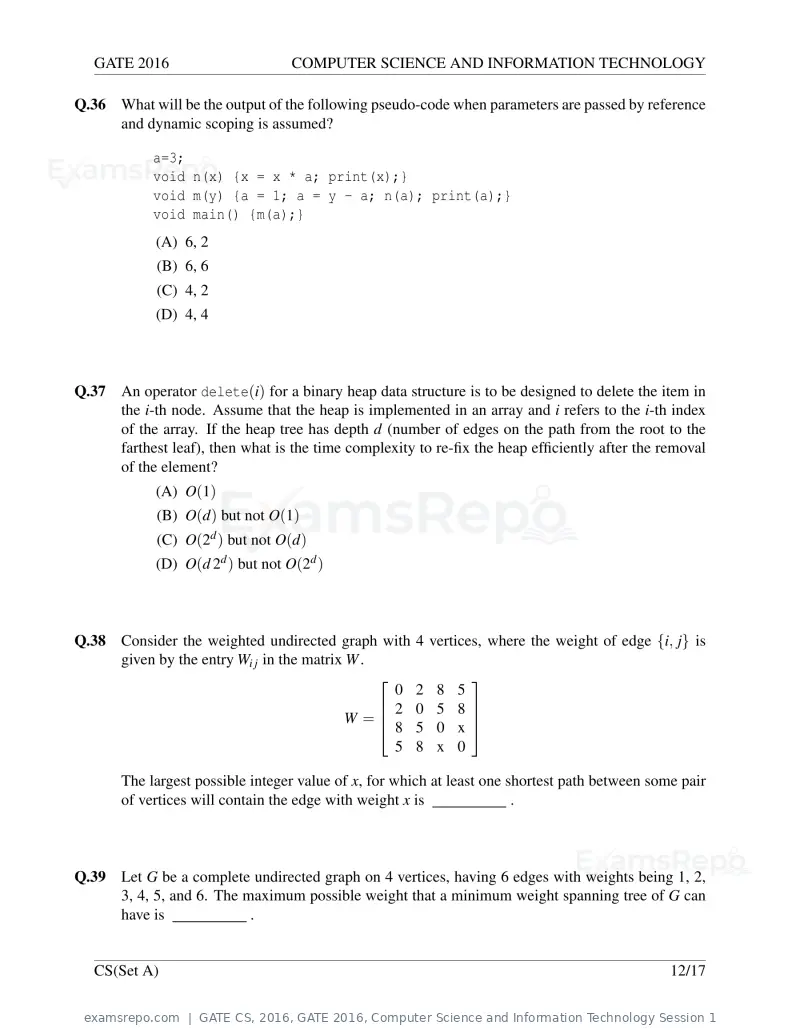

Q.36 What will be the output of the following pseudo-code when parameters are passed by reference
and dynamic scoping is assumed?
a=3;
void n(x) {x = x * a; print(x);}
void m(y) {a = 1; a = y - a; n(a); print(a);}
void main() {m(a);}
(A) 6, 2
(B) 6, 6
(C) 4, 2
(D) 4, 4
Q.37 An operator delete(i) for a binary heap data structure is to be designed to delete the item in
the i-th node. Assume that the heap is implemented in an array and i refers to the i-th index
of the array. If the heap tree has depth d (number of edges on the path from the root to the
farthest leaf), then what is the time complexity to re-fix the heap efficiently after the removal
of the element?
(A) O(1)
(B) O(d) but not O(1)
(C) O(2d ) but not O(d)
(D) O(d 2d ) but not O(2d )
Q.38 Consider the weighted undirected graph with 4 vertices, where the weight of edge {i, j} is
given by the entry Wi j in the matrix W .
0 2 8 5
2 0 5 8
W = 8 5 0 x
5 8 x 0
The largest possible integer value of x, for which at least one shortest path between some pair
of vertices will contain the edge with weight x is .
Q.39 Let G be a complete undirected graph on 4 vertices, having 6 edges with weights being 1, 2,
3, 4, 5, and 6. The maximum possible weight that a minimum weight spanning tree of G can
have is .
CS(Set A) 12/17
Text of page 16
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

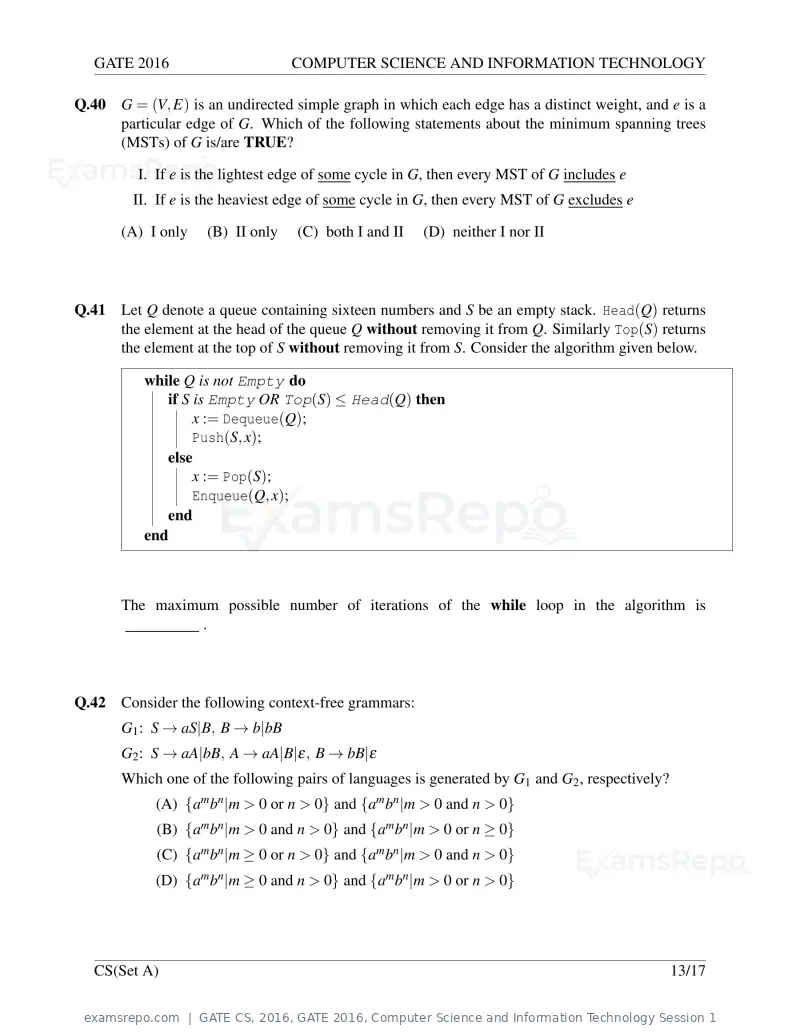

Q.40 G = (V, E) is an undirected simple graph in which each edge has a distinct weight, and e is a
particular edge of G. Which of the following statements about the minimum spanning trees
(MSTs) of G is/are TRUE?
I. If e is the lightest edge of some cycle in G, then every MST of G includes e
II. If e is the heaviest edge of some cycle in G, then every MST of G excludes e
(A) I only (B) II only (C) both I and II (D) neither I nor II
Q.41 Let Q denote a queue containing sixteen numbers and S be an empty stack. Head(Q) returns
the element at the head of the queue Q without removing it from Q. Similarly Top(S) returns
the element at the top of S without removing it from S. Consider the algorithm given below.
while Q is not Empty do
if S is Empty OR Top(S) ≤ Head(Q) then
x := Dequeue(Q);
Push(S, x);
else
x := Pop(S);
Enqueue(Q, x);
end
end
The maximum possible number of iterations of the while loop in the algorithm is
.
Q.42 Consider the following context-free grammars:
G1 : S → aS|B, B → b|bB
G2 : S → aA|bB, A → aA|B|ε, B → bB|ε
Which one of the following pairs of languages is generated by G1 and G2 , respectively?
(A) {am bn |m > 0 or n > 0} and {am bn |m > 0 and n > 0}
(B) {am bn |m > 0 and n > 0} and {am bn |m > 0 or n ≥ 0}
(C) {am bn |m ≥ 0 or n > 0} and {am bn |m > 0 and n > 0}
(D) {am bn |m ≥ 0 and n > 0} and {am bn |m > 0 or n > 0}
CS(Set A) 13/17
Text of page 17
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

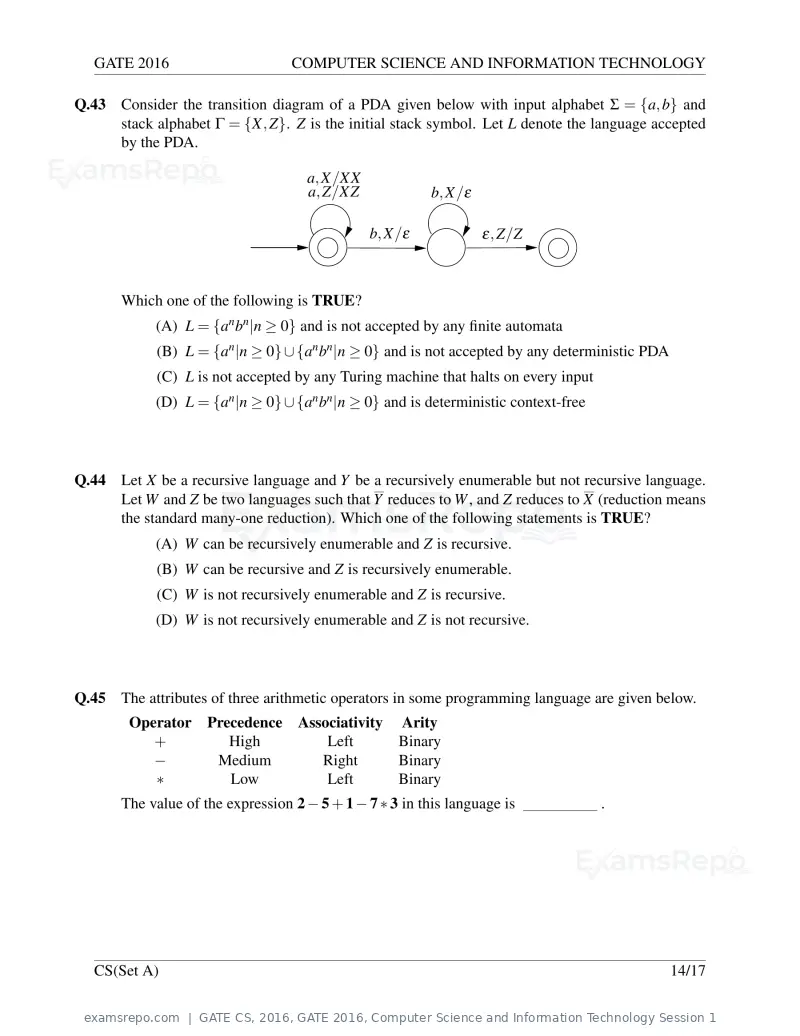

Q.43 Consider the transition diagram of a PDA given below with input alphabet Σ = {a, b} and
stack alphabet Γ = {X, Z}. Z is the initial stack symbol. Let L denote the language accepted
by the PDA.
a, X/XX
a, Z/XZ b, X/ε
b, X/ε ε, Z/Z
Which one of the following is TRUE?
(A) L = {an bn |n ≥ 0} and is not accepted by any finite automata
(B) L = {an |n ≥ 0} ∪ {an bn |n ≥ 0} and is not accepted by any deterministic PDA
(C) L is not accepted by any Turing machine that halts on every input
(D) L = {an |n ≥ 0} ∪ {an bn |n ≥ 0} and is deterministic context-free
Q.44 Let X be a recursive language and Y be a recursively enumerable but not recursive language.
Let W and Z be two languages such that Y reduces to W , and Z reduces to X (reduction means
the standard many-one reduction). Which one of the following statements is TRUE?
(A) W can be recursively enumerable and Z is recursive.
(B) W can be recursive and Z is recursively enumerable.
(C) W is not recursively enumerable and Z is recursive.
(D) W is not recursively enumerable and Z is not recursive.
Q.45 The attributes of three arithmetic operators in some programming language are given below.
Operator Precedence Associativity Arity
+ High Left Binary
− Medium Right Binary
∗ Low Left Binary
The value of the expression 2 − 5 + 1 − 7 ∗ 3 in this language is .
CS(Set A) 14/17

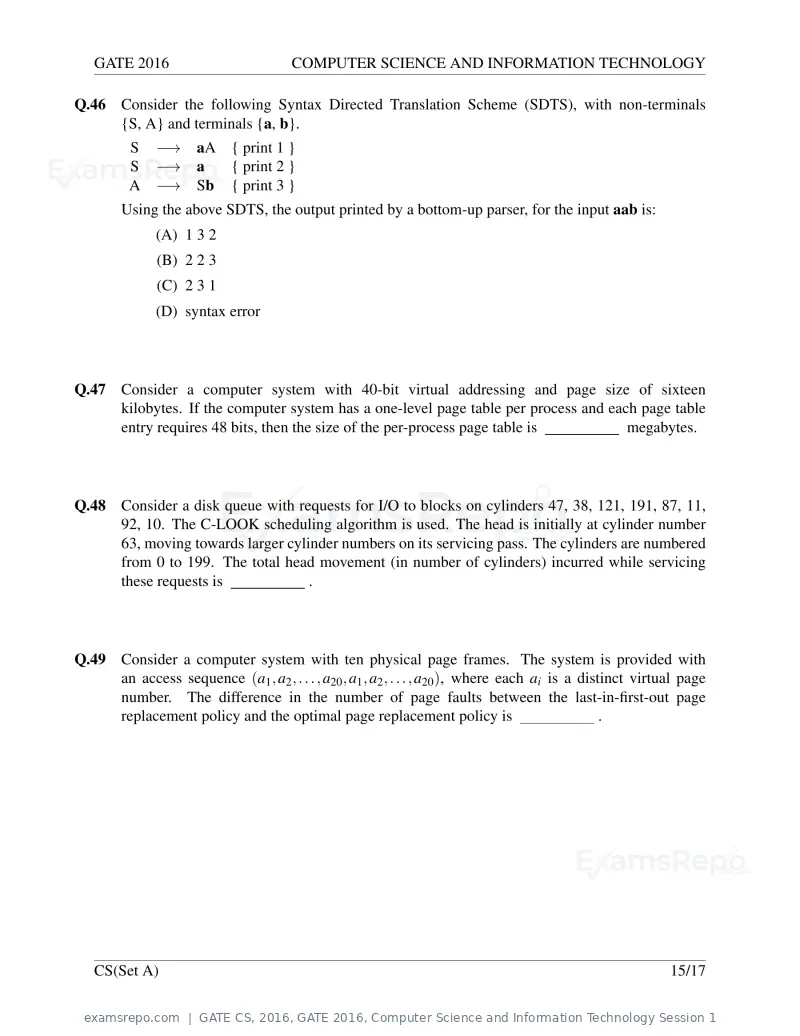

Text of page 18
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q.46 Consider the following Syntax Directed Translation Scheme (SDTS), with non-terminals
{S, A} and terminals {a, b}.
S −→ aA { print 1 }
S −→ a { print 2 }
A −→ Sb { print 3 }
Using the above SDTS, the output printed by a bottom-up parser, for the input aab is:
(A) 1 3 2
(B) 2 2 3
(C) 2 3 1
(D) syntax error
Q.47 Consider a computer system with 40-bit virtual addressing and page size of sixteen
kilobytes. If the computer system has a one-level page table per process and each page table
entry requires 48 bits, then the size of the per-process page table is megabytes.
Q.48 Consider a disk queue with requests for I/O to blocks on cylinders 47, 38, 121, 191, 87, 11,
92, 10. The C-LOOK scheduling algorithm is used. The head is initially at cylinder number
63, moving towards larger cylinder numbers on its servicing pass. The cylinders are numbered
from 0 to 199. The total head movement (in number of cylinders) incurred while servicing
these requests is .
Q.49 Consider a computer system with ten physical page frames. The system is provided with
an access sequence (a1 , a2 , . . . , a20 , a1 , a2 , . . . , a20 ), where each ai is a distinct virtual page
number. The difference in the number of page faults between the last-in-first-out page
replacement policy and the optimal page replacement policy is .
CS(Set A) 15/17
Text of page 19
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

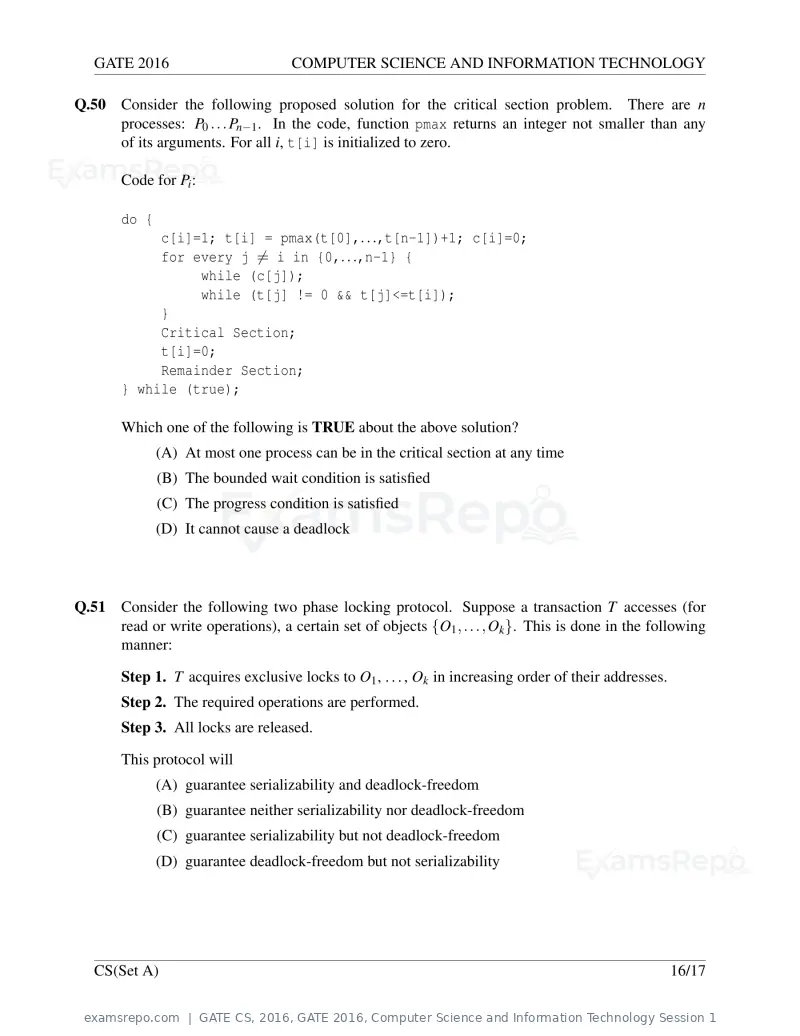

Q.50 Consider the following proposed solution for the critical section problem. There are n
processes: P0 . . . Pn−1 . In the code, function pmax returns an integer not smaller than any
of its arguments. For all i, t[i] is initialized to zero.
Code for Pi :
do {
c[i]=1; t[i] = pmax(t[0],. . .,t[n-1])+1; c[i]=0;
for every j 6= i in {0,. . .,n-1} {
while (c[j]);
while (t[j] != 0 && t[j]<=t[i]);
}
Critical Section;
t[i]=0;
Remainder Section;
} while (true);
Which one of the following is TRUE about the above solution?
(A) At most one process can be in the critical section at any time
(B) The bounded wait condition is satisfied
(C) The progress condition is satisfied
(D) It cannot cause a deadlock
Q.51 Consider the following two phase locking protocol. Suppose a transaction T accesses (for
read or write operations), a certain set of objects {O1 , . . . , Ok }. This is done in the following
manner:
Step 1. T acquires exclusive locks to O1 , . . . , Ok in increasing order of their addresses.
Step 2. The required operations are performed.
Step 3. All locks are released.
This protocol will
(A) guarantee serializability and deadlock-freedom
(B) guarantee neither serializability nor deadlock-freedom
(C) guarantee serializability but not deadlock-freedom
(D) guarantee deadlock-freedom but not serializability
CS(Set A) 16/17
Text of page 20
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

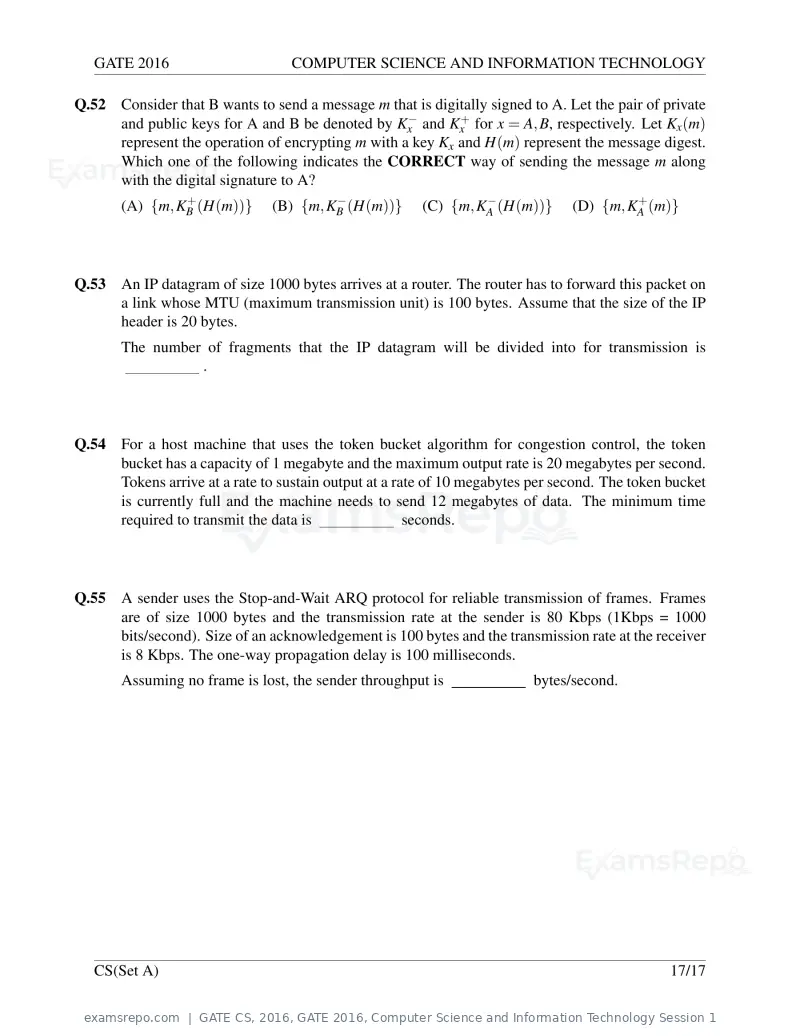

Q.52 Consider that B wants to send a message m that is digitally signed to A. Let the pair of private
and public keys for A and B be denoted by Kx− and Kx+ for x = A, B, respectively. Let Kx (m)
represent the operation of encrypting m with a key Kx and H(m) represent the message digest.
Which one of the following indicates the CORRECT way of sending the message m along
with the digital signature to A?
(A) {m, KB+ (H(m))} (B) {m, KB− (H(m))} (C) {m, KA− (H(m))} (D) {m, KA+ (m)}
Q.53 An IP datagram of size 1000 bytes arrives at a router. The router has to forward this packet on
a link whose MTU (maximum transmission unit) is 100 bytes. Assume that the size of the IP
header is 20 bytes.
The number of fragments that the IP datagram will be divided into for transmission is
.
Q.54 For a host machine that uses the token bucket algorithm for congestion control, the token
bucket has a capacity of 1 megabyte and the maximum output rate is 20 megabytes per second.
Tokens arrive at a rate to sustain output at a rate of 10 megabytes per second. The token bucket
is currently full and the machine needs to send 12 megabytes of data. The minimum time
required to transmit the data is seconds.
Q.55 A sender uses the Stop-and-Wait ARQ protocol for reliable transmission of frames. Frames
are of size 1000 bytes and the transmission rate at the sender is 80 Kbps (1Kbps = 1000
bits/second). Size of an acknowledgement is 100 bytes and the transmission rate at the receiver
is 8 Kbps. The one-way propagation delay is 100 milliseconds.
Assuming no frame is lost, the sender throughput is bytes/second.
CS(Set A) 17/17

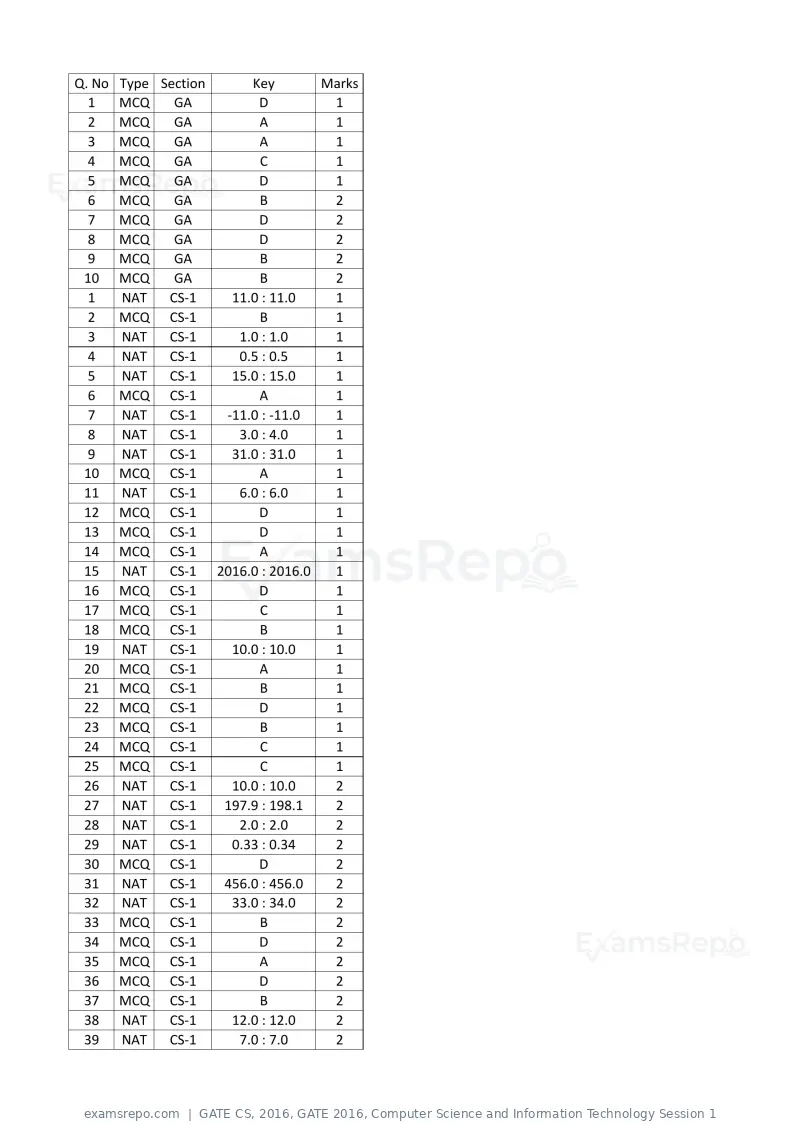

Text of page 21
Q. No Type Section Key Marks 1 MCQ GA D 1 2 MCQ GA A 1 3 MCQ GA A 1 4 MCQ GA C 1 5 MCQ GA D 1 6 MCQ GA B 2 7 MCQ GA D 2 8 MCQ GA D 2 9 MCQ GA B 2 10 MCQ GA B 2 1 NAT CS-1 11.0 : 11.0 1 2 MCQ CS-1 B 1 3 NAT CS-1 1.0 : 1.0 1 4 NAT CS-1 0.5 : 0.5 1 5 NAT CS-1 15.0 : 15.0 1 6 MCQ CS-1 A 1 7 NAT CS-1 -11.0 : -11.0 1 8 NAT CS-1 3.0 : 4.0 1 9 NAT CS-1 31.0 : 31.0 1 10 MCQ CS-1 A 1 11 NAT CS-1 6.0 : 6.0 1 12 MCQ CS-1 D 1 13 MCQ CS-1 D 1 14 MCQ CS-1 A 1 15 NAT CS-1 2016.0 : 2016.0 1 16 MCQ CS-1 D 1 17 MCQ CS-1 C 1 18 MCQ CS-1 B 1 19 NAT CS-1 10.0 : 10.0 1 20 MCQ CS-1 A 1 21 MCQ CS-1 B 1 22 MCQ CS-1 D 1 23 MCQ CS-1 B 1 24 MCQ CS-1 C 1 25 MCQ CS-1 C 1 26 NAT CS-1 10.0 : 10.0 2 27 NAT CS-1 197.9 : 198.1 2 28 NAT CS-1 2.0 : 2.0 2 29 NAT CS-1 0.33 : 0.34 2 30 MCQ CS-1 D 2 31 NAT CS-1 456.0 : 456.0 2 32 NAT CS-1 33.0 : 34.0 2 33 MCQ CS-1 B 2 34 MCQ CS-1 D 2 35 MCQ CS-1 A 2 36 MCQ CS-1 D 2 37 MCQ CS-1 B 2 38 NAT CS-1 12.0 : 12.0 2 39 NAT CS-1 7.0 : 7.0 2

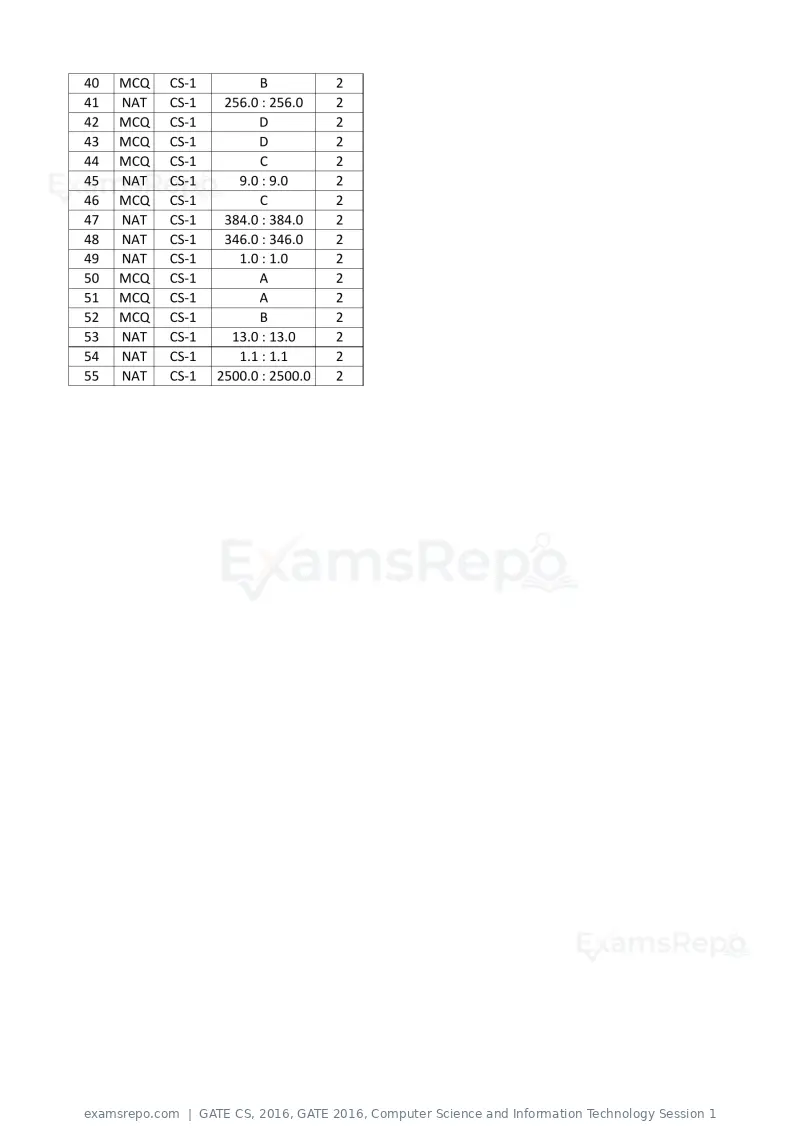

Text of page 22
40 MCQ CS-1 B 2 41 NAT CS-1 256.0 : 256.0 2 42 MCQ CS-1 D 2 43 MCQ CS-1 D 2 44 MCQ CS-1 C 2 45 NAT CS-1 9.0 : 9.0 2 46 MCQ CS-1 C 2 47 NAT CS-1 384.0 : 384.0 2 48 NAT CS-1 346.0 : 346.0 2 49 NAT CS-1 1.0 : 1.0 2 50 MCQ CS-1 A 2 51 MCQ CS-1 A 2 52 MCQ CS-1 B 2 53 NAT CS-1 13.0 : 13.0 2 54 NAT CS-1 1.1 : 1.1 2 55 NAT CS-1 2500.0 : 2500.0 2
Text of page 23

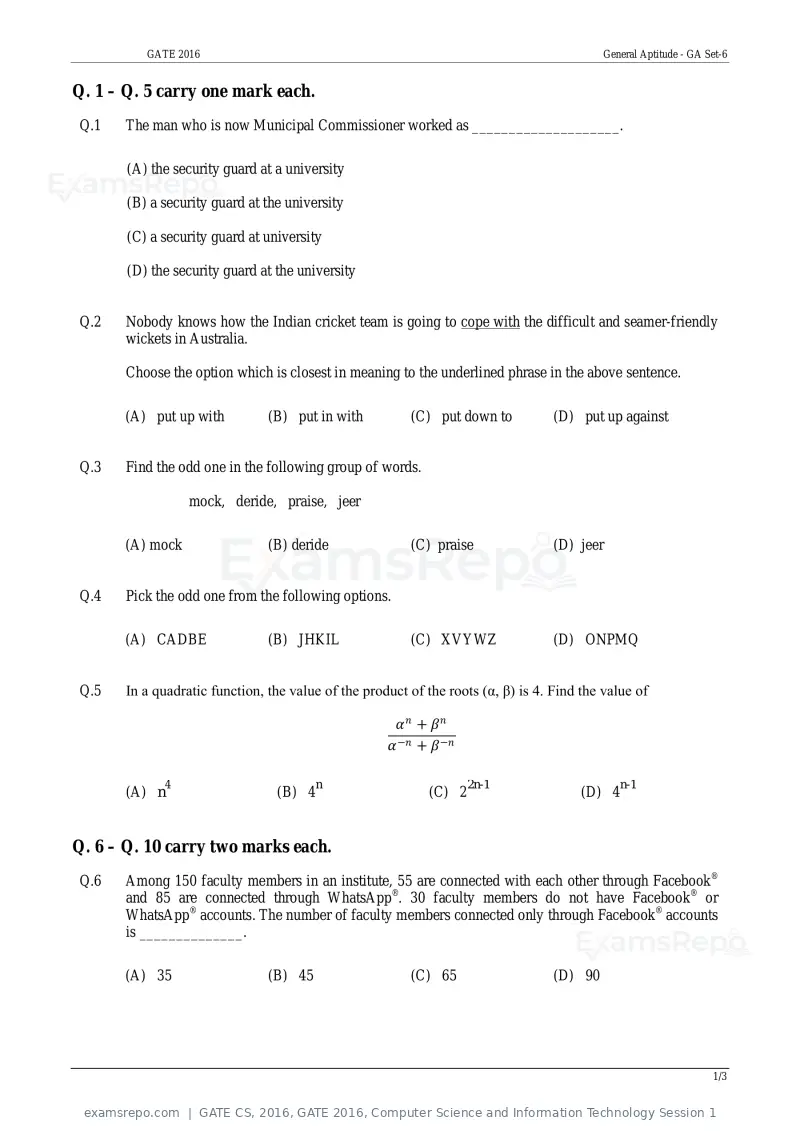

GATE 2016 General Aptitude - GA Set-6
Q. 1 – Q. 5 carry one mark each.
Q.1 The man who is now Municipal Commissioner worked as ____________________.
(A) the security guard at a university
(B) a security guard at the university
(C) a security guard at university
(D) the security guard at the university
Q.2 Nobody knows how the Indian cricket team is going to cope with the difficult and seamer-friendly
wickets in Australia.
Choose the option which is closest in meaning to the underlined phrase in the above sentence.
(A) put up with (B) put in with (C) put down to (D) put up against
Q.3 Find the odd one in the following group of words.
mock, deride, praise, jeer
(A) mock (B) deride (C) praise (D) jeer
Q.4 Pick the odd one from the following options.
(A) CADBE (B) JHKIL (C) XVYWZ (D) ONPMQ
Q.5 In a quadratic function, the value of the product of the roots (α, β) is 4. Find the value of
αα nn + ββ nn
αα −nn + ββ −nn
4 n 2n-1 n-1
(A) n (B) 4 (C) 2 (D) 4
Q. 6 – Q. 10 carry two marks each.
Q.6 Among 150 faculty members in an institute, 55 are connected with each other through Facebook®
and 85 are connected through WhatsApp®. 30 faculty members do not have Facebook® or
WhatsApp® accounts. The number of faculty members connected only through Facebook® accounts
is ______________.
(A) 35 (B) 45 (C) 65 (D) 90
1/3
Text of page 24
GATE 2016 General Aptitude - GA Set-6

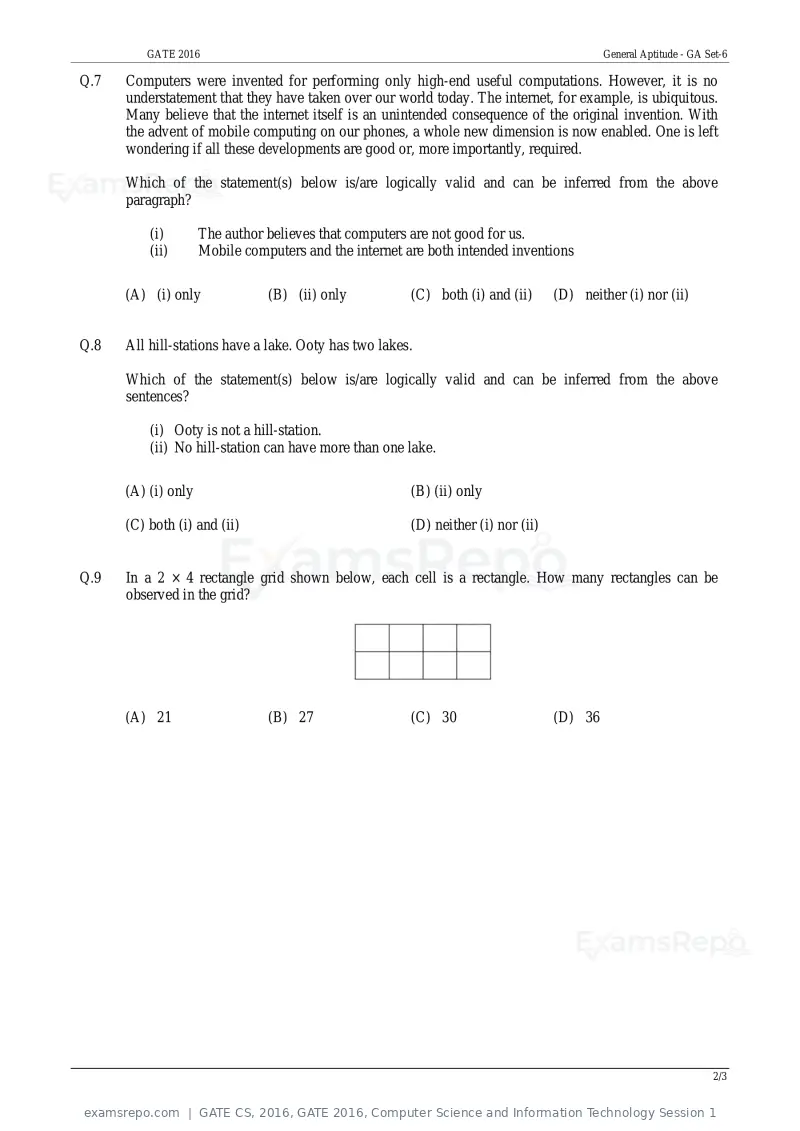

Q.7 Computers were invented for performing only high-end useful computations. However, it is no
understatement that they have taken over our world today. The internet, for example, is ubiquitous.
Many believe that the internet itself is an unintended consequence of the original invention. With
the advent of mobile computing on our phones, a whole new dimension is now enabled. One is left
wondering if all these developments are good or, more importantly, required.
Which of the statement(s) below is/are logically valid and can be inferred from the above
paragraph?
(i) The author believes that computers are not good for us.
(ii) Mobile computers and the internet are both intended inventions
(A) (i) only (B) (ii) only (C) both (i) and (ii) (D) neither (i) nor (ii)
Q.8 All hill-stations have a lake. Ooty has two lakes.
Which of the statement(s) below is/are logically valid and can be inferred from the above
sentences?
(i) Ooty is not a hill-station.
(ii) No hill-station can have more than one lake.
(A) (i) only (B) (ii) only
(C) both (i) and (ii) (D) neither (i) nor (ii)
Q.9 In a 2 × 4 rectangle grid shown below, each cell is a rectangle. How many rectangles can be
observed in the grid?
(A) 21 (B) 27 (C) 30 (D) 36
2/3
Text of page 25
GATE 2016 General Aptitude - GA Set-6

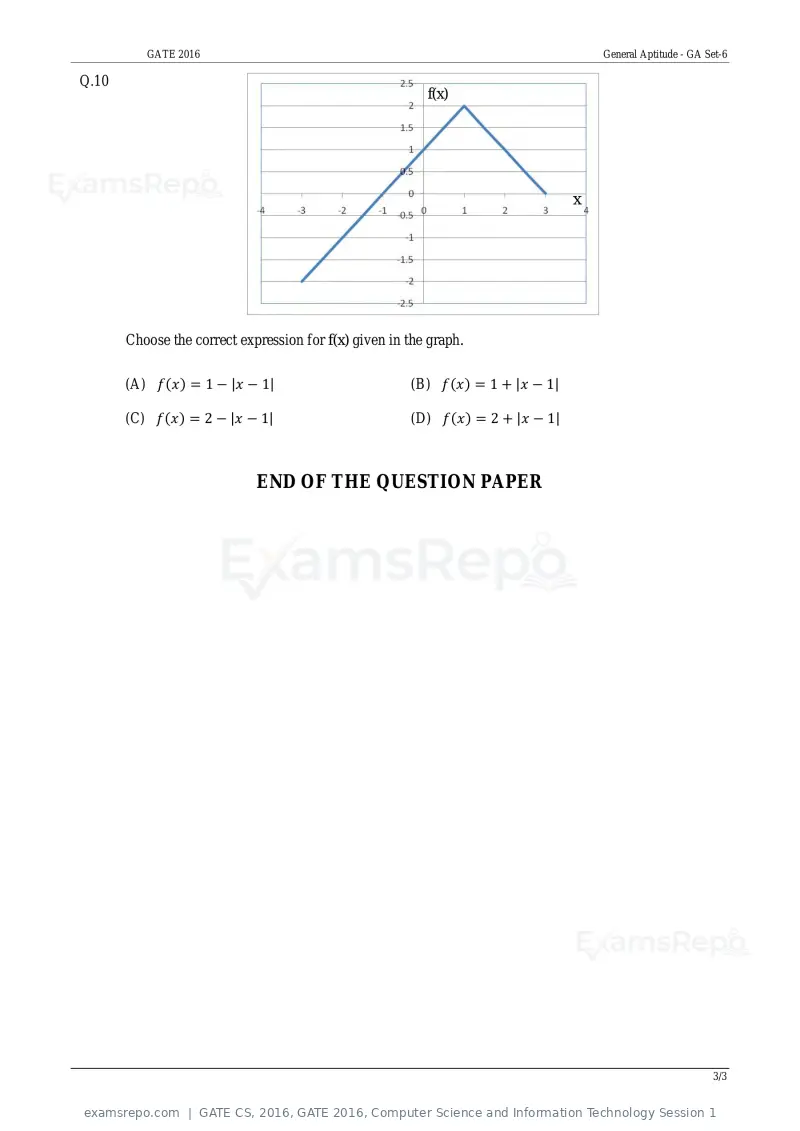

Q.10
f(x)
x
Choose the correct expression for f(x) given in the graph.
(A) ff(xx) = 1 − |xx − 1| (B) ff(xx) = 1 + |xx − 1|
(C) ff(xx) = 2 − |xx − 1| (D) ff(xx) = 2 + |xx − 1|
END OF THE QUESTION PAPER
3/3
Text of page 26
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

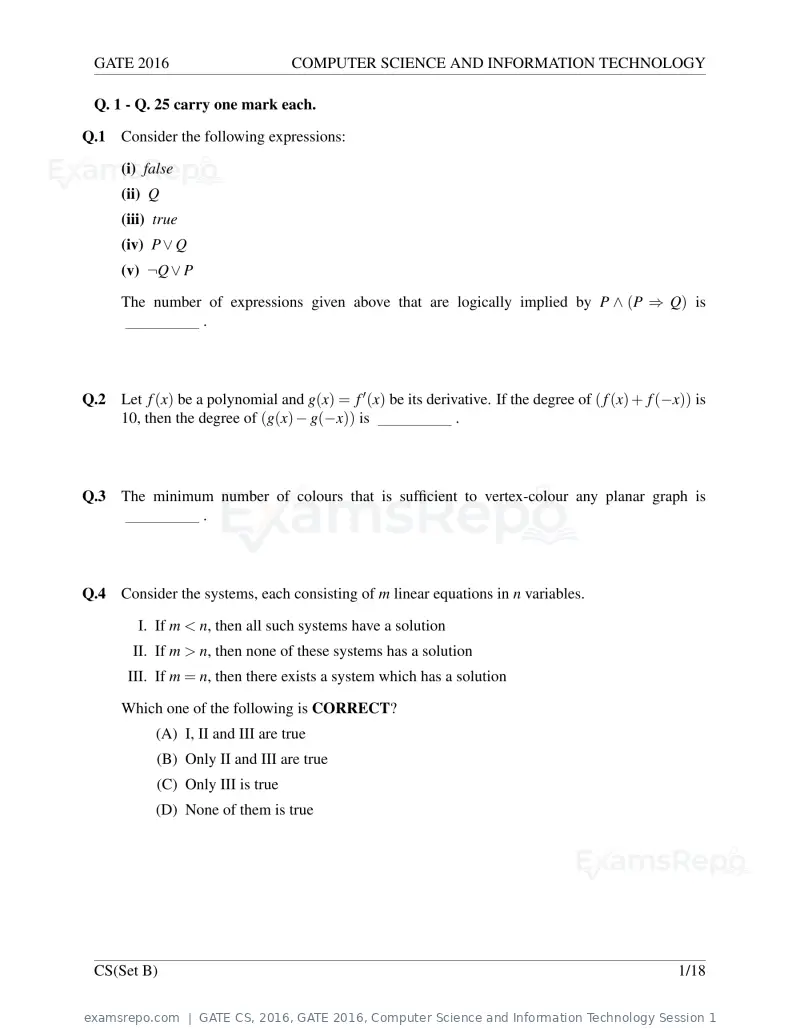

Q. 1 - Q. 25 carry one mark each.
Q.1 Consider the following expressions:
(i) false
(ii) Q
(iii) true
(iv) P ∨ Q
(v) ¬Q ∨ P
The number of expressions given above that are logically implied by P ∧ (P ⇒ Q) is
.
Q.2 Let f (x) be a polynomial and g(x) = f 0 (x) be its derivative. If the degree of ( f (x) + f (−x)) is
10, then the degree of (g(x) − g(−x)) is .
Q.3 The minimum number of colours that is sufficient to vertex-colour any planar graph is
.
Q.4 Consider the systems, each consisting of m linear equations in n variables.
I. If m < n, then all such systems have a solution
II. If m > n, then none of these systems has a solution
III. If m = n, then there exists a system which has a solution
Which one of the following is CORRECT?
(A) I, II and III are true
(B) Only II and III are true
(C) Only III is true
(D) None of them is true
CS(Set B) 1/18
Text of page 27
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

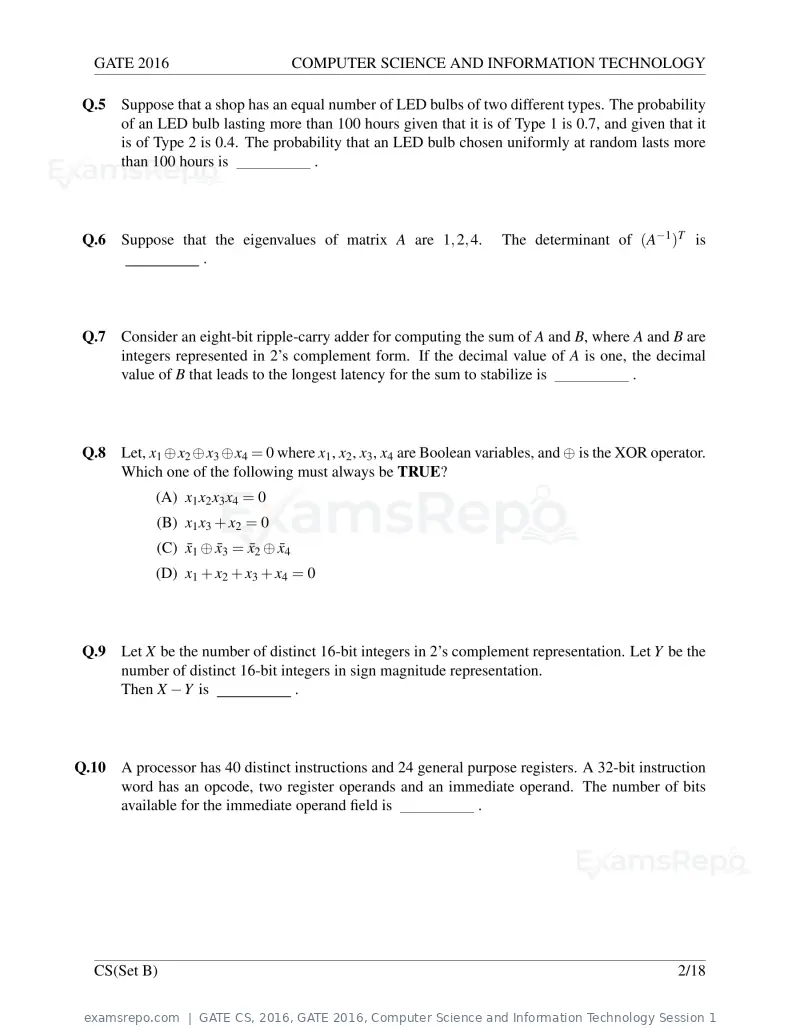

Q.5 Suppose that a shop has an equal number of LED bulbs of two different types. The probability
of an LED bulb lasting more than 100 hours given that it is of Type 1 is 0.7, and given that it
is of Type 2 is 0.4. The probability that an LED bulb chosen uniformly at random lasts more
than 100 hours is .
Q.6 Suppose that the eigenvalues of matrix A are 1, 2, 4. The determinant of (A−1 )T is
.
Q.7 Consider an eight-bit ripple-carry adder for computing the sum of A and B, where A and B are
integers represented in 2’s complement form. If the decimal value of A is one, the decimal
value of B that leads to the longest latency for the sum to stabilize is .
Q.8 Let, x1 ⊕x2 ⊕x3 ⊕x4 = 0 where x1 , x2 , x3 , x4 are Boolean variables, and ⊕ is the XOR operator.
Which one of the following must always be TRUE?
(A) x1 x2 x3 x4 = 0
(B) x1 x3 + x2 = 0
(C) x̄1 ⊕ x̄3 = x̄2 ⊕ x̄4
(D) x1 + x2 + x3 + x4 = 0
Q.9 Let X be the number of distinct 16-bit integers in 2’s complement representation. Let Y be the
number of distinct 16-bit integers in sign magnitude representation.
Then X −Y is .
Q.10 A processor has 40 distinct instructions and 24 general purpose registers. A 32-bit instruction
word has an opcode, two register operands and an immediate operand. The number of bits
available for the immediate operand field is .
CS(Set B) 2/18
Text of page 28
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

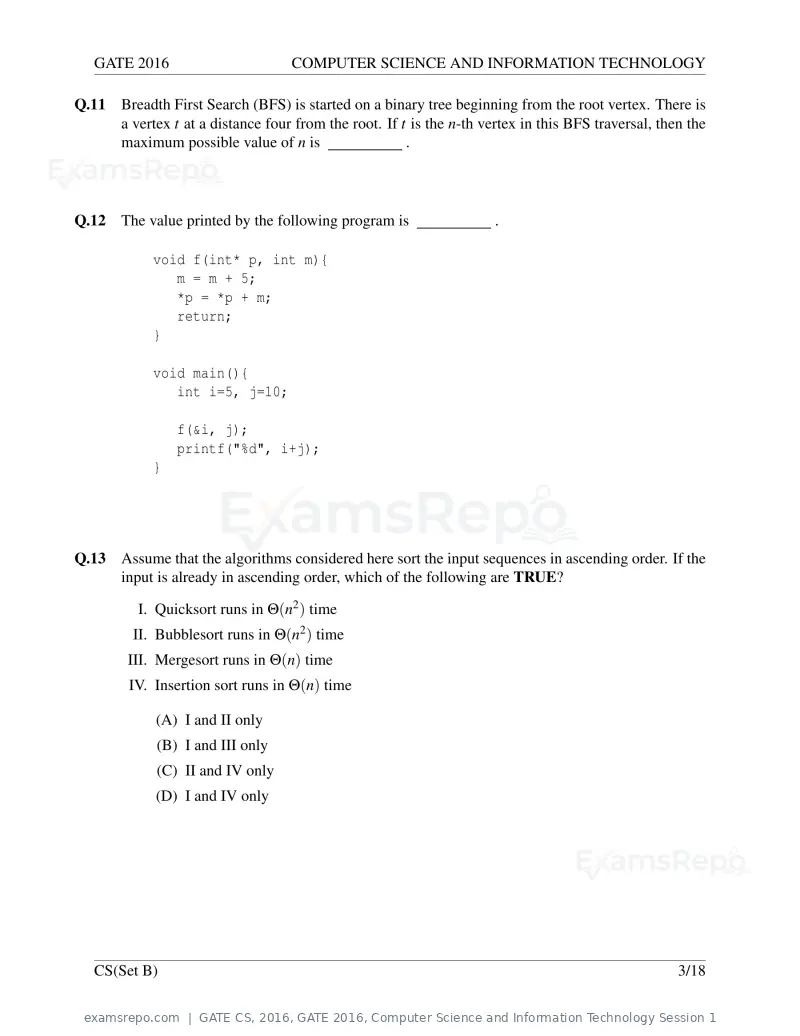

Q.11 Breadth First Search (BFS) is started on a binary tree beginning from the root vertex. There is
a vertex t at a distance four from the root. If t is the n-th vertex in this BFS traversal, then the
maximum possible value of n is .
Q.12 The value printed by the following program is .
void f(int* p, int m){
m = m + 5;
*p = *p + m;
return;
}
void main(){
int i=5, j=10;
f(&i, j);
printf("%d", i+j);
}
Q.13 Assume that the algorithms considered here sort the input sequences in ascending order. If the
input is already in ascending order, which of the following are TRUE?
I. Quicksort runs in Θ(n2 ) time
II. Bubblesort runs in Θ(n2 ) time
III. Mergesort runs in Θ(n) time
IV. Insertion sort runs in Θ(n) time
(A) I and II only
(B) I and III only
(C) II and IV only
(D) I and IV only
CS(Set B) 3/18
Text of page 29
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

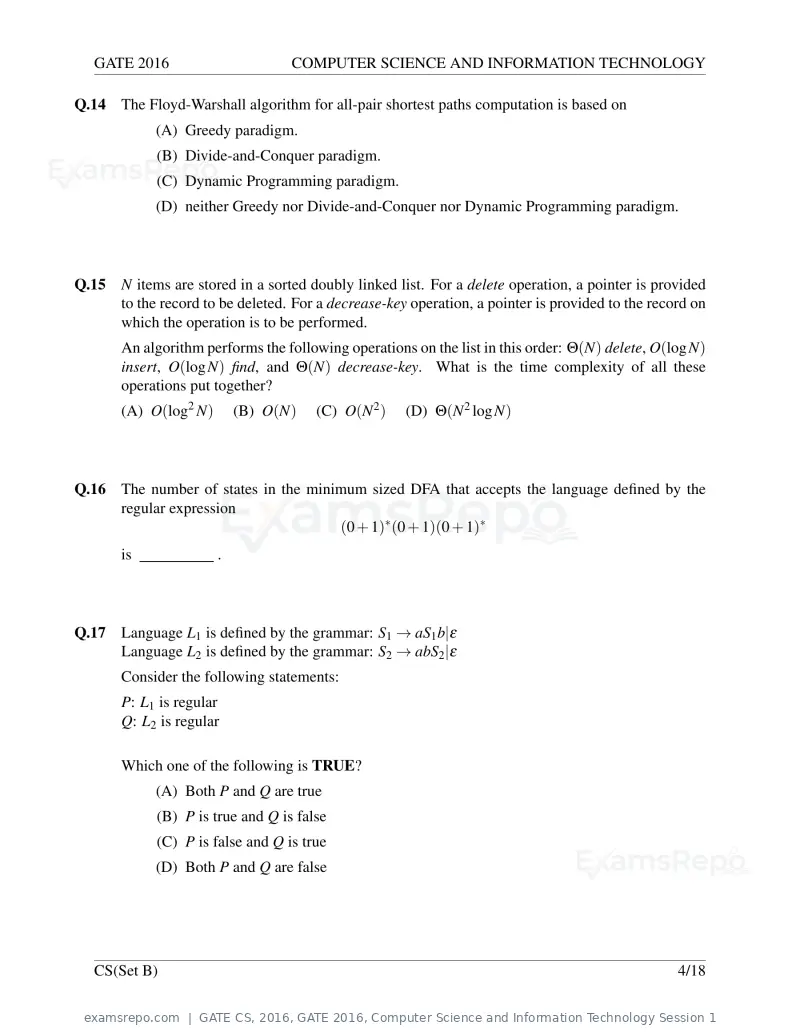

Q.14 The Floyd-Warshall algorithm for all-pair shortest paths computation is based on
(A) Greedy paradigm.
(B) Divide-and-Conquer paradigm.
(C) Dynamic Programming paradigm.
(D) neither Greedy nor Divide-and-Conquer nor Dynamic Programming paradigm.
Q.15 N items are stored in a sorted doubly linked list. For a delete operation, a pointer is provided
to the record to be deleted. For a decrease-key operation, a pointer is provided to the record on
which the operation is to be performed.
An algorithm performs the following operations on the list in this order: Θ(N) delete, O(log N)
insert, O(log N) find, and Θ(N) decrease-key. What is the time complexity of all these
operations put together?
(A) O(log2 N) (B) O(N) (C) O(N 2 ) (D) Θ(N 2 log N)
Q.16 The number of states in the minimum sized DFA that accepts the language defined by the
regular expression
(0 + 1)∗ (0 + 1)(0 + 1)∗
is .
Q.17 Language L1 is defined by the grammar: S1 → aS1 b|ε
Language L2 is defined by the grammar: S2 → abS2 |ε
Consider the following statements:
P: L1 is regular
Q: L2 is regular
Which one of the following is TRUE?
(A) Both P and Q are true
(B) P is true and Q is false
(C) P is false and Q is true
(D) Both P and Q are false
CS(Set B) 4/18
Text of page 30
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

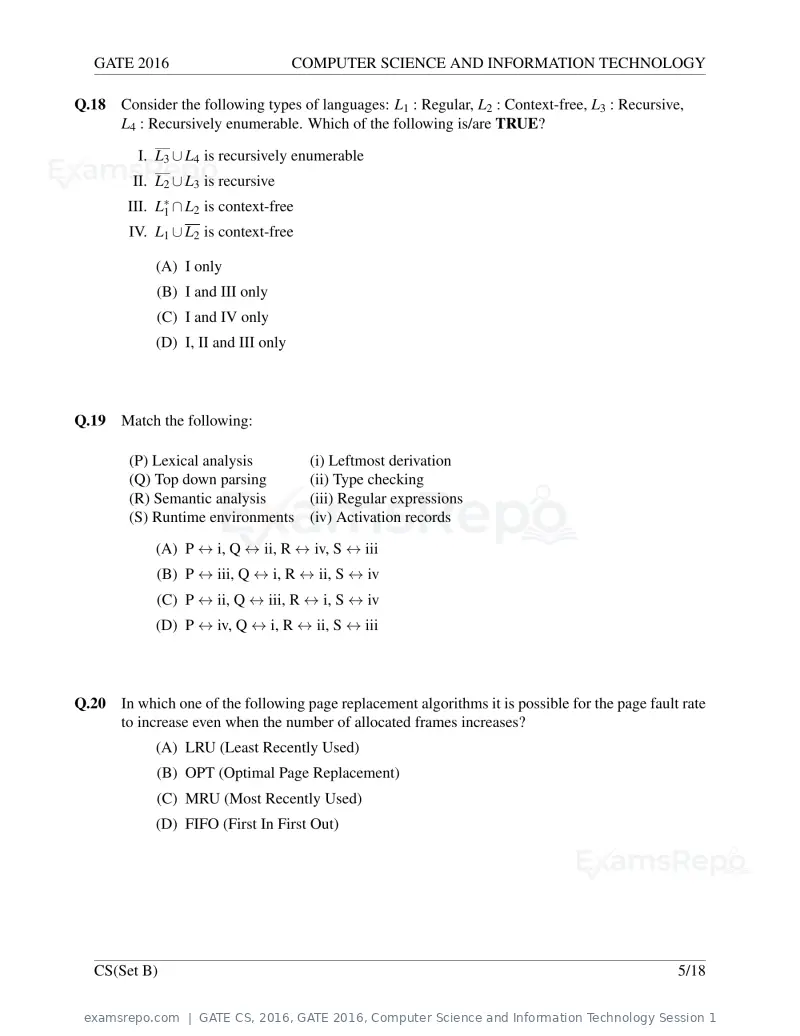

Q.18 Consider the following types of languages: L1 : Regular, L2 : Context-free, L3 : Recursive,
L4 : Recursively enumerable. Which of the following is/are TRUE?
I. L3 ∪ L4 is recursively enumerable
II. L2 ∪ L3 is recursive
III. L1∗ ∩ L2 is context-free
IV. L1 ∪ L2 is context-free
(A) I only
(B) I and III only
(C) I and IV only
(D) I, II and III only
Q.19 Match the following:
(P) Lexical analysis (i) Leftmost derivation
(Q) Top down parsing (ii) Type checking
(R) Semantic analysis (iii) Regular expressions
(S) Runtime environments (iv) Activation records
(A) P ↔ i, Q ↔ ii, R ↔ iv, S ↔ iii
(B) P ↔ iii, Q ↔ i, R ↔ ii, S ↔ iv
(C) P ↔ ii, Q ↔ iii, R ↔ i, S ↔ iv
(D) P ↔ iv, Q ↔ i, R ↔ ii, S ↔ iii
Q.20 In which one of the following page replacement algorithms it is possible for the page fault rate
to increase even when the number of allocated frames increases?
(A) LRU (Least Recently Used)
(B) OPT (Optimal Page Replacement)
(C) MRU (Most Recently Used)
(D) FIFO (First In First Out)
CS(Set B) 5/18
Text of page 31
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

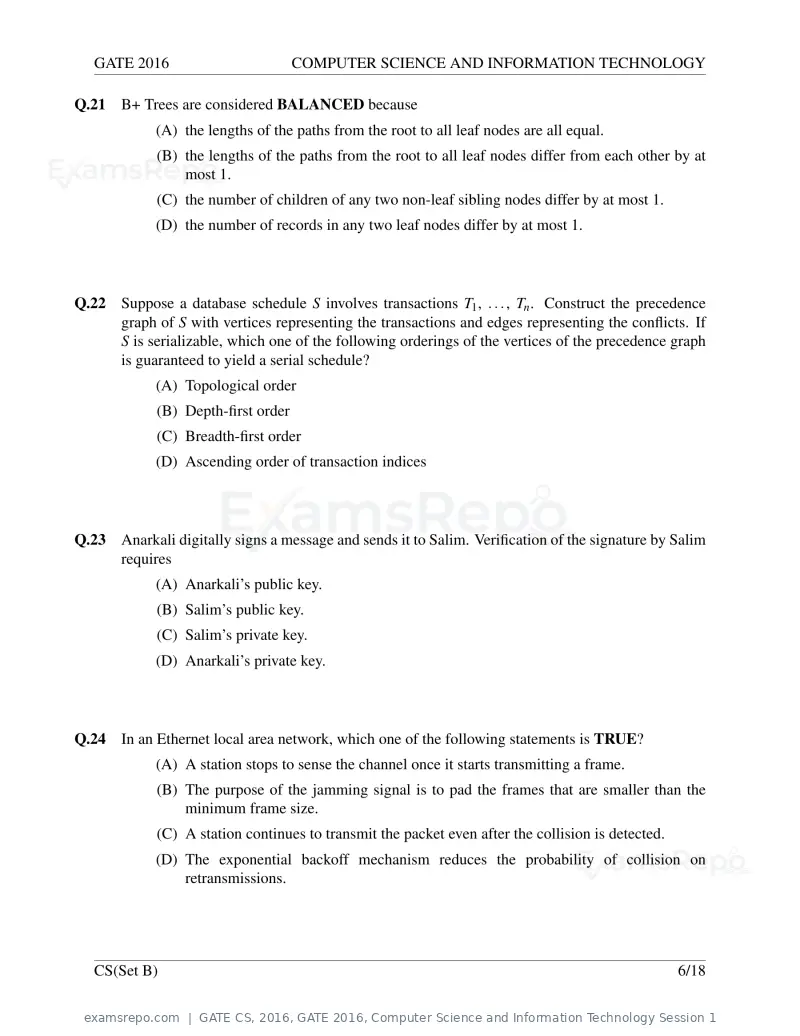

Q.21 B+ Trees are considered BALANCED because
(A) the lengths of the paths from the root to all leaf nodes are all equal.
(B) the lengths of the paths from the root to all leaf nodes differ from each other by at
most 1.
(C) the number of children of any two non-leaf sibling nodes differ by at most 1.
(D) the number of records in any two leaf nodes differ by at most 1.
Q.22 Suppose a database schedule S involves transactions T1 , . . . , Tn . Construct the precedence
graph of S with vertices representing the transactions and edges representing the conflicts. If
S is serializable, which one of the following orderings of the vertices of the precedence graph
is guaranteed to yield a serial schedule?
(A) Topological order
(B) Depth-first order
(C) Breadth-first order
(D) Ascending order of transaction indices
Q.23 Anarkali digitally signs a message and sends it to Salim. Verification of the signature by Salim
requires
(A) Anarkali’s public key.
(B) Salim’s public key.
(C) Salim’s private key.
(D) Anarkali’s private key.
Q.24 In an Ethernet local area network, which one of the following statements is TRUE?
(A) A station stops to sense the channel once it starts transmitting a frame.
(B) The purpose of the jamming signal is to pad the frames that are smaller than the
minimum frame size.
(C) A station continues to transmit the packet even after the collision is detected.
(D) The exponential backoff mechanism reduces the probability of collision on
retransmissions.
CS(Set B) 6/18
Text of page 32
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

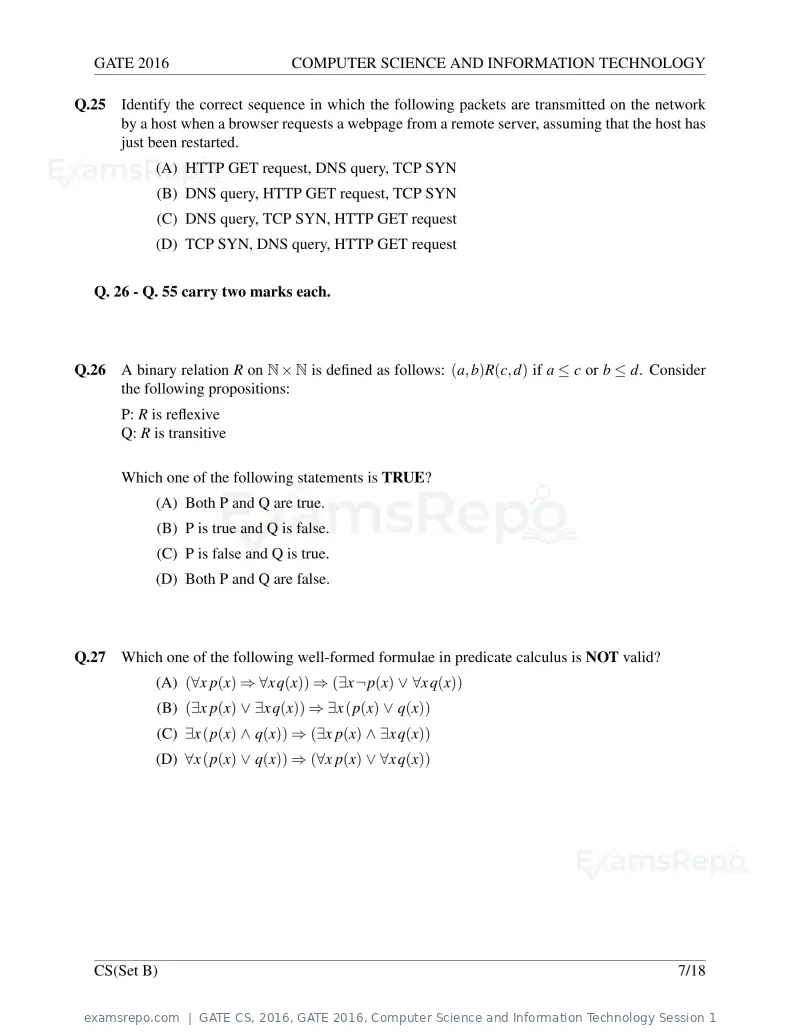

Q.25 Identify the correct sequence in which the following packets are transmitted on the network
by a host when a browser requests a webpage from a remote server, assuming that the host has
just been restarted.
(A) HTTP GET request, DNS query, TCP SYN
(B) DNS query, HTTP GET request, TCP SYN
(C) DNS query, TCP SYN, HTTP GET request
(D) TCP SYN, DNS query, HTTP GET request
Q. 26 - Q. 55 carry two marks each.
Q.26 A binary relation R on N × N is defined as follows: (a, b)R(c, d) if a ≤ c or b ≤ d. Consider
the following propositions:
P: R is reflexive
Q: R is transitive
Which one of the following statements is TRUE?
(A) Both P and Q are true.
(B) P is true and Q is false.
(C) P is false and Q is true.
(D) Both P and Q are false.
Q.27 Which one of the following well-formed formulae in predicate calculus is NOT valid?
(A) (∀x p(x) ⇒ ∀x q(x)) ⇒ (∃x ¬p(x) ∨ ∀x q(x))
(B) (∃x p(x) ∨ ∃x q(x)) ⇒ ∃x (p(x) ∨ q(x))
(C) ∃x (p(x) ∧ q(x)) ⇒ (∃x p(x) ∧ ∃x q(x))
(D) ∀x (p(x) ∨ q(x)) ⇒ (∀x p(x) ∨ ∀x q(x))
CS(Set B) 7/18
Text of page 33
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

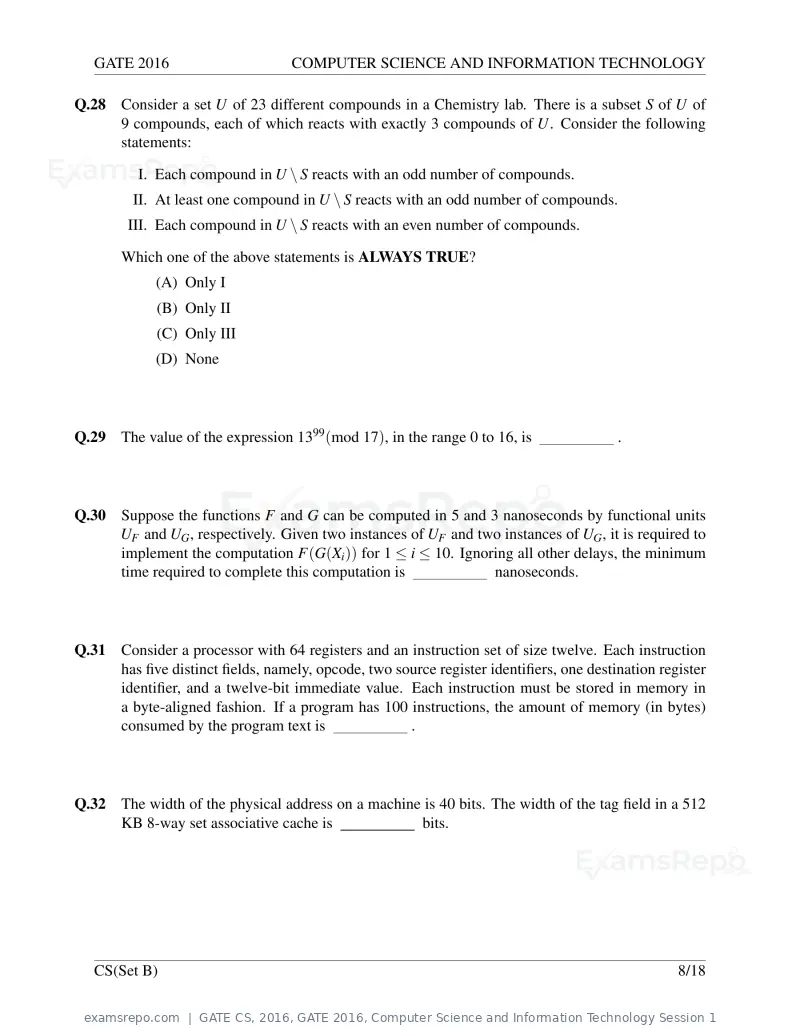

Q.28 Consider a set U of 23 different compounds in a Chemistry lab. There is a subset S of U of
9 compounds, each of which reacts with exactly 3 compounds of U. Consider the following
statements:
I. Each compound in U \ S reacts with an odd number of compounds.
II. At least one compound in U \ S reacts with an odd number of compounds.
III. Each compound in U \ S reacts with an even number of compounds.
Which one of the above statements is ALWAYS TRUE?
(A) Only I
(B) Only II
(C) Only III
(D) None
Q.29 The value of the expression 1399 (mod 17), in the range 0 to 16, is .
Q.30 Suppose the functions F and G can be computed in 5 and 3 nanoseconds by functional units
UF and UG , respectively. Given two instances of UF and two instances of UG , it is required to
implement the computation F(G(Xi )) for 1 ≤ i ≤ 10. Ignoring all other delays, the minimum
time required to complete this computation is nanoseconds.
Q.31 Consider a processor with 64 registers and an instruction set of size twelve. Each instruction
has five distinct fields, namely, opcode, two source register identifiers, one destination register
identifier, and a twelve-bit immediate value. Each instruction must be stored in memory in
a byte-aligned fashion. If a program has 100 instructions, the amount of memory (in bytes)
consumed by the program text is .
Q.32 The width of the physical address on a machine is 40 bits. The width of the tag field in a 512
KB 8-way set associative cache is bits.
CS(Set B) 8/18
Text of page 34
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

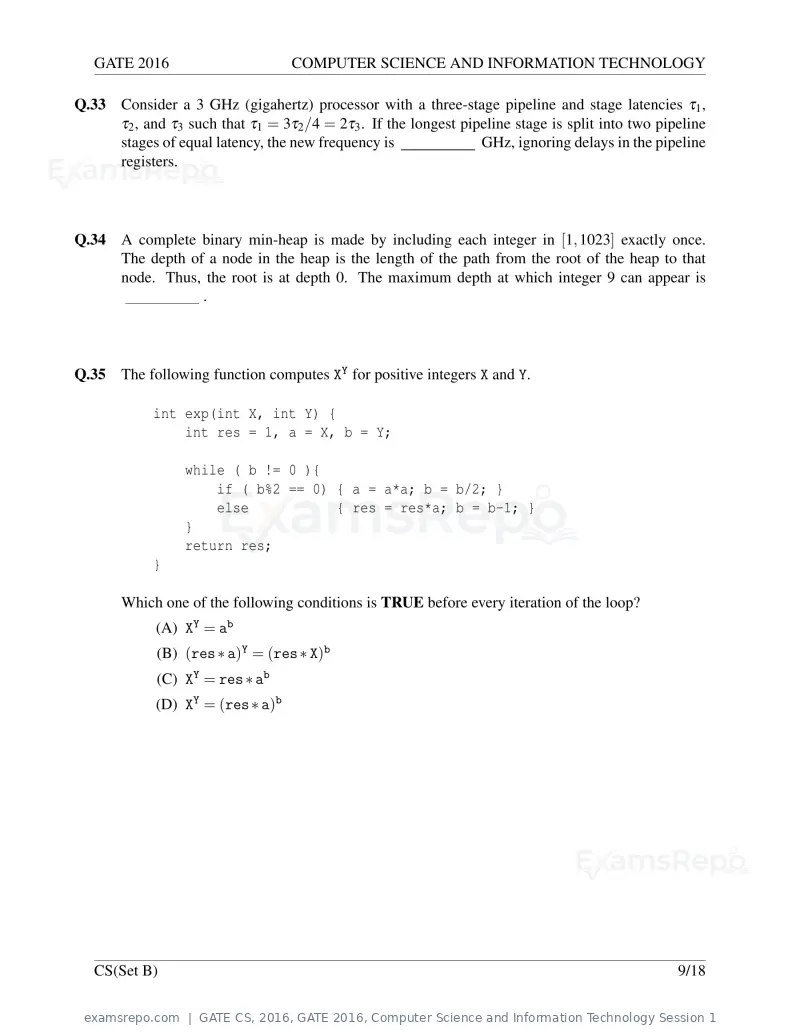

Q.33 Consider a 3 GHz (gigahertz) processor with a three-stage pipeline and stage latencies τ1 ,
τ2 , and τ3 such that τ1 = 3τ2 /4 = 2τ3 . If the longest pipeline stage is split into two pipeline
stages of equal latency, the new frequency is GHz, ignoring delays in the pipeline
registers.
Q.34 A complete binary min-heap is made by including each integer in [1, 1023] exactly once.
The depth of a node in the heap is the length of the path from the root of the heap to that
node. Thus, the root is at depth 0. The maximum depth at which integer 9 can appear is
.
Q.35 The following function computes XY for positive integers X and Y.
int exp(int X, int Y) {
int res = 1, a = X, b = Y;
while ( b != 0 ){
if ( b%2 == 0) { a = a*a; b = b/2; }
else { res = res*a; b = b-1; }
}
return res;
}
Which one of the following conditions is TRUE before every iteration of the loop?
(A) XY = ab
(B) (res ∗ a)Y = (res ∗ X)b
(C) XY = res ∗ ab
(D) XY = (res ∗ a)b
CS(Set B) 9/18
Text of page 35
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

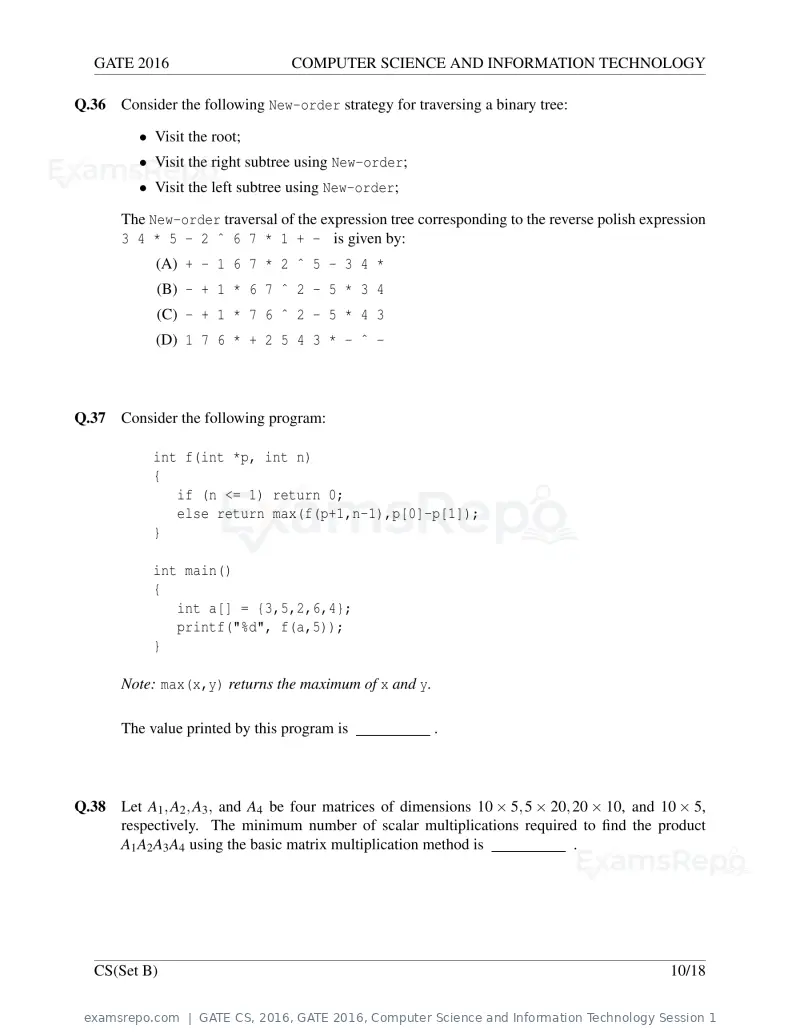

Q.36 Consider the following New-order strategy for traversing a binary tree:
• Visit the root;
• Visit the right subtree using New-order;
• Visit the left subtree using New-order;
The New-order traversal of the expression tree corresponding to the reverse polish expression
3 4 * 5 - 2 ˆ 6 7 * 1 + - is given by:
(A) + - 1 6 7 * 2 ˆ 5 - 3 4 *
(B) - + 1 * 6 7 ˆ 2 - 5 * 3 4
(C) - + 1 * 7 6 ˆ 2 - 5 * 4 3
(D) 1 7 6 * + 2 5 4 3 * - ˆ -
Q.37 Consider the following program:
int f(int *p, int n)
{
if (n <= 1) return 0;
else return max(f(p+1,n-1),p[0]-p[1]);
}
int main()
{
int a[] = {3,5,2,6,4};
printf("%d", f(a,5));
}
Note: max(x,y) returns the maximum of x and y.
The value printed by this program is .
Q.38 Let A1 , A2 , A3 , and A4 be four matrices of dimensions 10 × 5, 5 × 20, 20 × 10, and 10 × 5,
respectively. The minimum number of scalar multiplications required to find the product
A1 A2 A3 A4 using the basic matrix multiplication method is .
CS(Set B) 10/18
Text of page 36
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

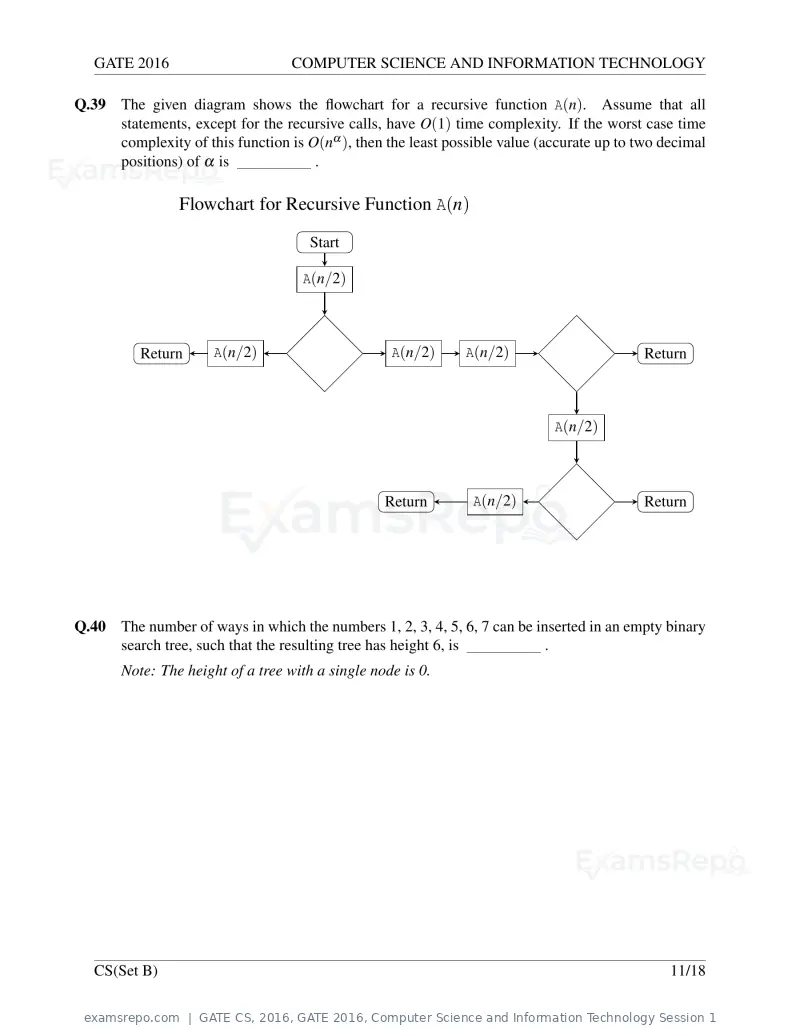

Q.39 The given diagram shows the flowchart for a recursive function A(n). Assume that all
statements, except for the recursive calls, have O(1) time complexity. If the worst case time
complexity of this function is O(nα ), then the least possible value (accurate up to two decimal
positions) of α is .
Flowchart for Recursive Function A(n)
Start
A(n/2)
Return A(n/2) A(n/2) A(n/2) Return
A(n/2)
Return A(n/2) Return
Q.40 The number of ways in which the numbers 1, 2, 3, 4, 5, 6, 7 can be inserted in an empty binary
search tree, such that the resulting tree has height 6, is .
Note: The height of a tree with a single node is 0.
CS(Set B) 11/18
Text of page 37
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

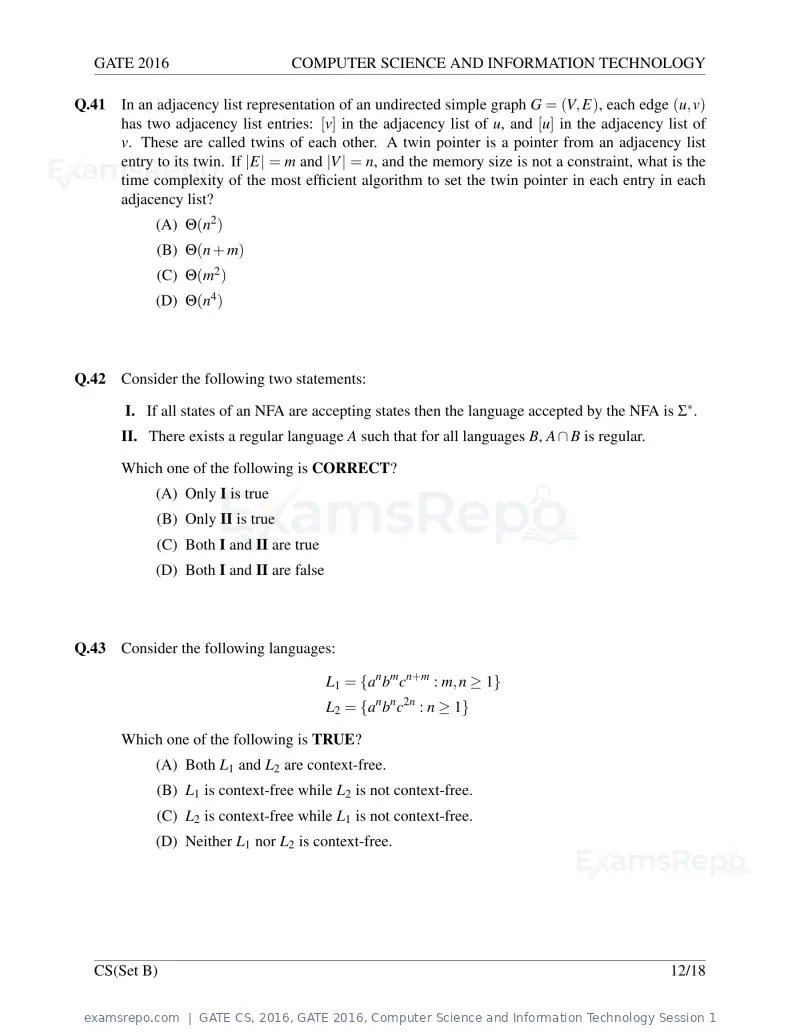

Q.41 In an adjacency list representation of an undirected simple graph G = (V, E), each edge (u, v)
has two adjacency list entries: [v] in the adjacency list of u, and [u] in the adjacency list of
v. These are called twins of each other. A twin pointer is a pointer from an adjacency list
entry to its twin. If |E| = m and |V | = n, and the memory size is not a constraint, what is the
time complexity of the most efficient algorithm to set the twin pointer in each entry in each
adjacency list?
(A) Θ(n2 )
(B) Θ(n + m)
(C) Θ(m2 )
(D) Θ(n4 )
Q.42 Consider the following two statements:
I. If all states of an NFA are accepting states then the language accepted by the NFA is Σ∗ .
II. There exists a regular language A such that for all languages B, A ∩ B is regular.
Which one of the following is CORRECT?
(A) Only I is true
(B) Only II is true
(C) Both I and II are true
(D) Both I and II are false
Q.43 Consider the following languages:
L1 = {an bm cn+m : m, n ≥ 1}
L2 = {an bn c2n : n ≥ 1}
Which one of the following is TRUE?
(A) Both L1 and L2 are context-free.
(B) L1 is context-free while L2 is not context-free.
(C) L2 is context-free while L1 is not context-free.
(D) Neither L1 nor L2 is context-free.
CS(Set B) 12/18

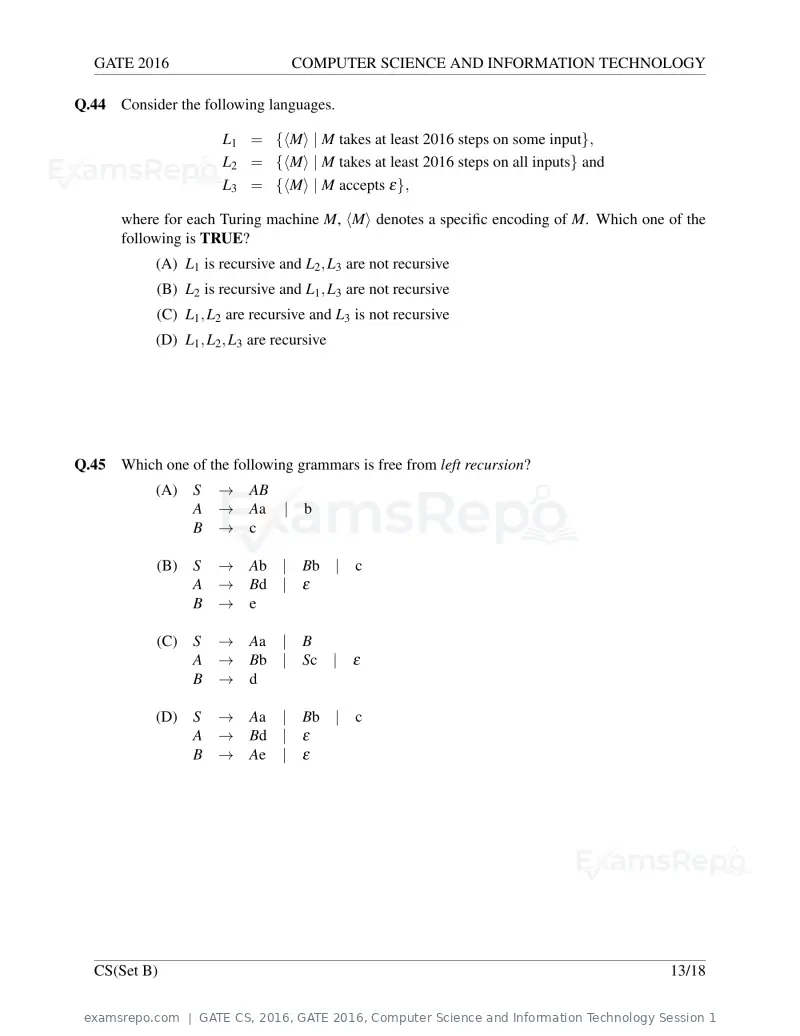

Text of page 38
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY
Q.44 Consider the following languages.
L1 = {hMi | M takes at least 2016 steps on some input},
L2 = {hMi | M takes at least 2016 steps on all inputs} and
L3 = {hMi | M accepts ε},
where for each Turing machine M, hMi denotes a specific encoding of M. Which one of the
following is TRUE?
(A) L1 is recursive and L2 , L3 are not recursive
(B) L2 is recursive and L1 , L3 are not recursive
(C) L1 , L2 are recursive and L3 is not recursive
(D) L1 , L2 , L3 are recursive
Q.45 Which one of the following grammars is free from left recursion?
(A) S → AB
A → Aa | b
B → c
(B) S → Ab | Bb | c
A → Bd | ε
B → e
(C) S → Aa | B
A → Bb | Sc | ε
B → d
(D) S → Aa | Bb | c
A → Bd | ε
B → Ae | ε
CS(Set B) 13/18
Text of page 39
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

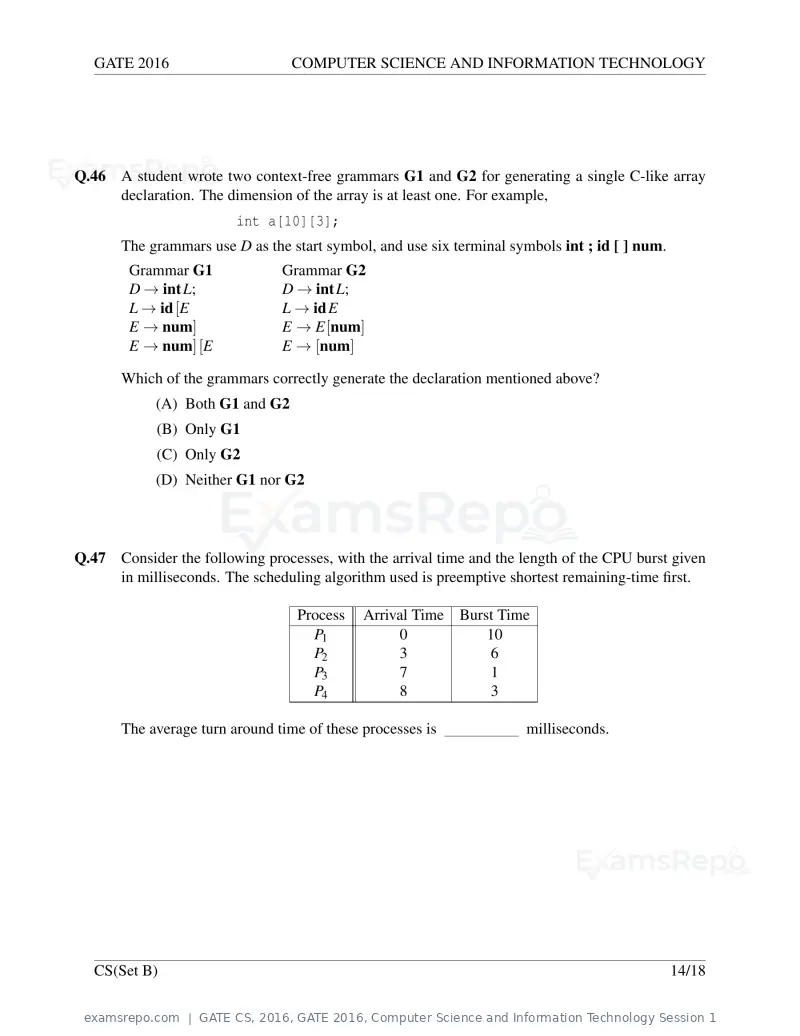

Q.46 A student wrote two context-free grammars G1 and G2 for generating a single C-like array
declaration. The dimension of the array is at least one. For example,
int a[10][3];
The grammars use D as the start symbol, and use six terminal symbols int ; id [ ] num.
Grammar G1 Grammar G2
D → int L; D → int L;
L → id [E L → id E
E → num] E → E[num]
E → num] [E E → [num]
Which of the grammars correctly generate the declaration mentioned above?
(A) Both G1 and G2
(B) Only G1
(C) Only G2
(D) Neither G1 nor G2
Q.47 Consider the following processes, with the arrival time and the length of the CPU burst given
in milliseconds. The scheduling algorithm used is preemptive shortest remaining-time first.
Process Arrival Time Burst Time
P1 0 10
P2 3 6
P3 7 1
P4 8 3
The average turn around time of these processes is milliseconds.
CS(Set B) 14/18
Text of page 40
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

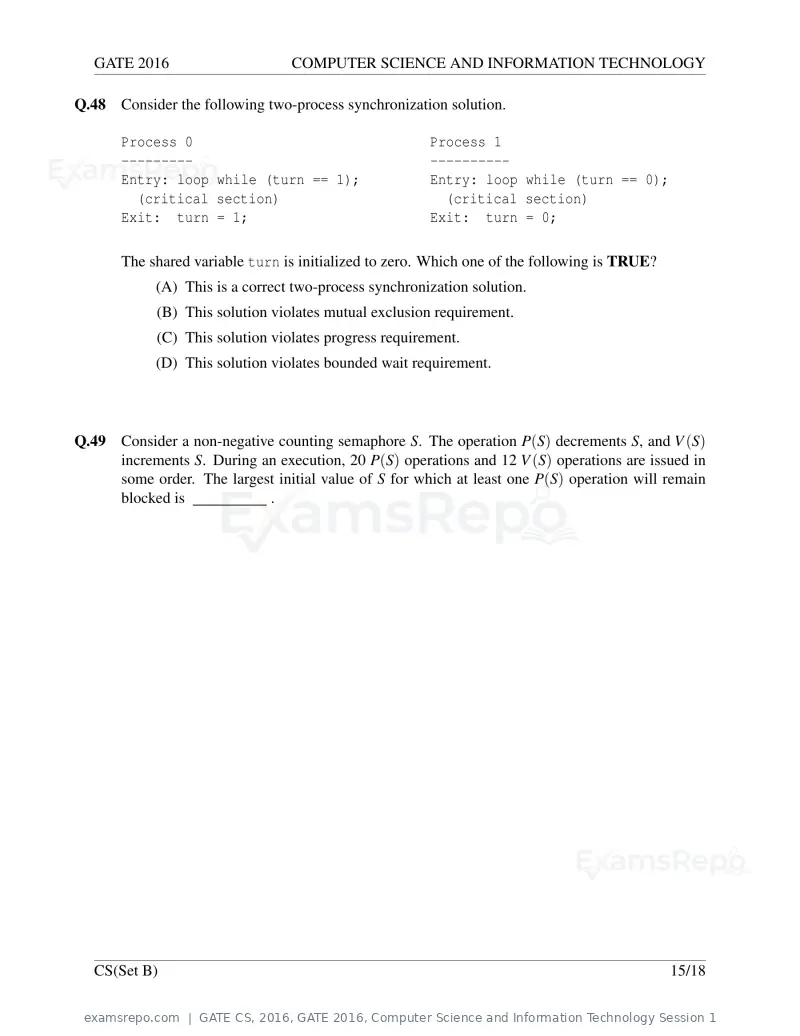

Q.48 Consider the following two-process synchronization solution.
Process 0 Process 1
--------- ----------
Entry: loop while (turn == 1); Entry: loop while (turn == 0);
(critical section) (critical section)
Exit: turn = 1; Exit: turn = 0;
The shared variable turn is initialized to zero. Which one of the following is TRUE?
(A) This is a correct two-process synchronization solution.
(B) This solution violates mutual exclusion requirement.
(C) This solution violates progress requirement.
(D) This solution violates bounded wait requirement.
Q.49 Consider a non-negative counting semaphore S. The operation P(S) decrements S, and V (S)
increments S. During an execution, 20 P(S) operations and 12 V (S) operations are issued in
some order. The largest initial value of S for which at least one P(S) operation will remain
blocked is .
CS(Set B) 15/18
Text of page 41
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

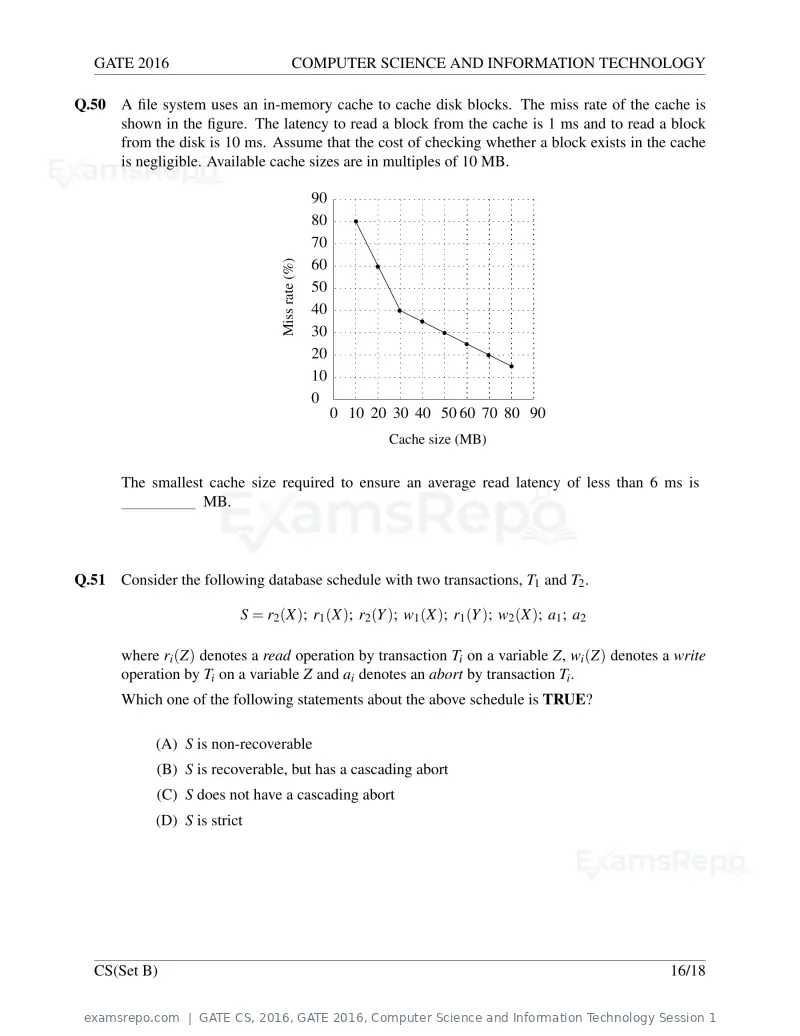

Q.50 A file system uses an in-memory cache to cache disk blocks. The miss rate of the cache is
shown in the figure. The latency to read a block from the cache is 1 ms and to read a block
from the disk is 10 ms. Assume that the cost of checking whether a block exists in the cache
is negligible. Available cache sizes are in multiples of 10 MB.
90
80
70
Miss rate (%)
60
50
40
30
20
10
0
0 10 20 30 40 50 60 70 80 90
Cache size (MB)
The smallest cache size required to ensure an average read latency of less than 6 ms is
MB.
Q.51 Consider the following database schedule with two transactions, T1 and T2 .
S = r2 (X); r1 (X); r2 (Y ); w1 (X); r1 (Y ); w2 (X); a1 ; a2
where ri (Z) denotes a read operation by transaction Ti on a variable Z, wi (Z) denotes a write
operation by Ti on a variable Z and ai denotes an abort by transaction Ti .
Which one of the following statements about the above schedule is TRUE?
(A) S is non-recoverable
(B) S is recoverable, but has a cascading abort
(C) S does not have a cascading abort
(D) S is strict
CS(Set B) 16/18
Text of page 42
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

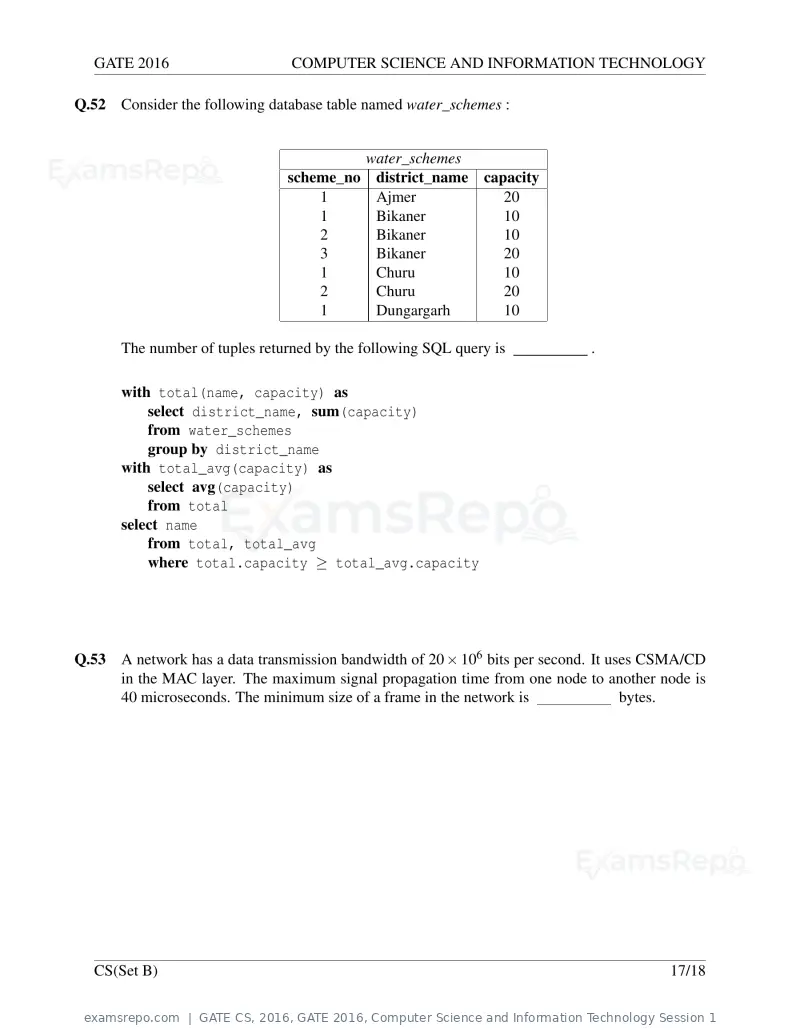

Q.52 Consider the following database table named water_schemes :
water_schemes
scheme_no district_name capacity
1 Ajmer 20
1 Bikaner 10
2 Bikaner 10
3 Bikaner 20
1 Churu 10
2 Churu 20
1 Dungargarh 10
The number of tuples returned by the following SQL query is .
with total(name, capacity) as
select district_name, sum(capacity)
from water_schemes
group by district_name
with total_avg(capacity) as
select avg(capacity)
from total
select name
from total, total_avg
where total.capacity ≥ total_avg.capacity
Q.53 A network has a data transmission bandwidth of 20 × 106 bits per second. It uses CSMA/CD
in the MAC layer. The maximum signal propagation time from one node to another node is
40 microseconds. The minimum size of a frame in the network is bytes.
CS(Set B) 17/18
Text of page 43
GATE 2016 COMPUTER SCIENCE AND INFORMATION TECHNOLOGY

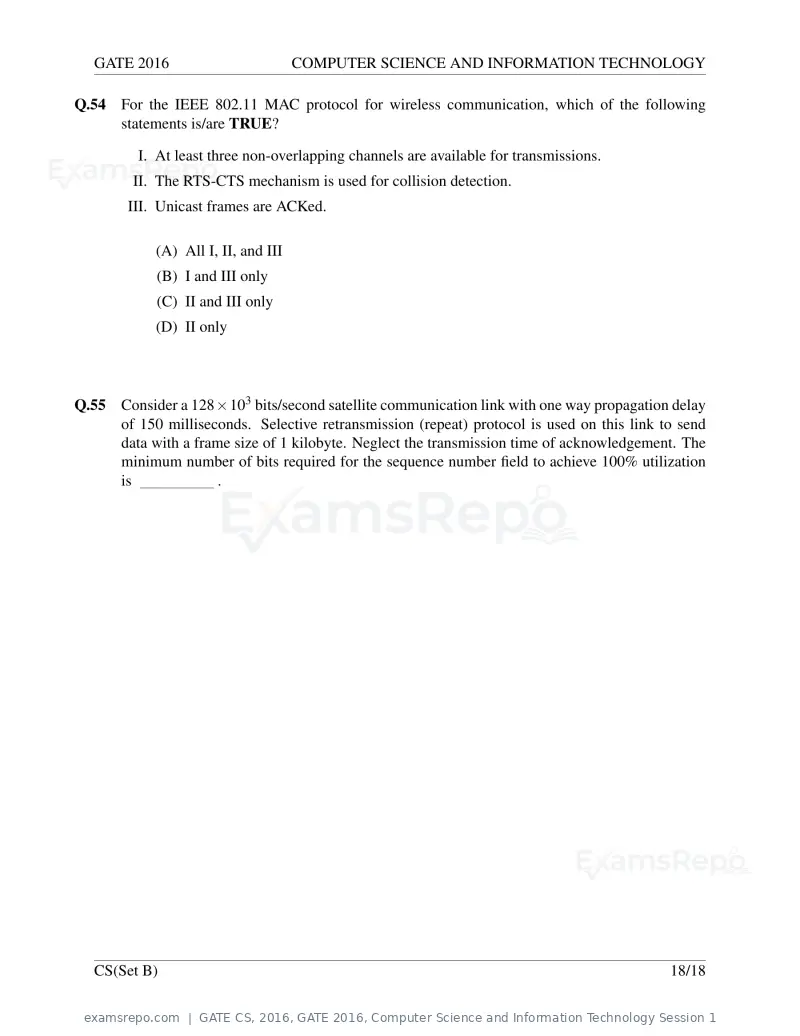

Q.54 For the IEEE 802.11 MAC protocol for wireless communication, which of the following
statements is/are TRUE?
I. At least three non-overlapping channels are available for transmissions.
II. The RTS-CTS mechanism is used for collision detection.
III. Unicast frames are ACKed.
(A) All I, II, and III
(B) I and III only
(C) II and III only
(D) II only
Q.55 Consider a 128×103 bits/second satellite communication link with one way propagation delay
of 150 milliseconds. Selective retransmission (repeat) protocol is used on this link to send
data with a frame size of 1 kilobyte. Neglect the transmission time of acknowledgement. The
minimum number of bits required for the sequence number field to achieve 100% utilization
is .
CS(Set B) 18/18
Text of page 44

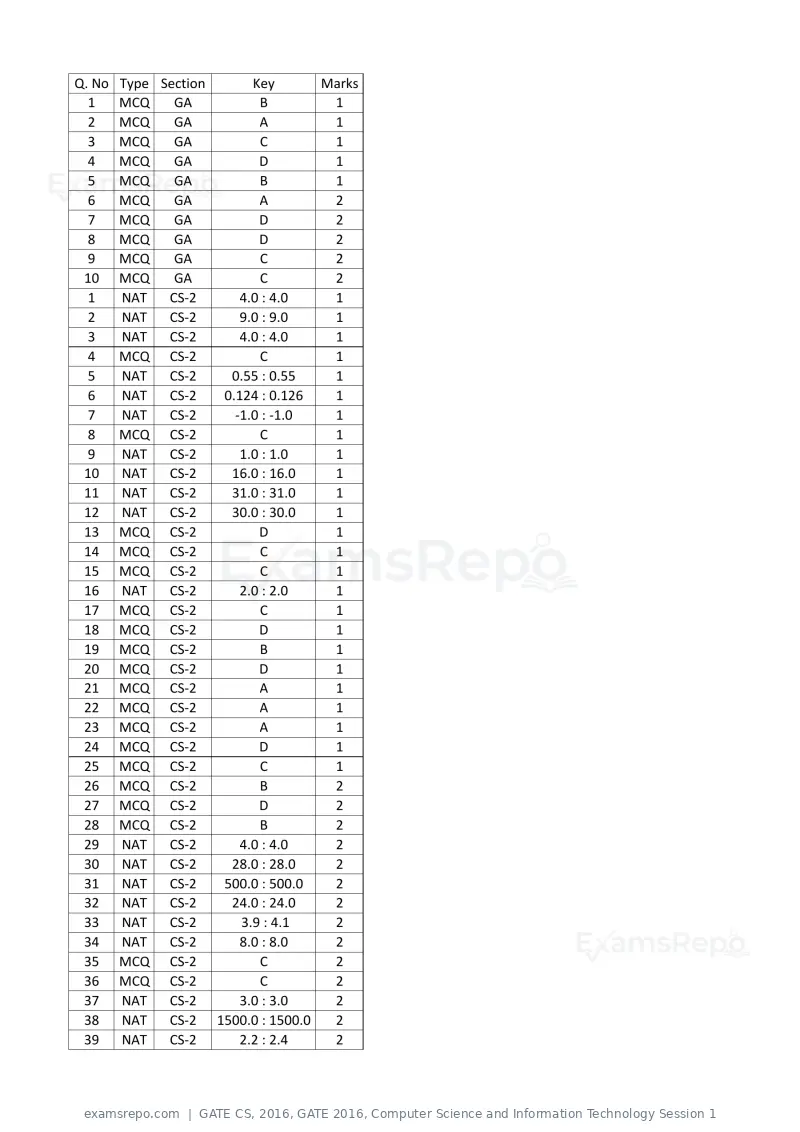

Q. No Type Section Key Marks 1 MCQ GA B 1 2 MCQ GA A 1 3 MCQ GA C 1 4 MCQ GA D 1 5 MCQ GA B 1 6 MCQ GA A 2 7 MCQ GA D 2 8 MCQ GA D 2 9 MCQ GA C 2 10 MCQ GA C 2 1 NAT CS-2 4.0 : 4.0 1 2 NAT CS-2 9.0 : 9.0 1 3 NAT CS-2 4.0 : 4.0 1 4 MCQ CS-2 C 1 5 NAT CS-2 0.55 : 0.55 1 6 NAT CS-2 0.124 : 0.126 1 7 NAT CS-2 -1.0 : -1.0 1 8 MCQ CS-2 C 1 9 NAT CS-2 1.0 : 1.0 1 10 NAT CS-2 16.0 : 16.0 1 11 NAT CS-2 31.0 : 31.0 1 12 NAT CS-2 30.0 : 30.0 1 13 MCQ CS-2 D 1 14 MCQ CS-2 C 1 15 MCQ CS-2 C 1 16 NAT CS-2 2.0 : 2.0 1 17 MCQ CS-2 C 1 18 MCQ CS-2 D 1 19 MCQ CS-2 B 1 20 MCQ CS-2 D 1 21 MCQ CS-2 A 1 22 MCQ CS-2 A 1 23 MCQ CS-2 A 1 24 MCQ CS-2 D 1 25 MCQ CS-2 C 1 26 MCQ CS-2 B 2 27 MCQ CS-2 D 2 28 MCQ CS-2 B 2 29 NAT CS-2 4.0 : 4.0 2 30 NAT CS-2 28.0 : 28.0 2 31 NAT CS-2 500.0 : 500.0 2 32 NAT CS-2 24.0 : 24.0 2 33 NAT CS-2 3.9 : 4.1 2 34 NAT CS-2 8.0 : 8.0 2 35 MCQ CS-2 C 2 36 MCQ CS-2 C 2 37 NAT CS-2 3.0 : 3.0 2 38 NAT CS-2 1500.0 : 1500.0 2 39 NAT CS-2 2.2 : 2.4 2
Text of page 45

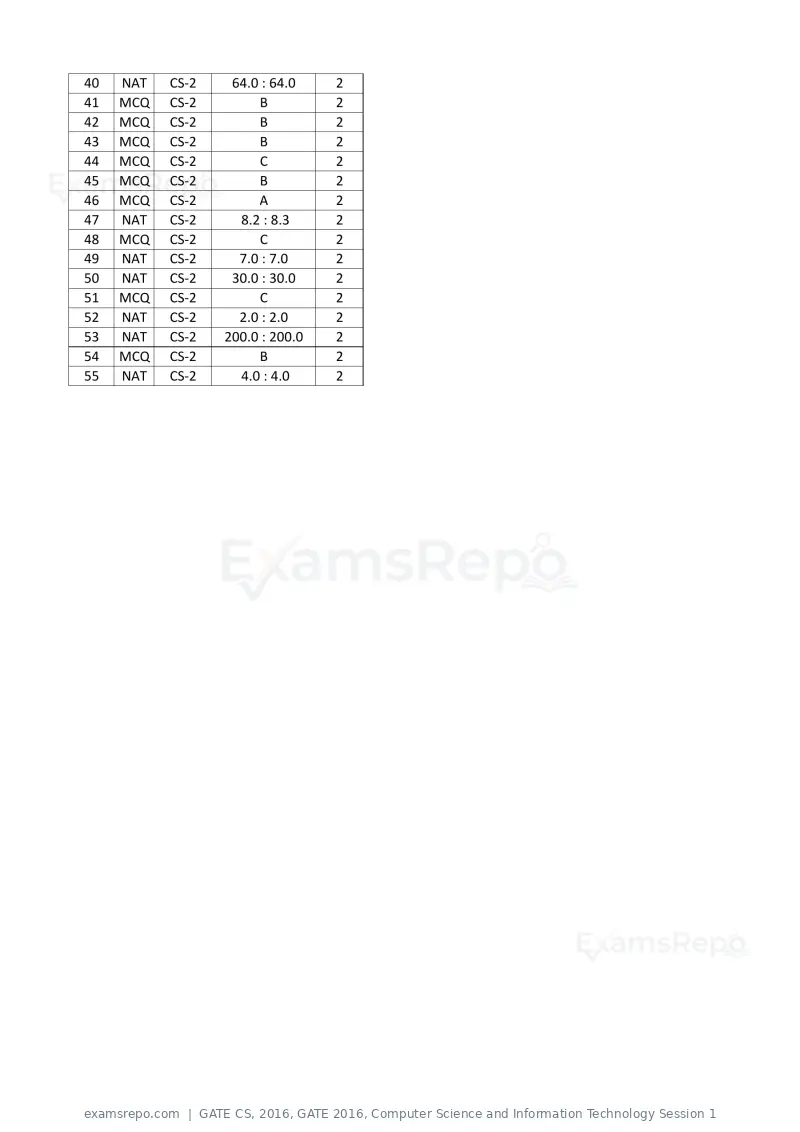

40 NAT CS-2 64.0 : 64.0 2 41 MCQ CS-2 B 2 42 MCQ CS-2 B 2 43 MCQ CS-2 B 2 44 MCQ CS-2 C 2 45 MCQ CS-2 B 2 46 MCQ CS-2 A 2 47 NAT CS-2 8.2 : 8.3 2 48 MCQ CS-2 C 2 49 NAT CS-2 7.0 : 7.0 2 50 NAT CS-2 30.0 : 30.0 2 51 MCQ CS-2 C 2 52 NAT CS-2 2.0 : 2.0 2 53 NAT CS-2 200.0 : 200.0 2 54 MCQ CS-2 B 2 55 NAT CS-2 4.0 : 4.0 2
Official key not published for this paper.
Page 1 of 45
Source: GATE. Question paper published by GATE.
