GATE CS 2023: Computer Science and Information Technology
Text of page 1

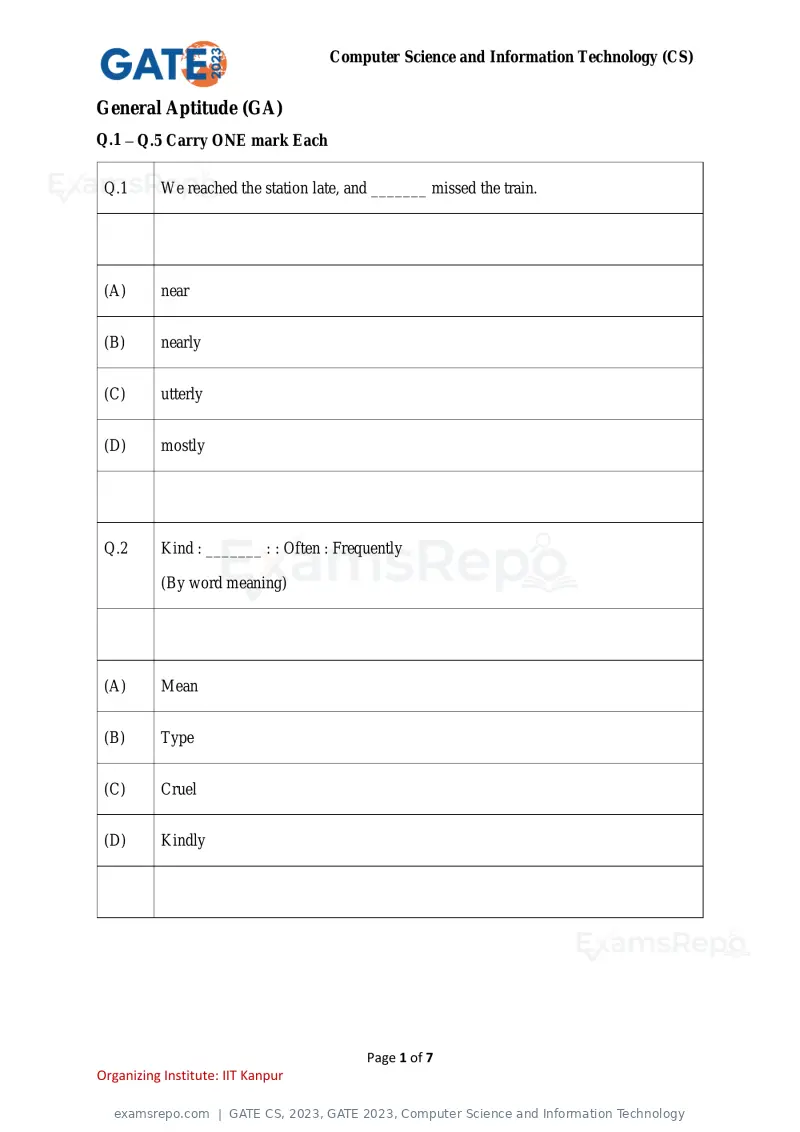

Computer Science and Information Technology (CS)
General Aptitude (GA)
Q.1 – Q.5 Carry ONE mark Each
Q.1 We reached the station late, and _______ missed the train.
(A) near
(B) nearly
(C) utterly
(D) mostly
Q.2 Kind : _______ : : Often : Frequently
(By word meaning)
(A) Mean
(B) Type
(C) Cruel
(D) Kindly
Page 1 of 7
Organizing Institute: IIT Kanpur
Text of page 2
Computer Science and Information Technology (CS)

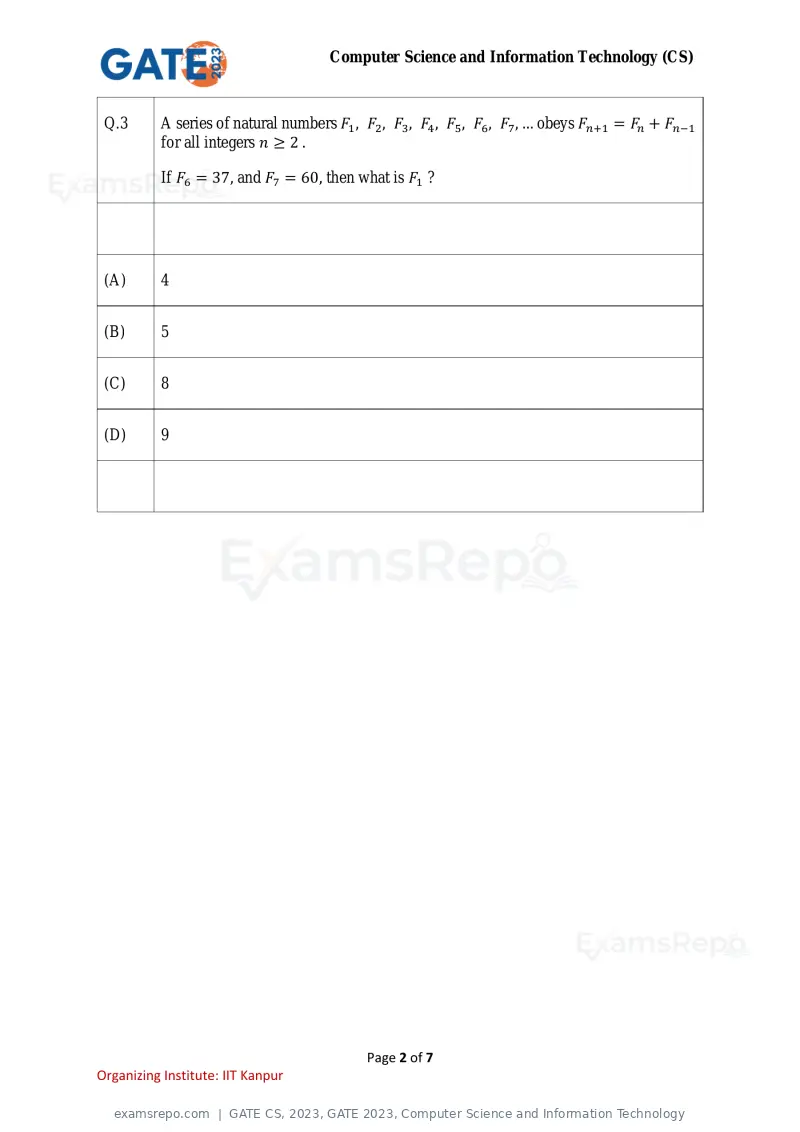

Q.3 A series of natural numbers F1 , F2 , F3 , F4 , F5 , F6 , F7 , … obeys Fn+1 = Fn + Fn−1
for all integers n ≥ 2 .
If F6 = 37, and F7 = 60, then what is F1 ?
(A) 4
(B) 5
(C) 8
(D) 9
Page 2 of 7
Organizing Institute: IIT Kanpur
Text of page 3
Computer Science and Information Technology (CS)

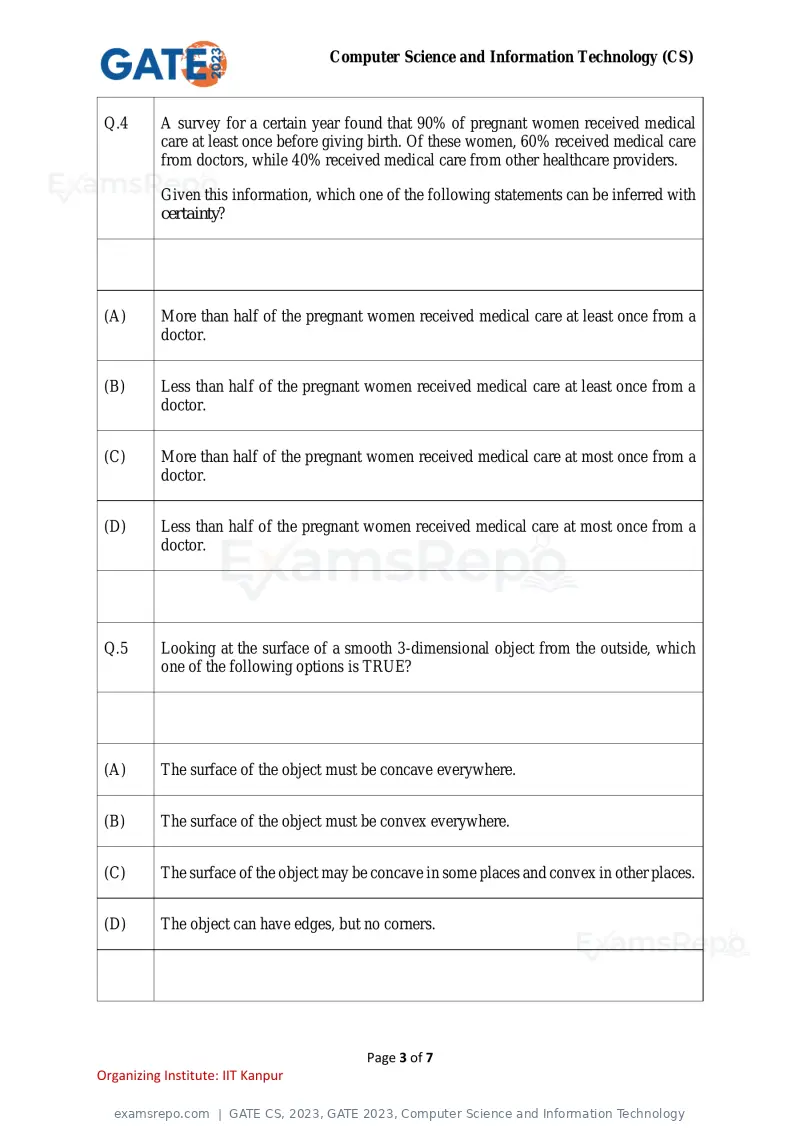

Q.4 A survey for a certain year found that 90% of pregnant women received medical
care at least once before giving birth. Of these women, 60% received medical care
from doctors, while 40% received medical care from other healthcare providers.
Given this information, which one of the following statements can be inferred with
certainty?
(A) More than half of the pregnant women received medical care at least once from a
doctor.
(B) Less than half of the pregnant women received medical care at least once from a
doctor.
(C) More than half of the pregnant women received medical care at most once from a
doctor.
(D) Less than half of the pregnant women received medical care at most once from a
doctor.
Q.5 Looking at the surface of a smooth 3-dimensional object from the outside, which
one of the following options is TRUE?
(A) The surface of the object must be concave everywhere.
(B) The surface of the object must be convex everywhere.
(C) The surface of the object may be concave in some places and convex in other places.
(D) The object can have edges, but no corners.
Page 3 of 7
Organizing Institute: IIT Kanpur
Text of page 4
Computer Science and Information Technology (CS)
Q.6 – Q.10 Carry TWO marks Each

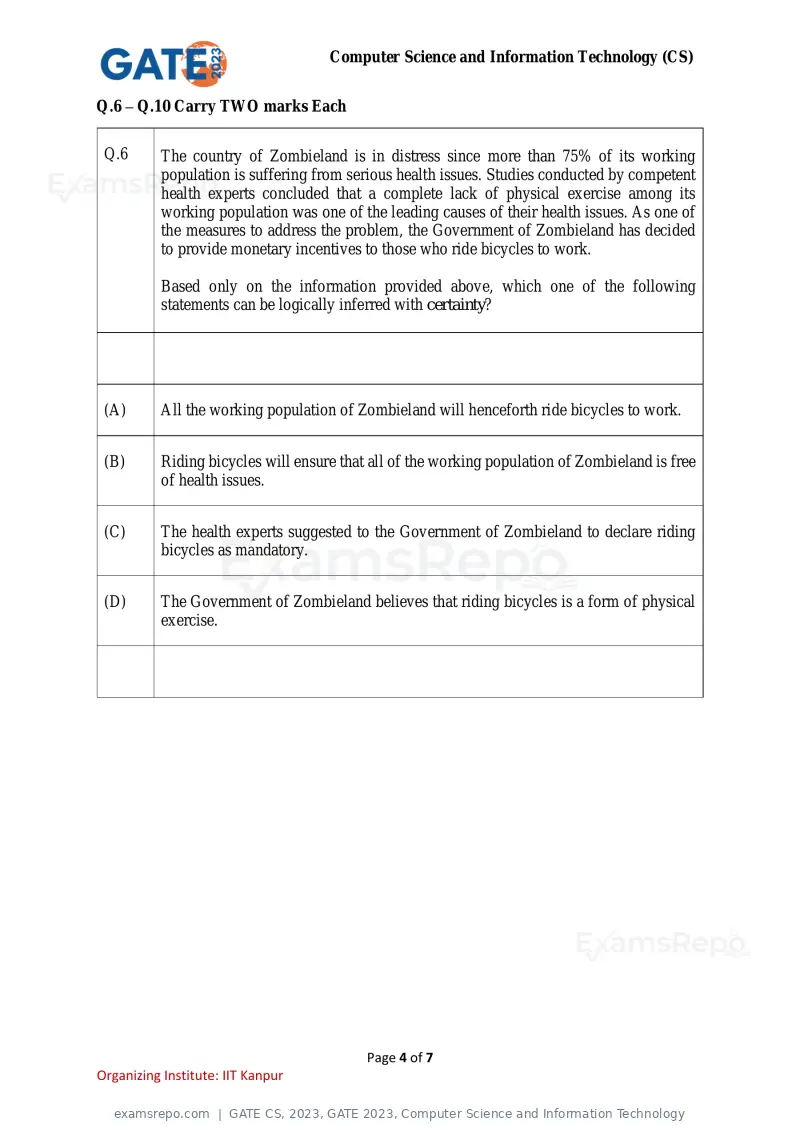

Q.6 The country of Zombieland is in distress since more than 75% of its working
population is suffering from serious health issues. Studies conducted by competent
health experts concluded that a complete lack of physical exercise among its
working population was one of the leading causes of their health issues. As one of
the measures to address the problem, the Government of Zombieland has decided
to provide monetary incentives to those who ride bicycles to work.
Based only on the information provided above, which one of the following
statements can be logically inferred with certainty?
(A) All the working population of Zombieland will henceforth ride bicycles to work.
(B) Riding bicycles will ensure that all of the working population of Zombieland is free
of health issues.
(C) The health experts suggested to the Government of Zombieland to declare riding
bicycles as mandatory.
(D) The Government of Zombieland believes that riding bicycles is a form of physical
exercise.
Page 4 of 7
Organizing Institute: IIT Kanpur
Text of page 5
Computer Science and Information Technology (CS)

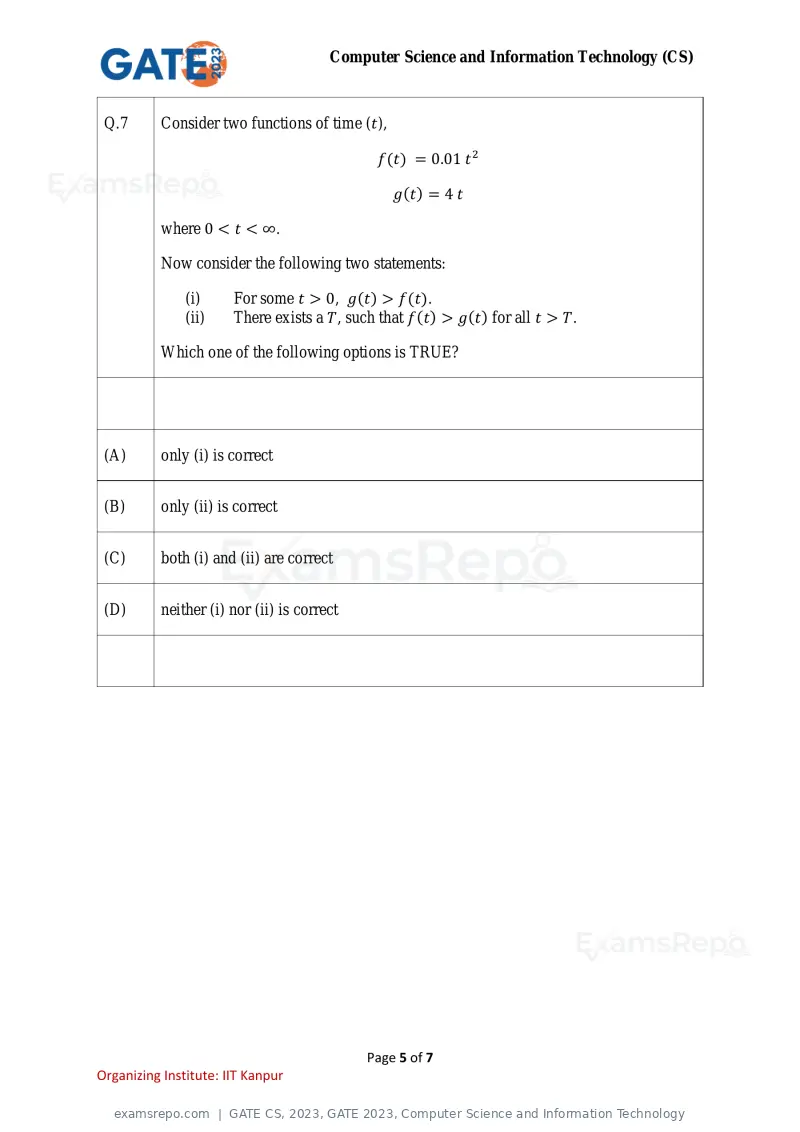

Q.7 Consider two functions of time (t),
f(t) = 0.01 t 2
g(t) = 4 t
where 0 < t < ∞.
Now consider the following two statements:
(i) For some t > 0, g(t) > f(t).
(ii) There exists a T, such that f(t) > g(t) for all t > T.
Which one of the following options is TRUE?
(A) only (i) is correct
(B) only (ii) is correct
(C) both (i) and (ii) are correct
(D) neither (i) nor (ii) is correct
Page 5 of 7
Organizing Institute: IIT Kanpur
Text of page 6
Computer Science and Information Technology (CS)

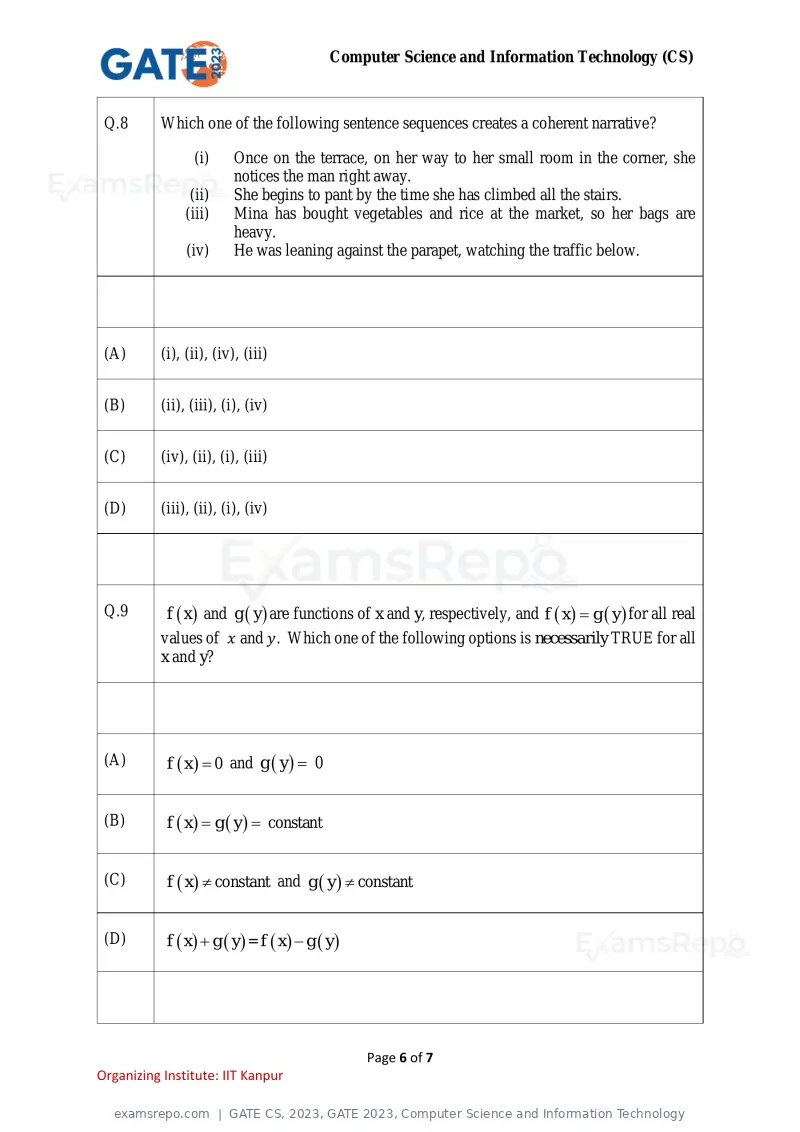

Q.8 Which one of the following sentence sequences creates a coherent narrative?
(i) Once on the terrace, on her way to her small room in the corner, she
notices the man right away.
(ii) She begins to pant by the time she has climbed all the stairs.
(iii) Mina has bought vegetables and rice at the market, so her bags are
heavy.
(iv) He was leaning against the parapet, watching the traffic below.
(A) (i), (ii), (iv), (iii)
(B) (ii), (iii), (i), (iv)
(C) (iv), (ii), (i), (iii)
(D) (iii), (ii), (i), (iv)
Q.9 f ( x ) and g ( y ) are functions of x and y, respectively, and f ( x ) = g ( y ) for all real
values of x and y. Which one of the following options is necessarily TRUE for all
x and y?
(A) f ( x ) = 0 and g ( y ) = 0
(B) f ( x ) = g ( y ) = constant
(C) f ( x ) constant and g ( y ) constant
(D) f ( x) + g ( y ) = f ( x) − g ( y )
Page 6 of 7
Organizing Institute: IIT Kanpur
Text of page 7
Computer Science and Information Technology (CS)

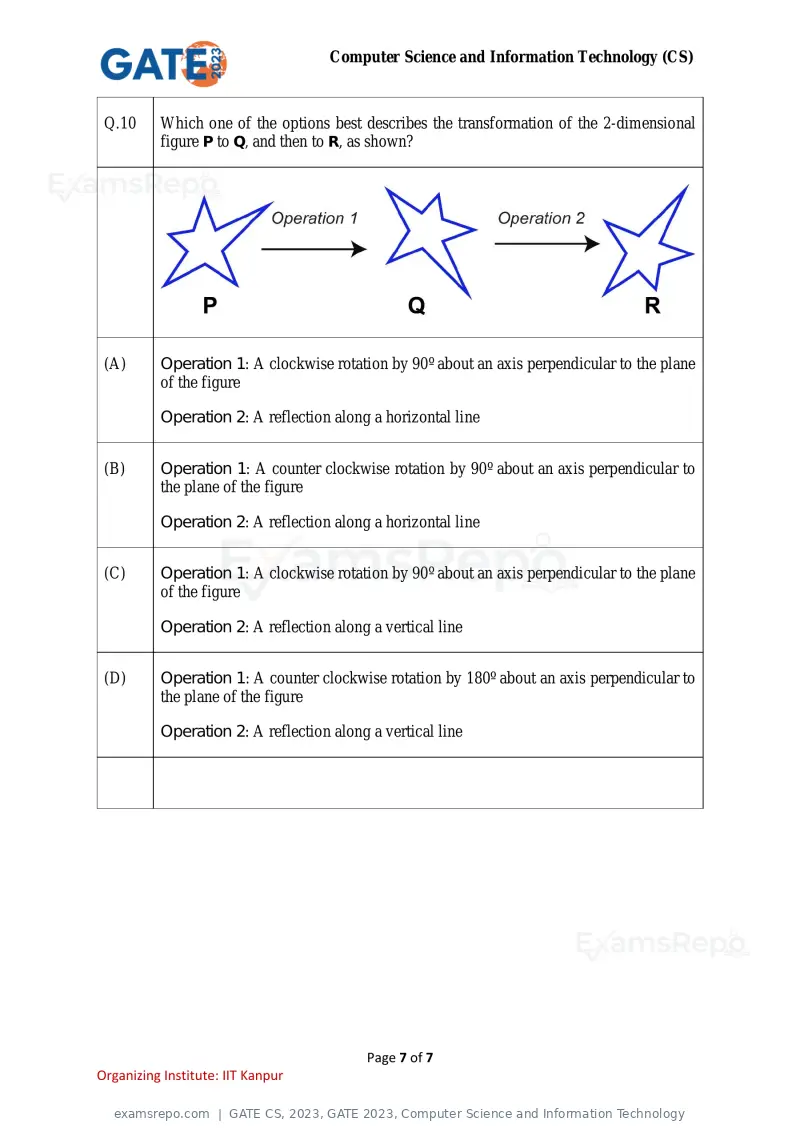

Q.10 Which one of the options best describes the transformation of the 2-dimensional
figure P to Q, and then to R, as shown?
(A) Operation 1: A clockwise rotation by 90º about an axis perpendicular to the plane
of the figure
Operation 2: A reflection along a horizontal line
(B) Operation 1: A counter clockwise rotation by 90º about an axis perpendicular to
the plane of the figure
Operation 2: A reflection along a horizontal line
(C) Operation 1: A clockwise rotation by 90º about an axis perpendicular to the plane
of the figure
Operation 2: A reflection along a vertical line
(D) Operation 1: A counter clockwise rotation by 180º about an axis perpendicular to
the plane of the figure
Operation 2: A reflection along a vertical line
Page 7 of 7
Organizing Institute: IIT Kanpur
Text of page 8
GATE 2023 Computer Science and Information Technology (CS)

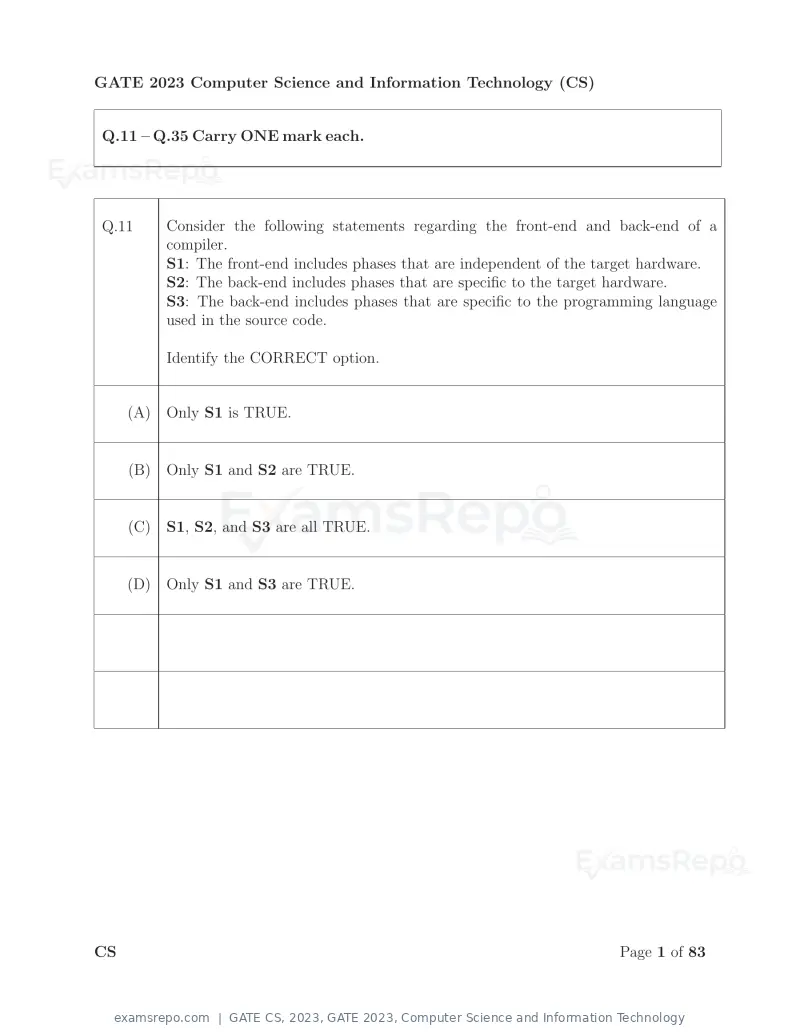

Q.11 – Q.35 Carry ONE mark each.
Q.11 Consider the following statements regarding the front-end and back-end of a
compiler.
S1: The front-end includes phases that are independent of the target hardware.
S2: The back-end includes phases that are specific to the target hardware.
S3: The back-end includes phases that are specific to the programming language
used in the source code.
Identify the CORRECT option.
(A) Only S1 is TRUE.
(B) Only S1 and S2 are TRUE.
(C) S1, S2, and S3 are all TRUE.
(D) Only S1 and S3 are TRUE.
CS Page 1 of 83
Text of page 9
GATE 2023 Computer Science and Information Technology (CS)

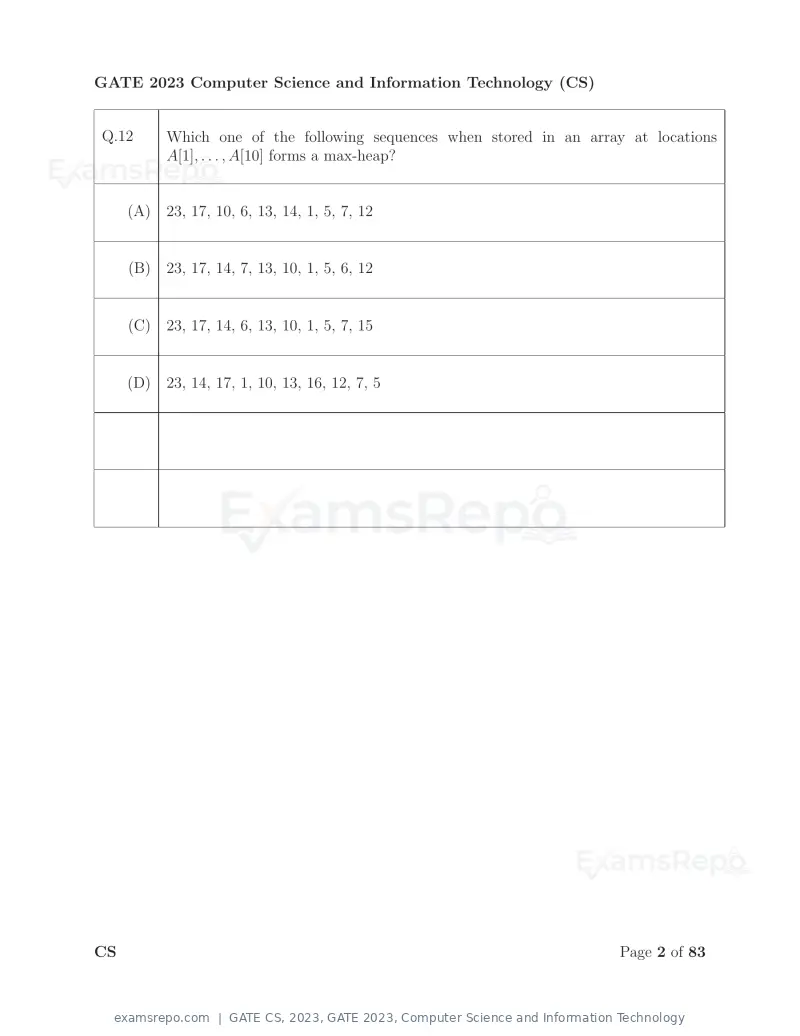

Q.12 Which one of the following sequences when stored in an array at locations
A[1], . . . , A[10] forms a max-heap?
(A) 23, 17, 10, 6, 13, 14, 1, 5, 7, 12
(B) 23, 17, 14, 7, 13, 10, 1, 5, 6, 12
(C) 23, 17, 14, 6, 13, 10, 1, 5, 7, 15
(D) 23, 14, 17, 1, 10, 13, 16, 12, 7, 5
CS Page 2 of 83
Text of page 10
GATE 2023 Computer Science and Information Technology (CS)

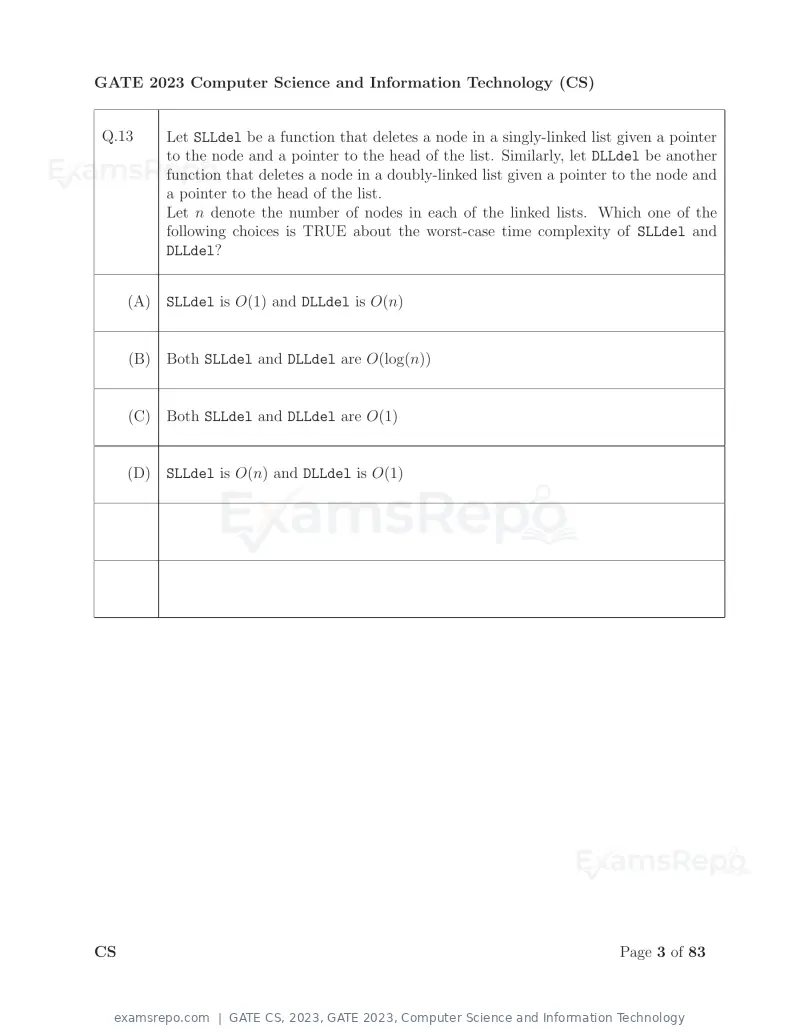

Q.13 Let SLLdel be a function that deletes a node in a singly-linked list given a pointer
to the node and a pointer to the head of the list. Similarly, let DLLdel be another
function that deletes a node in a doubly-linked list given a pointer to the node and
a pointer to the head of the list.
Let n denote the number of nodes in each of the linked lists. Which one of the
following choices is TRUE about the worst-case time complexity of SLLdel and
DLLdel?
(A) SLLdel is O(1) and DLLdel is O(n)
(B) Both SLLdel and DLLdel are O(log(n))
(C) Both SLLdel and DLLdel are O(1)
(D) SLLdel is O(n) and DLLdel is O(1)
CS Page 3 of 83
Text of page 11
GATE 2023 Computer Science and Information Technology (CS)

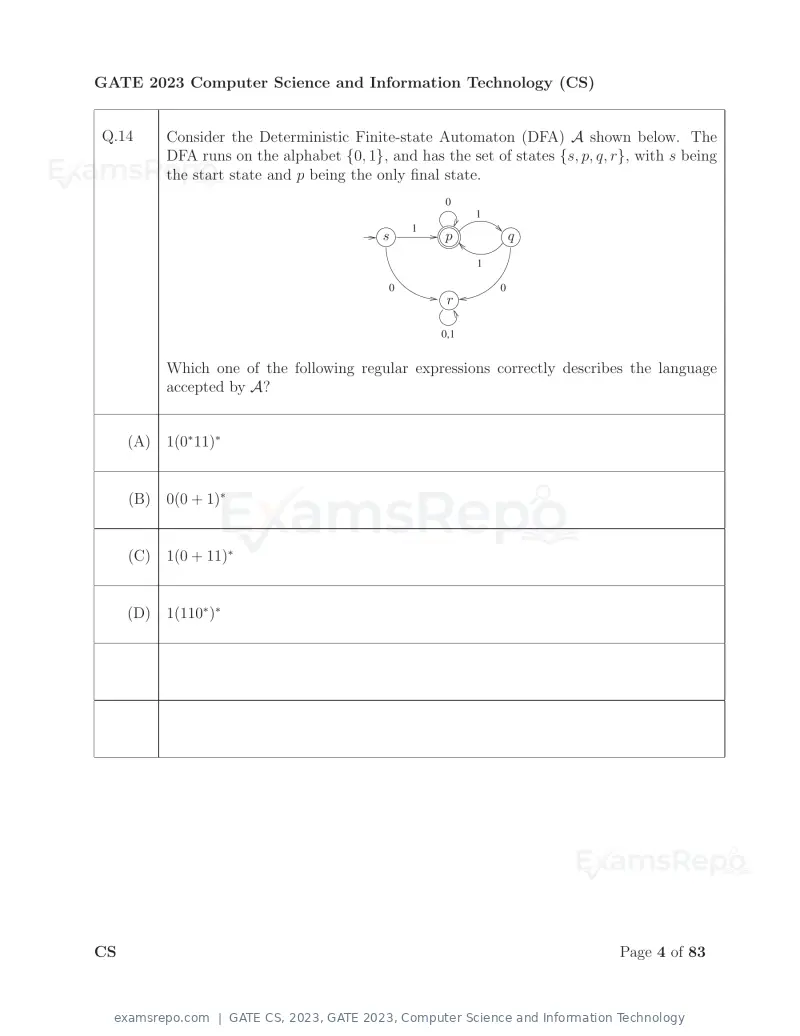

Q.14 Consider the Deterministic Finite-state Automaton (DFA) A shown below. The
DFA runs on the alphabet {0, 1}, and has the set of states {s, p, q, r}, with s being
the start state and p being the only final state.
0
1
1
s p q
1
0 0
r
0,1
Which one of the following regular expressions correctly describes the language
accepted by A?
(A) 1(0∗ 11)∗
(B) 0(0 + 1)∗
(C) 1(0 + 11)∗
(D) 1(110∗ )∗
CS Page 4 of 83
Text of page 12
GATE 2023 Computer Science and Information Technology (CS)

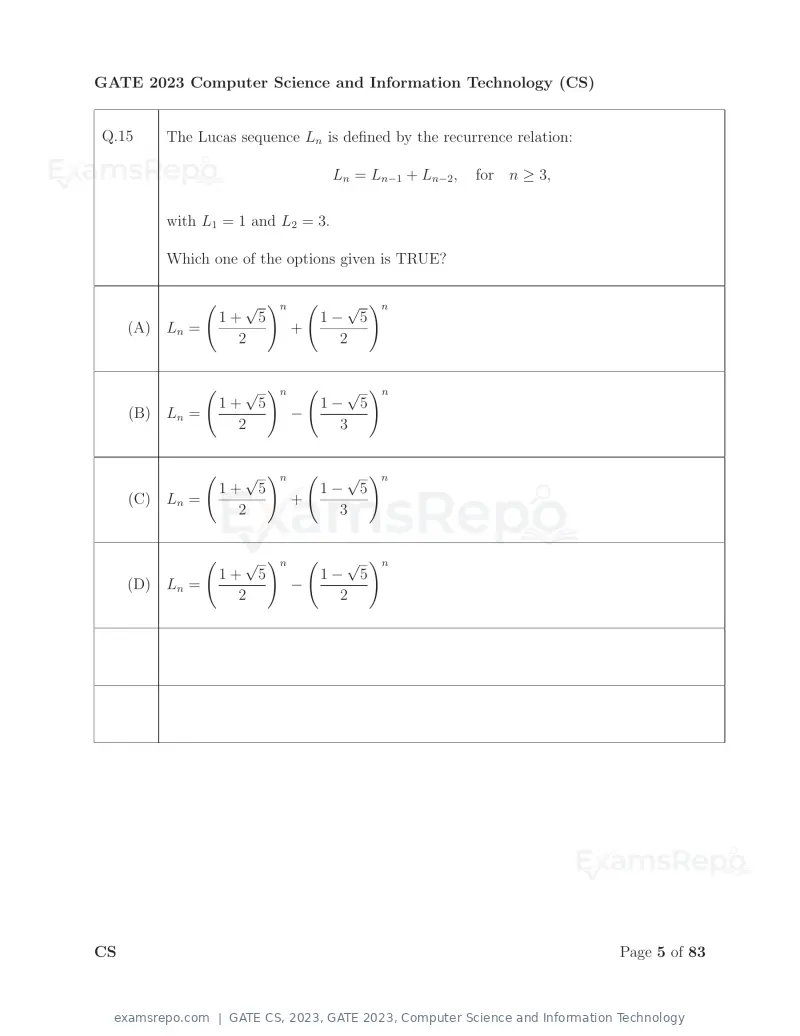

Q.15 The Lucas sequence Ln is defined by the recurrence relation:
Ln = Ln−1 + Ln−2 , for n ≥ 3,
with L1 = 1 and L2 = 3.
Which one of the options given is TRUE?
√ n √ n
1+ 5 1− 5
(A) Ln = +
2 2
√ n √ n
1+ 5 1− 5
(B) Ln = −
2 3
√ n √ n
1+ 5 1− 5
(C) Ln = +
2 3
√ n √ n
1+ 5 1− 5
(D) Ln = −
2 2
CS Page 5 of 83
Text of page 13
GATE 2023 Computer Science and Information Technology (CS)

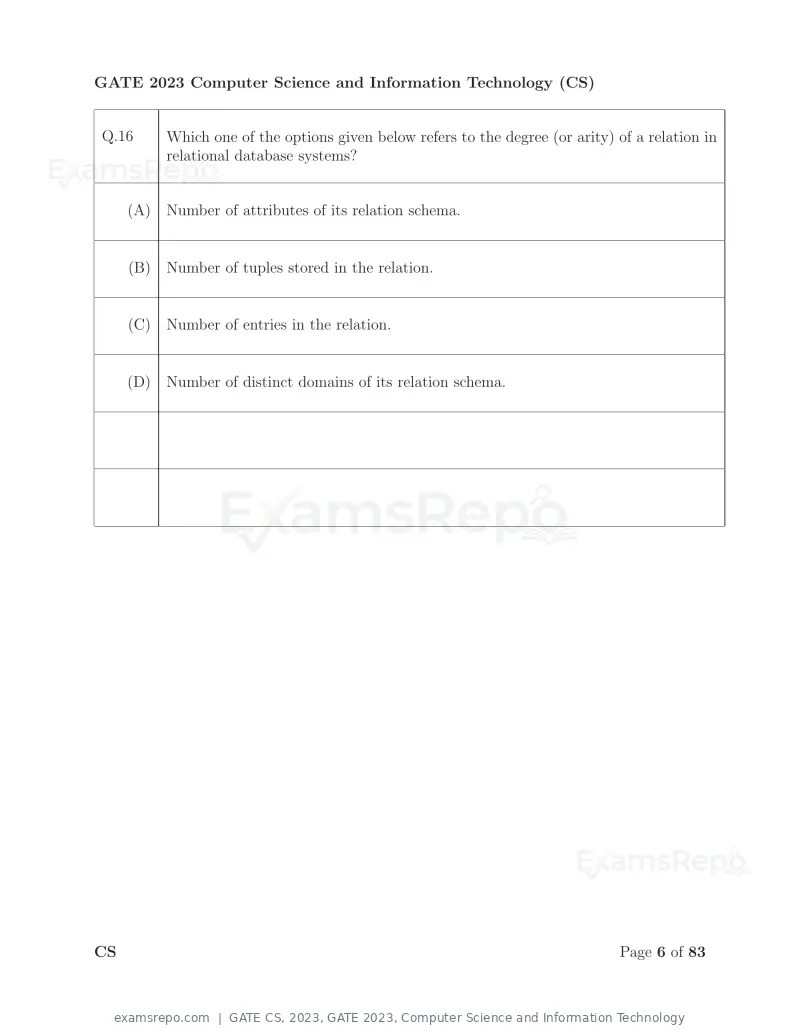

Q.16 Which one of the options given below refers to the degree (or arity) of a relation in
relational database systems?
(A) Number of attributes of its relation schema.
(B) Number of tuples stored in the relation.
(C) Number of entries in the relation.
(D) Number of distinct domains of its relation schema.
CS Page 6 of 83
Text of page 14
GATE 2023 Computer Science and Information Technology (CS)

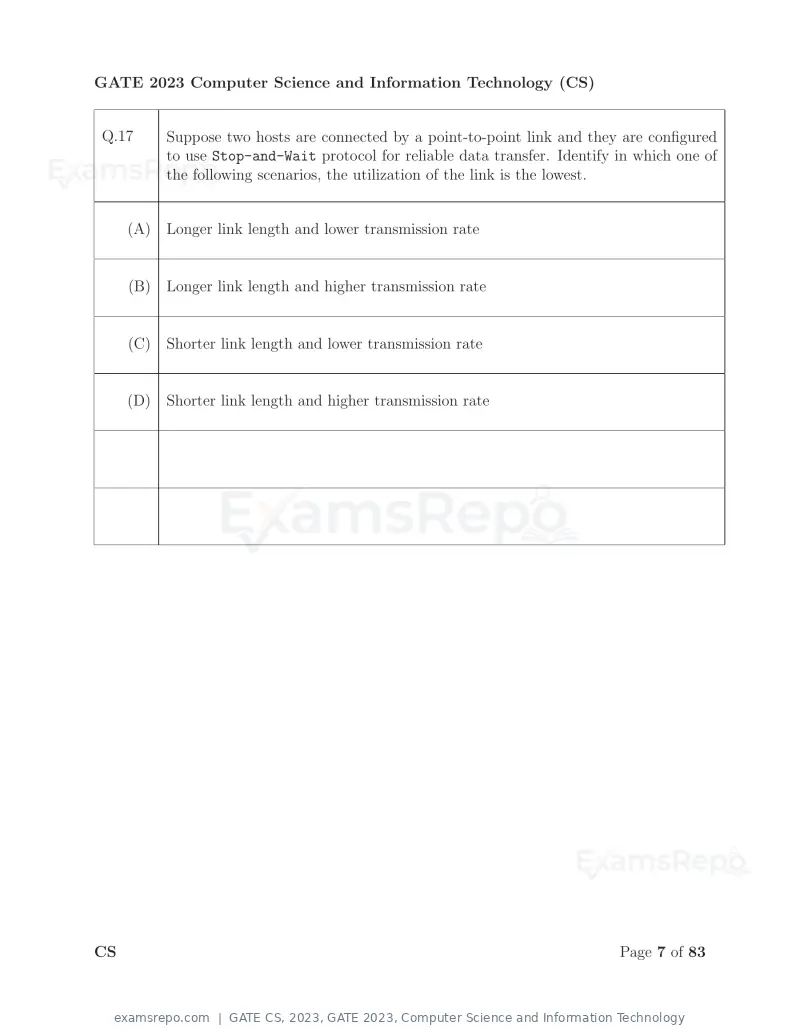

Q.17 Suppose two hosts are connected by a point-to-point link and they are configured
to use Stop-and-Wait protocol for reliable data transfer. Identify in which one of
the following scenarios, the utilization of the link is the lowest.
(A) Longer link length and lower transmission rate
(B) Longer link length and higher transmission rate
(C) Shorter link length and lower transmission rate
(D) Shorter link length and higher transmission rate
CS Page 7 of 83
Text of page 15
GATE 2023 Computer Science and Information Technology (CS)

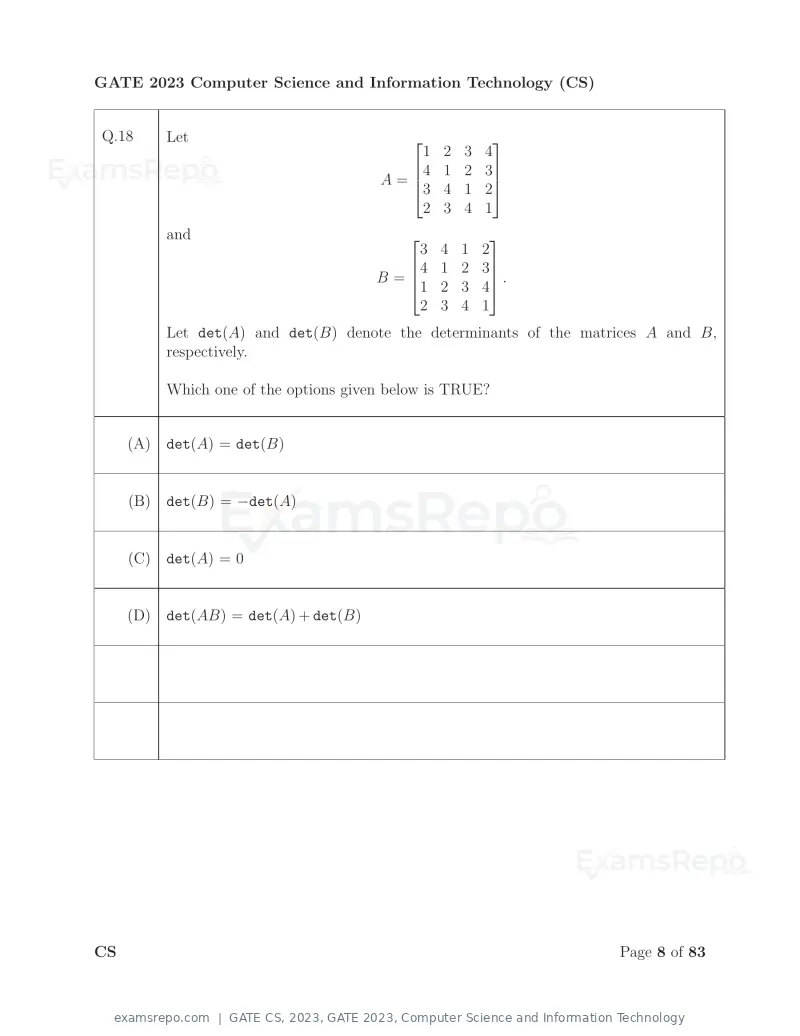

Q.18 Let ⎡ ⎤
1 2 3 4
⎢4 1 2 3⎥
A=⎢
⎣3
⎥
4 1 2⎦
2 3 4 1
and ⎡ ⎤
3 4 1 2
⎢4 1 2 3⎥
B=⎢
⎣1
⎥.
2 3 4⎦
2 3 4 1
Let det(A) and det(B) denote the determinants of the matrices A and B,
respectively.
Which one of the options given below is TRUE?
(A) det(A) = det(B)
(B) det(B) = −det(A)
(C) det(A) = 0
(D) det(AB) = det(A) + det(B)
CS Page 8 of 83
Text of page 16
GATE 2023 Computer Science and Information Technology (CS)

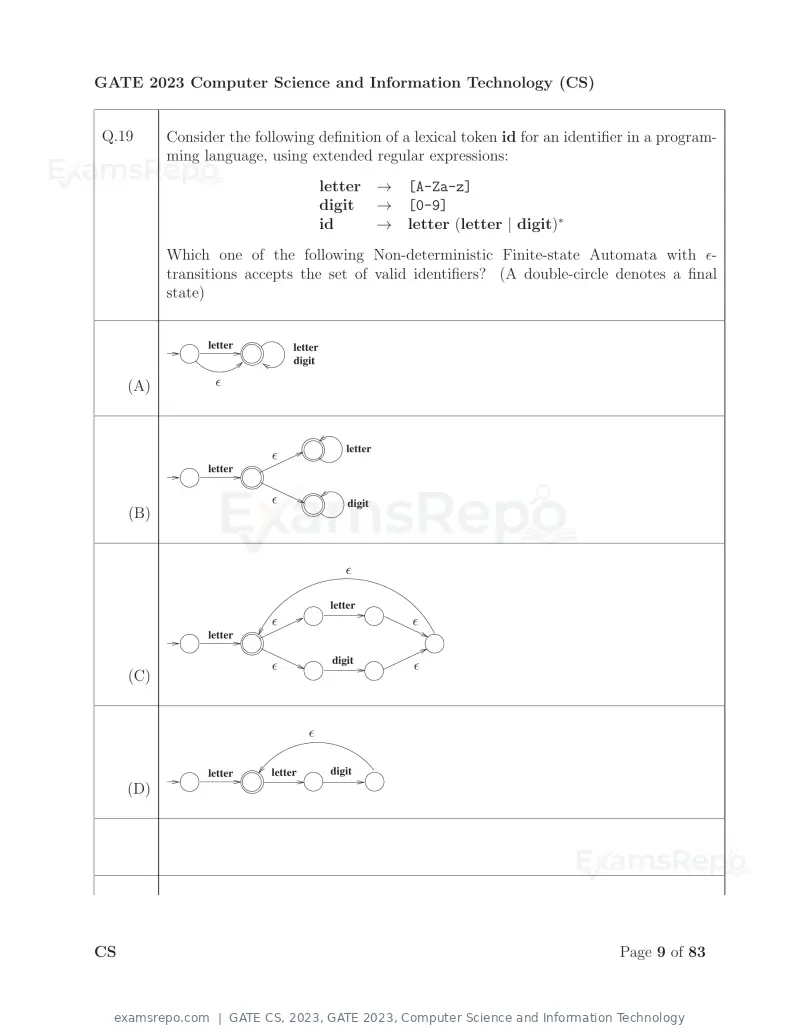

Q.19 Consider the following definition of a lexical token id for an identifier in a program-
ming language, using extended regular expressions:
letter → [A-Za-z]
digit → [0-9]
id → letter (letter | digit)∗
Which one of the following Non-deterministic Finite-state Automata with -
transitions accepts the set of valid identifiers? (A double-circle denotes a final
state)
letter letter
digit
(A)
letter
letter
digit
(B)
letter
letter
digit
(C)
letter letter digit
(D)
CS Page 9 of 83
Text of page 17

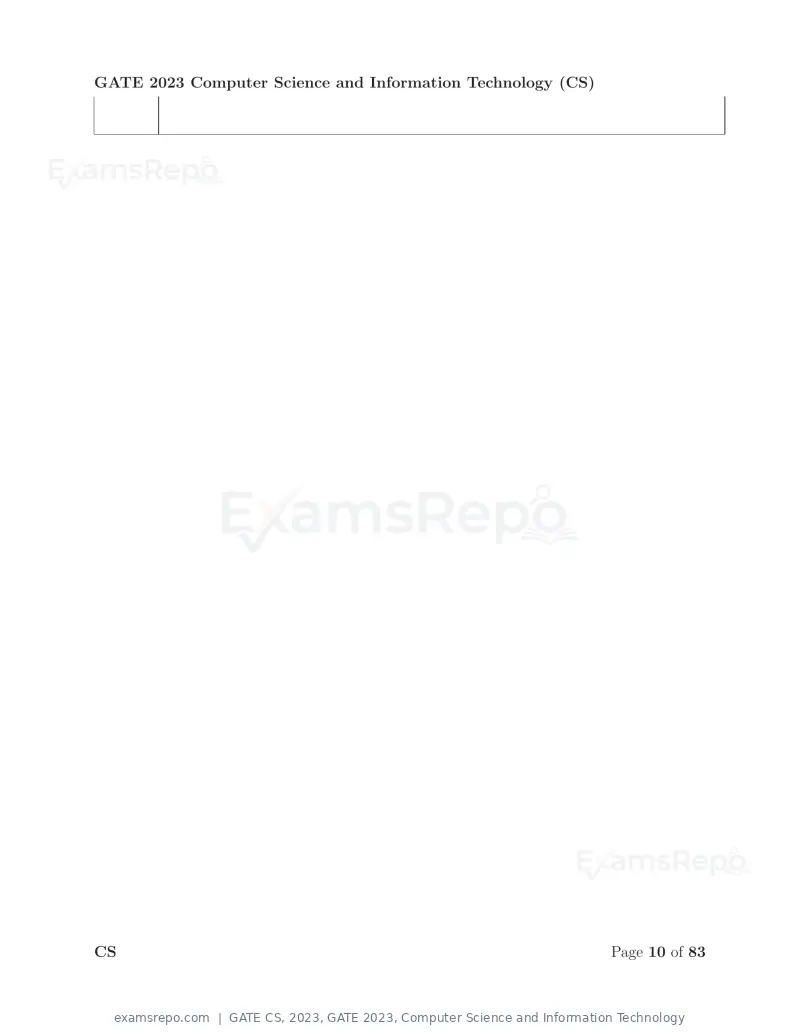

GATE 2023 Computer Science and Information Technology (CS) CS Page 10 of 83
Text of page 18
GATE 2023 Computer Science and Information Technology (CS)

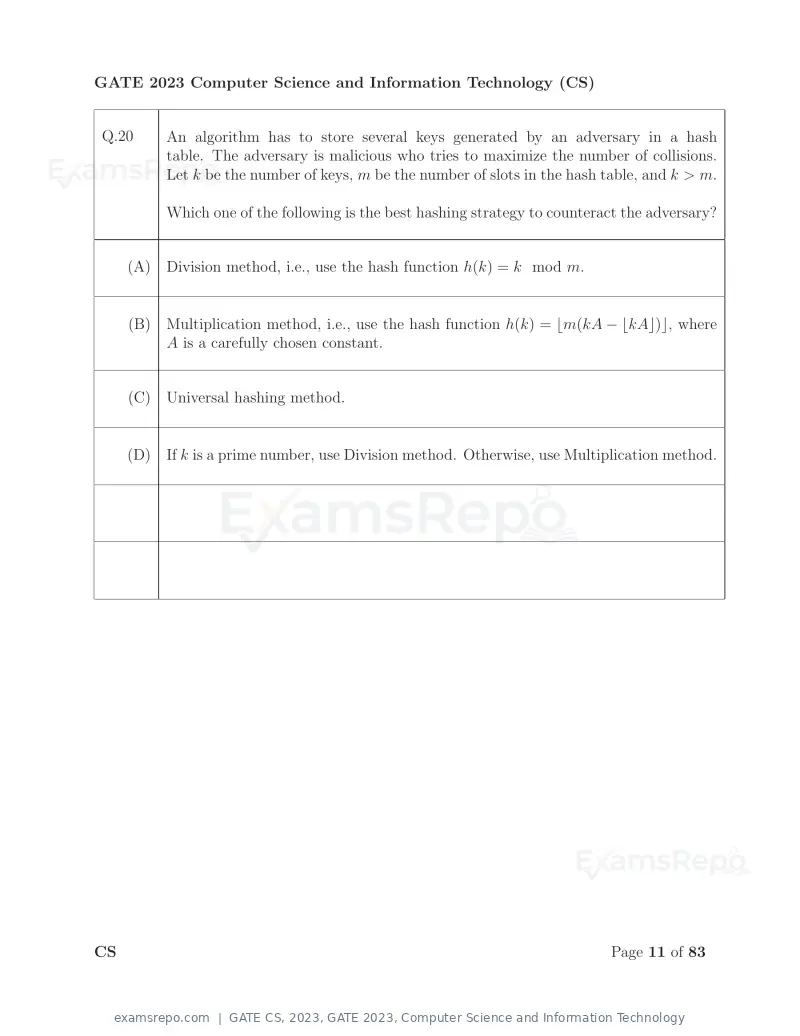

Q.20 An algorithm has to store several keys generated by an adversary in a hash
table. The adversary is malicious who tries to maximize the number of collisions.
Let k be the number of keys, m be the number of slots in the hash table, and k > m.
Which one of the following is the best hashing strategy to counteract the adversary?
(A) Division method, i.e., use the hash function h(k) = k mod m.
(B) Multiplication method, i.e., use the hash function h(k) = m(kA − kA), where
A is a carefully chosen constant.
(C) Universal hashing method.
(D) If k is a prime number, use Division method. Otherwise, use Multiplication method.
CS Page 11 of 83
Text of page 19
GATE 2023 Computer Science and Information Technology (CS)

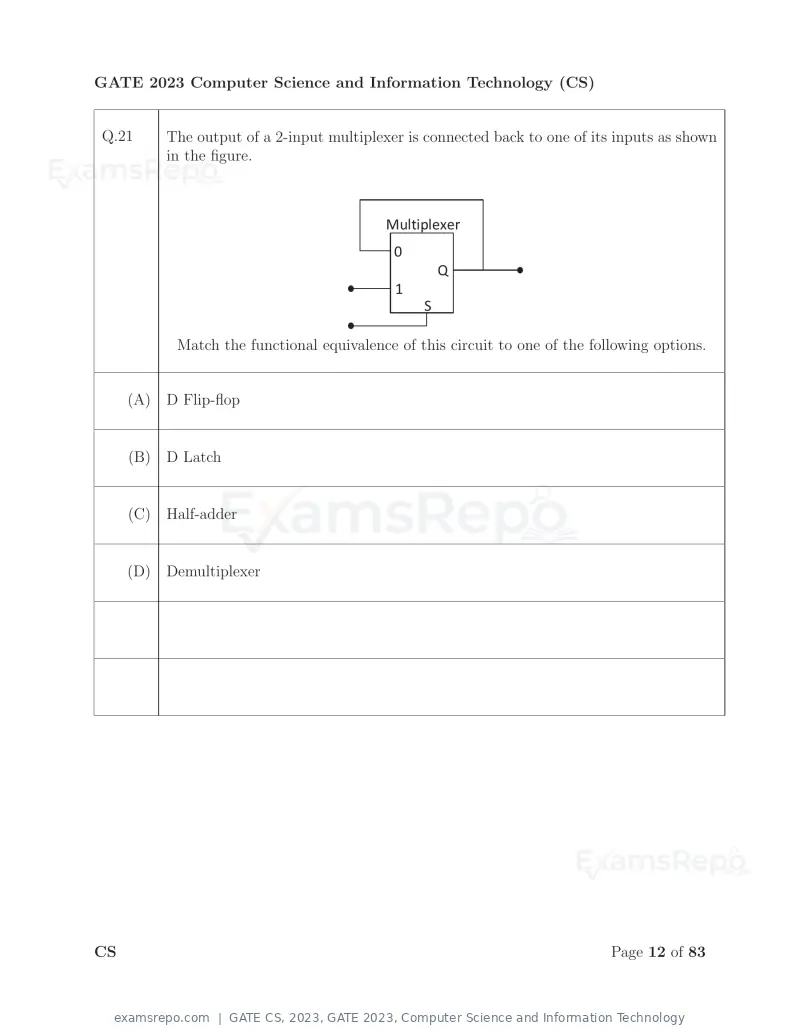

Q.21 The output of a 2-input multiplexer is connected back to one of its inputs as shown
in the figure.
Multiplexer
0
Q
1
S
Match the functional equivalence of this circuit to one of the following options.
(A) D Flip-flop
(B) D Latch
(C) Half-adder
(D) Demultiplexer
CS Page 12 of 83
Text of page 20
GATE 2023 Computer Science and Information Technology (CS)

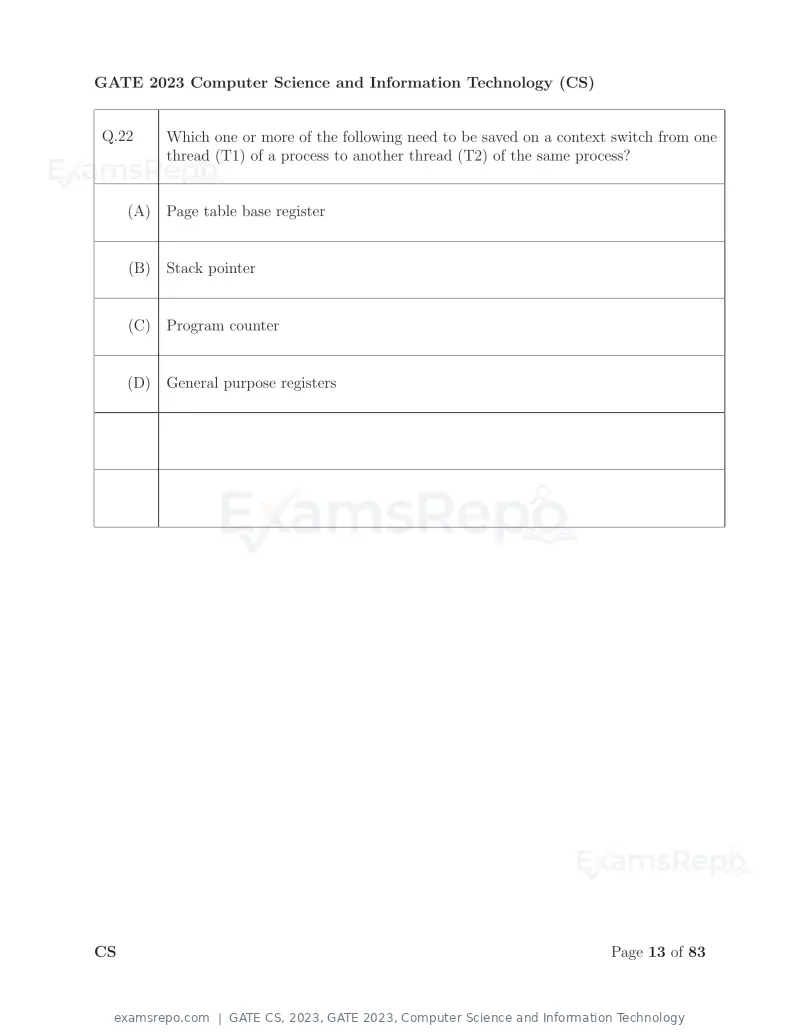

Q.22 Which one or more of the following need to be saved on a context switch from one
thread (T1) of a process to another thread (T2) of the same process?
(A) Page table base register
(B) Stack pointer
(C) Program counter
(D) General purpose registers
CS Page 13 of 83
Text of page 21
GATE 2023 Computer Science and Information Technology (CS)

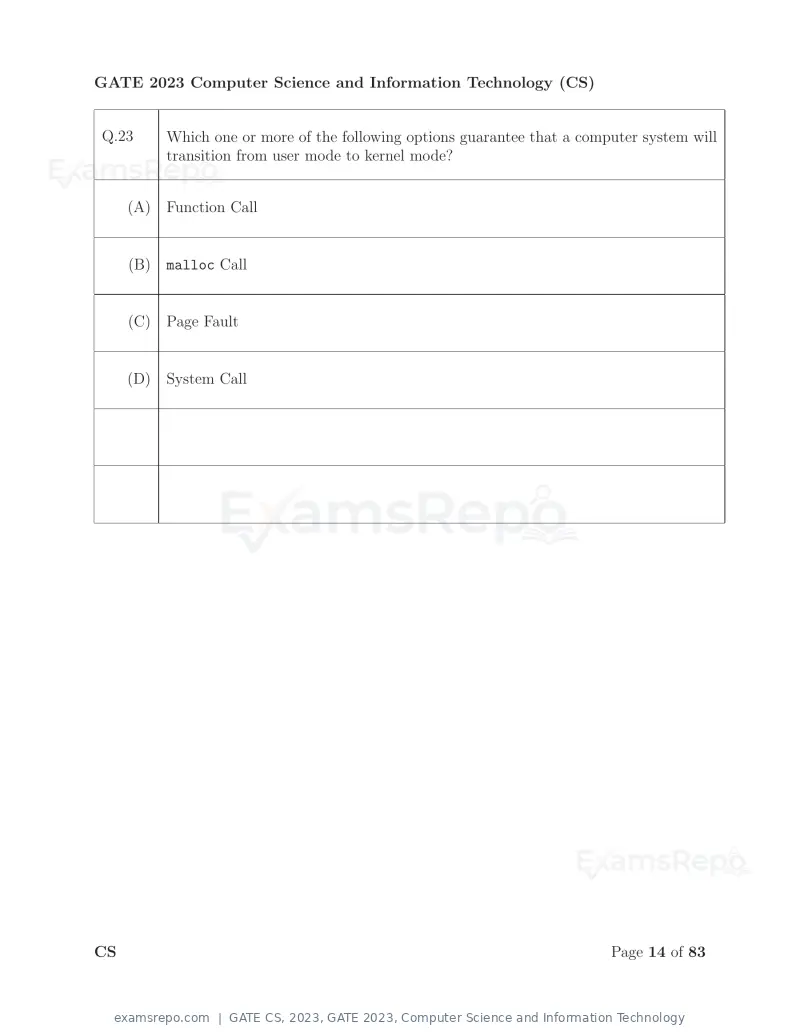

Q.23 Which one or more of the following options guarantee that a computer system will
transition from user mode to kernel mode?
(A) Function Call
(B) malloc Call
(C) Page Fault
(D) System Call
CS Page 14 of 83
Text of page 22
GATE 2023 Computer Science and Information Technology (CS)

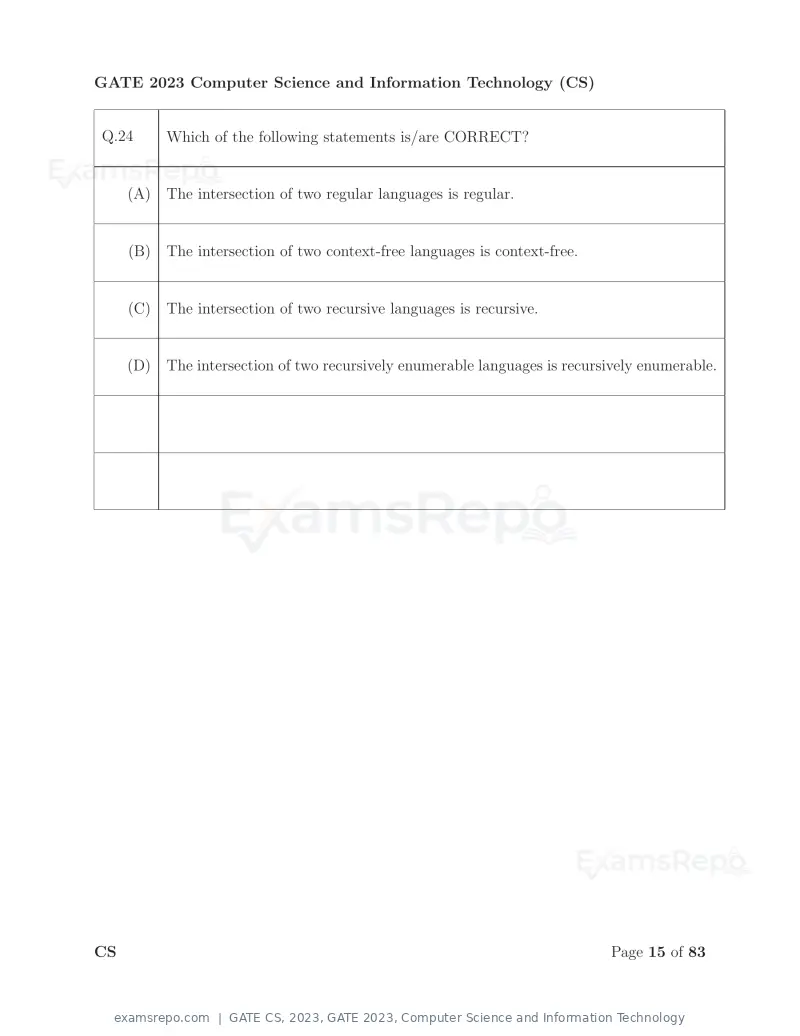

Q.24 Which of the following statements is/are CORRECT?
(A) The intersection of two regular languages is regular.
(B) The intersection of two context-free languages is context-free.
(C) The intersection of two recursive languages is recursive.
(D) The intersection of two recursively enumerable languages is recursively enumerable.
CS Page 15 of 83
Text of page 23
GATE 2023 Computer Science and Information Technology (CS)

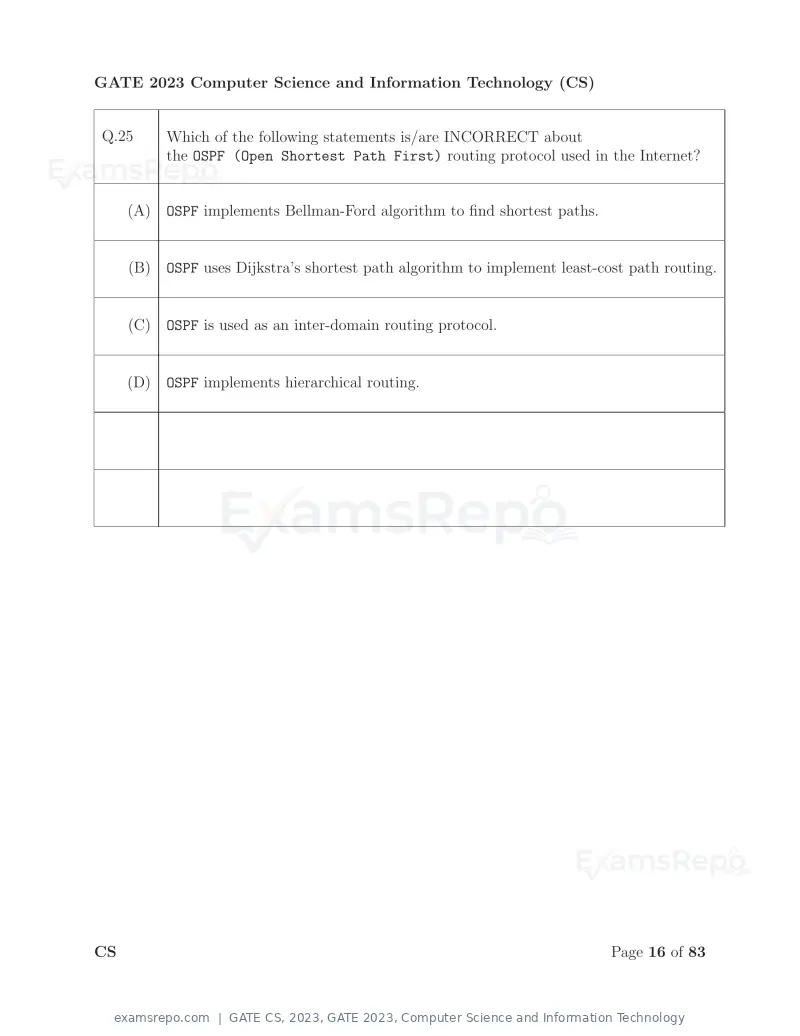

Q.25 Which of the following statements is/are INCORRECT about
the OSPF (Open Shortest Path First) routing protocol used in the Internet?
(A) OSPF implements Bellman-Ford algorithm to find shortest paths.
(B) OSPF uses Dijkstra’s shortest path algorithm to implement least-cost path routing.
(C) OSPF is used as an inter-domain routing protocol.
(D) OSPF implements hierarchical routing.
CS Page 16 of 83
Text of page 24
GATE 2023 Computer Science and Information Technology (CS)

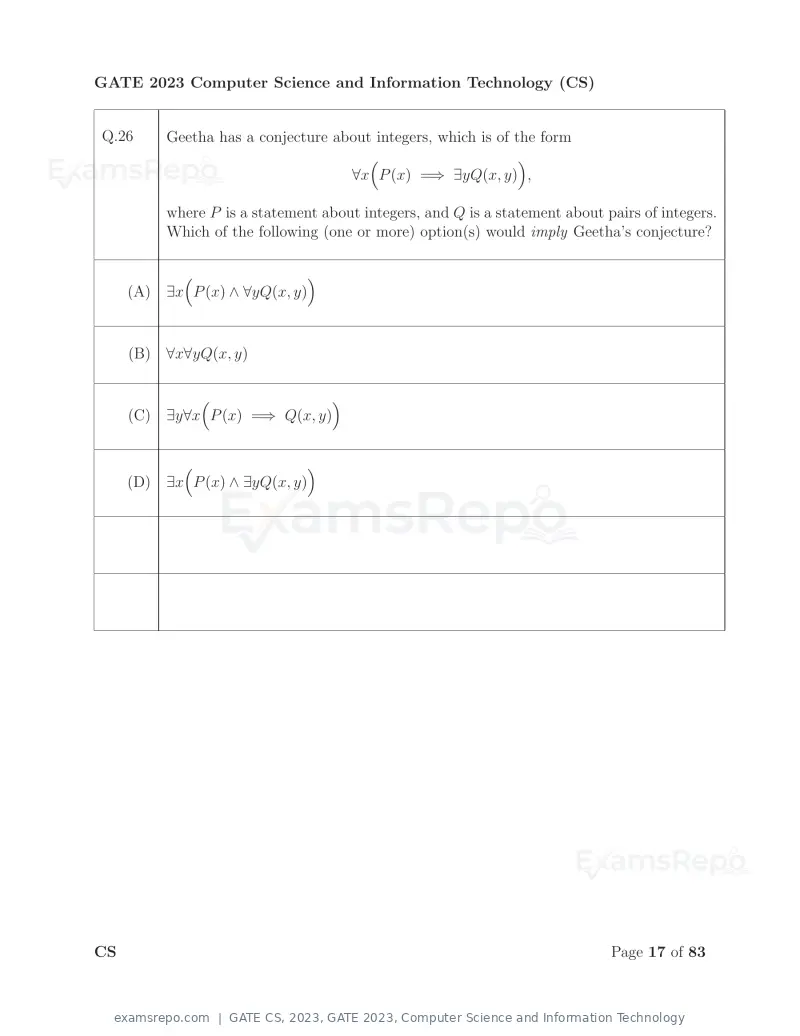

Q.26 Geetha has a conjecture about integers, which is of the form
∀x P (x) =⇒ ∃yQ(x, y) ,
where P is a statement about integers, and Q is a statement about pairs of integers.
Which of the following (one or more) option(s) would imply Geetha’s conjecture?
(A) ∃x P (x) ∧ ∀yQ(x, y)
(B) ∀x∀yQ(x, y)
(C) ∃y∀x P (x) =⇒ Q(x, y)
(D) ∃x P (x) ∧ ∃yQ(x, y)
CS Page 17 of 83
Text of page 25
GATE 2023 Computer Science and Information Technology (CS)

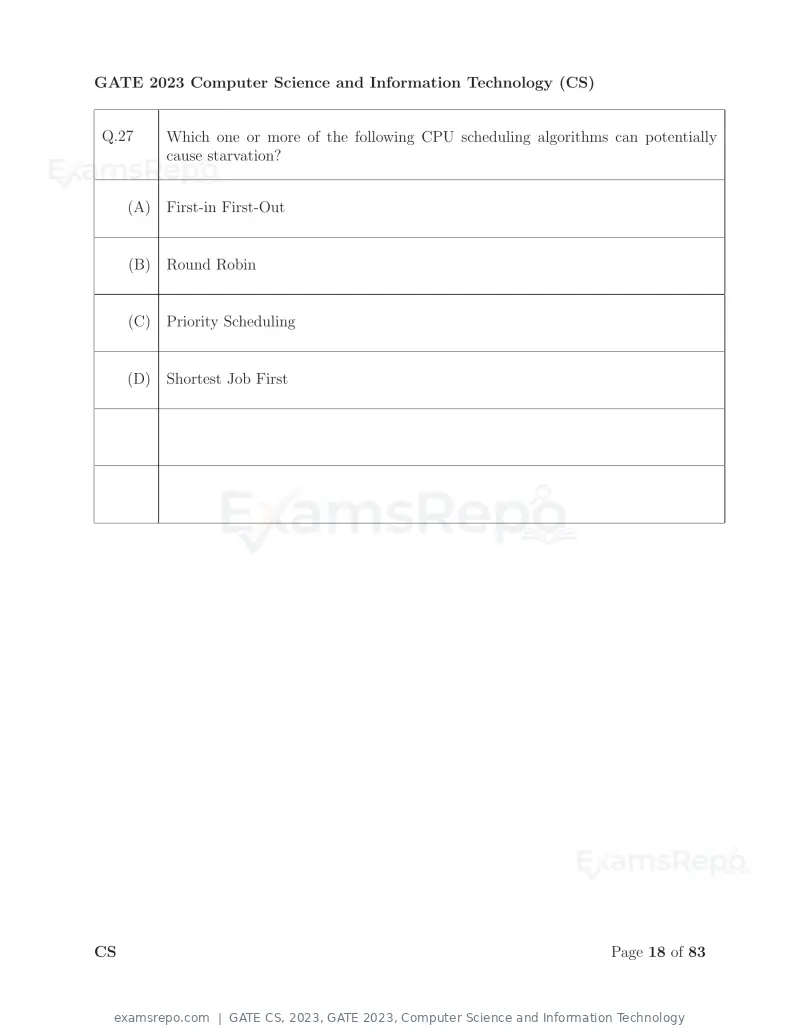

Q.27 Which one or more of the following CPU scheduling algorithms can potentially
cause starvation?
(A) First-in First-Out
(B) Round Robin
(C) Priority Scheduling
(D) Shortest Job First
CS Page 18 of 83
Text of page 26
GATE 2023 Computer Science and Information Technology (CS)

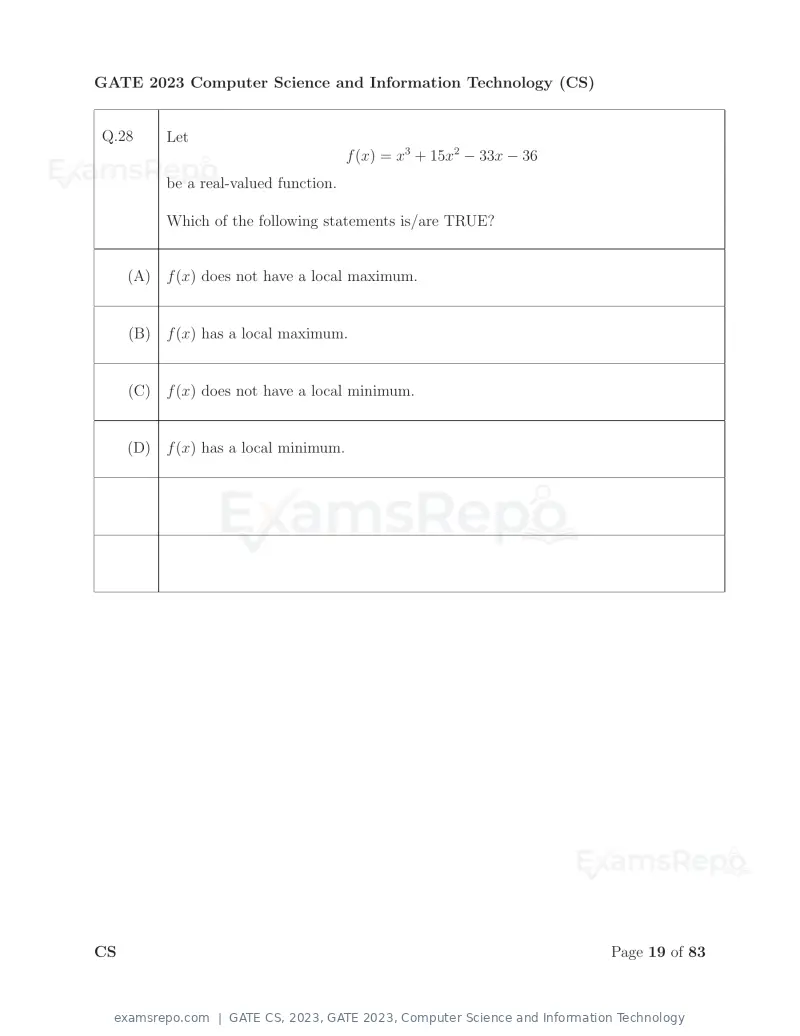

Q.28 Let
f (x) = x3 + 15x2 − 33x − 36
be a real-valued function.
Which of the following statements is/are TRUE?
(A) f (x) does not have a local maximum.
(B) f (x) has a local maximum.
(C) f (x) does not have a local minimum.
(D) f (x) has a local minimum.
CS Page 19 of 83
Text of page 27
GATE 2023 Computer Science and Information Technology (CS)

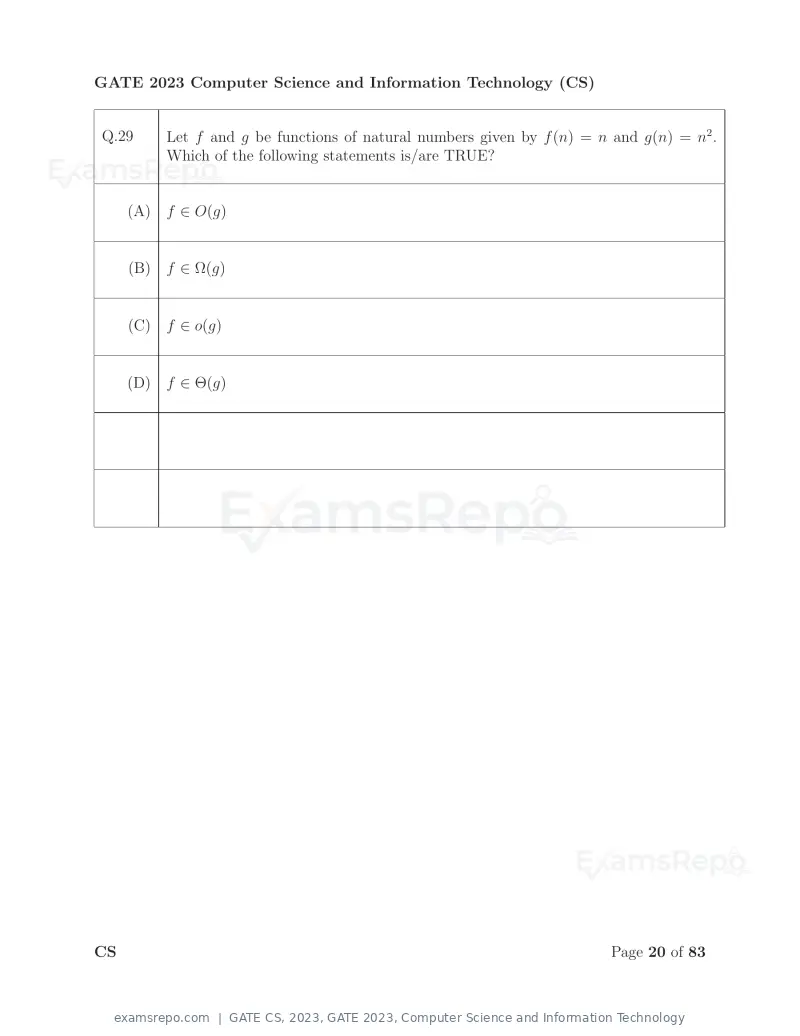

Q.29 Let f and g be functions of natural numbers given by f (n) = n and g(n) = n2 .
Which of the following statements is/are TRUE?
(A) f ∈ O(g)
(B) f ∈ Ω(g)
(C) f ∈ o(g)
(D) f ∈ Θ(g)
CS Page 20 of 83
Text of page 28
GATE 2023 Computer Science and Information Technology (CS)

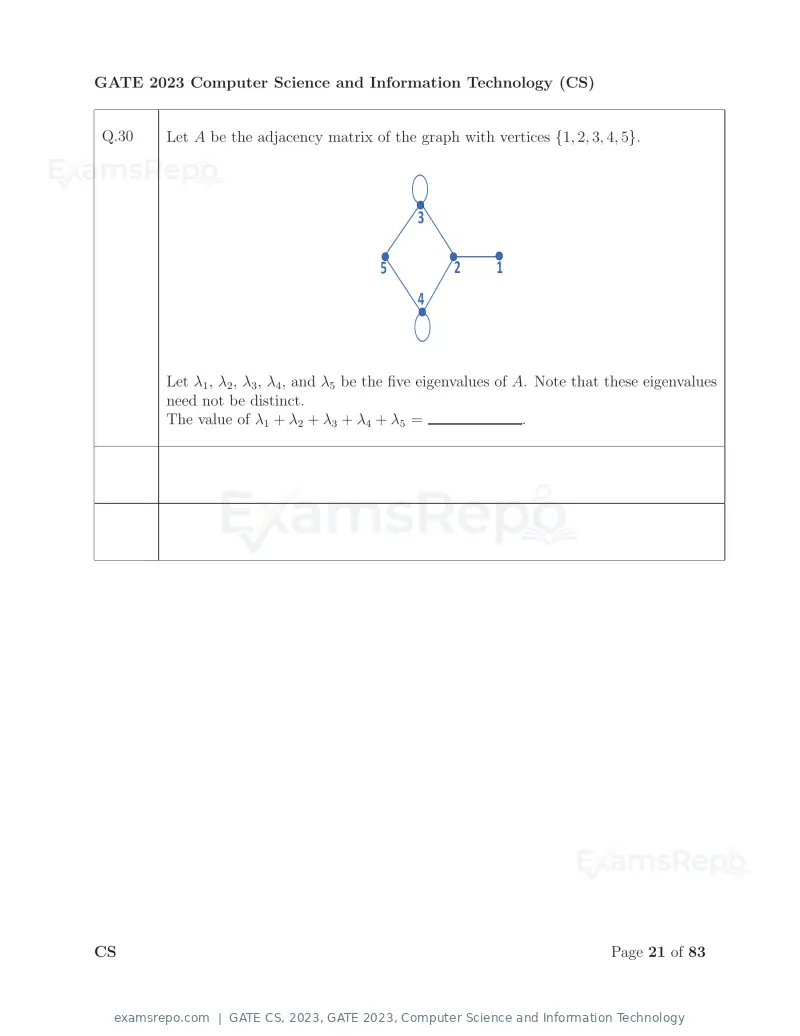

Q.30 Let A be the adjacency matrix of the graph with vertices {1, 2, 3, 4, 5}.
3
5 2 1
4
Let λ1 , λ2 , λ3 , λ4 , and λ5 be the five eigenvalues of A. Note that these eigenvalues
need not be distinct.
The value of λ1 + λ2 + λ3 + λ4 + λ5 = .
CS Page 21 of 83
Text of page 29
GATE 2023 Computer Science and Information Technology (CS)

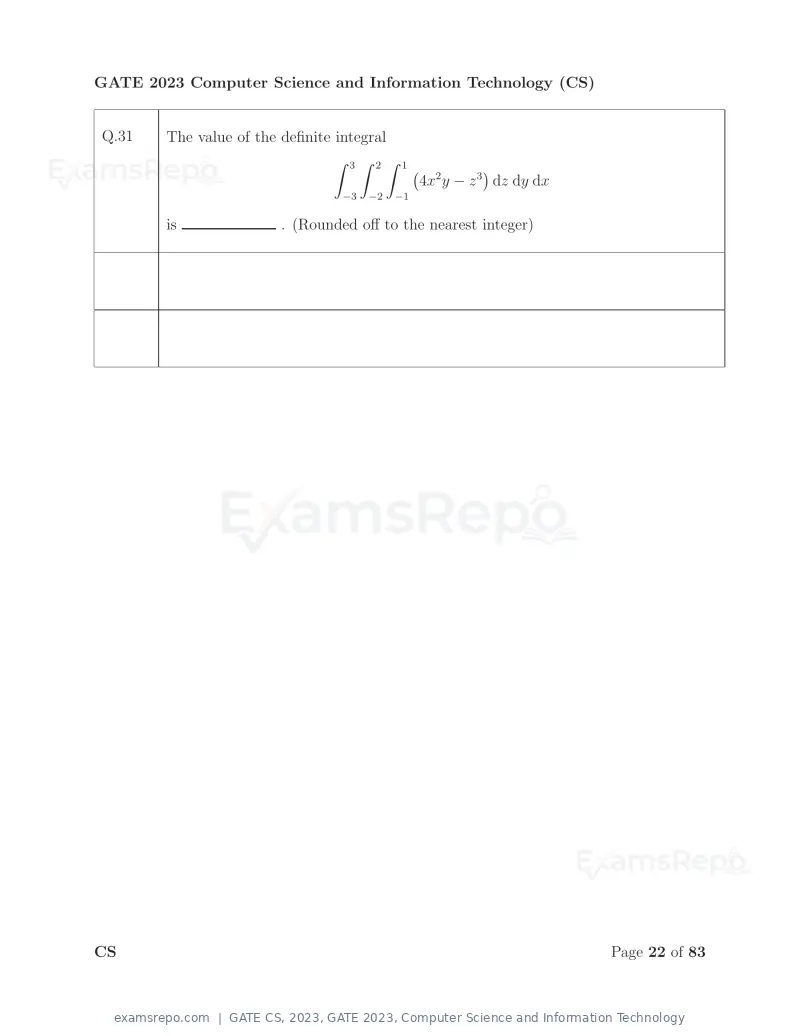

Q.31 The value of the definite integral
3 2 1
4x2 y − z 3 dz dy dx
−3 −2 −1
is . (Rounded off to the nearest integer)
CS Page 22 of 83
Text of page 30
GATE 2023 Computer Science and Information Technology (CS)

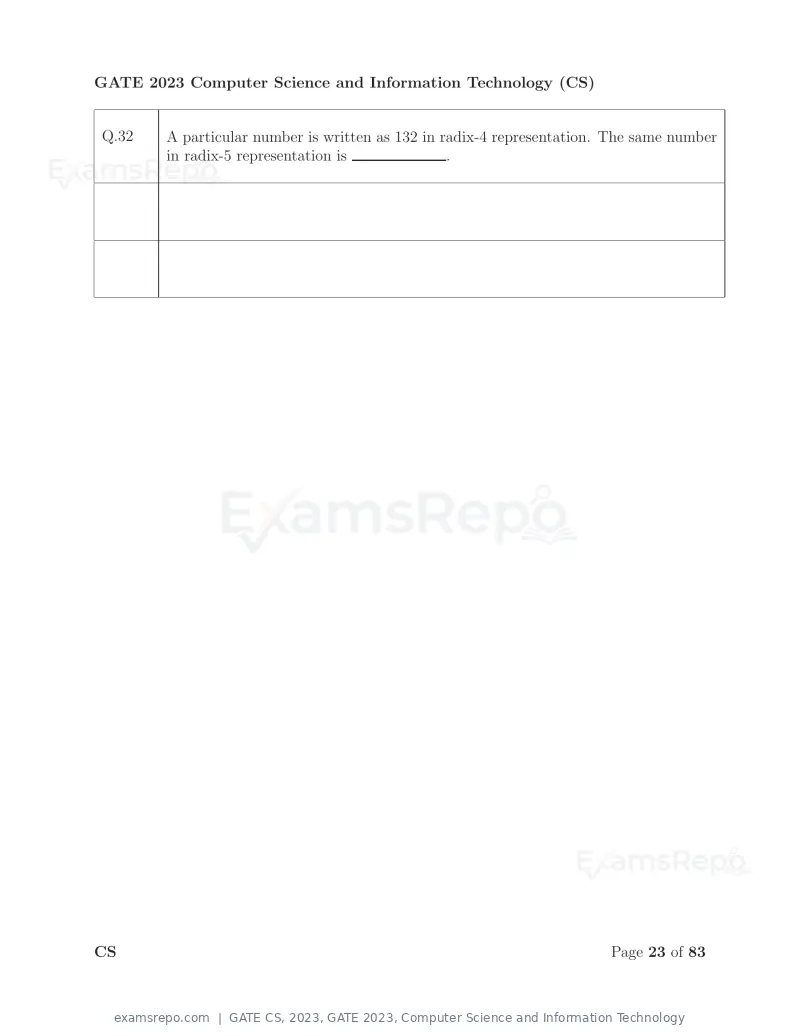

Q.32 A particular number is written as 132 in radix-4 representation. The same number
in radix-5 representation is .
CS Page 23 of 83
Text of page 31
GATE 2023 Computer Science and Information Technology (CS)

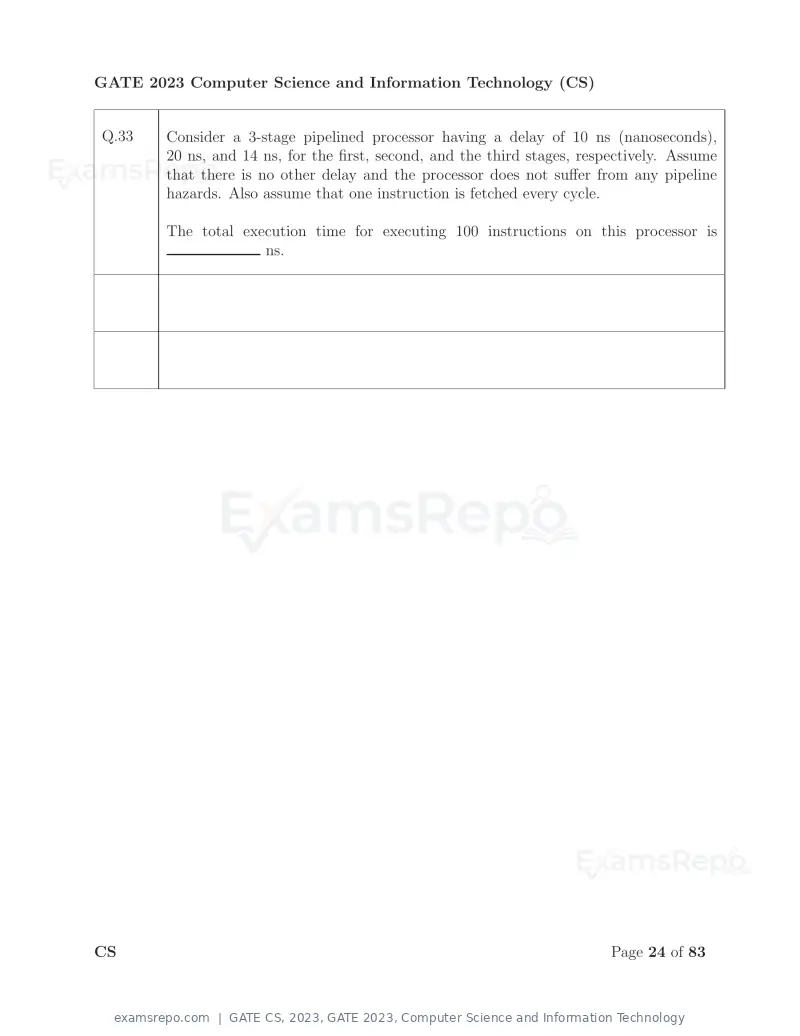

Q.33 Consider a 3-stage pipelined processor having a delay of 10 ns (nanoseconds),
20 ns, and 14 ns, for the first, second, and the third stages, respectively. Assume
that there is no other delay and the processor does not suffer from any pipeline
hazards. Also assume that one instruction is fetched every cycle.
The total execution time for executing 100 instructions on this processor is
ns.
CS Page 24 of 83
Text of page 32
GATE 2023 Computer Science and Information Technology (CS)

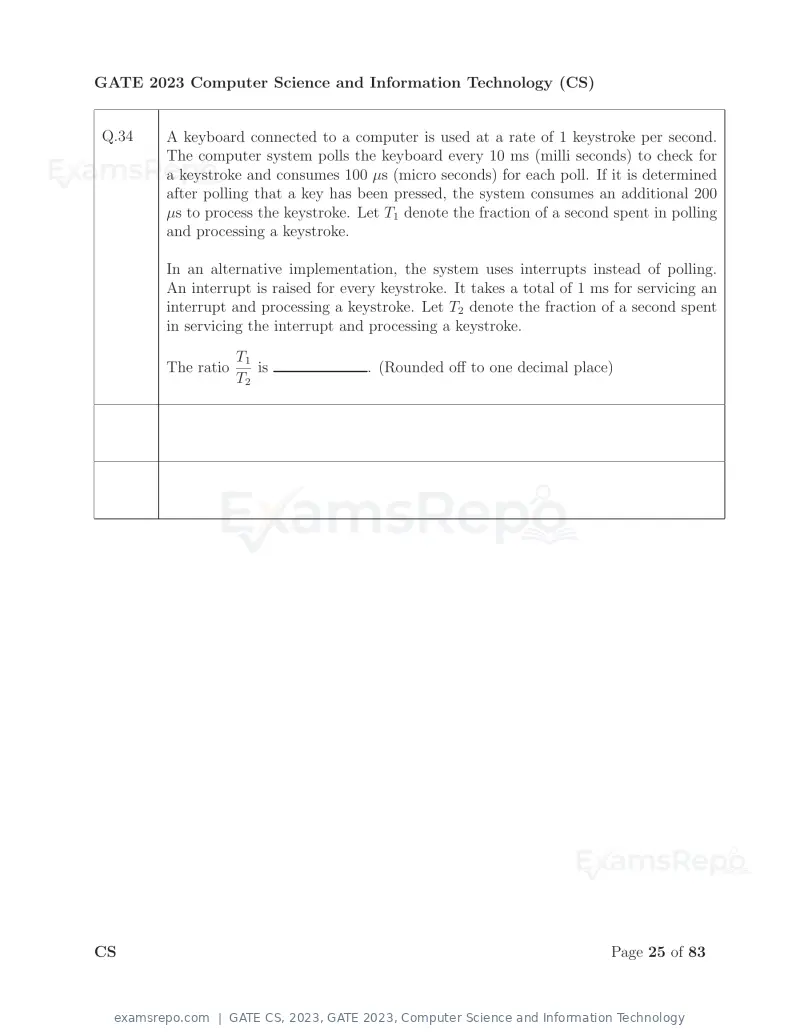

Q.34 A keyboard connected to a computer is used at a rate of 1 keystroke per second.
The computer system polls the keyboard every 10 ms (milli seconds) to check for
a keystroke and consumes 100 μs (micro seconds) for each poll. If it is determined
after polling that a key has been pressed, the system consumes an additional 200
μs to process the keystroke. Let T1 denote the fraction of a second spent in polling
and processing a keystroke.
In an alternative implementation, the system uses interrupts instead of polling.
An interrupt is raised for every keystroke. It takes a total of 1 ms for servicing an
interrupt and processing a keystroke. Let T2 denote the fraction of a second spent
in servicing the interrupt and processing a keystroke.
T1
The ratio is . (Rounded off to one decimal place)
T2
CS Page 25 of 83
Text of page 33
GATE 2023 Computer Science and Information Technology (CS)

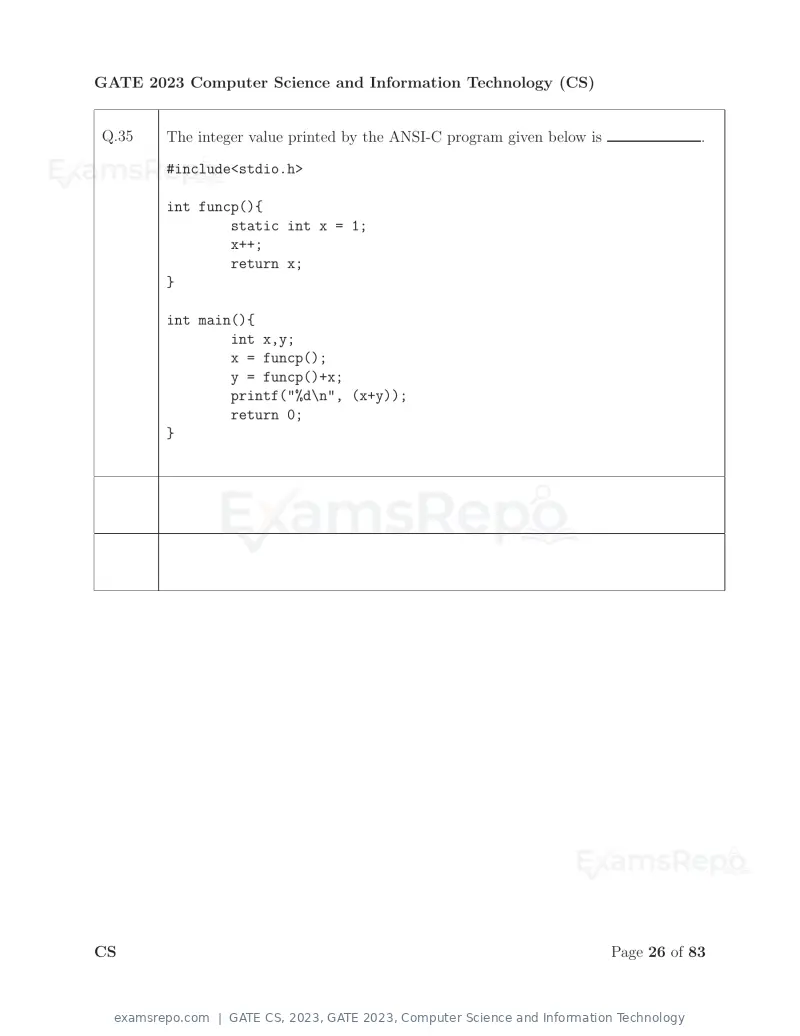

Q.35 The integer value printed by the ANSI-C program given below is .
#include<stdio.h>
int funcp(){
static int x = 1;
x++;
return x;
}
int main(){
int x,y;
x = funcp();
y = funcp()+x;
printf("%d\n", (x+y));
return 0;
}
CS Page 26 of 83
Text of page 34

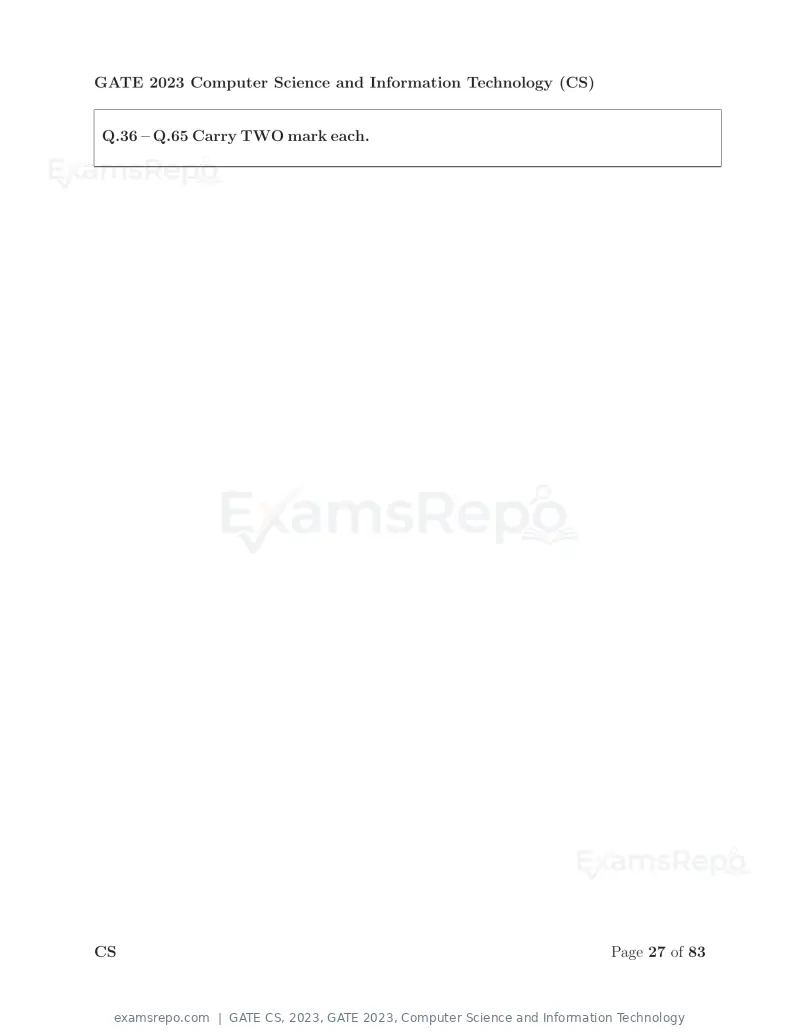

GATE 2023 Computer Science and Information Technology (CS) Q.36 – Q.65 Carry TWO mark each. CS Page 27 of 83
Text of page 35
GATE 2023 Computer Science and Information Technology (CS)

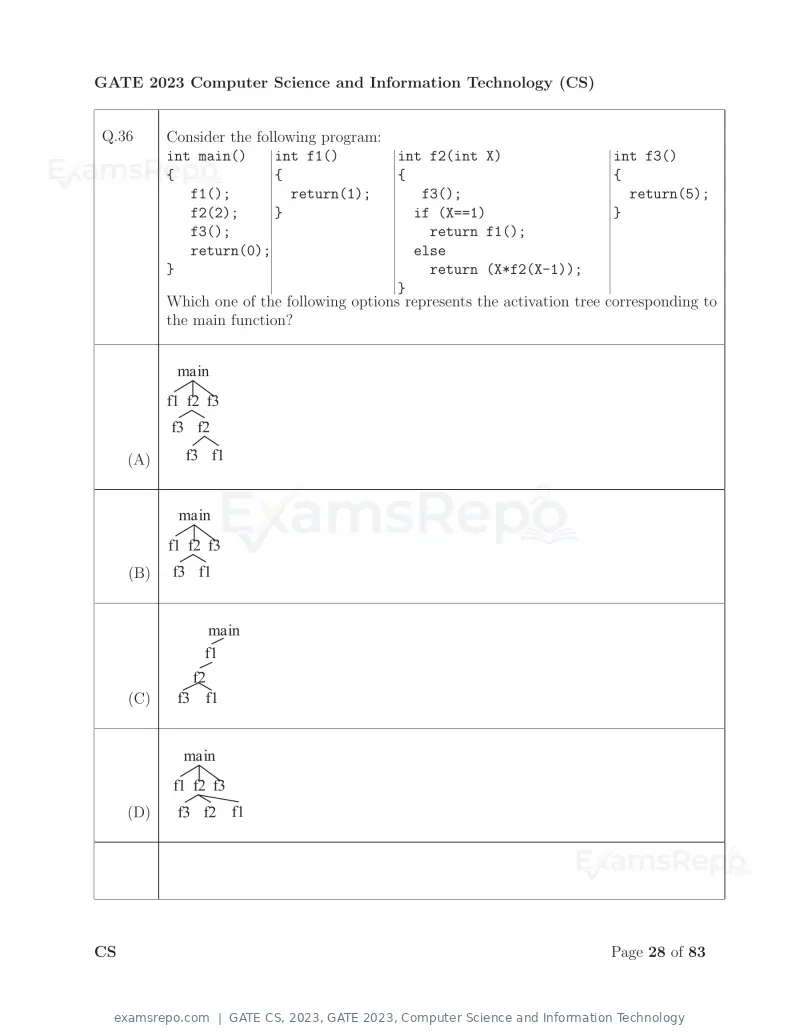

Q.36 Consider the following program:
int main() int f1() int f2(int X) int f3()
{ { { {
f1(); return(1); f3(); return(5);
f2(2); } if (X==1) }
f3(); return f1();
return(0); else
} return (X*f2(X-1));
}
Which one of the following options represents the activation tree corresponding to
the main function?
main
f1 f2 f3
f3 f2
(A) f3 f1
main
f1 f2 f3
(B) f3 f1
main
f1
f2
(C) f3 f1
main
f1 f2 f3
(D) f3 f2 f1
CS Page 28 of 83
Text of page 36
GATE 2023 Computer Science and Information Technology (CS) CS Page 29 of 83
Text of page 37
GATE 2023 Computer Science and Information Technology (CS)

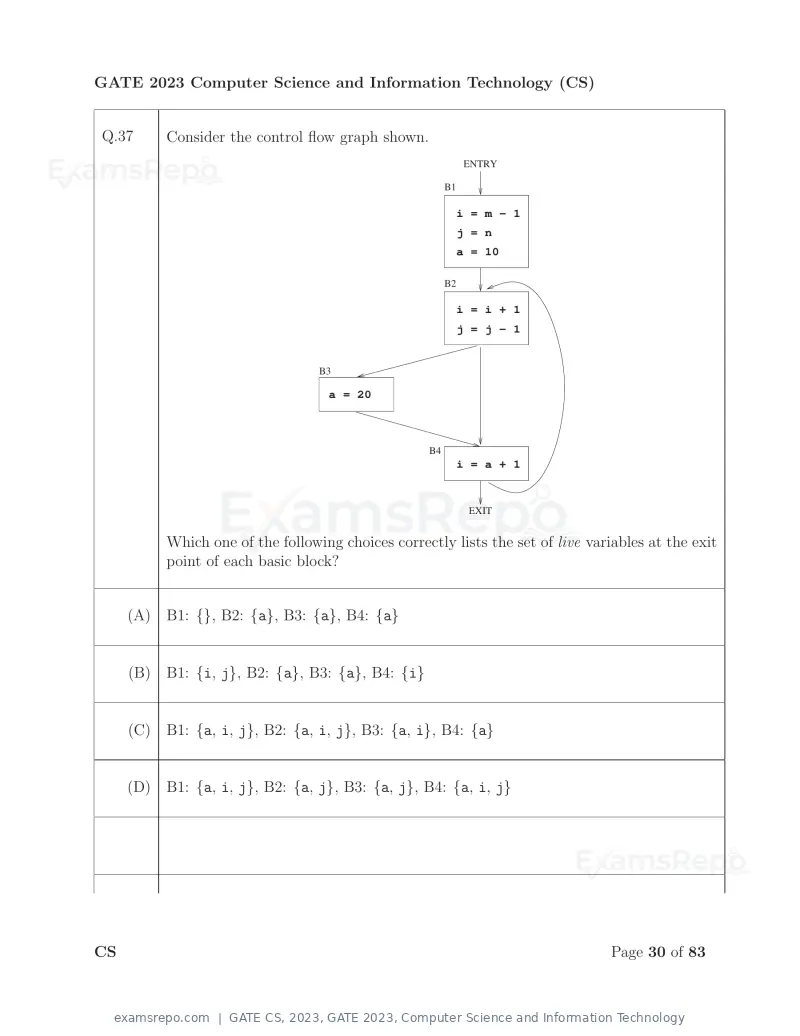

Q.37 Consider the control flow graph shown.
ENTRY
B1
i = m − 1
j = n
a = 10
B2
i = i + 1
j = j − 1
B3
a = 20
B4
i = a + 1
EXIT
Which one of the following choices correctly lists the set of live variables at the exit
point of each basic block?
(A) B1: {}, B2: {a}, B3: {a}, B4: {a}
(B) B1: {i, j}, B2: {a}, B3: {a}, B4: {i}
(C) B1: {a, i, j}, B2: {a, i, j}, B3: {a, i}, B4: {a}
(D) B1: {a, i, j}, B2: {a, j}, B3: {a, j}, B4: {a, i, j}
CS Page 30 of 83
Text of page 38
GATE 2023 Computer Science and Information Technology (CS) CS Page 31 of 83
Text of page 39
GATE 2023 Computer Science and Information Technology (CS)

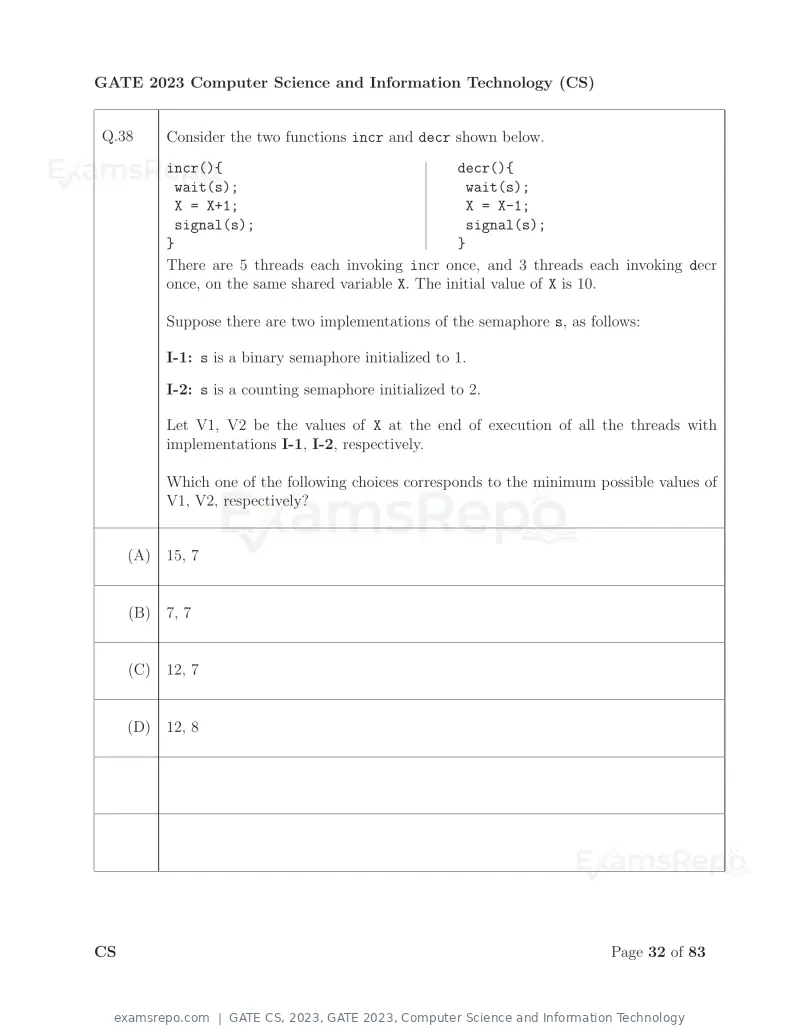

Q.38 Consider the two functions incr and decr shown below.
incr(){ decr(){
wait(s); wait(s);
X = X+1; X = X-1;
signal(s); signal(s);
} }
There are 5 threads each invoking incr once, and 3 threads each invoking decr
once, on the same shared variable X. The initial value of X is 10.
Suppose there are two implementations of the semaphore s, as follows:
I-1: s is a binary semaphore initialized to 1.
I-2: s is a counting semaphore initialized to 2.
Let V1, V2 be the values of X at the end of execution of all the threads with
implementations I-1, I-2, respectively.
Which one of the following choices corresponds to the minimum possible values of
V1, V2, respectively?
(A) 15, 7
(B) 7, 7
(C) 12, 7
(D) 12, 8
CS Page 32 of 83
Text of page 40
GATE 2023 Computer Science and Information Technology (CS)

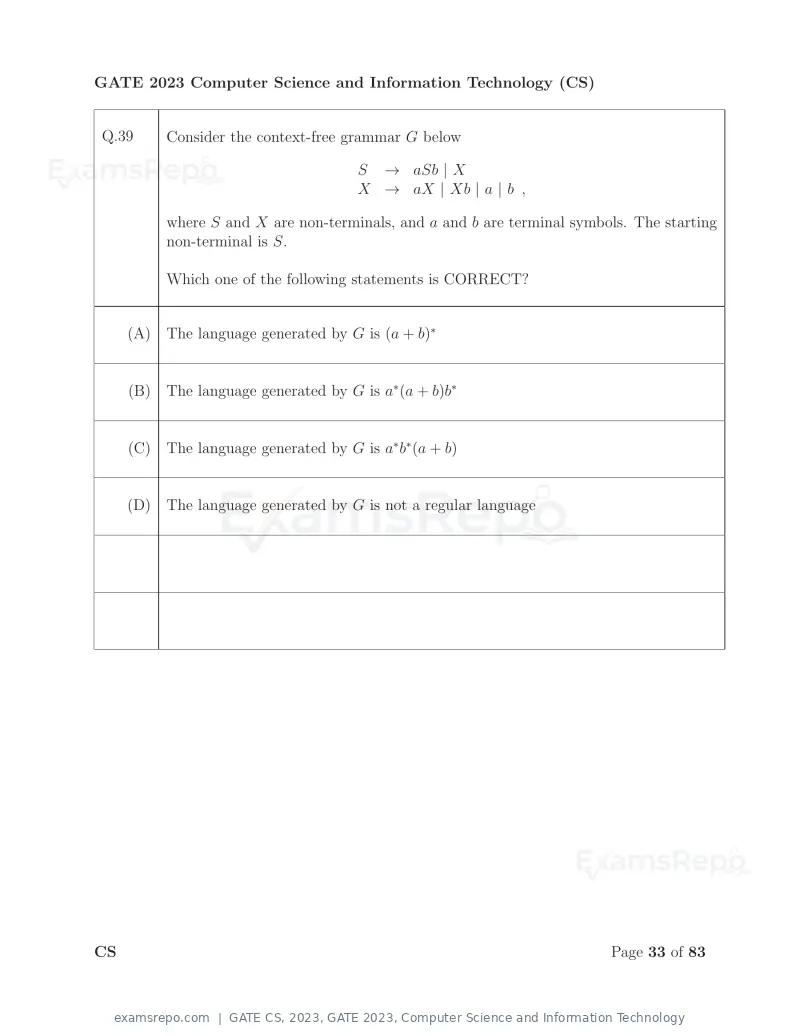

Q.39 Consider the context-free grammar G below
S → aSb | X
X → aX | Xb | a | b ,
where S and X are non-terminals, and a and b are terminal symbols. The starting
non-terminal is S.
Which one of the following statements is CORRECT?
(A) The language generated by G is (a + b)∗
(B) The language generated by G is a∗ (a + b)b∗
(C) The language generated by G is a∗ b∗ (a + b)
(D) The language generated by G is not a regular language
CS Page 33 of 83
Text of page 41
GATE 2023 Computer Science and Information Technology (CS)

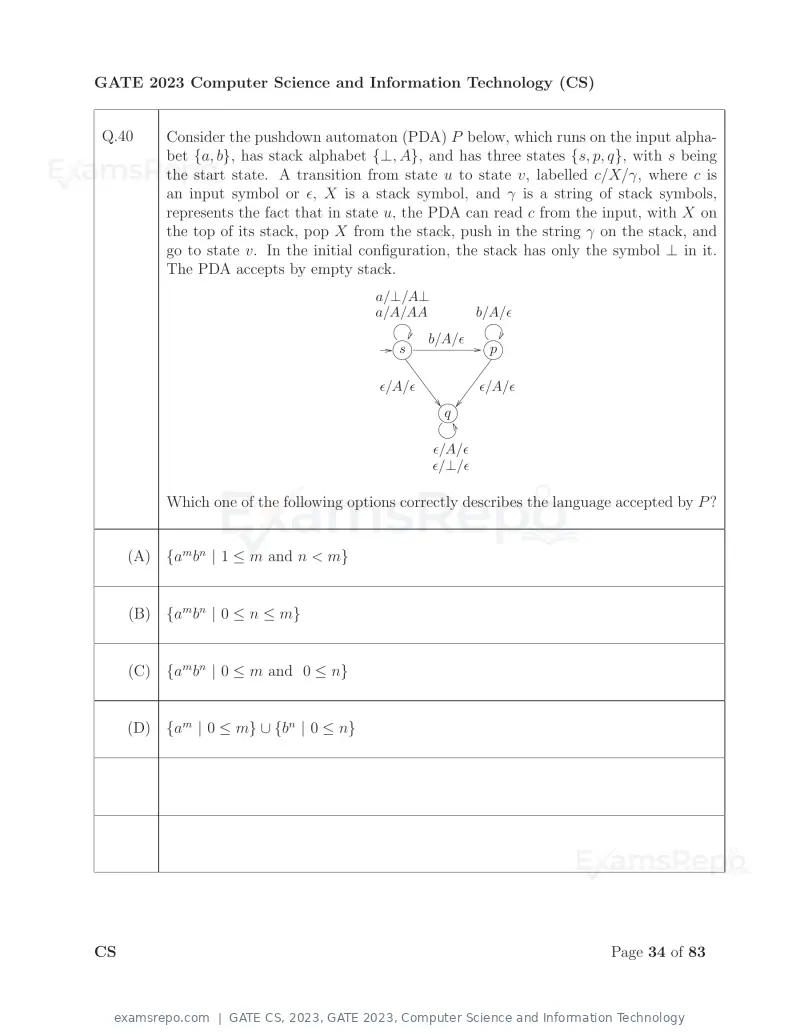

Q.40 Consider the pushdown automaton (PDA) P below, which runs on the input alpha-
bet {a, b}, has stack alphabet {⊥, A}, and has three states {s, p, q}, with s being
the start state. A transition from state u to state v, labelled c/X/γ, where c is
an input symbol or , X is a stack symbol, and γ is a string of stack symbols,
represents the fact that in state u, the PDA can read c from the input, with X on
the top of its stack, pop X from the stack, push in the string γ on the stack, and
go to state v. In the initial configuration, the stack has only the symbol ⊥ in it.
The PDA accepts by empty stack.
a/⊥/A⊥
a/A/AA b/A/
b/A/
s p
/A/ /A/
q
/A/
/⊥/
Which one of the following options correctly describes the language accepted by P ?
(A) {am bn | 1 ≤ m and n < m}
(B) {am bn | 0 ≤ n ≤ m}
(C) {am bn | 0 ≤ m and 0 ≤ n}
(D) {am | 0 ≤ m} ∪ {bn | 0 ≤ n}
CS Page 34 of 83
Text of page 42
GATE 2023 Computer Science and Information Technology (CS)

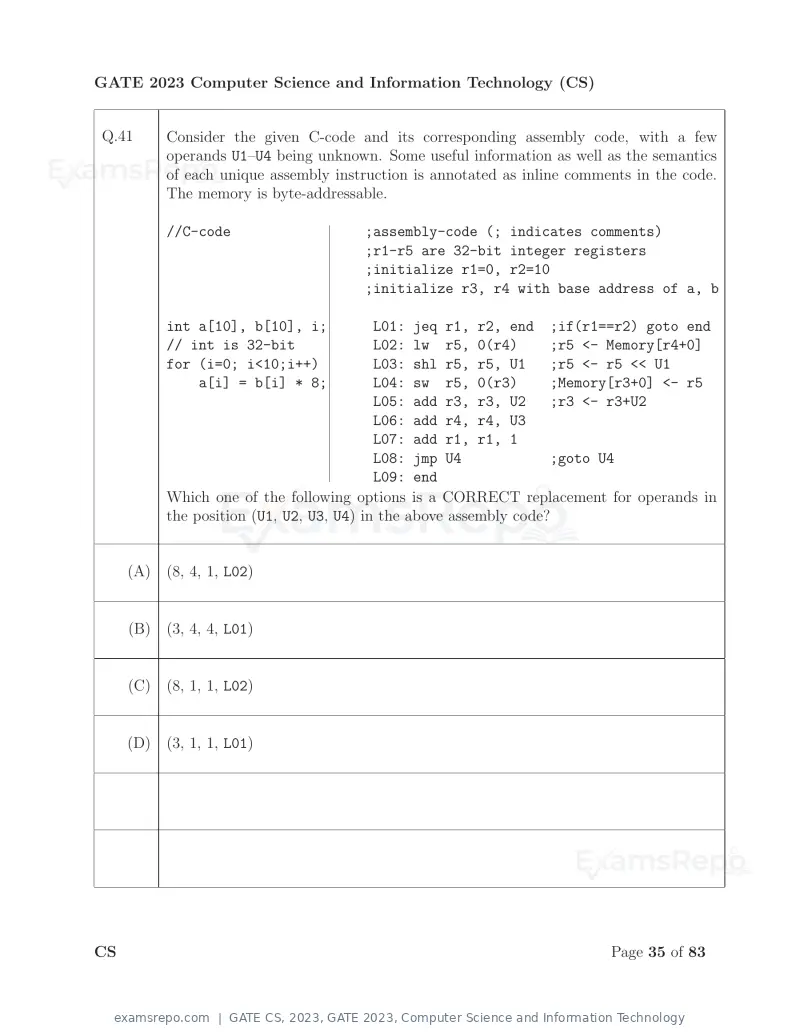

Q.41 Consider the given C-code and its corresponding assembly code, with a few
operands U1–U4 being unknown. Some useful information as well as the semantics
of each unique assembly instruction is annotated as inline comments in the code.
The memory is byte-addressable.
//C-code ;assembly-code (; indicates comments)
;r1-r5 are 32-bit integer registers
;initialize r1=0, r2=10
;initialize r3, r4 with base address of a, b
int a[10], b[10], i; L01: jeq r1, r2, end ;if(r1==r2) goto end
// int is 32-bit L02: lw r5, 0(r4) ;r5 <- Memory[r4+0]
for (i=0; i<10;i++) L03: shl r5, r5, U1 ;r5 <- r5 << U1
a[i] = b[i] * 8; L04: sw r5, 0(r3) ;Memory[r3+0] <- r5
L05: add r3, r3, U2 ;r3 <- r3+U2
L06: add r4, r4, U3
L07: add r1, r1, 1
L08: jmp U4 ;goto U4
L09: end
Which one of the following options is a CORRECT replacement for operands in
the position (U1, U2, U3, U4) in the above assembly code?
(A) (8, 4, 1, L02)
(B) (3, 4, 4, L01)
(C) (8, 1, 1, L02)
(D) (3, 1, 1, L01)
CS Page 35 of 83
Text of page 43
GATE 2023 Computer Science and Information Technology (CS)

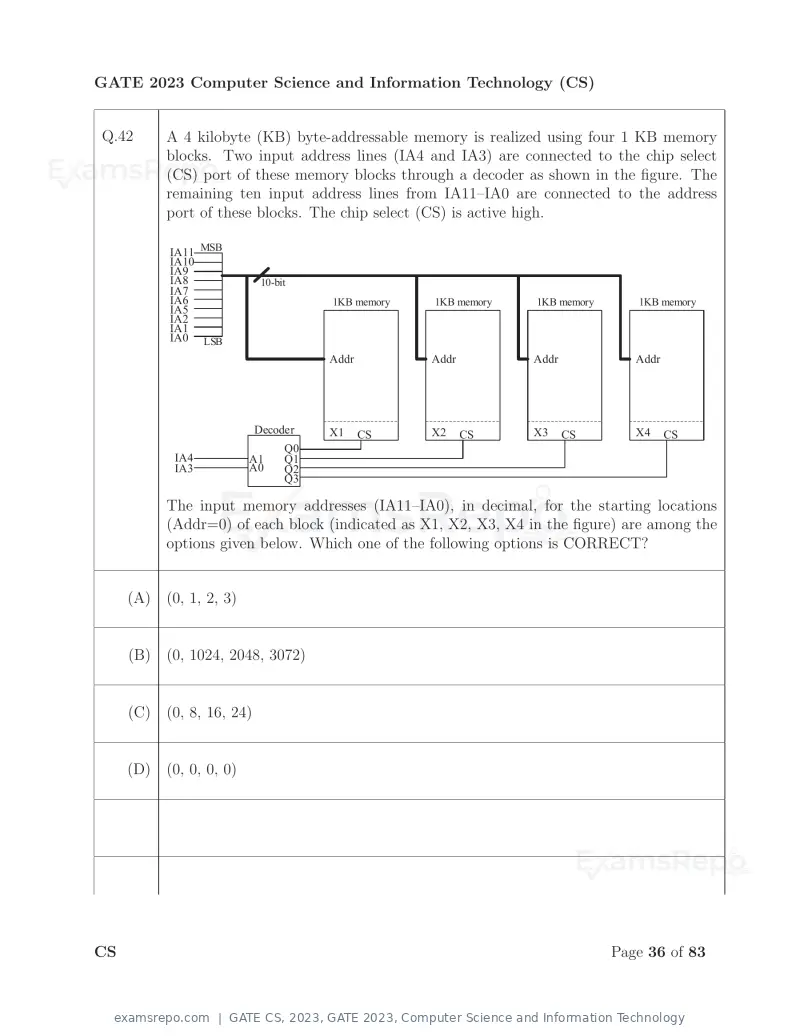

Q.42 A 4 kilobyte (KB) byte-addressable memory is realized using four 1 KB memory
blocks. Two input address lines (IA4 and IA3) are connected to the chip select
(CS) port of these memory blocks through a decoder as shown in the figure. The
remaining ten input address lines from IA11–IA0 are connected to the address
port of these blocks. The chip select (CS) is active high.
IA11 MSB
IA10
IA9
IA8 10-bit
IA7
IA6 1KB memory 1KB memory 1KB memory 1KB memory
IA5
IA2
IA1
IA0 LSB
Addr Addr Addr Addr
Decoder X1 CS X2 CS X3 CS X4 CS
Q0
IA4 A1 Q1
IA3 A0 Q2
Q3
The input memory addresses (IA11–IA0), in decimal, for the starting locations
(Addr=0) of each block (indicated as X1, X2, X3, X4 in the figure) are among the
options given below. Which one of the following options is CORRECT?
(A) (0, 1, 2, 3)
(B) (0, 1024, 2048, 3072)
(C) (0, 8, 16, 24)
(D) (0, 0, 0, 0)
CS Page 36 of 83
Text of page 44
GATE 2023 Computer Science and Information Technology (CS) CS Page 37 of 83
Text of page 45
GATE 2023 Computer Science and Information Technology (CS)

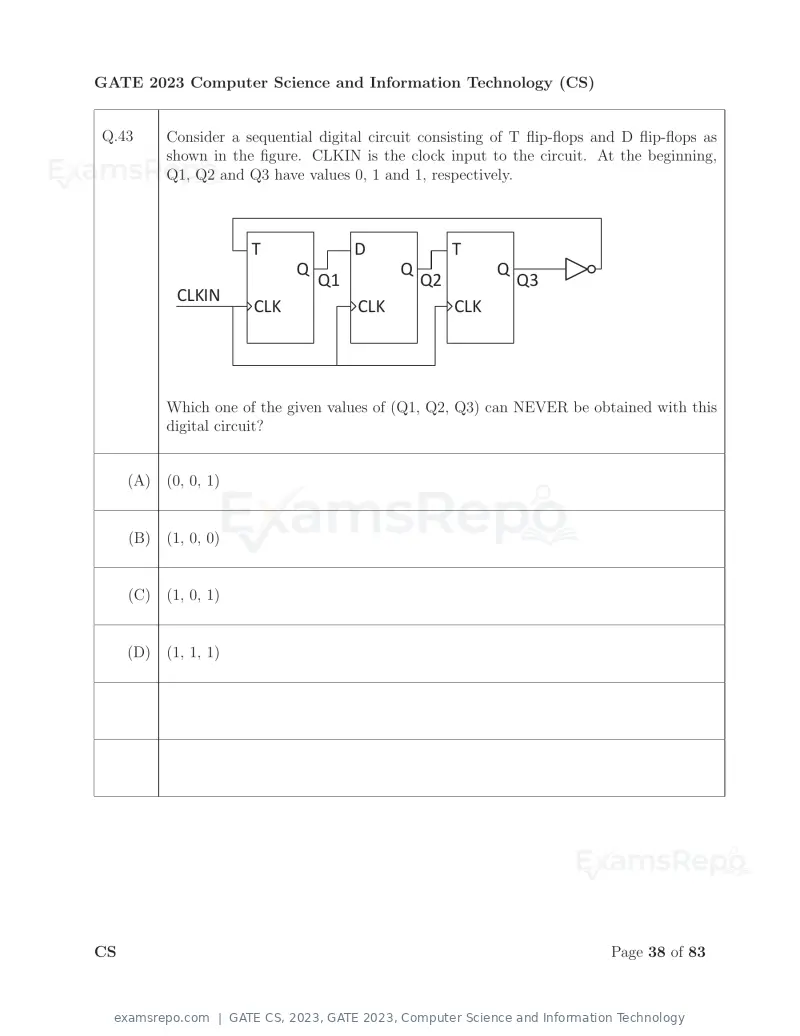

Q.43 Consider a sequential digital circuit consisting of T flip-flops and D flip-flops as
shown in the figure. CLKIN is the clock input to the circuit. At the beginning,
Q1, Q2 and Q3 have values 0, 1 and 1, respectively.
T D T
Q Q Q
Q1 Q2 Q3
CLKIN
CLK CLK CLK
Which one of the given values of (Q1, Q2, Q3) can NEVER be obtained with this
digital circuit?
(A) (0, 0, 1)
(B) (1, 0, 0)
(C) (1, 0, 1)
(D) (1, 1, 1)
CS Page 38 of 83
Text of page 46
GATE 2023 Computer Science and Information Technology (CS)

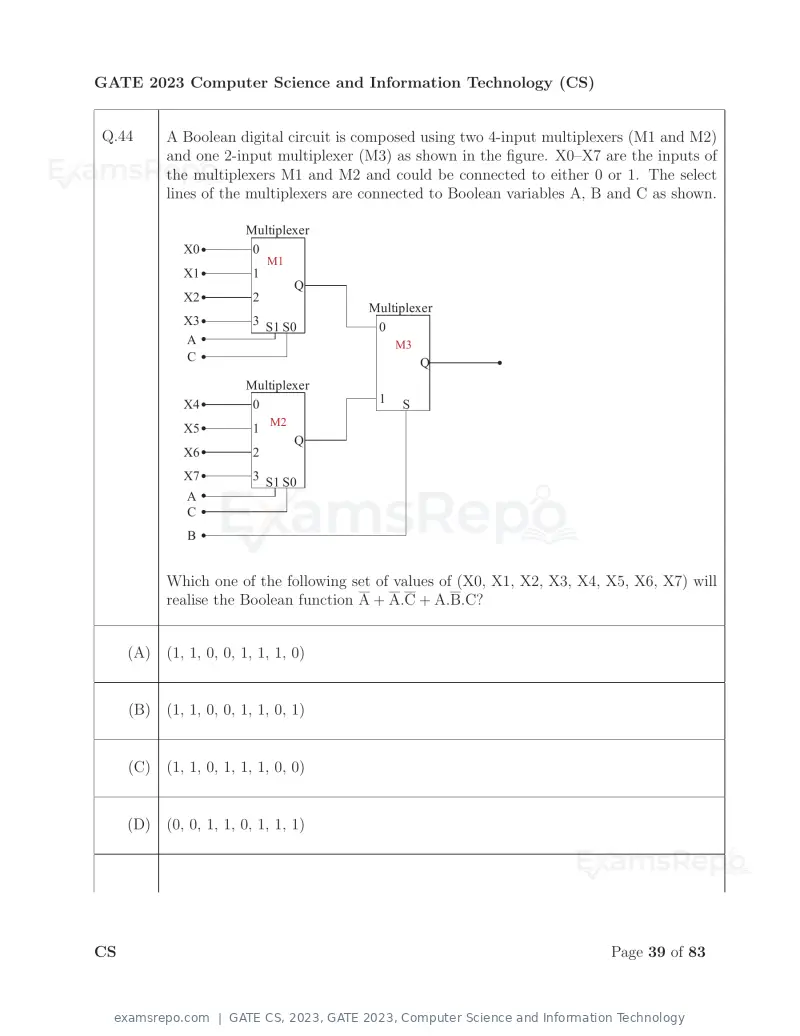

Q.44 A Boolean digital circuit is composed using two 4-input multiplexers (M1 and M2)
and one 2-input multiplexer (M3) as shown in the figure. X0–X7 are the inputs of
the multiplexers M1 and M2 and could be connected to either 0 or 1. The select
lines of the multiplexers are connected to Boolean variables A, B and C as shown.
Multiplexer
X0 0
M1
X1 1
Q
X2 2
Multiplexer
X3 3 S1 S0 0
A M3
C Q
Multiplexer
X4 0 1 S
M2
X5 1
Q
X6 2
X7 3 S1 S0
A
C
B
Which one of the following set of values of (X0, X1, X2, X3, X4, X5, X6, X7) will
realise the Boolean function A + A.C + A.B.C?
(A) (1, 1, 0, 0, 1, 1, 1, 0)
(B) (1, 1, 0, 0, 1, 1, 0, 1)
(C) (1, 1, 0, 1, 1, 1, 0, 0)
(D) (0, 0, 1, 1, 0, 1, 1, 1)
CS Page 39 of 83
Text of page 47

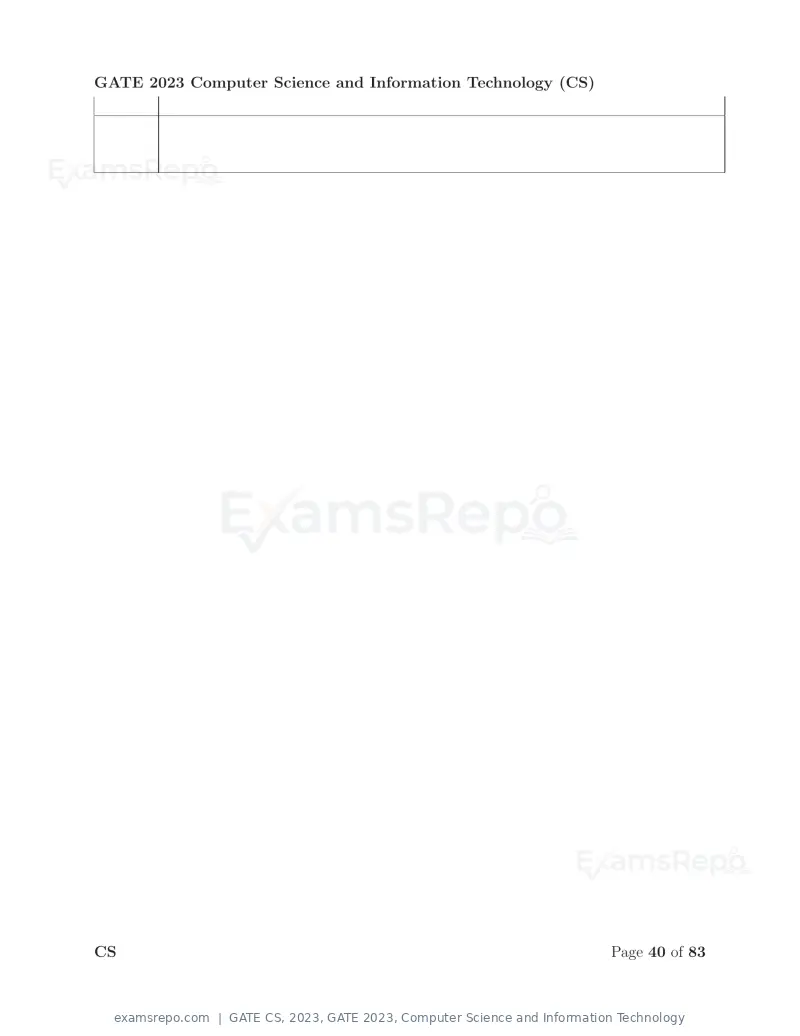

GATE 2023 Computer Science and Information Technology (CS) CS Page 40 of 83
Text of page 48
GATE 2023 Computer Science and Information Technology (CS)

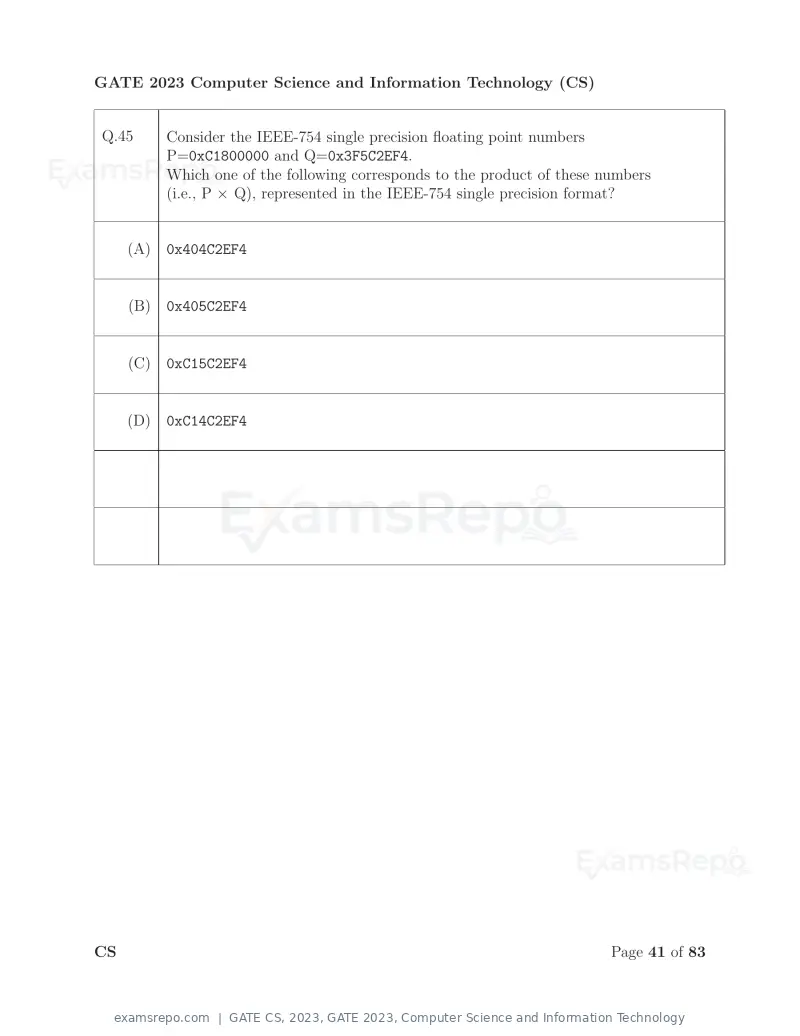

Q.45 Consider the IEEE-754 single precision floating point numbers
P=0xC1800000 and Q=0x3F5C2EF4.
Which one of the following corresponds to the product of these numbers
(i.e., P × Q), represented in the IEEE-754 single precision format?
(A) 0x404C2EF4
(B) 0x405C2EF4
(C) 0xC15C2EF4
(D) 0xC14C2EF4
CS Page 41 of 83
Text of page 49
GATE 2023 Computer Science and Information Technology (CS)

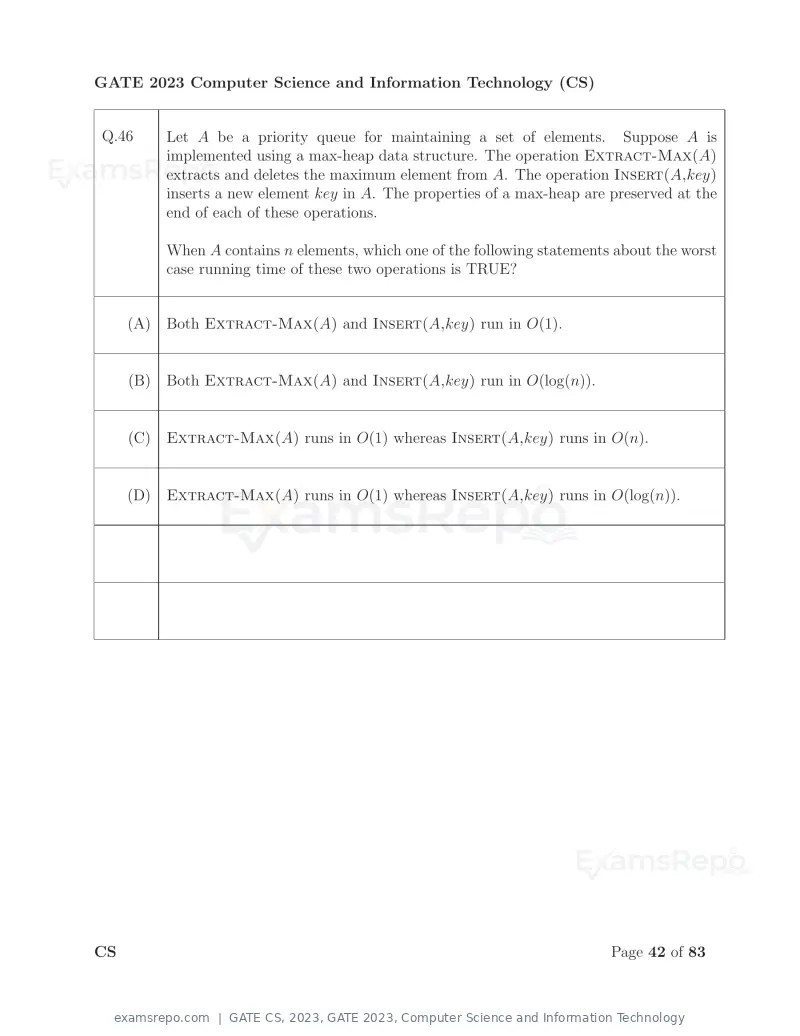

Q.46 Let A be a priority queue for maintaining a set of elements. Suppose A is
implemented using a max-heap data structure. The operation Extract-Max(A)
extracts and deletes the maximum element from A. The operation Insert(A,key)
inserts a new element key in A. The properties of a max-heap are preserved at the
end of each of these operations.
When A contains n elements, which one of the following statements about the worst
case running time of these two operations is TRUE?
(A) Both Extract-Max(A) and Insert(A,key) run in O(1).
(B) Both Extract-Max(A) and Insert(A,key) run in O(log(n)).
(C) Extract-Max(A) runs in O(1) whereas Insert(A,key) runs in O(n).
(D) Extract-Max(A) runs in O(1) whereas Insert(A,key) runs in O(log(n)).
CS Page 42 of 83
Text of page 50
GATE 2023 Computer Science and Information Technology (CS)

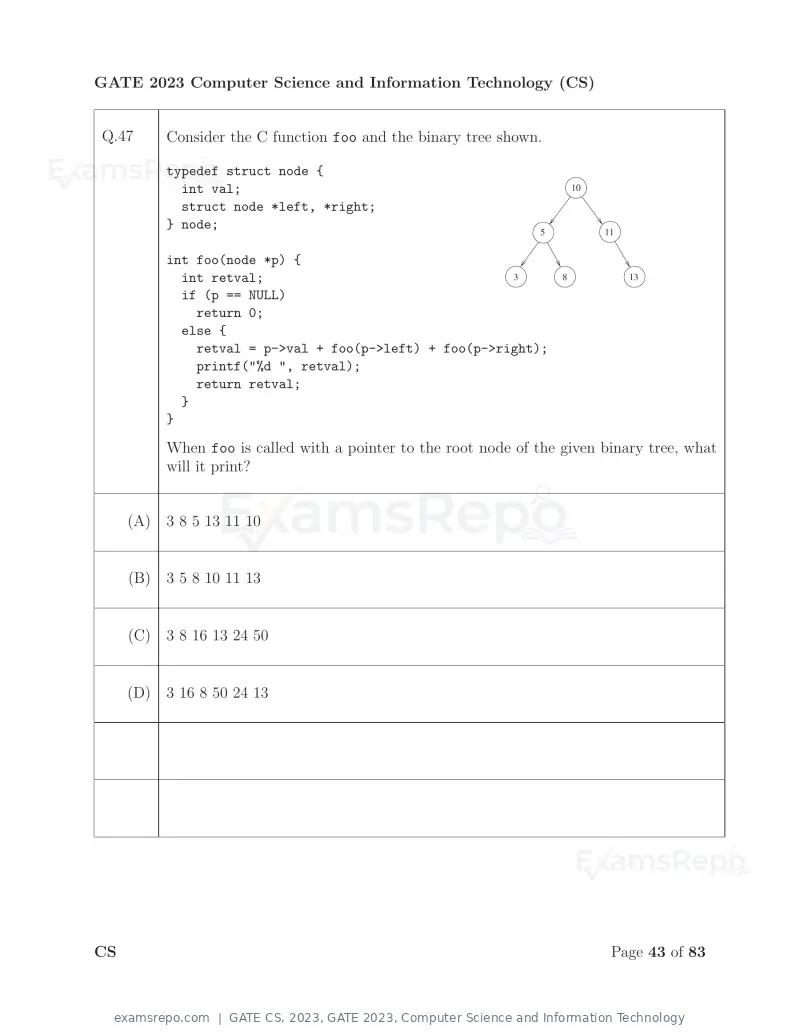

Q.47 Consider the C function foo and the binary tree shown.
typedef struct node {
int val; 10
struct node *left, *right;
} node; 5 11
int foo(node *p) {
int retval; 3 8 13
if (p == NULL)
return 0;
else {
retval = p->val + foo(p->left) + foo(p->right);
printf("%d ", retval);
return retval;
}
}
When foo is called with a pointer to the root node of the given binary tree, what
will it print?
(A) 3 8 5 13 11 10
(B) 3 5 8 10 11 13
(C) 3 8 16 13 24 50
(D) 3 16 8 50 24 13
CS Page 43 of 83
Text of page 51
GATE 2023 Computer Science and Information Technology (CS)

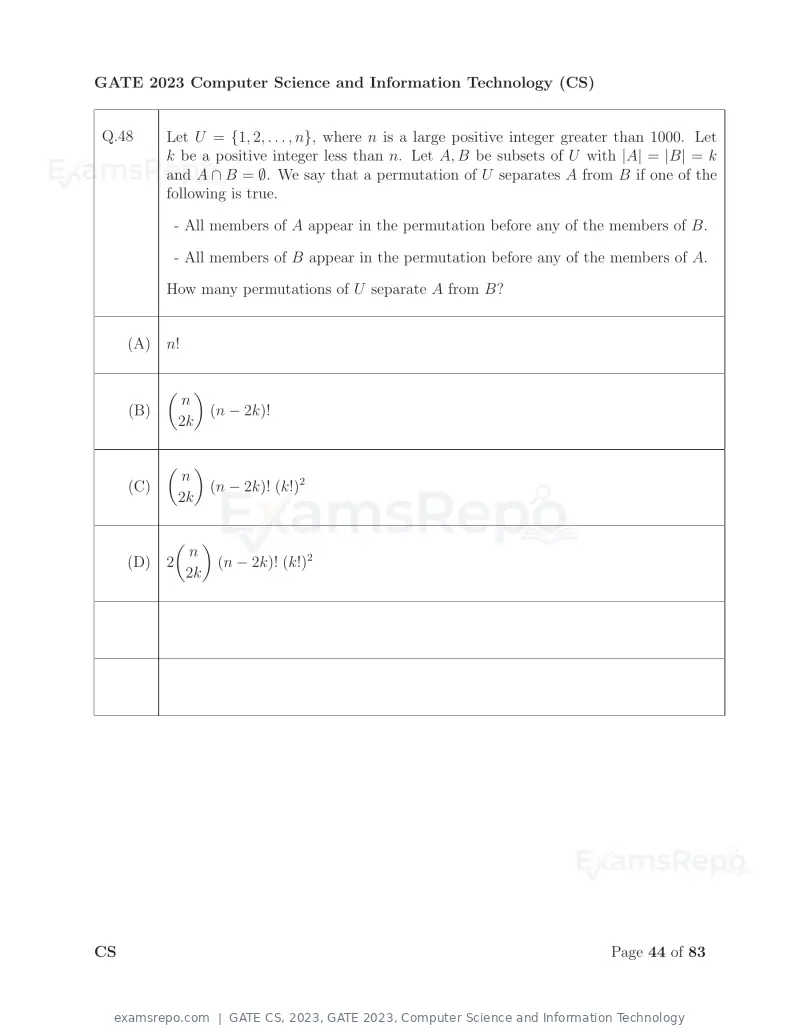

Q.48 Let U = {1, 2, . . . , n}, where n is a large positive integer greater than 1000. Let
k be a positive integer less than n. Let A, B be subsets of U with |A| = |B| = k
and A ∩ B = ∅. We say that a permutation of U separates A from B if one of the
following is true.
- All members of A appear in the permutation before any of the members of B.
- All members of B appear in the permutation before any of the members of A.
How many permutations of U separate A from B?
(A) n!
n
(B) (n − 2k)!
2k
n
(C) (n − 2k)! (k!)2
2k
n
(D) 2 (n − 2k)! (k!)2
2k
CS Page 44 of 83
Text of page 52
GATE 2023 Computer Science and Information Technology (CS)

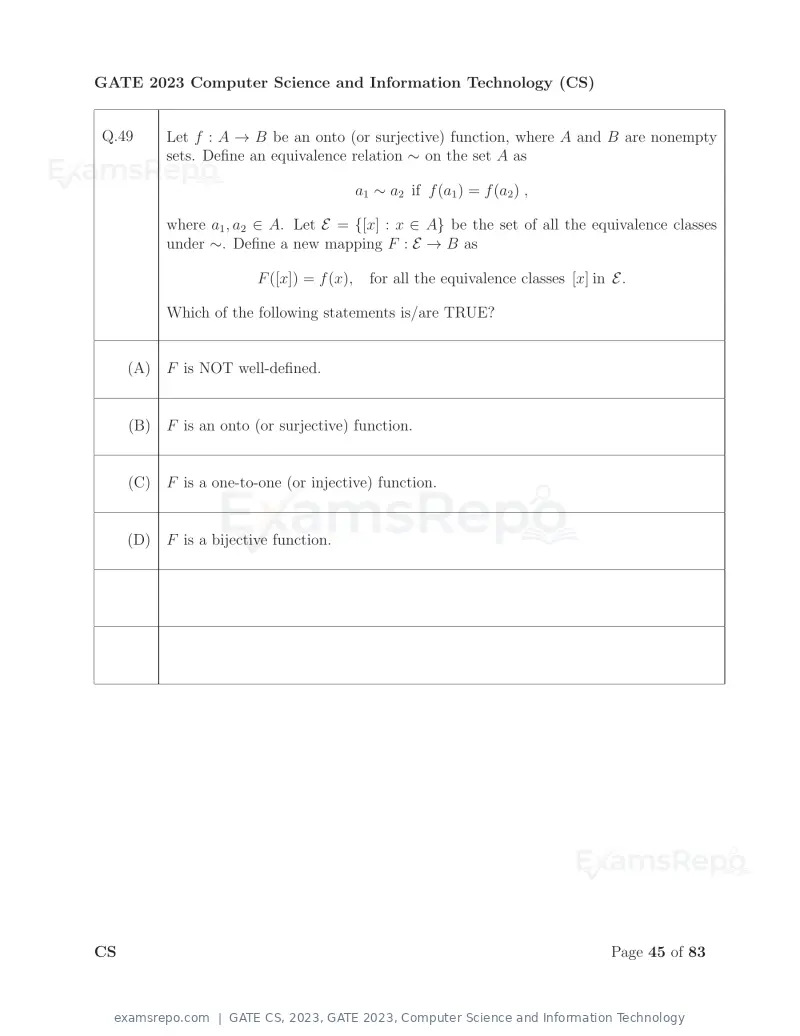

Q.49 Let f : A → B be an onto (or surjective) function, where A and B are nonempty
sets. Define an equivalence relation ∼ on the set A as
a1 ∼ a2 if f (a1 ) = f (a2 ) ,
where a1 , a2 ∈ A. Let E = {[x] : x ∈ A} be the set of all the equivalence classes
under ∼. Define a new mapping F : E → B as
F ([x]) = f (x), for all the equivalence classes [x] in E.
Which of the following statements is/are TRUE?
(A) F is NOT well-defined.
(B) F is an onto (or surjective) function.
(C) F is a one-to-one (or injective) function.
(D) F is a bijective function.
CS Page 45 of 83
Text of page 53
GATE 2023 Computer Science and Information Technology (CS)

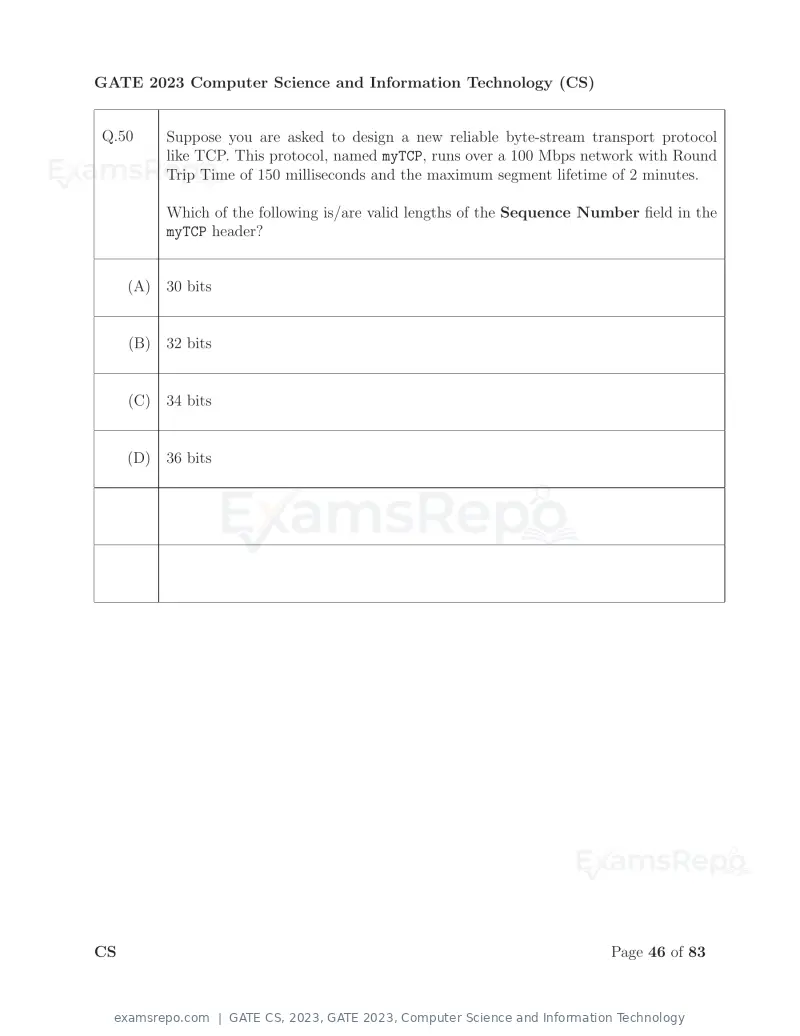

Q.50 Suppose you are asked to design a new reliable byte-stream transport protocol
like TCP. This protocol, named myTCP, runs over a 100 Mbps network with Round
Trip Time of 150 milliseconds and the maximum segment lifetime of 2 minutes.
Which of the following is/are valid lengths of the Sequence Number field in the
myTCP header?
(A) 30 bits
(B) 32 bits
(C) 34 bits
(D) 36 bits
CS Page 46 of 83
Text of page 54
GATE 2023 Computer Science and Information Technology (CS)

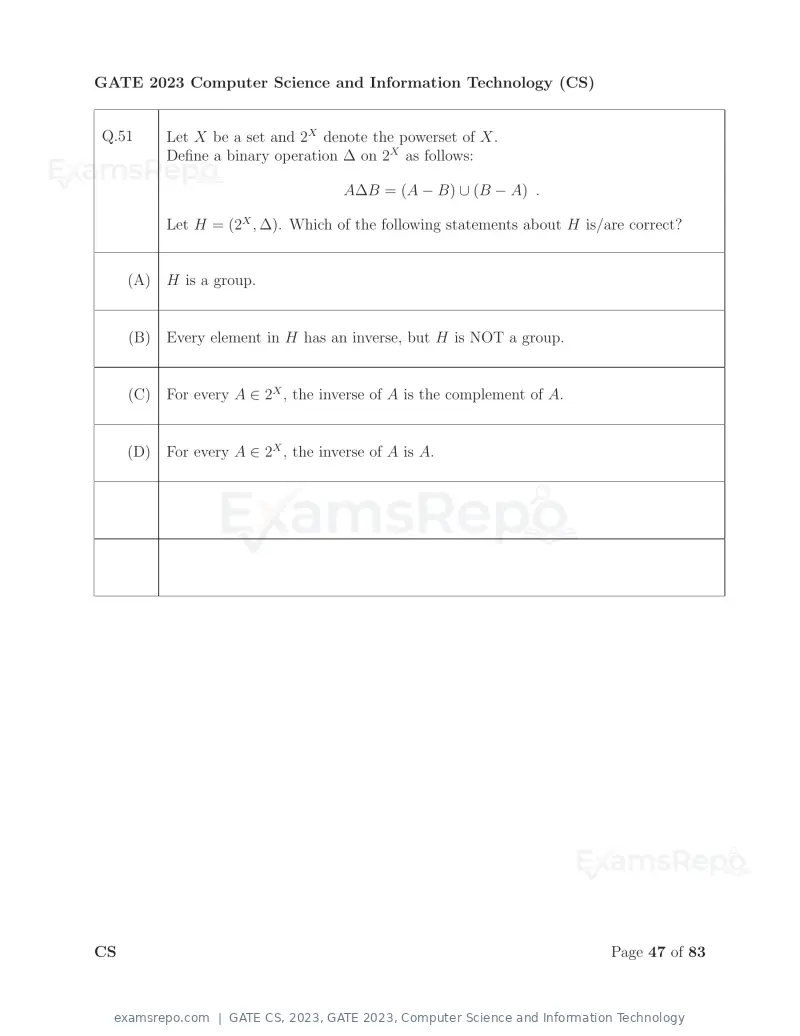

Q.51 Let X be a set and 2X denote the powerset of X.
Define a binary operation Δ on 2X as follows:
AΔB = (A − B) ∪ (B − A) .
Let H = (2X , Δ). Which of the following statements about H is/are correct?
(A) H is a group.
(B) Every element in H has an inverse, but H is NOT a group.
(C) For every A ∈ 2X , the inverse of A is the complement of A.
(D) For every A ∈ 2X , the inverse of A is A.
CS Page 47 of 83
Text of page 55
GATE 2023 Computer Science and Information Technology (CS)

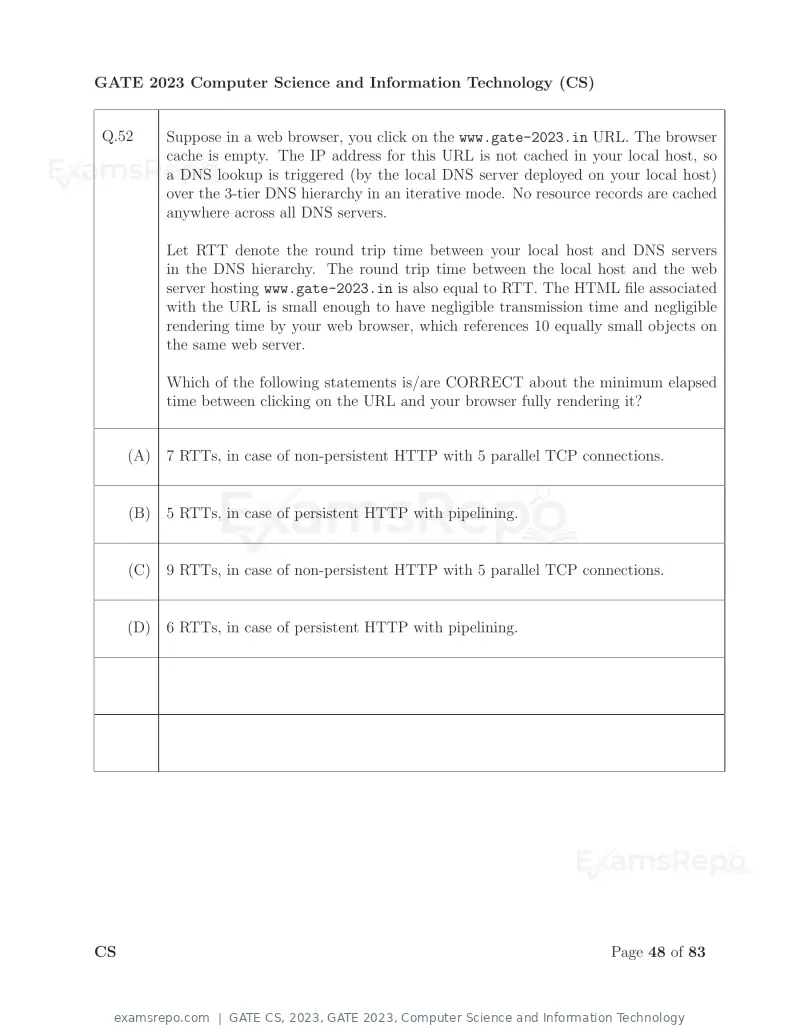

Q.52 Suppose in a web browser, you click on the www.gate-2023.in URL. The browser
cache is empty. The IP address for this URL is not cached in your local host, so
a DNS lookup is triggered (by the local DNS server deployed on your local host)
over the 3-tier DNS hierarchy in an iterative mode. No resource records are cached
anywhere across all DNS servers.
Let RTT denote the round trip time between your local host and DNS servers
in the DNS hierarchy. The round trip time between the local host and the web
server hosting www.gate-2023.in is also equal to RTT. The HTML file associated
with the URL is small enough to have negligible transmission time and negligible
rendering time by your web browser, which references 10 equally small objects on
the same web server.
Which of the following statements is/are CORRECT about the minimum elapsed
time between clicking on the URL and your browser fully rendering it?
(A) 7 RTTs, in case of non-persistent HTTP with 5 parallel TCP connections.
(B) 5 RTTs, in case of persistent HTTP with pipelining.
(C) 9 RTTs, in case of non-persistent HTTP with 5 parallel TCP connections.
(D) 6 RTTs, in case of persistent HTTP with pipelining.
CS Page 48 of 83
Text of page 56
GATE 2023 Computer Science and Information Technology (CS)

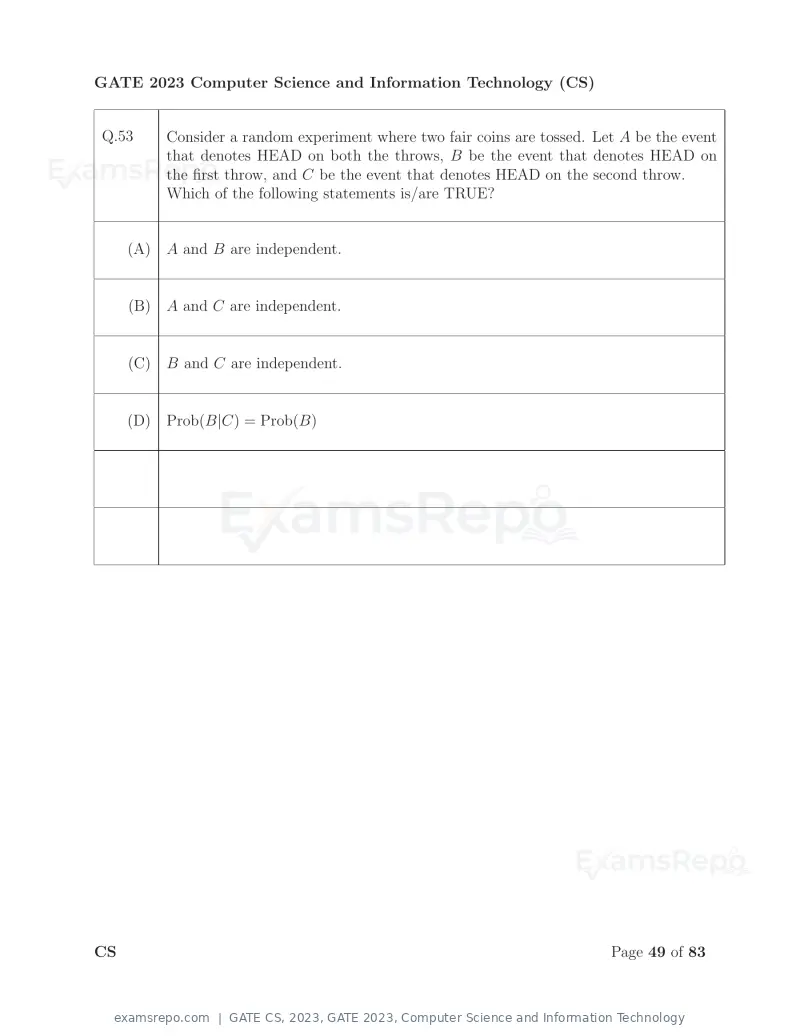

Q.53 Consider a random experiment where two fair coins are tossed. Let A be the event
that denotes HEAD on both the throws, B be the event that denotes HEAD on
the first throw, and C be the event that denotes HEAD on the second throw.
Which of the following statements is/are TRUE?
(A) A and B are independent.
(B) A and C are independent.
(C) B and C are independent.
(D) Prob(B|C) = Prob(B)
CS Page 49 of 83
Text of page 57
GATE 2023 Computer Science and Information Technology (CS)

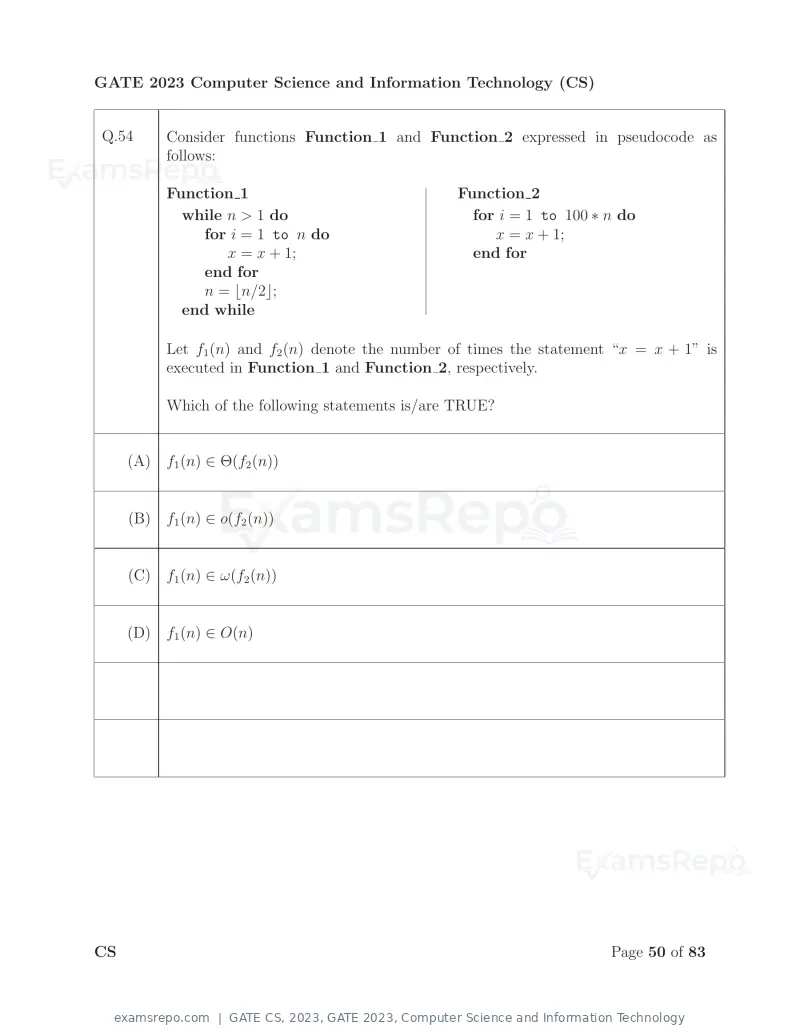

Q.54 Consider functions Function 1 and Function 2 expressed in pseudocode as
follows:
Function 1 Function 2
while n > 1 do for i = 1 to 100 ∗ n do
for i = 1 to n do x = x + 1;
x = x + 1; end for
end for
n = n/2;
end while
Let f1 (n) and f2 (n) denote the number of times the statement “x = x + 1” is
executed in Function 1 and Function 2, respectively.
Which of the following statements is/are TRUE?
(A) f1 (n) ∈ Θ(f2 (n))
(B) f1 (n) ∈ o(f2 (n))
(C) f1 (n) ∈ ω(f2 (n))
(D) f1 (n) ∈ O(n)
CS Page 50 of 83
Text of page 58
GATE 2023 Computer Science and Information Technology (CS)

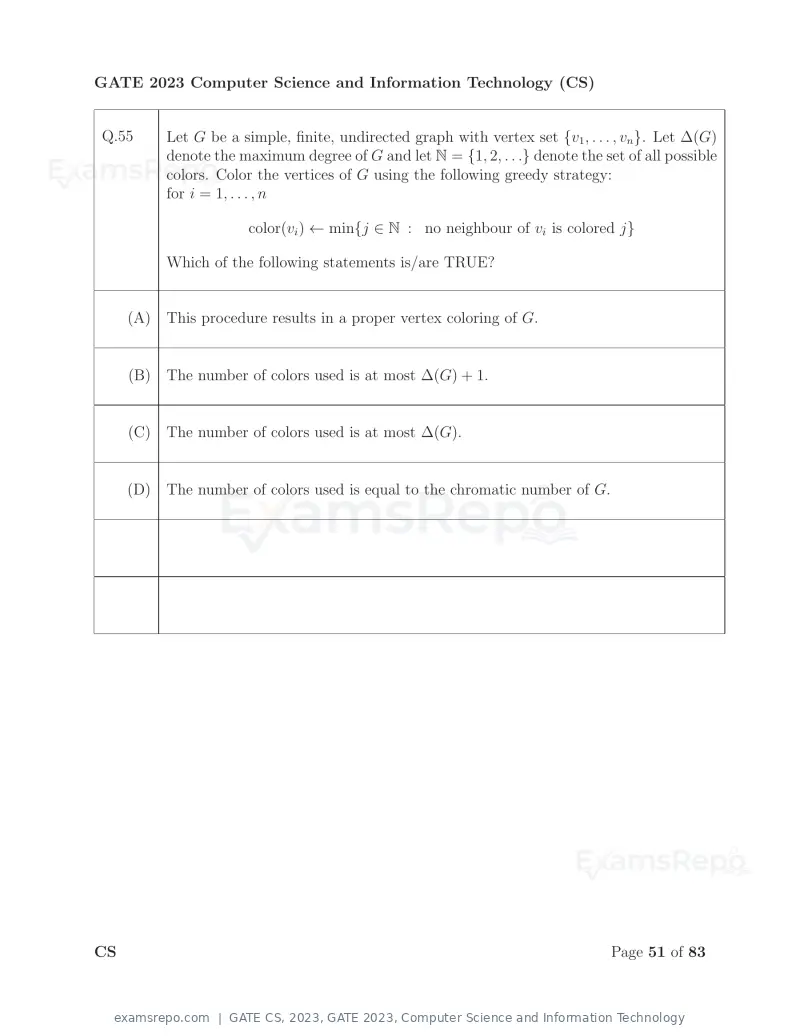

Q.55 Let G be a simple, finite, undirected graph with vertex set {v1 , . . . , vn }. Let Δ(G)
denote the maximum degree of G and let N = {1, 2, . . .} denote the set of all possible
colors. Color the vertices of G using the following greedy strategy:
for i = 1, . . . , n
color(vi ) ← min{j ∈ N : no neighbour of vi is colored j}
Which of the following statements is/are TRUE?
(A) This procedure results in a proper vertex coloring of G.
(B) The number of colors used is at most Δ(G) + 1.
(C) The number of colors used is at most Δ(G).
(D) The number of colors used is equal to the chromatic number of G.
CS Page 51 of 83
Text of page 59
GATE 2023 Computer Science and Information Technology (CS)

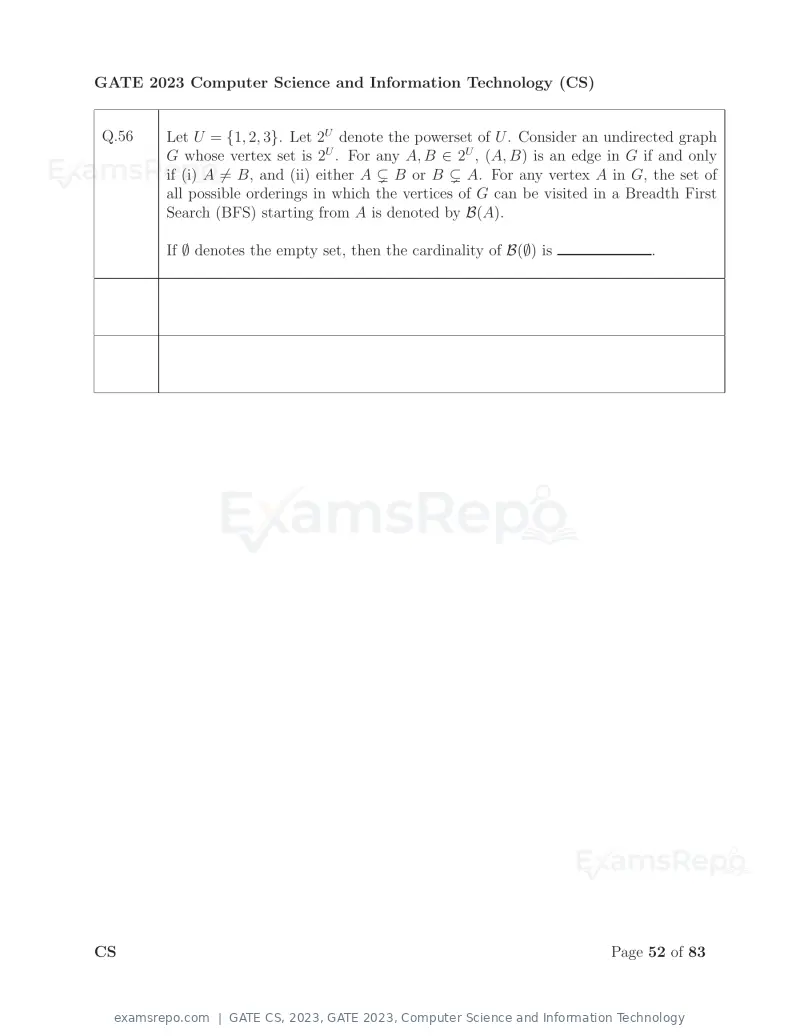

Q.56 Let U = {1, 2, 3}. Let 2U denote the powerset of U . Consider an undirected graph
G whose vertex set is 2U . For any A, B ∈ 2U , (A, B) is an edge in G if and only
if (i) A = B, and (ii) either A B or B A. For any vertex A in G, the set of
all possible orderings in which the vertices of G can be visited in a Breadth First
Search (BFS) starting from A is denoted by B(A).
If ∅ denotes the empty set, then the cardinality of B(∅) is .
CS Page 52 of 83
Text of page 60
GATE 2023 Computer Science and Information Technology (CS)

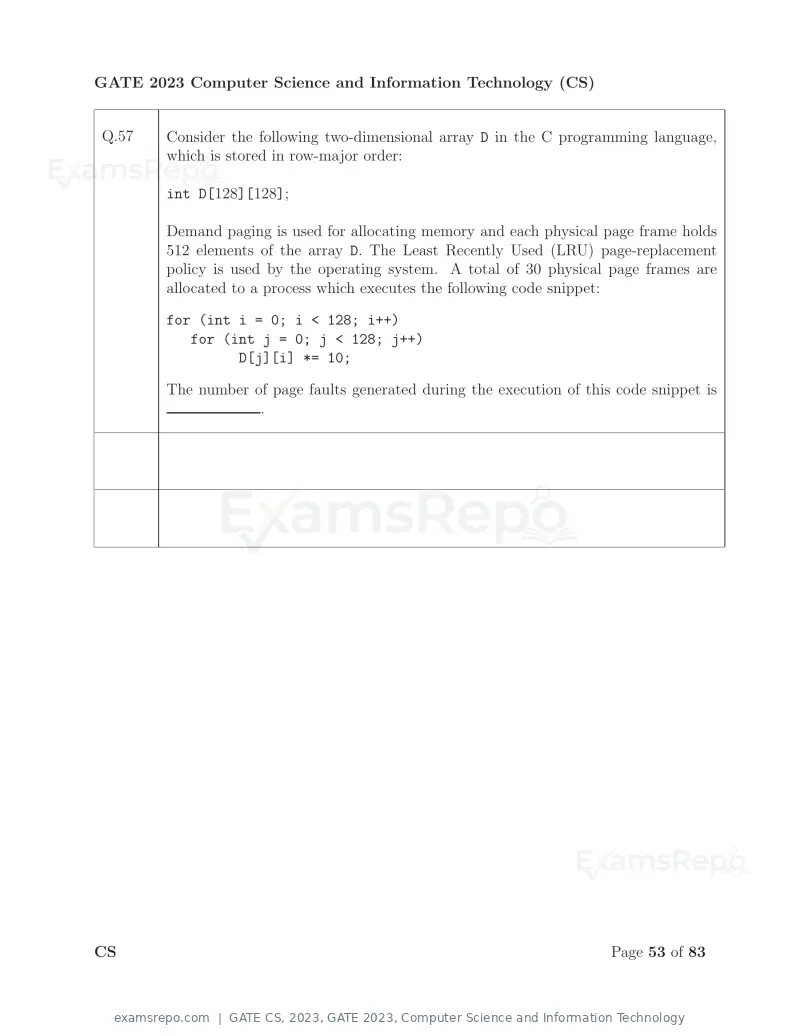

Q.57 Consider the following two-dimensional array D in the C programming language,
which is stored in row-major order:
int D[128][128];
Demand paging is used for allocating memory and each physical page frame holds
512 elements of the array D. The Least Recently Used (LRU) page-replacement
policy is used by the operating system. A total of 30 physical page frames are
allocated to a process which executes the following code snippet:
for (int i = 0; i < 128; i++)
for (int j = 0; j < 128; j++)
D[j][i] *= 10;
The number of page faults generated during the execution of this code snippet is
.
CS Page 53 of 83
Text of page 61
GATE 2023 Computer Science and Information Technology (CS)

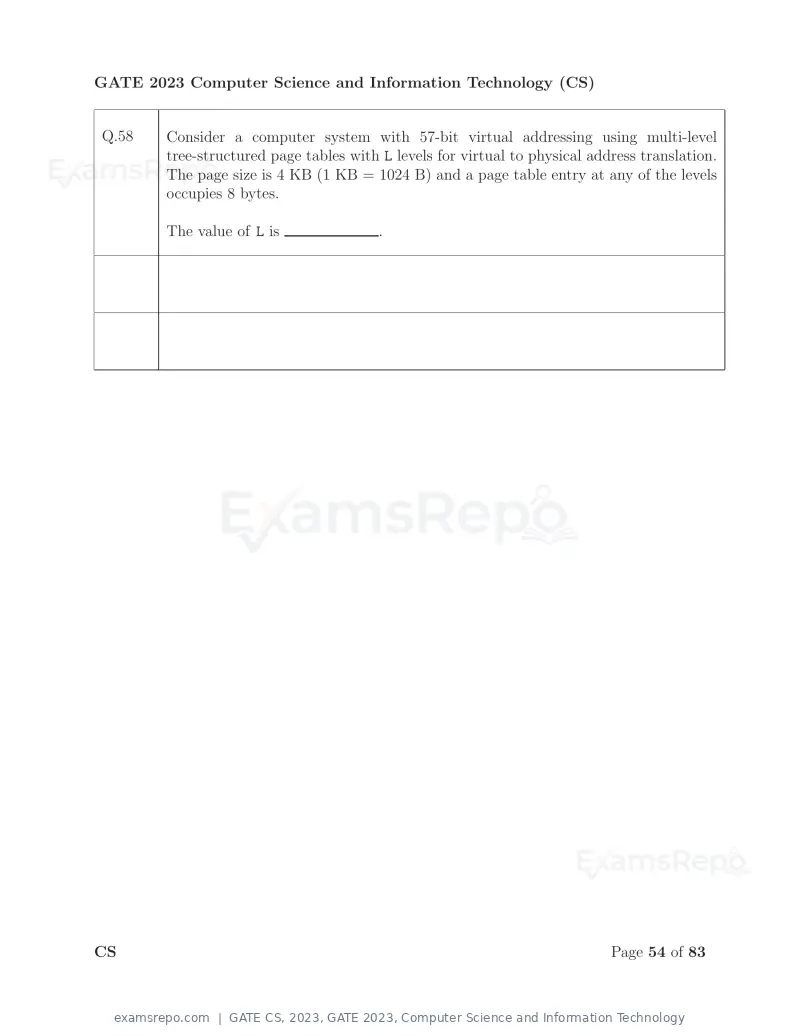

Q.58 Consider a computer system with 57-bit virtual addressing using multi-level
tree-structured page tables with L levels for virtual to physical address translation.
The page size is 4 KB (1 KB = 1024 B) and a page table entry at any of the levels
occupies 8 bytes.
The value of L is .
CS Page 54 of 83
Text of page 62
GATE 2023 Computer Science and Information Technology (CS)

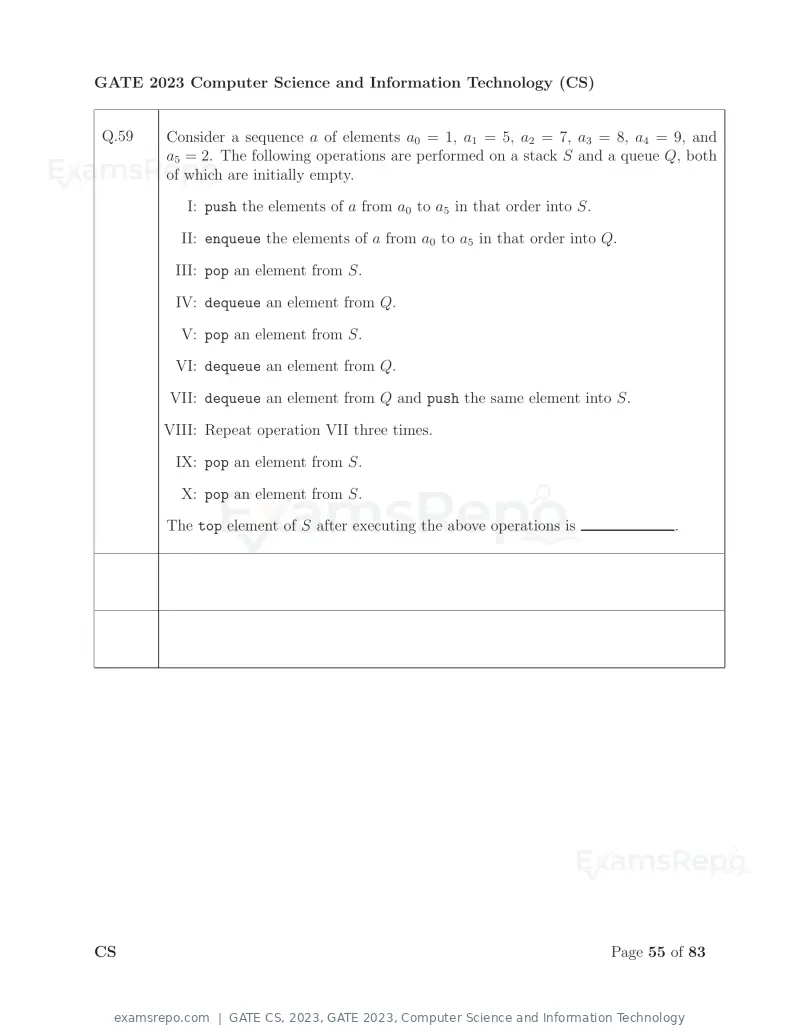

Q.59 Consider a sequence a of elements a0 = 1, a1 = 5, a2 = 7, a3 = 8, a4 = 9, and
a5 = 2. The following operations are performed on a stack S and a queue Q, both
of which are initially empty.
I: push the elements of a from a0 to a5 in that order into S.
II: enqueue the elements of a from a0 to a5 in that order into Q.
III: pop an element from S.
IV: dequeue an element from Q.
V: pop an element from S.
VI: dequeue an element from Q.
VII: dequeue an element from Q and push the same element into S.
VIII: Repeat operation VII three times.
IX: pop an element from S.
X: pop an element from S.
The top element of S after executing the above operations is .
CS Page 55 of 83
Text of page 63
GATE 2023 Computer Science and Information Technology (CS)

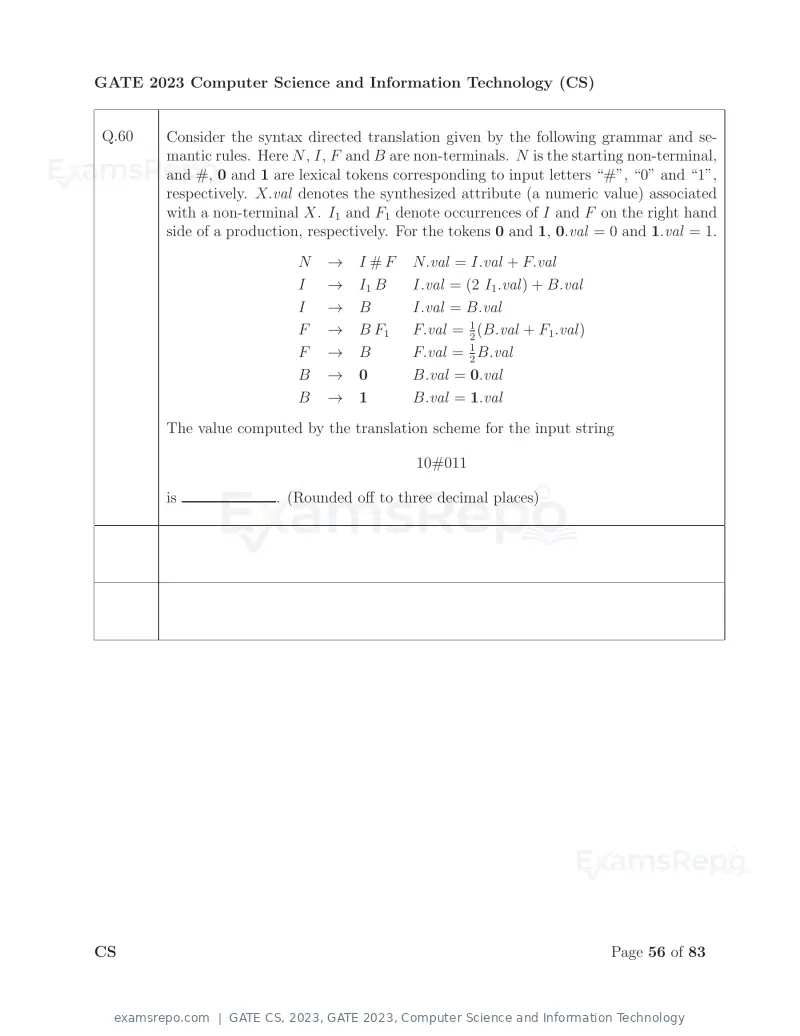

Q.60 Consider the syntax directed translation given by the following grammar and se-
mantic rules. Here N , I, F and B are non-terminals. N is the starting non-terminal,
and #, 0 and 1 are lexical tokens corresponding to input letters “#”, “0” and “1”,
respectively. X.val denotes the synthesized attribute (a numeric value) associated
with a non-terminal X. I1 and F1 denote occurrences of I and F on the right hand
side of a production, respectively. For the tokens 0 and 1, 0.val = 0 and 1.val = 1.
N → I #F N.val = I.val + F.val
I → I1 B I.val = (2 I1 .val ) + B.val
I → B I.val = B.val
F → B F1 F.val = 12 (B.val + F1 .val )
F → B F.val = 12 B.val
B → 0 B.val = 0.val
B → 1 B.val = 1.val
The value computed by the translation scheme for the input string
10#011
is . (Rounded off to three decimal places)
CS Page 56 of 83
Text of page 64
GATE 2023 Computer Science and Information Technology (CS)

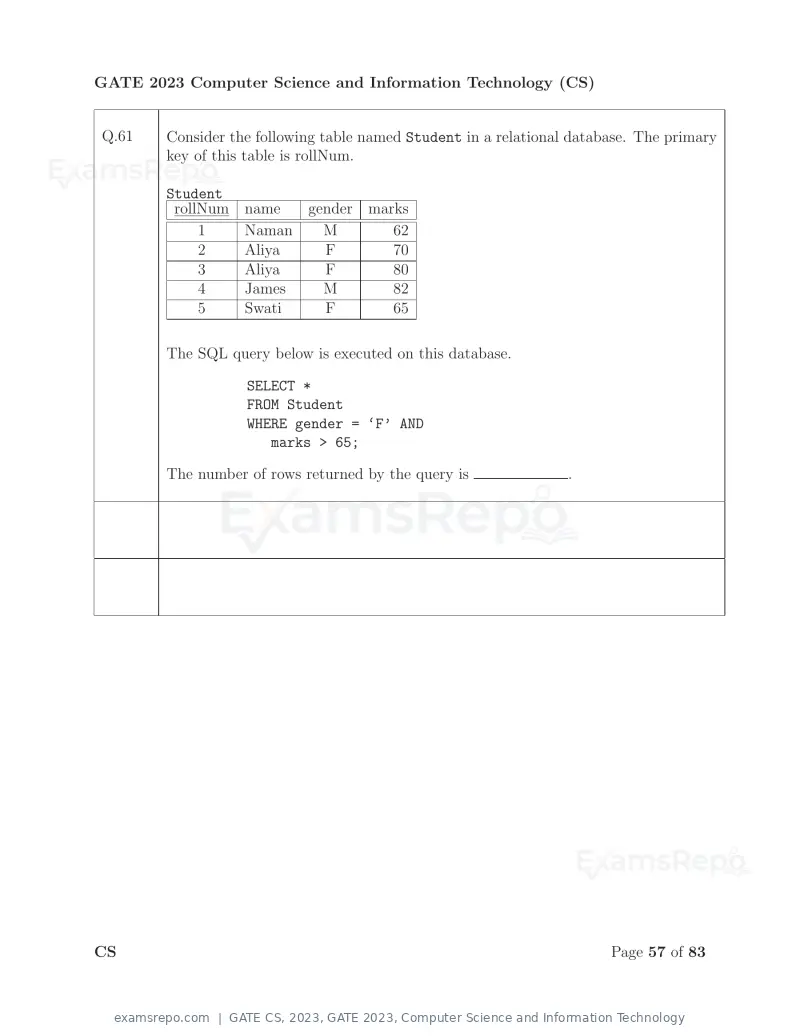

Q.61 Consider the following table named Student in a relational database. The primary
key of this table is rollNum.
Student
rollNum name gender marks
1 Naman M 62
2 Aliya F 70
3 Aliya F 80
4 James M 82
5 Swati F 65
The SQL query below is executed on this database.
SELECT *
FROM Student
WHERE gender = ‘F’ AND
marks > 65;
The number of rows returned by the query is .
CS Page 57 of 83
Text of page 65
GATE 2023 Computer Science and Information Technology (CS)

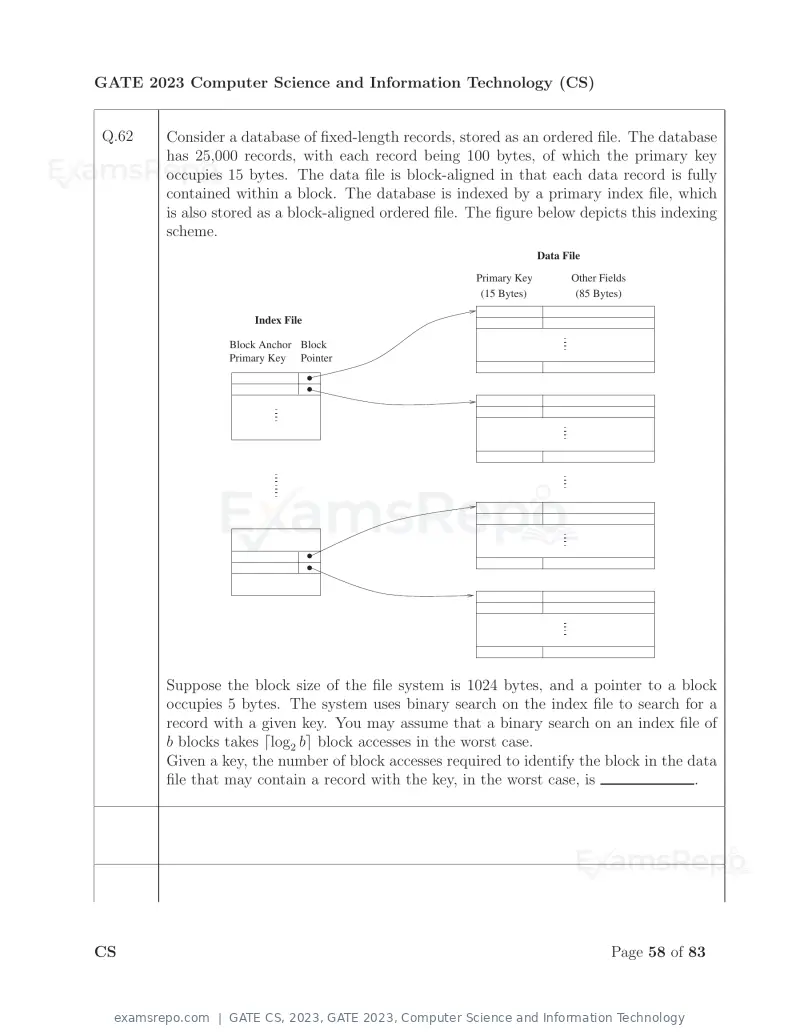

Q.62 Consider a database of fixed-length records, stored as an ordered file. The database
has 25,000 records, with each record being 100 bytes, of which the primary key
occupies 15 bytes. The data file is block-aligned in that each data record is fully
contained within a block. The database is indexed by a primary index file, which
is also stored as a block-aligned ordered file. The figure below depicts this indexing
scheme.
Data File
Primary Key Other Fields
(15 Bytes) (85 Bytes)
Index File
Block Anchor Block
Primary Key Pointer
Suppose the block size of the file system is 1024 bytes, and a pointer to a block
occupies 5 bytes. The system uses binary search on the index file to search for a
record with a given key. You may assume that a binary search on an index file of
b blocks takes log2 b block accesses in the worst case.
Given a key, the number of block accesses required to identify the block in the data
file that may contain a record with the key, in the worst case, is .
CS Page 58 of 83
Text of page 66
GATE 2023 Computer Science and Information Technology (CS) CS Page 59 of 83
Text of page 67
GATE 2023 Computer Science and Information Technology (CS)

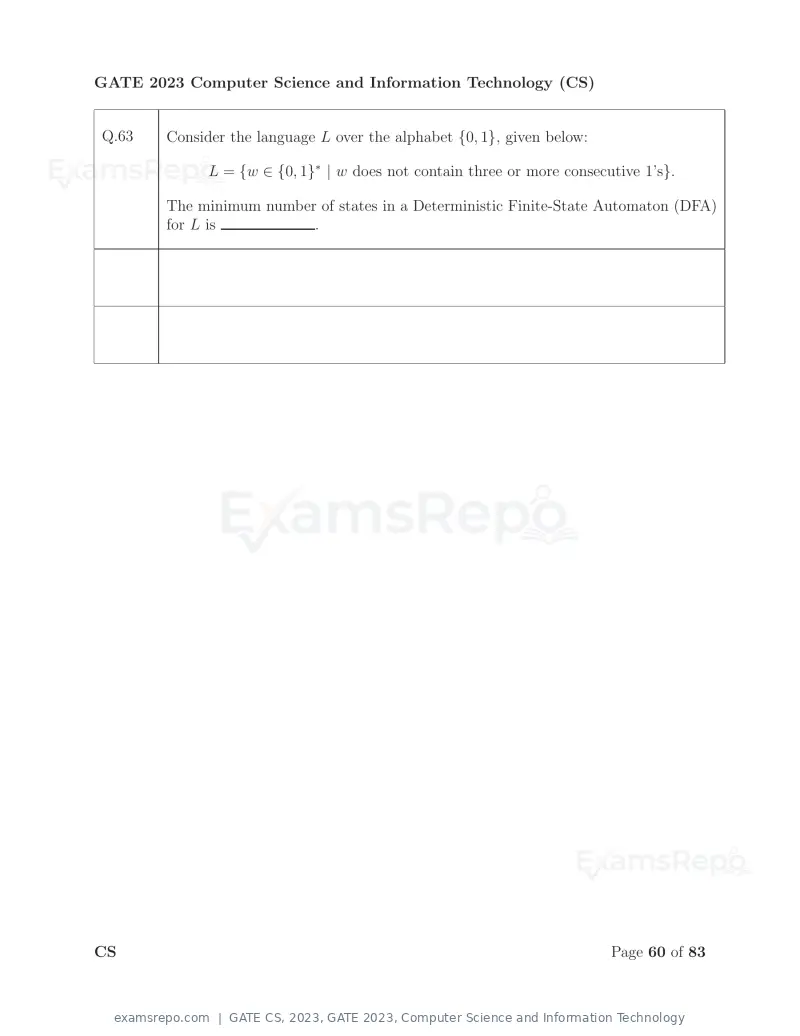

Q.63 Consider the language L over the alphabet {0, 1}, given below:
L = {w ∈ {0, 1}∗ | w does not contain three or more consecutive 1’s}.
The minimum number of states in a Deterministic Finite-State Automaton (DFA)
for L is .
CS Page 60 of 83
Text of page 68
GATE 2023 Computer Science and Information Technology (CS)

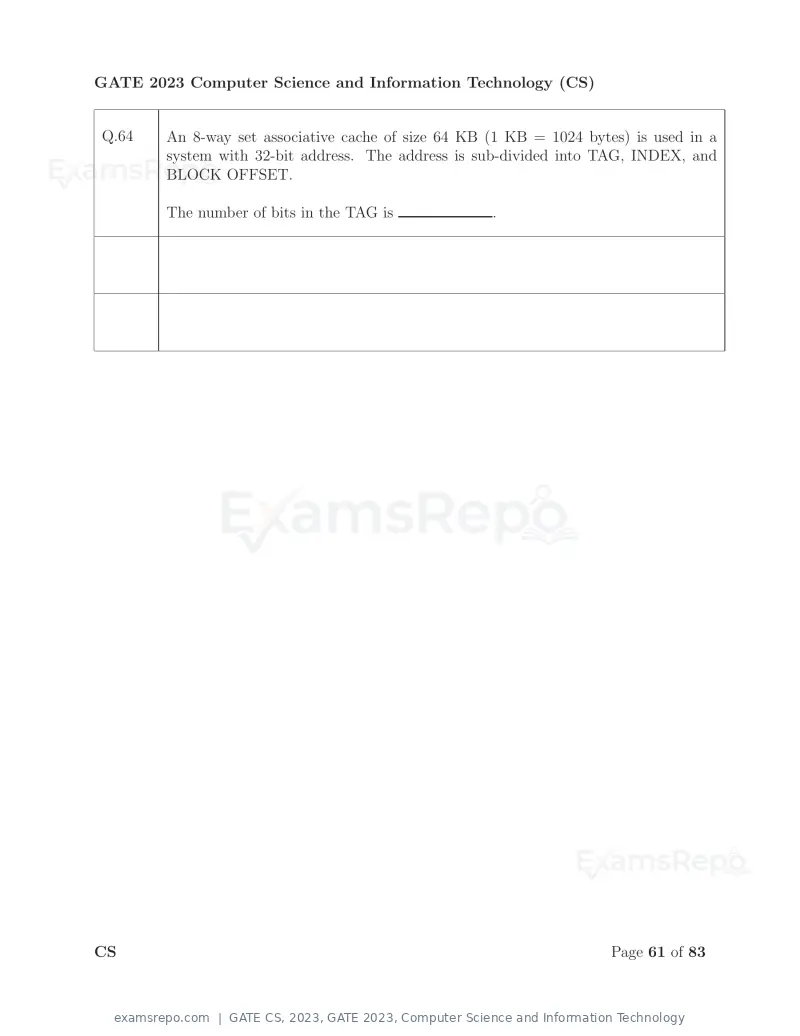

Q.64 An 8-way set associative cache of size 64 KB (1 KB = 1024 bytes) is used in a
system with 32-bit address. The address is sub-divided into TAG, INDEX, and
BLOCK OFFSET.
The number of bits in the TAG is .
CS Page 61 of 83
Text of page 69
GATE 2023 Computer Science and Information Technology (CS)

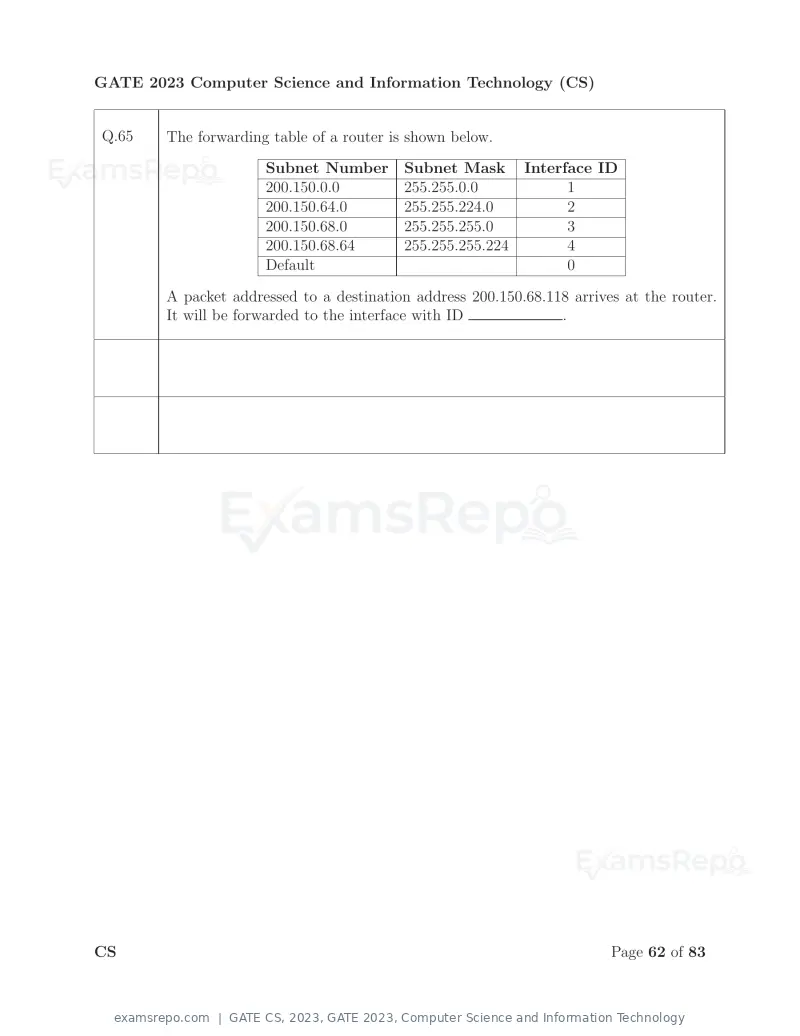

Q.65 The forwarding table of a router is shown below.
Subnet Number Subnet Mask Interface ID
200.150.0.0 255.255.0.0 1
200.150.64.0 255.255.224.0 2
200.150.68.0 255.255.255.0 3
200.150.68.64 255.255.255.224 4
Default 0
A packet addressed to a destination address 200.150.68.118 arrives at the router.
It will be forwarded to the interface with ID .
CS Page 62 of 83

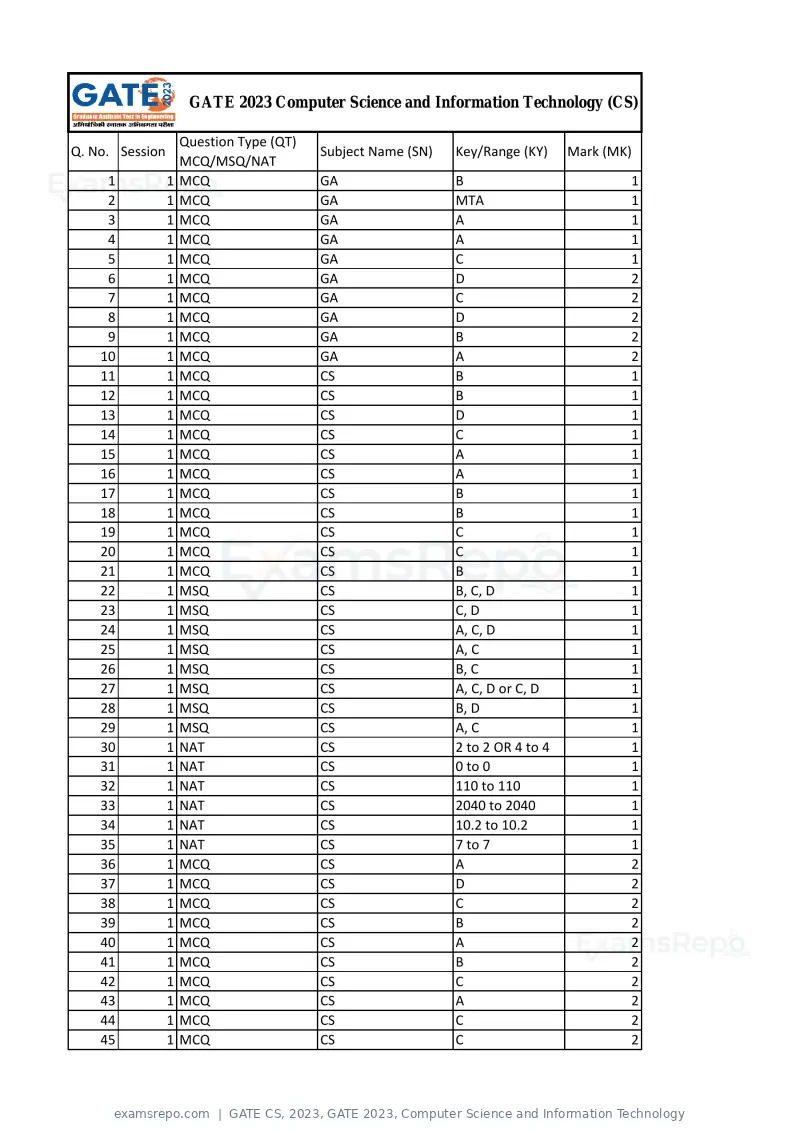

Text of page 1
GATE 2023 Computer Science and Information Technology (CS)
Question Type (QT)
Q. No. Session Subject Name (SN) Key/Range (KY) Mark (MK)
MCQ/MSQ/NAT
1 1 MCQ GA B 1
2 1 MCQ GA MTA 1
3 1 MCQ GA A 1
4 1 MCQ GA A 1
5 1 MCQ GA C 1
6 1 MCQ GA D 2
7 1 MCQ GA C 2
8 1 MCQ GA D 2
9 1 MCQ GA B 2
10 1 MCQ GA A 2
11 1 MCQ CS B 1
12 1 MCQ CS B 1
13 1 MCQ CS D 1
14 1 MCQ CS C 1
15 1 MCQ CS A 1
16 1 MCQ CS A 1
17 1 MCQ CS B 1
18 1 MCQ CS B 1
19 1 MCQ CS C 1
20 1 MCQ CS C 1
21 1 MCQ CS B 1
22 1 MSQ CS B, C, D 1
23 1 MSQ CS C, D 1
24 1 MSQ CS A, C, D 1
25 1 MSQ CS A, C 1
26 1 MSQ CS B, C 1
27 1 MSQ CS A, C, D or C, D 1
28 1 MSQ CS B, D 1
29 1 MSQ CS A, C 1
30 1 NAT CS 2 to 2 OR 4 to 4 1
31 1 NAT CS 0 to 0 1
32 1 NAT CS 110 to 110 1
33 1 NAT CS 2040 to 2040 1
34 1 NAT CS 10.2 to 10.2 1
35 1 NAT CS 7 to 7 1
36 1 MCQ CS A 2
37 1 MCQ CS D 2
38 1 MCQ CS C 2
39 1 MCQ CS B 2
40 1 MCQ CS A 2
41 1 MCQ CS B 2
42 1 MCQ CS C 2
43 1 MCQ CS A 2
44 1 MCQ CS C 2
45 1 MCQ CS C 2

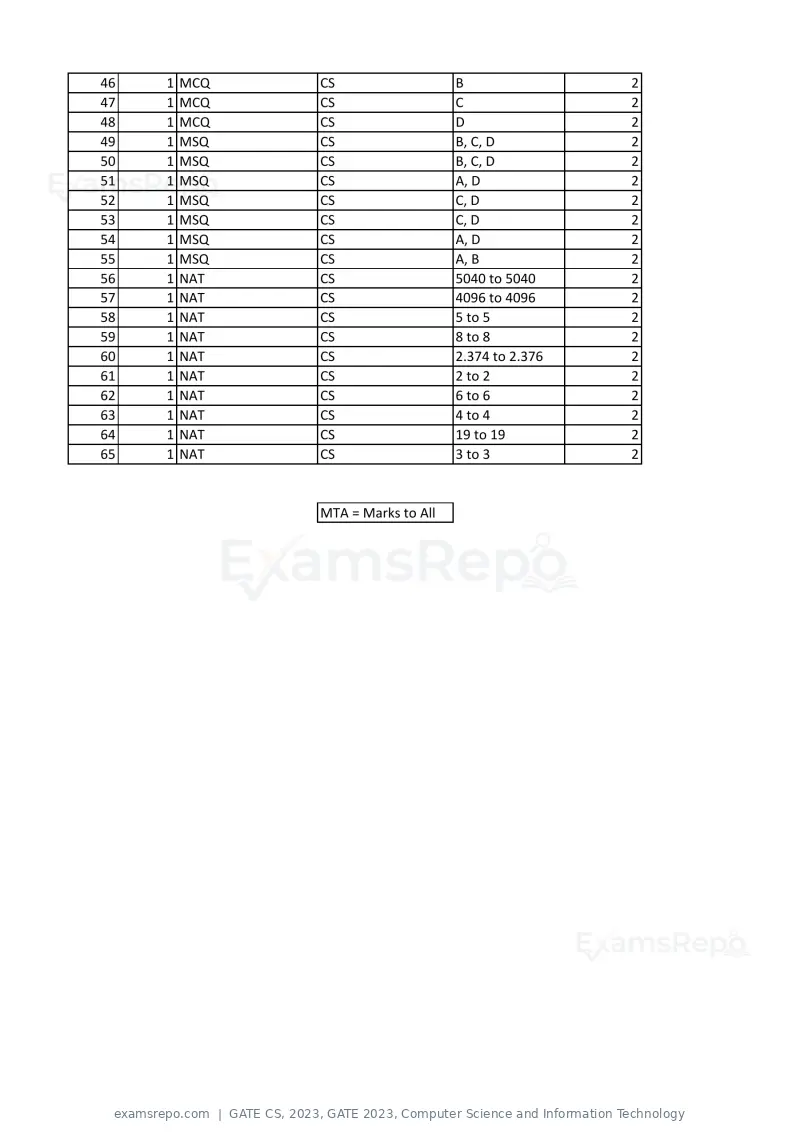

Text of page 2
46 1 MCQ CS B 2
47 1 MCQ CS C 2
48 1 MCQ CS D 2
49 1 MSQ CS B, C, D 2
50 1 MSQ CS B, C, D 2
51 1 MSQ CS A, D 2
52 1 MSQ CS C, D 2
53 1 MSQ CS C, D 2
54 1 MSQ CS A, D 2
55 1 MSQ CS A, B 2
56 1 NAT CS 5040 to 5040 2
57 1 NAT CS 4096 to 4096 2
58 1 NAT CS 5 to 5 2
59 1 NAT CS 8 to 8 2
60 1 NAT CS 2.374 to 2.376 2
61 1 NAT CS 2 to 2 2
62 1 NAT CS 6 to 6 2
63 1 NAT CS 4 to 4 2
64 1 NAT CS 19 to 19 2
65 1 NAT CS 3 to 3 2
MTA = Marks to All
Page 1 of 69
Source: GATE. Question paper published by GATE.
