GATE IN 2016: Instrumentation Engineering

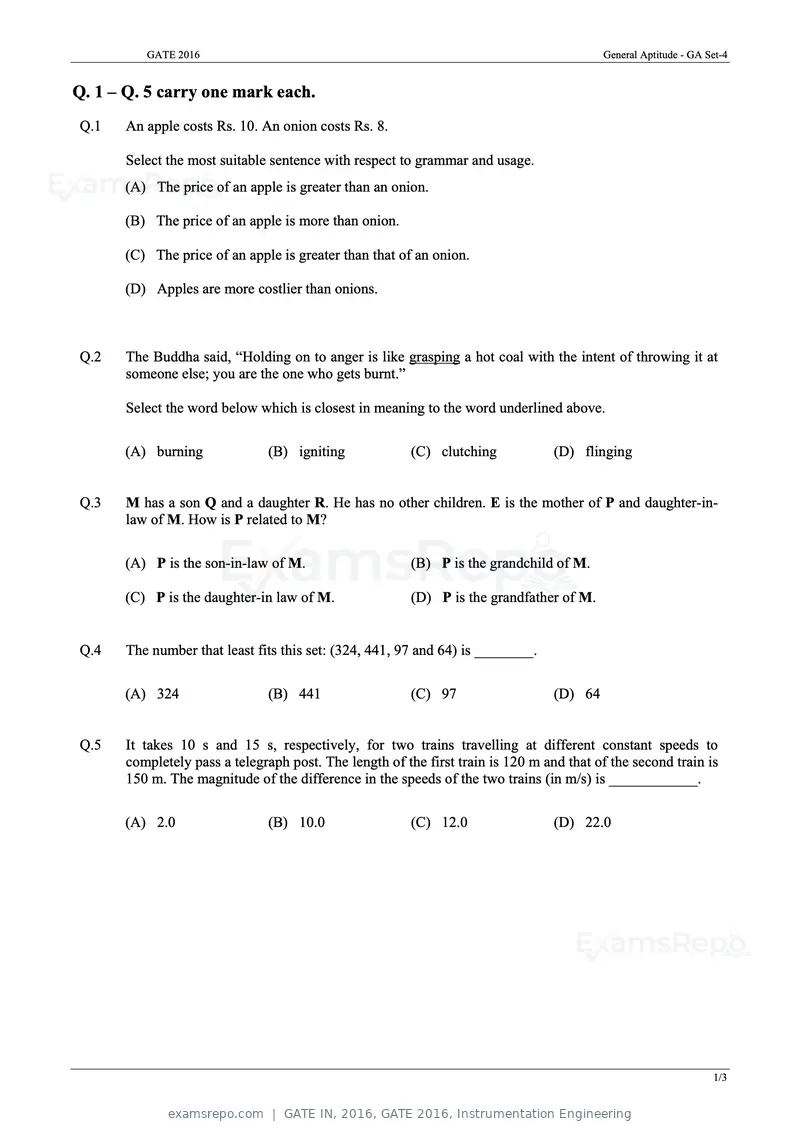

Text of page 1
GATE 2016 General Aptitude - GA Set-4
Q. 1 – Q. 5 carry one mark each.
Q.1 An apple costs Rs. 10. An onion costs Rs. 8.
Select the most suitable sentence with respect to grammar and usage.
(A) The price of an apple is greater than an onion.
(B) The price of an apple is more than onion.
(C) The price of an apple is greater than that of an onion.
(D) Apples are more costlier than onions.
Q.2 The Buddha said, “Holding on to anger is like grasping a hot coal with the intent of throwing it at
someone else; you are the one who gets burnt.”
Select the word below which is closest in meaning to the word underlined above.
(A) burning (B) igniting (C) clutching (D) flinging
Q.3 M has a son Q and a daughter R. He has no other children. E is the mother of P and daughter-in-
law of M. How is P related to M?
(A) P is the son-in-law of M. (B) P is the grandchild of M.
(C) P is the daughter-in law of M. (D) P is the grandfather of M.
Q.4 The number that least fits this set: (324, 441, 97 and 64) is ________.
(A) 324 (B) 441 (C) 97 (D) 64
Q.5 It takes 10 s and 15 s, respectively, for two trains travelling at different constant speeds to
completely pass a telegraph post. The length of the first train is 120 m and that of the second train is
150 m. The magnitude of the difference in the speeds of the two trains (in m/s) is ____________.
(A) 2.0 (B) 10.0 (C) 12.0 (D) 22.0
1/3
Text of page 2

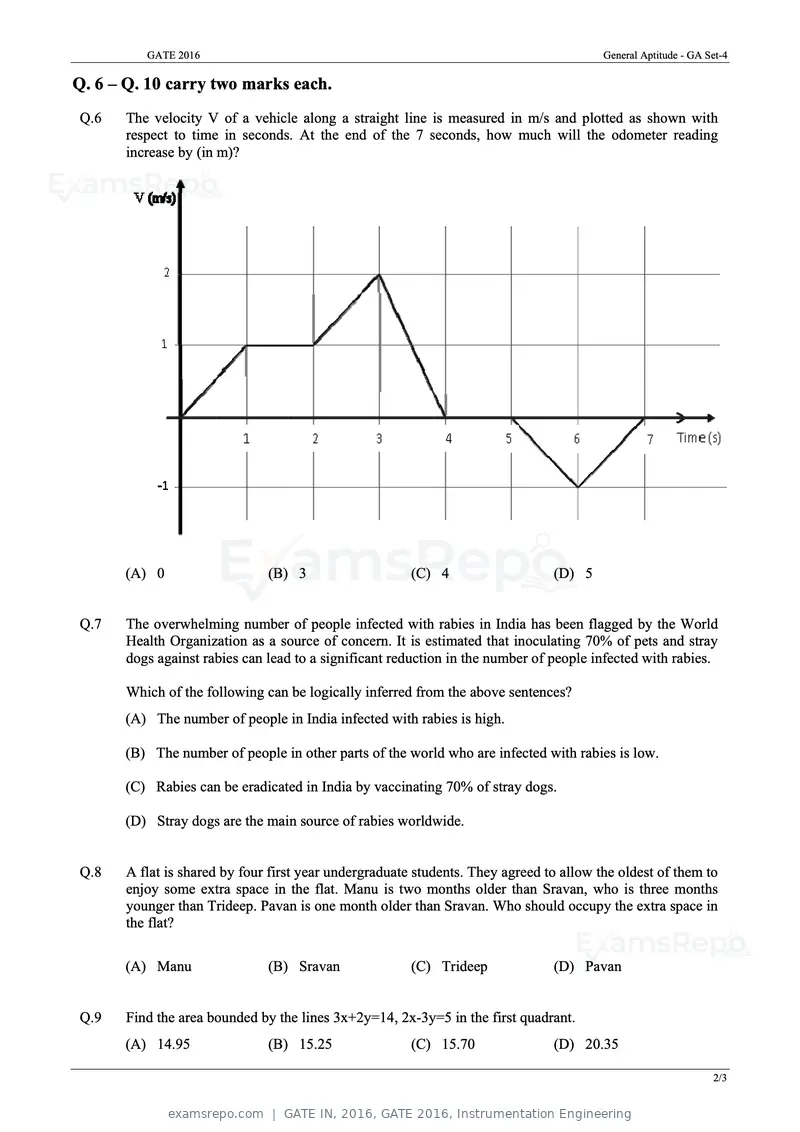

GATE 2016 General Aptitude - GA Set-4
Q. 6 – Q. 10 carry two marks each.
Q.6 The velocity V of a vehicle along a straight line is measured in m/s and plotted as shown with
respect to time in seconds. At the end of the 7 seconds, how much will the odometer reading
increase by (in m)?
(A) 0 (B) 3 (C) 4 (D) 5
Q.7 The overwhelming number of people infected with rabies in India has been flagged by the World
Health Organization as a source of concern. It is estimated that inoculating 70% of pets and stray
dogs against rabies can lead to a significant reduction in the number of people infected with rabies.
Which of the following can be logically inferred from the above sentences?
(A) The number of people in India infected with rabies is high.
(B) The number of people in other parts of the world who are infected with rabies is low.
(C) Rabies can be eradicated in India by vaccinating 70% of stray dogs.
(D) Stray dogs are the main source of rabies worldwide.
Q.8 A flat is shared by four first year undergraduate students. They agreed to allow the oldest of them to
enjoy some extra space in the flat. Manu is two months older than Sravan, who is three months
younger than Trideep. Pavan is one month older than Sravan. Who should occupy the extra space in
the flat?
(A) Manu (B) Sravan (C) Trideep (D) Pavan
Q.9 Find the area bounded by the lines 3x+2y=14, 2x-3y=5 in the first quadrant.
(A) 14.95 (B) 15.25 (C) 15.70 (D) 20.35
2/3
Text of page 3
GATE 2016 General Aptitude - GA Set-4

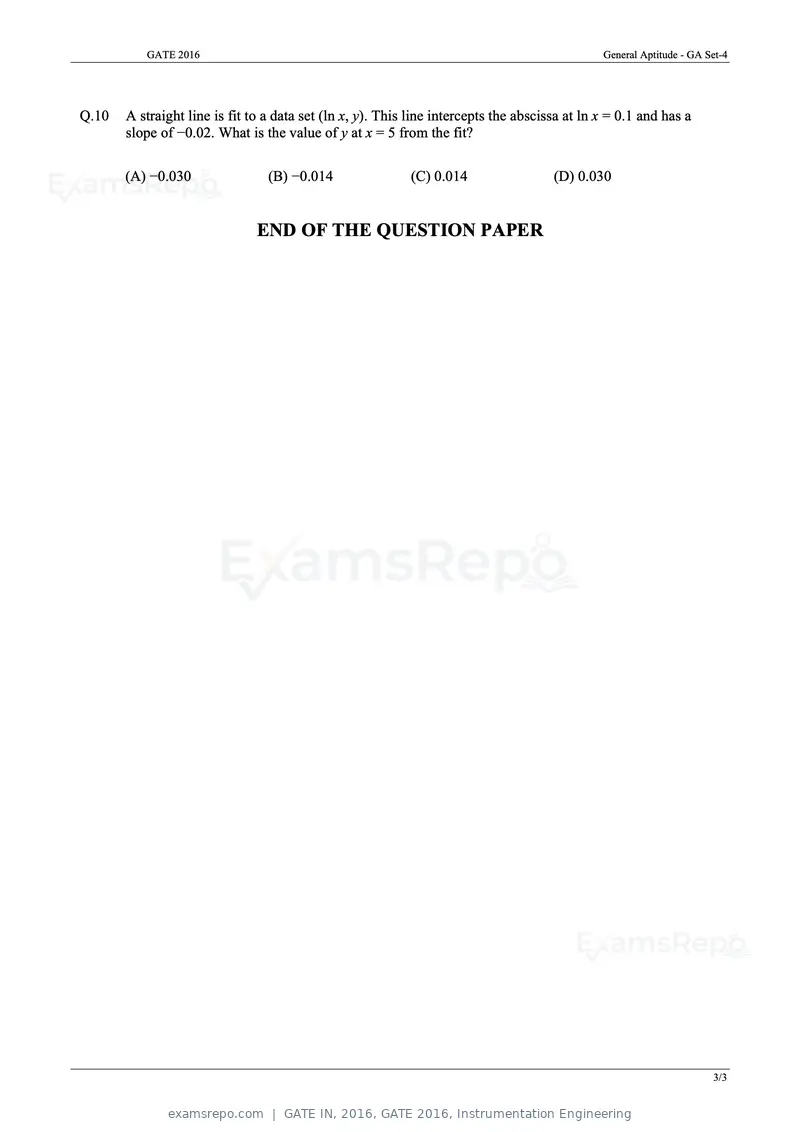

Q.10 A straight line is fit to a data set (ln x, y). This line intercepts the abscissa at ln x = 0.1 and has a
slope of −0.02. What is the value of y at x = 5 from the fit?
(A) −0.030 (B) −0.014 (C) 0.014 (D) 0.030
END OF THE QUESTION PAPER
3/3
Text of page 4

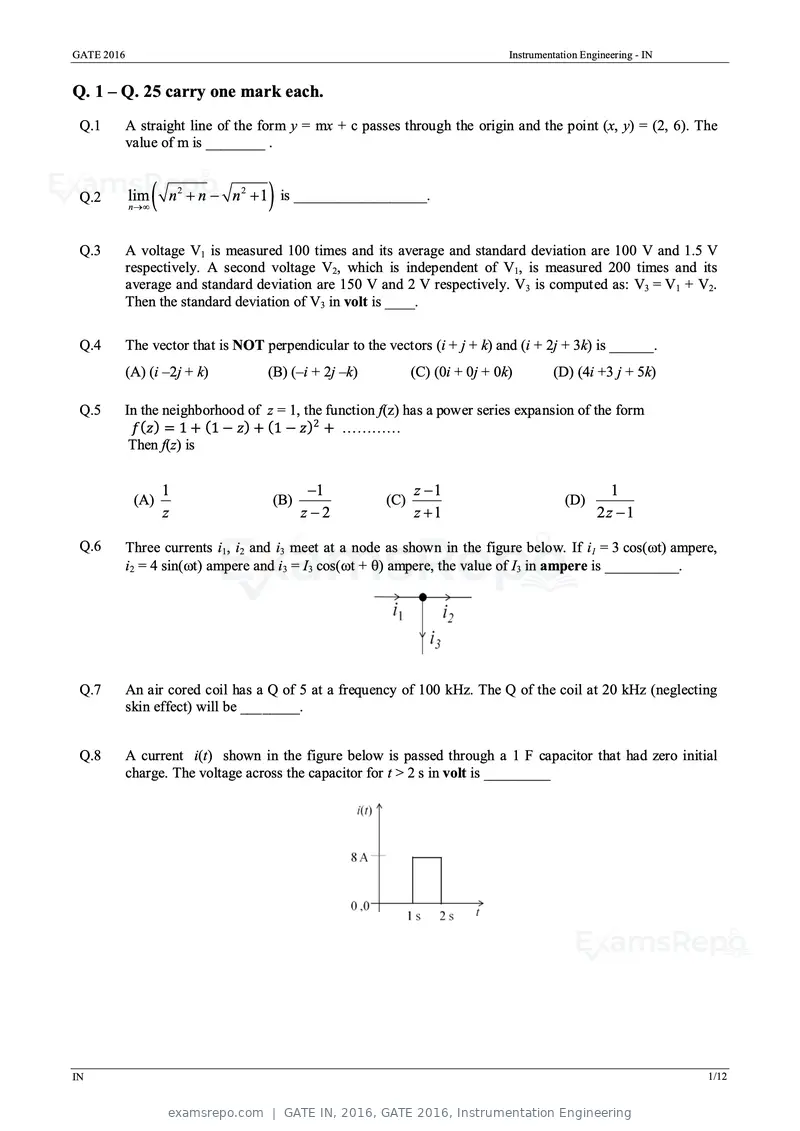

GATE 2016 Instrumentation Engineering - IN
Q. 1 – Q. 25 carry one mark each.
Q.1 A straight line of the form y = mx + c passes through the origin and the point (x, y) = (2, 6). The
value of m is ________ .
Q.2 lim
n →∞
( n + n − n + 1) is __________________.
2 2
Q.3 A voltage V1 is measured 100 times and its average and standard deviation are 100 V and 1.5 V
respectively. A second voltage V2, which is independent of V1, is measured 200 times and its
average and standard deviation are 150 V and 2 V respectively. V3 is computed as: V3 = V1 + V2.
Then the standard deviation of V3 in volt is ____.
Q.4 The vector that is NOT perpendicular to the vectors (i + j + k) and (i + 2j + 3k) is ______.
(A) (i –2j + k) (B) (–i + 2j –k) (C) (0i + 0j + 0k) (D) (4i +3 j + 5k)
Q.5 In the neighborhood of z = 1, the function f(z) has a power series expansion of the form
ff (zz) = 1 + (1 − zz) + (1 − zz)2 + …………
Then f(z) is
1 −1 z −1 1
(A) (B) (C) (D)
z z−2 z +1 2z −1
Q.6 Three currents i1, i2 and i3 meet at a node as shown in the figure below. If i1 = 3 cos(ωt) ampere,
i2 = 4 sin(ωt) ampere and i3 = I3 cos(ωt + θ) ampere, the value of I3 in ampere is __________.
Q.7 An air cored coil has a Q of 5 at a frequency of 100 kHz. The Q of the coil at 20 kHz (neglecting
skin effect) will be ________.
Q.8 A current i(t) shown in the figure below is passed through a 1 F capacitor that had zero initial
charge. The voltage across the capacitor for t > 2 s in volt is _________
IN 1/12
Text of page 5
GATE 2016 Instrumentation Engineering - IN

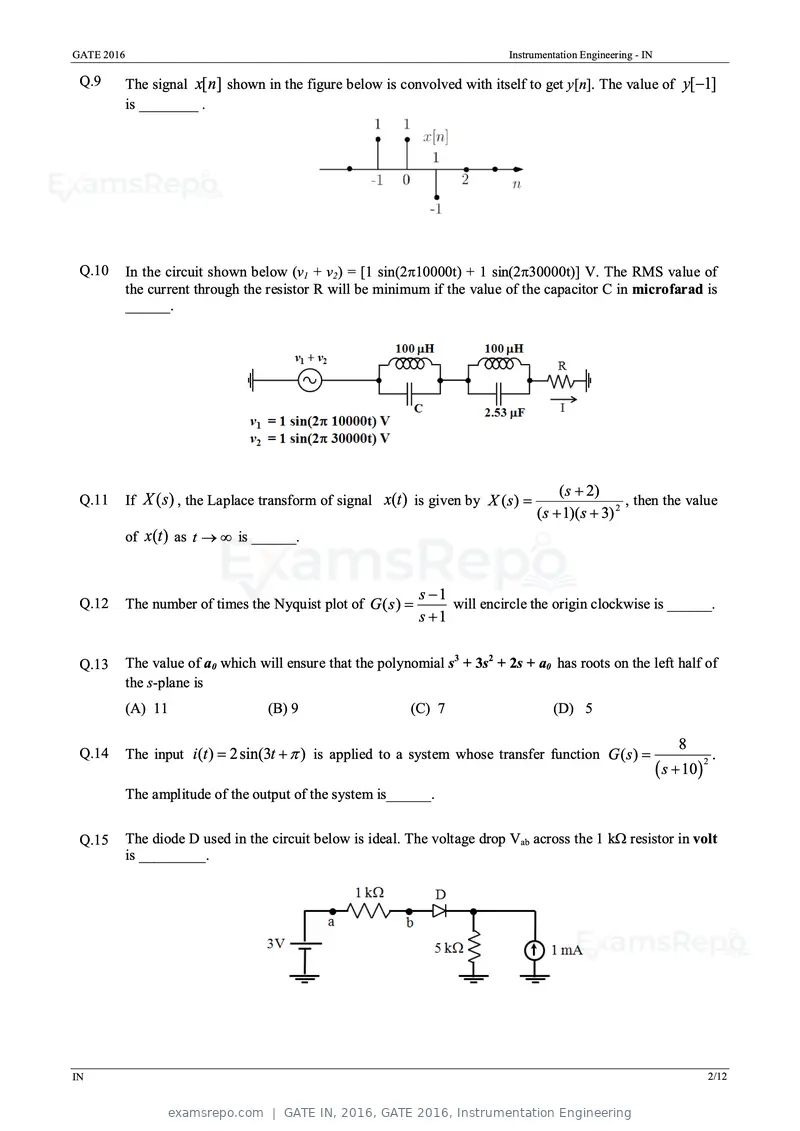

Q.9 The signal x[n] shown in the figure below is convolved with itself to get y[n]. The value of y[−1]
is ________ .
Q.10 In the circuit shown below (v1 + v2) = [1 sin(2π10000t) + 1 sin(2π30000t)] V. The RMS value of
the current through the resistor R will be minimum if the value of the capacitor C in microfarad is
______.
( s + 2)
Q.11 If X (s ) , the Laplace transform of signal x(t ) is given by X ( s ) = , then the value
( s + 1)( s + 3) 2
of x(t ) as t → ∞ is ______.
s −1
Q.12 The number of times the Nyquist plot of G ( s ) = will encircle the origin clockwise is ______.
s +1
Q.13 The value of a0 which will ensure that the polynomial s3 + 3s2 + 2s + a0 has roots on the left half of
the s-plane is
(A) 11 (B) 9 (C) 7 (D) 5
8
Q.14 =
The input i (t ) 2sin(3t + π ) is applied to a system whose transfer function G ( s ) = .
( s + 10 )
2
The amplitude of the output of the system is______.
Q.15 The diode D used in the circuit below is ideal. The voltage drop Vab across the 1 kΩ resistor in volt
is _________.
IN 2/12
Text of page 6
GATE 2016 Instrumentation Engineering - IN

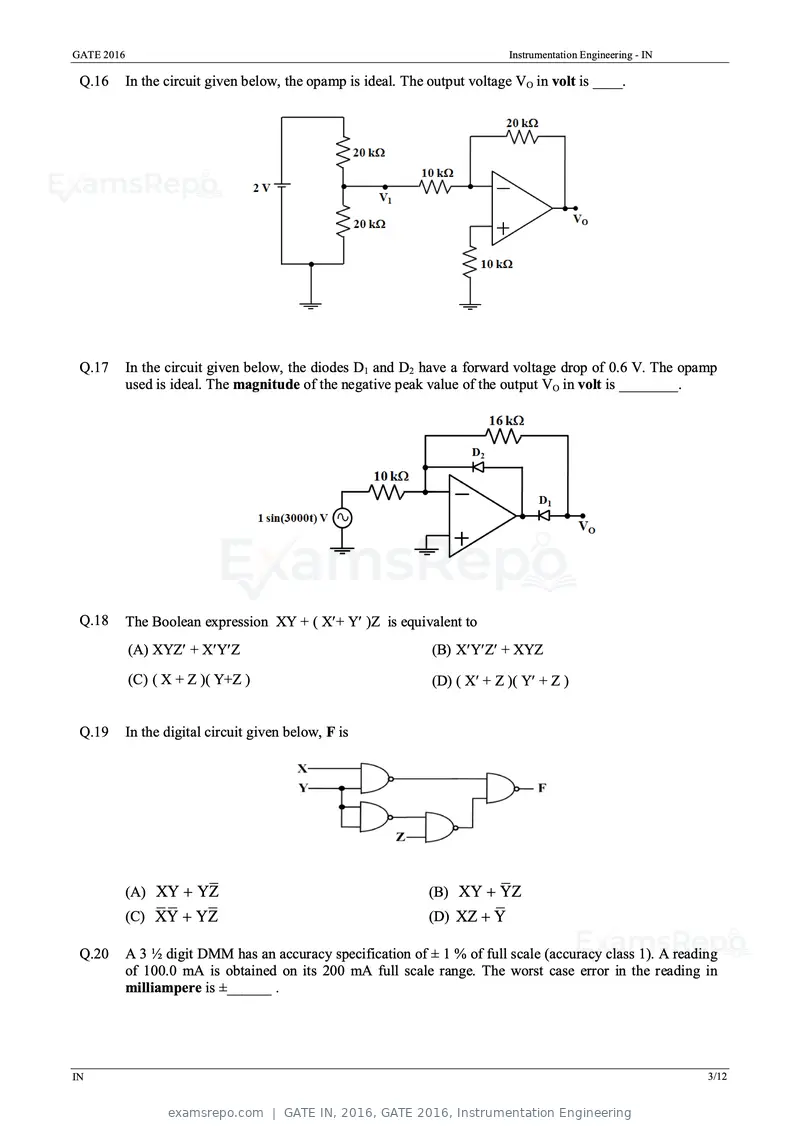

Q.16 In the circuit given below, the opamp is ideal. The output voltage VO in volt is ____.
Q.17 In the circuit given below, the diodes D1 and D2 have a forward voltage drop of 0.6 V. The opamp
used is ideal. The magnitude of the negative peak value of the output VO in volt is ________.
Q.18 The Boolean expression XY + ( X′+ Y′ )Z is equivalent to
(A) XYZ′ + X′Y′Z (B) X′Y′Z′ + XYZ
(C) ( X + Z )( Y+Z ) (D) ( X′ + Z )( Y′ + Z )
Q.19 In the digital circuit given below, F is
(A) XY + YZ (B) XY + YZ
(C) XY + YZ (D) XZ + Y
Q.20 A 3 ½ digit DMM has an accuracy specification of ± 1 % of full scale (accuracy class 1). A reading
of 100.0 mA is obtained on its 200 mA full scale range. The worst case error in the reading in
milliampere is ±______ .
IN 3/12
Text of page 7

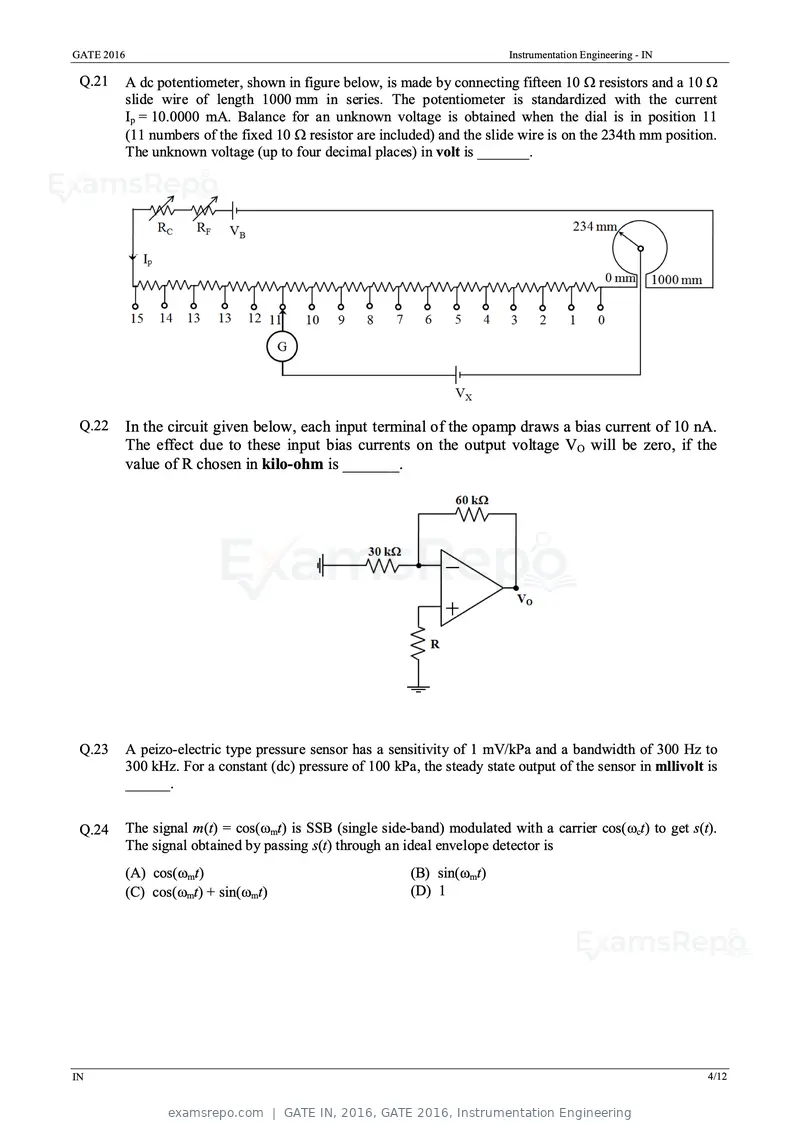

GATE 2016 Instrumentation Engineering - IN
Q.21 A dc potentiometer, shown in figure below, is made by connecting fifteen 10 Ω resistors and a 10 Ω
slide wire of length 1000 mm in series. The potentiometer is standardized with the current
Ip = 10.0000 mA. Balance for an unknown voltage is obtained when the dial is in position 11
(11 numbers of the fixed 10 Ω resistor are included) and the slide wire is on the 234th mm position.
The unknown voltage (up to four decimal places) in volt is _______.
Q.22 In the circuit given below, each input terminal of the opamp draws a bias current of 10 nA.
The effect due to these input bias currents on the output voltage VO will be zero, if the
value of R chosen in kilo-ohm is _______.
Q.23 A peizo-electric type pressure sensor has a sensitivity of 1 mV/kPa and a bandwidth of 300 Hz to
300 kHz. For a constant (dc) pressure of 100 kPa, the steady state output of the sensor in mllivolt is
______.
Q.24 The signal m(t) = cos(ωmt) is SSB (single side-band) modulated with a carrier cos(ωct) to get s(t).
The signal obtained by passing s(t) through an ideal envelope detector is
(A) cos(ωmt) (B) sin(ωmt)
(C) cos(ωmt) + sin(ωmt) (D) 1
IN 4/12
Text of page 8

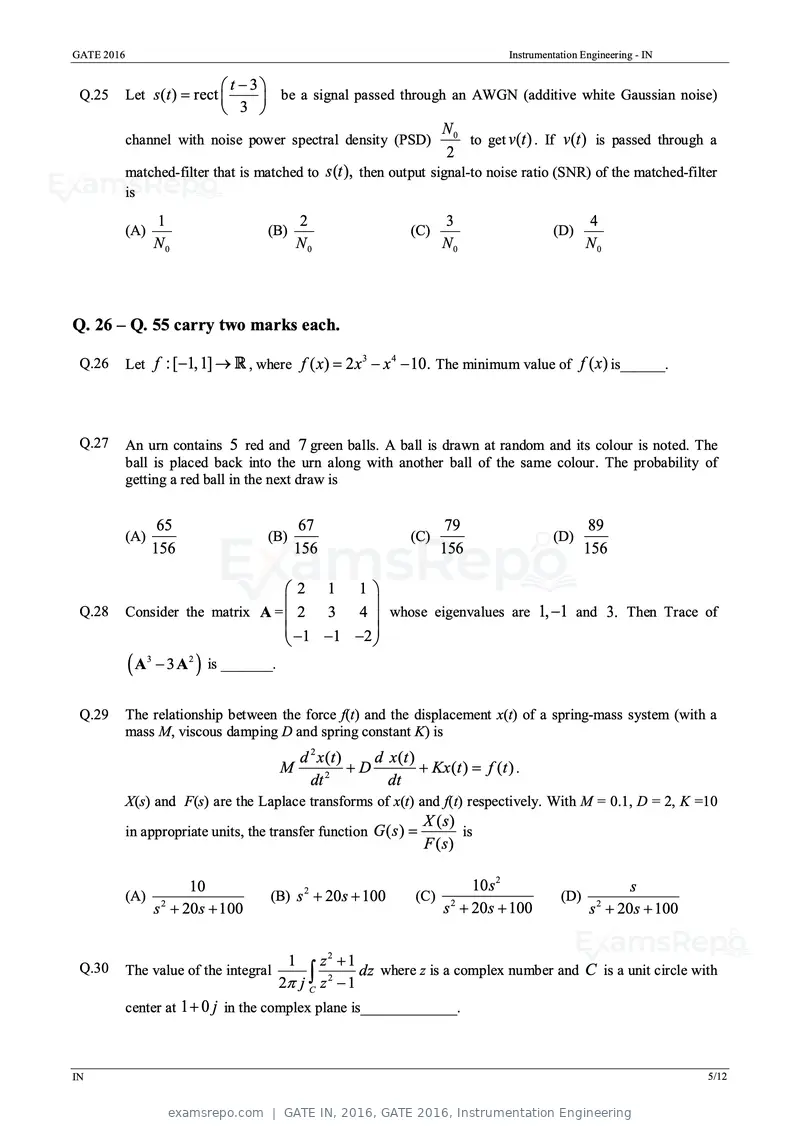

GATE 2016 Instrumentation Engineering - IN
t − 3
Q.25 Let s (t ) = rect be a signal passed through an AWGN (additive white Gaussian noise)
3
N
channel with noise power spectral density (PSD) 0 to get v(t ) . If v(t ) is passed through a
2
matched-filter that is matched to s (t ), then output signal-to noise ratio (SNR) of the matched-filter
is
1 2 3 4
(A) (B) (C) (D)
N0 N0 N0 N0
Q. 26 – Q. 55 carry two marks each.
Let f : [ −1, 1] → , where f ( x) = 2 x − x − 10. The minimum value of f ( x) is______.
3 4
Q.26
Q.27 An urn contains 5 red and 7 green balls. A ball is drawn at random and its colour is noted. The
ball is placed back into the urn along with another ball of the same colour. The probability of
getting a red ball in the next draw is
65 67 79 89
(A) (B) (C) (D)
156 156 156 156
2 1 1
Q.28 Consider the matrix A = 2
3 4 whose eigenvalues are 1, −1 and 3. Then Trace of
−1 −1 −2
( A − 3 A ) is _______.
3 2
Q.29 The relationship between the force f(t) and the displacement x(t) of a spring-mass system (with a
mass M, viscous damping D and spring constant K) is
d 2 x (t ) d x (t )
M 2
+D + Kx (t ) f
= (t ) .
dt dt
X(s) and F(s) are the Laplace transforms of x(t) and f(t) respectively. With M = 0.1, D = 2, K =10
X ( s)
in appropriate units, the transfer function G ( s ) = is
F ( s)
10 10s 2 s
(A) (B) s 2 + 20 s + 100 (C) (D)
s + 20s + 100
2
s 2 + 20s + 100 s + 20s + 100
2
1 z2 + 1
2π j C∫ z 2 − 1
Q.30 The value of the integral dz where z is a complex number and C is a unit circle with
center at 1 + 0 j in the complex plane is_____________.
IN 5/12
Text of page 9

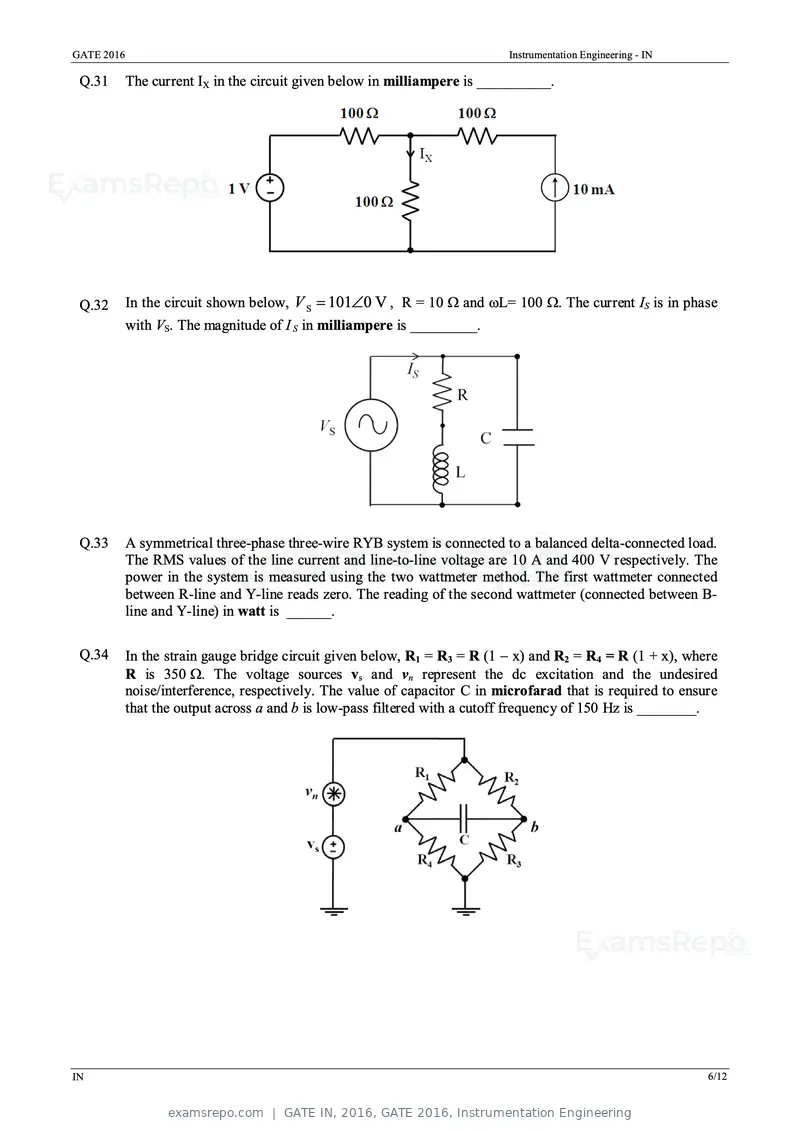

GATE 2016 Instrumentation Engineering - IN
Q.31 The current IX in the circuit given below in milliampere is __________.
Q.32 In the circuit shown below, V=
S 101∠0 V , R = 10 Ω and ωL= 100 Ω. The current IS is in phase
with VS. The magnitude of I S in milliampere is _________.
Q.33 A symmetrical three-phase three-wire RYB system is connected to a balanced delta-connected load.
The RMS values of the line current and line-to-line voltage are 10 A and 400 V respectively. The
power in the system is measured using the two wattmeter method. The first wattmeter connected
between R-line and Y-line reads zero. The reading of the second wattmeter (connected between B-
line and Y-line) in watt is ______.
Q.34 In the strain gauge bridge circuit given below, R1 = R3 = R (1 − x) and R2 = R4 = R (1 + x), where
R is 350 Ω. The voltage sources vs and vn represent the dc excitation and the undesired
noise/interference, respectively. The value of capacitor C in microfarad that is required to ensure
that the output across a and b is low-pass filtered with a cutoff frequency of 150 Hz is ________.
IN 6/12

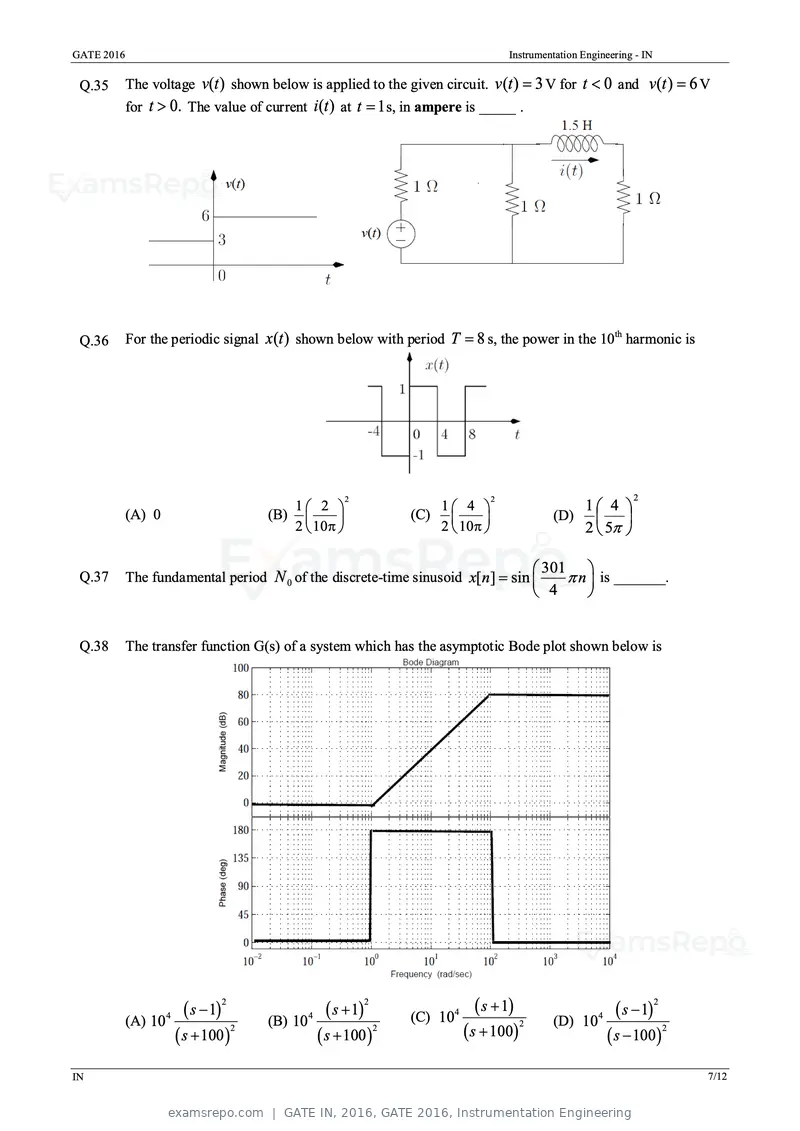

Text of page 10
GATE 2016 Instrumentation Engineering - IN
Q.35 The voltage v(t ) shown below is applied to the given circuit. v(t ) = 3 V for t < 0 and v(t ) = 6 V
for t > 0. The value of current i (t ) at t = 1 s, in ampere is _____ .
Q.36 For the periodic signal x(t ) shown below with period T = 8 s, the power in the 10th harmonic is
2
1 4
2 2
1 2 1 4
(A) 0 (B) (C) (D)
2 10π 2 10π 2 5π
301
Q.37 The fundamental period N 0 of the discrete-time sinusoid x[n] = sin π n is _______.
4
Q.38 The transfer function G(s) of a system which has the asymptotic Bode plot shown below is
4 ( s − 1)
2
4 ( s + 1)
2
(C) 10 4 ( s + 1) 4 ( s − 1)
2
(A) 10 (B) 10 (D) 10
( s + 100)
2
( s + 100 ) ( s + 100 ) ( s − 100 )
2 2 2
IN 7/12
Text of page 11
GATE 2016 Instrumentation Engineering - IN
1

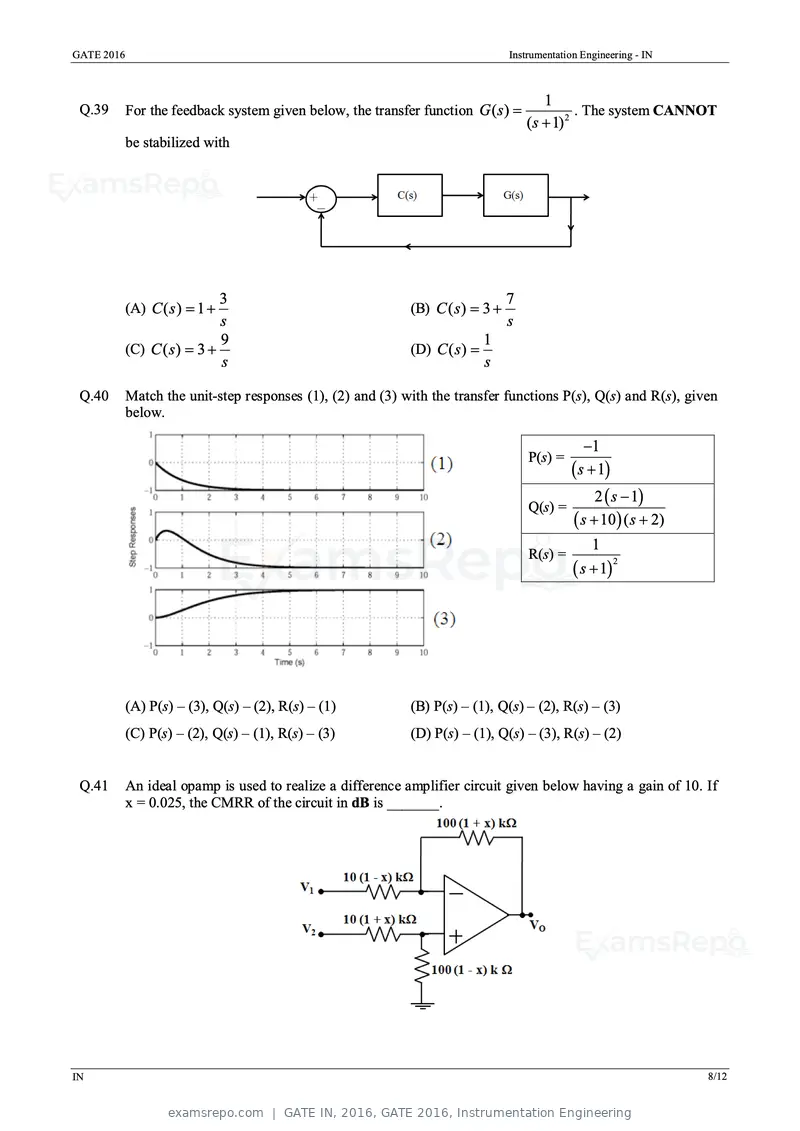

Q.39 For the feedback system given below, the transfer function G ( s ) = . The system CANNOT
( s + 1) 2
be stabilized with
3 7
(A) C ( s ) = 1 + (B) C ( s )= 3 +
s s
9 1
(C) C ( s )= 3 + (D) C ( s ) =
s s
Q.40 Match the unit-step responses (1), (2) and (3) with the transfer functions P(s), Q(s) and R(s), given
below.
−1
P(s) =
( s + 1)
2 ( s − 1)
Q(s) =
( s + 10) ( s + 2)
1
R(s) =
( s + 1)
2
(A) P(s) – (3), Q(s) – (2), R(s) – (1) (B) P(s) – (1), Q(s) – (2), R(s) – (3)
(C) P(s) – (2), Q(s) – (1), R(s) – (3) (D) P(s) – (1), Q(s) – (3), R(s) – (2)
Q.41 An ideal opamp is used to realize a difference amplifier circuit given below having a gain of 10. If
x = 0.025, the CMRR of the circuit in dB is _______.
IN 8/12
Text of page 12
GATE 2016 Instrumentation Engineering - IN

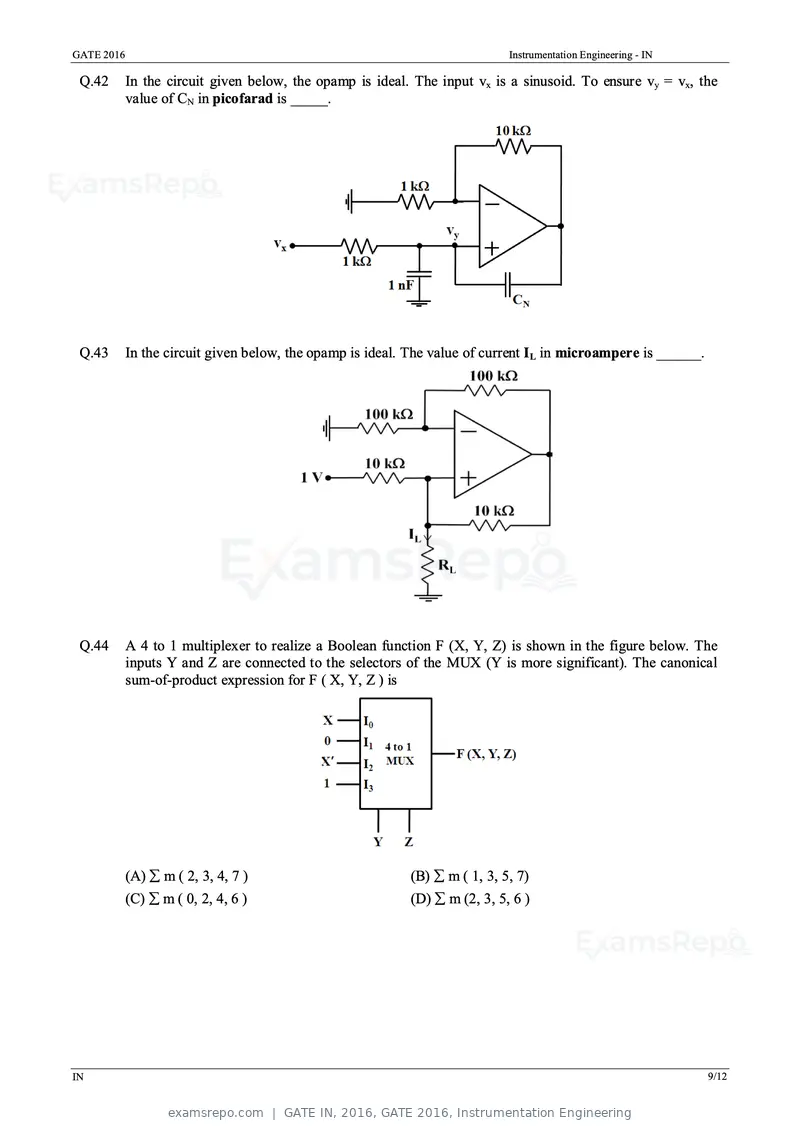

Q.42 In the circuit given below, the opamp is ideal. The input vx is a sinusoid. To ensure vy = vx, the
value of CN in picofarad is _____.
Q.43 In the circuit given below, the opamp is ideal. The value of current IL in microampere is ______.
Q.44 A 4 to 1 multiplexer to realize a Boolean function F (X, Y, Z) is shown in the figure below. The
inputs Y and Z are connected to the selectors of the MUX (Y is more significant). The canonical
sum-of-product expression for F ( X, Y, Z ) is
(A) ∑ m ( 2, 3, 4, 7 ) (B) ∑ m ( 1, 3, 5, 7)
(C) ∑ m ( 0, 2, 4, 6 ) (D) ∑ m (2, 3, 5, 6 )
IN 9/12
Text of page 13
GATE 2016 Instrumentation Engineering - IN

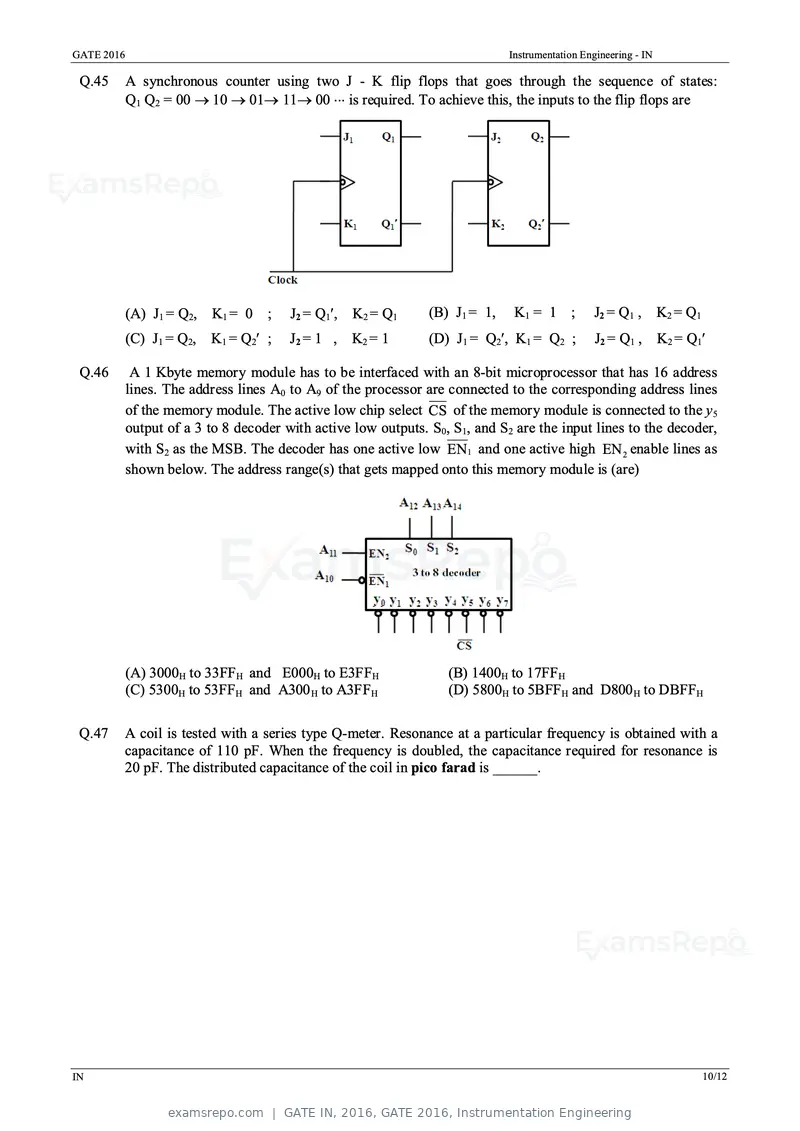

Q.45 A synchronous counter using two J - K flip flops that goes through the sequence of states:
Q1 Q2 = 00 → 10 → 01→ 11→ 00 ⋅⋅⋅ is required. To achieve this, the inputs to the flip flops are
(A) J1 = Q2, K1 = 0 ; J2 = Q1′, K2 = Q1 (B) J1 = 1, K1 = 1 ; J2 = Q1 , K2 = Q1
(C) J1 = Q2, K1 = Q2′ ; J2 = 1 , K2 = 1 (D) J1 = Q2′, K1 = Q2 ; J2 = Q1 , K2 = Q1′
Q.46 A 1 Kbyte memory module has to be interfaced with an 8-bit microprocessor that has 16 address
lines. The address lines A0 to A9 of the processor are connected to the corresponding address lines
of the memory module. The active low chip select CS of the memory module is connected to the y5
output of a 3 to 8 decoder with active low outputs. S0, S1, and S2 are the input lines to the decoder,
with S2 as the MSB. The decoder has one active low EN1 and one active high EN 2 enable lines as
shown below. The address range(s) that gets mapped onto this memory module is (are)
(A) 3000H to 33FFH and E000H to E3FFH (B) 1400H to 17FFH
(C) 5300H to 53FFH and A300 H to A3FFH (D) 5800H to 5BFFH and D800 H to DBFFH
Q.47 A coil is tested with a series type Q-meter. Resonance at a particular frequency is obtained with a
capacitance of 110 pF. When the frequency is doubled, the capacitance required for resonance is
20 pF. The distributed capacitance of the coil in pico farad is ______.
IN 10/12

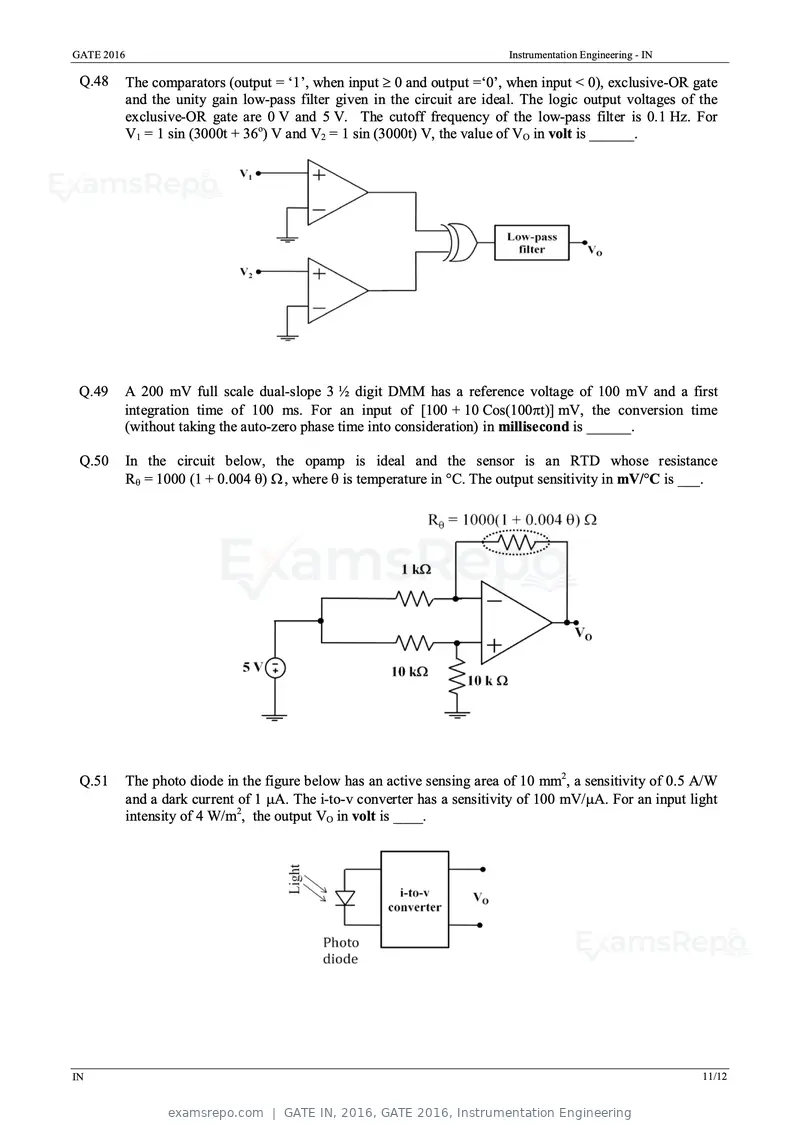

Text of page 14
GATE 2016 Instrumentation Engineering - IN
Q.48 The comparators (output = ‘1’, when input ≥ 0 and output =‘0’, when input < 0), exclusive-OR gate
and the unity gain low-pass filter given in the circuit are ideal. The logic output voltages of the
exclusive-OR gate are 0 V and 5 V. The cutoff frequency of the low-pass filter is 0.1 Hz. For
V1 = 1 sin (3000t + 36o) V and V2 = 1 sin (3000t) V, the value of VO in volt is ______.
Q.49 A 200 mV full scale dual-slope 3 ½ digit DMM has a reference voltage of 100 mV and a first
integration time of 100 ms. For an input of [100 + 10 Cos(100πt)] mV, the conversion time
(without taking the auto-zero phase time into consideration) in millisecond is ______.
Q.50 In the circuit below, the opamp is ideal and the sensor is an RTD whose resistance
Rθ = 1000 (1 + 0.004 θ) Ω , where θ is temperature in °C. The output sensitivity in mV/°C is ___.
Q.51 The photo diode in the figure below has an active sensing area of 10 mm2, a sensitivity of 0.5 A/W
and a dark current of 1 µA. The i-to-v converter has a sensitivity of 100 mV/µA. For an input light
intensity of 4 W/m2, the output VO in volt is ____.
IN 11/12

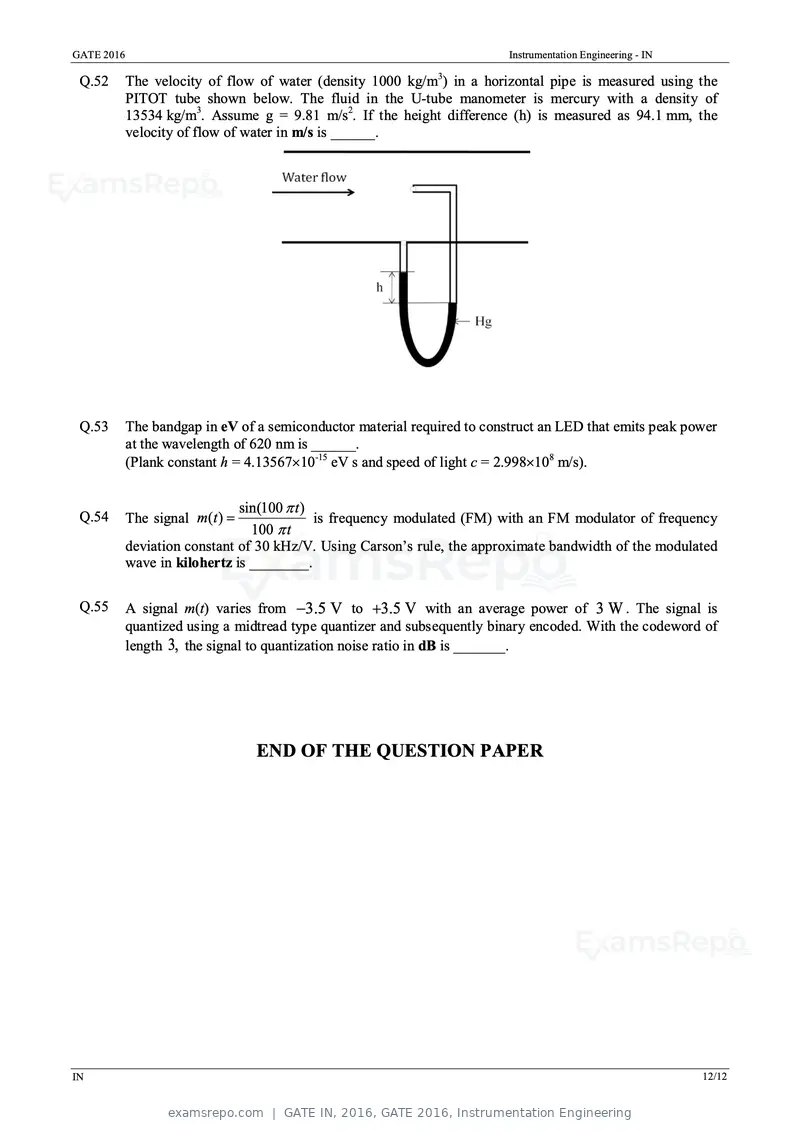

Text of page 15
GATE 2016 Instrumentation Engineering - IN
Q.52 The velocity of flow of water (density 1000 kg/m3) in a horizontal pipe is measured using the
PITOT tube shown below. The fluid in the U-tube manometer is mercury with a density of
13534 kg/m3. Assume g = 9.81 m/s2. If the height difference (h) is measured as 94.1 mm, the
velocity of flow of water in m/s is ______.
Q.53 The bandgap in eV of a semiconductor material required to construct an LED that emits peak power
at the wavelength of 620 nm is ______.
(Plank constant h = 4.13567×10-15 eV s and speed of light c = 2.998×108 m/s).
sin(100 π t )
Q.54 The signal m(t ) = is frequency modulated (FM) with an FM modulator of frequency
100 π t
deviation constant of 30 kHz/V. Using Carson’s rule, the approximate bandwidth of the modulated
wave in kilohertz is ________.
Q.55 A signal m(t) varies from −3.5 V to +3.5 V with an average power of 3 W . The signal is
quantized using a midtread type quantizer and subsequently binary encoded. With the codeword of
length 3, the signal to quantization noise ratio in dB is _______.
END OF THE QUESTION PAPER
IN 12/12

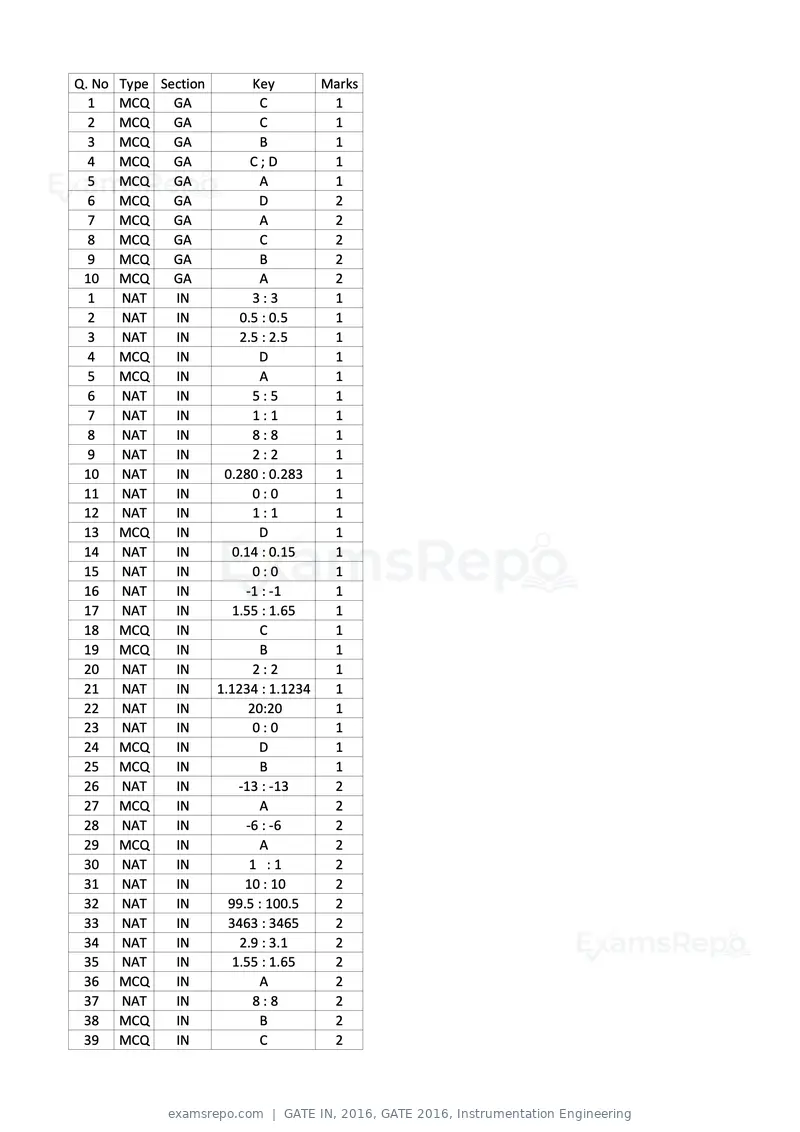

Text of page 16
Q. No Type Section Key Marks 1 MCQ GA C 1 2 MCQ GA C 1 3 MCQ GA B 1 4 MCQ GA C;D 1 5 MCQ GA A 1 6 MCQ GA D 2 7 MCQ GA A 2 8 MCQ GA C 2 9 MCQ GA B 2 10 MCQ GA A 2 1 NAT IN 3:3 1 2 NAT IN 0.5 : 0.5 1 3 NAT IN 2.5 : 2.5 1 4 MCQ IN D 1 5 MCQ IN A 1 6 NAT IN 5:5 1 7 NAT IN 1:1 1 8 NAT IN 8:8 1 9 NAT IN 2:2 1 10 NAT IN 0.280 : 0.283 1 11 NAT IN 0:0 1 12 NAT IN 1:1 1 13 MCQ IN D 1 14 NAT IN 0.14 : 0.15 1 15 NAT IN 0:0 1 16 NAT IN -1 : -1 1 17 NAT IN 1.55 : 1.65 1 18 MCQ IN C 1 19 MCQ IN B 1 20 NAT IN 2:2 1 21 NAT IN 1.1234 : 1.1234 1 22 NAT IN 20:20 1 23 NAT IN 0:0 1 24 MCQ IN D 1 25 MCQ IN B 1 26 NAT IN -13 : -13 2 27 MCQ IN A 2 28 NAT IN -6 : -6 2 29 MCQ IN A 2 30 NAT IN 1 :1 2 31 NAT IN 10 : 10 2 32 NAT IN 99.5 : 100.5 2 33 NAT IN 3463 : 3465 2 34 NAT IN 2.9 : 3.1 2 35 NAT IN 1.55 : 1.65 2 36 MCQ IN A 2 37 NAT IN 8:8 2 38 MCQ IN B 2 39 MCQ IN C 2

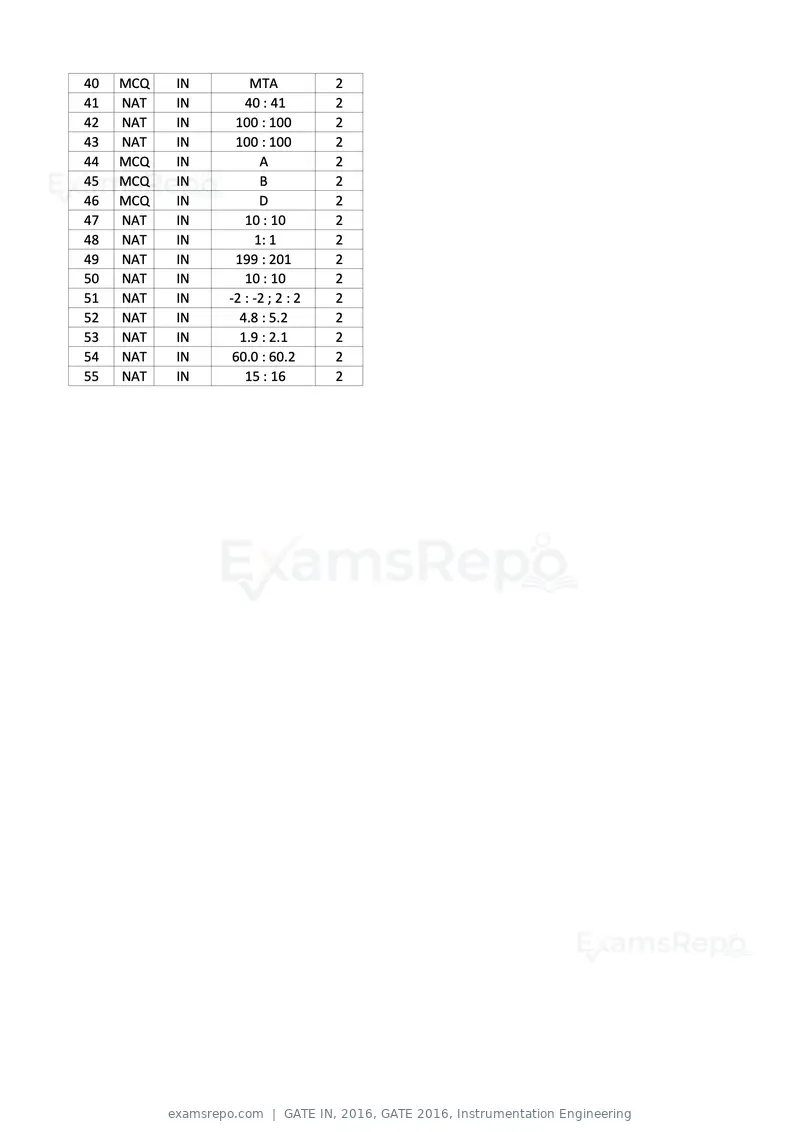

Text of page 17
40 MCQ IN MTA 2 41 NAT IN 40 : 41 2 42 NAT IN 100 : 100 2 43 NAT IN 100 : 100 2 44 MCQ IN A 2 45 MCQ IN B 2 46 MCQ IN D 2 47 NAT IN 10 : 10 2 48 NAT IN 1: 1 2 49 NAT IN 199 : 201 2 50 NAT IN 10 : 10 2 51 NAT IN -2 : -2 ; 2 : 2 2 52 NAT IN 4.8 : 5.2 2 53 NAT IN 1.9 : 2.1 2 54 NAT IN 60.0 : 60.2 2 55 NAT IN 15 : 16 2
Official key not published for this paper.
Page 1 of 17
Source: GATE. Question paper published by GATE.
