GATE XE 2025: Engineering Sciences
Text of page 1
Engineering Sciences (XE)
General Aptitude
Q.1 – Q.5 Carry ONE mark Each

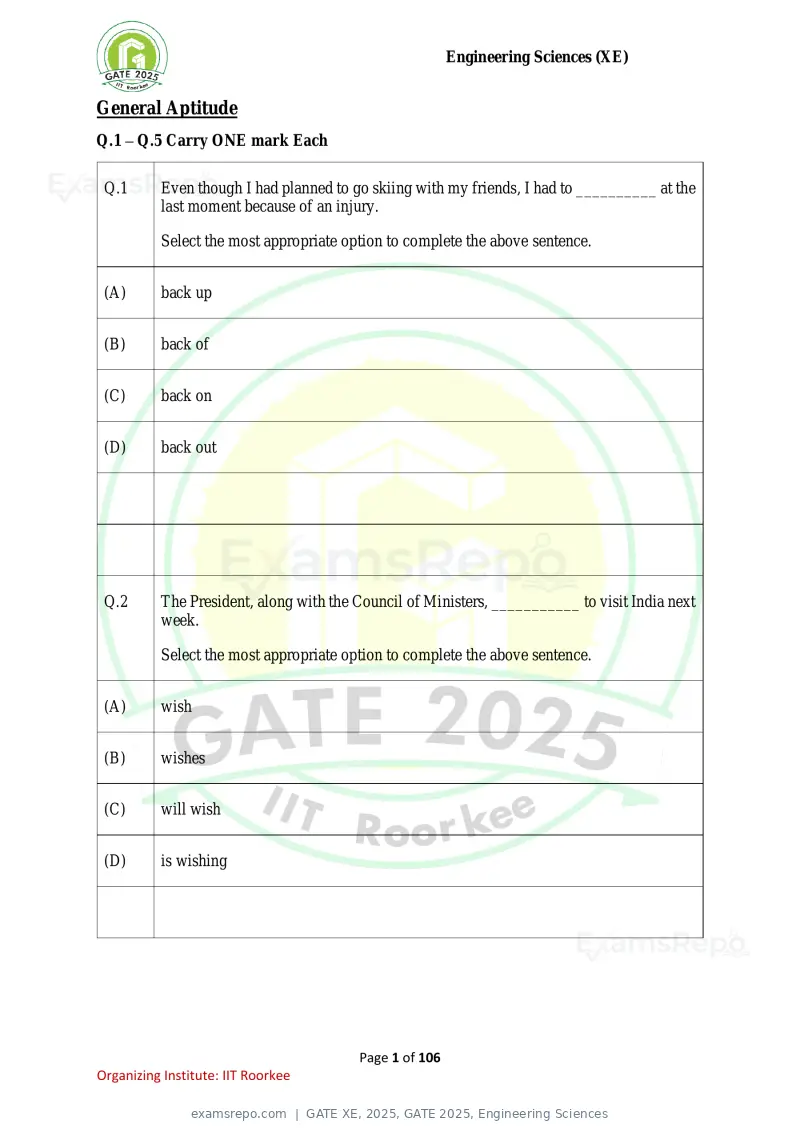

Q.1 Even though I had planned to go skiing with my friends, I had to __________ at the
last moment because of an injury.
Select the most appropriate option to complete the above sentence.
(A) back up
(B) back of
(C) back on
(D) back out
Q.2 The President, along with the Council of Ministers, ___________ to visit India next
week.
Select the most appropriate option to complete the above sentence.
(A) wish
(B) wishes
(C) will wish
(D) is wishing
Page 1 of 106
Organizing Institute: IIT Roorkee
Text of page 2
Engineering Sciences (XE)

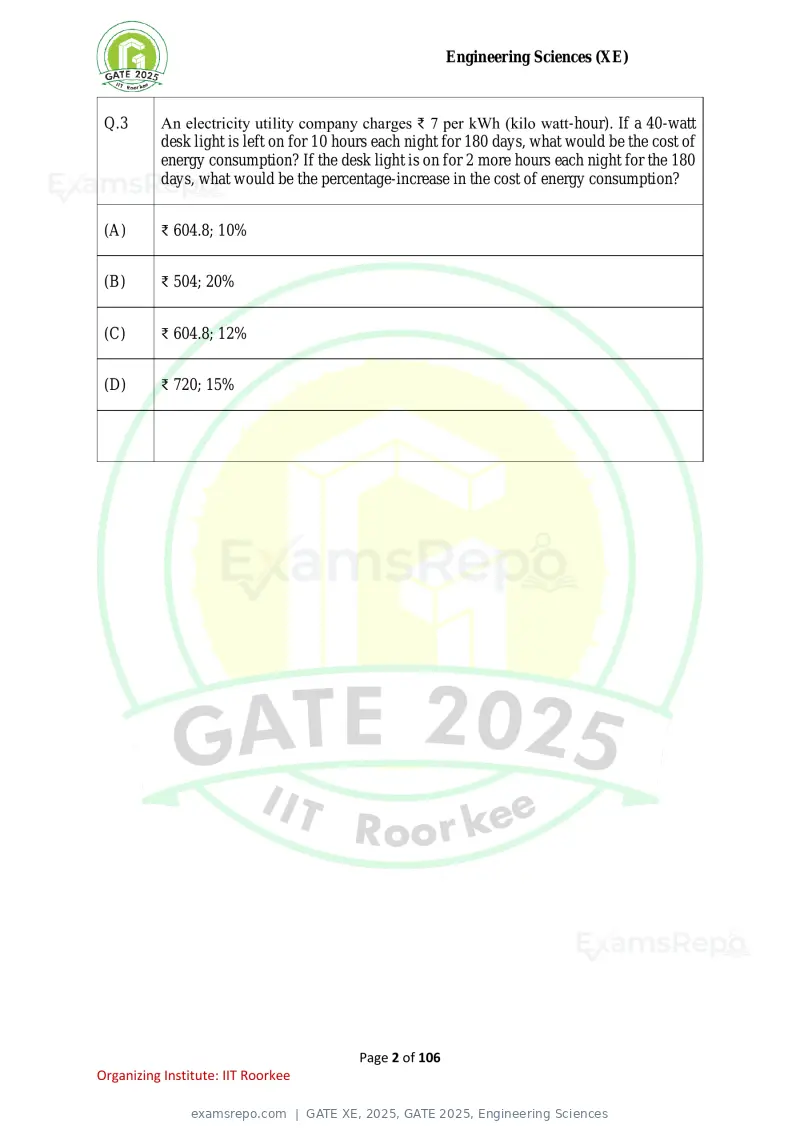

Q.3 An electricity utility company charges ₹ 7 per kWh (kilo watt-hour). If a 40-watt
desk light is left on for 10 hours each night for 180 days, what would be the cost of
energy consumption? If the desk light is on for 2 more hours each night for the 180
days, what would be the percentage-increase in the cost of energy consumption?
(A) ₹ 604.8; 10%
(B) ₹ 504; 20%
(C) ₹ 604.8; 12%
(D) ₹ 720; 15%
Page 2 of 106
Organizing Institute: IIT Roorkee
Text of page 3
Engineering Sciences (XE)

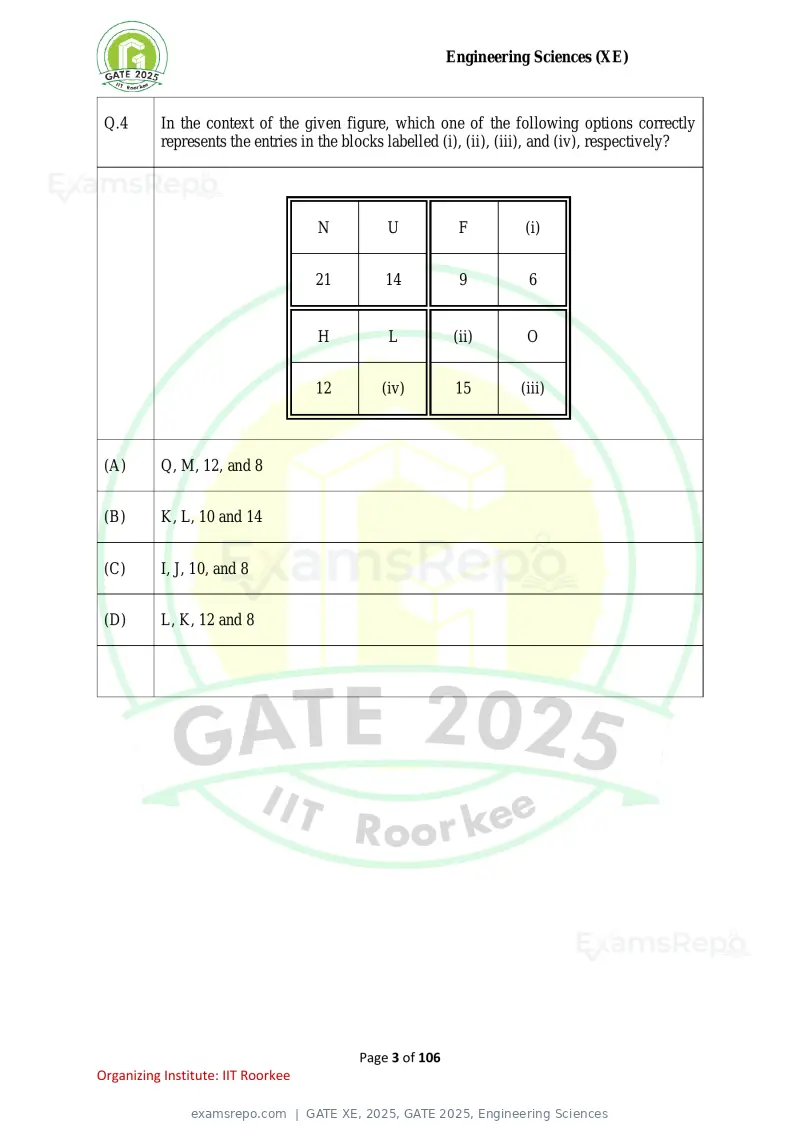

Q.4 In the context of the given figure, which one of the following options correctly
represents the entries in the blocks labelled (i), (ii), (iii), and (iv), respectively?
N U F (i)
21 14 9 6
H L (ii) O
12 (iv) 15 (iii)
(A) Q, M, 12, and 8
(B) K, L, 10 and 14
(C) I, J, 10, and 8
(D) L, K, 12 and 8
Page 3 of 106
Organizing Institute: IIT Roorkee
Text of page 4
Engineering Sciences (XE)

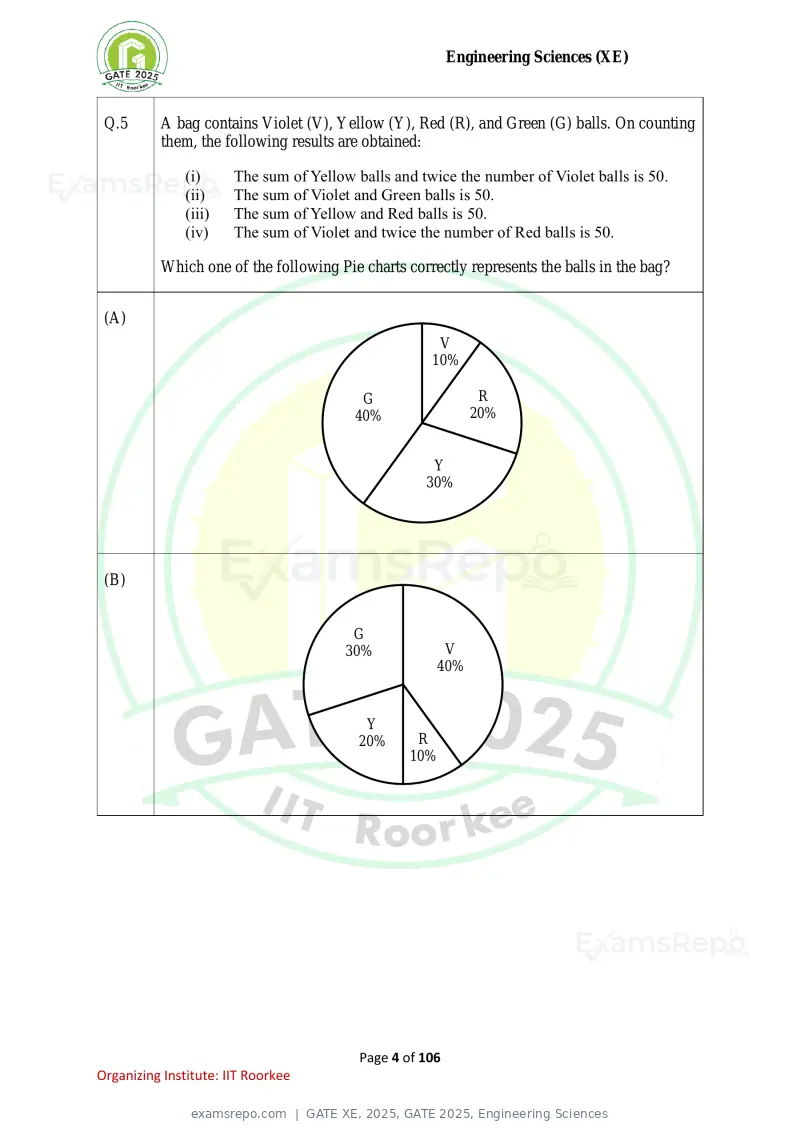

Q.5 A bag contains Violet (V), Yellow (Y), Red (R), and Green (G) balls. On counting
them, the following results are obtained:
(i) The sum of Yellow balls and twice the number of Violet balls is 50.
(ii) The sum of Violet and Green balls is 50.
(iii) The sum of Yellow and Red balls is 50.
(iv) The sum of Violet and twice the number of Red balls is 50.
Which one of the following Pie charts correctly represents the balls in the bag?
(A)
V
10%
G R
40% 20%
Y
30%
(B)
G
30% V
40%
Y
20% R
10%
Page 4 of 106
Organizing Institute: IIT Roorkee
Text of page 5
Engineering Sciences (XE)

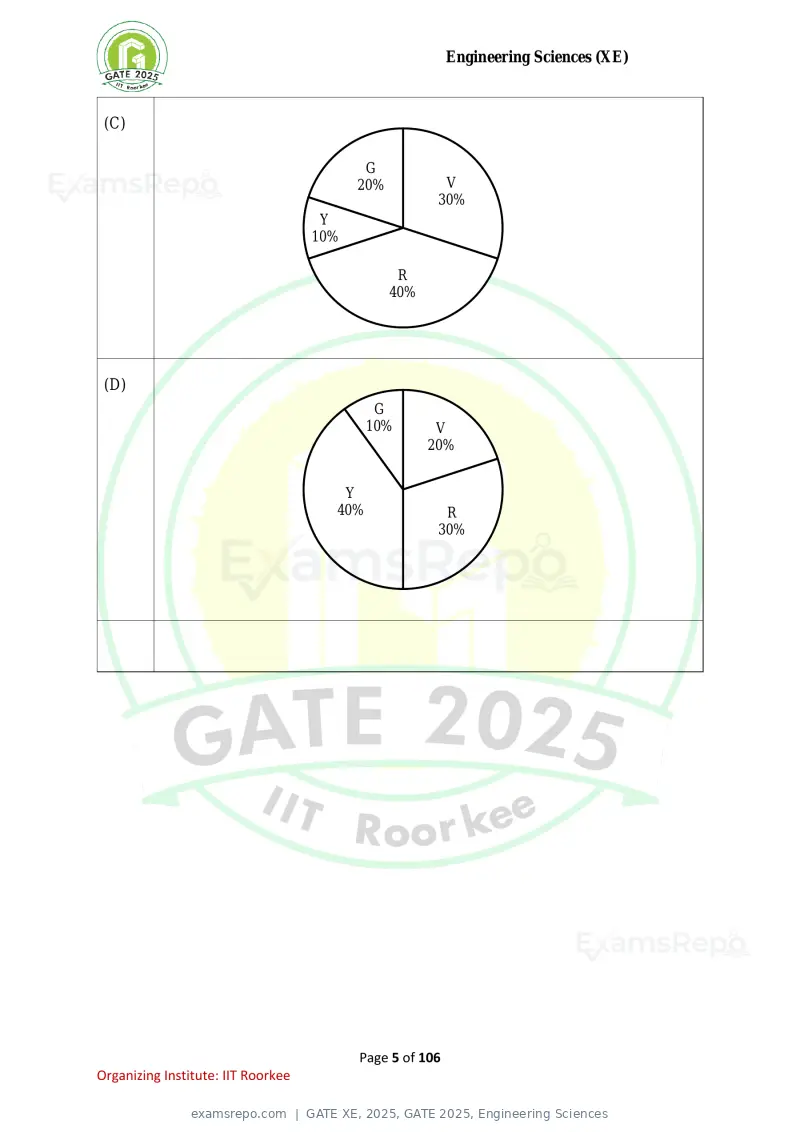

(C)
G
20% V
30%
Y
10%
R
40%
(D)
G
10% V
20%
Y
40% R
30%
Page 5 of 106
Organizing Institute: IIT Roorkee
Text of page 6
Engineering Sciences (XE)
Q.6 – Q.10 Carry TWO marks Each

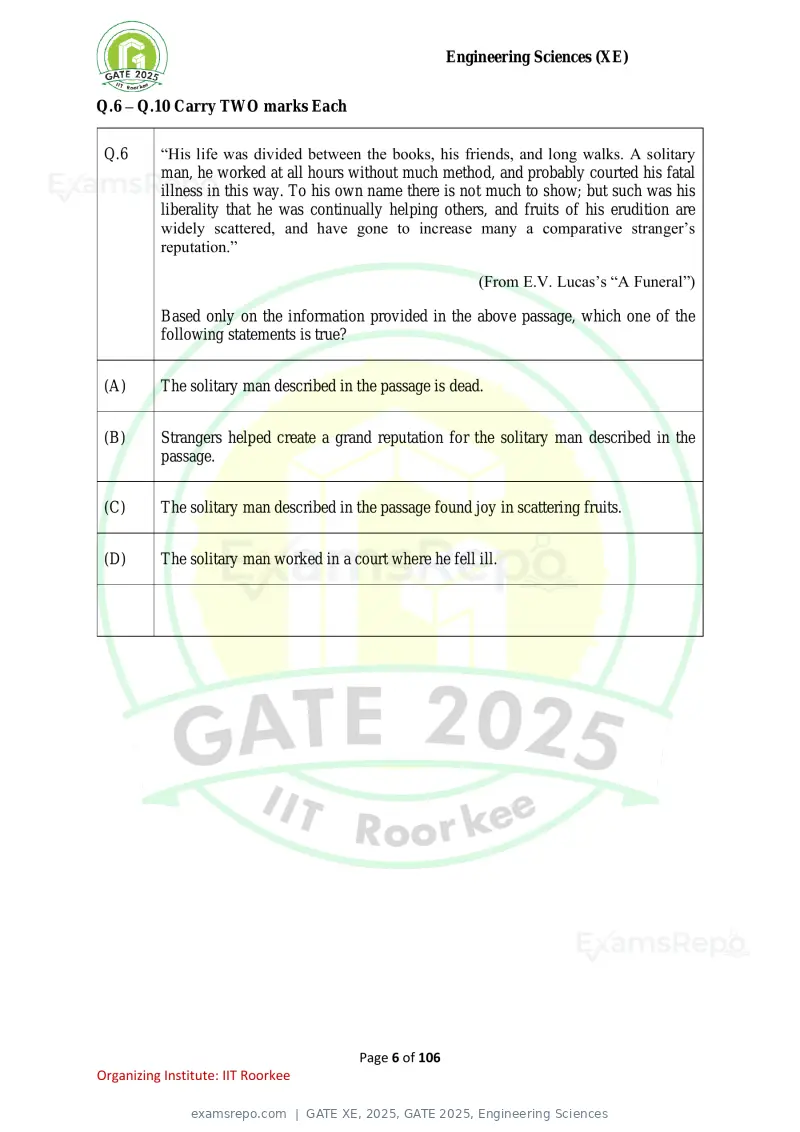

Q.6 “His life was divided between the books, his friends, and long walks. A solitary
man, he worked at all hours without much method, and probably courted his fatal
illness in this way. To his own name there is not much to show; but such was his
liberality that he was continually helping others, and fruits of his erudition are
widely scattered, and have gone to increase many a comparative stranger’s
reputation.”
(From E.V. Lucas’s “A Funeral”)
Based only on the information provided in the above passage, which one of the
following statements is true?
(A) The solitary man described in the passage is dead.
(B) Strangers helped create a grand reputation for the solitary man described in the
passage.
(C) The solitary man described in the passage found joy in scattering fruits.
(D) The solitary man worked in a court where he fell ill.
Page 6 of 106
Organizing Institute: IIT Roorkee
Text of page 7
Engineering Sciences (XE)

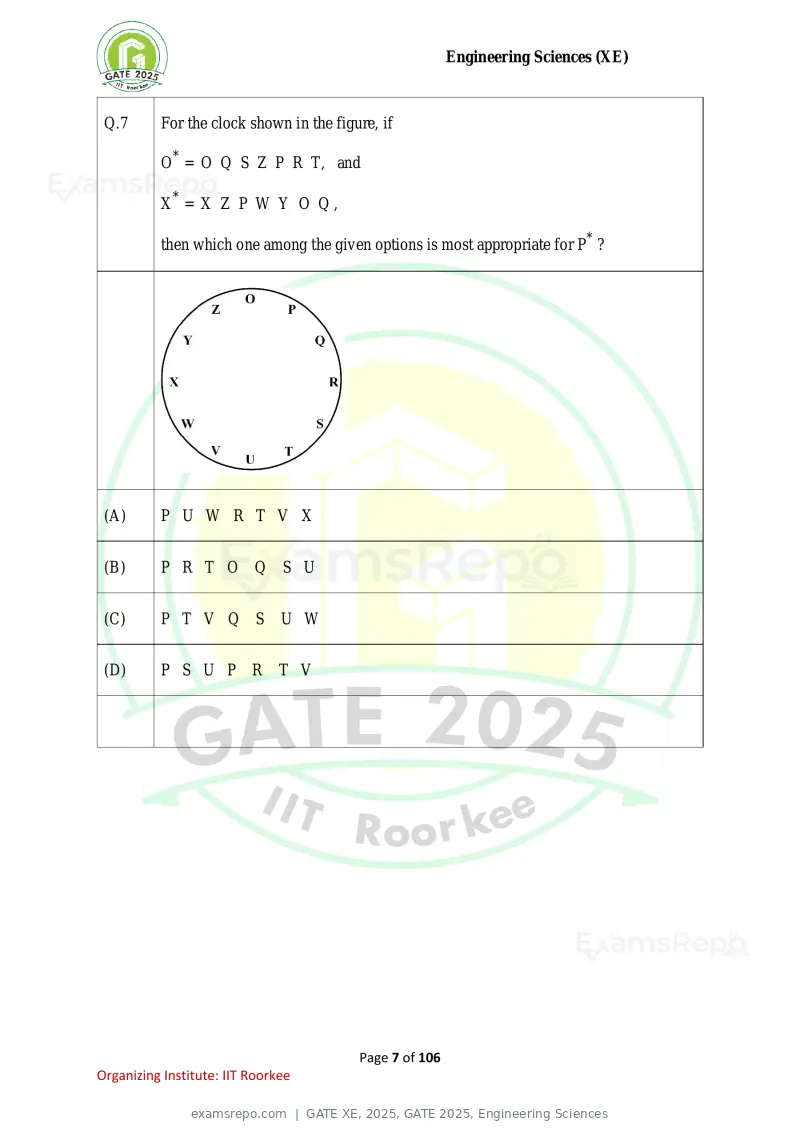

Q.7 For the clock shown in the figure, if
O* = O Q S Z P R T, and
X* = X Z P W Y O Q ,
then which one among the given options is most appropriate for P* ?
(A) P U W R T V X
(B) P R T O Q S U
(C) P T V Q S U W
(D) P S U P R T V
Page 7 of 106
Organizing Institute: IIT Roorkee
Text of page 8
Engineering Sciences (XE)

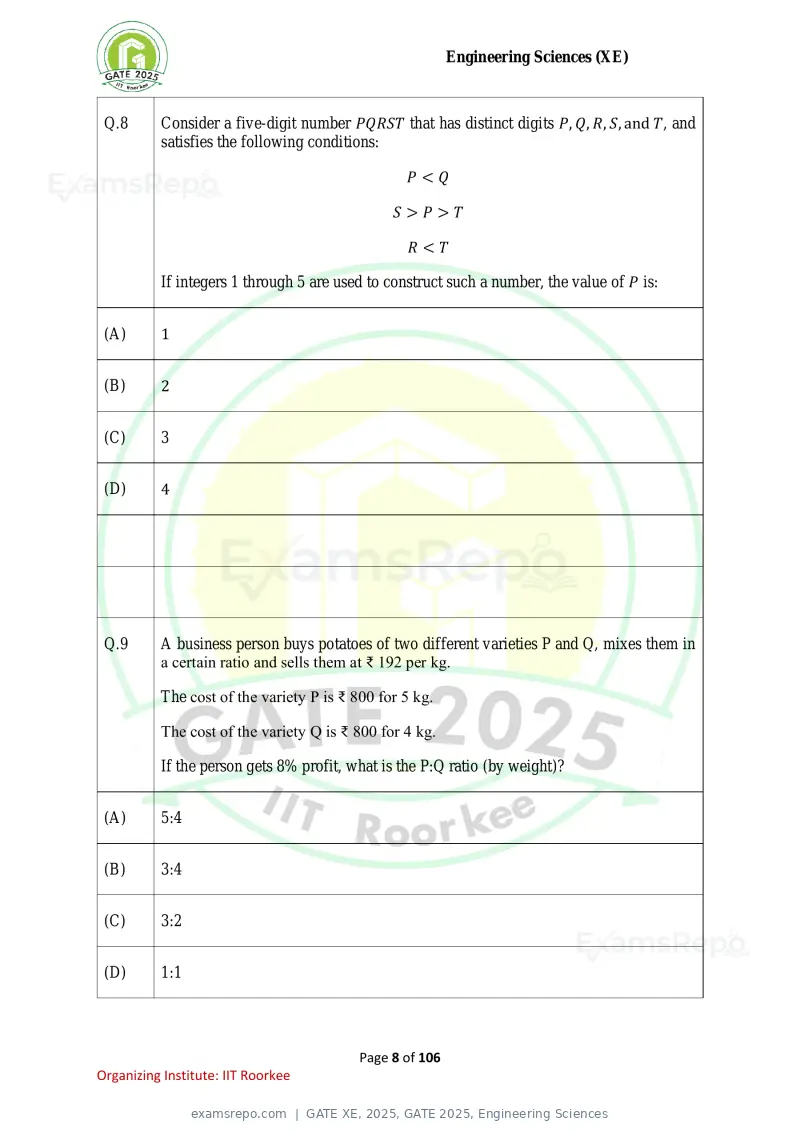

Q.8 Consider a five-digit number PQRST that has distinct digits P, Q, R, S, and T, and
satisfies the following conditions:
P<Q
S>P>T
R<T
If integers 1 through 5 are used to construct such a number, the value of P is:
(A) 1
(B) 2
(C) 3
(D) 4
Q.9 A business person buys potatoes of two different varieties P and Q, mixes them in
a certain ratio and sells them at ₹ 192 per kg.
The cost of the variety P is ₹ 800 for 5 kg.
The cost of the variety Q is ₹ 800 for 4 kg.
If the person gets 8% profit, what is the P:Q ratio (by weight)?
(A) 5:4
(B) 3:4
(C) 3:2
(D) 1:1
Page 8 of 106
Organizing Institute: IIT Roorkee
Text of page 9
Engineering Sciences (XE)

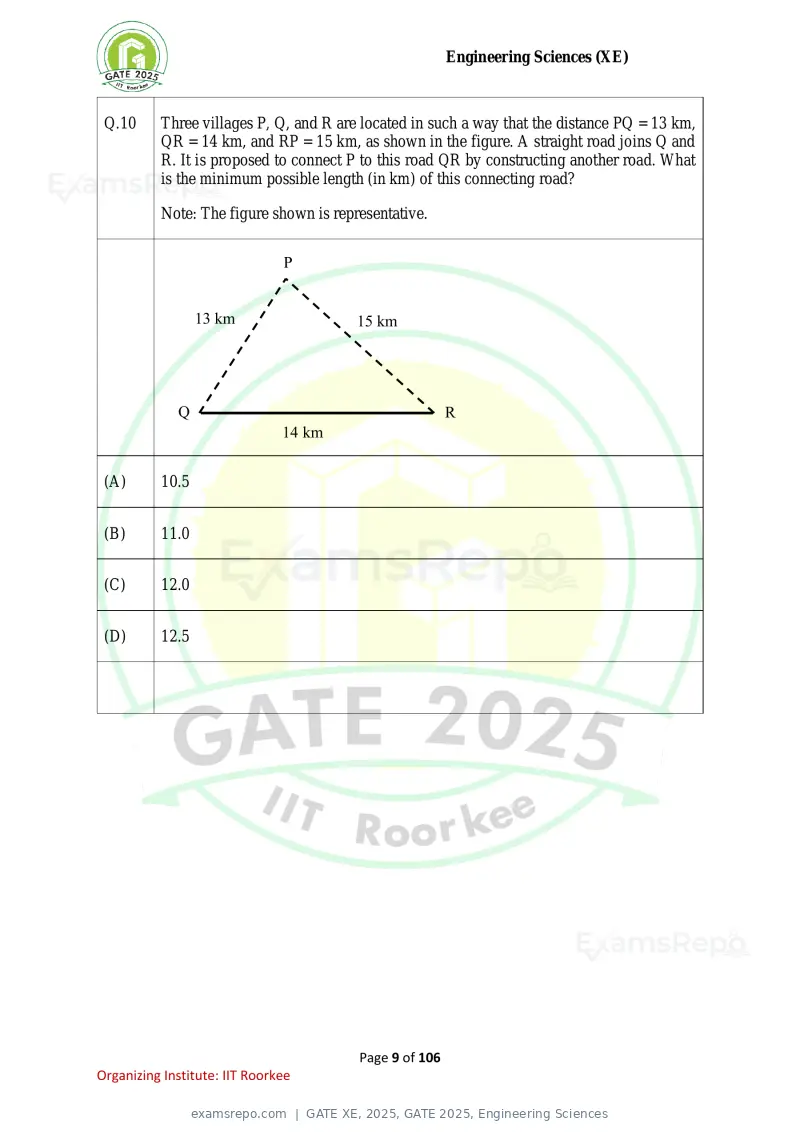

Q.10 Three villages P, Q, and R are located in such a way that the distance PQ = 13 km,
QR = 14 km, and RP = 15 km, as shown in the figure. A straight road joins Q and
R. It is proposed to connect P to this road QR by constructing another road. What
is the minimum possible length (in km) of this connecting road?
Note: The figure shown is representative.
P
13 km 15 km
Q R
14 km
(A) 10.5
(B) 11.0
(C) 12.0
(D) 12.5
Page 9 of 106
Organizing Institute: IIT Roorkee
Text of page 10
Engineering Sciences (XE)
Engineering Mathematics (XE-A)

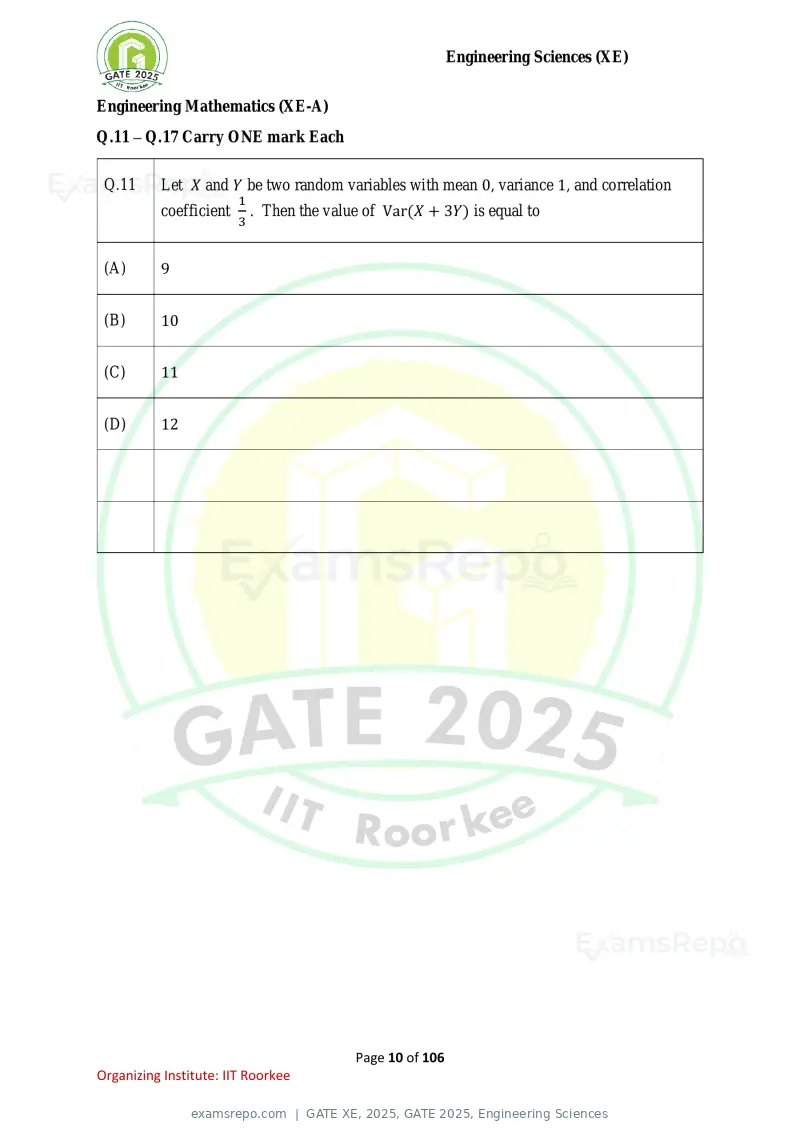

Q.11 – Q.17 Carry ONE mark Each
Q.11 Let X and Y be two random variables with mean 0, variance 1, and correlation
1
coefficient . Then the value of Var(X + 3Y) is equal to
3
(A) 9
(B) 10
(C) 11
(D) 12
Page 10 of 106
Organizing Institute: IIT Roorkee
Text of page 11
Engineering Sciences (XE)

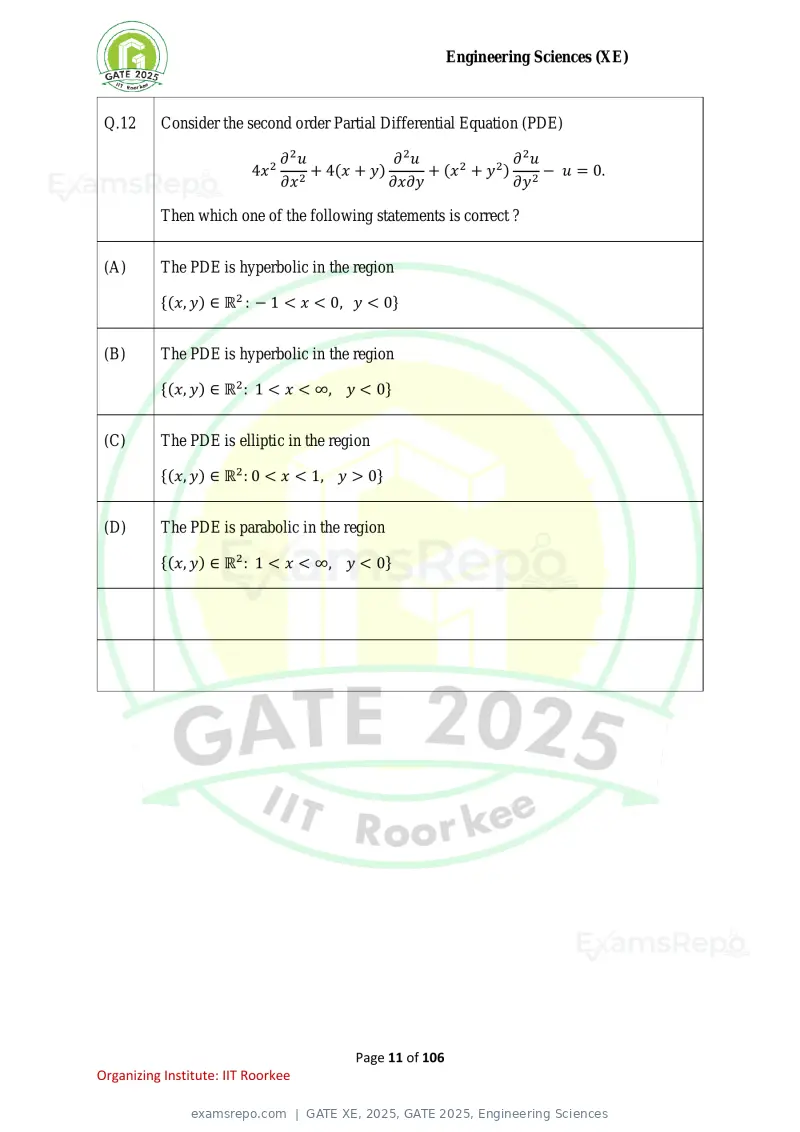

Q.12 Consider the second order Partial Differential Equation (PDE)
∂ 2u ∂ 2u ∂ 2u
4x 2 + 4(x + y) + (x 2
+ y 2)
− u = 0.
∂x 2 ∂x∂y ∂y 2
Then which one of the following statements is correct ?
(A) The PDE is hyperbolic in the region
{(x, y) ∈ ℝ2 : − 1 < x < 0, y < 0}
(B) The PDE is hyperbolic in the region
{(x, y) ∈ ℝ2 : 1 < x < ∞, y < 0}
(C) The PDE is elliptic in the region
{(x, y) ∈ ℝ2 : 0 < x < 1, y > 0}
(D) The PDE is parabolic in the region
{(x, y) ∈ ℝ2 : 1 < x < ∞, y < 0}
Page 11 of 106
Organizing Institute: IIT Roorkee
Text of page 12
Engineering Sciences (XE)

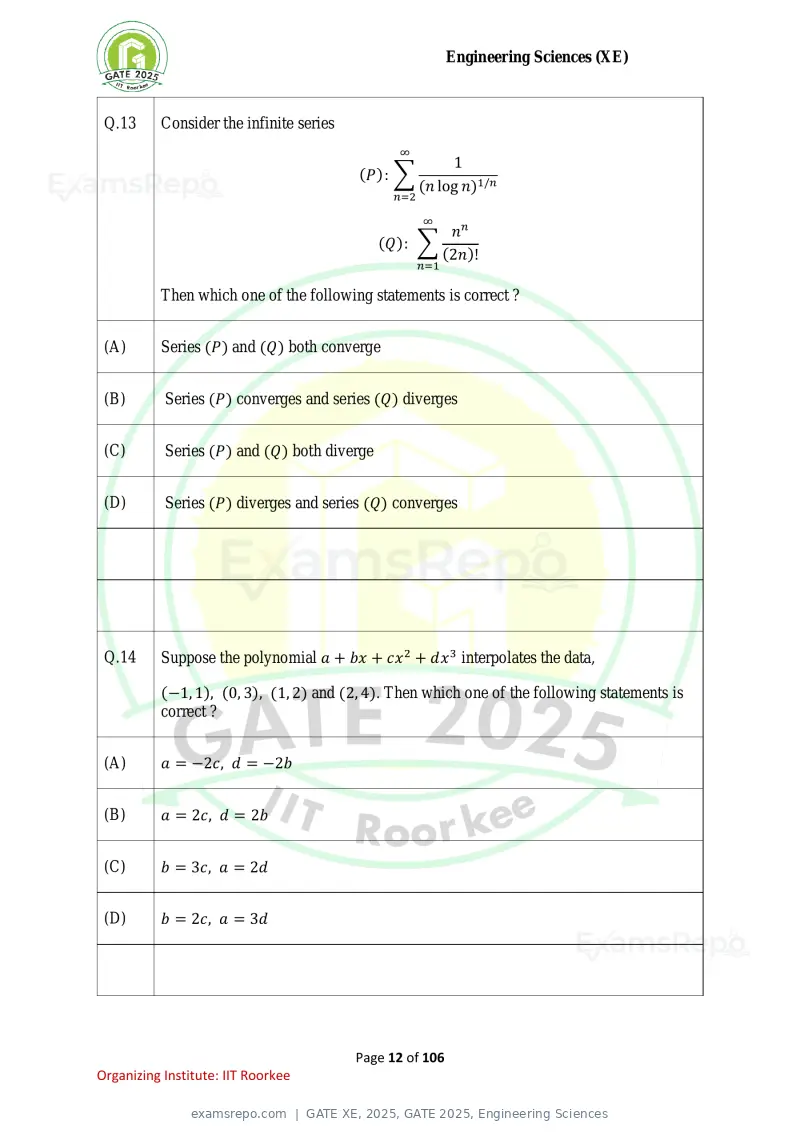

Q.13 Consider the infinite series
∞
1
(P): ∑
(n log n)1/n
n=2
∞
nn
(Q): ∑
(2n)!
n=1
Then which one of the following statements is correct ?
(A) Series (P) and (Q) both converge
(B) Series (P) converges and series (Q) diverges
(C) Series (P) and (Q) both diverge
(D) Series (P) diverges and series (Q) converges
Q.14 Suppose the polynomial a + bx + cx 2 + dx 3 interpolates the data,
(−1, 1), (0, 3), (1, 2) and (2, 4). Then which one of the following statements is
correct ?
(A) a = −2c, d = −2b
(B) a = 2c, d = 2b
(C) b = 3c, a = 2d
(D) b = 2c, a = 3d
Page 12 of 106
Organizing Institute: IIT Roorkee
Text of page 13
Engineering Sciences (XE)

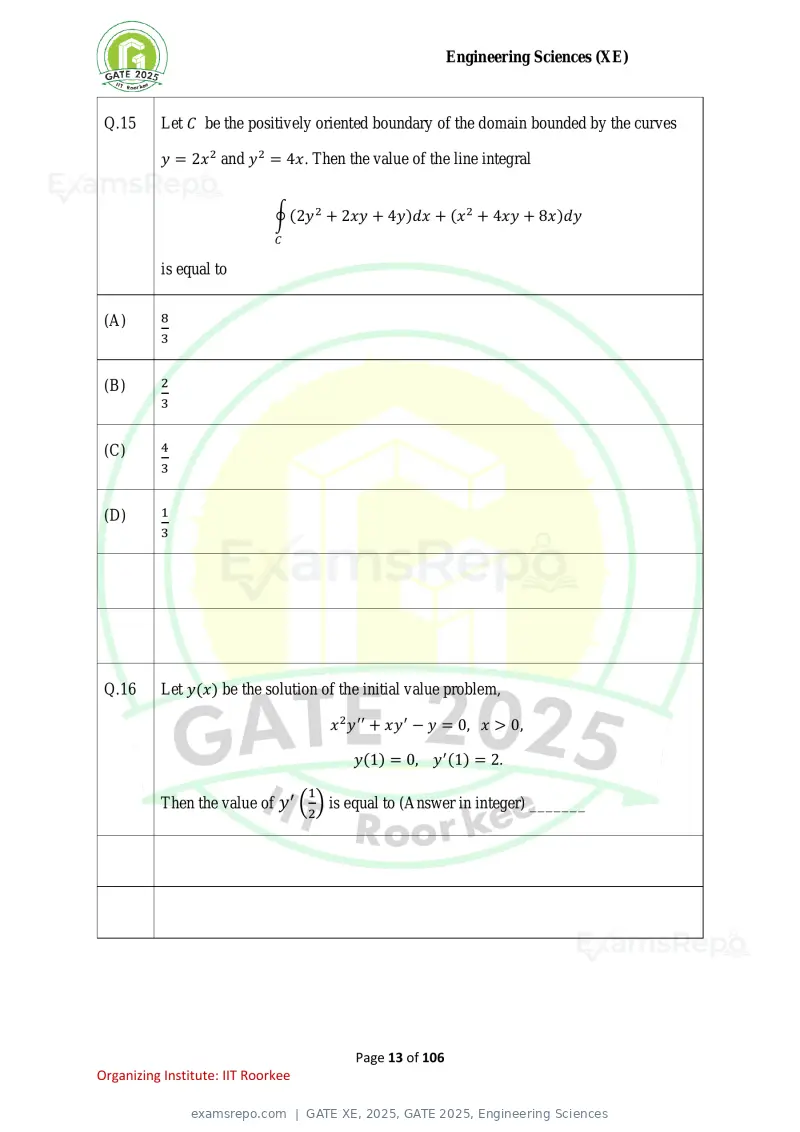

Q.15 Let C be the positively oriented boundary of the domain bounded by the curves
y = 2x 2 and y 2 = 4x. Then the value of the line integral
∮ (2y 2 + 2xy + 4y)dx + (x 2 + 4xy + 8x)dy
C
is equal to
(A) 8
3
(B) 2
3
(C) 4
3
(D) 1
3
Q.16 Let y(x) be the solution of the initial value problem,
x 2 y ′′ + xy ′ − y = 0, x > 0,
y(1) = 0, y ′ (1) = 2.
1
Then the value of y ′ ( ) is equal to (Answer in integer) _______
2
Page 13 of 106
Organizing Institute: IIT Roorkee
Text of page 14
Engineering Sciences (XE)

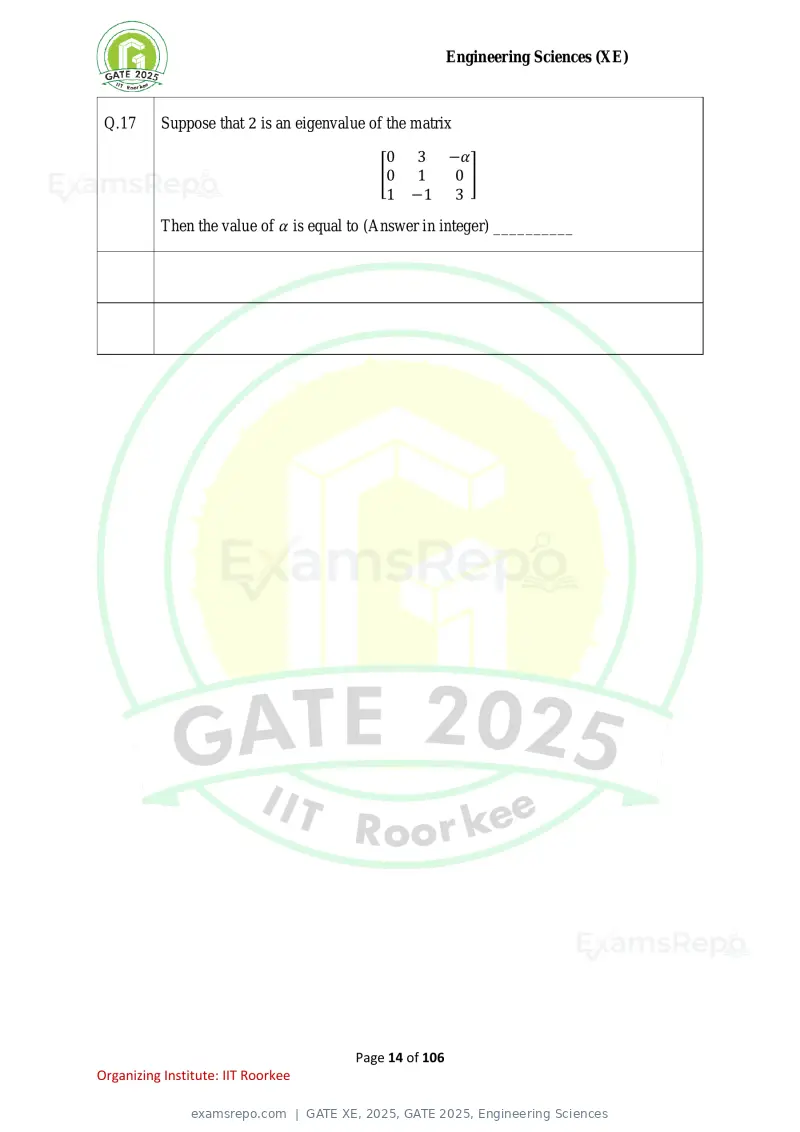

Q.17 Suppose that 2 is an eigenvalue of the matrix
0 3 −α
[0 1 0 ]
1 −1 3
Then the value of α is equal to (Answer in integer) __________
Page 14 of 106
Organizing Institute: IIT Roorkee
Text of page 15
Engineering Sciences (XE)
Q.18 – Q.21 Carry TWO marks Each

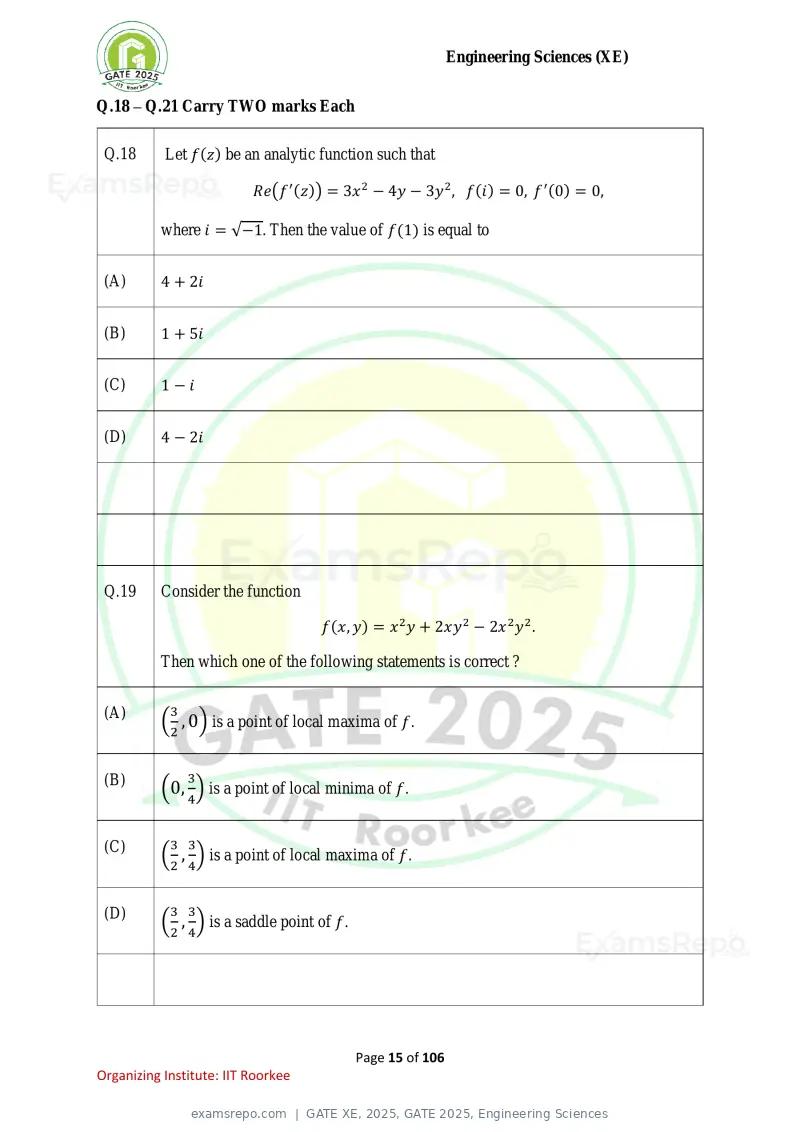

Q.18 Let f(z) be an analytic function such that
Re(f ′ (z)) = 3x 2 − 4y − 3y 2 , f(i) = 0, f ′ (0) = 0,
where i = √−1. Then the value of f(1) is equal to
(A) 4 + 2i
(B) 1 + 5i
(C) 1−i
(D) 4 − 2i
Q.19 Consider the function
f(x, y) = x 2 y + 2xy 2 − 2x 2 y 2 .
Then which one of the following statements is correct ?
(A) 3
(2 , 0) is a point of local maxima of f.
(B) 3
(0, 4) is a point of local minima of f.
(C) 3 3
(2 , 4) is a point of local maxima of f.
(D) 3 3
(2 , 4) is a saddle point of f.
Page 15 of 106
Organizing Institute: IIT Roorkee
Text of page 16
Engineering Sciences (XE)

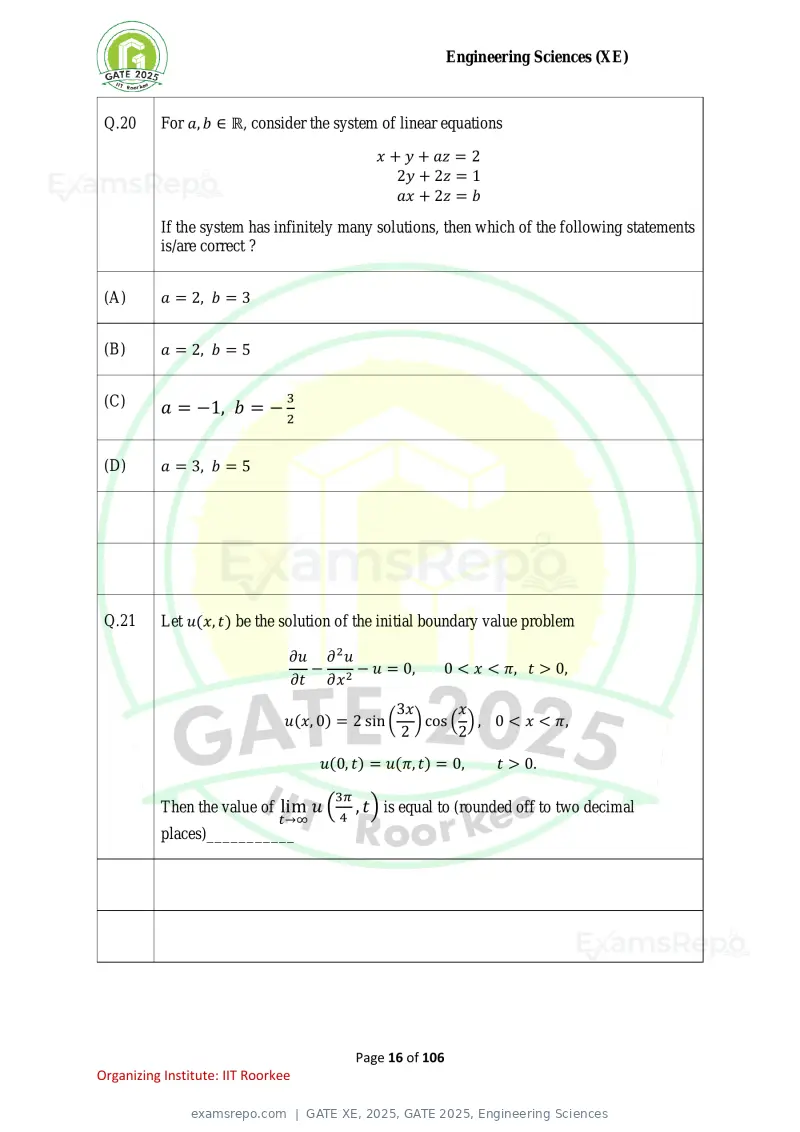

Q.20 For a, b ∈ ℝ, consider the system of linear equations
x + y + az = 2
2y + 2z = 1
ax + 2z = b
If the system has infinitely many solutions, then which of the following statements
is/are correct ?
(A) a = 2, b = 3
(B) a = 2, b = 5
(C) 3
a = −1, b = −
2
(D) a = 3, b = 5
Q.21 Let u(x, t) be the solution of the initial boundary value problem
∂u ∂ 2 u
− − u = 0, 0 < x < π, t > 0,
∂t ∂x 2
3x x
u(x, 0) = 2 sin ( ) cos ( ) , 0 < x < π,
2 2
u(0, t) = u(π, t) = 0, t > 0.
3π
Then the value of lim u ( , t) is equal to (rounded off to two decimal
t→∞ 4
places)___________
Page 16 of 106
Organizing Institute: IIT Roorkee
Text of page 17
Engineering Sciences (XE)
Fluid Mechanics (XE-B)
Q.22 – Q.30 Carry ONE mark Each

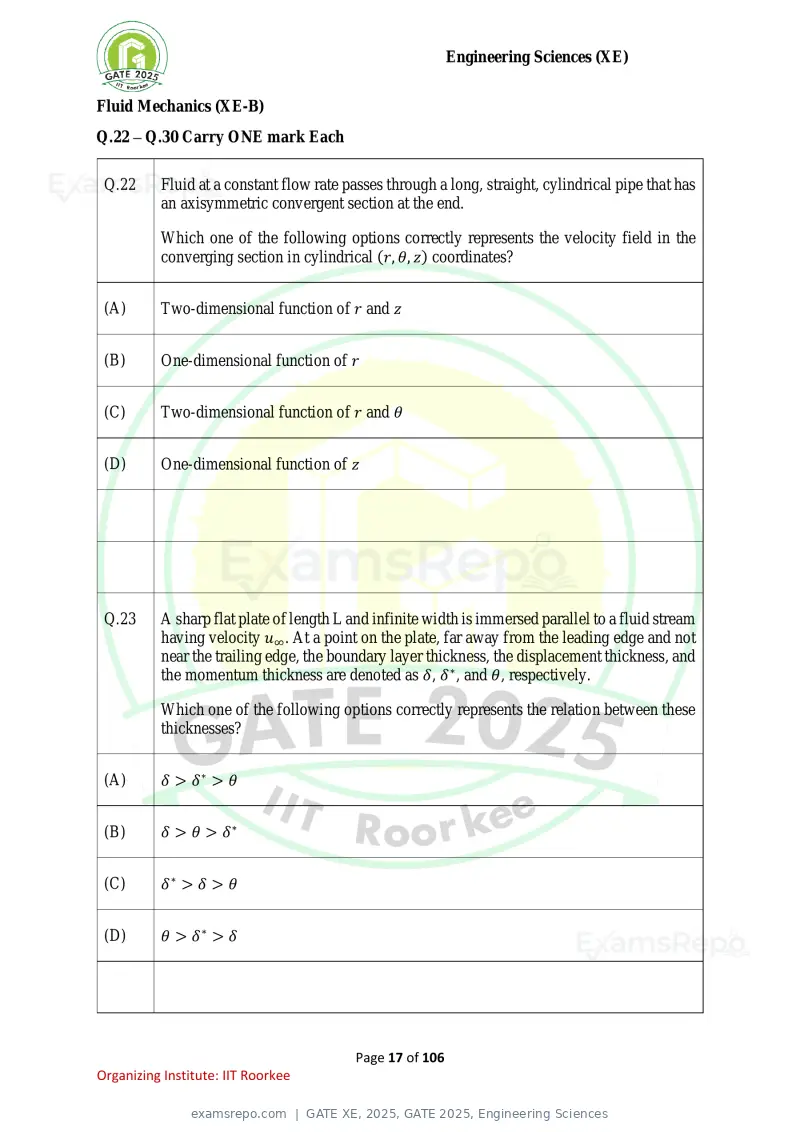

Q.22 Fluid at a constant flow rate passes through a long, straight, cylindrical pipe that has
an axisymmetric convergent section at the end.
Which one of the following options correctly represents the velocity field in the
converging section in cylindrical (r, θ, z) coordinates?
(A) Two-dimensional function of r and z
(B) One-dimensional function of r
(C) Two-dimensional function of r and θ
(D) One-dimensional function of z
Q.23 A sharp flat plate of length L and infinite width is immersed parallel to a fluid stream
having velocity u∞ . At a point on the plate, far away from the leading edge and not
near the trailing edge, the boundary layer thickness, the displacement thickness, and
the momentum thickness are denoted as δ, δ ∗ , and θ, respectively.
Which one of the following options correctly represents the relation between these
thicknesses?
(A) δ > δ∗ > θ
(B) δ > θ > δ∗
(C) δ∗ > δ > θ
(D) θ > δ∗ > δ
Page 17 of 106
Organizing Institute: IIT Roorkee
Text of page 18
Engineering Sciences (XE)

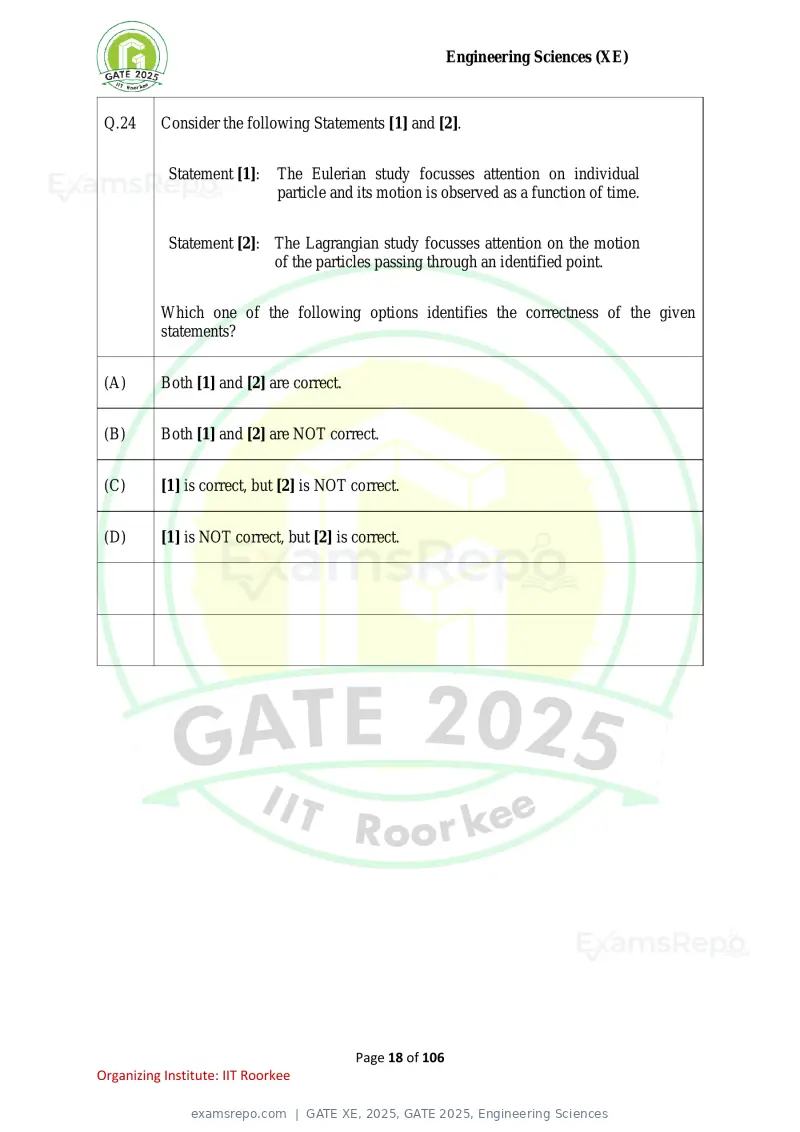

Q.24 Consider the following Statements [1] and [2].
Statement [1]: The Eulerian study focusses attention on individual
particle and its motion is observed as a function of time.
Statement [2]: The Lagrangian study focusses attention on the motion
of the particles passing through an identified point.
Which one of the following options identifies the correctness of the given
statements?
(A) Both [1] and [2] are correct.
(B) Both [1] and [2] are NOT correct.
(C) [1] is correct, but [2] is NOT correct.
(D) [1] is NOT correct, but [2] is correct.
Page 18 of 106
Organizing Institute: IIT Roorkee
Text of page 19
Engineering Sciences (XE)

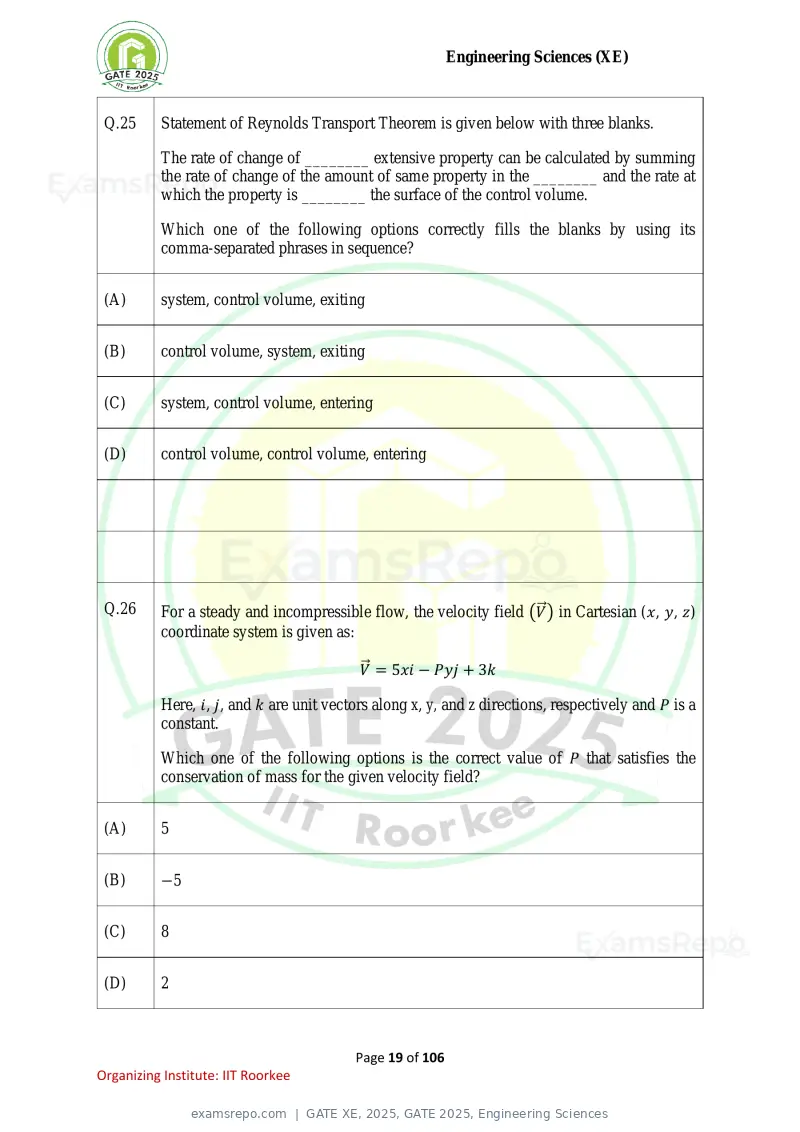

Q.25 Statement of Reynolds Transport Theorem is given below with three blanks.
The rate of change of ________ extensive property can be calculated by summing
the rate of change of the amount of same property in the ________ and the rate at
which the property is ________ the surface of the control volume.
Which one of the following options correctly fills the blanks by using its
comma-separated phrases in sequence?
(A) system, control volume, exiting
(B) control volume, system, exiting
(C) system, control volume, entering
(D) control volume, control volume, entering
Q.26 ⃗ ) in Cartesian (x, y, z)
For a steady and incompressible flow, the velocity field (V
coordinate system is given as:
⃗ = 5xi − Pyj + 3k
V
Here, i, j, and k are unit vectors along x, y, and z directions, respectively and P is a
constant.
Which one of the following options is the correct value of P that satisfies the
conservation of mass for the given velocity field?
(A) 5
(B) −5
(C) 8
(D) 2
Page 19 of 106
Organizing Institute: IIT Roorkee
Text of page 20
Engineering Sciences (XE)

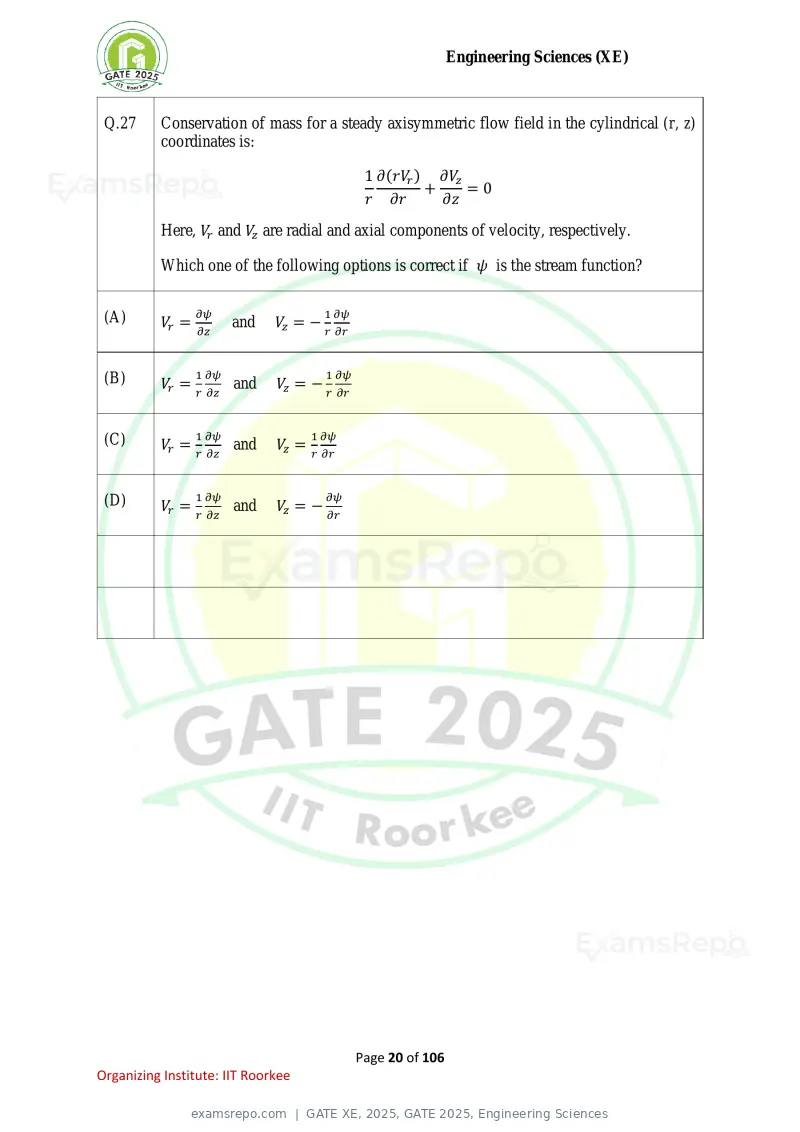

Q.27 Conservation of mass for a steady axisymmetric flow field in the cylindrical (r, z)
coordinates is:
1 ∂(rVr ) ∂Vz
+ =0
r ∂r ∂z
Here, Vr and Vz are radial and axial components of velocity, respectively.
Which one of the following options is correct if ψ is the stream function?
(A) ∂ψ 1 ∂ψ
Vr = ∂z and Vz = − r ∂r
(B) 1 ∂ψ 1 ∂ψ
Vr = r ∂z and Vz = − r ∂r
(C) 1 ∂ψ 1 ∂ψ
Vr = r ∂z and Vz = r ∂r
(D) 1 ∂ψ ∂ψ
Vr = r ∂z and Vz = − ∂r
Page 20 of 106
Organizing Institute: IIT Roorkee
Text of page 21
Engineering Sciences (XE)

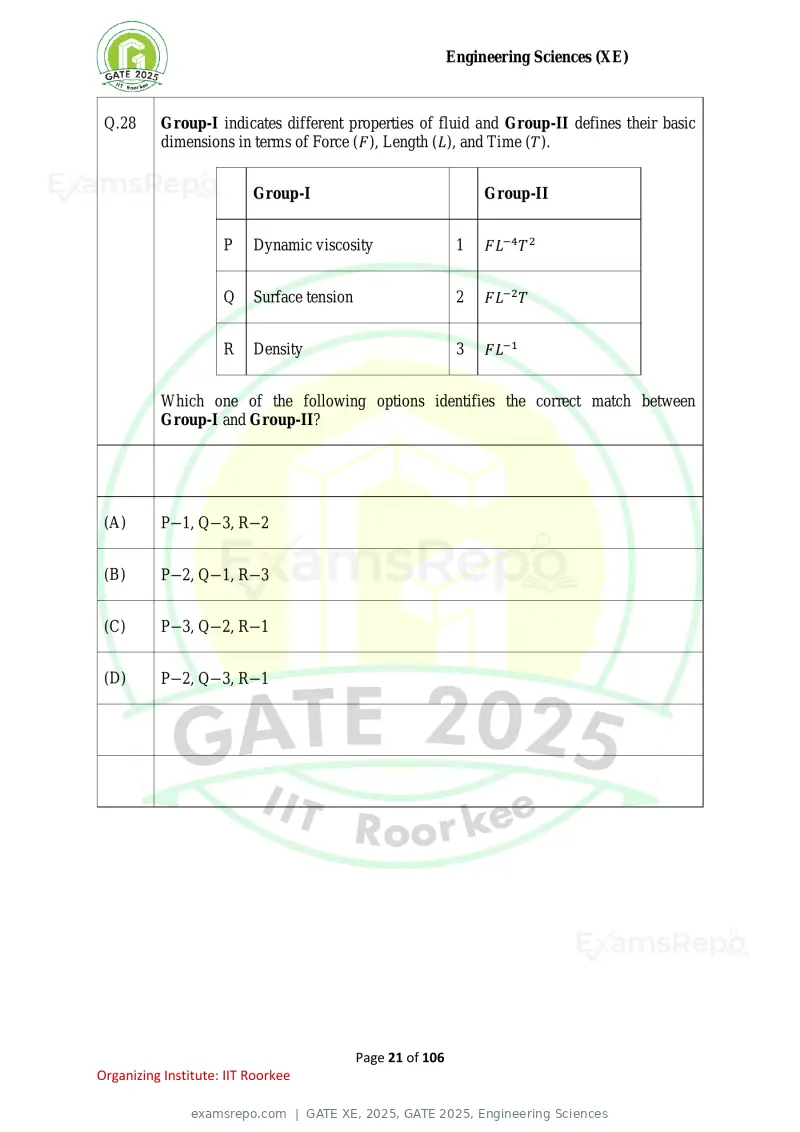

Q.28 Group-I indicates different properties of fluid and Group-II defines their basic
dimensions in terms of Force (F), Length (L), and Time (T).
Group-I Group-II
P Dynamic viscosity 1 FL−4 T 2
Q Surface tension 2 FL−2 T
R Density 3 FL−1
Which one of the following options identifies the correct match between
Group-I and Group-II?
(A) P−1, Q−3, R−2
(B) P−2, Q−1, R−3
(C) P−3, Q−2, R−1
(D) P−2, Q−3, R−1
Page 21 of 106
Organizing Institute: IIT Roorkee
Text of page 22
Engineering Sciences (XE)

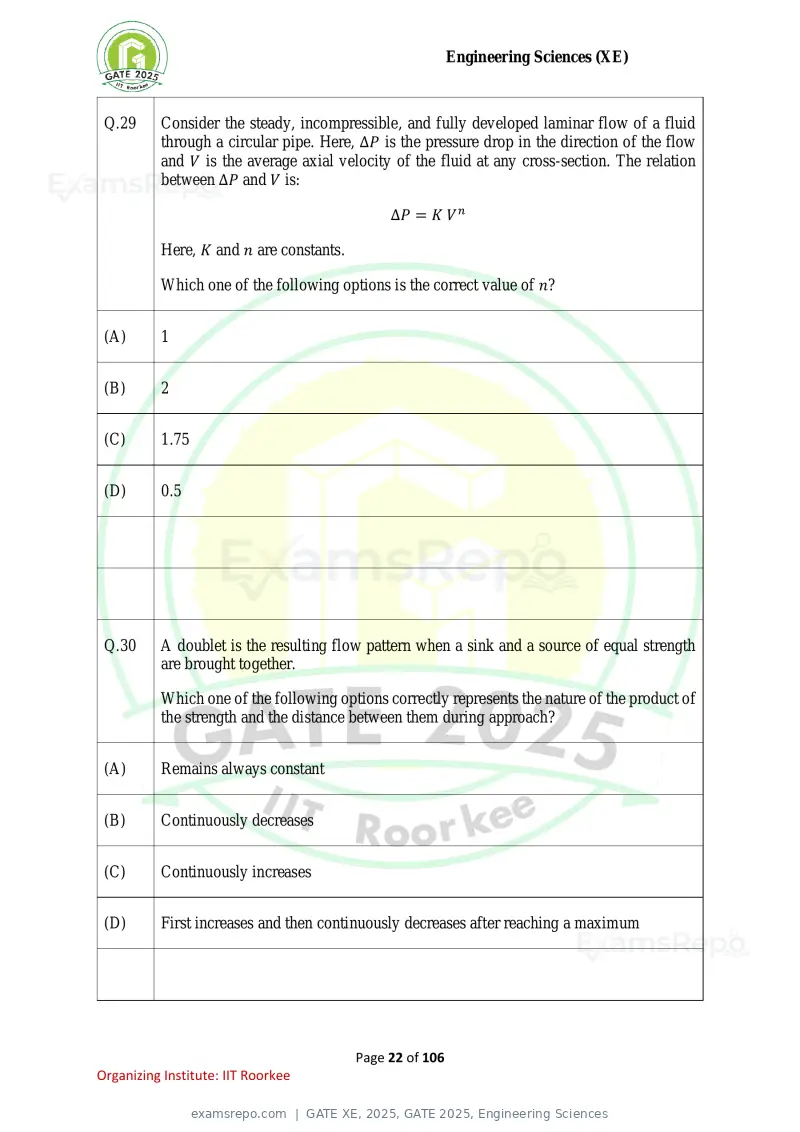

Q.29 Consider the steady, incompressible, and fully developed laminar flow of a fluid
through a circular pipe. Here, ∆P is the pressure drop in the direction of the flow
and V is the average axial velocity of the fluid at any cross-section. The relation
between ∆P and V is:
∆P = K V n
Here, K and n are constants.
Which one of the following options is the correct value of n?
(A) 1
(B) 2
(C) 1.75
(D) 0.5
Q.30 A doublet is the resulting flow pattern when a sink and a source of equal strength
are brought together.
Which one of the following options correctly represents the nature of the product of
the strength and the distance between them during approach?
(A) Remains always constant
(B) Continuously decreases
(C) Continuously increases
(D) First increases and then continuously decreases after reaching a maximum
Page 22 of 106
Organizing Institute: IIT Roorkee
Text of page 23
Engineering Sciences (XE)
Q.31 – Q.43 Carry TWO marks Each

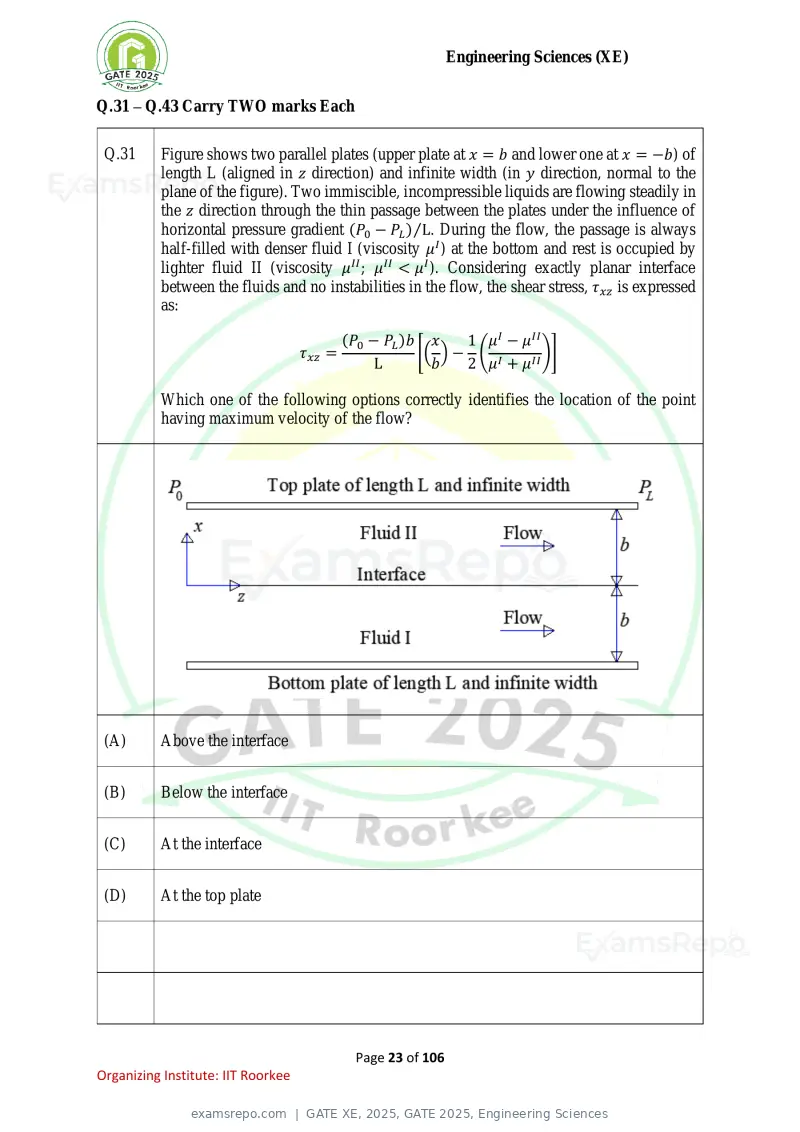

Q.31 Figure shows two parallel plates (upper plate at x = b and lower one at x = −b) of
length L (aligned in z direction) and infinite width (in y direction, normal to the
plane of the figure). Two immiscible, incompressible liquids are flowing steadily in
the z direction through the thin passage between the plates under the influence of
horizontal pressure gradient (P0 − PL )⁄L. During the flow, the passage is always
half-filled with denser fluid I (viscosity μ I ) at the bottom and rest is occupied by
lighter fluid II (viscosity μ II ; μ II < μ I ). Considering exactly planar interface
between the fluids and no instabilities in the flow, the shear stress, τxz is expressed
as:
(P0 − PL )b x 1 μ I − μ II
τxz = [( ) − ( I )]
L b 2 μ + μ II
Which one of the following options correctly identifies the location of the point
having maximum velocity of the flow?
(A) Above the interface
(B) Below the interface
(C) At the interface
(D) At the top plate
Page 23 of 106
Organizing Institute: IIT Roorkee
Text of page 24
Engineering Sciences (XE)

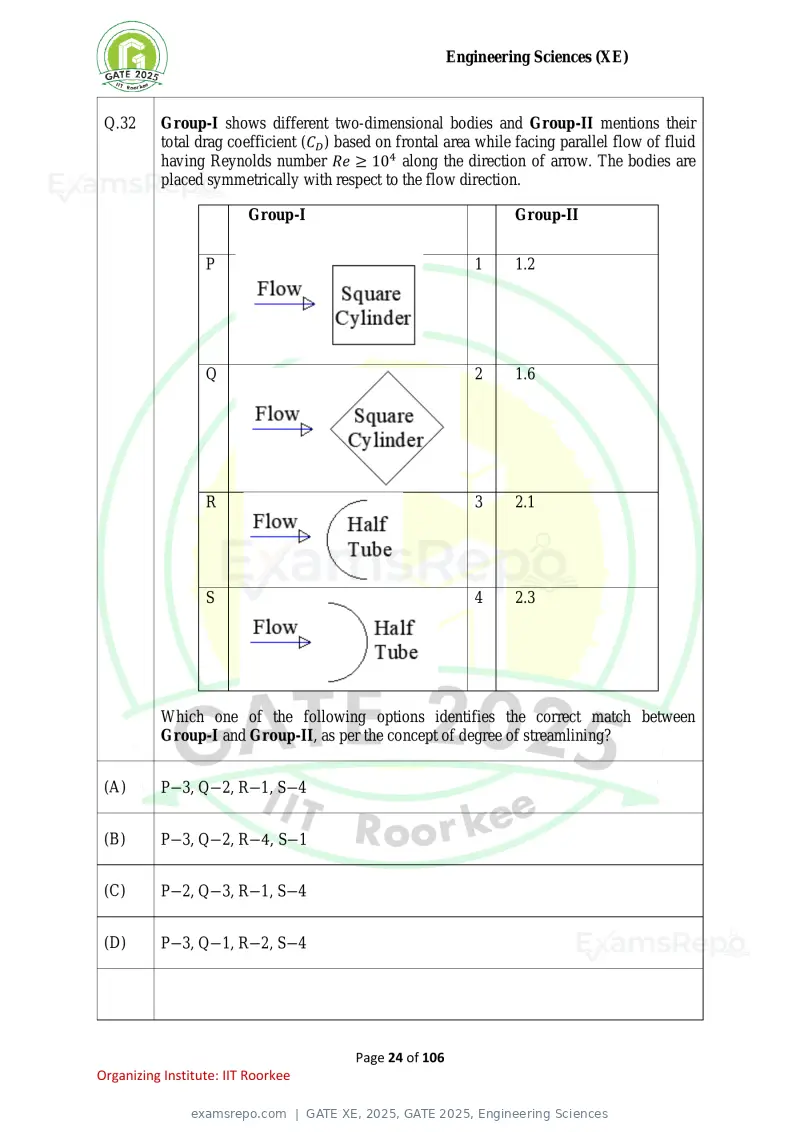

Q.32 Group-I shows different two-dimensional bodies and Group-II mentions their
total drag coefficient (CD ) based on frontal area while facing parallel flow of fluid
having Reynolds number Re ≥ 104 along the direction of arrow. The bodies are
placed symmetrically with respect to the flow direction.
Group-I Group-II
P 1 1.2
Q 2 1.6
R 3 2.1
S 4 2.3
Which one of the following options identifies the correct match between
Group-I and Group-II, as per the concept of degree of streamlining?
(A) P−3, Q−2, R−1, S−4
(B) P−3, Q−2, R−4, S−1
(C) P−2, Q−3, R−1, S−4
(D) P−3, Q−1, R−2, S−4
Page 24 of 106
Organizing Institute: IIT Roorkee
Text of page 25
Engineering Sciences (XE)

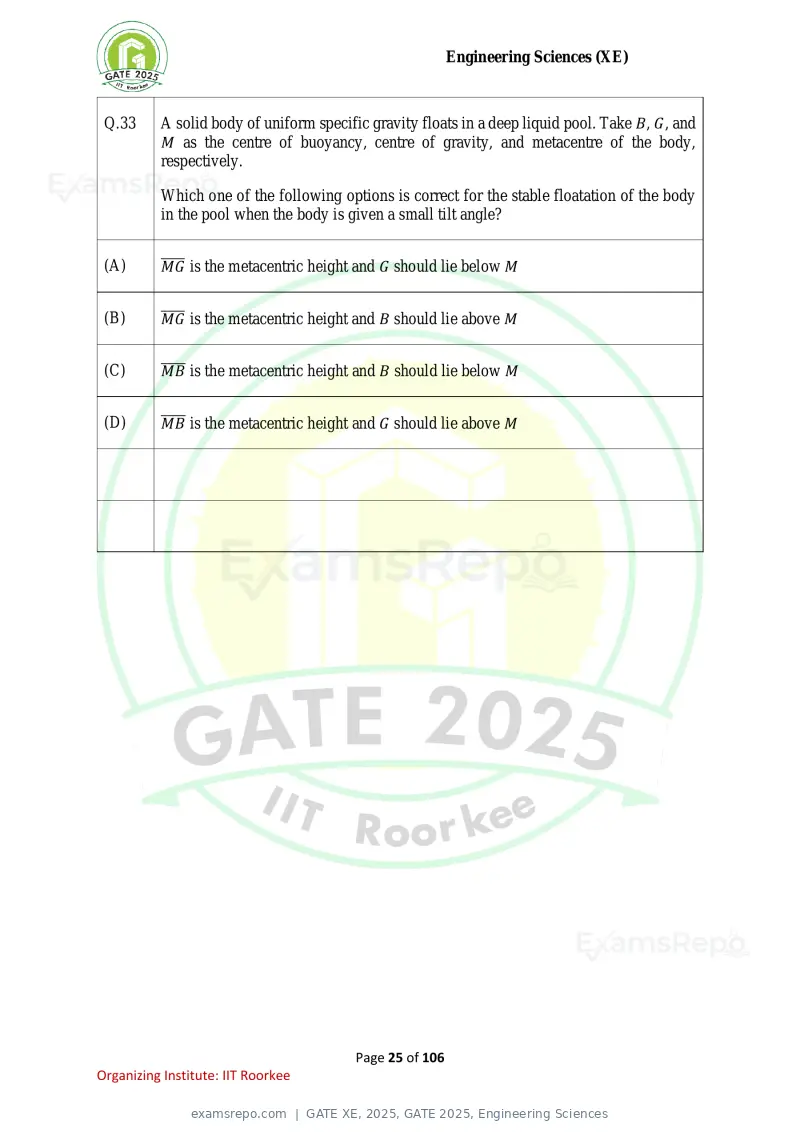

Q.33 A solid body of uniform specific gravity floats in a deep liquid pool. Take B, G, and
M as the centre of buoyancy, centre of gravity, and metacentre of the body,
respectively.
Which one of the following options is correct for the stable floatation of the body
in the pool when the body is given a small tilt angle?
(A) ̅̅̅̅̅ is the metacentric height and G should lie below M
MG
(B) ̅̅̅̅̅
MG is the metacentric height and B should lie above M
(C) ̅̅̅̅̅
MB is the metacentric height and B should lie below M
(D) ̅̅̅̅̅ is the metacentric height and G should lie above M
MB
Page 25 of 106
Organizing Institute: IIT Roorkee
Text of page 26
Engineering Sciences (XE)

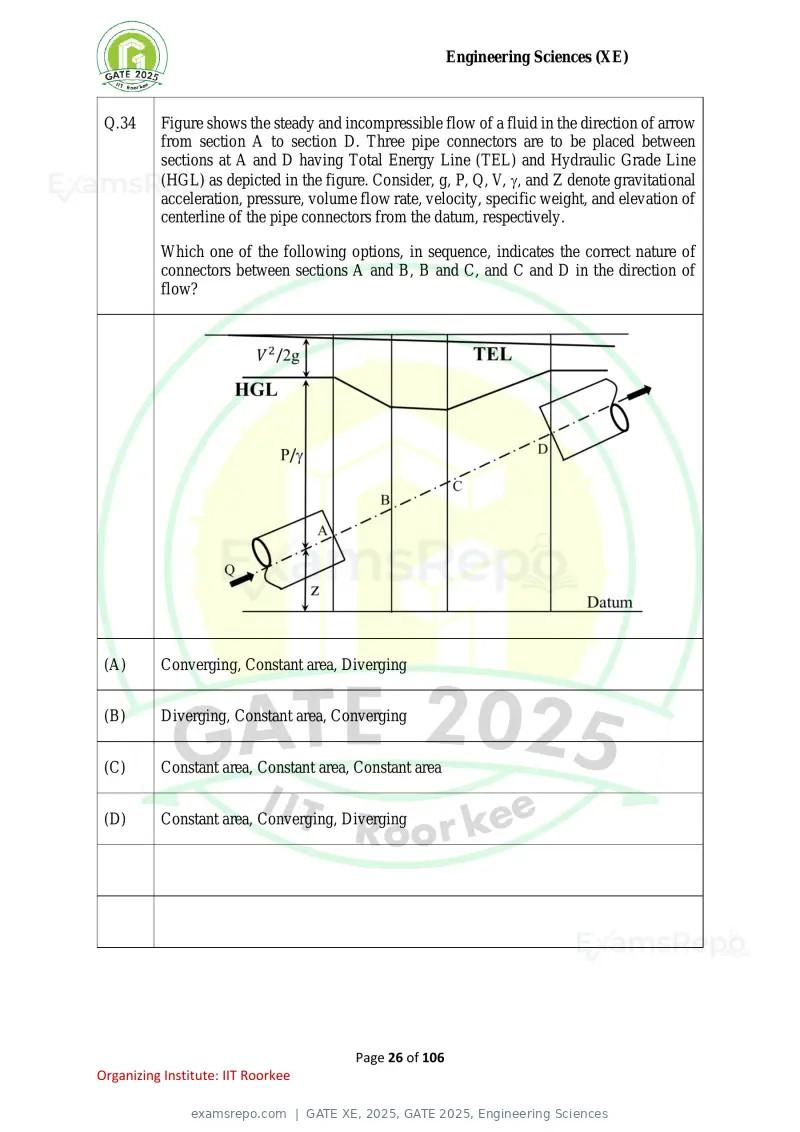

Q.34 Figure shows the steady and incompressible flow of a fluid in the direction of arrow
from section A to section D. Three pipe connectors are to be placed between
sections at A and D having Total Energy Line (TEL) and Hydraulic Grade Line
(HGL) as depicted in the figure. Consider, g, P, Q, V, , and Z denote gravitational
acceleration, pressure, volume flow rate, velocity, specific weight, and elevation of
centerline of the pipe connectors from the datum, respectively.
Which one of the following options, in sequence, indicates the correct nature of
connectors between sections A and B, B and C, and C and D in the direction of
flow?
(A) Converging, Constant area, Diverging
(B) Diverging, Constant area, Converging
(C) Constant area, Constant area, Constant area
(D) Constant area, Converging, Diverging
Page 26 of 106
Organizing Institute: IIT Roorkee
Text of page 27
Engineering Sciences (XE)

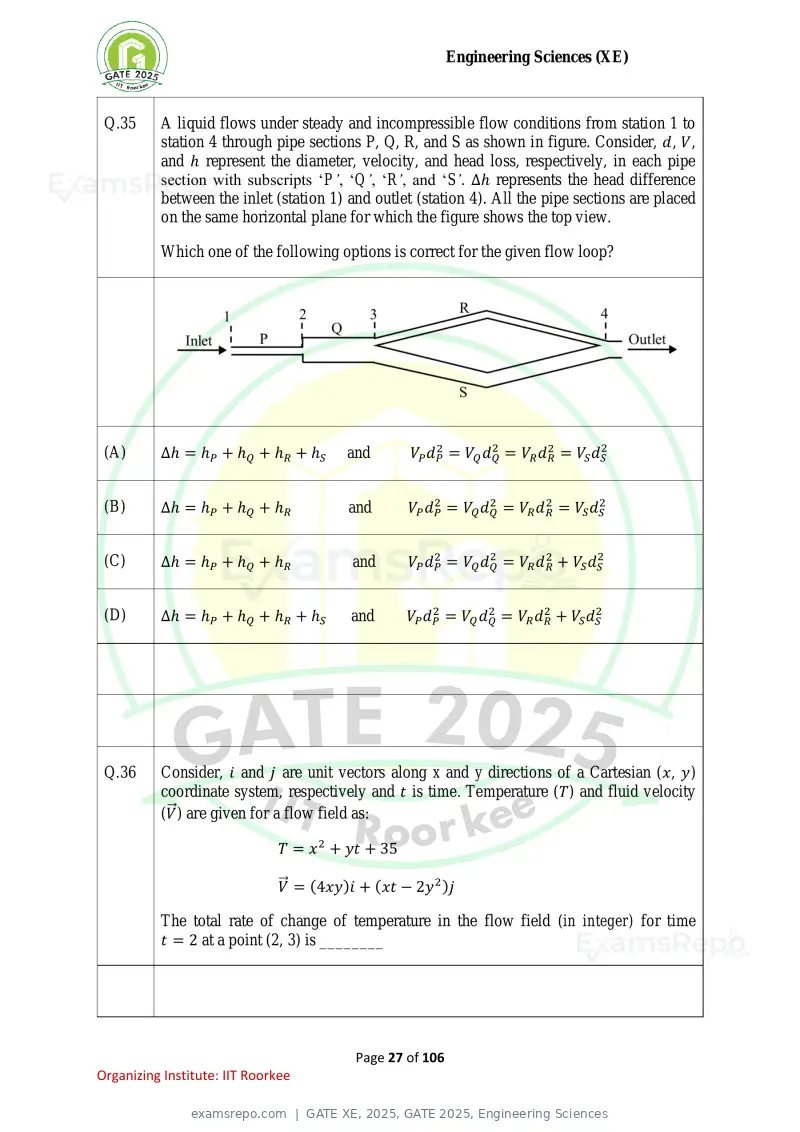

Q.35 A liquid flows under steady and incompressible flow conditions from station 1 to
station 4 through pipe sections P, Q, R, and S as shown in figure. Consider, d, V,
and ℎ represent the diameter, velocity, and head loss, respectively, in each pipe
section with subscripts ‘P’, ‘Q’, ‘R’, and ‘S’. ∆ℎ represents the head difference
between the inlet (station 1) and outlet (station 4). All the pipe sections are placed
on the same horizontal plane for which the figure shows the top view.
Which one of the following options is correct for the given flow loop?
(A) ∆ℎ = ℎP + ℎQ + ℎR + ℎS and VP dP2 = VQ dQ2 = VR dR2 = VS dS2
(B) ∆ℎ = ℎP + ℎQ + ℎR and VP dP2 = VQ dQ2 = VR dR2 = VS dS2
(C) ∆ℎ = ℎP + ℎQ + ℎR and VP dP2 = VQ dQ2 = VR dR2 + VS dS2
(D) ∆ℎ = ℎP + ℎQ + ℎR + ℎS and VP dP2 = VQ dQ2 = VR dR2 + VS dS2
Q.36 Consider, i and j are unit vectors along x and y directions of a Cartesian (x, y)
coordinate system, respectively and t is time. Temperature (T) and fluid velocity
⃗ ) are given for a flow field as:
(V
T = x 2 + yt + 35
⃗ = (4xy)i + (xt − 2y 2 )j
V
The total rate of change of temperature in the flow field (in integer) for time
t = 2 at a point (2, 3) is ________
Page 27 of 106
Organizing Institute: IIT Roorkee
Text of page 28
Engineering Sciences (XE)

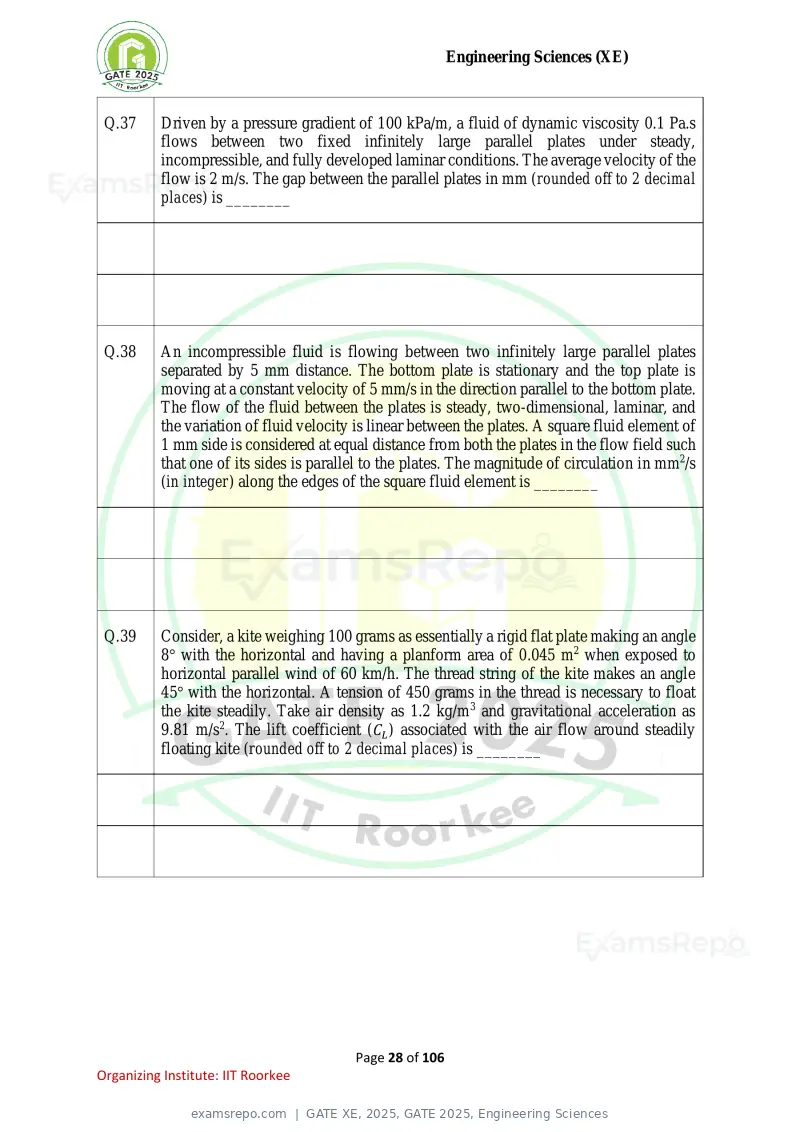

Q.37 Driven by a pressure gradient of 100 kPa/m, a fluid of dynamic viscosity 0.1 Pa.s
flows between two fixed infinitely large parallel plates under steady,
incompressible, and fully developed laminar conditions. The average velocity of the
flow is 2 m/s. The gap between the parallel plates in mm (rounded off to 2 decimal
places) is ________
Q.38 An incompressible fluid is flowing between two infinitely large parallel plates
separated by 5 mm distance. The bottom plate is stationary and the top plate is
moving at a constant velocity of 5 mm/s in the direction parallel to the bottom plate.
The flow of the fluid between the plates is steady, two-dimensional, laminar, and
the variation of fluid velocity is linear between the plates. A square fluid element of
1 mm side is considered at equal distance from both the plates in the flow field such
that one of its sides is parallel to the plates. The magnitude of circulation in mm2/s
(in integer) along the edges of the square fluid element is ________
Q.39 Consider, a kite weighing 100 grams as essentially a rigid flat plate making an angle
8° with the horizontal and having a planform area of 0.045 m2 when exposed to
horizontal parallel wind of 60 km/h. The thread string of the kite makes an angle
45° with the horizontal. A tension of 450 grams in the thread is necessary to float
the kite steadily. Take air density as 1.2 kg/m3 and gravitational acceleration as
9.81 m/s2. The lift coefficient (CL ) associated with the air flow around steadily
floating kite (rounded off to 2 decimal places) is ________
Page 28 of 106
Organizing Institute: IIT Roorkee
Text of page 29
Engineering Sciences (XE)

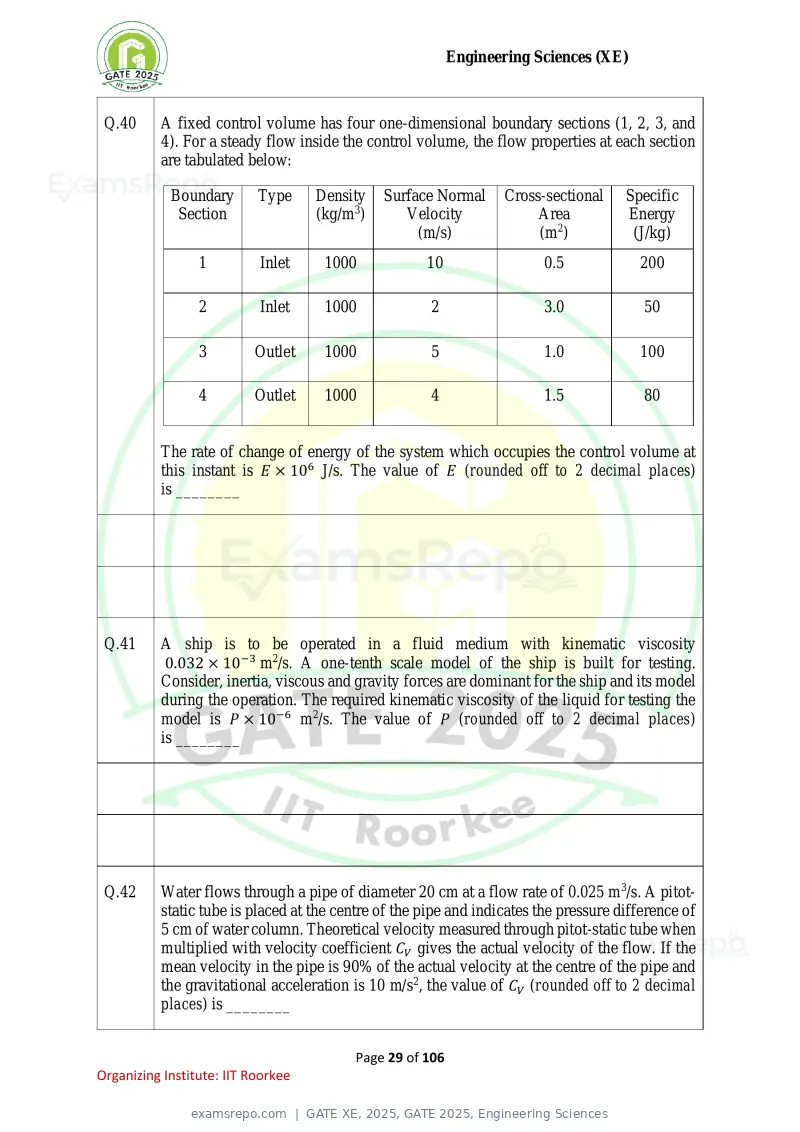

Q.40 A fixed control volume has four one-dimensional boundary sections (1, 2, 3, and
4). For a steady flow inside the control volume, the flow properties at each section
are tabulated below:
Boundary Type Density Surface Normal Cross-sectional Specific
Section (kg/m3) Velocity Area Energy
(m/s) (m2) (J/kg)
1 Inlet 1000 10 0.5 200
2 Inlet 1000 2 3.0 50
3 Outlet 1000 5 1.0 100
4 Outlet 1000 4 1.5 80
The rate of change of energy of the system which occupies the control volume at
this instant is E × 106 J/s. The value of E (rounded off to 2 decimal places)
is ________
Q.41 A ship is to be operated in a fluid medium with kinematic viscosity
0.032 × 10−3 m2/s. A one-tenth scale model of the ship is built for testing.
Consider, inertia, viscous and gravity forces are dominant for the ship and its model
during the operation. The required kinematic viscosity of the liquid for testing the
model is P × 10−6 m2/s. The value of P (rounded off to 2 decimal places)
is ________
Q.42 Water flows through a pipe of diameter 20 cm at a flow rate of 0.025 m3/s. A pitot-
static tube is placed at the centre of the pipe and indicates the pressure difference of
5 cm of water column. Theoretical velocity measured through pitot-static tube when
multiplied with velocity coefficient CV gives the actual velocity of the flow. If the
mean velocity in the pipe is 90% of the actual velocity at the centre of the pipe and
the gravitational acceleration is 10 m/s2, the value of CV (rounded off to 2 decimal
places) is ________
Page 29 of 106
Organizing Institute: IIT Roorkee
Text of page 30
Engineering Sciences (XE)

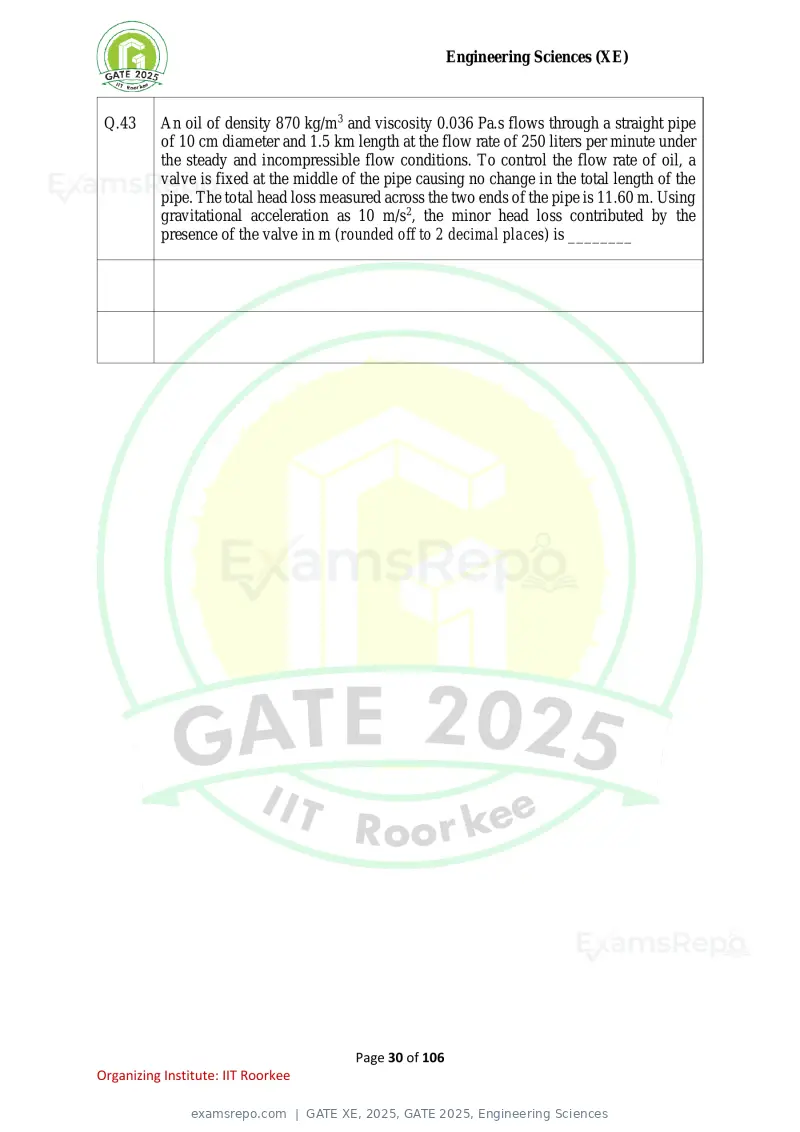

Q.43 An oil of density 870 kg/m3 and viscosity 0.036 Pa.s flows through a straight pipe
of 10 cm diameter and 1.5 km length at the flow rate of 250 liters per minute under
the steady and incompressible flow conditions. To control the flow rate of oil, a
valve is fixed at the middle of the pipe causing no change in the total length of the
pipe. The total head loss measured across the two ends of the pipe is 11.60 m. Using
gravitational acceleration as 10 m/s2, the minor head loss contributed by the
presence of the valve in m (rounded off to 2 decimal places) is ________
Page 30 of 106
Organizing Institute: IIT Roorkee
Text of page 31
Engineering Sciences (XE)
Materials Science (XE-C)
Q.44 – Q.52 Carry ONE mark Each

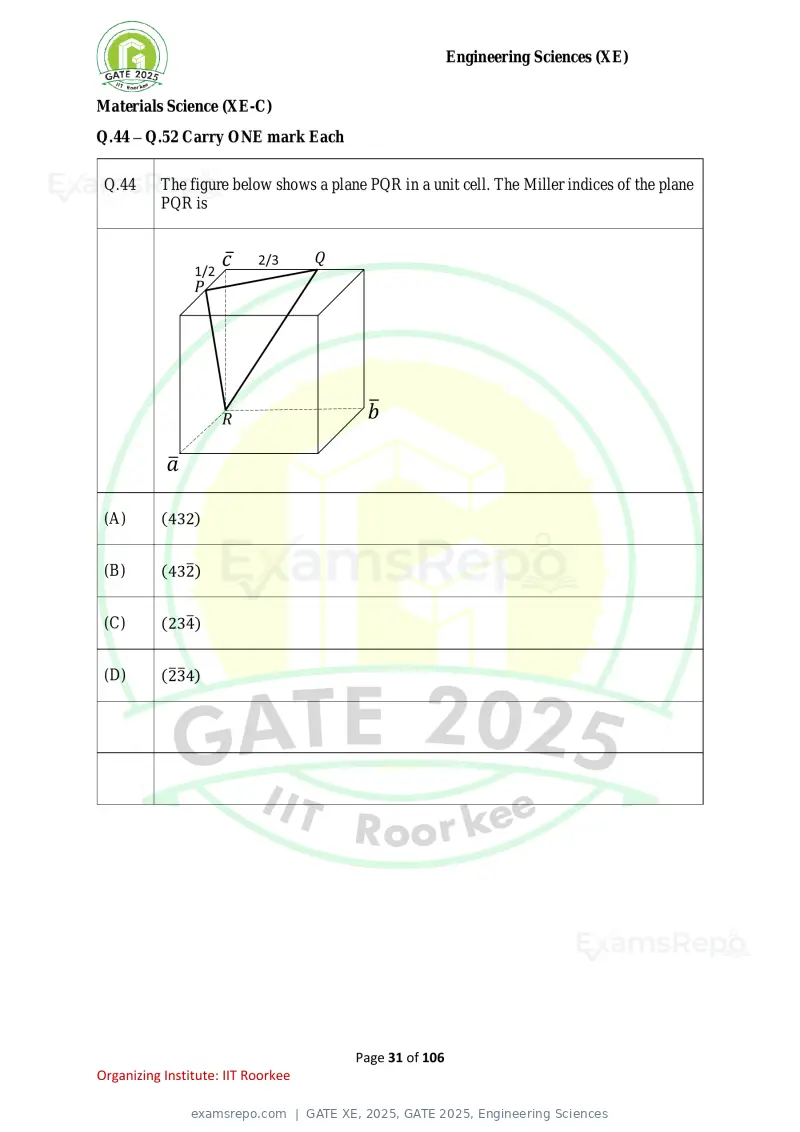

Q.44 The figure below shows a plane PQR in a unit cell. The Miller indices of the plane
PQR is
(A) (432)
(B) (432̅)
(C) (234̅)
(D) (2̅3̅4)
Page 31 of 106
Organizing Institute: IIT Roorkee
Text of page 32
Engineering Sciences (XE)

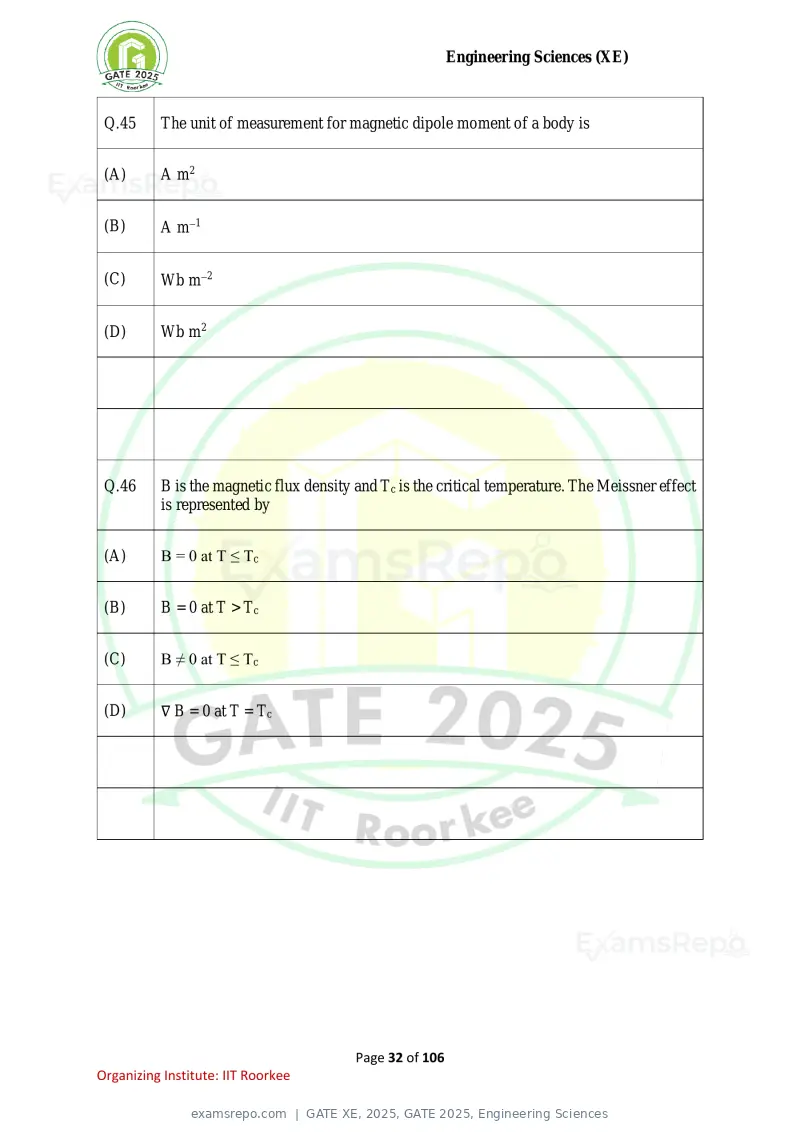

Q.45 The unit of measurement for magnetic dipole moment of a body is
(A) A m2
(B) A m−1
(C) Wb m−2
(D) Wb m2
Q.46 B is the magnetic flux density and Tc is the critical temperature. The Meissner effect
is represented by
(A) B = 0 at T ≤ Tc
(B) B = 0 at T > Tc
(C) B ≠ 0 at T ≤ Tc
(D) ∇ B = 0 at T = Tc
Page 32 of 106
Organizing Institute: IIT Roorkee
Text of page 33
Engineering Sciences (XE)

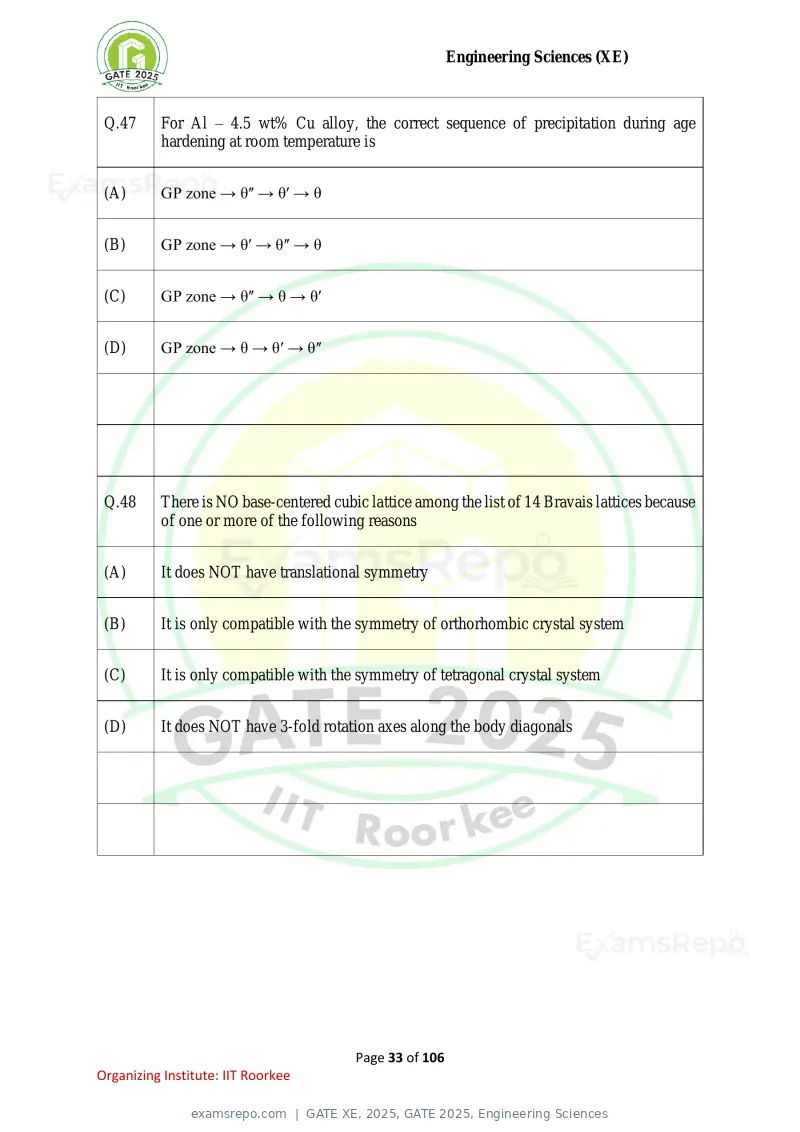

Q.47 For Al – 4.5 wt% Cu alloy, the correct sequence of precipitation during age
hardening at room temperature is
(A) GP zone → θʺ → θʹ → θ
(B) GP zone → θʹ → θʺ → θ
(C) GP zone → θʺ → θ → θʹ
(D) GP zone → θ → θʹ → θʺ
Q.48 There is NO base-centered cubic lattice among the list of 14 Bravais lattices because
of one or more of the following reasons
(A) It does NOT have translational symmetry
(B) It is only compatible with the symmetry of orthorhombic crystal system
(C) It is only compatible with the symmetry of tetragonal crystal system
(D) It does NOT have 3-fold rotation axes along the body diagonals
Page 33 of 106
Organizing Institute: IIT Roorkee
Text of page 34
Engineering Sciences (XE)

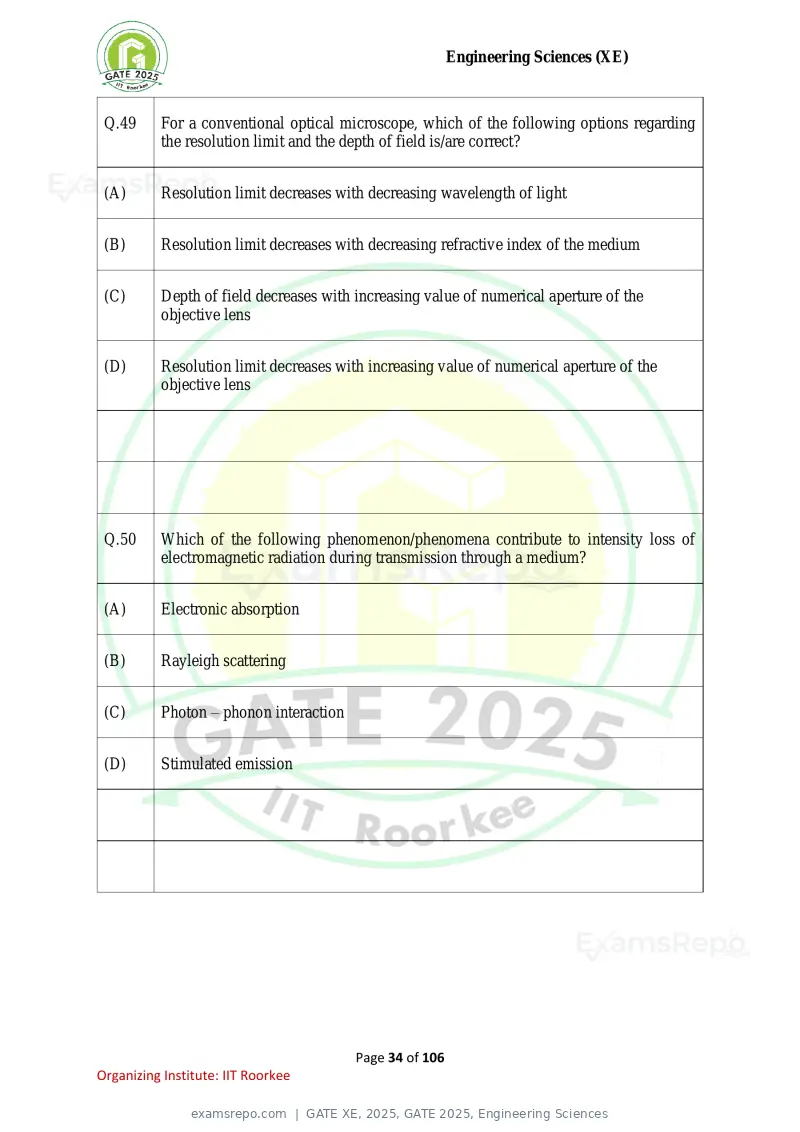

Q.49 For a conventional optical microscope, which of the following options regarding
the resolution limit and the depth of field is/are correct?
(A) Resolution limit decreases with decreasing wavelength of light
(B) Resolution limit decreases with decreasing refractive index of the medium
(C) Depth of field decreases with increasing value of numerical aperture of the
objective lens
(D) Resolution limit decreases with increasing value of numerical aperture of the
objective lens
Q.50 Which of the following phenomenon/phenomena contribute to intensity loss of
electromagnetic radiation during transmission through a medium?
(A) Electronic absorption
(B) Rayleigh scattering
(C) Photon – phonon interaction
(D) Stimulated emission
Page 34 of 106
Organizing Institute: IIT Roorkee
Text of page 35
Engineering Sciences (XE)

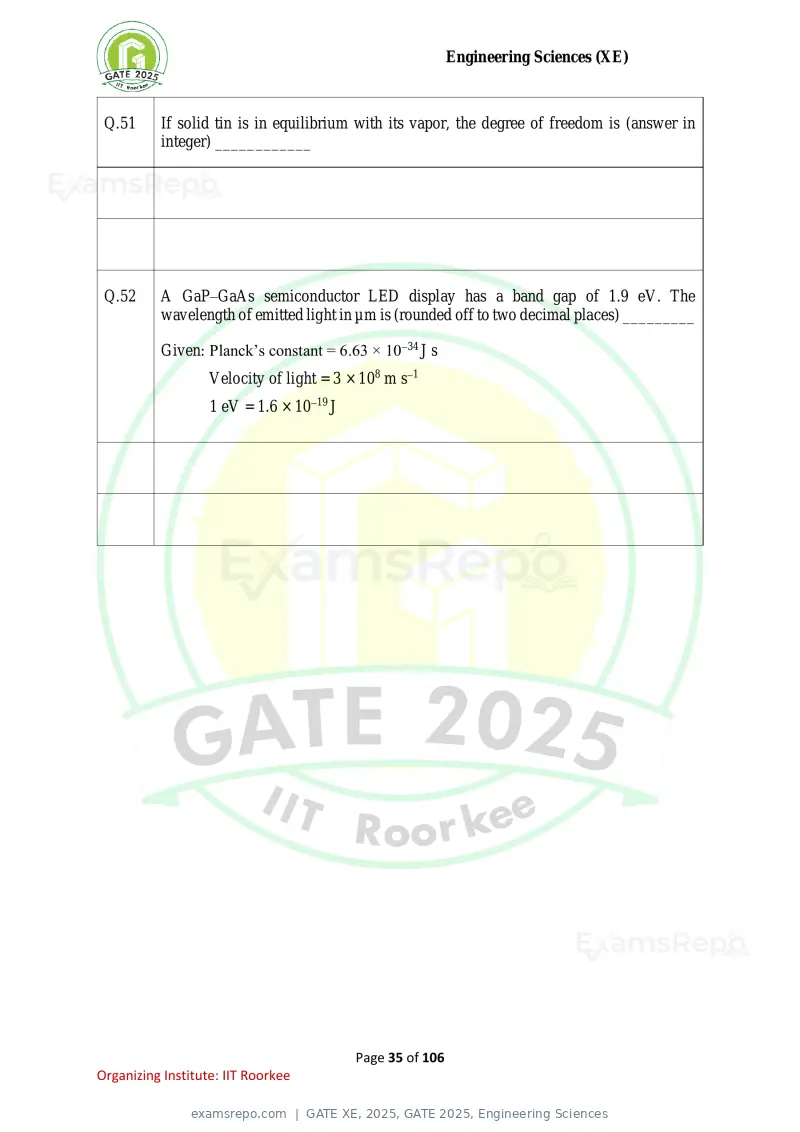

Q.51 If solid tin is in equilibrium with its vapor, the degree of freedom is (answer in
integer) ____________
Q.52 A GaP–GaAs semiconductor LED display has a band gap of 1.9 eV. The
wavelength of emitted light in µm is (rounded off to two decimal places) _________
Given: Planck’s constant = 6.63 × 10−34 J s
Velocity of light = 3 × 108 m s−1
1 eV = 1.6 × 10−19 J
Page 35 of 106
Organizing Institute: IIT Roorkee
Text of page 36
Engineering Sciences (XE)
Q.53 – Q.65 Carry TWO marks Each

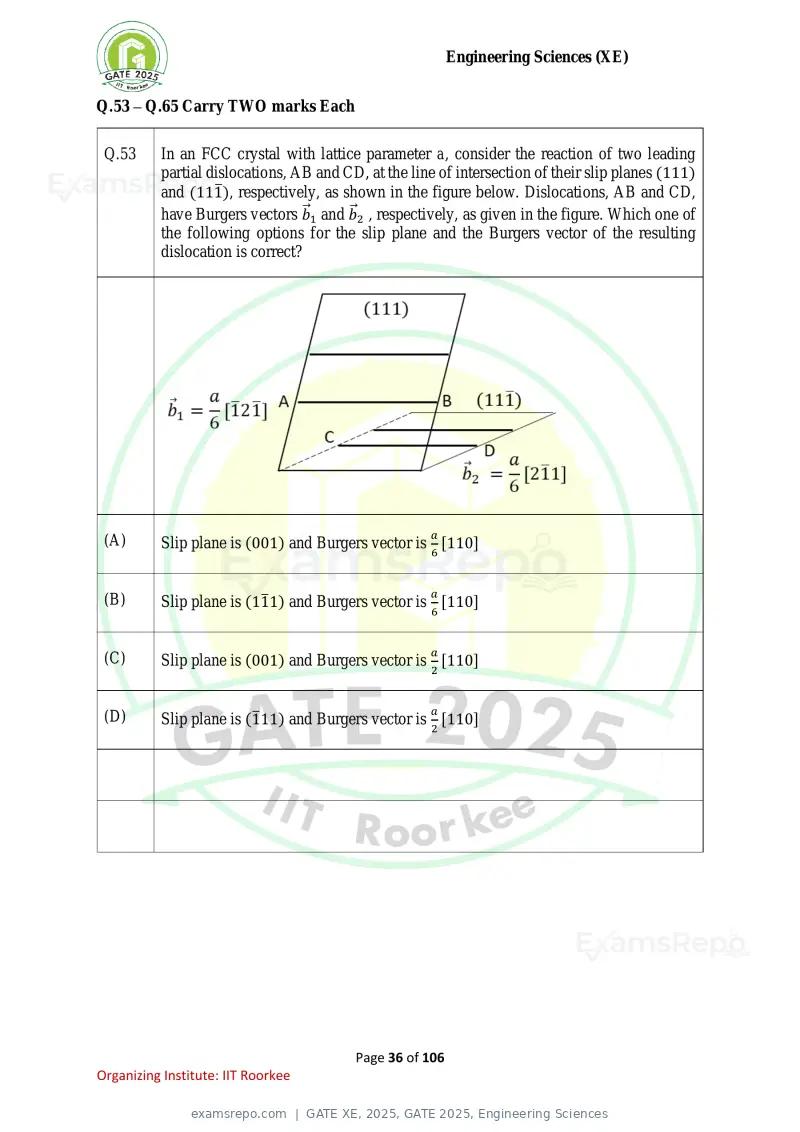

Q.53 In an FCC crystal with lattice parameter a, consider the reaction of two leading
partial dislocations, AB and CD, at the line of intersection of their slip planes (111)
and (111̅), respectively, as shown in the figure below. Dislocations, AB and CD,
have Burgers vectors b⃗1 and b⃗2 , respectively, as given in the figure. Which one of
the following options for the slip plane and the Burgers vector of the resulting
dislocation is correct?
a
(A) Slip plane is (001) and Burgers vector is 6 [110]
a
(B) Slip plane is (11̅1) and Burgers vector is 6 [110]
a
(C) Slip plane is (001) and Burgers vector is 2 [110]
a
(D) Slip plane is (1̅11) and Burgers vector is 2 [110]
Page 36 of 106
Organizing Institute: IIT Roorkee
Text of page 37
Engineering Sciences (XE)

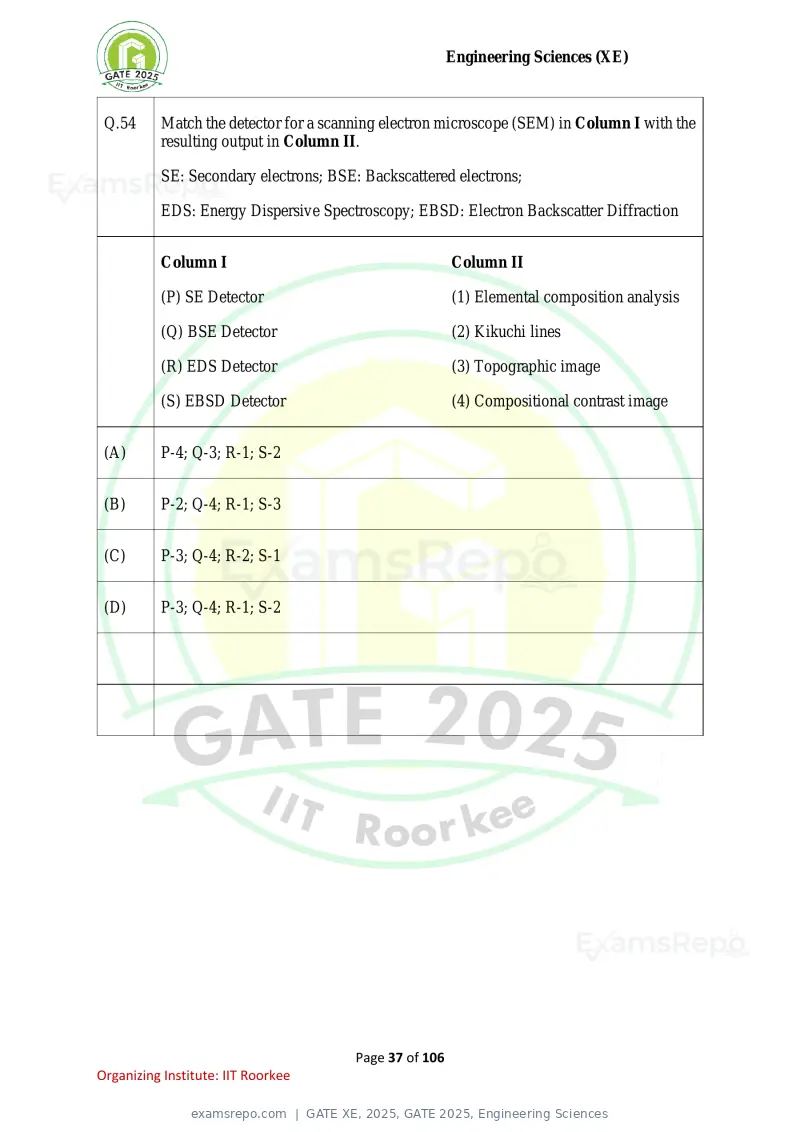

Q.54 Match the detector for a scanning electron microscope (SEM) in Column I with the
resulting output in Column II.
SE: Secondary electrons; BSE: Backscattered electrons;
EDS: Energy Dispersive Spectroscopy; EBSD: Electron Backscatter Diffraction
Column I Column II
(P) SE Detector (1) Elemental composition analysis
(Q) BSE Detector (2) Kikuchi lines
(R) EDS Detector (3) Topographic image
(S) EBSD Detector (4) Compositional contrast image
(A) P-4; Q-3; R-1; S-2
(B) P-2; Q-4; R-1; S-3
(C) P-3; Q-4; R-2; S-1
(D) P-3; Q-4; R-1; S-2
Page 37 of 106
Organizing Institute: IIT Roorkee
Text of page 38
Engineering Sciences (XE)

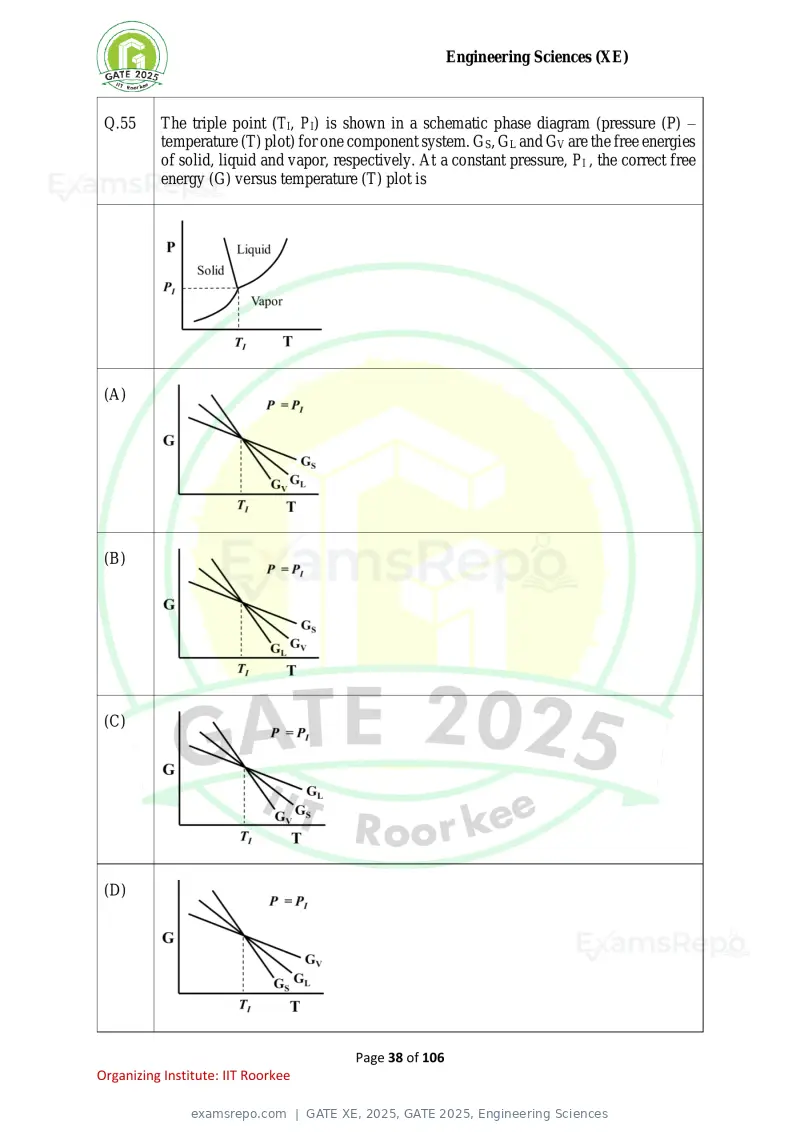

Q.55 The triple point (TI, PI) is shown in a schematic phase diagram (pressure (P) –
temperature (T) plot) for one component system. GS, GL and GV are the free energies
of solid, liquid and vapor, respectively. At a constant pressure, PI , the correct free
energy (G) versus temperature (T) plot is
(A)
(B)
(C)
(D)
Page 38 of 106
Organizing Institute: IIT Roorkee
Text of page 39
Engineering Sciences (XE)

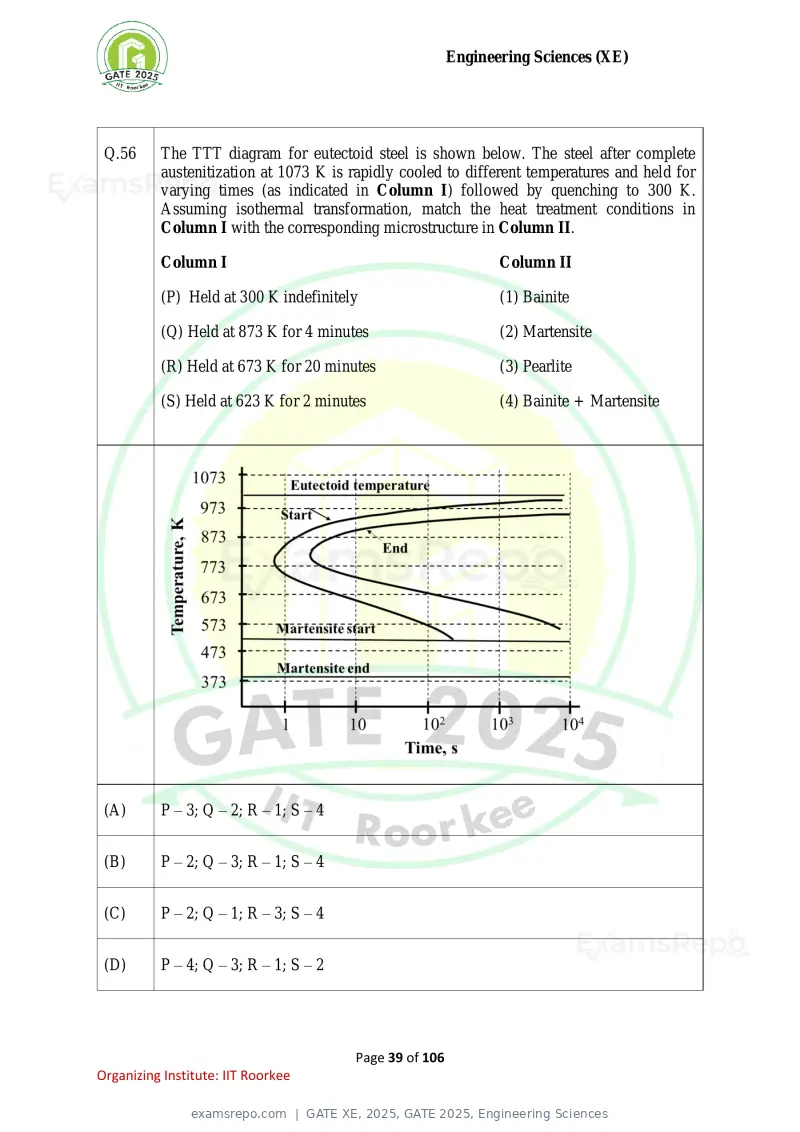

Q.56 The TTT diagram for eutectoid steel is shown below. The steel after complete
austenitization at 1073 K is rapidly cooled to different temperatures and held for
varying times (as indicated in Column I) followed by quenching to 300 K.
Assuming isothermal transformation, match the heat treatment conditions in
Column I with the corresponding microstructure in Column II.
Column I Column II
(P) Held at 300 K indefinitely (1) Bainite
(Q) Held at 873 K for 4 minutes (2) Martensite
(R) Held at 673 K for 20 minutes (3) Pearlite
(S) Held at 623 K for 2 minutes (4) Bainite + Martensite
(A) P – 3; Q – 2; R – 1; S – 4
(B) P – 2; Q – 3; R – 1; S – 4
(C) P – 2; Q – 1; R – 3; S – 4
(D) P – 4; Q – 3; R – 1; S – 2
Page 39 of 106
Organizing Institute: IIT Roorkee
Text of page 40
Engineering Sciences (XE)

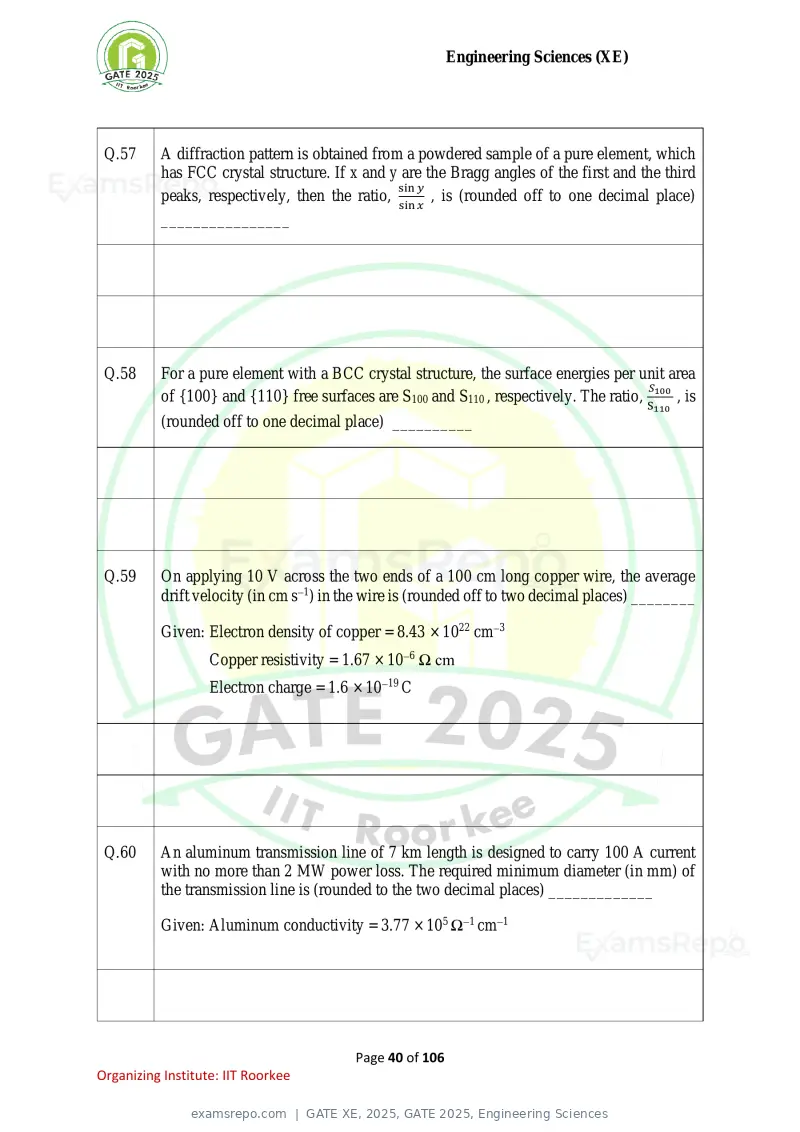

Q.57 A diffraction pattern is obtained from a powdered sample of a pure element, which
has FCC crystal structure. If x and y are the Bragg angles of the first and the third
sin y
peaks, respectively, then the ratio, sin x , is (rounded off to one decimal place)
________________
Q.58 For a pure element with a BCC crystal structure, the surface energies per unit area
S
of {100} and {110} free surfaces are S100 and S110 , respectively. The ratio, S 100 , is
110
(rounded off to one decimal place) __________
Q.59 On applying 10 V across the two ends of a 100 cm long copper wire, the average
drift velocity (in cm s−1) in the wire is (rounded off to two decimal places) ________
Given: Electron density of copper = 8.43 × 1022 cm−3
Copper resistivity = 1.67 × 10−6 Ω cm
Electron charge = 1.6 × 10−19 C
Q.60 An aluminum transmission line of 7 km length is designed to carry 100 A current
with no more than 2 MW power loss. The required minimum diameter (in mm) of
the transmission line is (rounded to the two decimal places) _____________
Given: Aluminum conductivity = 3.77 × 105 Ω−1 cm−1
Page 40 of 106
Organizing Institute: IIT Roorkee
Text of page 41
Engineering Sciences (XE)

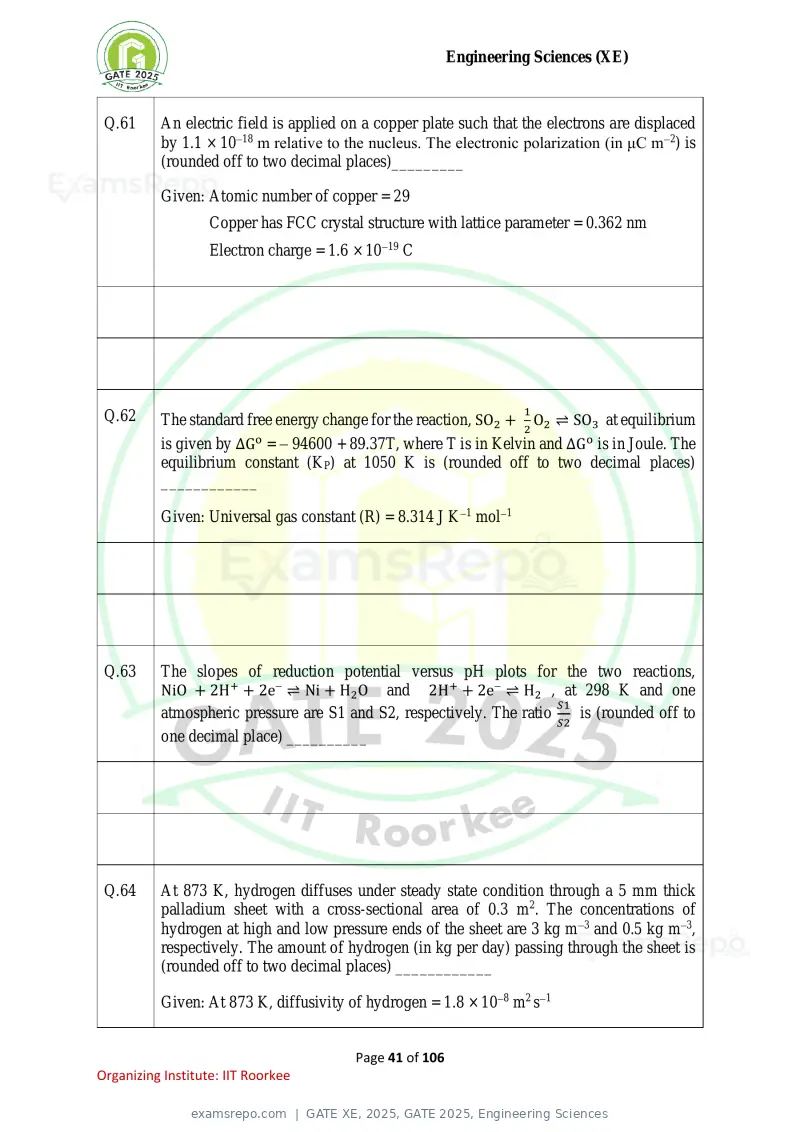

Q.61 An electric field is applied on a copper plate such that the electrons are displaced
by 1.1 × 10−18 m relative to the nucleus. The electronic polarization (in μC m−2) is
(rounded off to two decimal places)_________
Given: Atomic number of copper = 29
Copper has FCC crystal structure with lattice parameter = 0.362 nm
Electron charge = 1.6 × 10−19 C
Q.62 1
The standard free energy change for the reaction, SO2 + 2 O2 ⇌ SO3 at equilibrium
is given by ∆Go = − 94600 + 89.37T, where T is in Kelvin and ∆Go is in Joule. The
equilibrium constant (KP) at 1050 K is (rounded off to two decimal places)
____________
Given: Universal gas constant (R) = 8.314 J K−1 mol−1
Q.63 The slopes of reduction potential versus pH plots for the two reactions,
NiO + 2H + + 2e− ⇌ Ni + H2 O and 2H + + 2e− ⇌ H2 , at 298 K and one
S1
atmospheric pressure are S1 and S2, respectively. The ratio S2 is (rounded off to
one decimal place) __________
Q.64 At 873 K, hydrogen diffuses under steady state condition through a 5 mm thick
palladium sheet with a cross-sectional area of 0.3 m2. The concentrations of
hydrogen at high and low pressure ends of the sheet are 3 kg m−3 and 0.5 kg m−3,
respectively. The amount of hydrogen (in kg per day) passing through the sheet is
(rounded off to two decimal places) ____________
Given: At 873 K, diffusivity of hydrogen = 1.8 × 10−8 m2 s−1
Page 41 of 106
Organizing Institute: IIT Roorkee
Text of page 42
Engineering Sciences (XE)

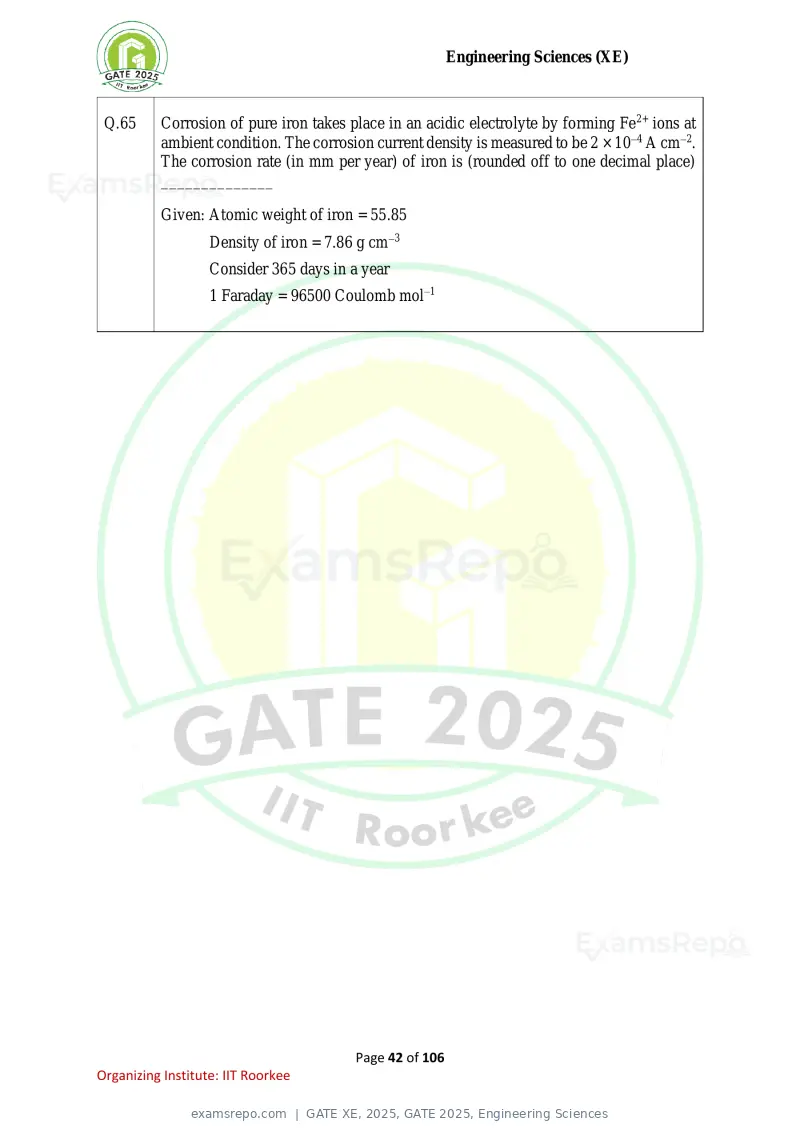

Q.65 Corrosion of pure iron takes place in an acidic electrolyte by forming Fe2+ ions at
ambient condition. The corrosion current density is measured to be 2 × 10−4 A cm−2.
The corrosion rate (in mm per year) of iron is (rounded off to one decimal place)
______________
Given: Atomic weight of iron = 55.85
Density of iron = 7.86 g cm−3
Consider 365 days in a year
1 Faraday = 96500 Coulomb mol–1
Page 42 of 106
Organizing Institute: IIT Roorkee
Text of page 43
Engineering Sciences (XE)
Solid Mechanics (XE-D)
Q.66 – Q.74 Carry ONE mark Each

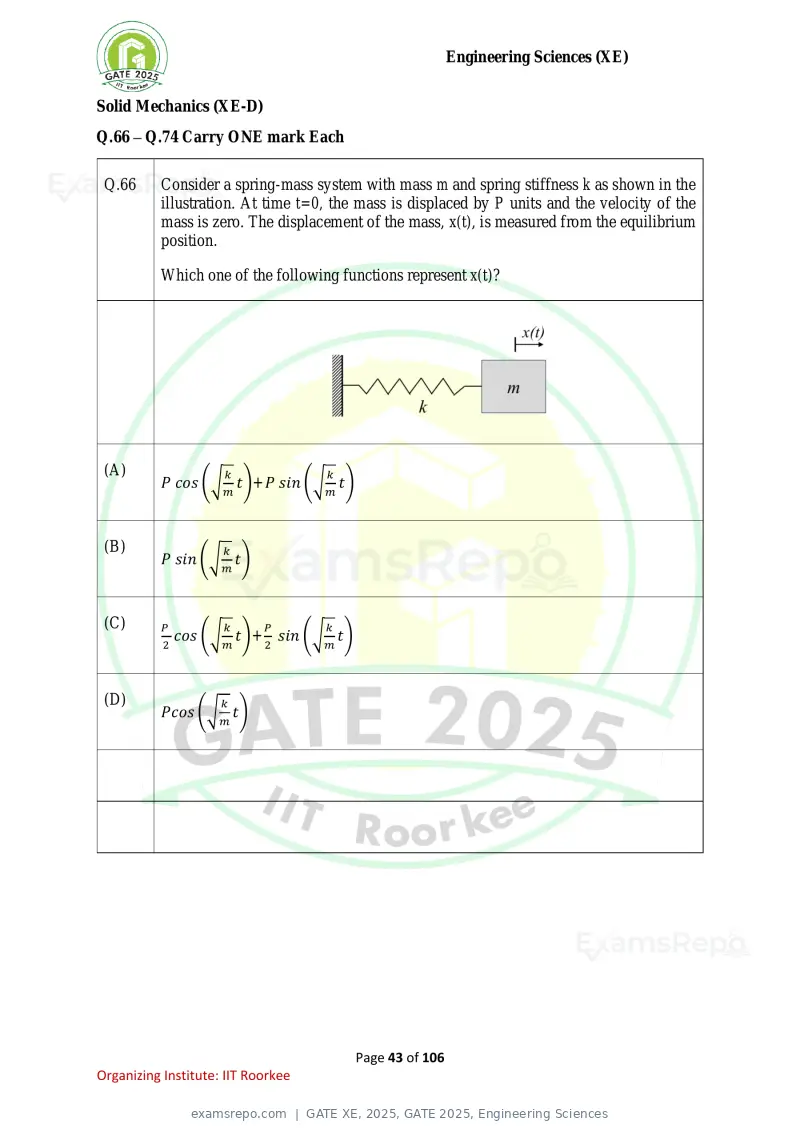

Q.66 Consider a spring-mass system with mass m and spring stiffness k as shown in the
illustration. At time t=0, the mass is displaced by P units and the velocity of the
mass is zero. The displacement of the mass, x(t), is measured from the equilibrium
position.
Which one of the following functions represent x(t)?
(A) k k
P cos (√m t)+ P sin (√m t)
(B) k
P sin (√m t)
(C) P k P k
cos (√m t)+ 2 sin (√m t)
2
(D) k
Pcos (√m t)
Page 43 of 106
Organizing Institute: IIT Roorkee
Text of page 44
Engineering Sciences (XE)

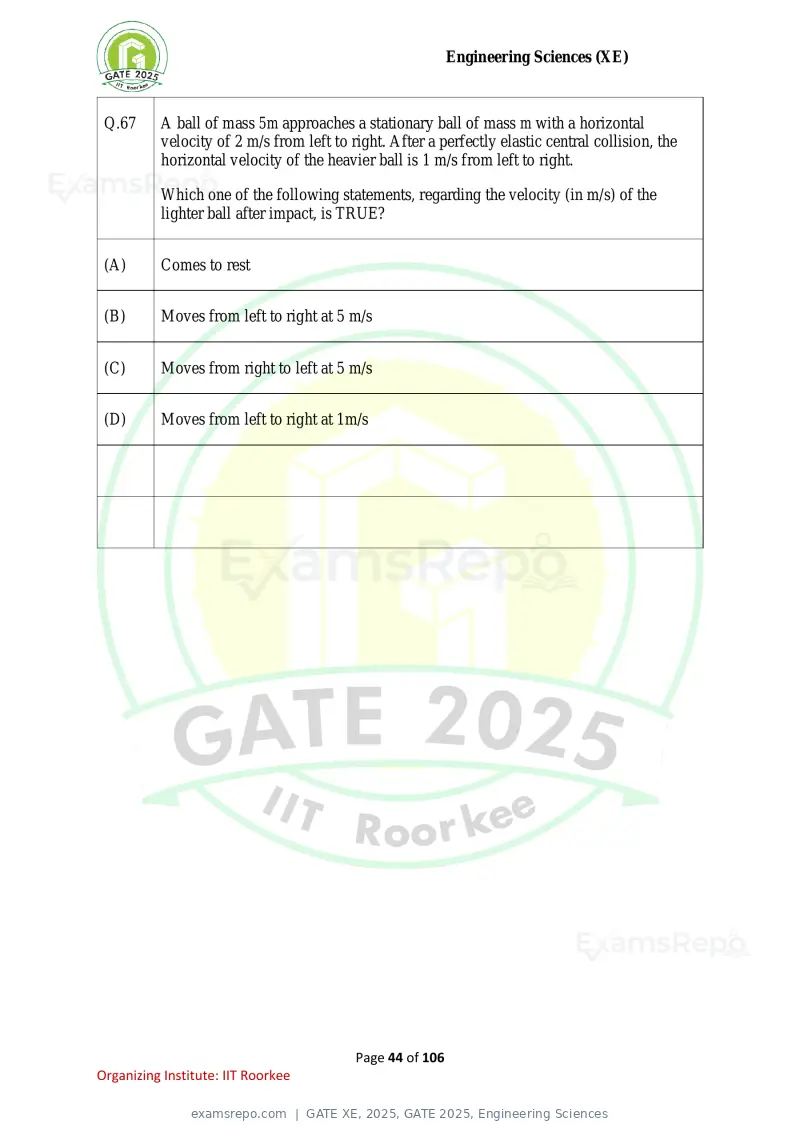

Q.67 A ball of mass 5m approaches a stationary ball of mass m with a horizontal
velocity of 2 m/s from left to right. After a perfectly elastic central collision, the
horizontal velocity of the heavier ball is 1 m/s from left to right.
Which one of the following statements, regarding the velocity (in m/s) of the
lighter ball after impact, is TRUE?
(A) Comes to rest
(B) Moves from left to right at 5 m/s
(C) Moves from right to left at 5 m/s
(D) Moves from left to right at 1m/s
Page 44 of 106
Organizing Institute: IIT Roorkee
Text of page 45
Engineering Sciences (XE)

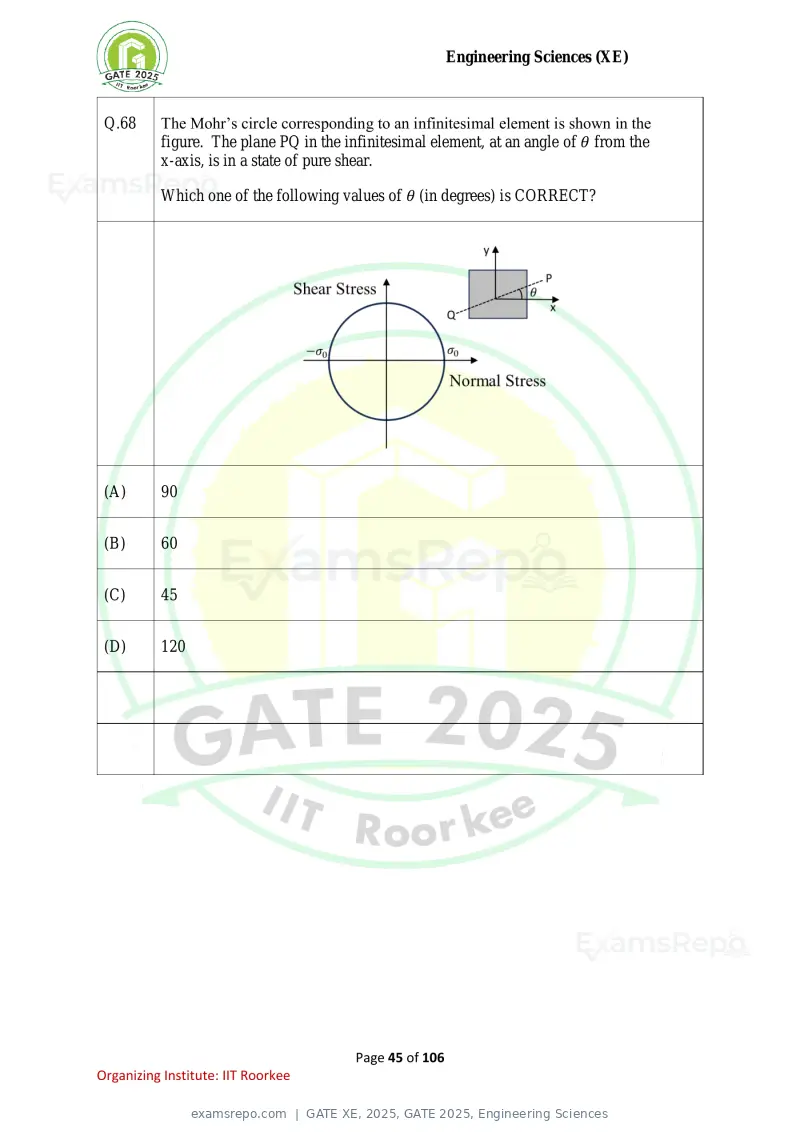

Q.68 The Mohr’s circle corresponding to an infinitesimal element is shown in the
figure. The plane PQ in the infinitesimal element, at an angle of θ from the
x-axis, is in a state of pure shear.
Which one of the following values of θ (in degrees) is CORRECT?
(A) 90
(B) 60
(C) 45
(D) 120
Page 45 of 106
Organizing Institute: IIT Roorkee
Text of page 46
Engineering Sciences (XE)

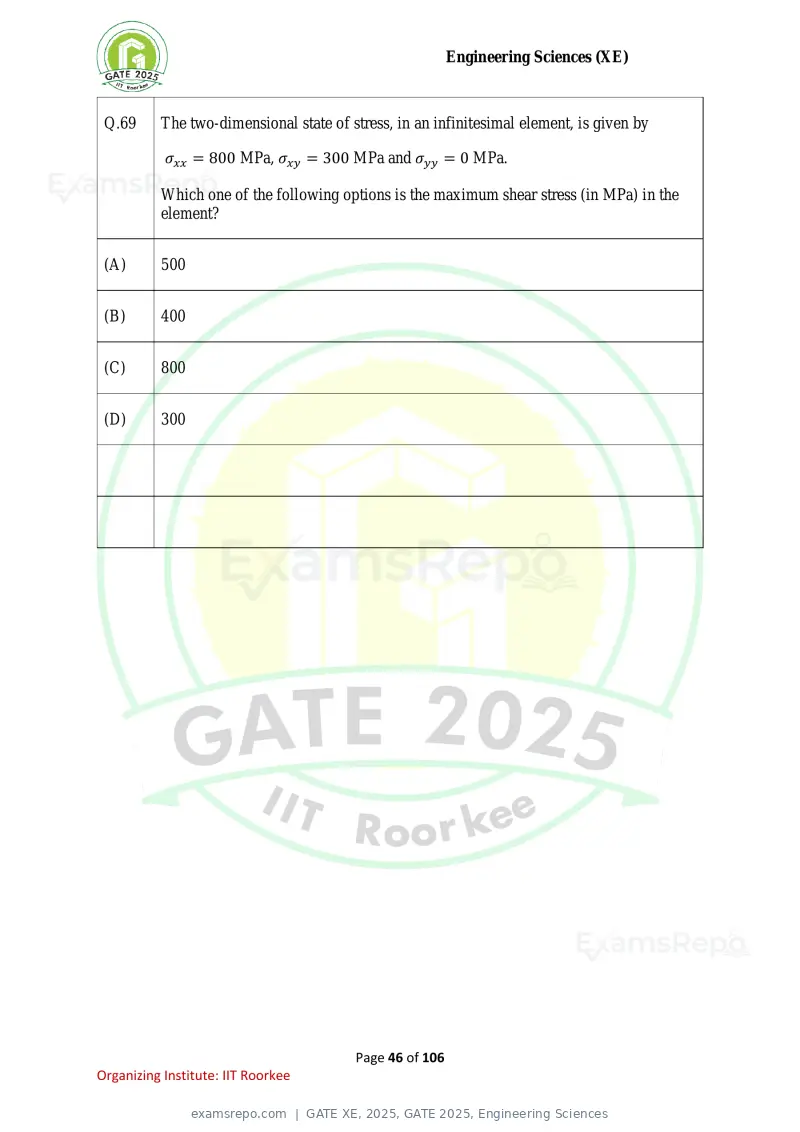

Q.69 The two-dimensional state of stress, in an infinitesimal element, is given by
σxx = 800 MPa, σxy = 300 MPa and σyy = 0 MPa.
Which one of the following options is the maximum shear stress (in MPa) in the
element?
(A) 500
(B) 400
(C) 800
(D) 300
Page 46 of 106
Organizing Institute: IIT Roorkee
Text of page 47
Engineering Sciences (XE)

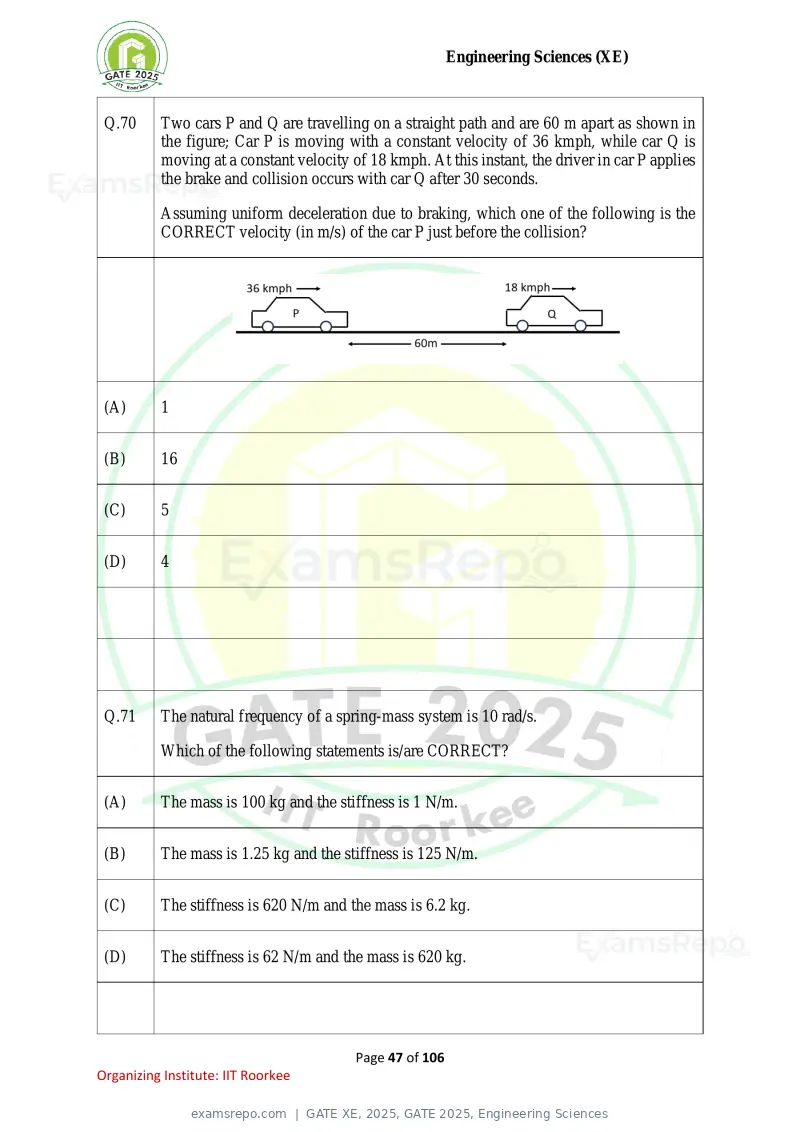

Q.70 Two cars P and Q are travelling on a straight path and are 60 m apart as shown in
the figure; Car P is moving with a constant velocity of 36 kmph, while car Q is
moving at a constant velocity of 18 kmph. At this instant, the driver in car P applies
the brake and collision occurs with car Q after 30 seconds.
Assuming uniform deceleration due to braking, which one of the following is the
CORRECT velocity (in m/s) of the car P just before the collision?
(A) 1
(B) 16
(C) 5
(D) 4
Q.71 The natural frequency of a spring-mass system is 10 rad/s.
Which of the following statements is/are CORRECT?
(A) The mass is 100 kg and the stiffness is 1 N/m.
(B) The mass is 1.25 kg and the stiffness is 125 N/m.
(C) The stiffness is 620 N/m and the mass is 6.2 kg.
(D) The stiffness is 62 N/m and the mass is 620 kg.
Page 47 of 106
Organizing Institute: IIT Roorkee
Text of page 48
Engineering Sciences (XE)

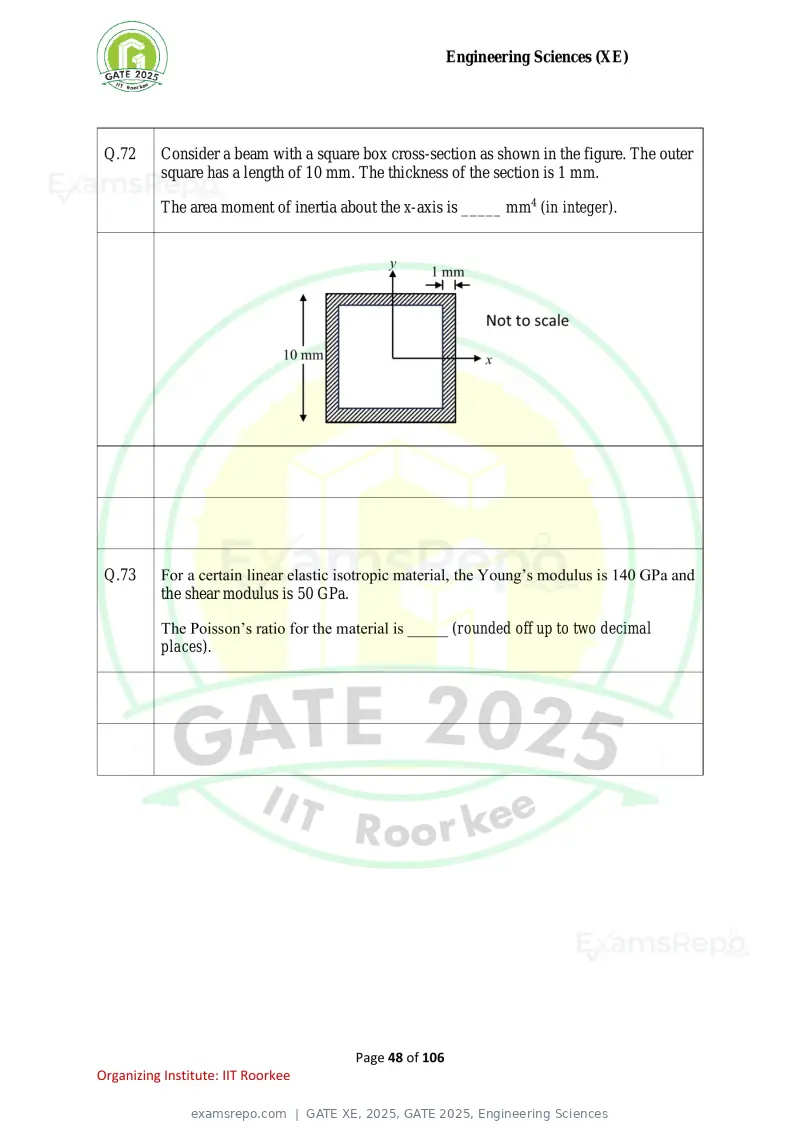

Q.72 Consider a beam with a square box cross-section as shown in the figure. The outer
square has a length of 10 mm. The thickness of the section is 1 mm.
The area moment of inertia about the x-axis is _____ mm4 (in integer).
Q.73 For a certain linear elastic isotropic material, the Young’s modulus is 140 GPa and
the shear modulus is 50 GPa.
The Poisson’s ratio for the material is _____ (rounded off up to two decimal
places).
Page 48 of 106
Organizing Institute: IIT Roorkee
Text of page 49
Engineering Sciences (XE)

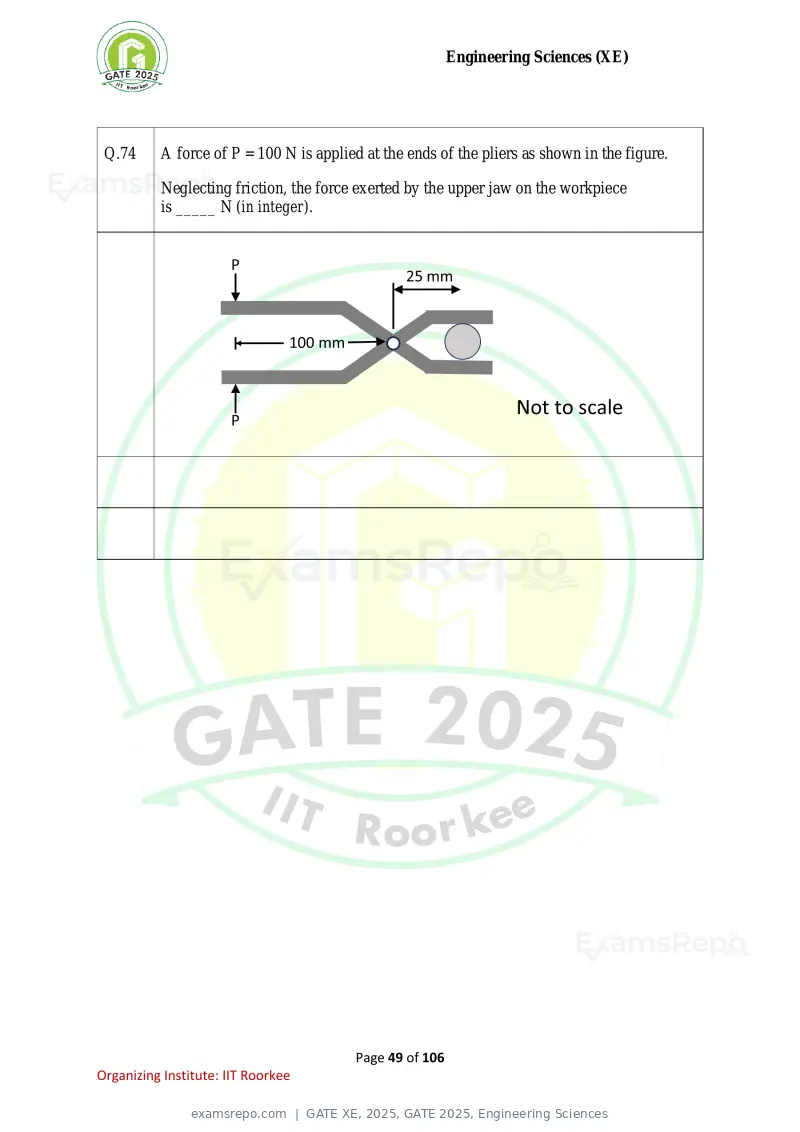

Q.74 A force of P = 100 N is applied at the ends of the pliers as shown in the figure.
Neglecting friction, the force exerted by the upper jaw on the workpiece
is _____ N (in integer).
Page 49 of 106
Organizing Institute: IIT Roorkee
Text of page 50
Engineering Sciences (XE)
Q.75 – Q.87 Carry TWO marks Each

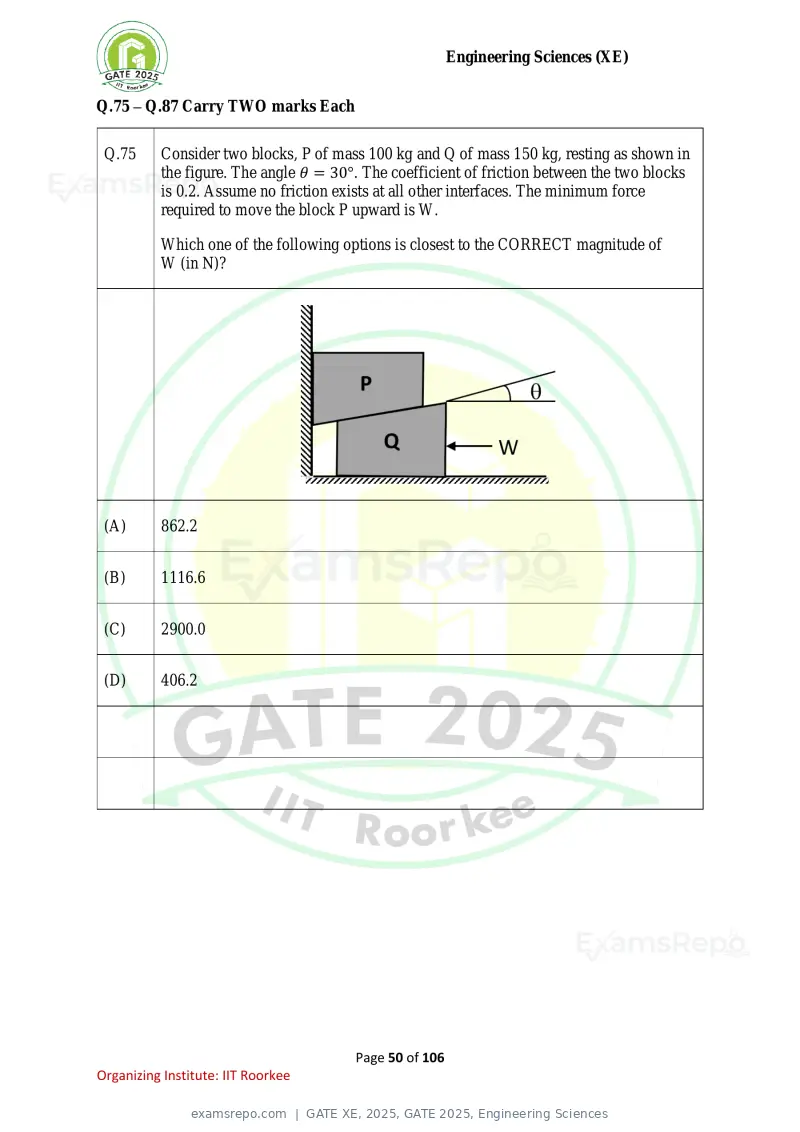

Q.75 Consider two blocks, P of mass 100 kg and Q of mass 150 kg, resting as shown in
the figure. The angle θ = 30°. The coefficient of friction between the two blocks
is 0.2. Assume no friction exists at all other interfaces. The minimum force
required to move the block P upward is W.
Which one of the following options is closest to the CORRECT magnitude of
W (in N)?
(A) 862.2
(B) 1116.6
(C) 2900.0
(D) 406.2
Page 50 of 106
Organizing Institute: IIT Roorkee
Text of page 51
Engineering Sciences (XE)

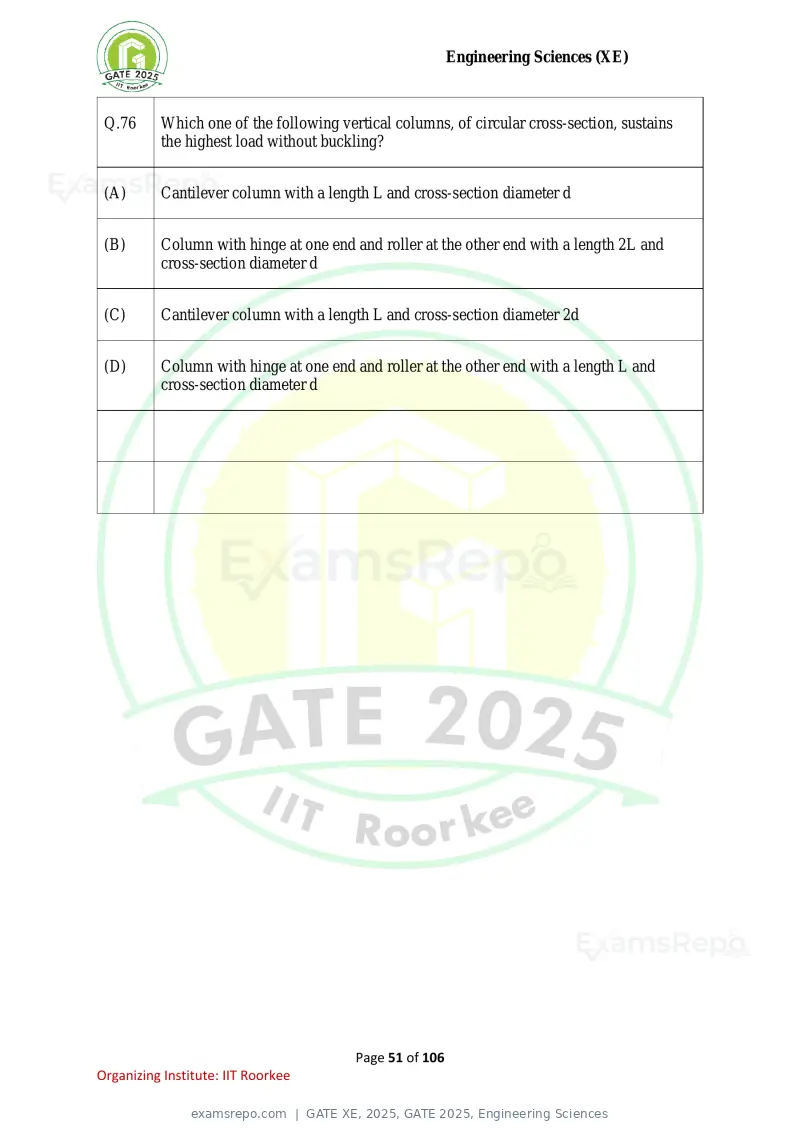

Q.76 Which one of the following vertical columns, of circular cross-section, sustains
the highest load without buckling?
(A) Cantilever column with a length L and cross-section diameter d
(B) Column with hinge at one end and roller at the other end with a length 2L and
cross-section diameter d
(C) Cantilever column with a length L and cross-section diameter 2d
(D) Column with hinge at one end and roller at the other end with a length L and
cross-section diameter d
Page 51 of 106
Organizing Institute: IIT Roorkee
Text of page 52
Engineering Sciences (XE)

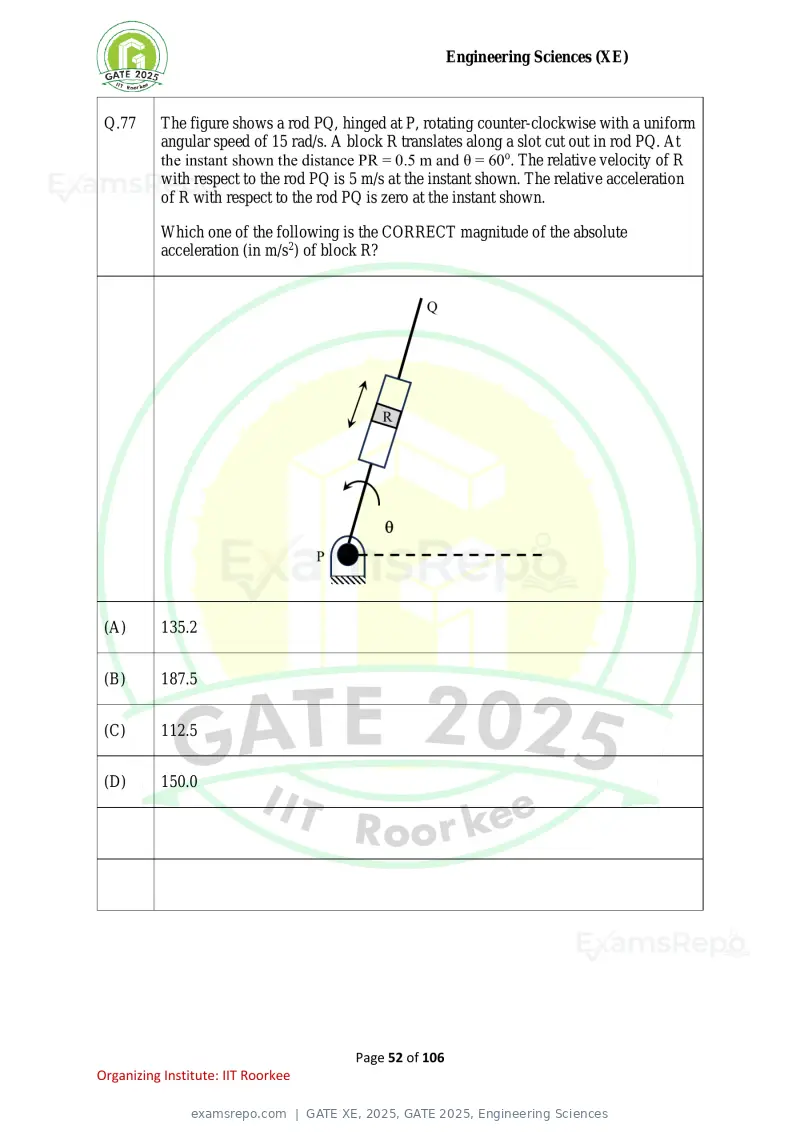

Q.77 The figure shows a rod PQ, hinged at P, rotating counter-clockwise with a uniform
angular speed of 15 rad/s. A block R translates along a slot cut out in rod PQ. At
the instant shown the distance PR = 0.5 m and θ = 60o. The relative velocity of R
with respect to the rod PQ is 5 m/s at the instant shown. The relative acceleration
of R with respect to the rod PQ is zero at the instant shown.
Which one of the following is the CORRECT magnitude of the absolute
acceleration (in m/s2) of block R?
(A) 135.2
(B) 187.5
(C) 112.5
(D) 150.0
Page 52 of 106
Organizing Institute: IIT Roorkee
Text of page 53
Engineering Sciences (XE)

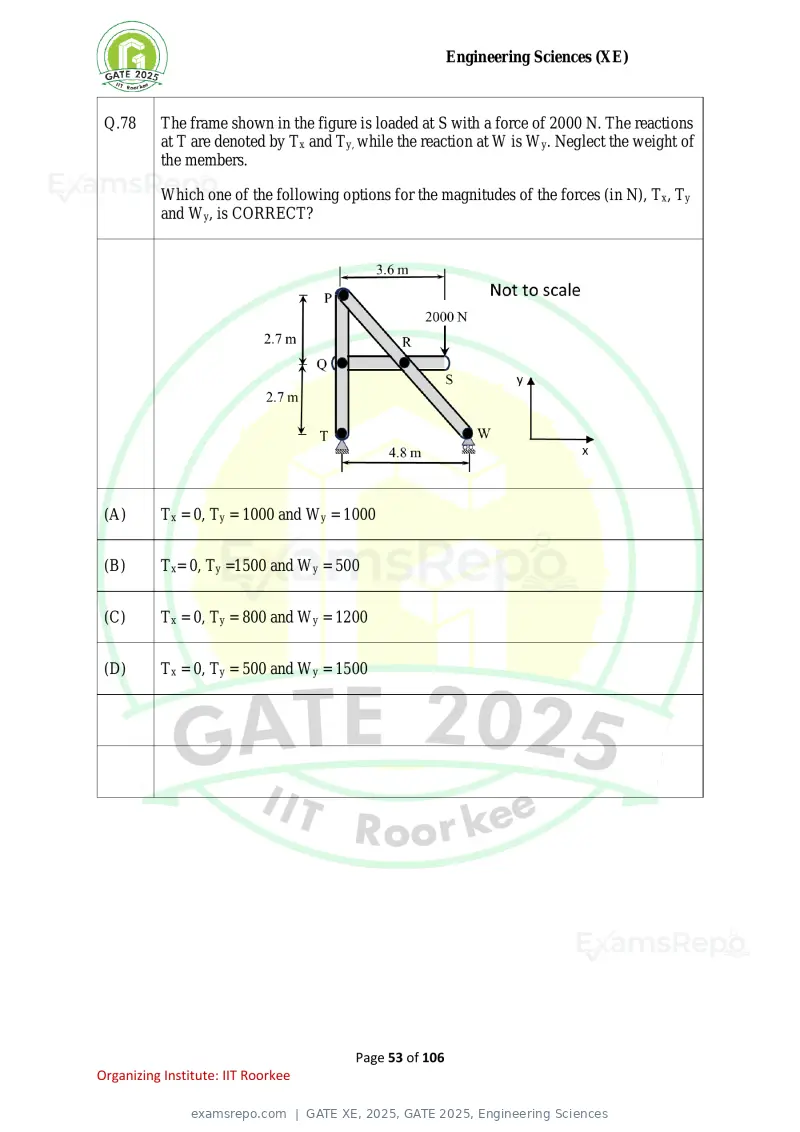

Q.78 The frame shown in the figure is loaded at S with a force of 2000 N. The reactions
at T are denoted by Tx and Ty, while the reaction at W is Wy. Neglect the weight of
the members.
Which one of the following options for the magnitudes of the forces (in N), Tx, Ty
and Wy, is CORRECT?
(A) Tx = 0, Ty = 1000 and Wy = 1000
(B) Tx= 0, Ty =1500 and Wy = 500
(C) Tx = 0, Ty = 800 and Wy = 1200
(D) Tx = 0, Ty = 500 and Wy = 1500
Page 53 of 106
Organizing Institute: IIT Roorkee
Text of page 54
Engineering Sciences (XE)

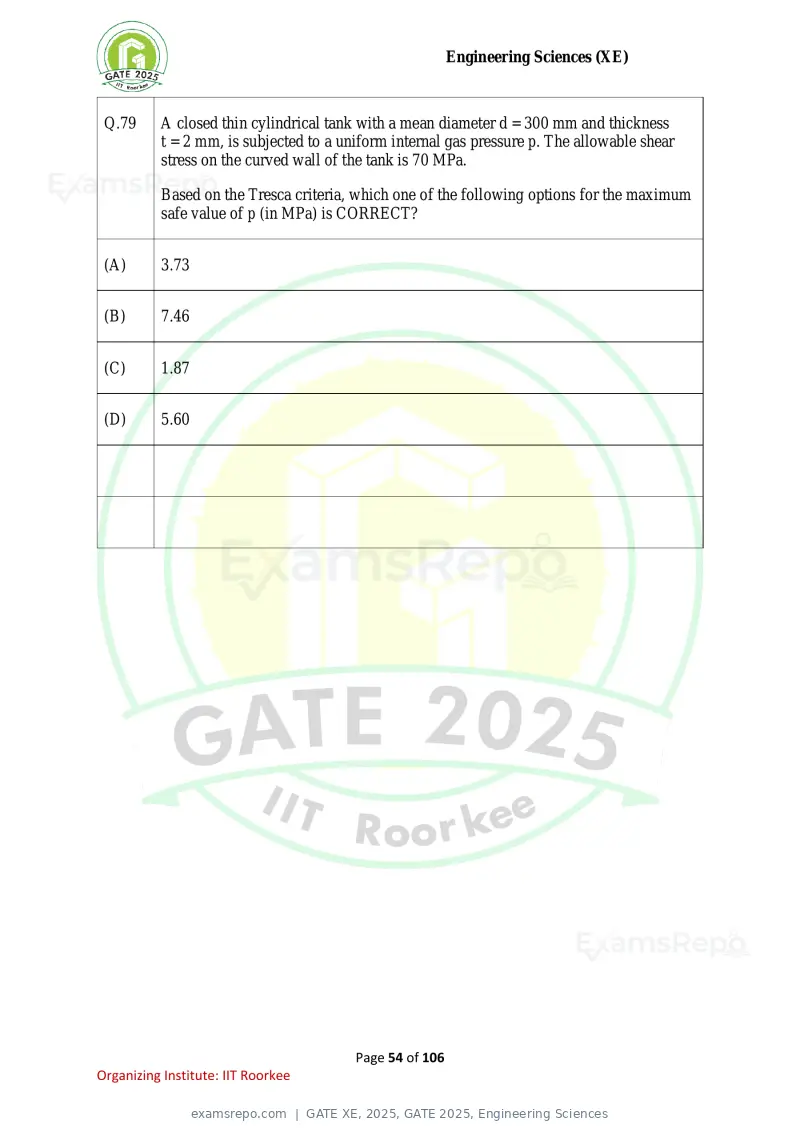

Q.79 A closed thin cylindrical tank with a mean diameter d = 300 mm and thickness
t = 2 mm, is subjected to a uniform internal gas pressure p. The allowable shear
stress on the curved wall of the tank is 70 MPa.
Based on the Tresca criteria, which one of the following options for the maximum
safe value of p (in MPa) is CORRECT?
(A) 3.73
(B) 7.46
(C) 1.87
(D) 5.60
Page 54 of 106
Organizing Institute: IIT Roorkee
Text of page 55
Engineering Sciences (XE)

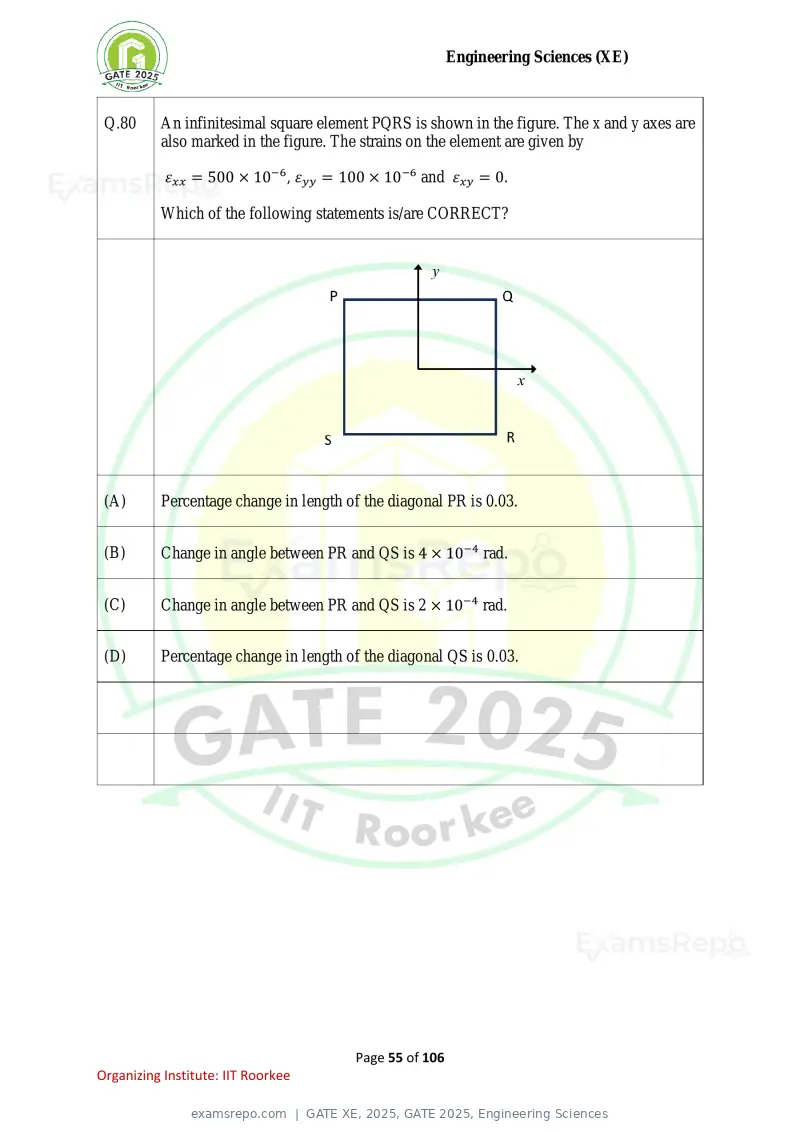

Q.80 An infinitesimal square element PQRS is shown in the figure. The x and y axes are
also marked in the figure. The strains on the element are given by
εxx = 500 × 10−6, εyy = 100 × 10−6 and εxy = 0.
Which of the following statements is/are CORRECT?
(A) Percentage change in length of the diagonal PR is 0.03.
(B) Change in angle between PR and QS is 4 × 10−4 rad.
(C) Change in angle between PR and QS is 2 × 10−4 rad.
(D) Percentage change in length of the diagonal QS is 0.03.
Page 55 of 106
Organizing Institute: IIT Roorkee
Text of page 56
Engineering Sciences (XE)

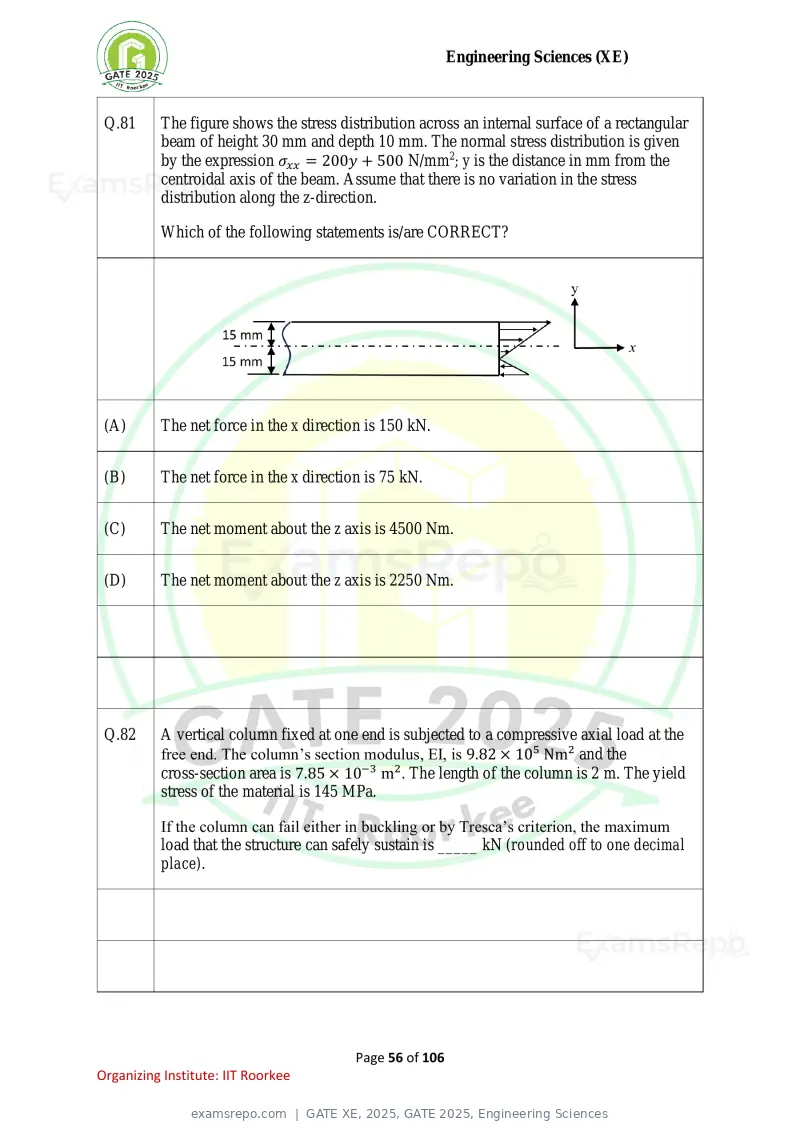

Q.81 The figure shows the stress distribution across an internal surface of a rectangular
beam of height 30 mm and depth 10 mm. The normal stress distribution is given
by the expression σxx = 200y + 500 N/mm2; y is the distance in mm from the
centroidal axis of the beam. Assume that there is no variation in the stress
distribution along the z-direction.
Which of the following statements is/are CORRECT?
(A) The net force in the x direction is 150 kN.
(B) The net force in the x direction is 75 kN.
(C) The net moment about the z axis is 4500 Nm.
(D) The net moment about the z axis is 2250 Nm.
Q.82 A vertical column fixed at one end is subjected to a compressive axial load at the
free end. The column’s section modulus, EI, is 9.82 × 105 Nm2 and the
cross-section area is 7.85 × 10−3 m2 . The length of the column is 2 m. The yield
stress of the material is 145 MPa.
If the column can fail either in buckling or by Tresca’s criterion, the maximum
load that the structure can safely sustain is _____ kN (rounded off to one decimal
place).
Page 56 of 106
Organizing Institute: IIT Roorkee
Text of page 57
Engineering Sciences (XE)

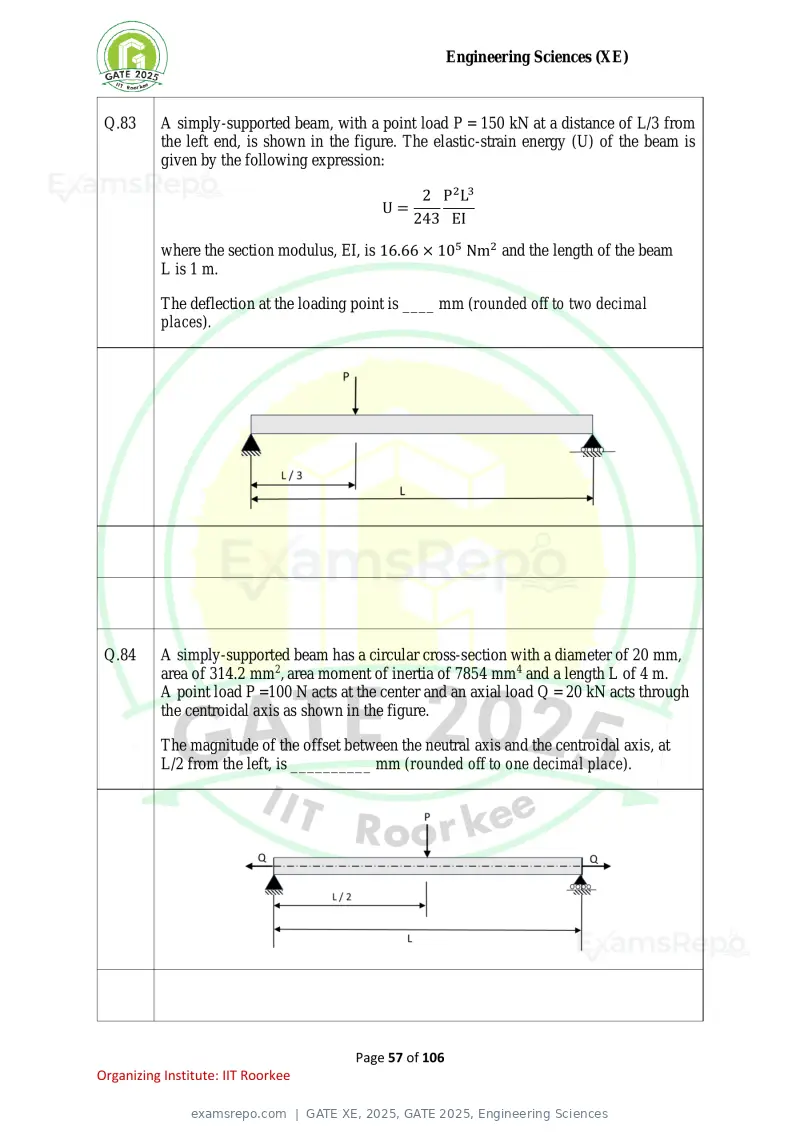

Q.83 A simply-supported beam, with a point load P = 150 kN at a distance of L/3 from
the left end, is shown in the figure. The elastic-strain energy (U) of the beam is
given by the following expression:
2 P 2 L3
U=
243 EI
where the section modulus, EI, is 16.66 × 105 Nm2 and the length of the beam
L is 1 m.
The deflection at the loading point is ____ mm (rounded off to two decimal
places).
Q.84 A simply-supported beam has a circular cross-section with a diameter of 20 mm,
area of 314.2 mm2, area moment of inertia of 7854 mm4 and a length L of 4 m.
A point load P =100 N acts at the center and an axial load Q = 20 kN acts through
the centroidal axis as shown in the figure.
The magnitude of the offset between the neutral axis and the centroidal axis, at
L/2 from the left, is __________ mm (rounded off to one decimal place).
Page 57 of 106
Organizing Institute: IIT Roorkee
Text of page 58
Engineering Sciences (XE)

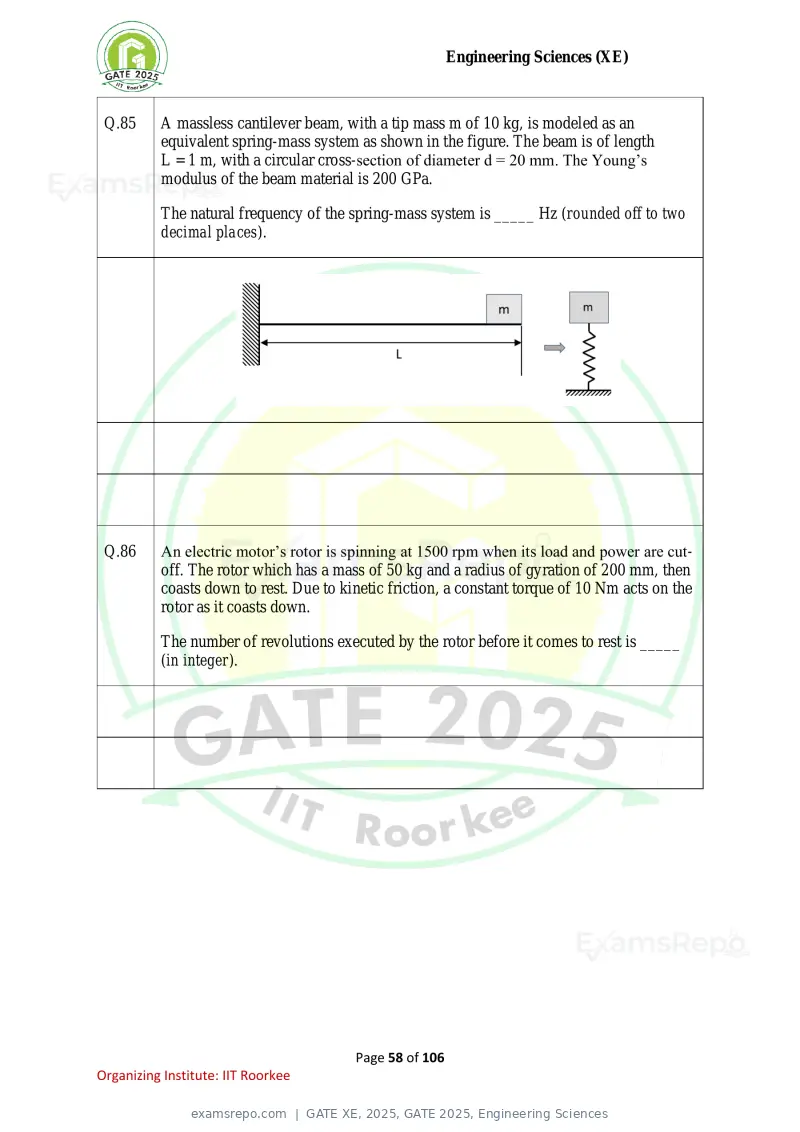

Q.85 A massless cantilever beam, with a tip mass m of 10 kg, is modeled as an
equivalent spring-mass system as shown in the figure. The beam is of length
L = 1 m, with a circular cross-section of diameter d = 20 mm. The Young’s
modulus of the beam material is 200 GPa.
The natural frequency of the spring-mass system is _____ Hz (rounded off to two
decimal places).
Q.86 An electric motor’s rotor is spinning at 1500 rpm when its load and power are cut-
off. The rotor which has a mass of 50 kg and a radius of gyration of 200 mm, then
coasts down to rest. Due to kinetic friction, a constant torque of 10 Nm acts on the
rotor as it coasts down.
The number of revolutions executed by the rotor before it comes to rest is _____
(in integer).
Page 58 of 106
Organizing Institute: IIT Roorkee
Text of page 59
Engineering Sciences (XE)

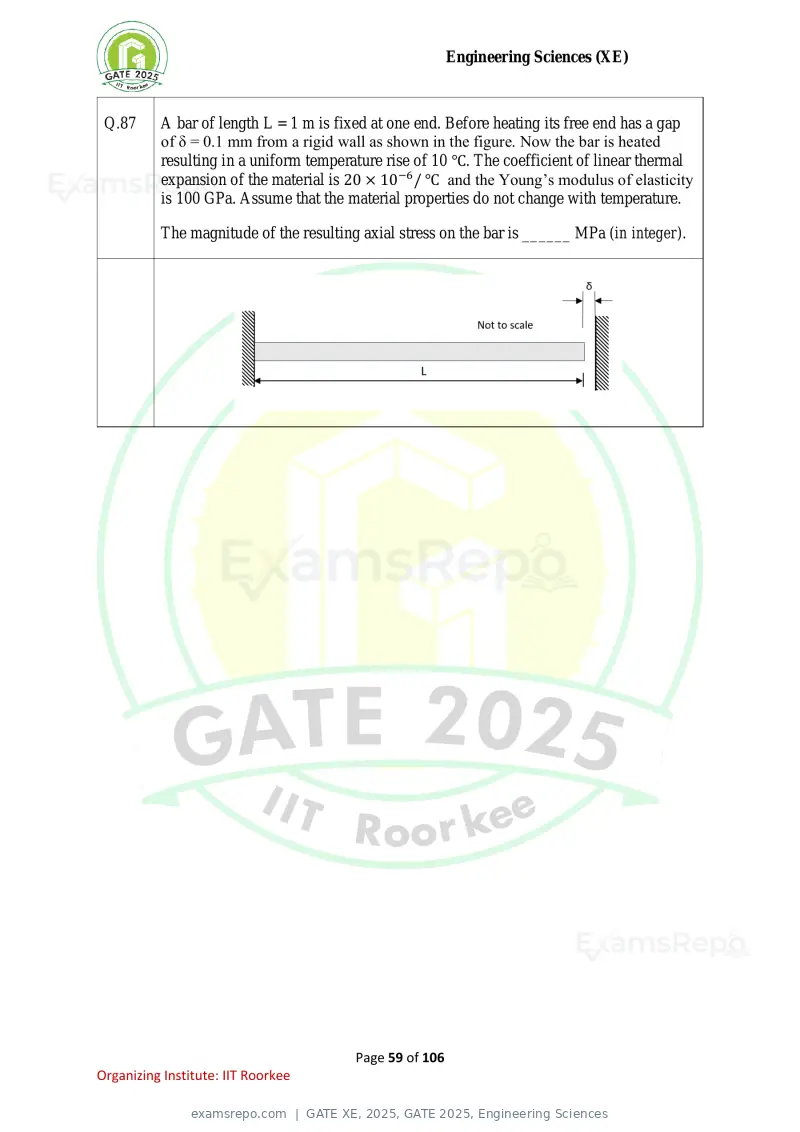

Q.87 A bar of length L = 1 m is fixed at one end. Before heating its free end has a gap
of δ = 0.1 mm from a rigid wall as shown in the figure. Now the bar is heated
resulting in a uniform temperature rise of 10 ℃. The coefficient of linear thermal
expansion of the material is 20 × 10−6 / ℃ and the Young’s modulus of elasticity
is 100 GPa. Assume that the material properties do not change with temperature.
The magnitude of the resulting axial stress on the bar is ______ MPa (in integer).
Page 59 of 106
Organizing Institute: IIT Roorkee
Text of page 60
Engineering Sciences (XE)
Thermodynamics (XE-E)
Q.88 – Q.96 Carry ONE mark Each

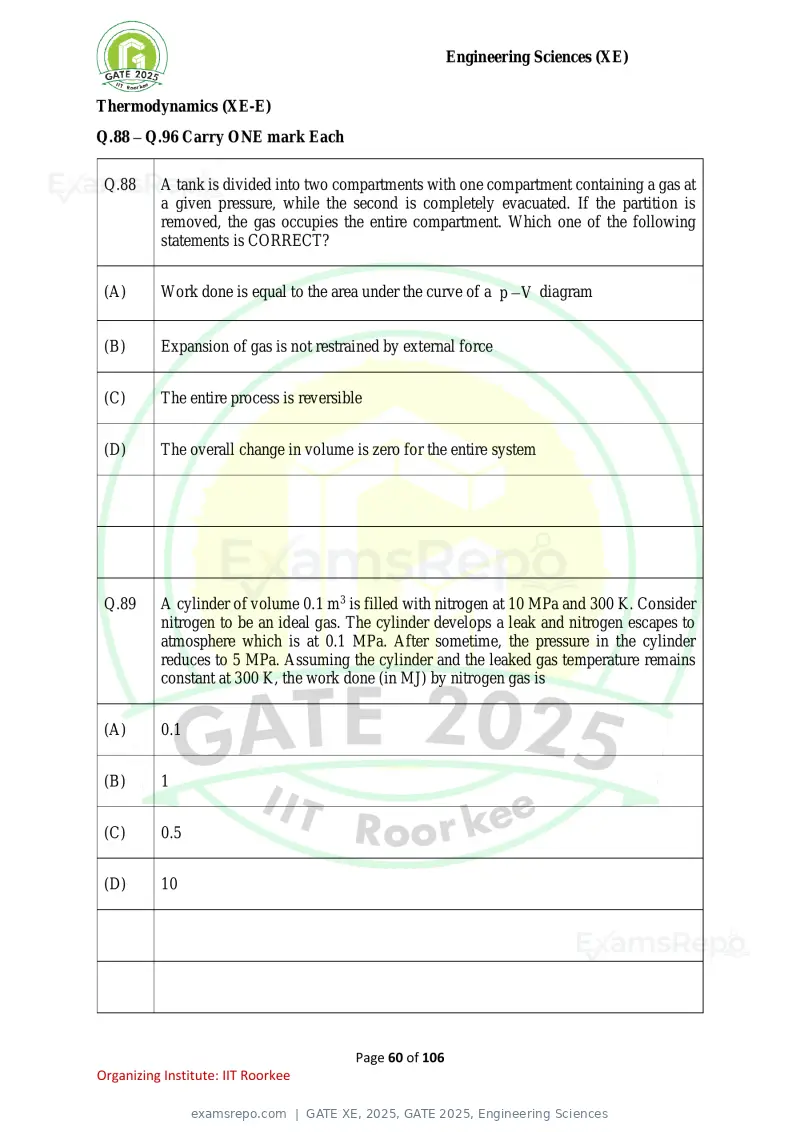

Q.88 A tank is divided into two compartments with one compartment containing a gas at
a given pressure, while the second is completely evacuated. If the partition is
removed, the gas occupies the entire compartment. Which one of the following
statements is CORRECT?
(A) Work done is equal to the area under the curve of a p − V diagram
(B) Expansion of gas is not restrained by external force
(C) The entire process is reversible
(D) The overall change in volume is zero for the entire system
Q.89 A cylinder of volume 0.1 m3 is filled with nitrogen at 10 MPa and 300 K. Consider
nitrogen to be an ideal gas. The cylinder develops a leak and nitrogen escapes to
atmosphere which is at 0.1 MPa. After sometime, the pressure in the cylinder
reduces to 5 MPa. Assuming the cylinder and the leaked gas temperature remains
constant at 300 K, the work done (in MJ) by nitrogen gas is
(A) 0.1
(B) 1
(C) 0.5
(D) 10
Page 60 of 106
Organizing Institute: IIT Roorkee
Text of page 61
Engineering Sciences (XE)

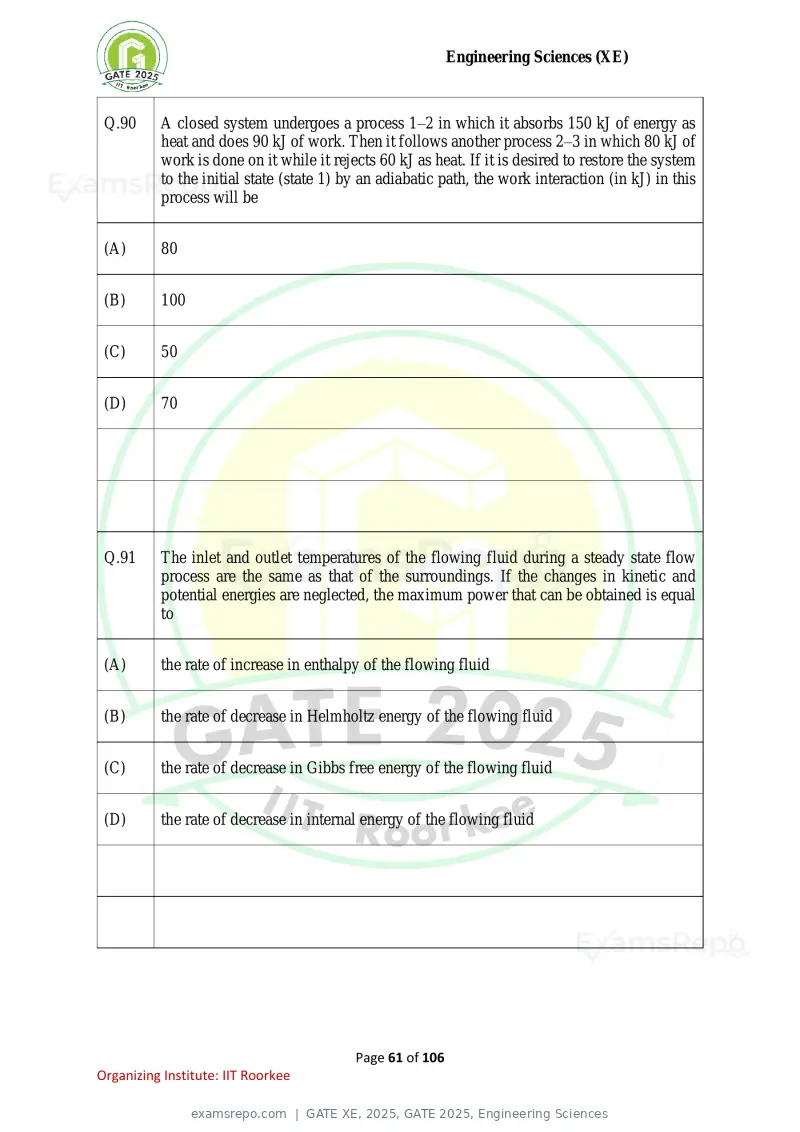

Q.90 A closed system undergoes a process 1–2 in which it absorbs 150 kJ of energy as
heat and does 90 kJ of work. Then it follows another process 2–3 in which 80 kJ of
work is done on it while it rejects 60 kJ as heat. If it is desired to restore the system
to the initial state (state 1) by an adiabatic path, the work interaction (in kJ) in this
process will be
(A) 80
(B) 100
(C) 50
(D) 70
Q.91 The inlet and outlet temperatures of the flowing fluid during a steady state flow
process are the same as that of the surroundings. If the changes in kinetic and
potential energies are neglected, the maximum power that can be obtained is equal
to
(A) the rate of increase in enthalpy of the flowing fluid
(B) the rate of decrease in Helmholtz energy of the flowing fluid
(C) the rate of decrease in Gibbs free energy of the flowing fluid
(D) the rate of decrease in internal energy of the flowing fluid
Page 61 of 106
Organizing Institute: IIT Roorkee
Text of page 62
Engineering Sciences (XE)

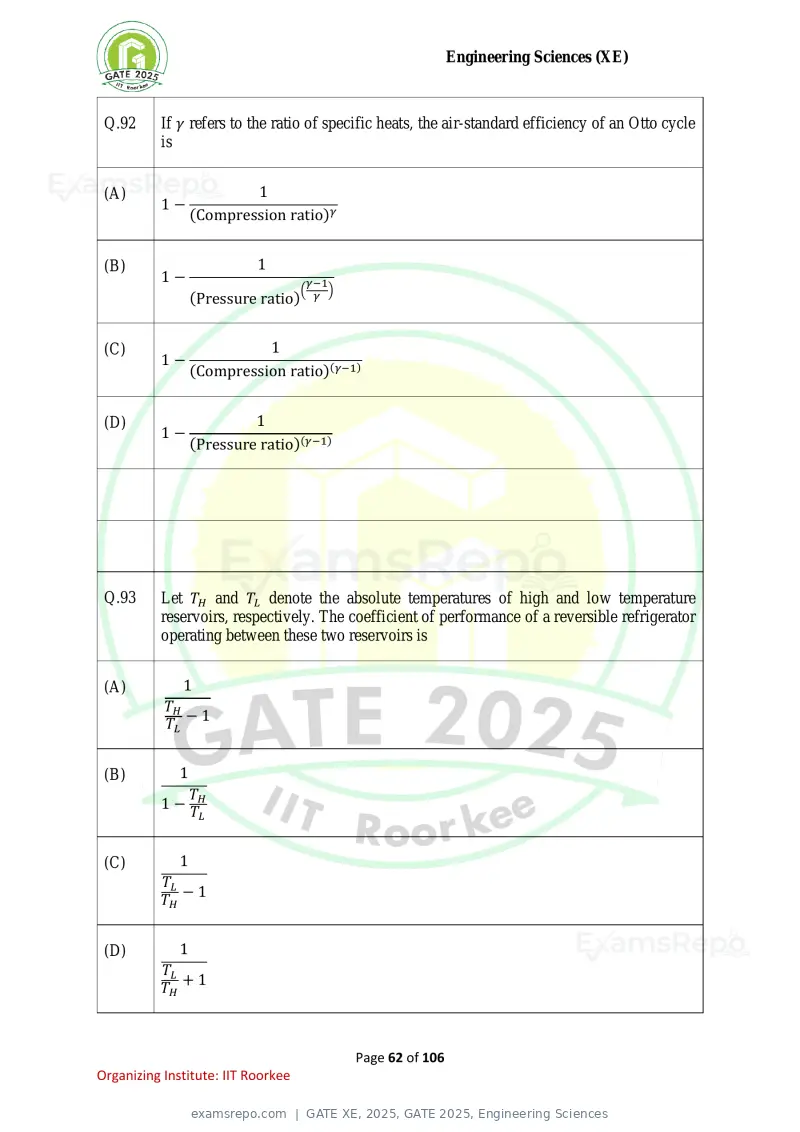

Q.92 If γ refers to the ratio of specific heats, the air-standard efficiency of an Otto cycle
is
(A) 1
1−
(Compression ratio)γ
(B) 1
1− γ−1
( )
(Pressure ratio) γ
(C) 1
1−
(Compression ratio)(γ−1)
(D) 1
1−
(Pressure ratio)(γ−1)
Q.93 Let TH and TL denote the absolute temperatures of high and low temperature
reservoirs, respectively. The coefficient of performance of a reversible refrigerator
operating between these two reservoirs is
(A) 1
TH
TL − 1
(B) 1
T
1 − TH
L
(C) 1
TL
TH − 1
(D) 1
TL
TH + 1
Page 62 of 106
Organizing Institute: IIT Roorkee
Text of page 63
Engineering Sciences (XE)

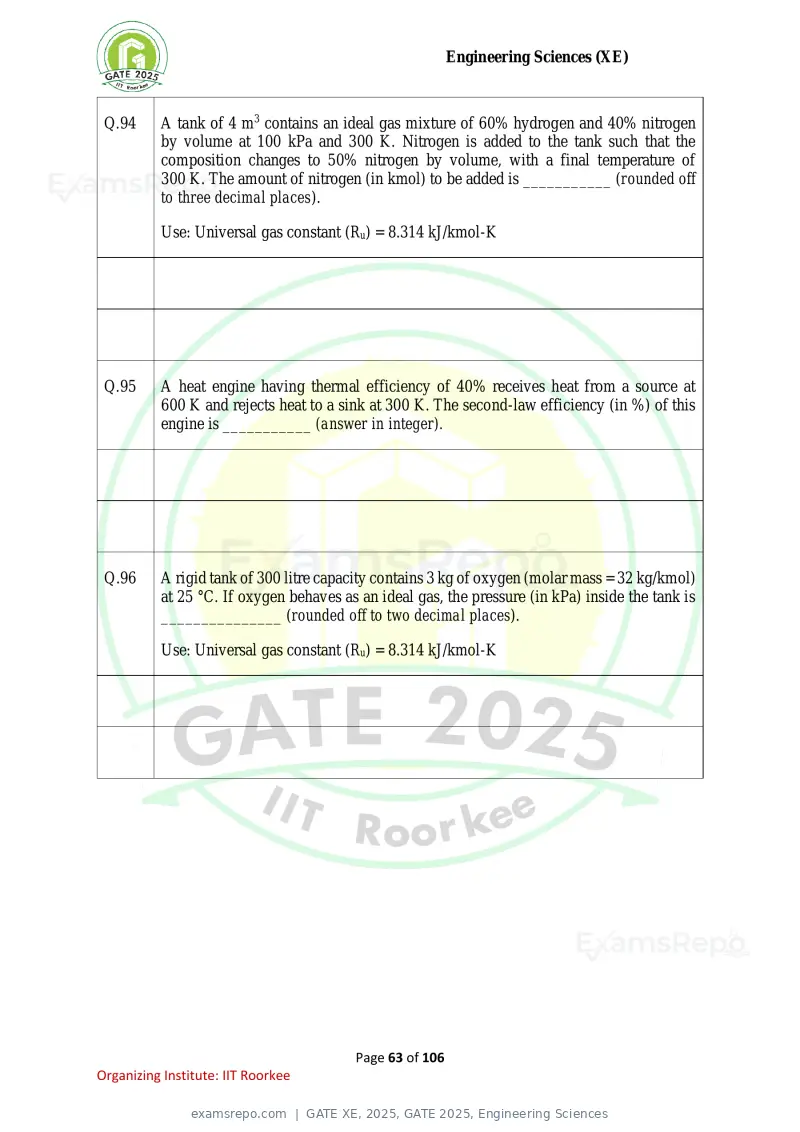

Q.94 A tank of 4 m3 contains an ideal gas mixture of 60% hydrogen and 40% nitrogen
by volume at 100 kPa and 300 K. Nitrogen is added to the tank such that the
composition changes to 50% nitrogen by volume, with a final temperature of
300 K. The amount of nitrogen (in kmol) to be added is ___________ (rounded off
to three decimal places).
Use: Universal gas constant (Ru) = 8.314 kJ/kmol-K
Q.95 A heat engine having thermal efficiency of 40% receives heat from a source at
600 K and rejects heat to a sink at 300 K. The second-law efficiency (in %) of this
engine is ___________ (answer in integer).
Q.96 A rigid tank of 300 litre capacity contains 3 kg of oxygen (molar mass = 32 kg/kmol)
at 25 °C. If oxygen behaves as an ideal gas, the pressure (in kPa) inside the tank is
_______________ (rounded off to two decimal places).
Use: Universal gas constant (Ru) = 8.314 kJ/kmol-K
Page 63 of 106
Organizing Institute: IIT Roorkee
Text of page 64
Engineering Sciences (XE)
Q.97 – Q.109 Carry TWO marks Each

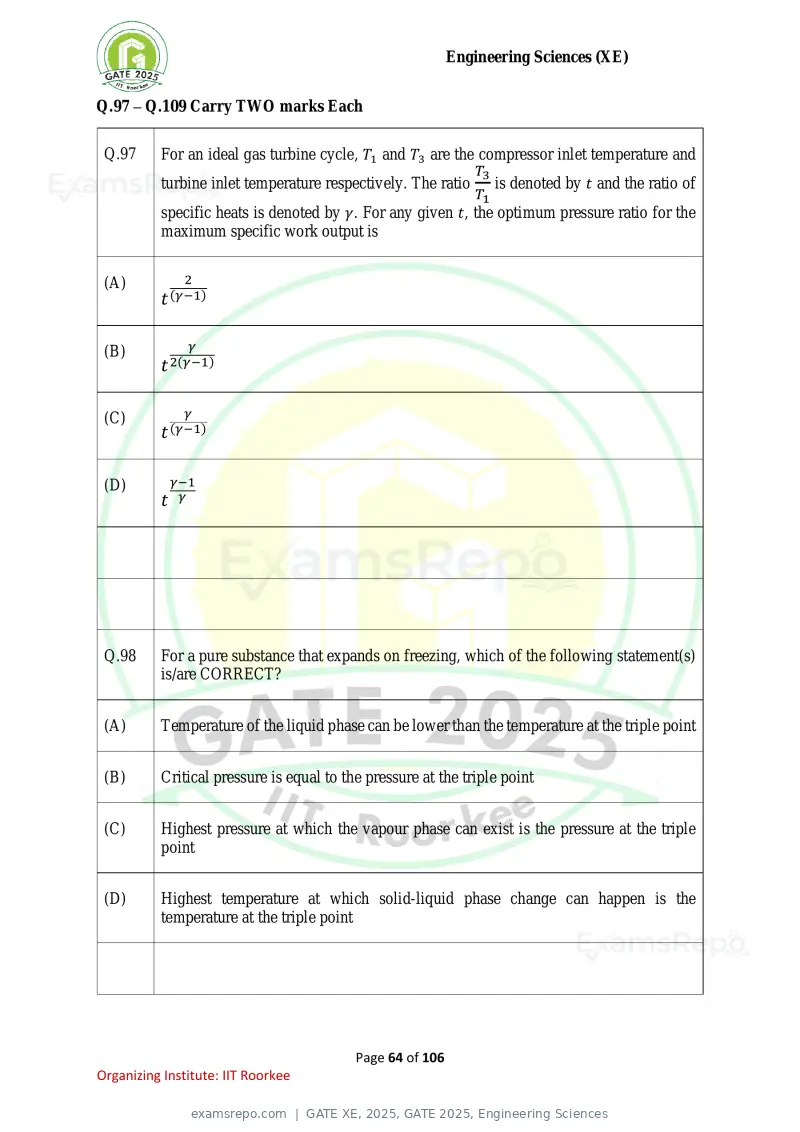

Q.97 For an ideal gas turbine cycle, T1 and T3 are the compressor inlet temperature and
T3
turbine inlet temperature respectively. The ratio is denoted by t and the ratio of
T1
specific heats is denoted by γ. For any given t, the optimum pressure ratio for the
maximum specific work output is
(A) 2
t (γ−1)
(B) γ
t 2(γ−1)
(C) γ
t (γ−1)
(D) γ−1
t γ
Q.98 For a pure substance that expands on freezing, which of the following statement(s)
is/are CORRECT?
(A) Temperature of the liquid phase can be lower than the temperature at the triple point
(B) Critical pressure is equal to the pressure at the triple point
(C) Highest pressure at which the vapour phase can exist is the pressure at the triple
point
(D) Highest temperature at which solid-liquid phase change can happen is the
temperature at the triple point
Page 64 of 106
Organizing Institute: IIT Roorkee
Text of page 65
Engineering Sciences (XE)

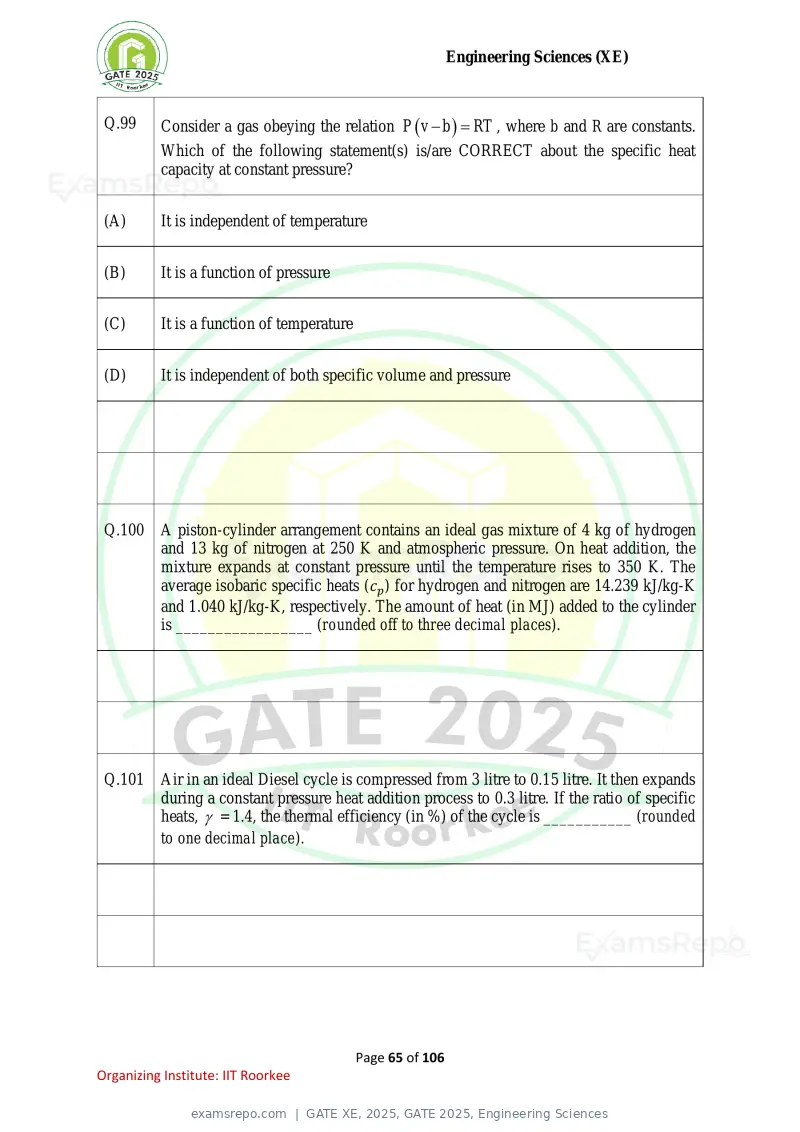

Q.99 Consider a gas obeying the relation P ( v − b ) = RT , where b and R are constants.
Which of the following statement(s) is/are CORRECT about the specific heat
capacity at constant pressure?
(A) It is independent of temperature
(B) It is a function of pressure
(C) It is a function of temperature
(D) It is independent of both specific volume and pressure
Q.100 A piston-cylinder arrangement contains an ideal gas mixture of 4 kg of hydrogen
and 13 kg of nitrogen at 250 K and atmospheric pressure. On heat addition, the
mixture expands at constant pressure until the temperature rises to 350 K. The
average isobaric specific heats (cp ) for hydrogen and nitrogen are 14.239 kJ/kg-K
and 1.040 kJ/kg-K, respectively. The amount of heat (in MJ) added to the cylinder
is _________________ (rounded off to three decimal places).
Q.101 Air in an ideal Diesel cycle is compressed from 3 litre to 0.15 litre. It then expands
during a constant pressure heat addition process to 0.3 litre. If the ratio of specific
heats, = 1.4, the thermal efficiency (in %) of the cycle is ___________ (rounded
to one decimal place).
Page 65 of 106
Organizing Institute: IIT Roorkee
Text of page 66
Engineering Sciences (XE)

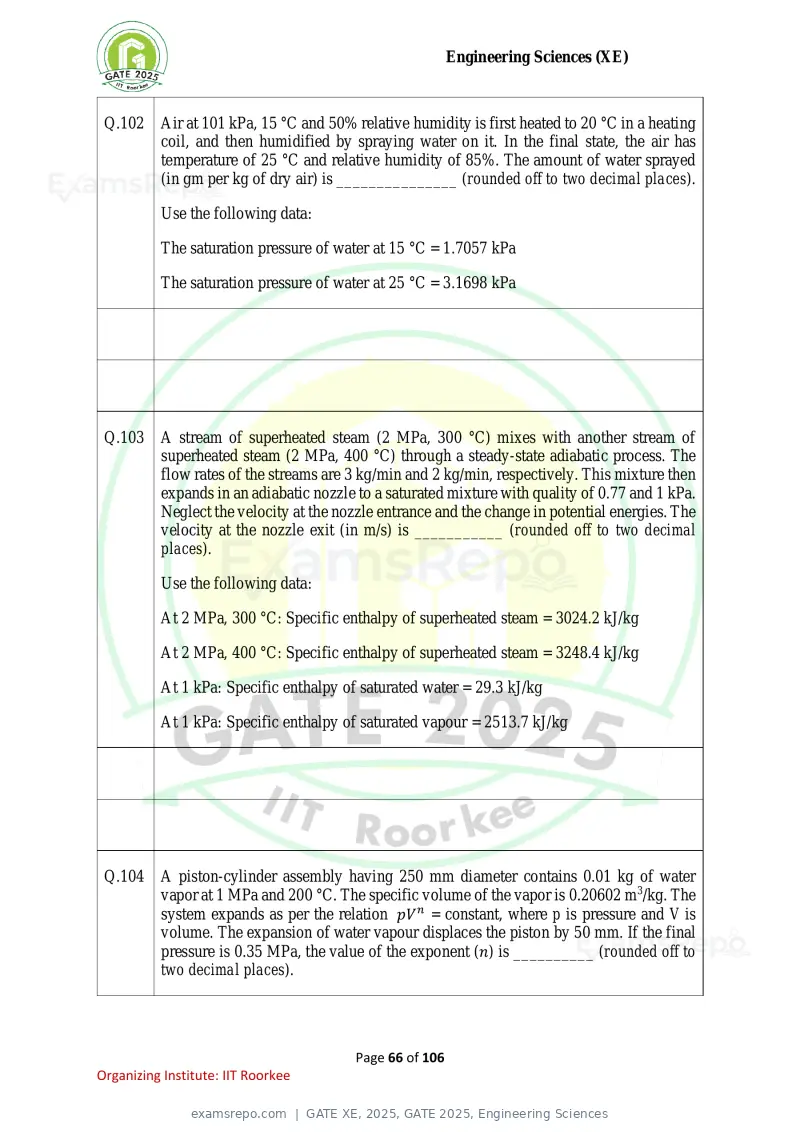

Q.102 Air at 101 kPa, 15 °C and 50% relative humidity is first heated to 20 °C in a heating
coil, and then humidified by spraying water on it. In the final state, the air has
temperature of 25 °C and relative humidity of 85%. The amount of water sprayed
(in gm per kg of dry air) is _______________ (rounded off to two decimal places).
Use the following data:
The saturation pressure of water at 15 °C = 1.7057 kPa
The saturation pressure of water at 25 °C = 3.1698 kPa
Q.103 A stream of superheated steam (2 MPa, 300 °C) mixes with another stream of
superheated steam (2 MPa, 400 °C) through a steady-state adiabatic process. The
flow rates of the streams are 3 kg/min and 2 kg/min, respectively. This mixture then
expands in an adiabatic nozzle to a saturated mixture with quality of 0.77 and 1 kPa.
Neglect the velocity at the nozzle entrance and the change in potential energies. The
velocity at the nozzle exit (in m/s) is ___________ (rounded off to two decimal
places).
Use the following data:
At 2 MPa, 300 °C: Specific enthalpy of superheated steam = 3024.2 kJ/kg
At 2 MPa, 400 °C: Specific enthalpy of superheated steam = 3248.4 kJ/kg
At 1 kPa: Specific enthalpy of saturated water = 29.3 kJ/kg
At 1 kPa: Specific enthalpy of saturated vapour = 2513.7 kJ/kg
Q.104 A piston-cylinder assembly having 250 mm diameter contains 0.01 kg of water
vapor at 1 MPa and 200 °C. The specific volume of the vapor is 0.20602 m3/kg. The
system expands as per the relation pV n = constant, where p is pressure and V is
volume. The expansion of water vapour displaces the piston by 50 mm. If the final
pressure is 0.35 MPa, the value of the exponent (n) is __________ (rounded off to
two decimal places).
Page 66 of 106
Organizing Institute: IIT Roorkee

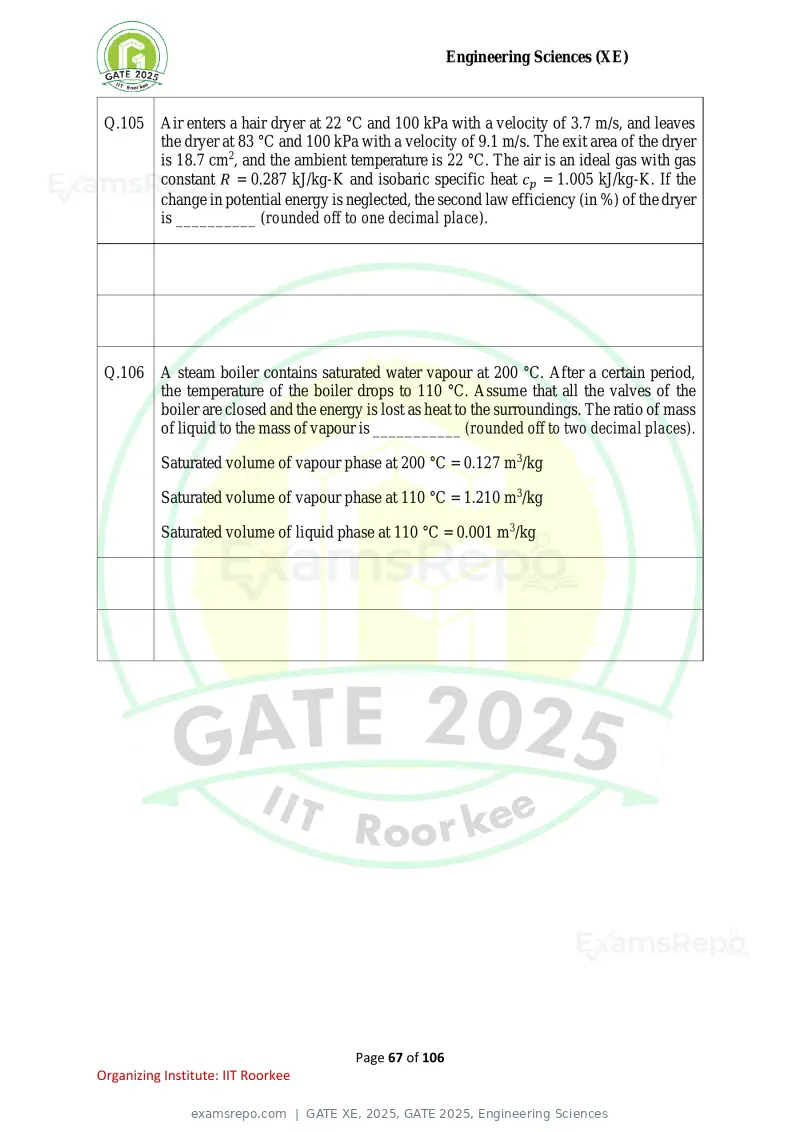

Text of page 67
Engineering Sciences (XE)
Q.105 Air enters a hair dryer at 22 °C and 100 kPa with a velocity of 3.7 m/s, and leaves
the dryer at 83 °C and 100 kPa with a velocity of 9.1 m/s. The exit area of the dryer
is 18.7 cm2, and the ambient temperature is 22 °C. The air is an ideal gas with gas
constant R = 0.287 kJ/kg-K and isobaric specific heat cp = 1.005 kJ/kg-K. If the
change in potential energy is neglected, the second law efficiency (in %) of the dryer
is __________ (rounded off to one decimal place).
Q.106 A steam boiler contains saturated water vapour at 200 °C. After a certain period,
the temperature of the boiler drops to 110 °C. Assume that all the valves of the
boiler are closed and the energy is lost as heat to the surroundings. The ratio of mass
of liquid to the mass of vapour is ___________ (rounded off to two decimal places).
Saturated volume of vapour phase at 200 °C = 0.127 m3/kg
Saturated volume of vapour phase at 110 °C = 1.210 m3/kg
Saturated volume of liquid phase at 110 °C = 0.001 m3/kg
Page 67 of 106
Organizing Institute: IIT Roorkee

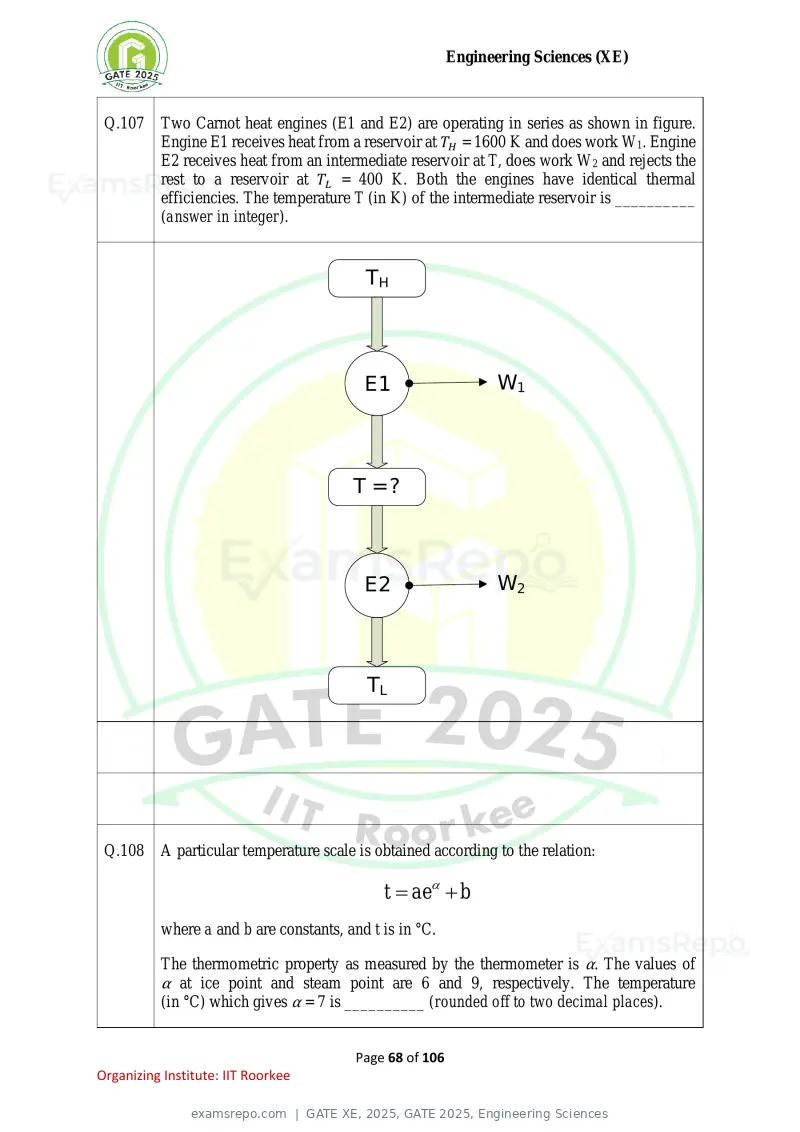

Text of page 68
Engineering Sciences (XE)
Q.107 Two Carnot heat engines (E1 and E2) are operating in series as shown in figure.
Engine E1 receives heat from a reservoir at TH = 1600 K and does work W1. Engine
E2 receives heat from an intermediate reservoir at T, does work W2 and rejects the
rest to a reservoir at TL = 400 K. Both the engines have identical thermal
efficiencies. The temperature T (in K) of the intermediate reservoir is __________
(answer in integer).
TH
E1 W1
T=?
E2 W2
TL
Q.108 A particular temperature scale is obtained according to the relation:
t = ae + b
where a and b are constants, and t is in °C.
The thermometric property as measured by the thermometer is α. The values of
α at ice point and steam point are 6 and 9, respectively. The temperature
(in °C) which gives α = 7 is __________ (rounded off to two decimal places).
Page 68 of 106
Organizing Institute: IIT Roorkee
Text of page 69
Engineering Sciences (XE)

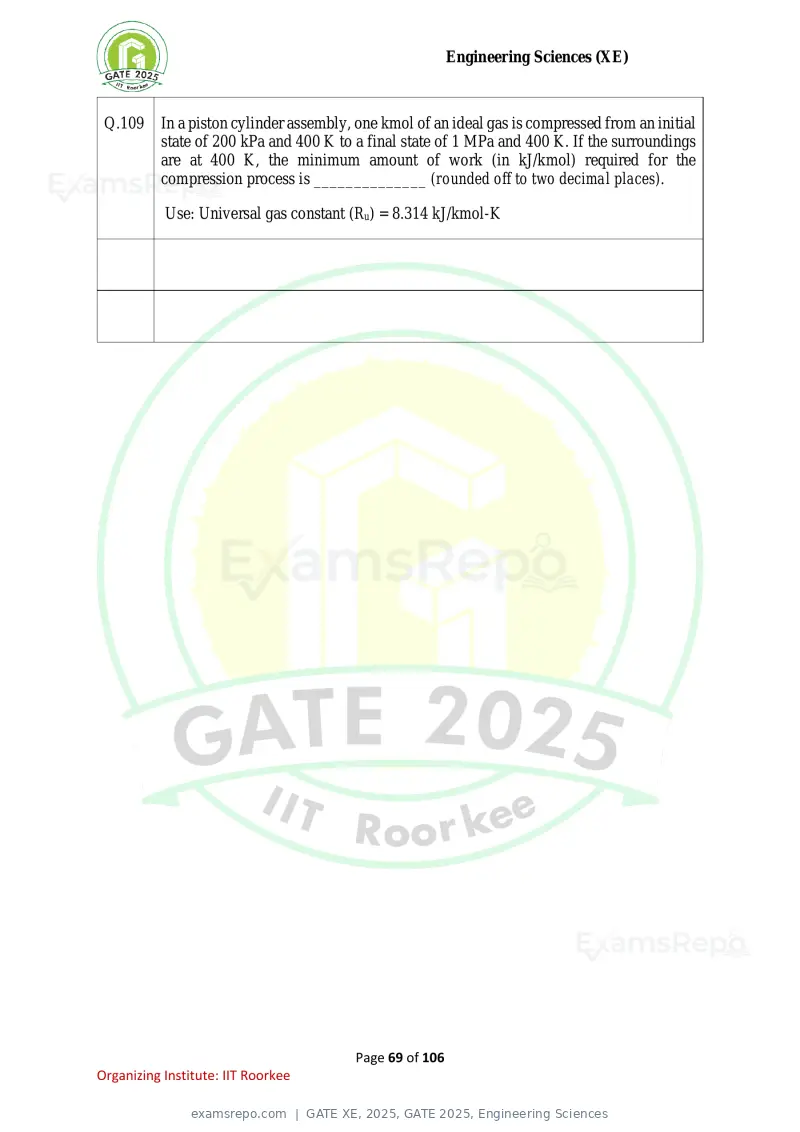

Q.109 In a piston cylinder assembly, one kmol of an ideal gas is compressed from an initial
state of 200 kPa and 400 K to a final state of 1 MPa and 400 K. If the surroundings
are at 400 K, the minimum amount of work (in kJ/kmol) required for the
compression process is ______________ (rounded off to two decimal places).
Use: Universal gas constant (Ru) = 8.314 kJ/kmol-K
Page 69 of 106
Organizing Institute: IIT Roorkee
Text of page 70
Engineering Sciences (XE)

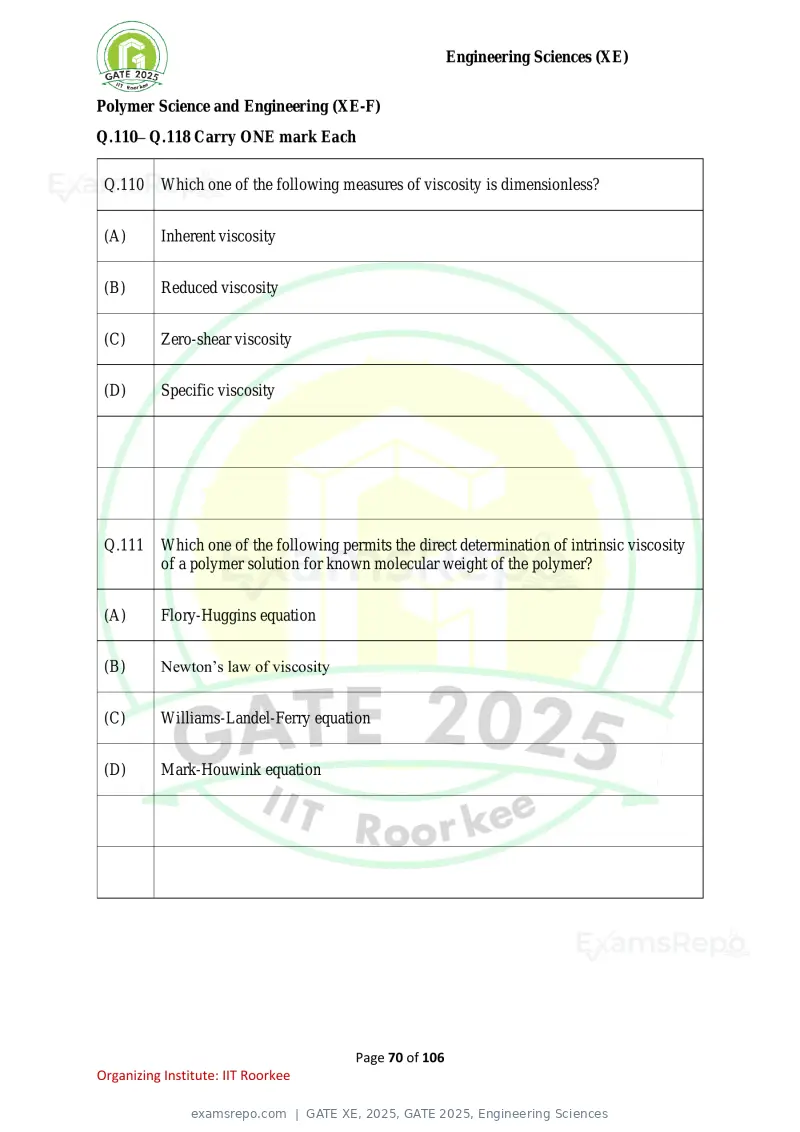

Polymer Science and Engineering (XE-F)
Q.110– Q.118 Carry ONE mark Each
Q.110 Which one of the following measures of viscosity is dimensionless?
(A) Inherent viscosity
(B) Reduced viscosity
(C) Zero-shear viscosity
(D) Specific viscosity
Q.111 Which one of the following permits the direct determination of intrinsic viscosity
of a polymer solution for known molecular weight of the polymer?
(A) Flory-Huggins equation
(B) Newton’s law of viscosity
(C) Williams-Landel-Ferry equation
(D) Mark-Houwink equation
Page 70 of 106
Organizing Institute: IIT Roorkee

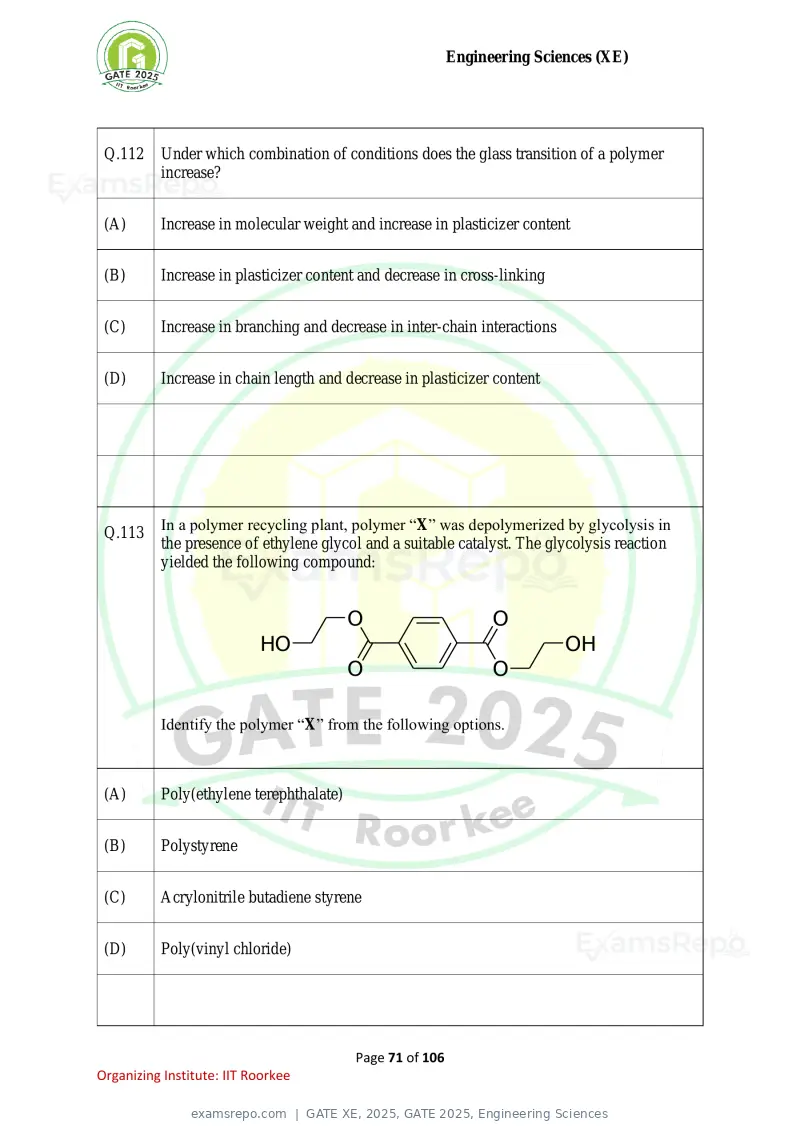

Text of page 71
Engineering Sciences (XE)
Q.112 Under which combination of conditions does the glass transition of a polymer
increase?
(A) Increase in molecular weight and increase in plasticizer content
(B) Increase in plasticizer content and decrease in cross-linking
(C) Increase in branching and decrease in inter-chain interactions
(D) Increase in chain length and decrease in plasticizer content
In a polymer recycling plant, polymer “X” was depolymerized by glycolysis in
Q.113
the presence of ethylene glycol and a suitable catalyst. The glycolysis reaction
yielded the following compound:
O O
HO OH
O O
Identify the polymer “X” from the following options.
(A) Poly(ethylene terephthalate)
(B) Polystyrene
(C) Acrylonitrile butadiene styrene
(D) Poly(vinyl chloride)
Page 71 of 106
Organizing Institute: IIT Roorkee
Text of page 72
Engineering Sciences (XE)

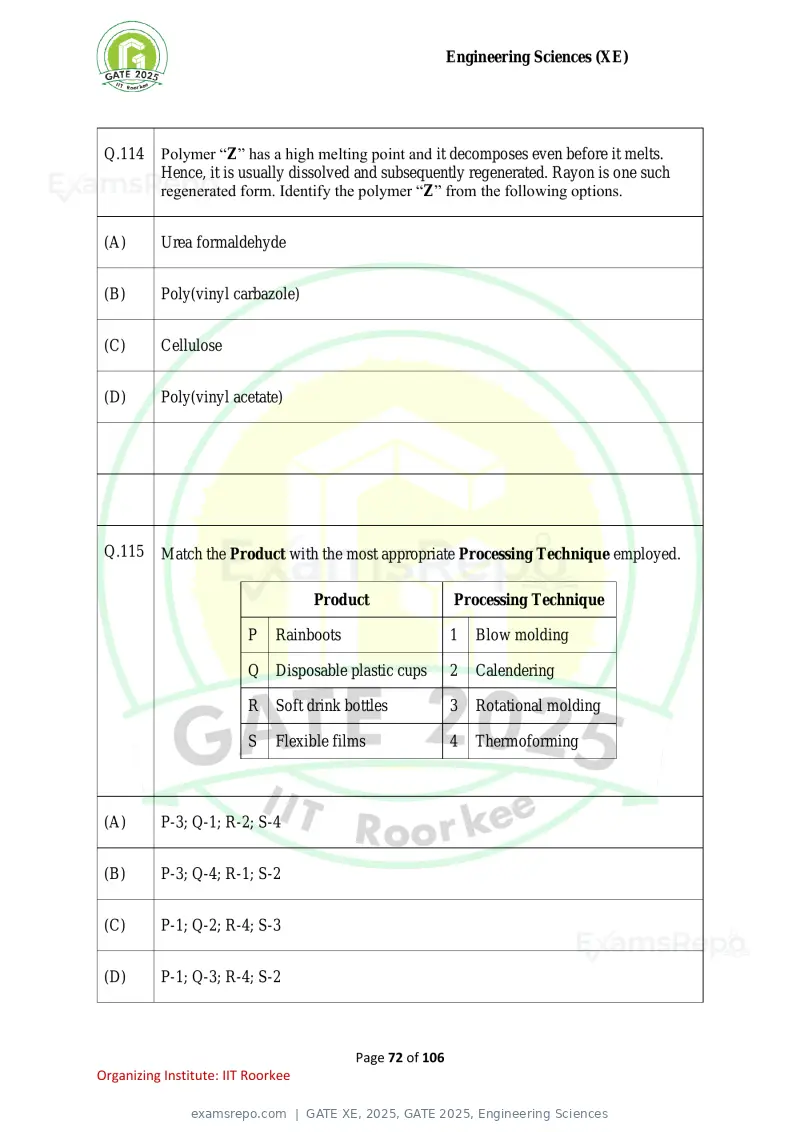

Q.114 Polymer “Z” has a high melting point and it decomposes even before it melts.
Hence, it is usually dissolved and subsequently regenerated. Rayon is one such
regenerated form. Identify the polymer “Z” from the following options.
(A) Urea formaldehyde
(B) Poly(vinyl carbazole)
(C) Cellulose
(D) Poly(vinyl acetate)
Q.115 Match the Product with the most appropriate Processing Technique employed.
Product Processing Technique
P Rainboots 1 Blow molding
Q Disposable plastic cups 2 Calendering
R Soft drink bottles 3 Rotational molding
S Flexible films 4 Thermoforming
(A) P-3; Q-1; R-2; S-4
(B) P-3; Q-4; R-1; S-2
(C) P-1; Q-2; R-4; S-3
(D) P-1; Q-3; R-4; S-2
Page 72 of 106
Organizing Institute: IIT Roorkee

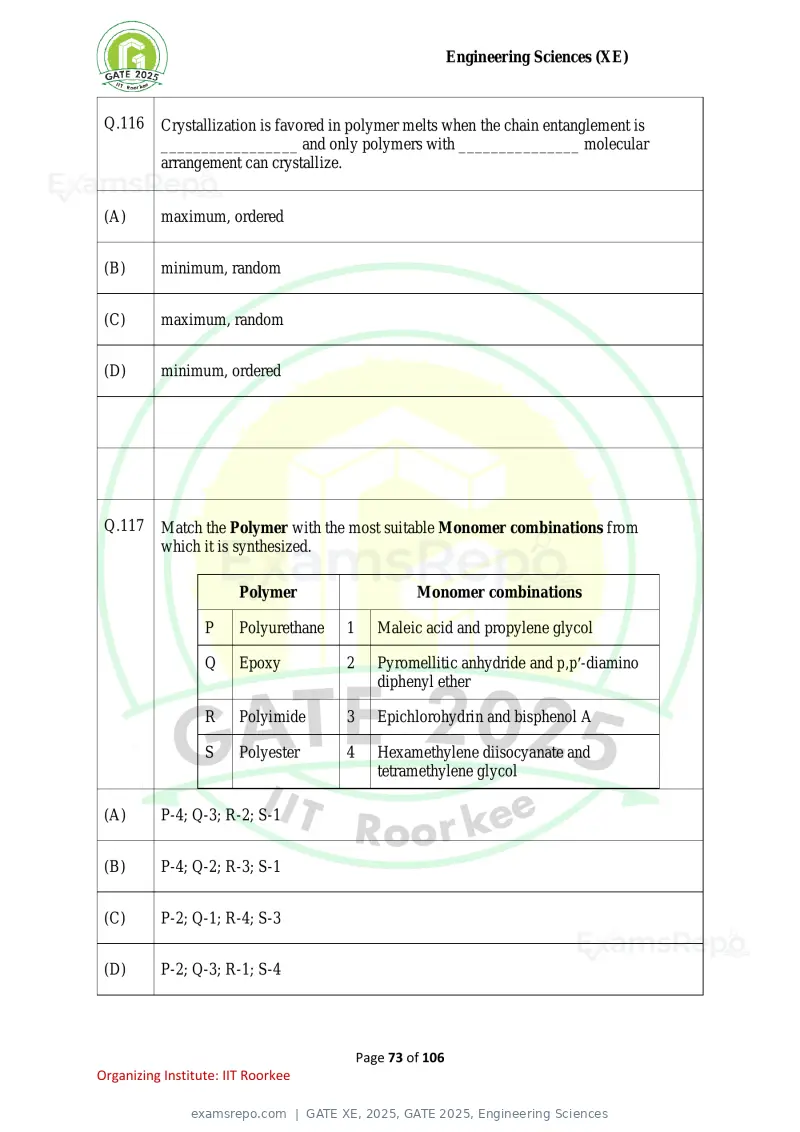

Text of page 73
Engineering Sciences (XE)
Q.116 Crystallization is favored in polymer melts when the chain entanglement is
_________________ and only polymers with _______________ molecular
arrangement can crystallize.
(A) maximum, ordered
(B) minimum, random
(C) maximum, random
(D) minimum, ordered
Q.117 Match the Polymer with the most suitable Monomer combinations from
which it is synthesized.
Polymer Monomer combinations
P Polyurethane 1 Maleic acid and propylene glycol
Q Epoxy 2 Pyromellitic anhydride and p,p′-diamino
diphenyl ether
R Polyimide 3 Epichlorohydrin and bisphenol A
S Polyester 4 Hexamethylene diisocyanate and
tetramethylene glycol
(A) P-4; Q-3; R-2; S-1
(B) P-4; Q-2; R-3; S-1
(C) P-2; Q-1; R-4; S-3
(D) P-2; Q-3; R-1; S-4
Page 73 of 106
Organizing Institute: IIT Roorkee
Text of page 74
Engineering Sciences (XE)
Q.118 Thermoplastic Polyurethane and Polyamide 6 both contain amide linkages,
but when compared to Polyurethane, Polyamide 6 shows higher melting point
due to _______________.
(A) Higher molecular rigidity
(B) Higher degree of branching
(C) Lower molecular rigidity
(D) Lower degree of crosslinking
Page 74 of 106
Organizing Institute: IIT Roorkee
Text of page 75
Engineering Sciences (XE)

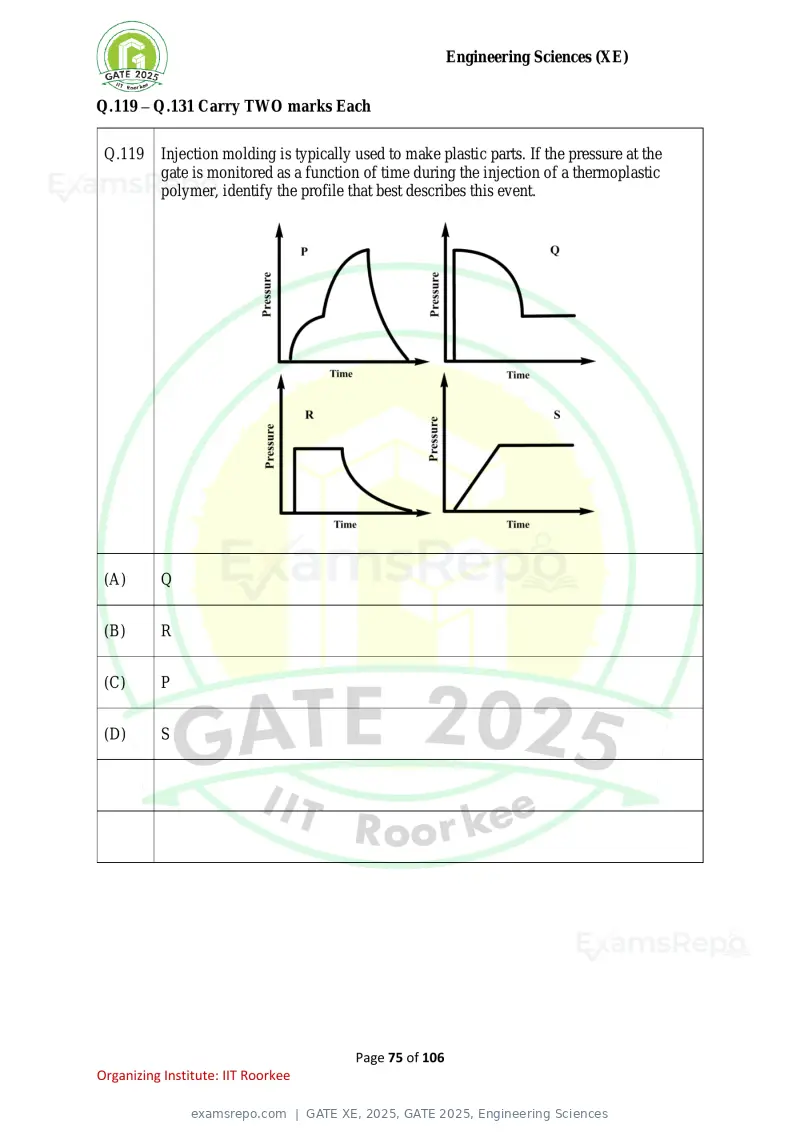

Q.119 – Q.131 Carry TWO marks Each
Q.119 Injection molding is typically used to make plastic parts. If the pressure at the
gate is monitored as a function of time during the injection of a thermoplastic
polymer, identify the profile that best describes this event.
(A) Q
(B) R
(C) P
(D) S
Page 75 of 106
Organizing Institute: IIT Roorkee

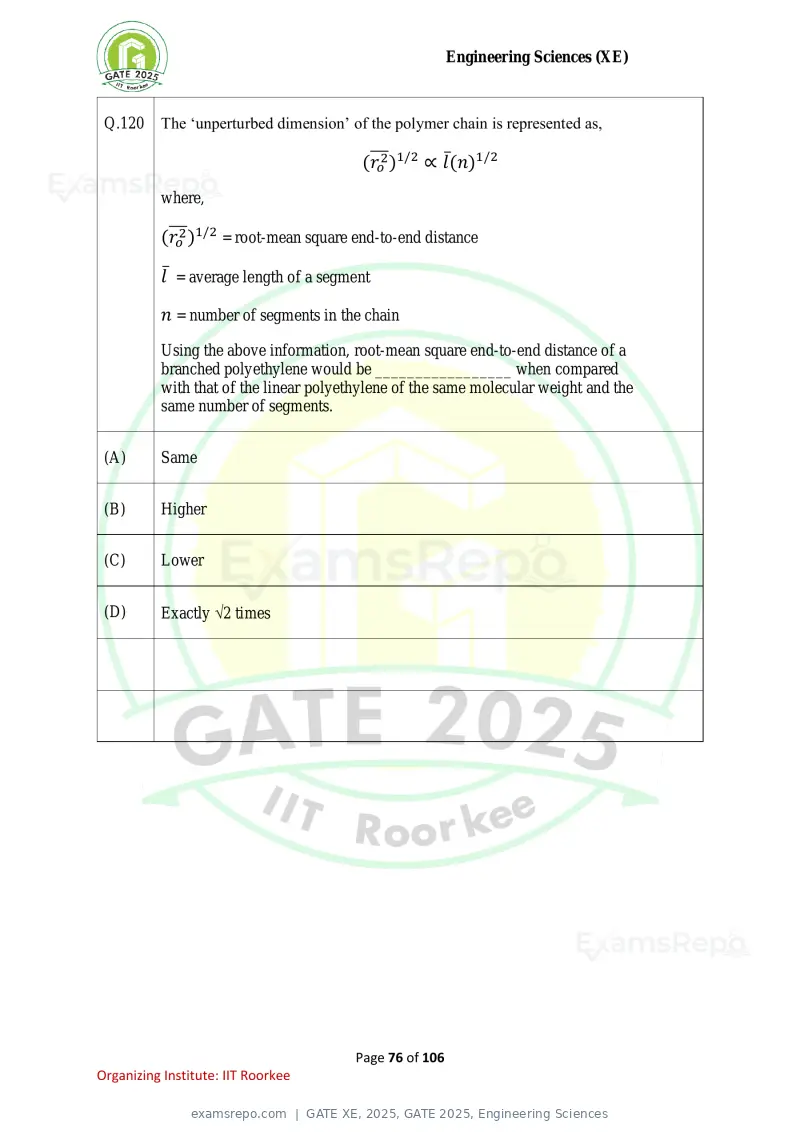

Text of page 76
Engineering Sciences (XE)
Q.120 The ‘unperturbed dimension’ of the polymer chain is represented as,
(r̅̅̅ ̅ 1/2
2 1/2 ∝ l (n)
o)
where,
(r̅̅̅
2 1/2 = root-mean square end-to-end distance
o)
l ̅ = average length of a segment
n = number of segments in the chain
Using the above information, root-mean square end-to-end distance of a
branched polyethylene would be _________________ when compared
with that of the linear polyethylene of the same molecular weight and the
same number of segments.
(A) Same
(B) Higher
(C) Lower
(D) Exactly 2 times
Page 76 of 106

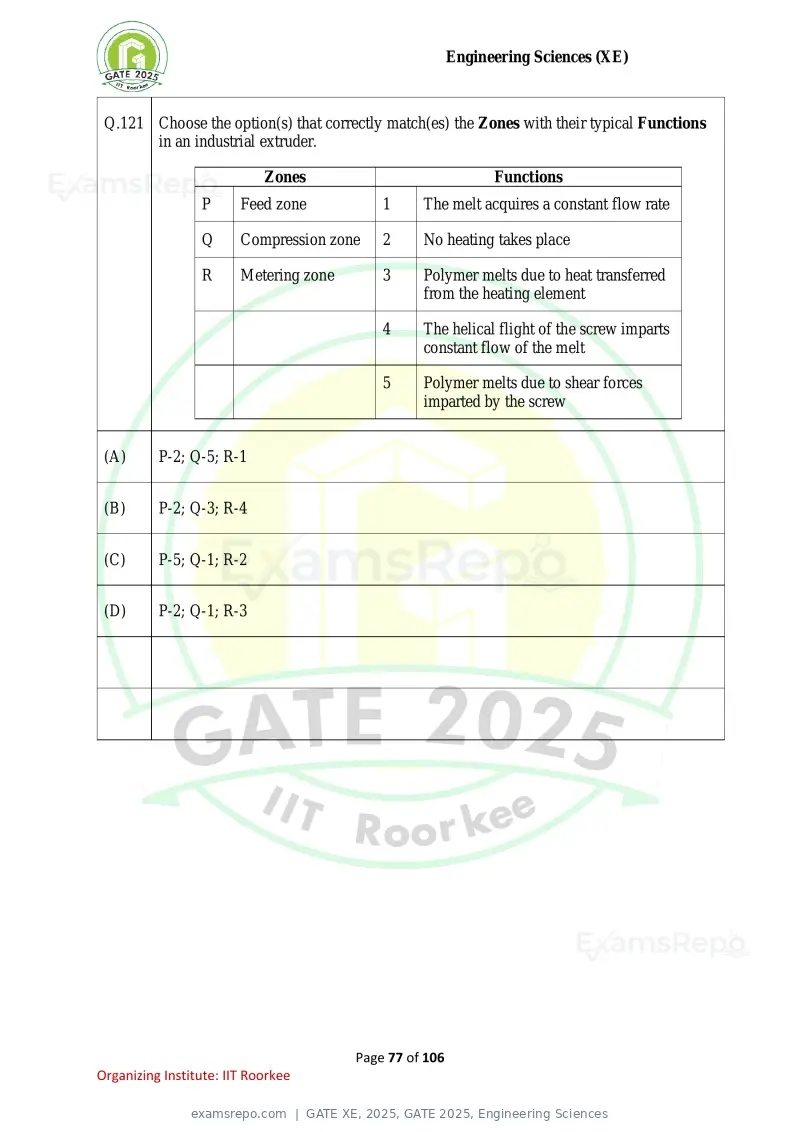

Organizing Institute: IIT Roorkee
Text of page 77
Engineering Sciences (XE)
Q.121 Choose the option(s) that correctly match(es) the Zones with their typical Functions
in an industrial extruder.
Zones Functions
P Feed zone 1 The melt acquires a constant flow rate
Q Compression zone 2 No heating takes place
R Metering zone 3 Polymer melts due to heat transferred
from the heating element
4 The helical flight of the screw imparts
constant flow of the melt
5 Polymer melts due to shear forces
imparted by the screw
(A) P-2; Q-5; R-1
(B) P-2; Q-3; R-4
(C) P-5; Q-1; R-2
(D) P-2; Q-1; R-3
Page 77 of 106
Organizing Institute: IIT Roorkee

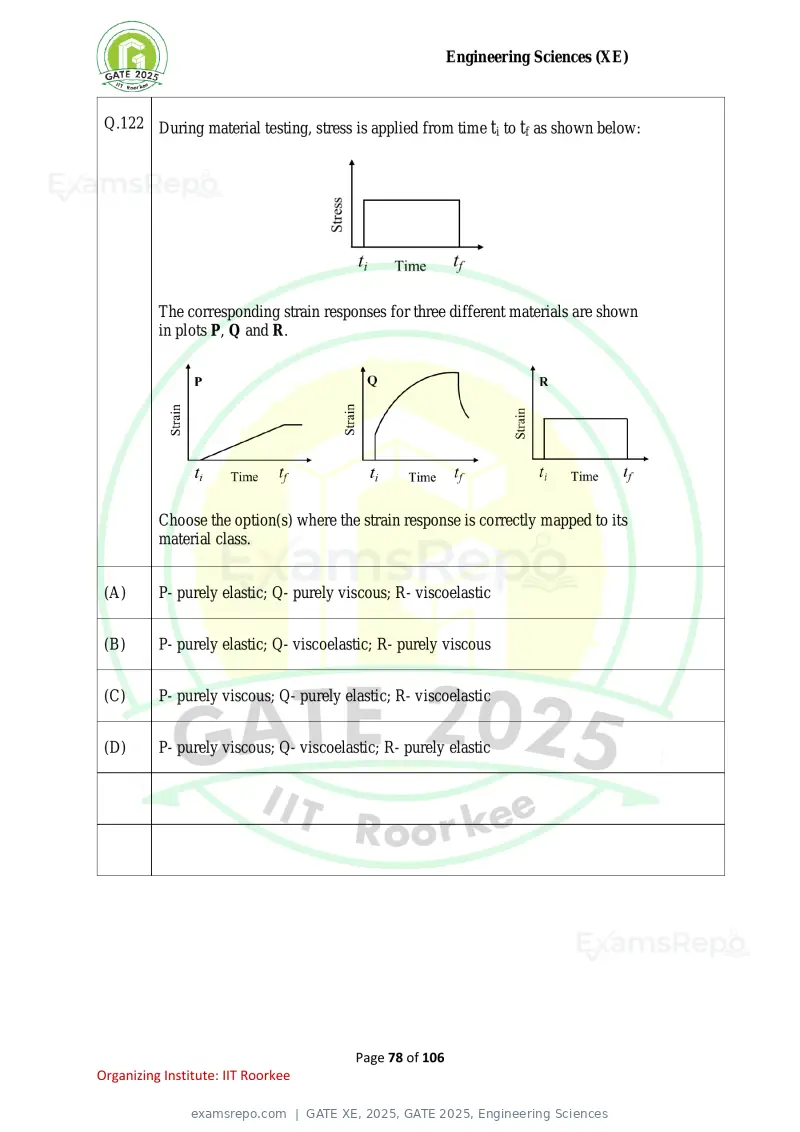

Text of page 78
Engineering Sciences (XE)
Q.122 During material testing, stress is applied from time ti to tf as shown below:
The corresponding strain responses for three different materials are shown
in plots P, Q and R.
Choose the option(s) where the strain response is correctly mapped to its
material class.
(A) P- purely elastic; Q- purely viscous; R- viscoelastic
(B) P- purely elastic; Q- viscoelastic; R- purely viscous
(C) P- purely viscous; Q- purely elastic; R- viscoelastic
(D) P- purely viscous; Q- viscoelastic; R- purely elastic
Page 78 of 106
Organizing Institute: IIT Roorkee

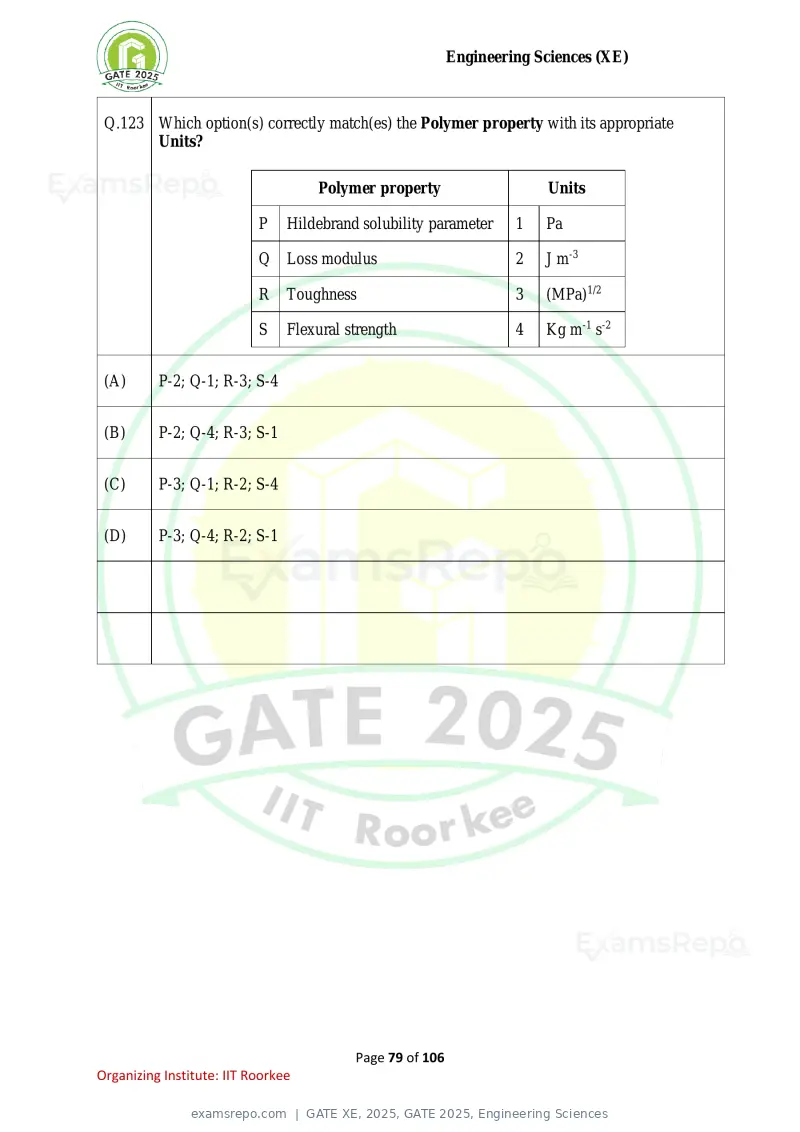

Text of page 79
Engineering Sciences (XE)
Q.123 Which option(s) correctly match(es) the Polymer property with its appropriate
Units?
Polymer property Units
P Hildebrand solubility parameter 1 Pa
Q Loss modulus 2 J m-3
R Toughness 3 (MPa)1/2
S Flexural strength 4 Kg m-1 s-2
(A) P-2; Q-1; R-3; S-4
(B) P-2; Q-4; R-3; S-1
(C) P-3; Q-1; R-2; S-4
(D) P-3; Q-4; R-2; S-1
Page 79 of 106

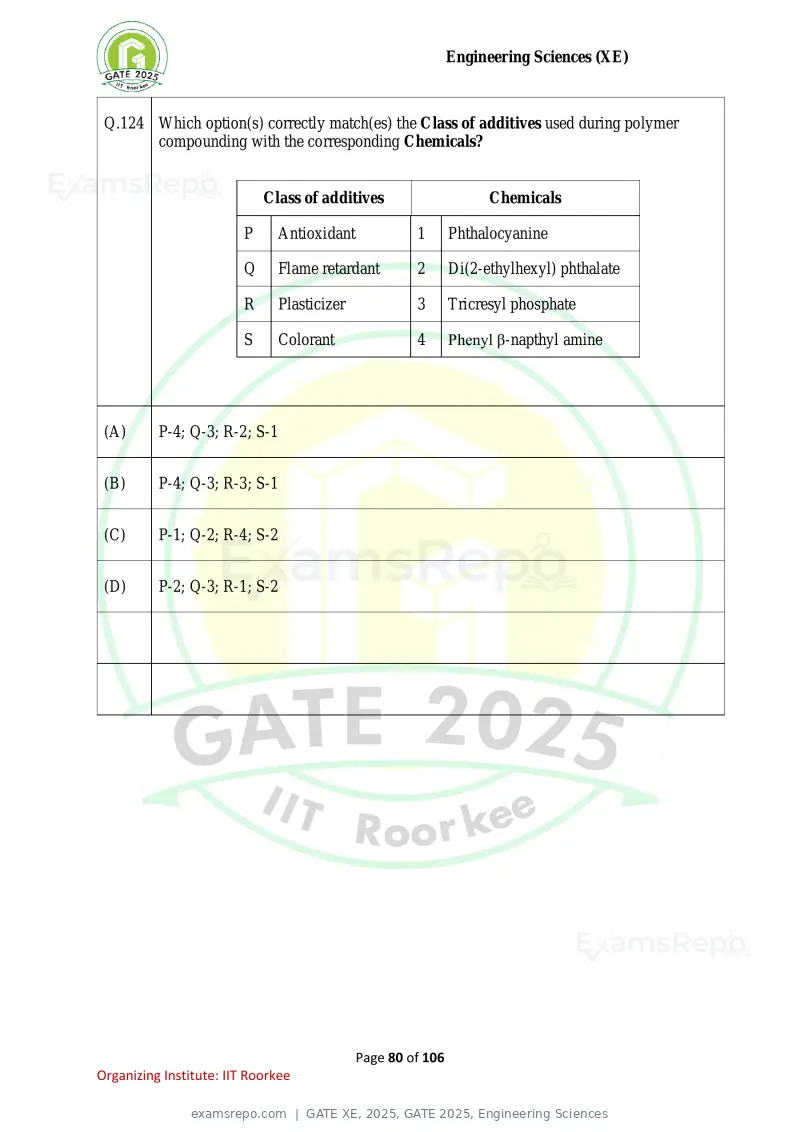

Organizing Institute: IIT Roorkee
Text of page 80
Engineering Sciences (XE)
Q.124 Which option(s) correctly match(es) the Class of additives used during polymer
compounding with the corresponding Chemicals?
Class of additives Chemicals
P Antioxidant 1 Phthalocyanine
Q Flame retardant 2 Di(2-ethylhexyl) phthalate
R Plasticizer 3 Tricresyl phosphate
S Colorant 4 Phenyl β-napthyl amine
(A) P-4; Q-3; R-2; S-1
(B) P-4; Q-3; R-3; S-1
(C) P-1; Q-2; R-4; S-2
(D) P-2; Q-3; R-1; S-2
Page 80 of 106
Organizing Institute: IIT Roorkee

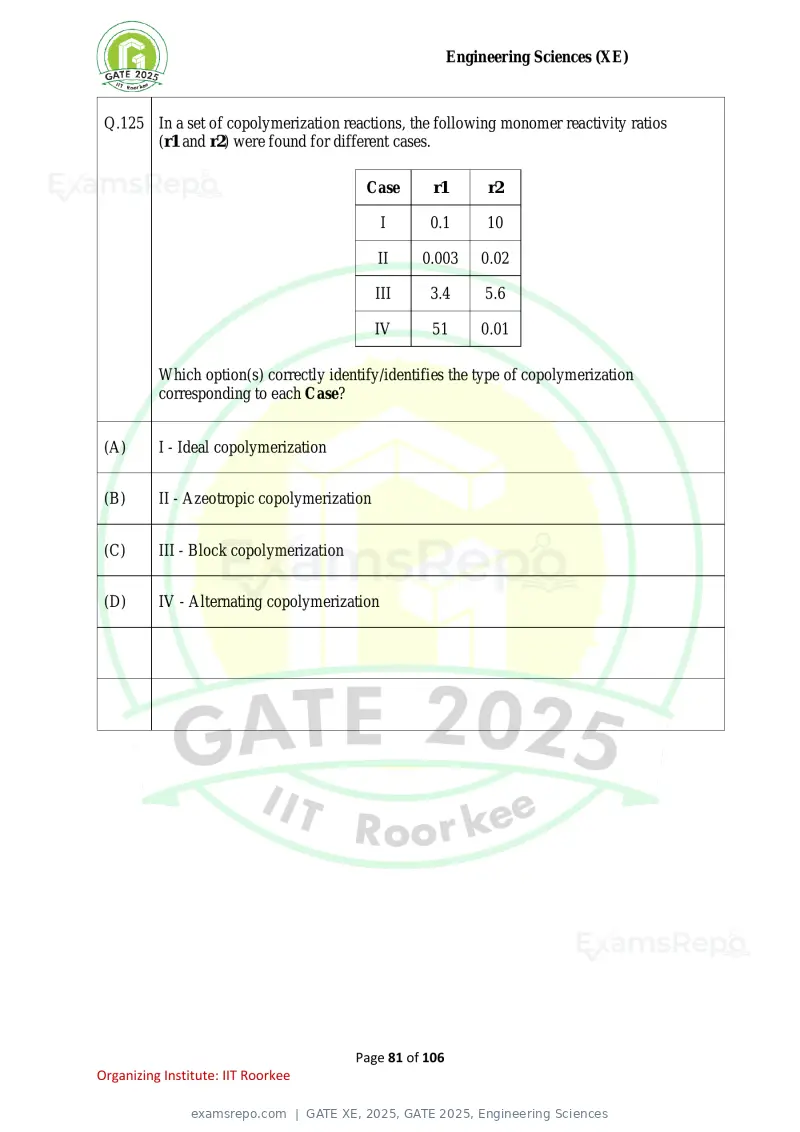

Text of page 81
Engineering Sciences (XE)
Q.125 In a set of copolymerization reactions, the following monomer reactivity ratios
(r1 and r2) were found for different cases.
Case r1 r2
I 0.1 10
II 0.003 0.02
III 3.4 5.6
IV 51 0.01
Which option(s) correctly identify/identifies the type of copolymerization
corresponding to each Case?
(A) I - Ideal copolymerization
(B) II - Azeotropic copolymerization
(C) III - Block copolymerization
(D) IV - Alternating copolymerization
Page 81 of 106
Organizing Institute: IIT Roorkee

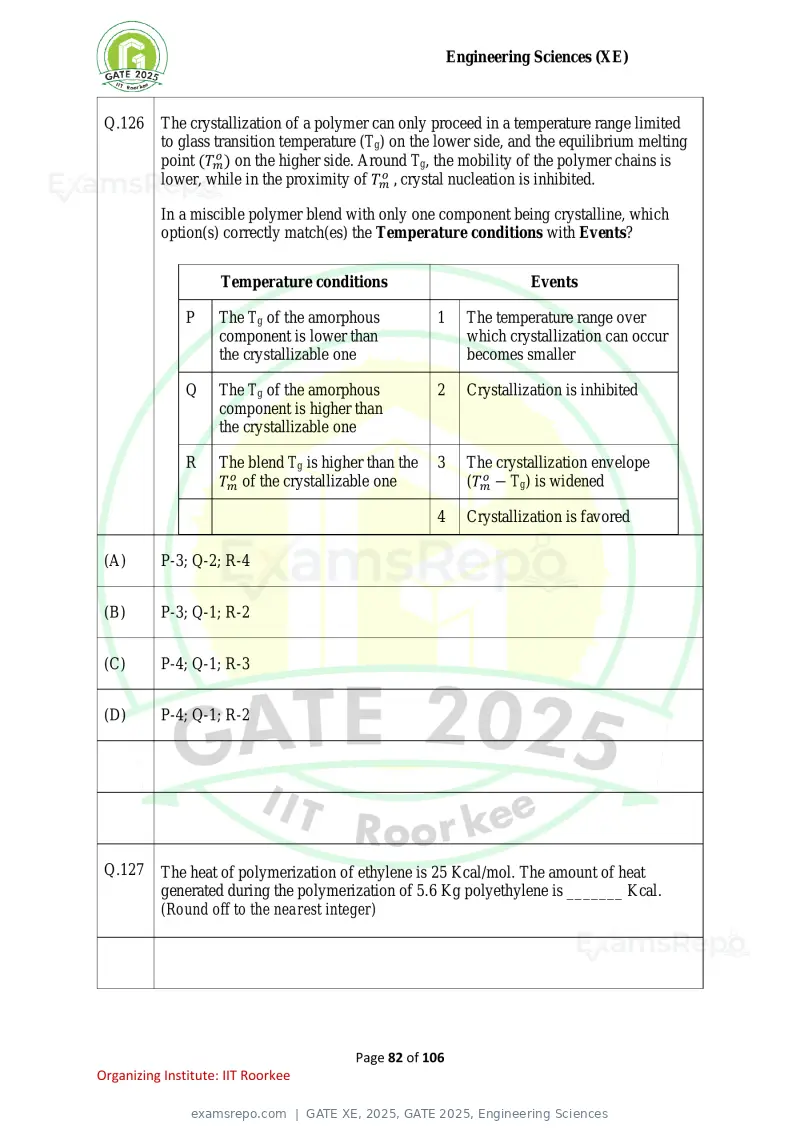

Text of page 82
Engineering Sciences (XE)
Q.126 The crystallization of a polymer can only proceed in a temperature range limited
to glass transition temperature (Tg) on the lower side, and the equilibrium melting
point (Tmo ) on the higher side. Around Tg, the mobility of the polymer chains is
lower, while in the proximity of Tmo , crystal nucleation is inhibited.
In a miscible polymer blend with only one component being crystalline, which
option(s) correctly match(es) the Temperature conditions with Events?
Temperature conditions Events
P The Tg of the amorphous 1 The temperature range over
component is lower than which crystallization can occur
the crystallizable one becomes smaller
Q The Tg of the amorphous 2 Crystallization is inhibited
component is higher than
the crystallizable one
R The blend Tg is higher than the 3 The crystallization envelope
Tmo of the crystallizable one (Tmo − Tg) is widened
4 Crystallization is favored
(A) P-3; Q-2; R-4
(B) P-3; Q-1; R-2
(C) P-4; Q-1; R-3
(D) P-4; Q-1; R-2
Q.127 The heat of polymerization of ethylene is 25 Kcal/mol. The amount of heat
generated during the polymerization of 5.6 Kg polyethylene is _______ Kcal.
(Round off to the nearest integer)
Page 82 of 106
Organizing Institute: IIT Roorkee

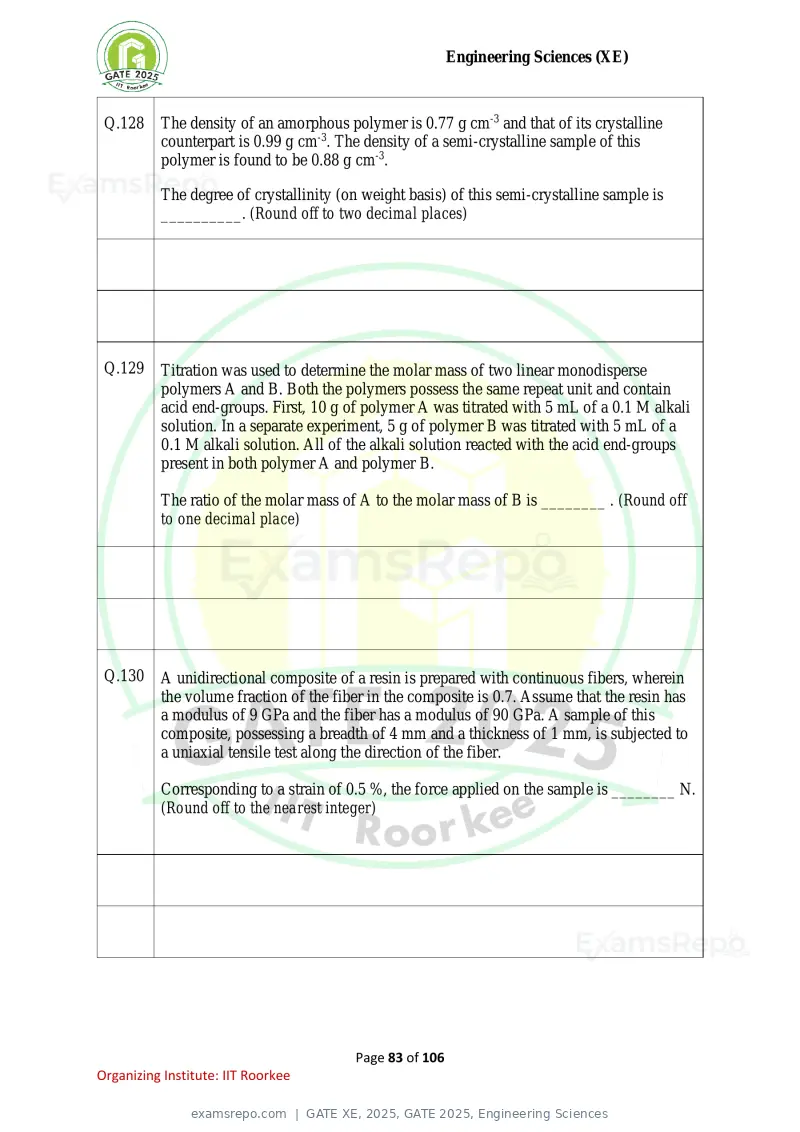

Text of page 83
Engineering Sciences (XE)
Q.128 The density of an amorphous polymer is 0.77 g cm-3 and that of its crystalline
counterpart is 0.99 g cm-3. The density of a semi-crystalline sample of this
polymer is found to be 0.88 g cm-3.
The degree of crystallinity (on weight basis) of this semi-crystalline sample is
__________. (Round off to two decimal places)
Q.129 Titration was used to determine the molar mass of two linear monodisperse
polymers A and B. Both the polymers possess the same repeat unit and contain
acid end-groups. First, 10 g of polymer A was titrated with 5 mL of a 0.1 M alkali
solution. In a separate experiment, 5 g of polymer B was titrated with 5 mL of a
0.1 M alkali solution. All of the alkali solution reacted with the acid end-groups
present in both polymer A and polymer B.
The ratio of the molar mass of A to the molar mass of B is ________ . (Round off
to one decimal place)
Q.130 A unidirectional composite of a resin is prepared with continuous fibers, wherein
the volume fraction of the fiber in the composite is 0.7. Assume that the resin has
a modulus of 9 GPa and the fiber has a modulus of 90 GPa. A sample of this
composite, possessing a breadth of 4 mm and a thickness of 1 mm, is subjected to
a uniaxial tensile test along the direction of the fiber.
Corresponding to a strain of 0.5 %, the force applied on the sample is ________ N.
(Round off to the nearest integer)
Page 83 of 106
Organizing Institute: IIT Roorkee
Text of page 84
Engineering Sciences (XE)

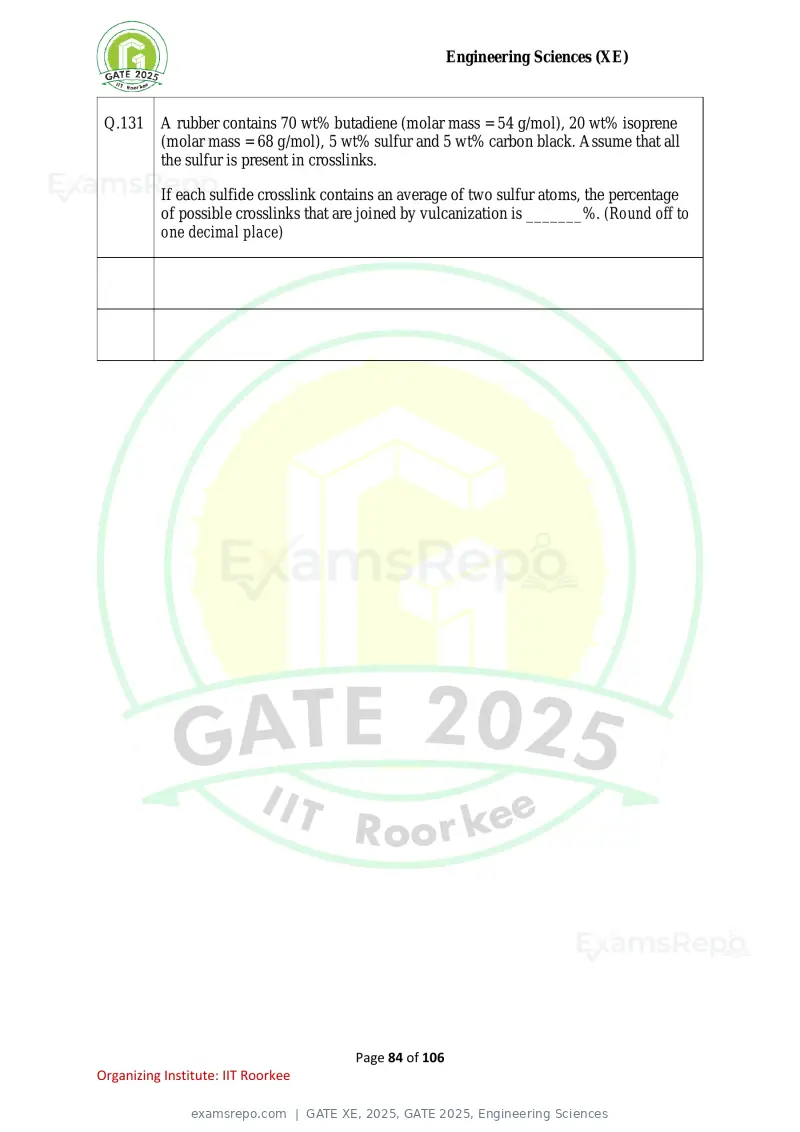

Q.131 A rubber contains 70 wt% butadiene (molar mass = 54 g/mol), 20 wt% isoprene
(molar mass = 68 g/mol), 5 wt% sulfur and 5 wt% carbon black. Assume that all
the sulfur is present in crosslinks.
If each sulfide crosslink contains an average of two sulfur atoms, the percentage
of possible crosslinks that are joined by vulcanization is _______%. (Round off to
one decimal place)
Page 84 of 106
Organizing Institute: IIT Roorkee

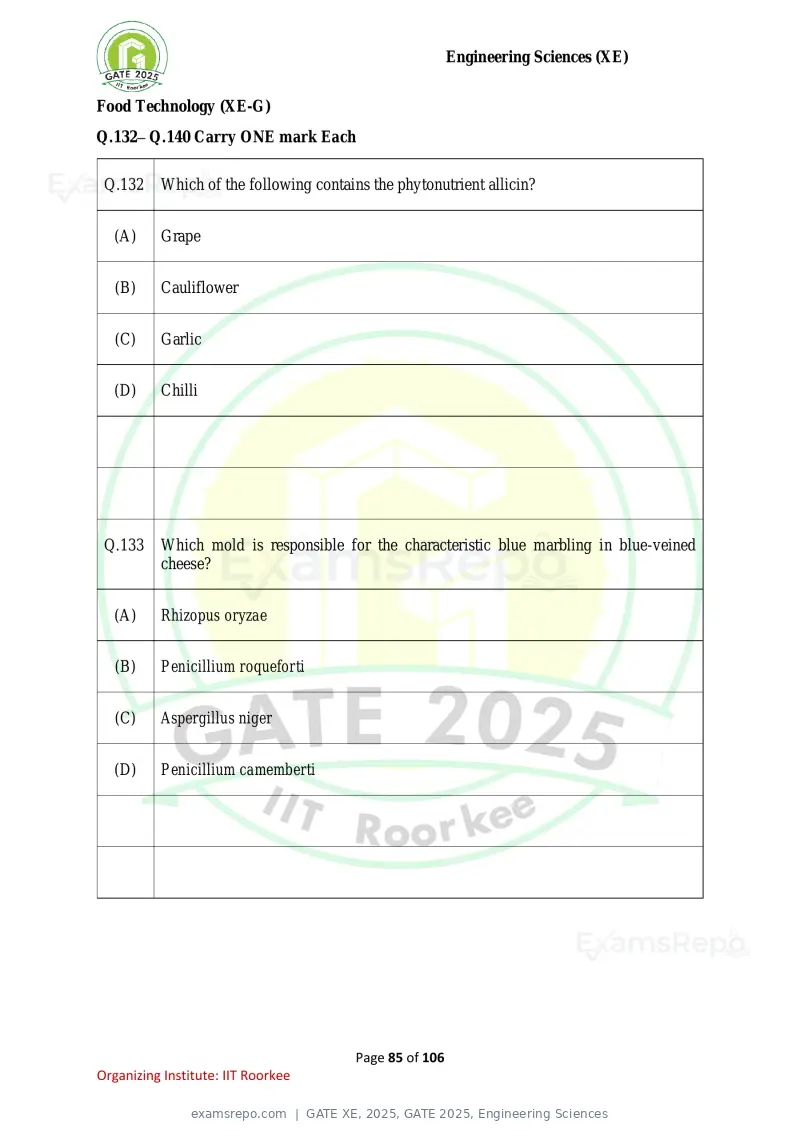

Text of page 85
Engineering Sciences (XE)
Food Technology (XE-G)
Q.132– Q.140 Carry ONE mark Each
Q.132 Which of the following contains the phytonutrient allicin?
(A) Grape
(B) Cauliflower
(C) Garlic
(D) Chilli
Q.133 Which mold is responsible for the characteristic blue marbling in blue-veined
cheese?
(A) Rhizopus oryzae
(B) Penicillium roqueforti
(C) Aspergillus niger
(D) Penicillium camemberti
Page 85 of 106
Organizing Institute: IIT Roorkee
Text of page 86
Engineering Sciences (XE)

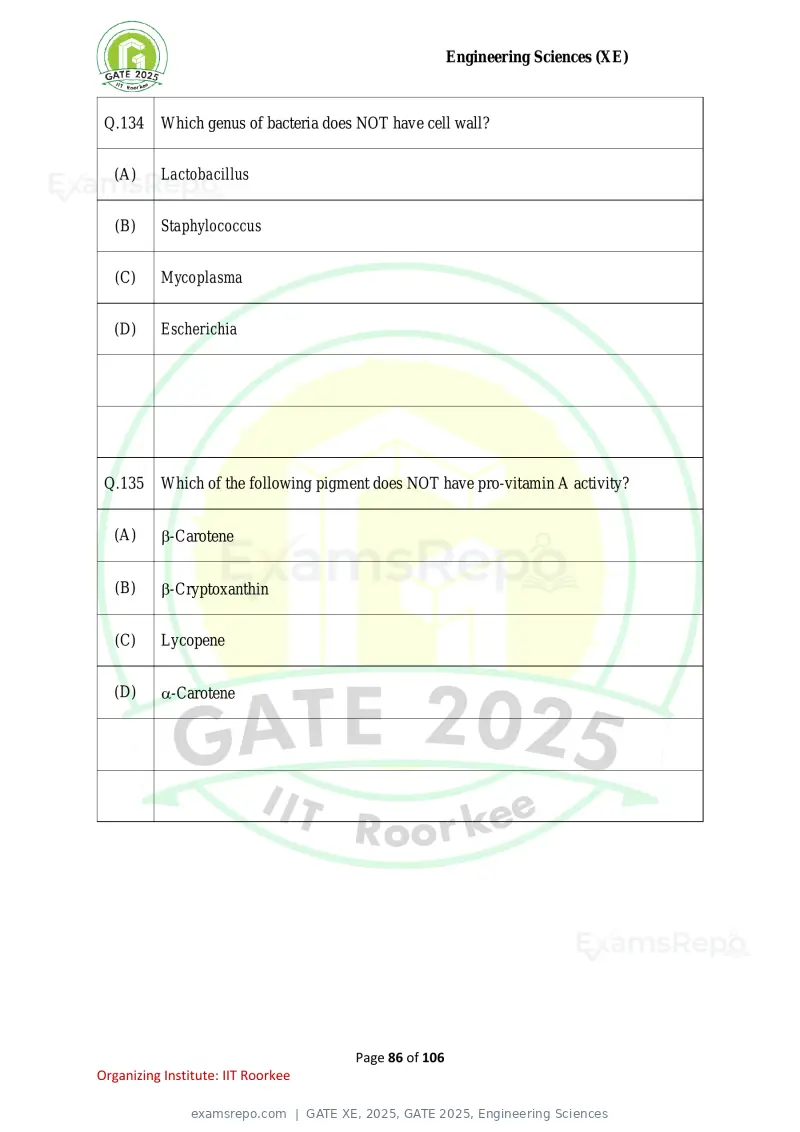

Q.134 Which genus of bacteria does NOT have cell wall?
(A) Lactobacillus
(B) Staphylococcus
(C) Mycoplasma
(D) Escherichia
Q.135 Which of the following pigment does NOT have pro-vitamin A activity?
(A) -Carotene
(B) -Cryptoxanthin
(C) Lycopene
(D) -Carotene
Page 86 of 106
Organizing Institute: IIT Roorkee
Text of page 87
Engineering Sciences (XE)

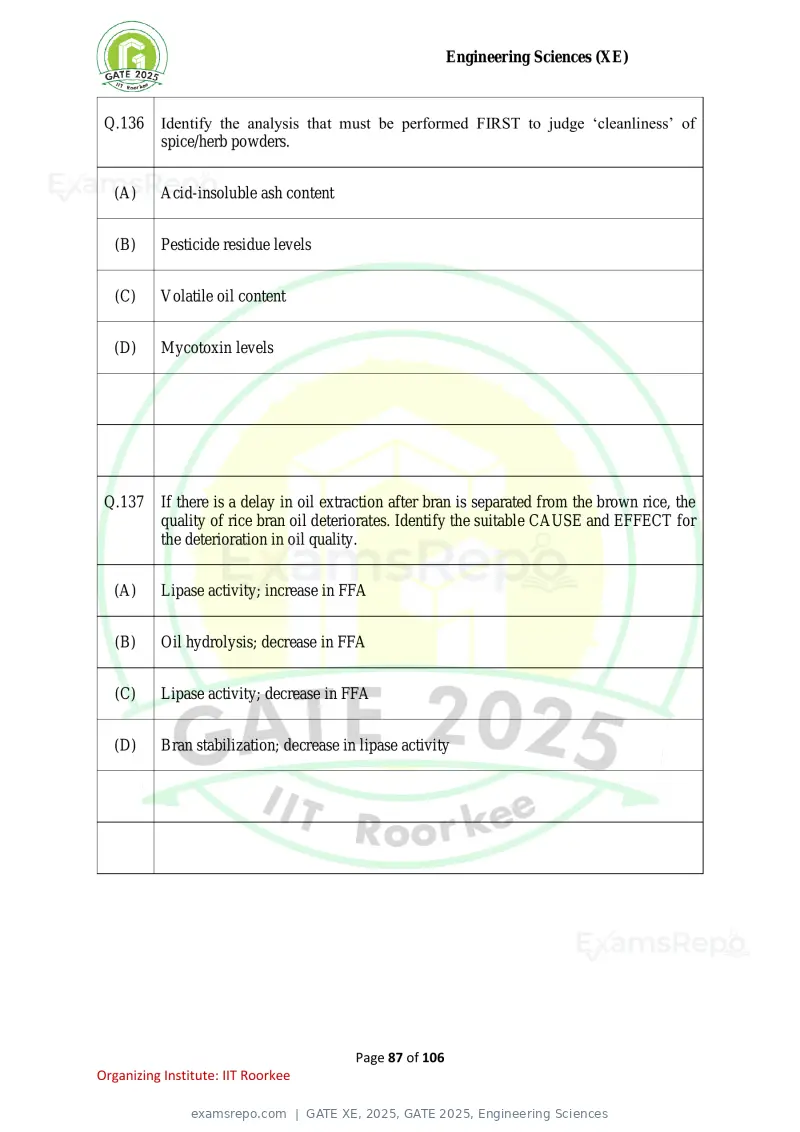

Q.136 Identify the analysis that must be performed FIRST to judge ‘cleanliness’ of
spice/herb powders.
(A) Acid-insoluble ash content
(B) Pesticide residue levels
(C) Volatile oil content
(D) Mycotoxin levels
Q.137 If there is a delay in oil extraction after bran is separated from the brown rice, the
quality of rice bran oil deteriorates. Identify the suitable CAUSE and EFFECT for
the deterioration in oil quality.
(A) Lipase activity; increase in FFA
(B) Oil hydrolysis; decrease in FFA
(C) Lipase activity; decrease in FFA
(D) Bran stabilization; decrease in lipase activity
Page 87 of 106
Organizing Institute: IIT Roorkee
Text of page 88
Engineering Sciences (XE)
Q.138 Among the following, which is/are the process(es) that lead to generation of new
fats from existing ones?
(A) Transesterification
(B) Degumming
(C) Hydrogenation
(D) Winterization
Q.139 The true density and bulk density of wheat grains are 1280 kg/m3 and 740 kg/m3,
respectively. The porosity of the grains is ____. (rounded off to 2 decimal places)
Q.140 Potato slices weighing 50 kg is dried from 60% moisture content (wet basis) to 5%
moisture content (dry basis). The amount of dried potato slices obtained (in kg) is
_______. (Answer in integer)
Page 88 of 106
Organizing Institute: IIT Roorkee

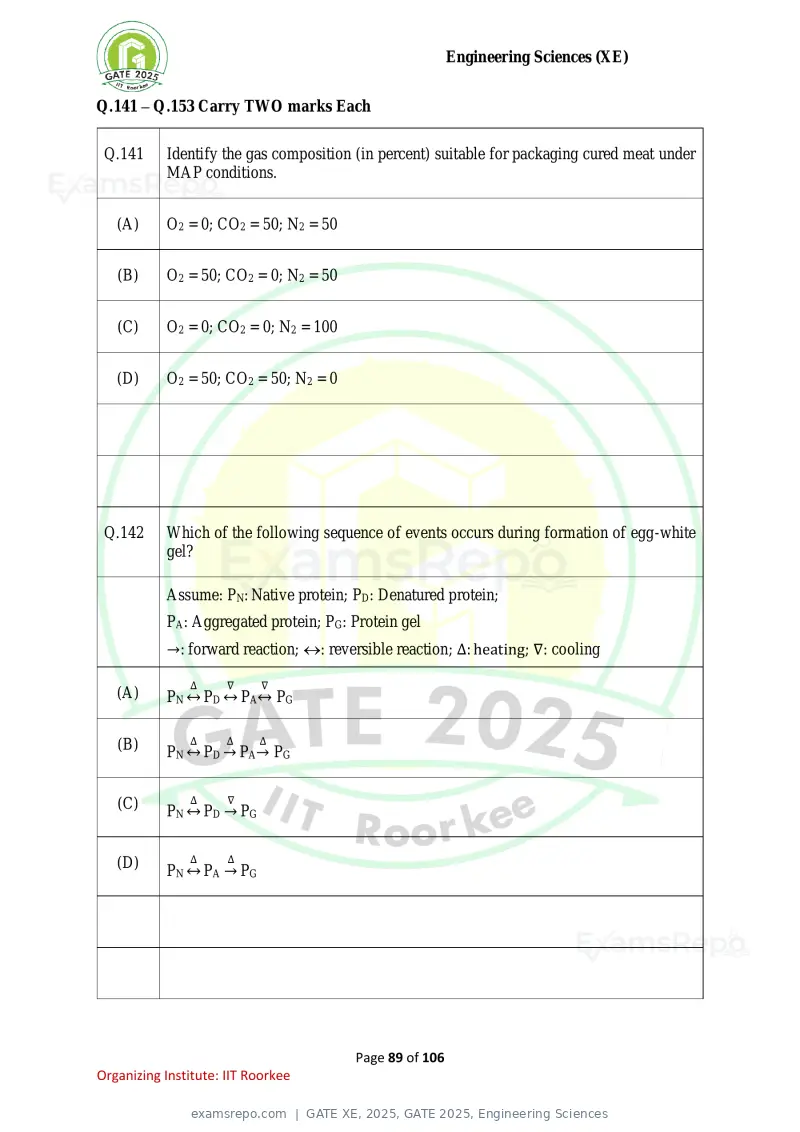

Text of page 89
Engineering Sciences (XE)
Q.141 – Q.153 Carry TWO marks Each
Q.141 Identify the gas composition (in percent) suitable for packaging cured meat under
MAP conditions.
(A) O2 = 0; CO2 = 50; N2 = 50
(B) O2 = 50; CO2 = 0; N2 = 50
(C) O2 = 0; CO2 = 0; N2 = 100
(D) O2 = 50; CO2 = 50; N2 = 0
Q.142 Which of the following sequence of events occurs during formation of egg-white
gel?
Assume: PN: Native protein; PD: Denatured protein;
PA: Aggregated protein; PG: Protein gel
→: forward reaction; : reversible reaction; ∆: heating; ∇: cooling
∆ ∇ ∇
(A) PN ↔ PD ↔ PA↔ PG
(B) ∆ ∆ ∆
PN ↔ PD → PA→ PG
(C) ∆ ∇
PN ↔ PD → PG
(D) ∆ ∆
PN ↔ PA → PG
Page 89 of 106
Organizing Institute: IIT Roorkee
Text of page 90
Engineering Sciences (XE)

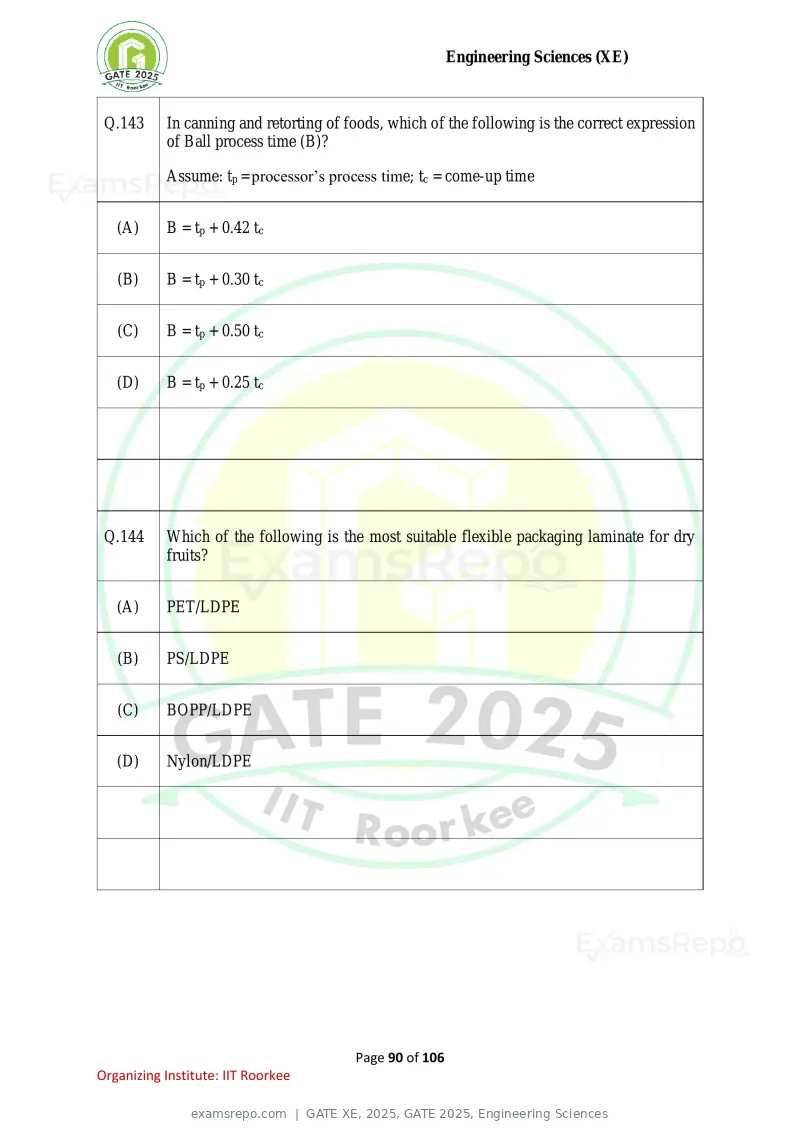

Q.143 In canning and retorting of foods, which of the following is the correct expression
of Ball process time (B)?
Assume: tp = processor’s process time; tc = come-up time
(A) B = tp + 0.42 tc
(B) B = tp + 0.30 tc
(C) B = tp + 0.50 tc
(D) B = tp + 0.25 tc
Q.144 Which of the following is the most suitable flexible packaging laminate for dry
fruits?
(A) PET/LDPE
(B) PS/LDPE
(C) BOPP/LDPE
(D) Nylon/LDPE
Page 90 of 106
Organizing Institute: IIT Roorkee
Text of page 91
Engineering Sciences (XE)
Q.145 Identify the CORRECT sequence of operations for dressing of poultry.
(A) Slaughtering and bleeding → scalding → defeathering → eviscerating → chilling
(B) Slaughtering and bleeding → defeathering → scalding → eviscerating → chilling
(C) Slaughtering and bleeding → eviscerating → defeathering → scalding →chilling
(D) Slaughtering and bleeding → defeathering → eviscerating → scalding → chilling
Q.146 Which of the following statement(s) is/are TRUE for a package of gamma-
irradiated (7.5 kGy) whole chicken?
(A) Nutritional quality of the product deteriorates after irradiation.
(B) Spores of C. botulinum can survive in the irradiated product.
(C) ‘Radura’ symbol does not ensure safety of the irradiated product for consumption.
(D) Energy needed for the irradiation process is much higher than that required for
freezing of the product.
Page 91 of 106
Organizing Institute: IIT Roorkee
Text of page 92
Engineering Sciences (XE)

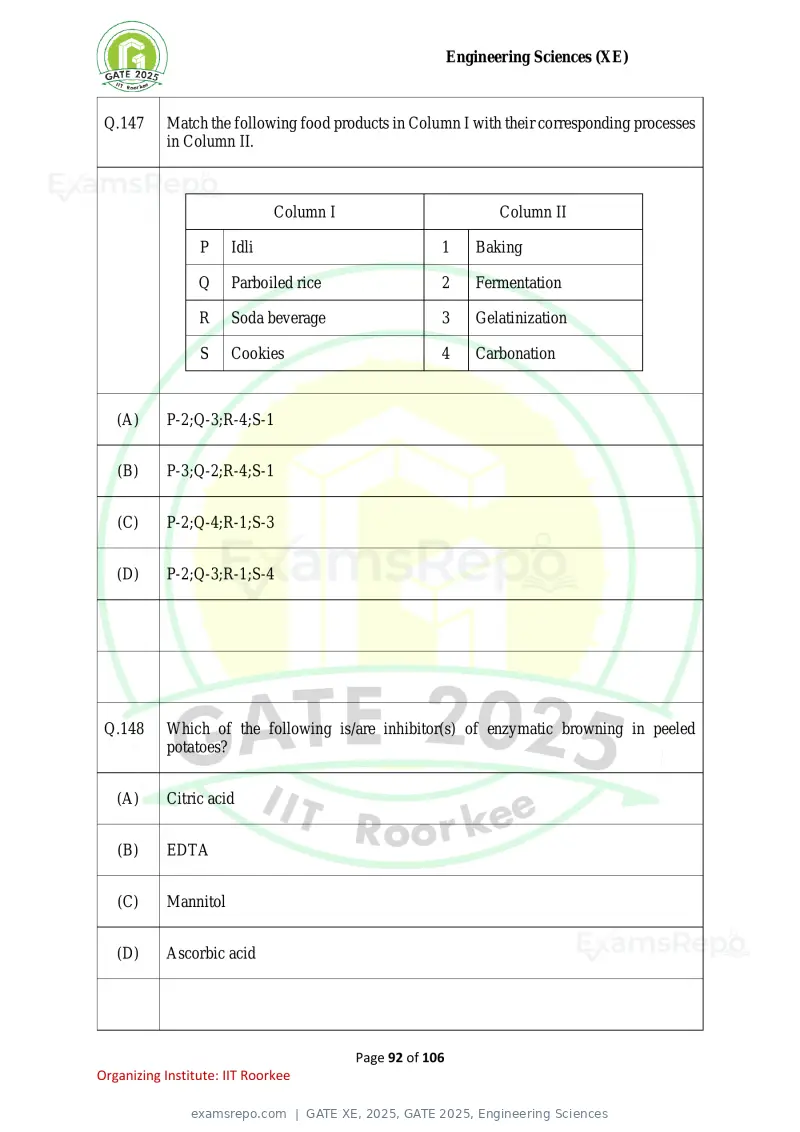

Q.147 Match the following food products in Column I with their corresponding processes
in Column II.
Column I Column II
P Idli 1 Baking
Q Parboiled rice 2 Fermentation
R Soda beverage 3 Gelatinization
S Cookies 4 Carbonation
(A) P-2;Q-3;R-4;S-1
(B) P-3;Q-2;R-4;S-1
(C) P-2;Q-4;R-1;S-3
(D) P-2;Q-3;R-1;S-4
Q.148 Which of the following is/are inhibitor(s) of enzymatic browning in peeled
potatoes?
(A) Citric acid
(B) EDTA
(C) Mannitol
(D) Ascorbic acid
Page 92 of 106
Organizing Institute: IIT Roorkee

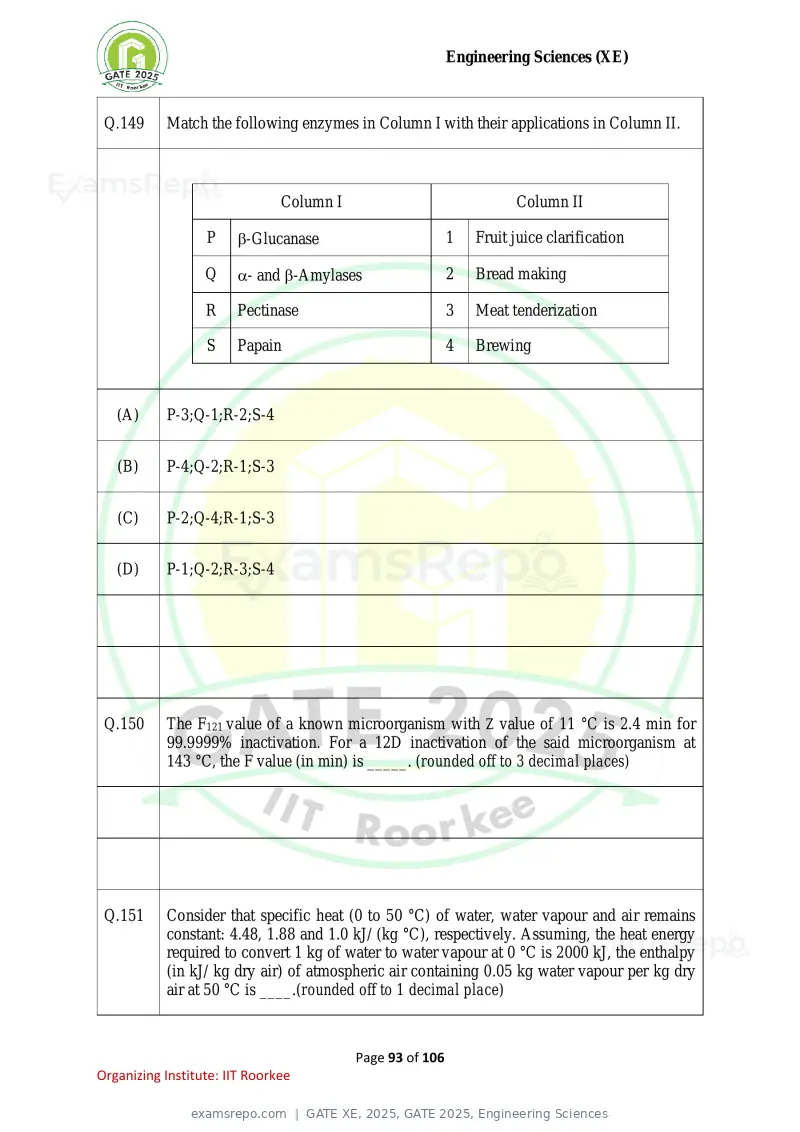

Text of page 93
Engineering Sciences (XE)
Q.149 Match the following enzymes in Column I with their applications in Column II.
Column I Column II
P -Glucanase 1 Fruit juice clarification
Q - and -Amylases 2 Bread making
R Pectinase 3 Meat tenderization
S Papain 4 Brewing
(A) P-3;Q-1;R-2;S-4
(B) P-4;Q-2;R-1;S-3
(C) P-2;Q-4;R-1;S-3
(D) P-1;Q-2;R-3;S-4
Q.150 The F121 value of a known microorganism with Z value of 11 °C is 2.4 min for
99.9999% inactivation. For a 12D inactivation of the said microorganism at
143 °C, the F value (in min) is _____. (rounded off to 3 decimal places)
Q.151 Consider that specific heat (0 to 50 °C) of water, water vapour and air remains
constant: 4.48, 1.88 and 1.0 kJ/ (kg °C), respectively. Assuming, the heat energy
required to convert 1 kg of water to water vapour at 0 °C is 2000 kJ, the enthalpy
(in kJ/ kg dry air) of atmospheric air containing 0.05 kg water vapour per kg dry
air at 50 °C is ____.(rounded off to 1 decimal place)
Page 93 of 106
Organizing Institute: IIT Roorkee
Text of page 94
Engineering Sciences (XE)
Q.152 A fruit juice is concentrated using an ultrafiltration membrane. A feed stream at
10 kg/min with 6% total solids (by weight) is increased to 20% total solids (by
weight). The membrane tube has 10 cm inside diameter and the pressure difference
across the membrane is 2000 kPa. If the permeability constant of the membrane is
5 × 10-5 kg water/ (m2 kPa s), the length of membrane tube (in m) is______.
(rounded off to 2 decimal places)
Q.153 In a typical grinding operation, 80% of the feed material passes through a sieve
opening of 4.75 mm; whereas, 80% of the ground product passes through 0.5 mm
opening. If the power required to grind 2 tonnes/h of the feed material is
3.8 kW, the work index of the material is _______. (rounded off to 2 decimal
places)
Page 94 of 106
Organizing Institute: IIT Roorkee
Text of page 95
Engineering Sciences (XE)

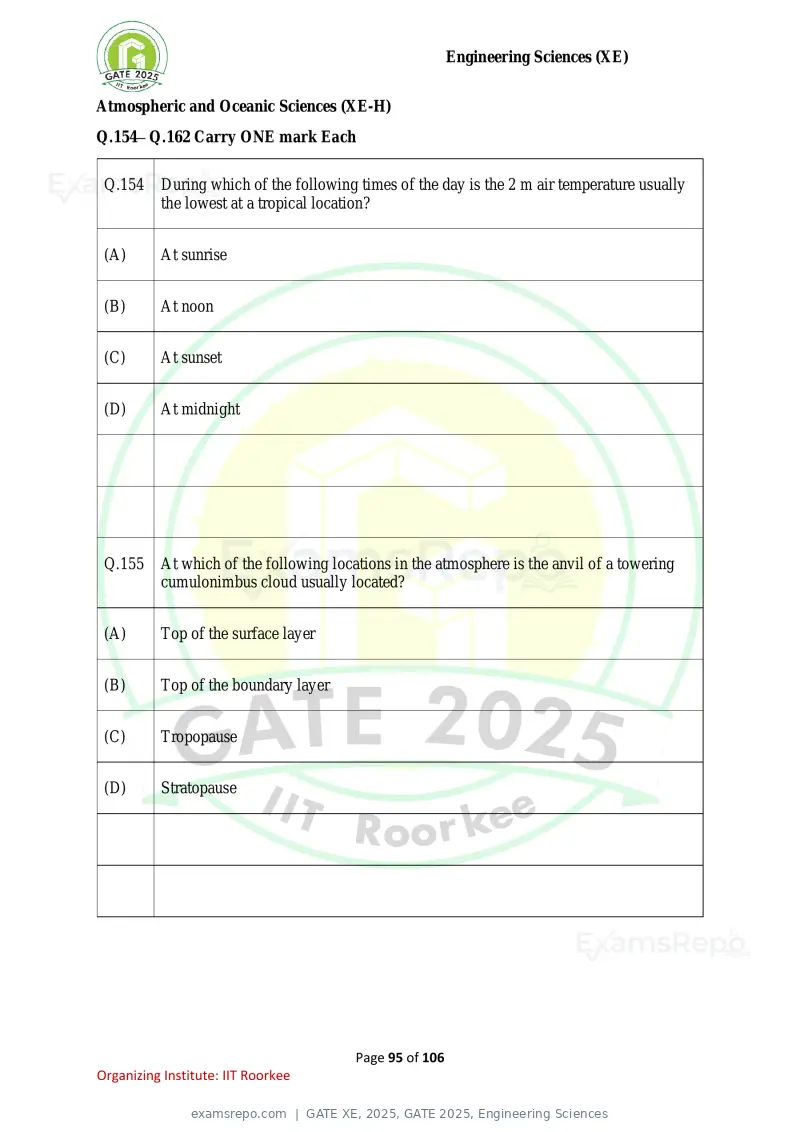

Atmospheric and Oceanic Sciences (XE-H)
Q.154– Q.162 Carry ONE mark Each
Q.154 During which of the following times of the day is the 2 m air temperature usually
the lowest at a tropical location?
(A) At sunrise
(B) At noon
(C) At sunset
(D) At midnight
Q.155 At which of the following locations in the atmosphere is the anvil of a towering
cumulonimbus cloud usually located?
(A) Top of the surface layer
(B) Top of the boundary layer
(C) Tropopause
(D) Stratopause
Page 95 of 106
Organizing Institute: IIT Roorkee
Text of page 96
Engineering Sciences (XE)

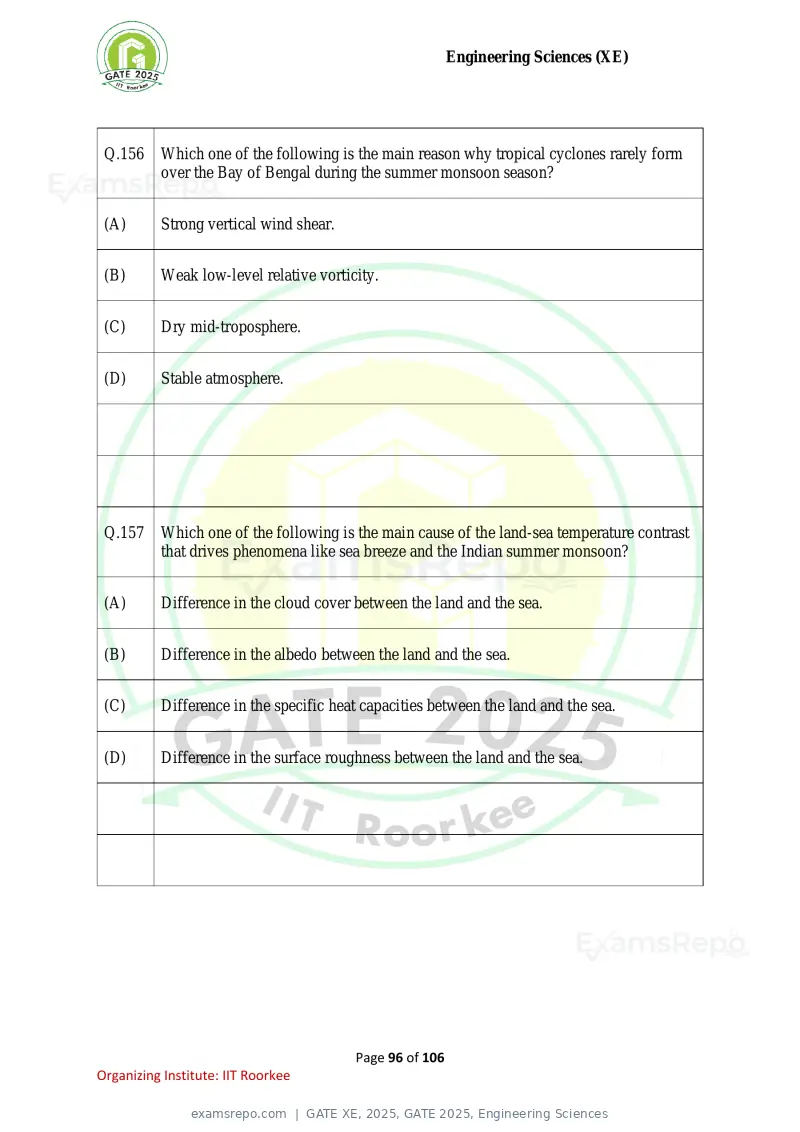

Q.156 Which one of the following is the main reason why tropical cyclones rarely form
over the Bay of Bengal during the summer monsoon season?
(A) Strong vertical wind shear.
(B) Weak low-level relative vorticity.
(C) Dry mid-troposphere.
(D) Stable atmosphere.
Q.157 Which one of the following is the main cause of the land-sea temperature contrast
that drives phenomena like sea breeze and the Indian summer monsoon?
(A) Difference in the cloud cover between the land and the sea.
(B) Difference in the albedo between the land and the sea.
(C) Difference in the specific heat capacities between the land and the sea.
(D) Difference in the surface roughness between the land and the sea.
Page 96 of 106
Organizing Institute: IIT Roorkee

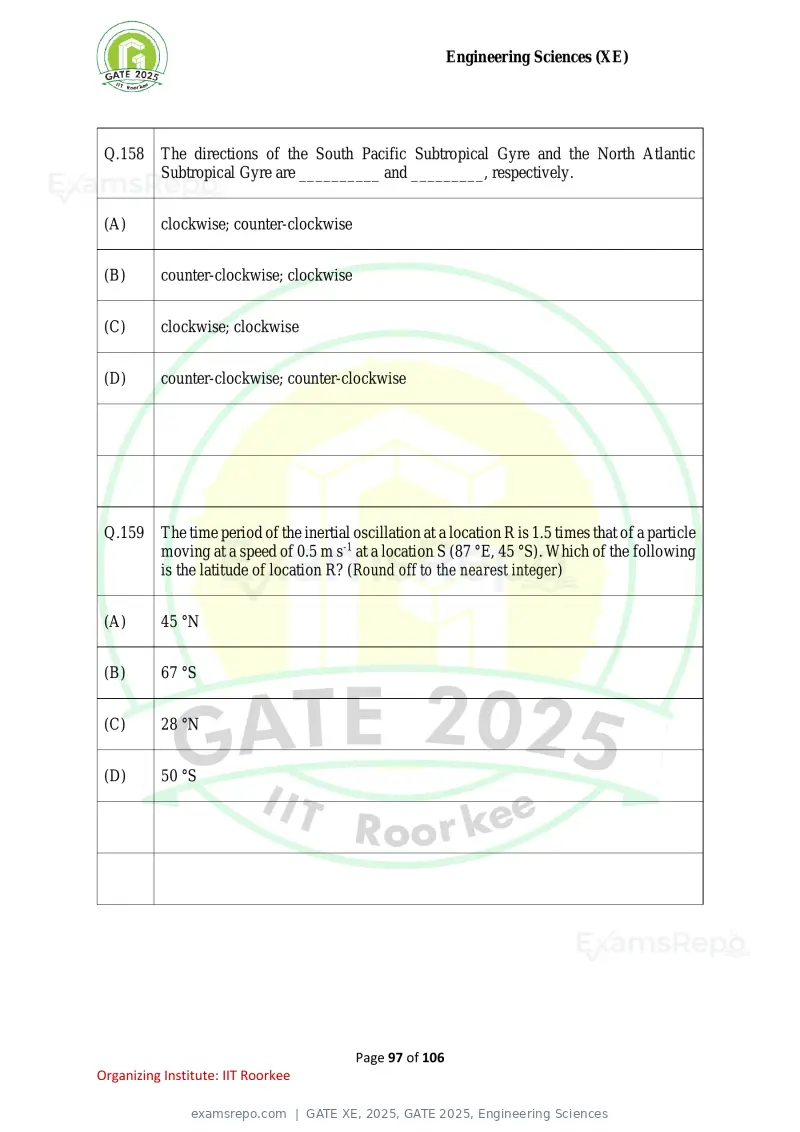

Text of page 97
Engineering Sciences (XE)
Q.158 The directions of the South Pacific Subtropical Gyre and the North Atlantic
Subtropical Gyre are __________ and _________, respectively.
(A) clockwise; counter-clockwise
(B) counter-clockwise; clockwise
(C) clockwise; clockwise
(D) counter-clockwise; counter-clockwise
Q.159 The time period of the inertial oscillation at a location R is 1.5 times that of a particle
moving at a speed of 0.5 m s-1 at a location S (87 °E, 45 °S). Which of the following
is the latitude of location R? (Round off to the nearest integer)
(A) 45 °N
(B) 67 °S
(C) 28 °N
(D) 50 °S
Page 97 of 106
Organizing Institute: IIT Roorkee

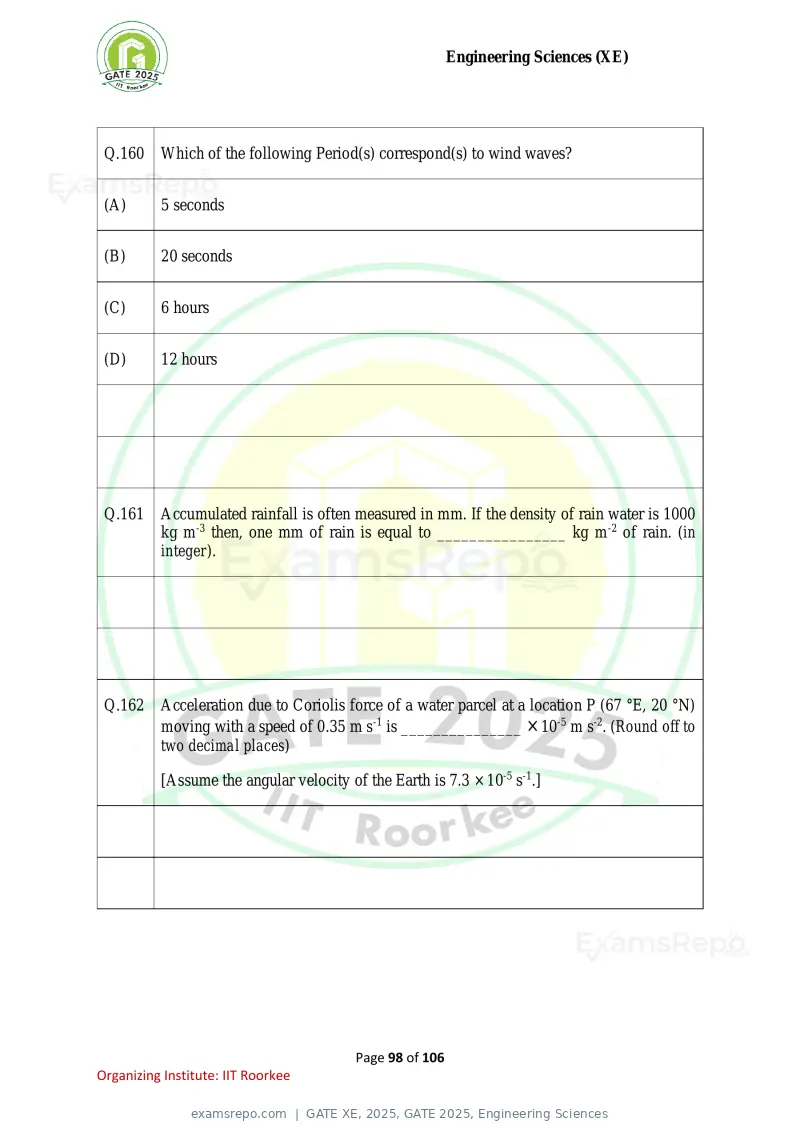

Text of page 98
Engineering Sciences (XE)
Q.160 Which of the following Period(s) correspond(s) to wind waves?
(A) 5 seconds
(B) 20 seconds
(C) 6 hours
(D) 12 hours
Q.161 Accumulated rainfall is often measured in mm. If the density of rain water is 1000
kg m-3 then, one mm of rain is equal to ________________ kg m-2 of rain. (in
integer).
Q.162 Acceleration due to Coriolis force of a water parcel at a location P (67 °E, 20 °N)
moving with a speed of 0.35 m s-1 is _______________ × 10-5 m s-2. (Round off to
two decimal places)
[Assume the angular velocity of the Earth is 7.3 × 10-5 s-1.]
Page 98 of 106
Organizing Institute: IIT Roorkee

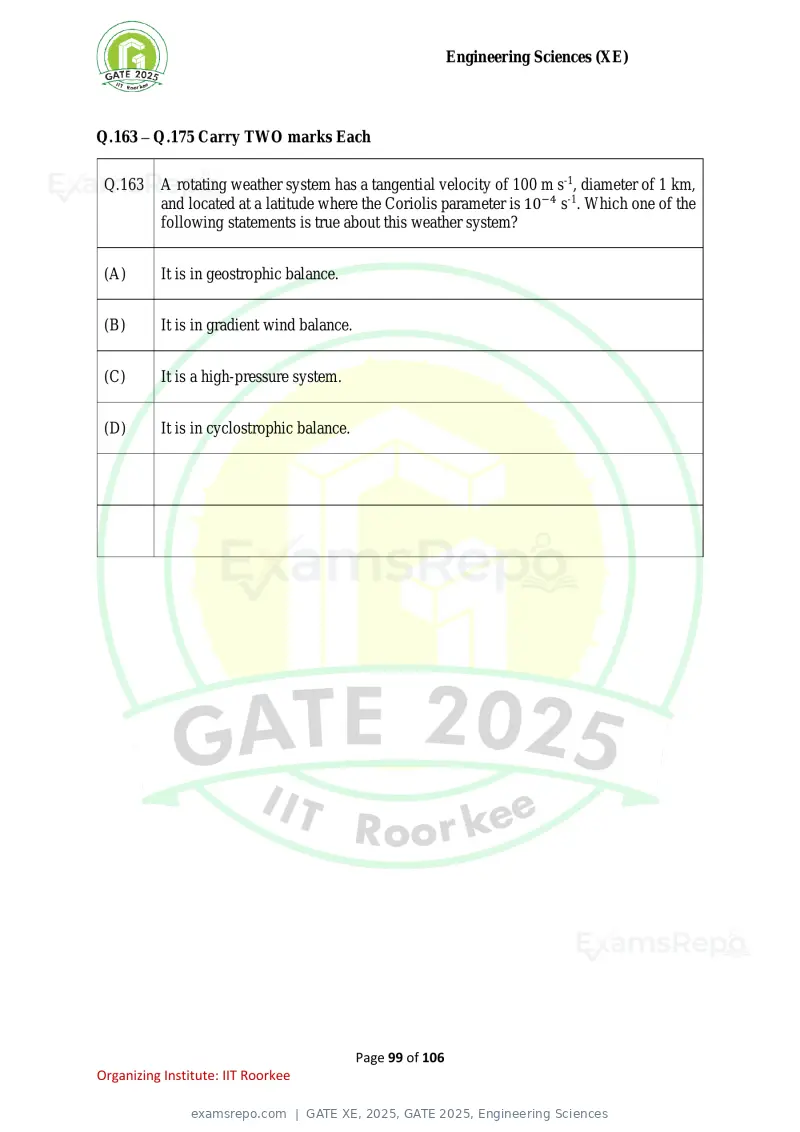

Text of page 99
Engineering Sciences (XE)
Q.163 – Q.175 Carry TWO marks Each
Q.163 A rotating weather system has a tangential velocity of 100 m s-1, diameter of 1 km,
and located at a latitude where the Coriolis parameter is 10−4 s-1. Which one of the
following statements is true about this weather system?
(A) It is in geostrophic balance.
(B) It is in gradient wind balance.
(C) It is a high-pressure system.
(D) It is in cyclostrophic balance.
Page 99 of 106
Organizing Institute: IIT Roorkee

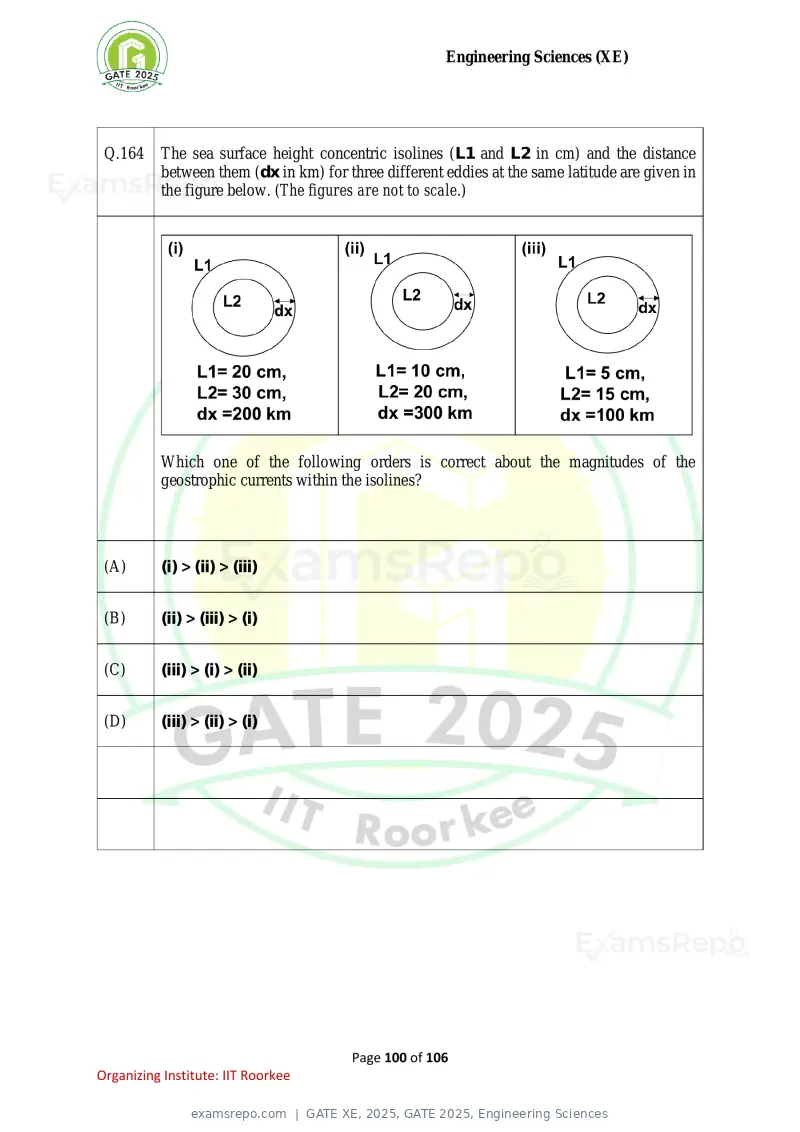

Text of page 100
Engineering Sciences (XE)
Q.164 The sea surface height concentric isolines (L1 and L2 in cm) and the distance
between them (dx in km) for three different eddies at the same latitude are given in
the figure below. (The figures are not to scale.)
Which one of the following orders is correct about the magnitudes of the
geostrophic currents within the isolines?
(A) (i) > (ii) > (iii)
(B) (ii) > (iii) > (i)
(C) (iii) > (i) > (ii)
(D) (iii) > (ii) > (i)
Page 100 of 106
Organizing Institute: IIT Roorkee

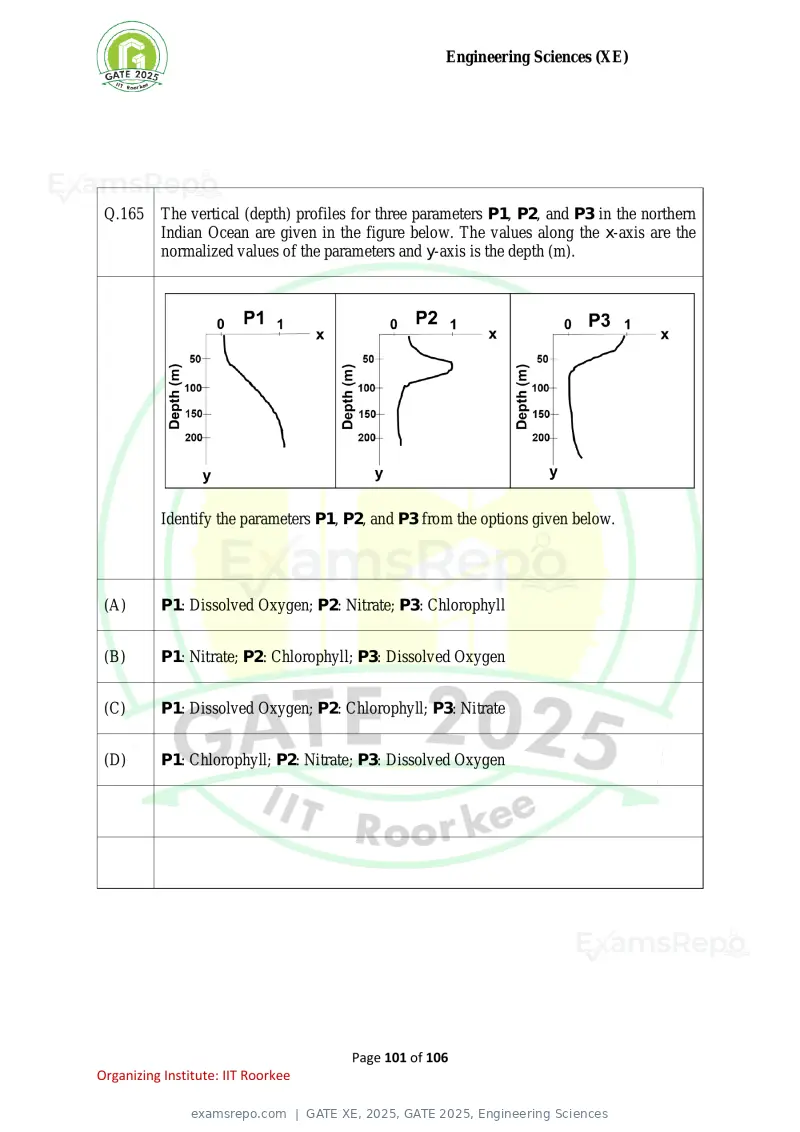

Text of page 101
Engineering Sciences (XE)
Q.165 The vertical (depth) profiles for three parameters P1, P2, and P3 in the northern
Indian Ocean are given in the figure below. The values along the x-axis are the
normalized values of the parameters and y-axis is the depth (m).
Identify the parameters P1, P2, and P3 from the options given below.
(A) P1: Dissolved Oxygen; P2: Nitrate; P3: Chlorophyll
(B) P1: Nitrate; P2: Chlorophyll; P3: Dissolved Oxygen
(C) P1: Dissolved Oxygen; P2: Chlorophyll; P3: Nitrate
(D) P1: Chlorophyll; P2: Nitrate; P3: Dissolved Oxygen
Page 101 of 106
Organizing Institute: IIT Roorkee

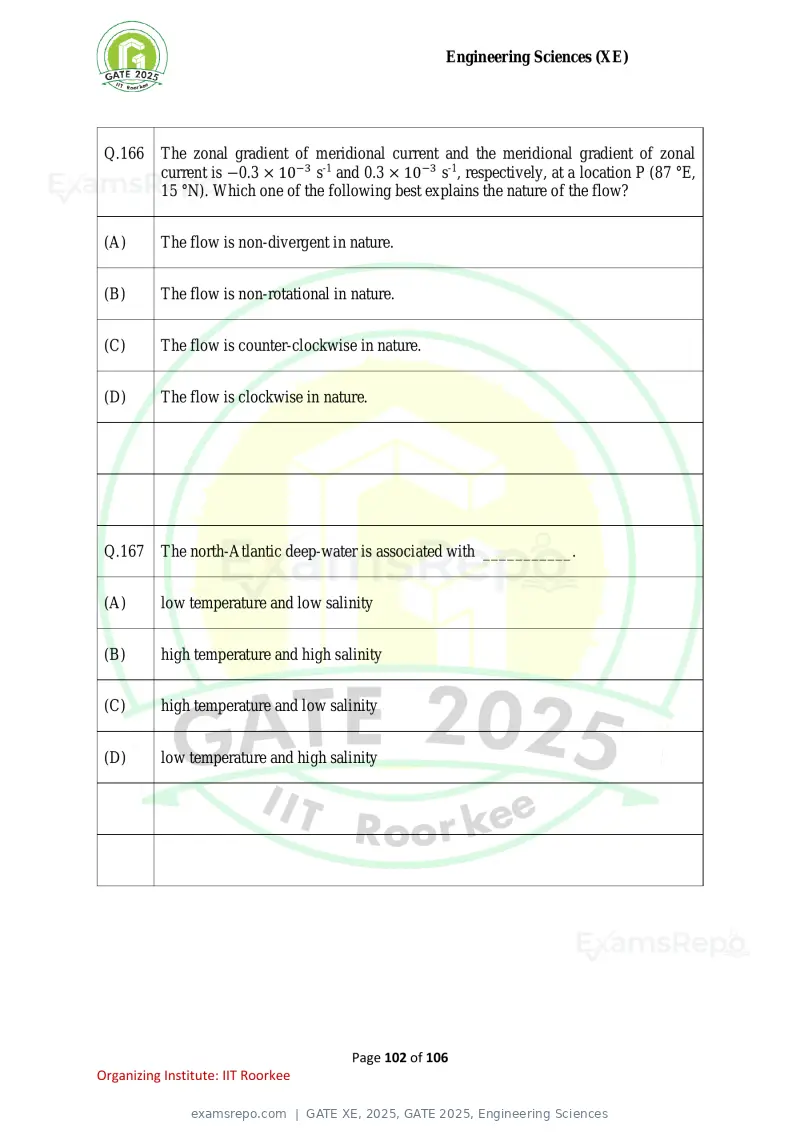

Text of page 102
Engineering Sciences (XE)
Q.166 The zonal gradient of meridional current and the meridional gradient of zonal
current is −0.3 × 10−3 s-1 and 0.3 × 10−3 s-1, respectively, at a location P (87 °E,
15 °N). Which one of the following best explains the nature of the flow?
(A) The flow is non-divergent in nature.
(B) The flow is non-rotational in nature.
(C) The flow is counter-clockwise in nature.
(D) The flow is clockwise in nature.
Q.167 The north-Atlantic deep-water is associated with ___________.
(A) low temperature and low salinity
(B) high temperature and high salinity
(C) high temperature and low salinity
(D) low temperature and high salinity
Page 102 of 106
Organizing Institute: IIT Roorkee

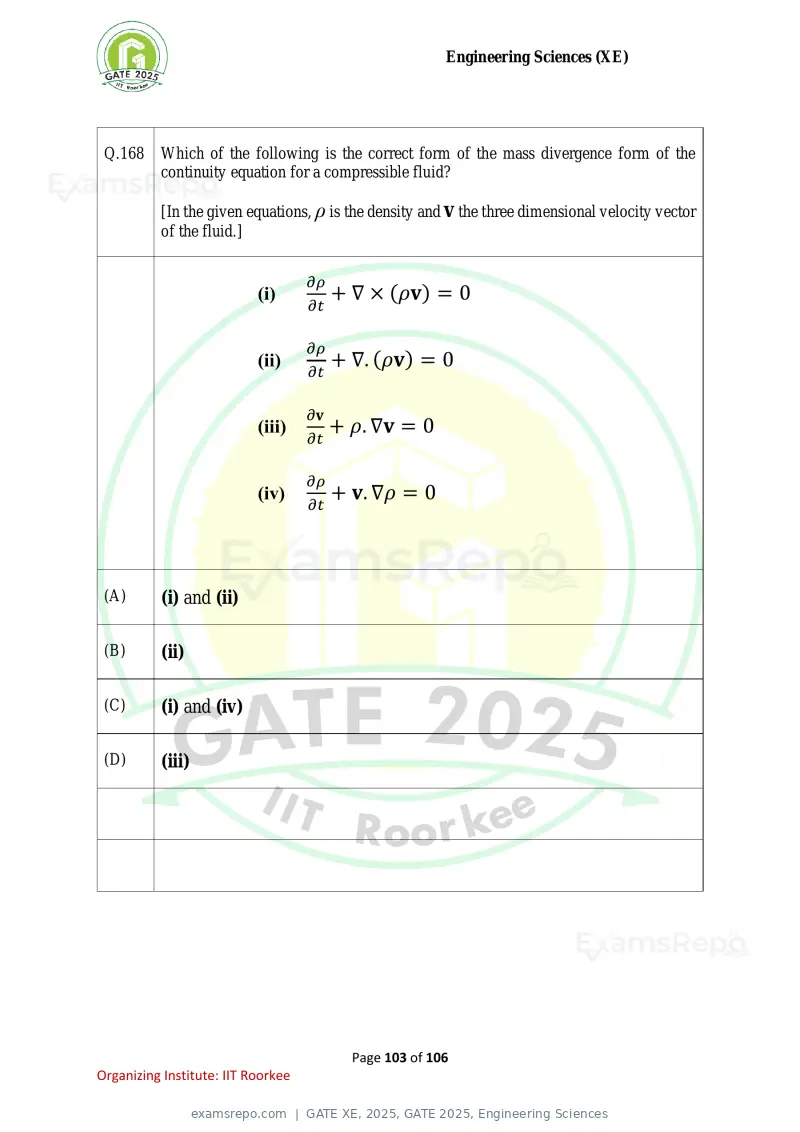

Text of page 103
Engineering Sciences (XE)
Q.168 Which of the following is the correct form of the mass divergence form of the
continuity equation for a compressible fluid?
[In the given equations, ρ is the density and v the three dimensional velocity vector
of the fluid.]
∂ρ
(i) + ∇ × (ρv) = 0
∂t
∂ρ
(ii) + ∇. (ρv) = 0
∂t
∂v
(iii) + ρ. ∇v = 0
∂t
∂ρ
(iv) + v. ∇ρ = 0
∂t
(A) (i) and (ii)
(B) (ii)
(C) (i) and (iv)
(D) (iii)
Page 103 of 106
Organizing Institute: IIT Roorkee

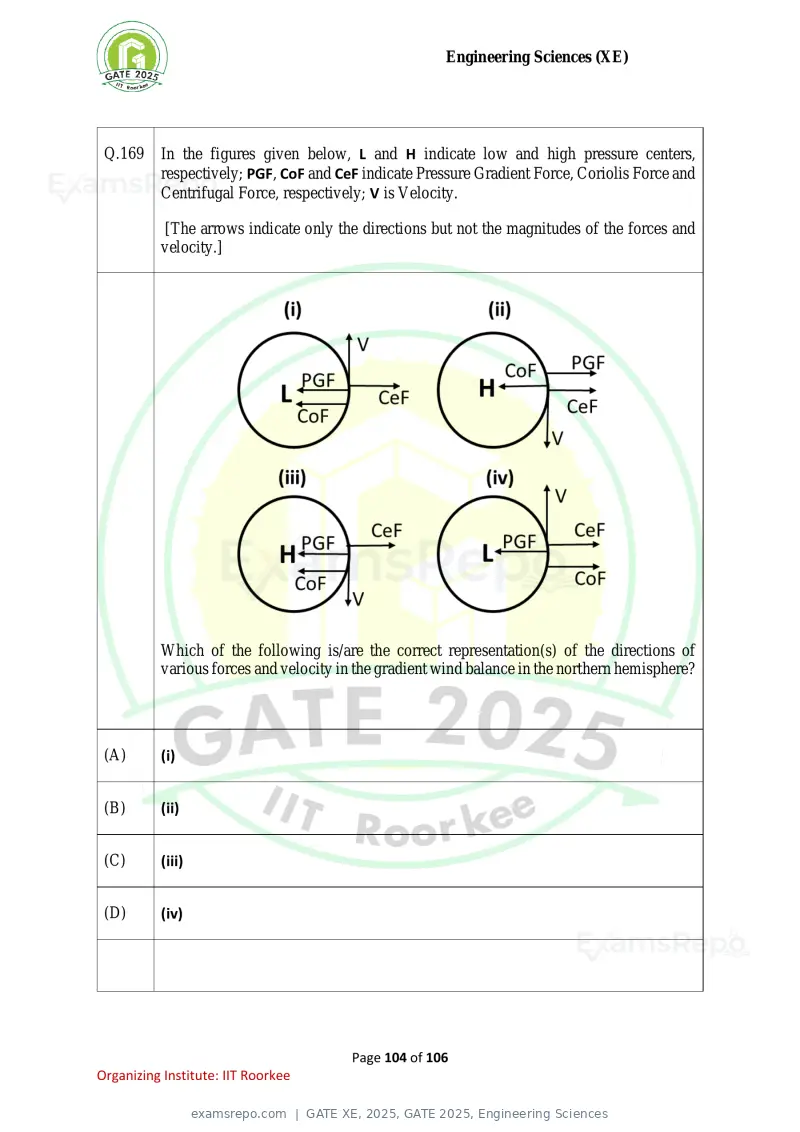

Text of page 104
Engineering Sciences (XE)
Q.169 In the figures given below, L and H indicate low and high pressure centers,
respectively; PGF, CoF and CeF indicate Pressure Gradient Force, Coriolis Force and
Centrifugal Force, respectively; V is Velocity.
[The arrows indicate only the directions but not the magnitudes of the forces and
velocity.]
Which of the following is/are the correct representation(s) of the directions of
various forces and velocity in the gradient wind balance in the northern hemisphere?
(A) (i)
(B) (ii)
(C) (iii)
(D) (iv)
Page 104 of 106
Organizing Institute: IIT Roorkee

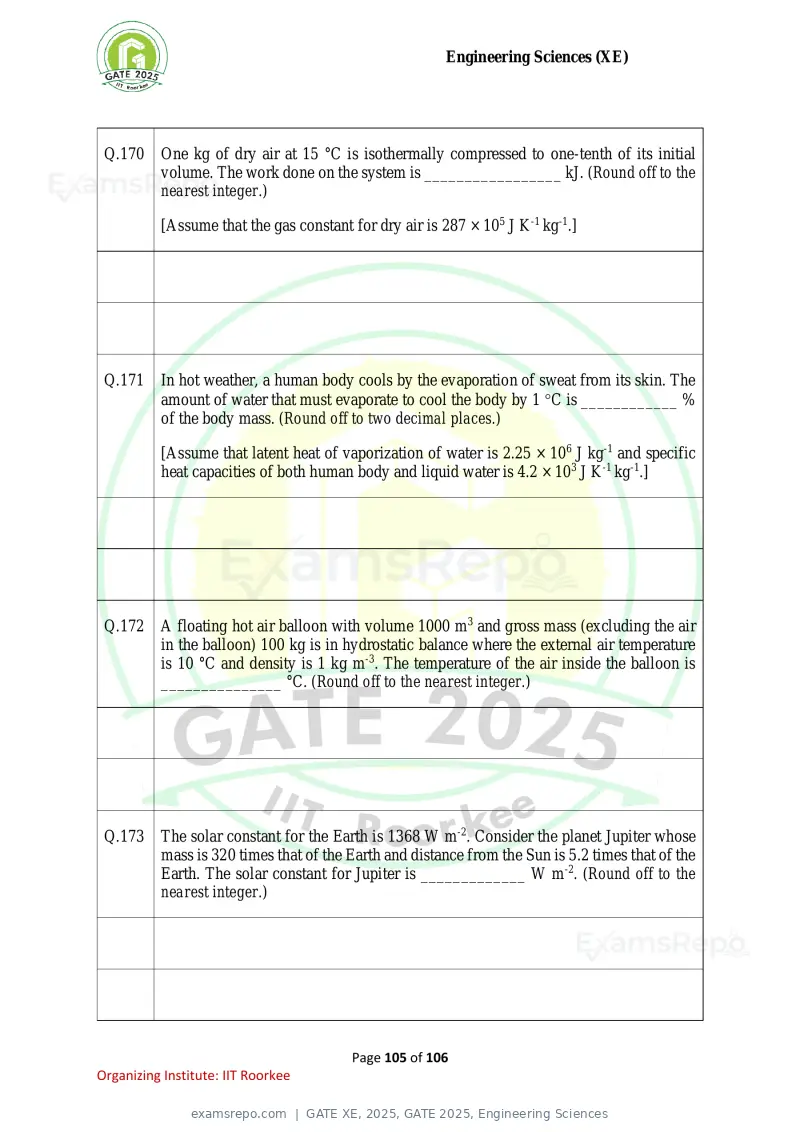

Text of page 105
Engineering Sciences (XE)
Q.170 One kg of dry air at 15 °C is isothermally compressed to one-tenth of its initial
volume. The work done on the system is _________________ kJ. (Round off to the
nearest integer.)
[Assume that the gas constant for dry air is 287 × 105 J K-1 kg-1.]
Q.171 In hot weather, a human body cools by the evaporation of sweat from its skin. The
amount of water that must evaporate to cool the body by 1 C is ____________ %
of the body mass. (Round off to two decimal places.)
[Assume that latent heat of vaporization of water is 2.25 × 106 J kg-1 and specific
heat capacities of both human body and liquid water is 4.2 × 103 J K-1 kg-1.]
Q.172 A floating hot air balloon with volume 1000 m3 and gross mass (excluding the air
in the balloon) 100 kg is in hydrostatic balance where the external air temperature
is 10 °C and density is 1 kg m-3. The temperature of the air inside the balloon is
_______________ °C. (Round off to the nearest integer.)
Q.173 The solar constant for the Earth is 1368 W m-2. Consider the planet Jupiter whose
mass is 320 times that of the Earth and distance from the Sun is 5.2 times that of the
Earth. The solar constant for Jupiter is _____________ W m-2. (Round off to the
nearest integer.)
Page 105 of 106
Organizing Institute: IIT Roorkee

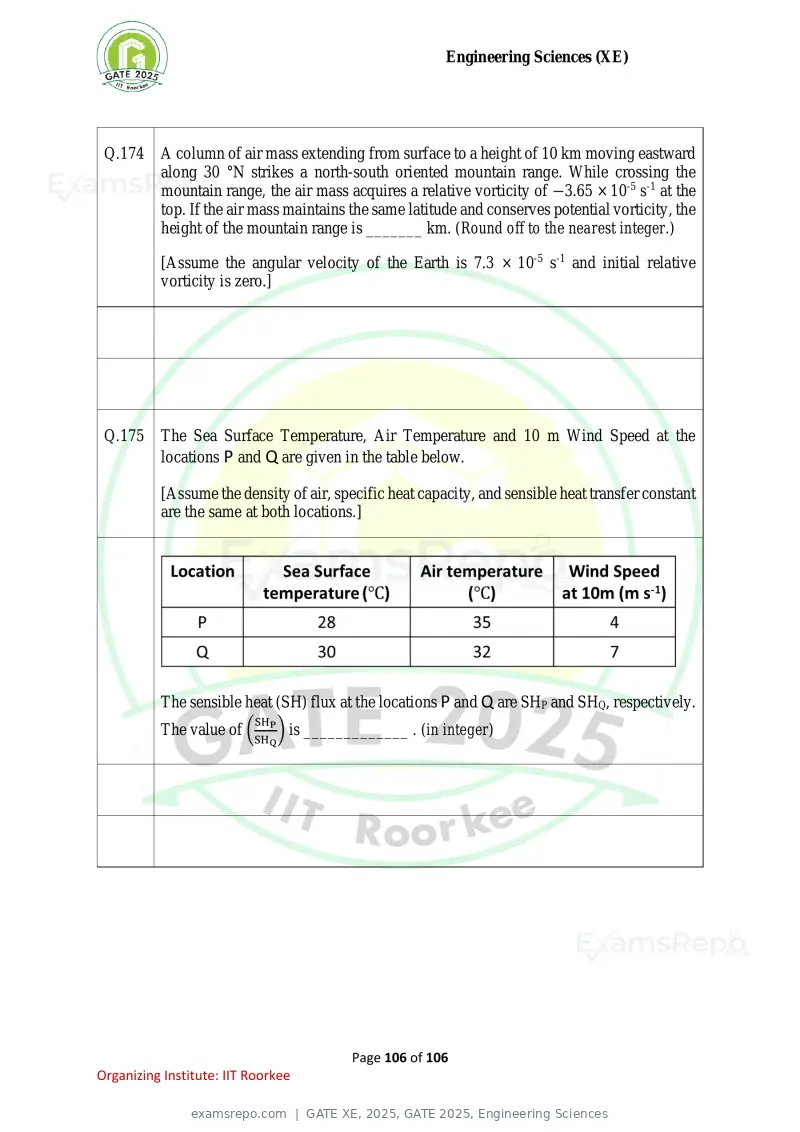

Text of page 106
Engineering Sciences (XE)
Q.174 A column of air mass extending from surface to a height of 10 km moving eastward
along 30 °N strikes a north-south oriented mountain range. While crossing the
mountain range, the air mass acquires a relative vorticity of −3.65 × 10-5 s-1 at the
top. If the air mass maintains the same latitude and conserves potential vorticity, the
height of the mountain range is _______ km. (Round off to the nearest integer.)
[Assume the angular velocity of the Earth is 7.3 × 10-5 s-1 and initial relative
vorticity is zero.]
Q.175 The Sea Surface Temperature, Air Temperature and 10 m Wind Speed at the
locations P and Q are given in the table below.
[Assume the density of air, specific heat capacity, and sensible heat transfer constant
are the same at both locations.]
The sensible heat (SH) flux at the locations P and Q are SHP and SHQ, respectively.
SH
The value of (SH P ) is _____________ . (in integer)
Q
Page 106 of 106
Organizing Institute: IIT Roorkee

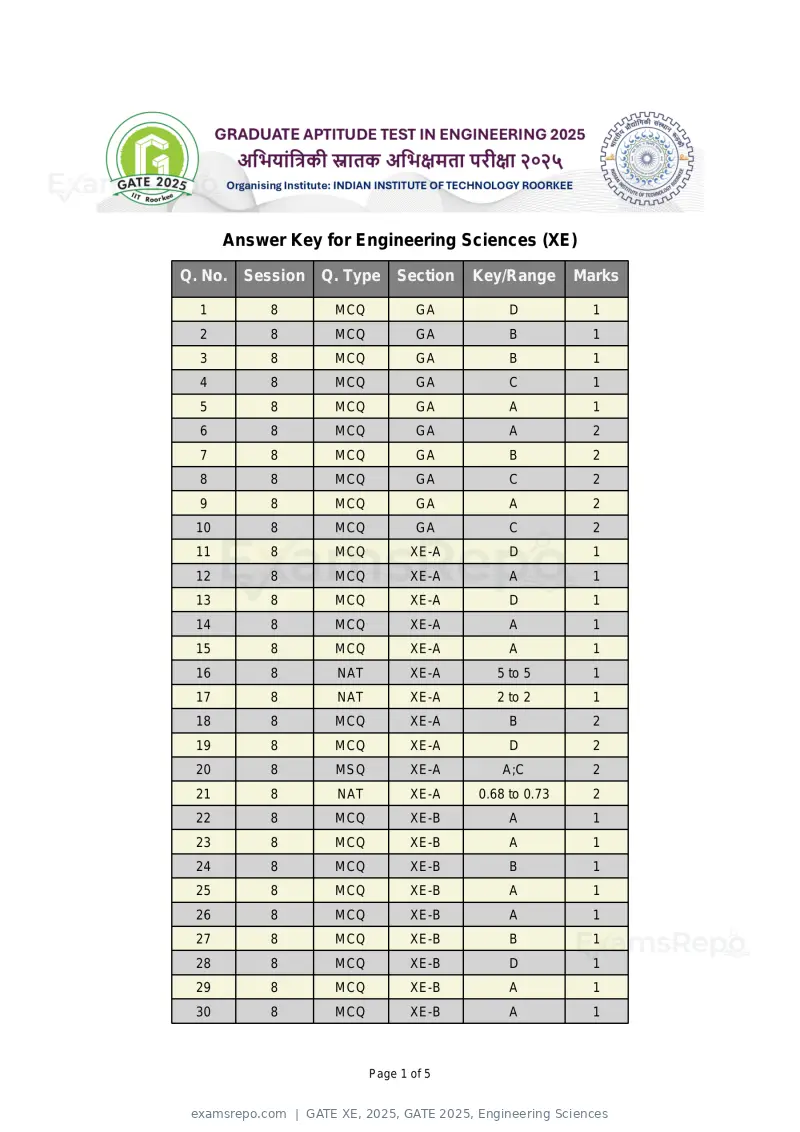

Text of page 1
Answer Key for Engineering Sciences (XE)
Q. No. Session Q. Type Section Key/Range Marks
1 8 MCQ GA D 1
2 8 MCQ GA B 1
3 8 MCQ GA B 1
4 8 MCQ GA C 1
5 8 MCQ GA A 1
6 8 MCQ GA A 2
7 8 MCQ GA B 2
8 8 MCQ GA C 2
9 8 MCQ GA A 2
10 8 MCQ GA C 2
11 8 MCQ XE-A D 1
12 8 MCQ XE-A A 1
13 8 MCQ XE-A D 1
14 8 MCQ XE-A A 1
15 8 MCQ XE-A A 1
16 8 NAT XE-A 5 to 5 1
17 8 NAT XE-A 2 to 2 1
18 8 MCQ XE-A B 2
19 8 MCQ XE-A D 2
20 8 MSQ XE-A A;C 2
21 8 NAT XE-A 0.68 to 0.73 2
22 8 MCQ XE-B A 1
23 8 MCQ XE-B A 1
24 8 MCQ XE-B B 1
25 8 MCQ XE-B A 1
26 8 MCQ XE-B A 1
27 8 MCQ XE-B B 1
28 8 MCQ XE-B D 1
29 8 MCQ XE-B A 1
30 8 MCQ XE-B A 1
Page 1 of 5

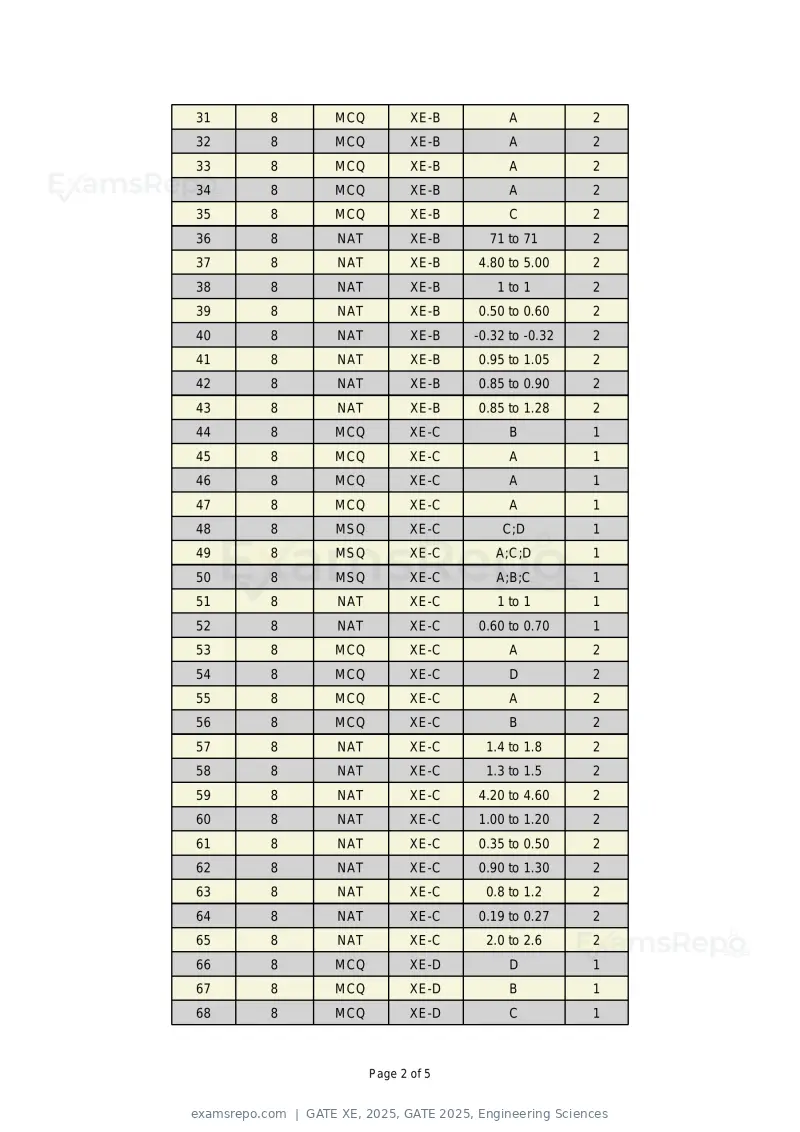

Text of page 2
31 8 MCQ XE-B A 2
32 8 MCQ XE-B A 2
33 8 MCQ XE-B A 2
34 8 MCQ XE-B A 2
35 8 MCQ XE-B C 2
36 8 NAT XE-B 71 to 71 2
37 8 NAT XE-B 4.80 to 5.00 2
38 8 NAT XE-B 1 to 1 2
39 8 NAT XE-B 0.50 to 0.60 2
40 8 NAT XE-B -0.32 to -0.32 2
41 8 NAT XE-B 0.95 to 1.05 2
42 8 NAT XE-B 0.85 to 0.90 2
43 8 NAT XE-B 0.85 to 1.28 2
44 8 MCQ XE-C B 1
45 8 MCQ XE-C A 1
46 8 MCQ XE-C A 1
47 8 MCQ XE-C A 1
48 8 MSQ XE-C C;D 1
49 8 MSQ XE-C A;C;D 1
50 8 MSQ XE-C A;B;C 1
51 8 NAT XE-C 1 to 1 1
52 8 NAT XE-C 0.60 to 0.70 1
53 8 MCQ XE-C A 2
54 8 MCQ XE-C D 2
55 8 MCQ XE-C A 2
56 8 MCQ XE-C B 2
57 8 NAT XE-C 1.4 to 1.8 2
58 8 NAT XE-C 1.3 to 1.5 2
59 8 NAT XE-C 4.20 to 4.60 2
60 8 NAT XE-C 1.00 to 1.20 2
61 8 NAT XE-C 0.35 to 0.50 2
62 8 NAT XE-C 0.90 to 1.30 2
63 8 NAT XE-C 0.8 to 1.2 2
64 8 NAT XE-C 0.19 to 0.27 2
65 8 NAT XE-C 2.0 to 2.6 2
66 8 MCQ XE-D D 1
67 8 MCQ XE-D B 1
68 8 MCQ XE-D C 1
Page 2 of 5

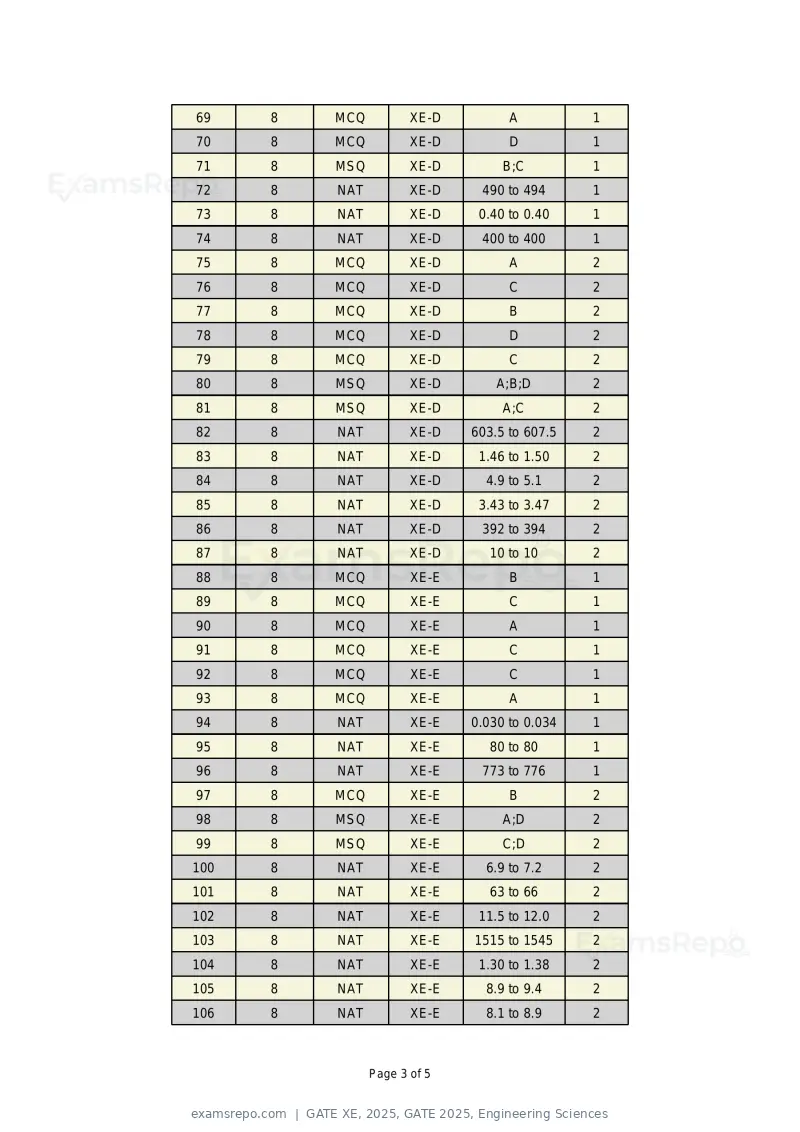

Text of page 3
69 8 MCQ XE-D A 1
70 8 MCQ XE-D D 1
71 8 MSQ XE-D B;C 1
72 8 NAT XE-D 490 to 494 1
73 8 NAT XE-D 0.40 to 0.40 1
74 8 NAT XE-D 400 to 400 1
75 8 MCQ XE-D A 2
76 8 MCQ XE-D C 2
77 8 MCQ XE-D B 2
78 8 MCQ XE-D D 2
79 8 MCQ XE-D C 2
80 8 MSQ XE-D A;B;D 2
81 8 MSQ XE-D A;C 2
82 8 NAT XE-D 603.5 to 607.5 2
83 8 NAT XE-D 1.46 to 1.50 2
84 8 NAT XE-D 4.9 to 5.1 2
85 8 NAT XE-D 3.43 to 3.47 2
86 8 NAT XE-D 392 to 394 2
87 8 NAT XE-D 10 to 10 2
88 8 MCQ XE-E B 1
89 8 MCQ XE-E C 1
90 8 MCQ XE-E A 1
91 8 MCQ XE-E C 1
92 8 MCQ XE-E C 1
93 8 MCQ XE-E A 1
94 8 NAT XE-E 0.030 to 0.034 1
95 8 NAT XE-E 80 to 80 1
96 8 NAT XE-E 773 to 776 1
97 8 MCQ XE-E B 2
98 8 MSQ XE-E A;D 2
99 8 MSQ XE-E C;D 2
100 8 NAT XE-E 6.9 to 7.2 2
101 8 NAT XE-E 63 to 66 2
102 8 NAT XE-E 11.5 to 12.0 2
103 8 NAT XE-E 1515 to 1545 2
104 8 NAT XE-E 1.30 to 1.38 2
105 8 NAT XE-E 8.9 to 9.4 2
106 8 NAT XE-E 8.1 to 8.9 2
Page 3 of 5

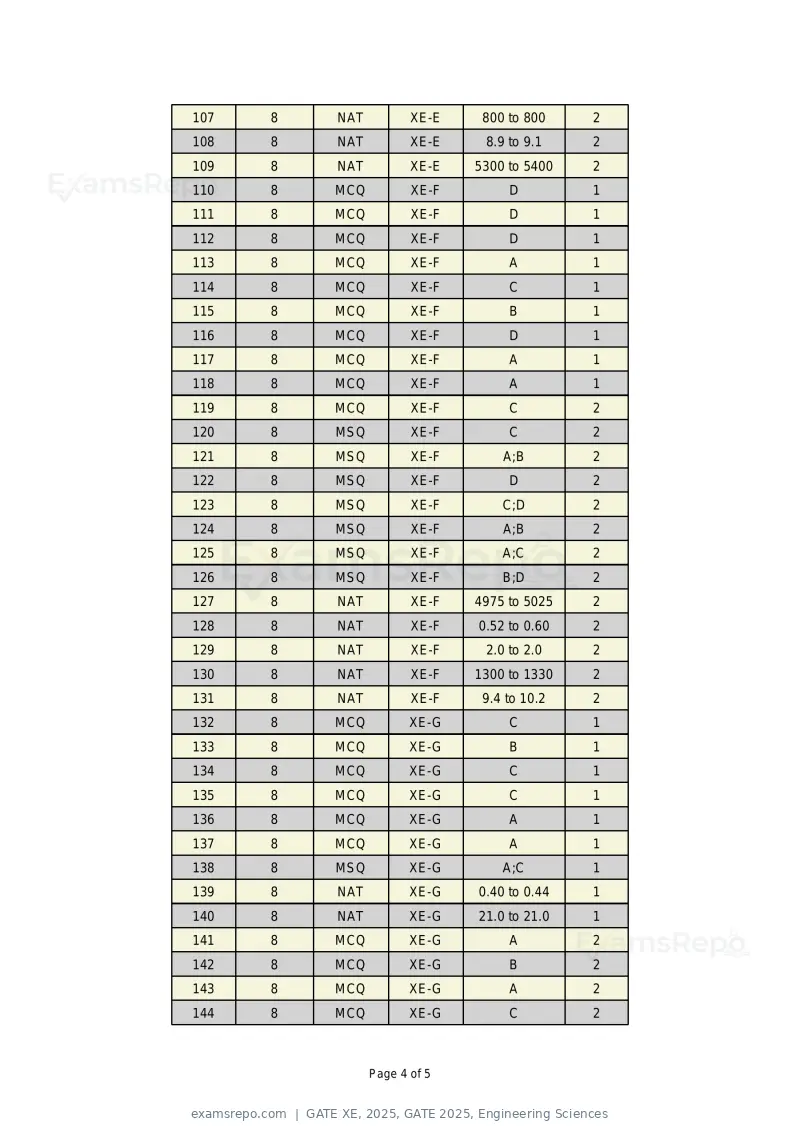

Text of page 4
107 8 NAT XE-E 800 to 800 2
108 8 NAT XE-E 8.9 to 9.1 2
109 8 NAT XE-E 5300 to 5400 2
110 8 MCQ XE-F D 1
111 8 MCQ XE-F D 1
112 8 MCQ XE-F D 1
113 8 MCQ XE-F A 1
114 8 MCQ XE-F C 1
115 8 MCQ XE-F B 1
116 8 MCQ XE-F D 1
117 8 MCQ XE-F A 1
118 8 MCQ XE-F A 1
119 8 MCQ XE-F C 2
120 8 MSQ XE-F C 2
121 8 MSQ XE-F A;B 2
122 8 MSQ XE-F D 2
123 8 MSQ XE-F C;D 2
124 8 MSQ XE-F A;B 2
125 8 MSQ XE-F A;C 2
126 8 MSQ XE-F B;D 2
127 8 NAT XE-F 4975 to 5025 2
128 8 NAT XE-F 0.52 to 0.60 2
129 8 NAT XE-F 2.0 to 2.0 2
130 8 NAT XE-F 1300 to 1330 2
131 8 NAT XE-F 9.4 to 10.2 2
132 8 MCQ XE-G C 1
133 8 MCQ XE-G B 1
134 8 MCQ XE-G C 1
135 8 MCQ XE-G C 1
136 8 MCQ XE-G A 1
137 8 MCQ XE-G A 1
138 8 MSQ XE-G A;C 1
139 8 NAT XE-G 0.40 to 0.44 1
140 8 NAT XE-G 21.0 to 21.0 1
141 8 MCQ XE-G A 2
142 8 MCQ XE-G B 2
143 8 MCQ XE-G A 2
144 8 MCQ XE-G C 2
Page 4 of 5

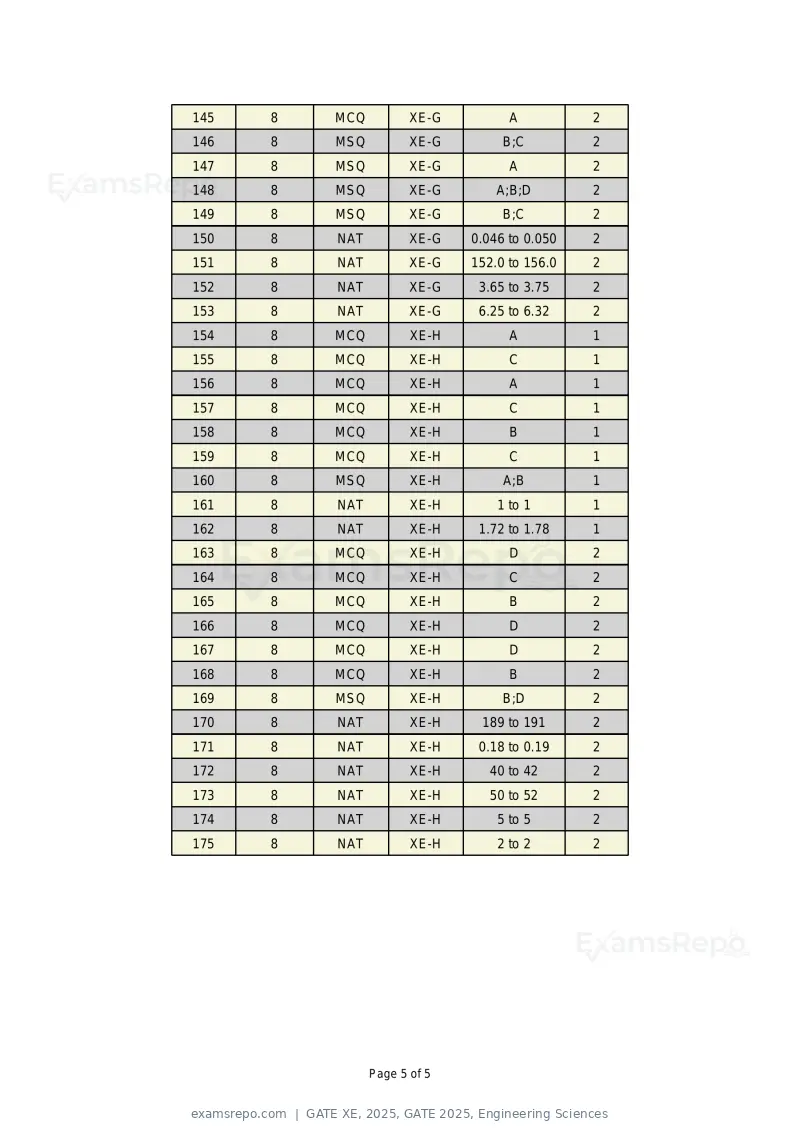

Text of page 5
145 8 MCQ XE-G A 2
146 8 MSQ XE-G B;C 2
147 8 MSQ XE-G A 2
148 8 MSQ XE-G A;B;D 2
149 8 MSQ XE-G B;C 2
150 8 NAT XE-G 0.046 to 0.050 2
151 8 NAT XE-G 152.0 to 156.0 2
152 8 NAT XE-G 3.65 to 3.75 2
153 8 NAT XE-G 6.25 to 6.32 2
154 8 MCQ XE-H A 1
155 8 MCQ XE-H C 1
156 8 MCQ XE-H A 1
157 8 MCQ XE-H C 1
158 8 MCQ XE-H B 1
159 8 MCQ XE-H C 1
160 8 MSQ XE-H A;B 1
161 8 NAT XE-H 1 to 1 1
162 8 NAT XE-H 1.72 to 1.78 1
163 8 MCQ XE-H D 2
164 8 MCQ XE-H C 2
165 8 MCQ XE-H B 2
166 8 MCQ XE-H D 2
167 8 MCQ XE-H D 2
168 8 MCQ XE-H B 2
169 8 MSQ XE-H B;D 2
170 8 NAT XE-H 189 to 191 2
171 8 NAT XE-H 0.18 to 0.19 2
172 8 NAT XE-H 40 to 42 2
173 8 NAT XE-H 50 to 52 2
174 8 NAT XE-H 5 to 5 2
175 8 NAT XE-H 2 to 2 2
Page 5 of 5
Page 1 of 106
Source: GATE. Question paper published by GATE.
