Oscillators Questions and Answers

101.

Which of the following devices can be used for a relaxation oscillator?

Exam Year(s)

DSSSB AE - 2023,

Answer: D

A relaxation oscillator makes a non sinusoidal wave (a sawtooth or pulse) by charging a capacitor through a resistor until a switching device fires and discharges it. The unijunction transistor (UJT) is the classic device for this: when the capacitor voltage reaches the peak point of the emitter characteristic the UJT turns on and quickly discharges the capacitor, and the cycle repeats.


An SCR is a latching switch used for power control, and a PN junction diode and a photodiode have no negative resistance region to make the circuit switch back and forth. The answer is UJT, option D.

Please log in or register to report this question.

Discuss in Forum
102.

What is the oscillator frequency of a transistor phase shift oscillator, if the value of \(R = 5\ \mathrm{k\Omega}\), \(C = 10\ \mu\mathrm{F}\), \(R_C = 10\ \mathrm{k\Omega}\) (for a single transistor stage)?

Exam Year(s)

DSSSB AE - 2023,

Answer: A

For a transistor phase shift oscillator the frequency of oscillation is


\[ f = \frac{1}{2\pi RC\sqrt{6 + 4\,(R_C/R)}} \]


With \(R = 5\ \text{k}\Omega\), \(C = 10\ \mu\text{F}\) and \(R_C = 10\ \text{k}\Omega\), so that \(R_C/R = 2\):


\[ \begin{aligned} 2\pi RC \\ &= 2\pi \times 5000 \times 10 \times 10^{-6} \\ &= 0.3142 \end{aligned} \]


\[ \begin{aligned} f = \frac{1}{0.3142 \times \sqrt{6 + 8}} \\ &= \frac{1}{0.3142 \times 3.742} = 0.85\ \text{Hz} \end{aligned} \]


The answer is 0.85 Hz, option A. The larger values would need a capacitance a hundred times or more smaller.

Please log in or register to report this question.

Discuss in Forum
103.

What is the resonant frequency of the given oscillator if \(R = 51\ \mathrm{k\Omega}\) and \(C = 0.001\ \mu\mathrm{F}\)?

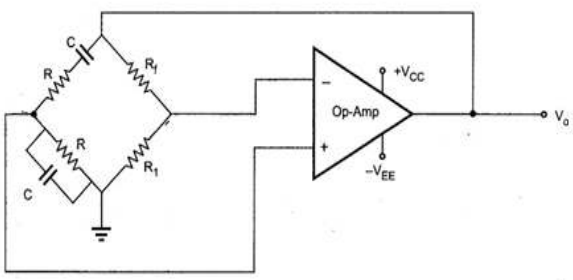

Wien bridge oscillator: an op-amp with a bridge of two R1 resistors and a series RC arm and a parallel RC arm, output Vo fed back to the bridge

Exam Year(s)

DSSSB AE - 2023,

Answer: B

The circuit is a Wien bridge oscillator: the op-amp with a series RC and a parallel RC arm in the bridge. The frequency at which the bridge is balanced and the feedback has zero phase shift is


\[ \begin{aligned} f = \frac{1}{2\pi R C} \\ &= \frac{1}{2\pi \times 51 \times 10^{3} \times 0.001 \times 10^{-6}} \end{aligned} \]


\[ f = \frac{1}{3.204 \times 10^{-4}} = 3120.7\ \text{Hz} \]


The other values are factors of ten or a hundred away, which would come from a slip in the capacitance, 0.001 microfarad being \(10^{-9}\) F. The answer is 3120.7 Hz, option B.

Please log in or register to report this question.

Discuss in Forum
