Polymer Chemistry Questions and Answers

Answer: C

The T_g of the blend is about 37.5°C.

For a miscible blend the Fox equation weights the reciprocal glass transition temperatures (in kelvin) by mass fraction:

\[ \begin{aligned} \frac{1}{T_{g}} &= \frac{0.3}{223.15} + \frac{0.7}{373.15} \\ &= 0.0013444 + 0.0018759 = 0.0032203 \\ T_{g} &= 310.5\ \text{K} \approx 37.4^{\circ}\text{C} \end{aligned} \]

A simple linear rule of mixtures would give 0.3(-50) + 0.7(100) = 55°C, which is not offered. The other options do not follow from the Fox equation with these weight fractions.

Answer: A

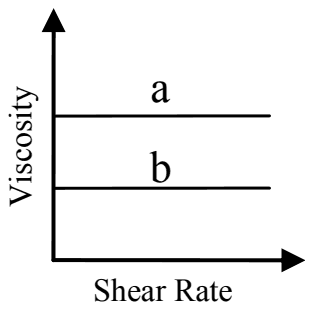

The viscosity plots are (A): two horizontal lines, with a above b.

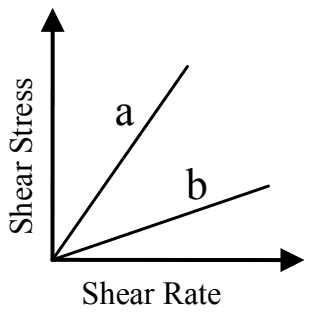

Both flow curves are straight lines through the origin, so shear stress is proportional to shear rate: both fluids are Newtonian. Their viscosity, the slope \(\tau/\dot{\gamma}\), is a constant that does not change with shear rate, so each plots as a horizontal line on a viscosity against shear rate graph.

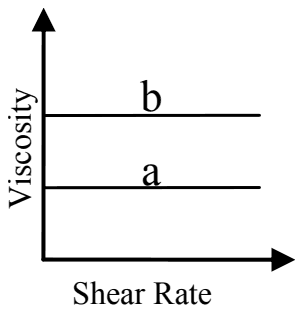

Fluid a has the steeper flow curve, so it has the higher viscosity and its line lies above b's. Plot (C) reverses the order. Plots (B) and (D) show viscosity rising with shear rate, which describes shear-thickening fluids, not straight-line flow curves through the origin.

Answer: B

The flexural strength is about 29.4 MPa.

For three-point bending of a rectangular bar, the maximum stress at mid-span is \(\sigma = 3FL/(2bd^{2})\), with the 30 cm length taken as the span and the 80 kg load as a force of 784.8 N:

\[ \begin{aligned} \sigma &= \frac{3(784.8)(0.30)}{2(0.03)(0.02)^{2}} \\ &= \frac{706.3}{2.4 \times 10^{-5}} = 2.94 \times 10^{7}\ \text{Pa} \end{aligned} \]

that is 29.4 MPa. Using a rectangular section with width and depth swapped gives about 19.6 MPa, and forgetting to convert kilograms to newtons gives 3 MPa; neither is offered, and the other options do not follow from the formula.

Answer: D

They are measured by dynamic mechanical thermal analysis (DMTA, or DMA).

DMTA applies a small oscillating stress or strain and records the response over a range of temperature or frequency. The in-phase part gives the storage modulus E′, the out-of-phase part the loss modulus E″, and their ratio is tan δ, whose peak marks the glass transition.

Differential scanning calorimetry measures heat flow, thermogravimetric analysis measures mass change, and thermomechanical analysis measures dimensional change under a static load. None of them measures a modulus under oscillating load.

Answer: D

The match is P-2; Q-1; R-4; S-3.

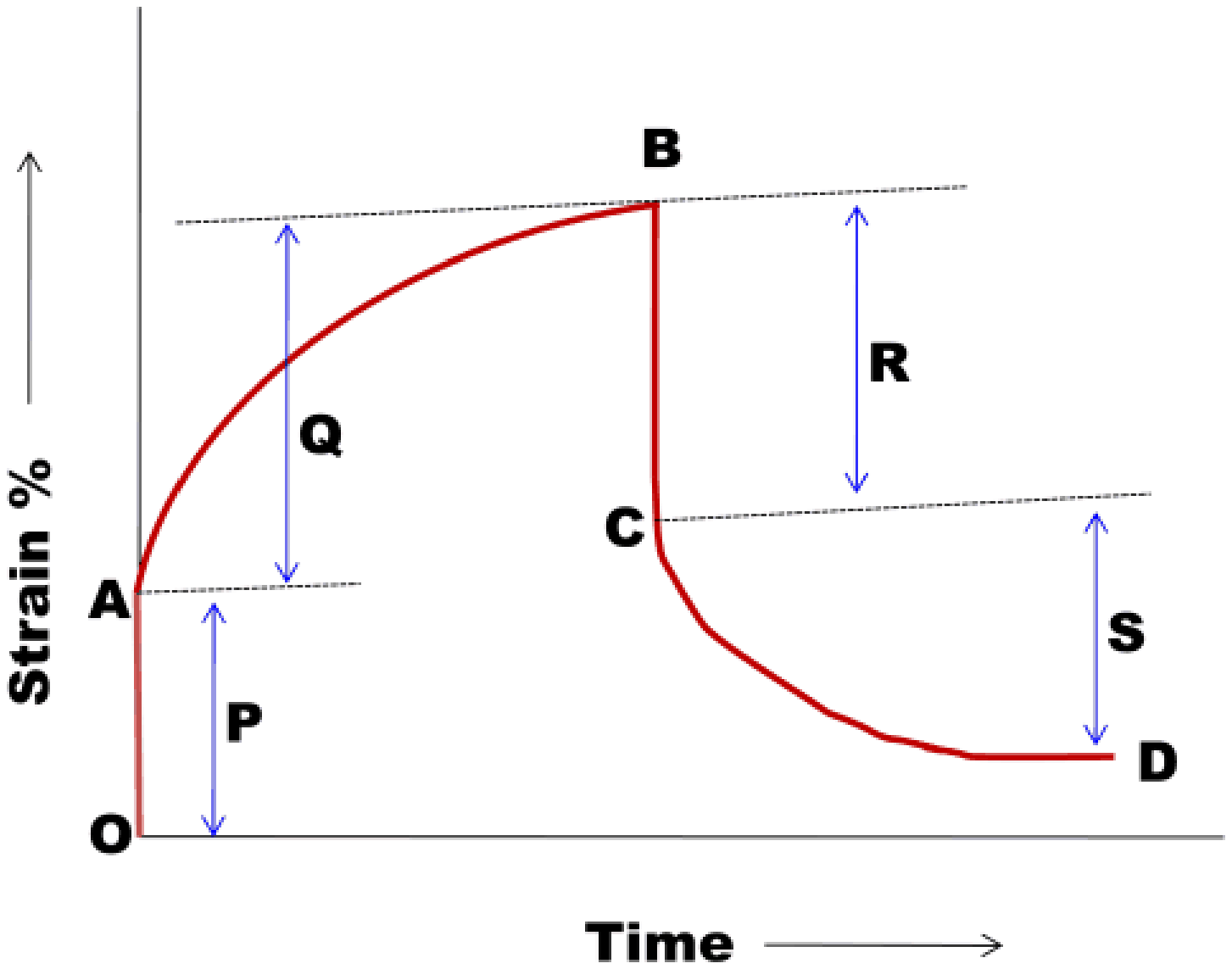

The plot is a creep and recovery test on a viscoelastic polymer. When the load is applied, strain jumps at once from O to A: this instant part P is elastic deformation. Under constant load the strain then keeps rising with time from A to B: the time-dependent part Q is viscoelastic deformation.

When the load is removed at B, the strain drops at once from B to C: this instant part R is elastic recovery, equal in size to P. The strain then decreases slowly from C to D: S is viscoelastic recovery. The strain at D does not return to zero, which is the permanent (viscous) flow.

The other options swap instant and time-dependent parts, for example calling the vertical jump P viscoelastic.

Answer: C

The match is P-2; Q-3; R-1.

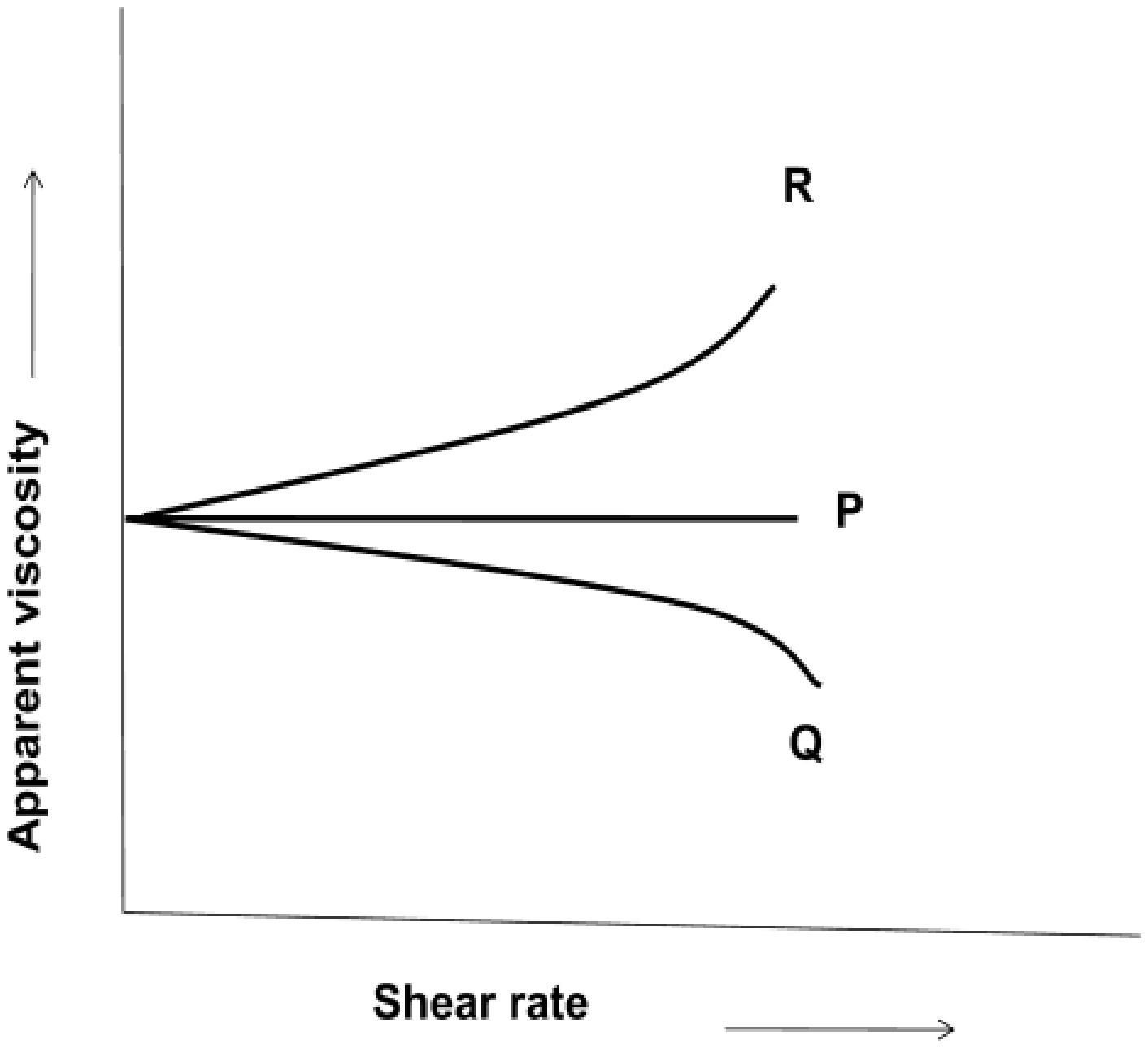

A Newtonian fluid has a viscosity independent of shear rate: the horizontal line P. A pseudoplastic (shear-thinning) fluid's apparent viscosity falls as shear rate rises: the falling curve Q. A dilatant (shear-thickening) fluid's apparent viscosity rises with shear rate: the rising curve R.

'P-1; Q-2; R-3' calls the flat line dilatant, and 'P-3; Q-1; R-2' calls it pseudoplastic. The last option assigns Q twice and leaves R unassigned, so it cannot be a complete match.

Answer: C

The match is P-2; Q-1; R-4; S-3.

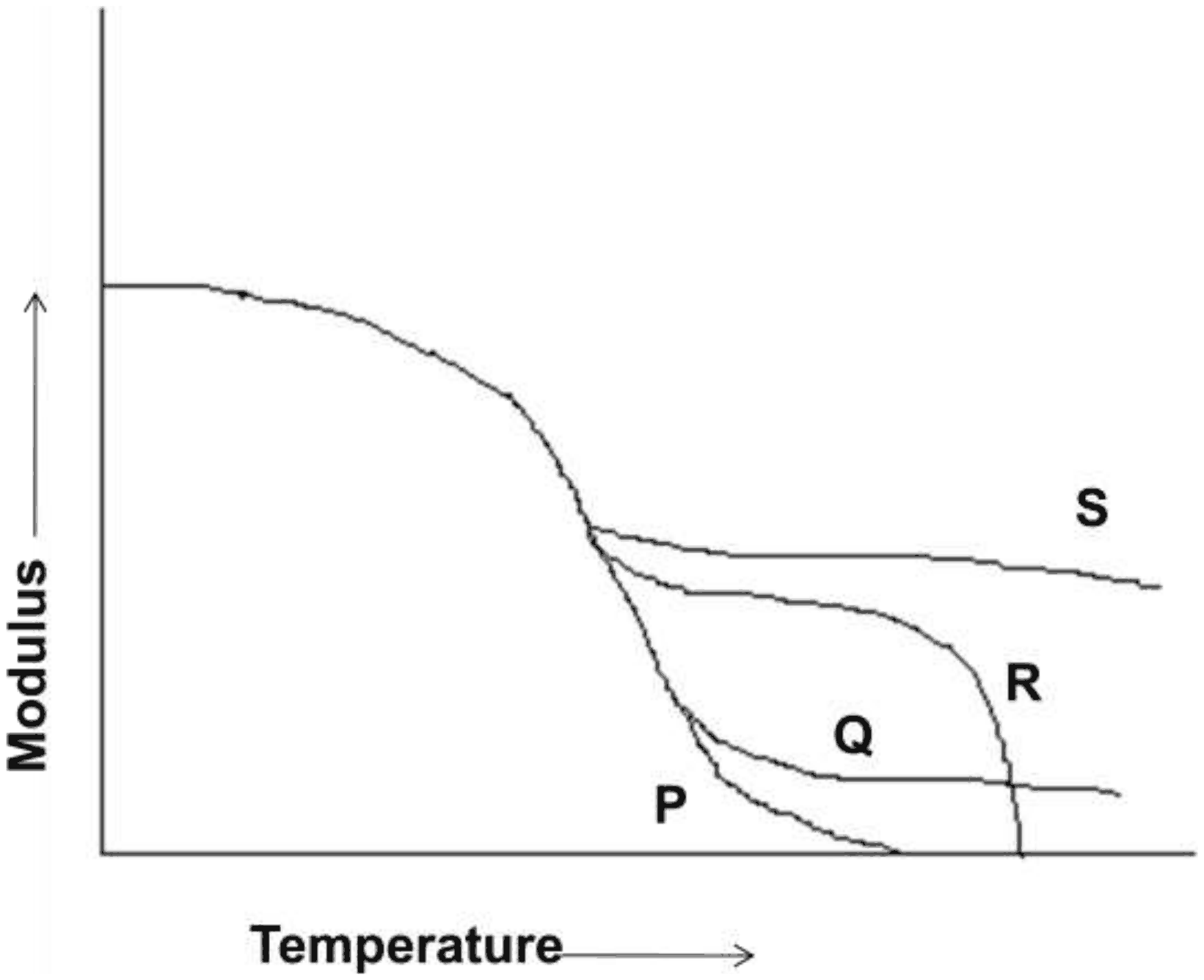

All four polymers share the glassy plateau and the fall in modulus through the glass transition. What follows tells them apart:

• P drops straight to zero, flowing as soon as it softens: an amorphous polymer of moderate molecular weight, with too few entanglements for a rubbery plateau.
• Q levels off at a low rubbery plateau before slowly declining: entanglements in a high molecular weight amorphous polymer act as temporary crosslinks.
• R holds a higher plateau that ends abruptly: a semi-crystalline polymer, stiffened by its crystallites until they melt.
• S keeps a high, nearly flat modulus to the highest temperatures: a highly crosslinked polymer, which cannot flow.

Options assigning the crosslinked polymer to R or the semi-crystalline polymer to S get the end of the plateau wrong.

Answer: B

The blend is immiscible due to entropic constraints.

The free energy of mixing is \(\Delta G_{m} = \Delta H_{m} - T\Delta S_{m}\). For small molecules the combinatorial entropy of mixing is large and drives mixing, but for long chains it is tiny, because each chain contributes only one translational unit however many segments it has (in the Flory-Huggins expression the entropy terms are divided by the chain lengths). Even a small positive enthalpy of mixing between the similar but not identical PE and PP segments then outweighs it, and the polymers separate. The paper attributes this to the entropic constraint.

Being polyolefins with similar solubility parameters is not enough for high polymers, so both 'miscible' options are wrong.

Answer: A

The relation is E' = \(\sqrt{3}\) E''.

In dynamic mechanical analysis the loss tangent is the ratio of loss to storage modulus, \(\tan\delta = E''/E'\). With \(\delta = 30^{\circ}\):

\[ \begin{aligned} \frac{E''}{E'} &= \tan 30^{\circ} = \frac{1}{\sqrt{3}} \\ E' &= \sqrt{3}E'' \end{aligned} \]

\(E'' = \sqrt{3}E'\) is the case \(\delta = 60^{\circ}\). The two options with a factor 2 use \(\sin\) or \(\cos\) of 30° (0.5 and \(\sqrt{3}/2\)) instead of the tangent.

Answer: C

The match is P-3; Q-1; R-4; S-2.

• Surface resistivity is the resistance across a square of surface, so its unit is the ohm (often written ohm per square).
• Volume resistivity is resistance times area over thickness: ohm-cm.
• The coefficient of thermal expansion is a fractional change per kelvin: K^-1.
• Electrical conductivity is the reciprocal of resistivity: S cm^-1.

The options pairing surface resistivity with ohm-cm or S cm^-1, or the expansion coefficient with S cm^-1, confuse these.
