Entropy Questions and Answers

Q: 32 kg of oxygen is mixed with 28 kg of nitrogen at the same temperature. The gases are at the same pressure of 103 kPa before and after mixing. If \(\bar{R}\) is the universal gas constant in kJ/kmol.K, the change in entropy of the mixture is

The entropy change is \(1.38\bar{R}\).32 kg of O2 is 1 kmol and 28 kg of N2 is 1 kmol, so each mole fraction is 0.5. Mixing ideal gases at the same temperature and pressure gives\[ \begin{aligned} \Delta S &= -\bar{R}\sum n_{i}\ln x_{i} = -\bar{R}\,[\ln 0.5 + \ln 0.5] \\ &= 2\bar{R}\ln 2 = 1.386\bar{R} \end{aligned} \]The option \(0.69\bar{R}\) counts only one gas's contribution, \(\ln 2\). \(\bar{R}\) and \(0.34\bar{R}\) do not follow from the formula. The pressure value, 103 kPa, does not matter, since it is the same before and after.

Q: A substance experiences an entropy change of \(\Delta s \gt 0\) in a quasi-steady process. The rise in temperature (corresponding to the entropy change \(\Delta s\)) is highest for the following process:

The temperature rise is highest for the isochoric process.For a reversible process \(T\,ds = \delta q\). At constant volume \(\delta q = c_{v}\,dT\), and at constant pressure \(\delta q = c_{p}\,dT\), so for the same entropy change\[ \begin{aligned} dT_{v} &= \frac{T\,ds}{c_{v}} \\ dT_{p} &= \frac{T\,ds}{c_{p}} \end{aligned} \]Since \(c_{v} \lt c_{p}\), the isochoric rise is larger, by the factor \(\gamma = c_{p}/c_{v}\). In an isothermal process the temperature does not rise at all, and an isenthalpic process of an ideal gas also keeps the temperature constant, since enthalpy depends only on temperature.

Q: In the figure shown below, various thermodynamics processes for an ideal gas are represented. Match each curve with the process that it best represents.

The matching is aa' - Isothermal; bb' - Isentropic; cc' - Isobaric; dd' - Isochoric.On a temperature-entropy diagram a horizontal line keeps the temperature fixed, so aa' is isothermal, and a vertical line keeps the entropy fixed, so bb' is isentropic.Constant-volume and constant-pressure lines both rise to the right, with slopes\[ \begin{aligned} \left(\frac{\partial T}{\partial s}\right)_{v} &= \frac{T}{c_{v}} \\ \left(\frac{\partial T}{\partial s}\right)_{p} &= \frac{T}{c_{p}} \end{aligned} \]Since \(c_{p} \gt c_{v}\), the isochoric line is the steeper one. dd' is steeper than cc' through the common point, so dd' is isochoric and cc' isobaric.The other options either swap the horizontal and vertical lines or swap the two sloping curves.

Q: For an ideal gas with constant properties undergoing a quasi-static process, which one of the following represents the change of entropy (Δs) from state 1 to 2?

The correct expression is \(\Delta s = C_{p}\ln\frac{T_{2}}{T_{1}} - R\ln\frac{P_{2}}{P_{1}}\).From the Gibbs relation \(T\,ds = dh - v\,dP\), with \(dh = C_{p}\,dT\) and \(v = RT/P\) for an ideal gas:\[ \begin{aligned} ds &= C_{p}\frac{dT}{T} - R\frac{dP}{P} \\ \Delta s &= C_{p}\ln\frac{T_{2}}{T_{1}} - R\ln\frac{P_{2}}{P_{1}} \end{aligned} \]The volume form is \(\Delta s = C_{V}\ln\frac{T_{2}}{T_{1}} + R\ln\frac{V_{2}}{V_{1}}\). Option D has \(R\ln(V_{1}/V_{2})\), which reverses the sign of the volume term. Options B and C put a heat capacity where R belongs.

Q: Water at 300 K can be brought to 320 K using one of the following processes.Process 1: Water is brought in equilibrium with a reservoir at 320 K directly.Process 2: Water is first brought in equilibrium with a reservoir at 310 K and then with the reservoir at 320 K.Process 3: Water is first brought in equilibrium with a reservoir at 350 K and then with the reservoir at 320 K.The corresponding changes in the entropy of the universe for these processes are \(\Delta S_{1}\), \(\Delta S_{2}\) and \(\Delta S_{3}\), respectively. Then

The order is \(\Delta S_{3} \gt \Delta S_{1} \gt \Delta S_{2}\).When water of heat capacity \(C\) goes from \(T_{1}\) to \(T_{2}\) in contact with a reservoir at \(T_{r}\), the entropy of the universe changes by \(C\ln(T_{2}/T_{1}) - C(T_{2} - T_{1})/T_{r}\). In units of \(C\):Process 1: \(\ln(320/300) - 20/320 = 0.0645 - 0.0625 = 0.0020\).Process 2: \(\ln\frac{310}{300} - \frac{10}{310} \approx 0.0005\) for the first stage plus \(\ln\frac{320}{310} - \frac{10}{320} \approx 0.0005\) for the second, about 0.0010 in all.Process 3: heating to 350 K gives \(0.1542 - 0.1429 = 0.0113\); cooling back to 320 K gives \(-0.0896 + 0.0938 = 0.0041\); total about 0.0154.Smaller temperature steps make the heat transfer closer to reversible, so process 2 generates the least entropy. Overshooting to 350 K and coming back adds two irreversible transfers, so process 3 generates the most.

Q: A 5 kg metal block (\(c_{p}\) = 0.5 kJ/kg-K) at 373 K is submerged into 10 kg of water (\(c_{p}\) = 4.2 kJ/kg-K) at 293 K in an insulated rigid container without spilling. Assuming thermal equilibrium is reached, the approximate entropy change of the universe is

The entropy change of the universe is about 0.073 kJ/K.The container is insulated and rigid, so the heat lost by the block equals the heat gained by the water:\[ \begin{aligned} 5(0.5)(373 - T) &= 10(4.2)(T - 293) \\ T &= \frac{932.5 + 12306}{44.5} = 297.5\ \text{K} \end{aligned} \]Each body's entropy change is \(mc\ln(T_{2}/T_{1})\):\[ \begin{aligned} \Delta S_{block} &= 2.5\ln\tfrac{297.5}{373} = -0.565 \\ \Delta S_{water} &= 42\ln\tfrac{297.5}{293} = +0.639 \\ \Delta S_{univ} &\approx 0.073\ \text{kJ/K} \end{aligned} \]No heat leaves the container, so the surroundings' entropy does not change. \(-0.565\) kJ/K is the block's change alone, and 0.642 kJ/K is close to the water's alone; the universe's total must be positive for this irreversible process.

Q: 10 kg of water at 300 K is poured into a bucket containing 10 kg of water at 350 K. Heat capacity of water is 4.2 kJ/kg.K. Neglecting any heat losses to the surroundings, the change in the entropy (in kJ/K) of the system during this process (rounded off to two decimal places) is

The entropy change is 0.25 kJ/K.Equal masses of water mix to the mean temperature, 325 K. The entropy change of each mass is \(mc\ln(T_f/T_i)\):\[ \begin{aligned} \Delta S &= 42\left[\ln\tfrac{325}{300} + \ln\tfrac{325}{350}\right] \\ &= 42(0.08004 - 0.07411) \\ &= 0.249 \approx 0.25\ \text{kJ/K} \end{aligned} \]with \(mc = 10 \times 4.2 = 42\) kJ/K. The cold water gains more entropy than the hot water loses, so the total is positive, as it must be for an irreversible mixing. 0.00 would describe a reversible process, and 0.50 and 0.75 overstate the result.

Direction for [ Question No: 1 To 2 ] :

Note: Usual notations have been used for thermodynamic variables.

Useful Data: Unless otherwise specified, the following data may be assumed. Universal gas constant, \(\bar{R}\) = 8.314 kJ/kmol.K; Acceleration due to gravity, g = 9.81 m/s²; Molecular mass of air, M_air = 29 kg/kmol; Specific heat of air at constant pressure, c_p = 1.005 kJ/kg.K; Ratio of specific heats of air, γ = 1.4. Assume air to be a perfect gas unless specified otherwise.

Clausius inequality is written as

A.\(\oint \delta Q \gt 0\)
B.\(\oint \delta Q \lt 0\)
C.\(\oint \dfrac{\delta Q}{T} \le 0\)
D.\(\oint \dfrac{\delta Q}{T} \gt 0\)

Exam Year(s)

GATE XE - 2012,

Answer: C

The Clausius inequality is \(\oint \dfrac{\delta Q}{T} \le 0\).

For any closed cycle, the cyclic integral of heat transferred divided by the absolute temperature at the boundary where it crosses is zero for a reversible cycle and negative for an irreversible one. It is a statement of the second law, and leads directly to the definition of entropy, \(dS = (\delta Q/T)_{rev}\).

The cyclic integral of \(\delta Q\) alone equals the net work of the cycle by the first law and can be positive (an engine) or negative (a refrigerator), so the first two options are not the inequality. \(\oint \delta Q/T \gt 0\) would describe a cycle that violates the second law.

Discuss in Forum

32 kg of oxygen is mixed with 28 kg of nitrogen at the same temperature. The gases are at the same pressure of 103 kPa before and after mixing. If \(\bar{R}\) is the universal gas constant in kJ/kmol.K, the change in entropy of the mixture is

A.\(1.38\bar{R}\)
B.\(0.69\bar{R}\)
C.\(\bar{R}\)
D.\(0.34\bar{R}\)

Exam Year(s)

GATE XE - 2012,

Answer: A

The entropy change is \(1.38\bar{R}\).

32 kg of O₂ is 1 kmol and 28 kg of N₂ is 1 kmol, so each mole fraction is 0.5. Mixing ideal gases at the same temperature and pressure gives

\[ \begin{aligned} \Delta S &= -\bar{R}\sum n_{i}\ln x_{i} = -\bar{R}\,[\ln 0.5 + \ln 0.5] \\ &= 2\bar{R}\ln 2 = 1.386\bar{R} \end{aligned} \]

The option \(0.69\bar{R}\) counts only one gas's contribution, \(\ln 2\). \(\bar{R}\) and \(0.34\bar{R}\) do not follow from the formula. The pressure value, 103 kPa, does not matter, since it is the same before and after.

Discuss in Forum

The equation for change of entropy per kg viz. \(R\log_{e}\dfrac{v_2}{v_1}\) is for the ______.

A.adiabatic process.
B.isothermal process.
C.polytropic process.
D.constant volume process.

Exam Year(s)

DSSSB - 2023,

Answer: B

The expression \(R\log_e\frac{v_2}{v_1}\) is the change of entropy per kg for an isothermal process. For an ideal gas, \[ ds = c_v\frac{dT}{T} + R\frac{dv}{v} \] and at constant temperature the first term vanishes, which gives \[ s_2 - s_1 = R\log_e\frac{v_2}{v_1} \] In an adiabatic process the change of entropy is zero for the reversible case, and in a constant volume process only the temperature term is left, so the other options are wrong.

Discuss in Forum

Which is the characteristic of entropy?

A.It remains unchanged in few adiabatic frictionless processes.
B.It decreases when heat is supplied irrespective of the fact whether temperature changes or not.
C.It decreases when heat is removed whether temperature changes or not.
D.It increases if temperature of heat is raised without work being done as in a throttling process.

Exam Year(s)

DSSSB - 2023,

Answer: C

The characteristic of entropy named in the key is that it decreases when heat is removed, whether the temperature changes or not. Entropy of a system changes by \(\int \frac{dQ}{T}\) for a reversible process, so removing heat makes the integral negative and lowers the entropy of the system. The first statement is not what the key accepts, since entropy is unchanged in reversible adiabatic processes and increases in irreversible ones. The statement that it decreases when heat is supplied is the reverse of the truth, and the fourth statement about a throttling process is not the keyed statement.

Discuss in Forum

A substance experiences an entropy change of \(\Delta s \gt 0\) in a quasi-steady process. The rise in temperature (corresponding to the entropy change \(\Delta s\)) is highest for the following process:

A.isenthalpic
B.isobaric
C.isochoric
D.isothermal

Exam Year(s)

GATE AE - 2016,

Answer: C

The temperature rise is highest for the isochoric process.

For a reversible process \(T\,ds = \delta q\). At constant volume \(\delta q = c_{v}\,dT\), and at constant pressure \(\delta q = c_{p}\,dT\), so for the same entropy change

\[ \begin{aligned} dT_{v} &= \frac{T\,ds}{c_{v}} \\ dT_{p} &= \frac{T\,ds}{c_{p}} \end{aligned} \]

Since \(c_{v} \lt c_{p}\), the isochoric rise is larger, by the factor \(\gamma = c_{p}/c_{v}\). In an isothermal process the temperature does not rise at all, and an isenthalpic process of an ideal gas also keeps the temperature constant, since enthalpy depends only on temperature.

Discuss in Forum

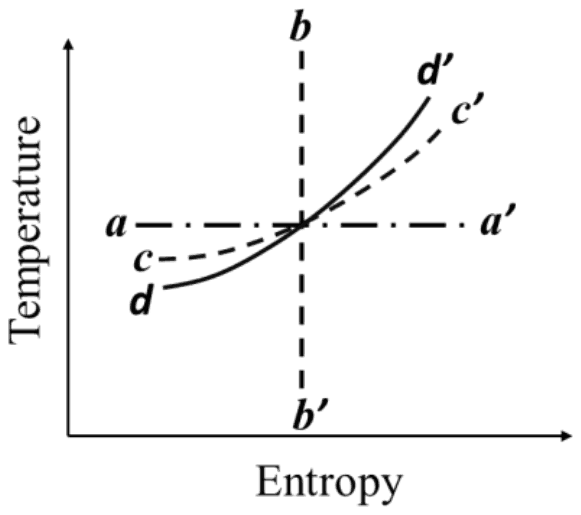

In the figure shown below, various thermodynamics processes for an ideal gas are represented. Match each curve with the process that it best represents.

Temperature against entropy: a horizontal line aa, a vertical line bb, and two rising curves cc and dd through the same point, dd being the steeper

A.aa' - Isentropic; bb' - Isothermal; cc' - Isobaric; dd' - Isochoric
B.aa' - Isothermal; bb' - Isentropic; cc' - Isochoric; dd' - Isobaric
C.aa' - Isothermal; bb' - Isentropic; cc' - Isobaric; dd' - Isochoric
D.aa' - Isothermal; bb' - Isobaric; cc' - Isentropic; dd' - Isochoric

Exam Year(s)

GATE AE - 2024,

Answer: C

The matching is aa' - Isothermal; bb' - Isentropic; cc' - Isobaric; dd' - Isochoric.

On a temperature-entropy diagram a horizontal line keeps the temperature fixed, so aa' is isothermal, and a vertical line keeps the entropy fixed, so bb' is isentropic.

Constant-volume and constant-pressure lines both rise to the right, with slopes

\[ \begin{aligned} \left(\frac{\partial T}{\partial s}\right)_{v} &= \frac{T}{c_{v}} \\ \left(\frac{\partial T}{\partial s}\right)_{p} &= \frac{T}{c_{p}} \end{aligned} \]

Since \(c_{p} \gt c_{v}\), the isochoric line is the steeper one. dd' is steeper than cc' through the common point, so dd' is isochoric and cc' isobaric.

The other options either swap the horizontal and vertical lines or swap the two sloping curves.

Discuss in Forum

For an ideal gas with constant properties undergoing a quasi-static process, which one of the following represents the change of entropy (Δs) from state 1 to 2?

A.\(\Delta s = C_p\ln(\frac{T_2}{T_1}) - R\ln(\frac{P_2}{P_1})\)
B.\(\Delta s = C_V\ln(\frac{T_2}{T_1}) - C_p\ln(\frac{V_2}{V_1})\)
C.\(\Delta s = C_P\ln(\frac{T_2}{T_1}) - C_V\ln(\frac{P_2}{P_1})\)
D.\(\Delta s = C_V\ln(\frac{T_2}{T_1}) + R\ln(\frac{V_1}{V_2})\)

Exam Year(s)

GATE ME - 2018,

Answer: A

The correct expression is \(\Delta s = C_{p}\ln\frac{T_{2}}{T_{1}} - R\ln\frac{P_{2}}{P_{1}}\).

From the Gibbs relation \(T\,ds = dh - v\,dP\), with \(dh = C_{p}\,dT\) and \(v = RT/P\) for an ideal gas:

\[ \begin{aligned} ds &= C_{p}\frac{dT}{T} - R\frac{dP}{P} \\ \Delta s &= C_{p}\ln\frac{T_{2}}{T_{1}} - R\ln\frac{P_{2}}{P_{1}} \end{aligned} \]

The volume form is \(\Delta s = C_{V}\ln\frac{T_{2}}{T_{1}} + R\ln\frac{V_{2}}{V_{1}}\). Option D has \(R\ln(V_{1}/V_{2})\), which reverses the sign of the volume term. Options B and C put a heat capacity where R belongs.

Discuss in Forum

Water at 300 K can be brought to 320 K using one of the following processes.

Process 1: Water is brought in equilibrium with a reservoir at 320 K directly.
Process 2: Water is first brought in equilibrium with a reservoir at 310 K and then with the reservoir at 320 K.
Process 3: Water is first brought in equilibrium with a reservoir at 350 K and then with the reservoir at 320 K.

The corresponding changes in the entropy of the universe for these processes are \(\Delta S_{1}\), \(\Delta S_{2}\) and \(\Delta S_{3}\), respectively. Then

A.\(\Delta S_{2} \gt \Delta S_{1} \gt \Delta S_{3}\)
B.\(\Delta S_{3} \gt \Delta S_{1} \gt \Delta S_{2}\)
C.\(\Delta S_{3} \gt \Delta S_{2} \gt \Delta S_{1}\)
D.\(\Delta S_{1} \gt \Delta S_{2} \gt \Delta S_{3}\)

Exam Year(s)

GATE Physics - 2022,

Answer: B

The order is \(\Delta S_{3} \gt \Delta S_{1} \gt \Delta S_{2}\).

When water of heat capacity \(C\) goes from \(T_{1}\) to \(T_{2}\) in contact with a reservoir at \(T_{r}\), the entropy of the universe changes by \(C\ln(T_{2}/T_{1}) - C(T_{2} - T_{1})/T_{r}\). In units of \(C\):

Process 1: \(\ln(320/300) - 20/320 = 0.0645 - 0.0625 = 0.0020\).
Process 2: \(\ln\frac{310}{300} - \frac{10}{310} \approx 0.0005\) for the first stage plus \(\ln\frac{320}{310} - \frac{10}{320} \approx 0.0005\) for the second, about 0.0010 in all.
Process 3: heating to 350 K gives \(0.1542 - 0.1429 = 0.0113\); cooling back to 320 K gives \(-0.0896 + 0.0938 = 0.0041\); total about 0.0154.

Smaller temperature steps make the heat transfer closer to reversible, so process 2 generates the least entropy. Overshooting to 350 K and coming back adds two irreversible transfers, so process 3 generates the most.

Discuss in Forum

A 5 kg metal block (\(c_{p}\) = 0.5 kJ/kg-K) at 373 K is submerged into 10 kg of water (\(c_{p}\) = 4.2 kJ/kg-K) at 293 K in an insulated rigid container without spilling. Assuming thermal equilibrium is reached, the approximate entropy change of the universe is

A.−0.565 kJ/K
B.0.073 kJ/K
C.0.642 kJ/K
D.0.963 kJ/K

Exam Year(s)

GATE XE - 2023,

Answer: B

The entropy change of the universe is about 0.073 kJ/K.

The container is insulated and rigid, so the heat lost by the block equals the heat gained by the water:

\[ \begin{aligned} 5(0.5)(373 - T) &= 10(4.2)(T - 293) \\ T &= \frac{932.5 + 12306}{44.5} = 297.5\ \text{K} \end{aligned} \]

Each body's entropy change is \(mc\ln(T_{2}/T_{1})\):

\[ \begin{aligned} \Delta S_{block} &= 2.5\ln\tfrac{297.5}{373} = -0.565 \\ \Delta S_{water} &= 42\ln\tfrac{297.5}{293} = +0.639 \\ \Delta S_{univ} &\approx 0.073\ \text{kJ/K} \end{aligned} \]

No heat leaves the container, so the surroundings' entropy does not change. \(-0.565\) kJ/K is the block's change alone, and 0.642 kJ/K is close to the water's alone; the universe's total must be positive for this irreversible process.

Discuss in Forum

10.

10 kg of water at 300 K is poured into a bucket containing 10 kg of water at 350 K. Heat capacity of water is 4.2 kJ/kg.K. Neglecting any heat losses to the surroundings, the change in the entropy (in kJ/K) of the system during this process (rounded off to two decimal places) is

A.0.00
B.0.25
C.0.50
D.0.75

Exam Year(s)

GATE XE - 2024,

Answer: B

The entropy change is 0.25 kJ/K.

Equal masses of water mix to the mean temperature, 325 K. The entropy change of each mass is \(mc\ln(T_f/T_i)\):

\[ \begin{aligned} \Delta S &= 42\left[\ln\tfrac{325}{300} + \ln\tfrac{325}{350}\right] \\ &= 42(0.08004 - 0.07411) \\ &= 0.249 \approx 0.25\ \text{kJ/K} \end{aligned} \]

with \(mc = 10 \times 4.2 = 42\) kJ/K. The cold water gains more entropy than the hot water loses, so the total is positive, as it must be for an irreversible mixing. 0.00 would describe a reversible process, and 0.50 and 0.75 overstate the result.

Discuss in Forum
